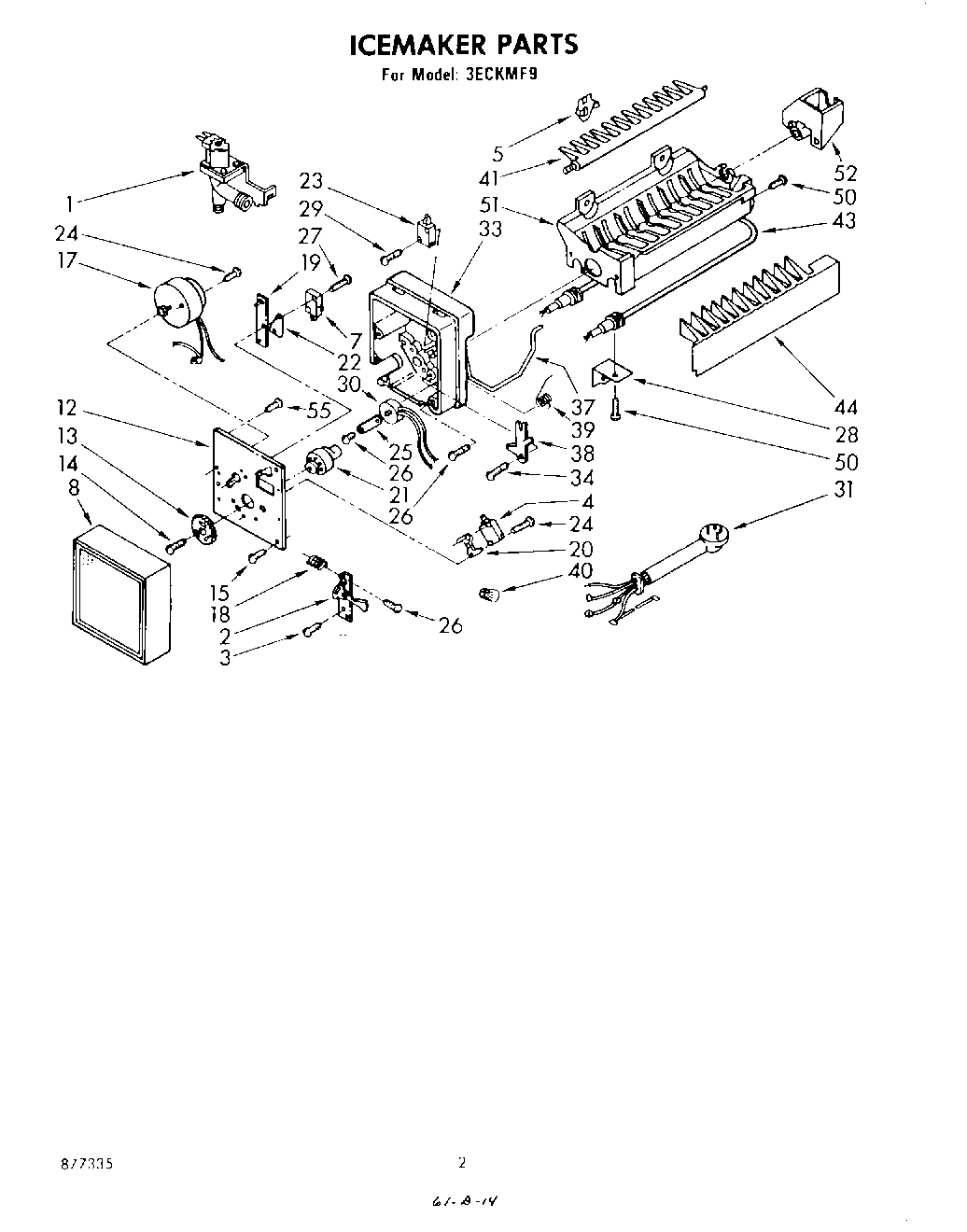

Model Whirlpool 3ECKMF9 ICE MAKER – Common Parts & Diagrams

7
Switch, S.P.S.T.
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
View on Model
8
Cover
Cover WPL 627651 Contact Us For Availability
View on Model
12
Plate, Mounting
Plate, Mounting WPL 627022 Contact Us For Availability
View on Model
13
Gear
Gear WPL 625914 Contact Us For Availability
View on Model
14
Screw
Screw WPL 488957 Contact Us For Availability
View on Model
17
Motor
Motor WPL 626073 Contact Us For Availability
View on Model
18
Spring
Spring WPL 627163 Contact Us For Availability
View on Model
19
Plate, Valve Switch
Plate, Valve Switch WPL 627024 Contact Us For Availability
View on Model
20
Spacer, Holding Switch
Spacer, Holding Switch WPL 625834 Contact Us For Availability
View on Model
21
Cam
Cam WPL 625913 Contact Us For Availability
View on Model
22
Insulator
Insulator WPL 625835 Contact Us For Availability
View on Model
23
Switch, S.P.D.T.
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
View on Model
24
Screw, 4-40 x 1
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
View on Model
25
Clamp
Clamp WPL 625829 Contact Us For Availability
View on Model
26
Screw, 8-32 x 1
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
View on Model
27
Screw, 4-40 X 3/4 (2)
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
View on Model
29
Screw, 4-24 x 3/4 (2)
Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability
View on Model
30
Thermostat
Thermostat WPL 625844 Contact Us For Availability
View on Model
30
THERMOSTAT (ALTERNATE)
THERMOSTAT (ALTERNATE) WPL 627180 Contact Us For Availability
View on Model
31
Harness Wiring
Harness Wiring WPL 627134 Contact Us For Availability
View on Model
33
Support
Support WPL 625827 Contact Us For Availability
View on Model
34
Screw, Shoulder
Screw, Shoulder WPL 627199 Contact Us For Availability
View on Model
37
Arm, Shut-Off
Arm, Shut-Off WPL 627003 Contact Us For Availability
View on Model
38
Lever, Arm
Lever, Arm WPL 625830 Contact Us For Availability
View on Model
39
Spring, Shut-Off Arm
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
View on Model
40
Nut, Wire
Nut, Wire WPL 227991 Contact Us For Availability
View on Model
41
Ejector
Ejector WPL 627375 Contact Us For Availability
View on Model
43
Heater, Mold
Heater, Mold WPL 626069 Contact Us For Availability
View on Model
44
Stripper, Ice
Stripper, Ice WPL 625840 Contact Us For Availability
View on Model
50
Screw, 8-16 x 3/8
Screw, 8-16 x 3/8 WPL 488896 Contact Us For Availability
View on Model
51
Mold & Heater Assembly (Includes Illus. 43)
Mold & Heater Assembly (Includes Illus. 43) WPL 626068 Contact Us For Availability
View on Model
52
Bearing & Inlet
Bearing & Inlet WPL 627132 Contact Us For Availability
View on Model
55
Screw, Ground
Screw, Ground WPL 488542 Contact Us For Availability
View on Model
55
Screw Grommet
Screw Grommet WPL 502037 Contact Us For Availability
View on Model
55
Tube Clamp
Tube Clamp WPL 510716 Contact Us For Availability
View on Model
55
Nut, Inlet Valve
Nut, Inlet Valve WPL 537588 Contact Us For Availability
View on Model
55
Adapter Plug
Adapter Plug WPL 627131 Contact Us For Availability
View on Model
55
Clip
Clip WPL 652604 Contact Us For Availability
View on Model
55
Grommet, Inlet Tube
Grommet, Inlet Tube WPL 835649 Contact Us For Availability
View on Model
55
Water Inlet Tube (Curved)
Water Inlet Tube (Curved) WPL 836175 Contact Us For Availability
View on Model
55
Tube Assembly, Inlet Valve
Tube Assembly, Inlet Valve WPL 836200 Contact Us For Availability
View on Model
55
Water Inlet Tube (Straight)
Water Inlet Tube (Straight) WPL 836490 Contact Us For Availability
View on Model
55
Trim, Pan
Trim, Pan WPL 837142 Contact Us For Availability
View on Model
55
Repair Parts List
Repair Parts List WPL 877335 Contact Us For Availability
View on Model
55
Instruction Booklet
Instruction Booklet WPL 941621 Contact Us For Availability
View on Model
