Model Whirlpool 3868SYA ELECTRIC RANGE – Common Parts & Diagrams

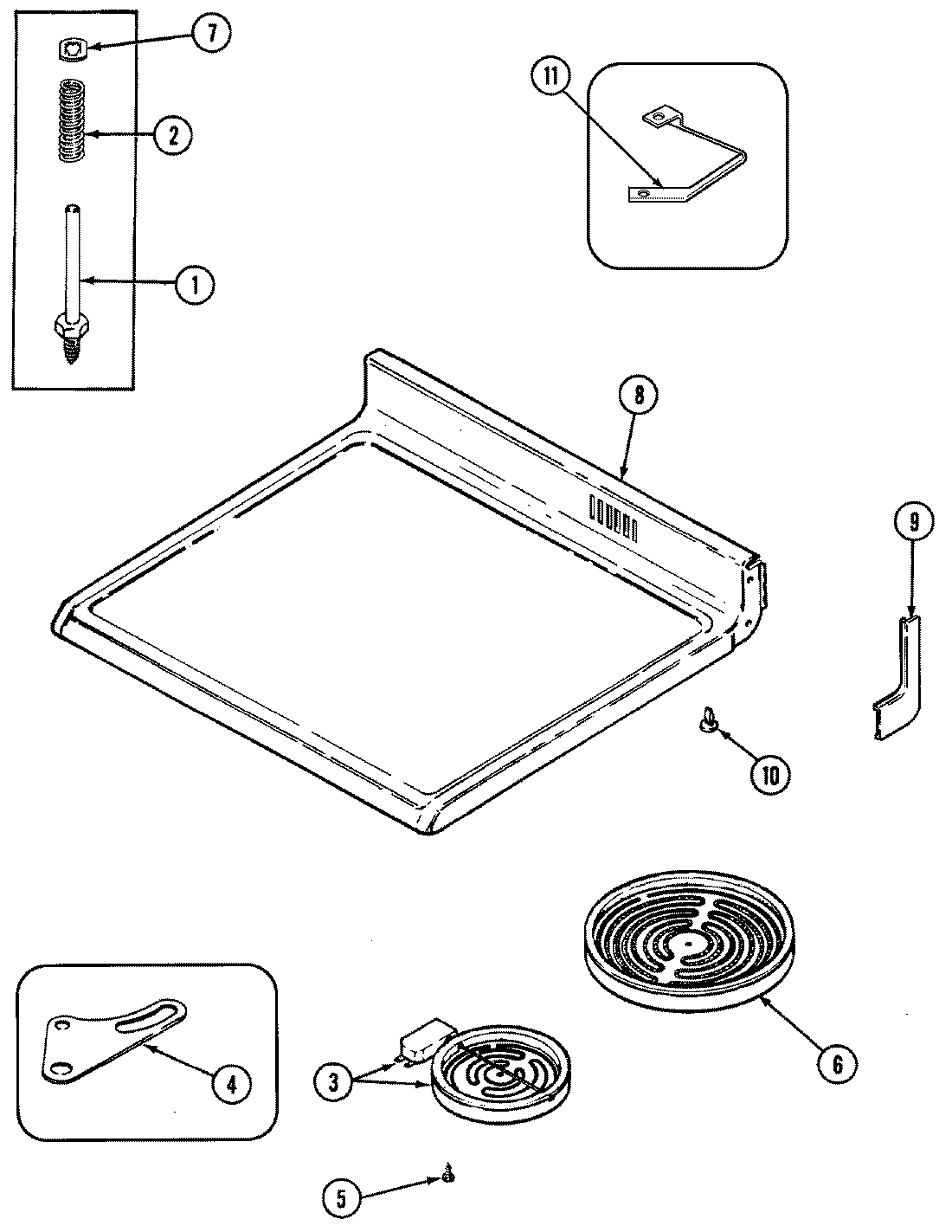

05 - TOP ASSEMBLY

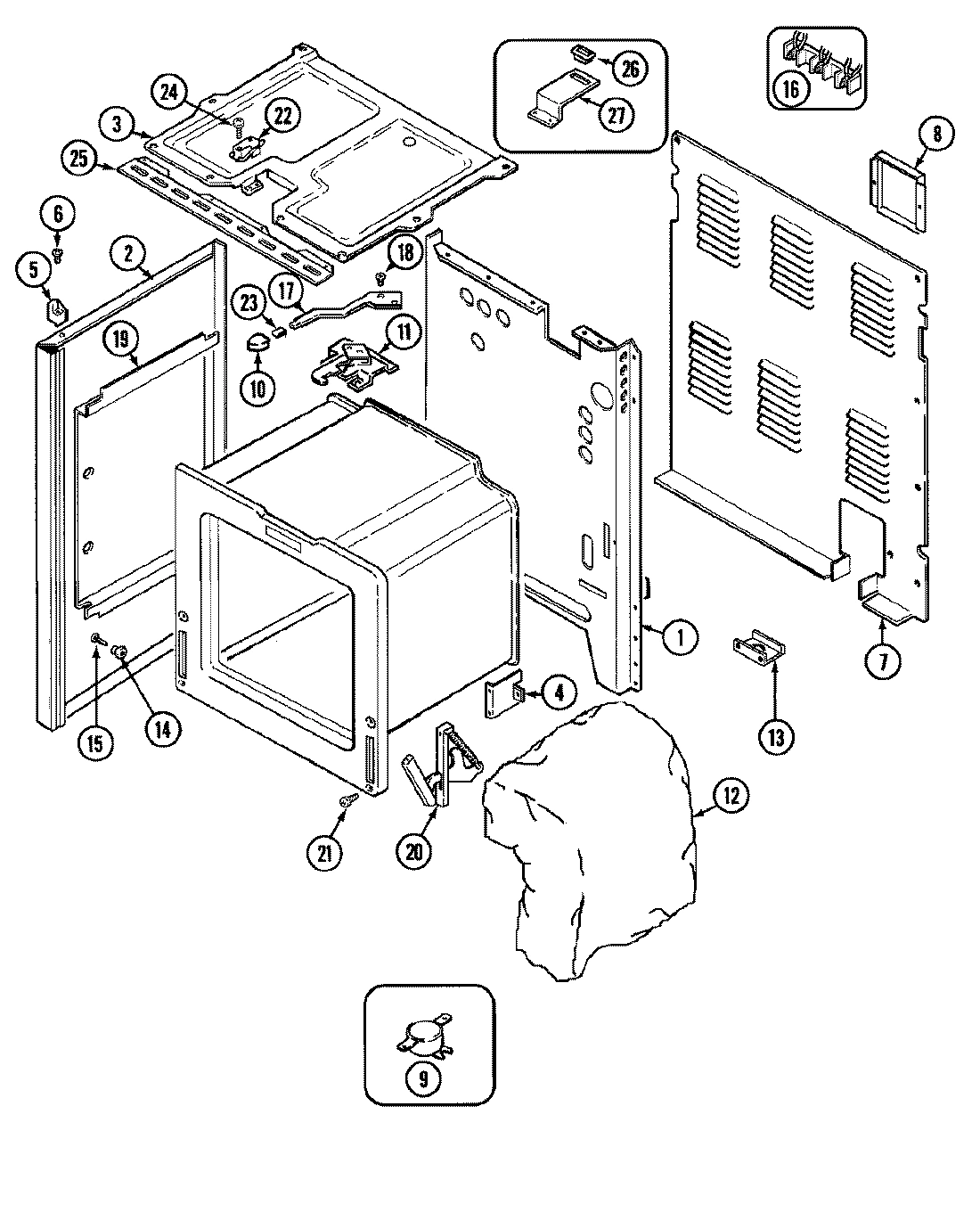

01 - BODY

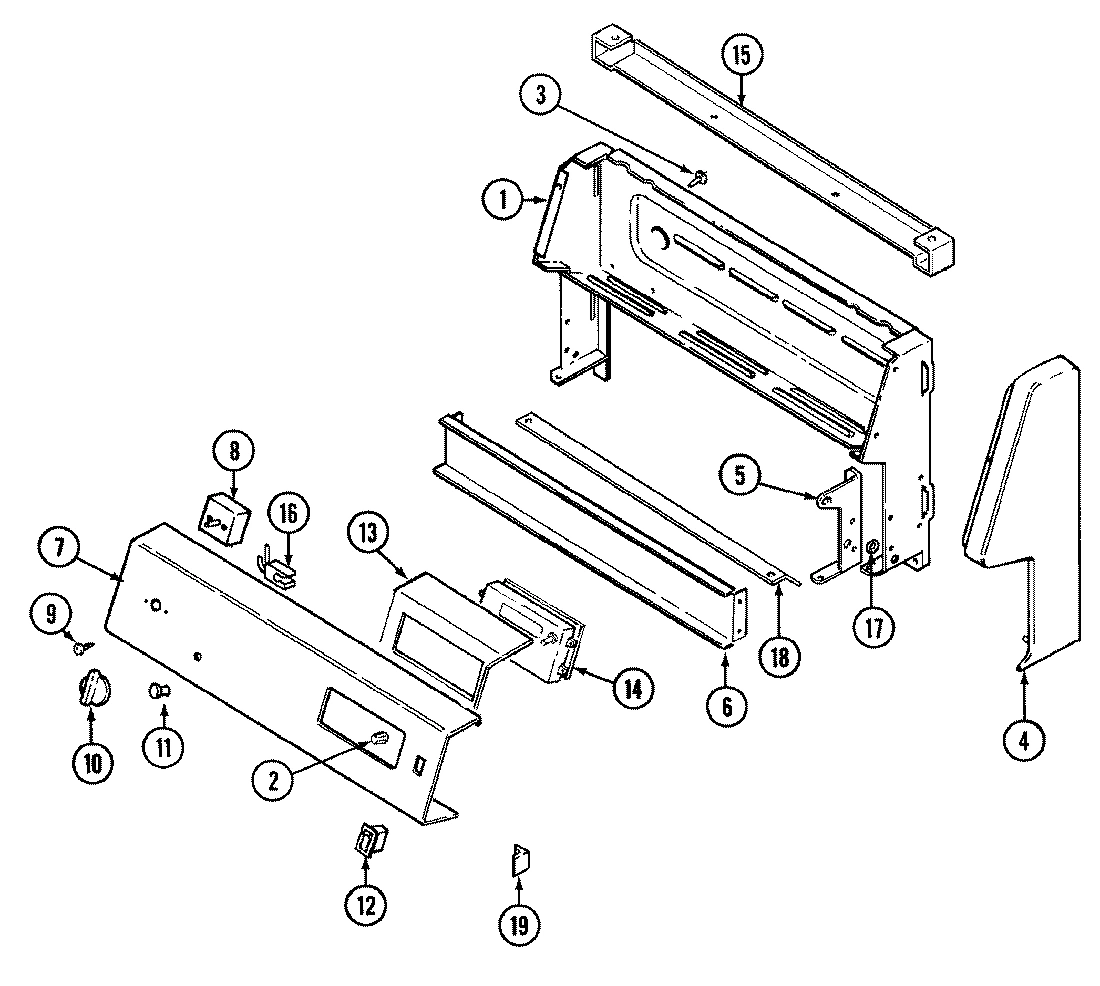

02 - CONTROL PANEL

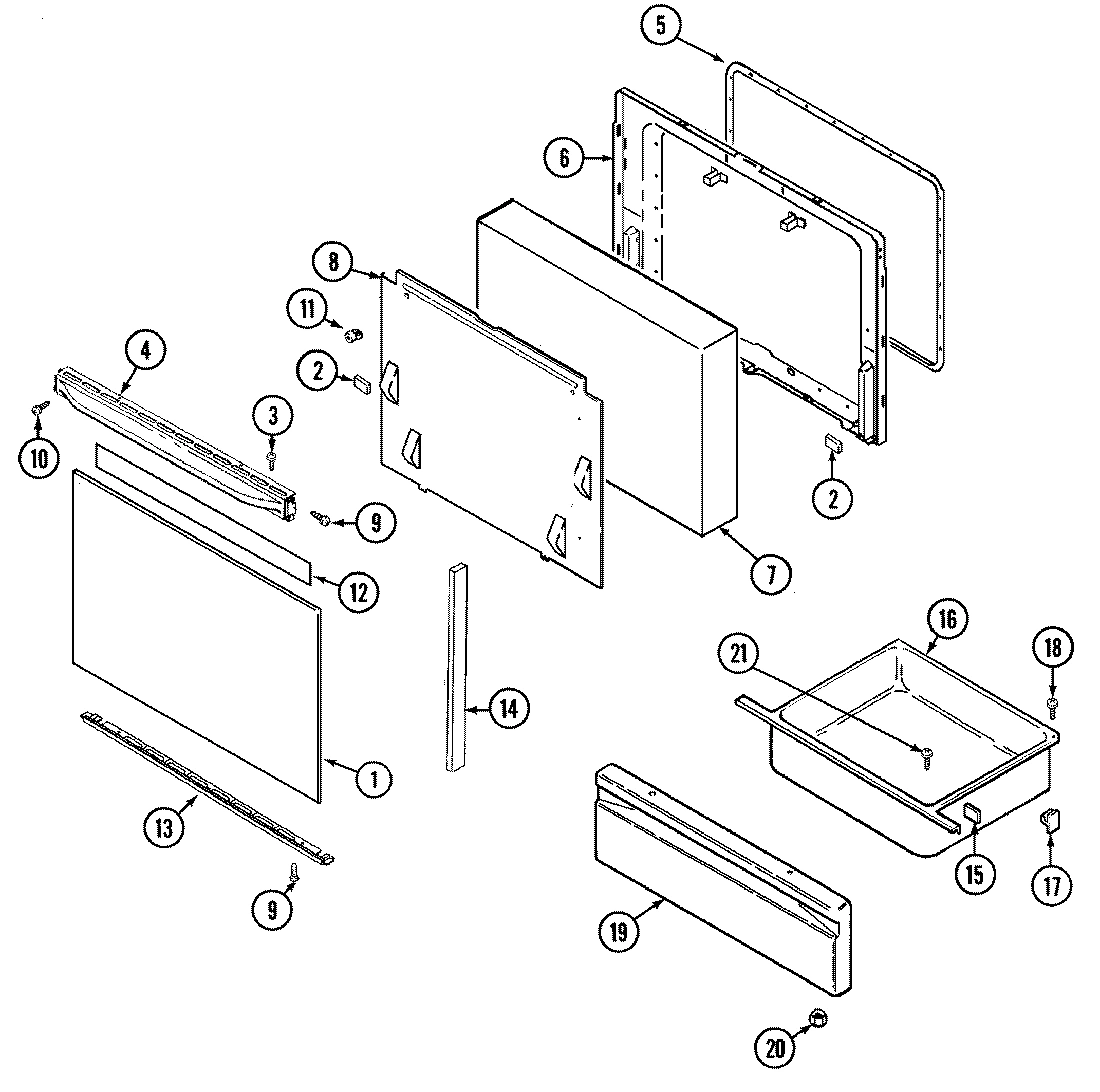

03 - DOOR/DRAWER

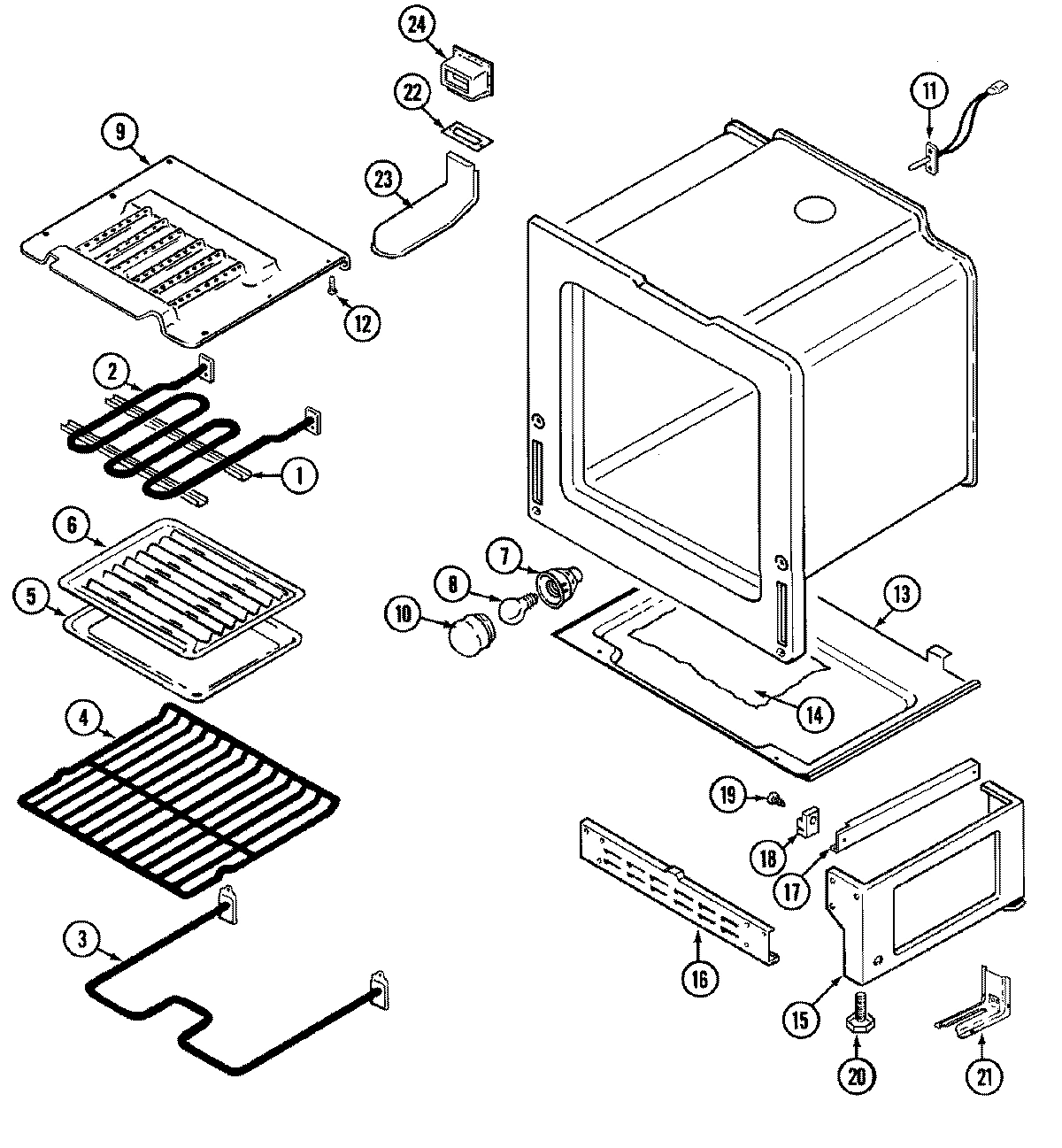

04 - OVEN/BASE

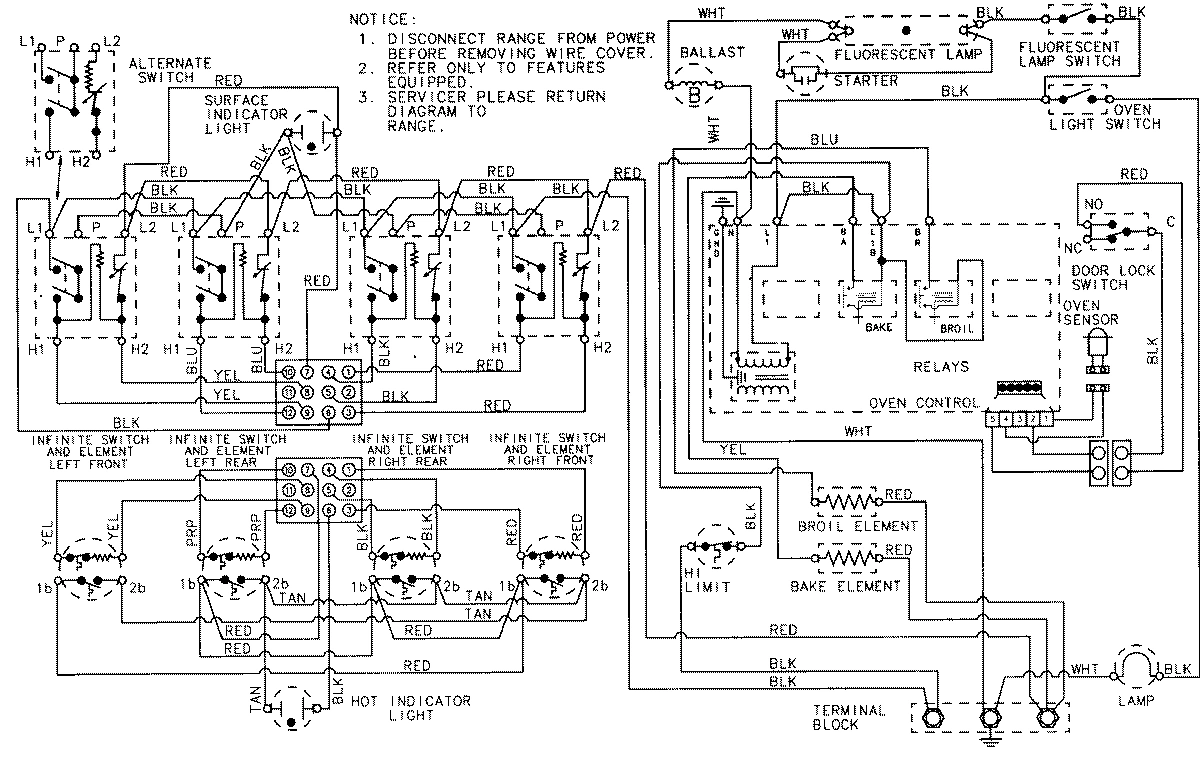

06 - WIRING INFORMATION
Common parts from model Whirlpool 3868SYA ELECTRIC RANGE
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 74001695 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
END CAP, PANEL (LT-BLK)----NA WPL 74001342 Contact Us For Availability
4
END CAP, PANEL (RT-BLK) WPL 74001343 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
5
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
5
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
LINING, DOOR WPL 2402W21019 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 7703P57260 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
MAIN TOP (BLK GLASS/ALM FRAME) WPL 5706M10884 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
10
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
12
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
13
BRACKET, CLOCK WPL 74002080 Contact Us For Availability
13
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
CLOCK (BLK) WPL 7601P22960 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
19
SPACER WPL 8010P08360 Contact Us For Availability
19
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
20
HINGE WPL 7106P05560 Contact Us For Availability
20
HARNESS, LOOSE WIRE WPL 5125A38160 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 5170D19960 Contact Us For Availability
20
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
20
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
20
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
20
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
INSULATOR, SWITCH WPL 74001999 Contact Us For Availability
22
GASKET, VENT WPL 7201P05460 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
26
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001430 Contact Us For Availability
× ![]()
