Model Whirlpool 3842WRV ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY (3842WRx)

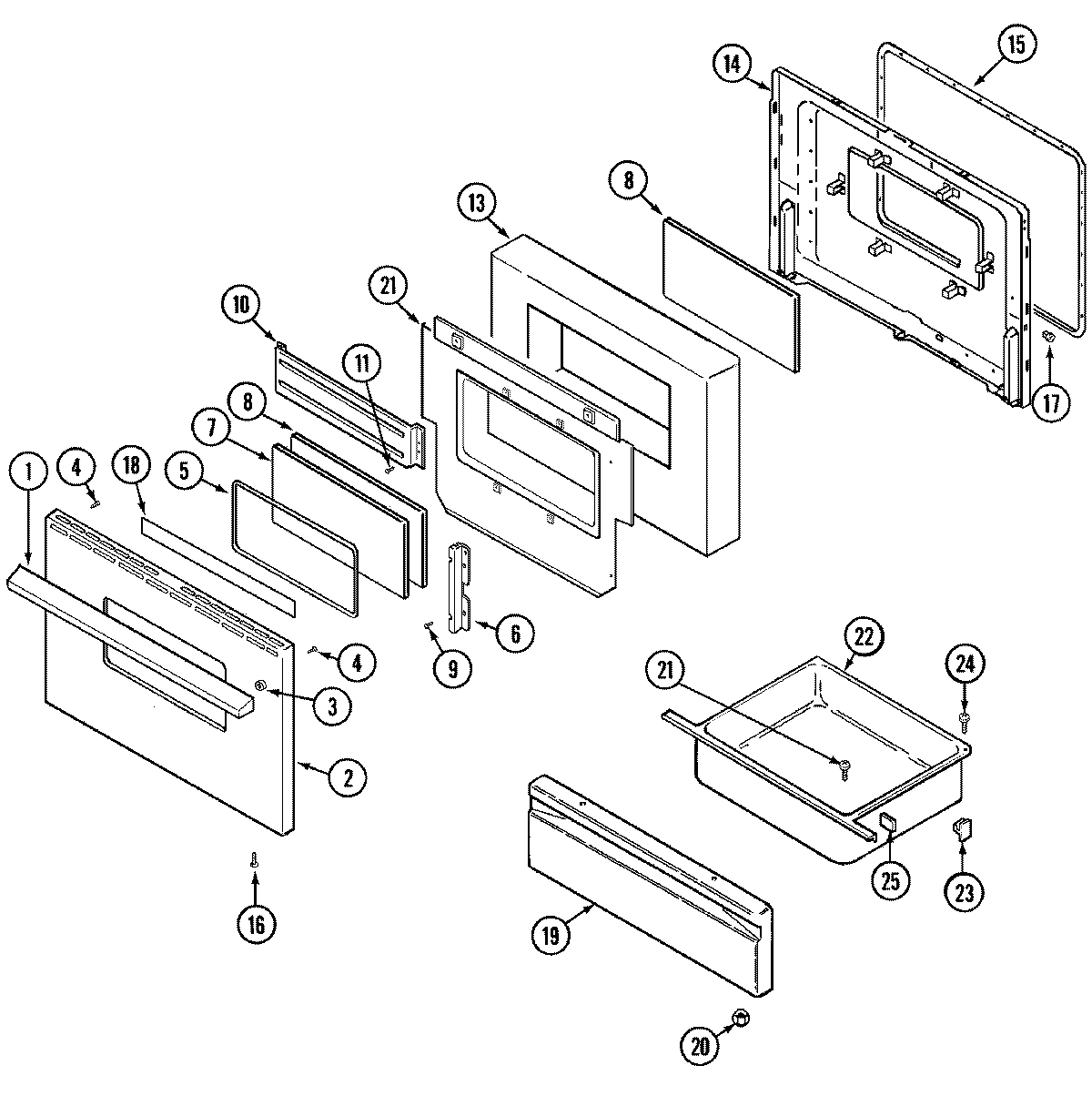

03 - DOOR/DRAWER (3842WRx)

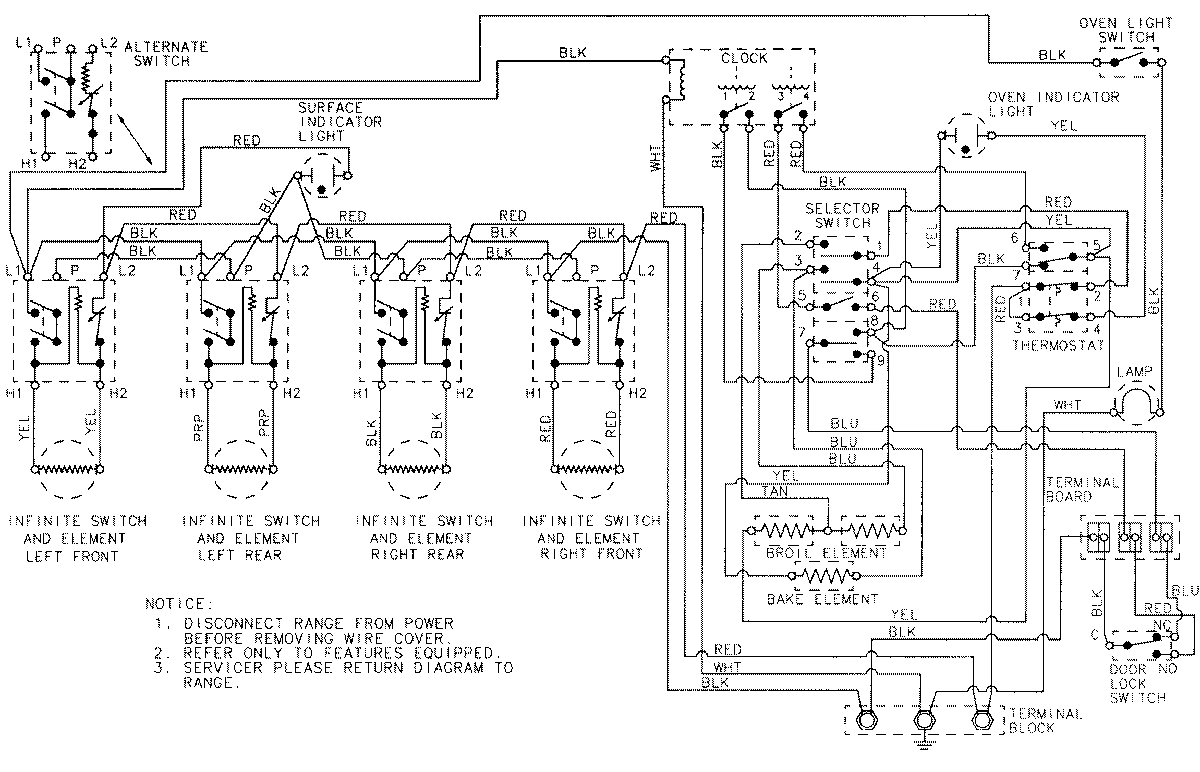

06 - WIRING INFORMATION

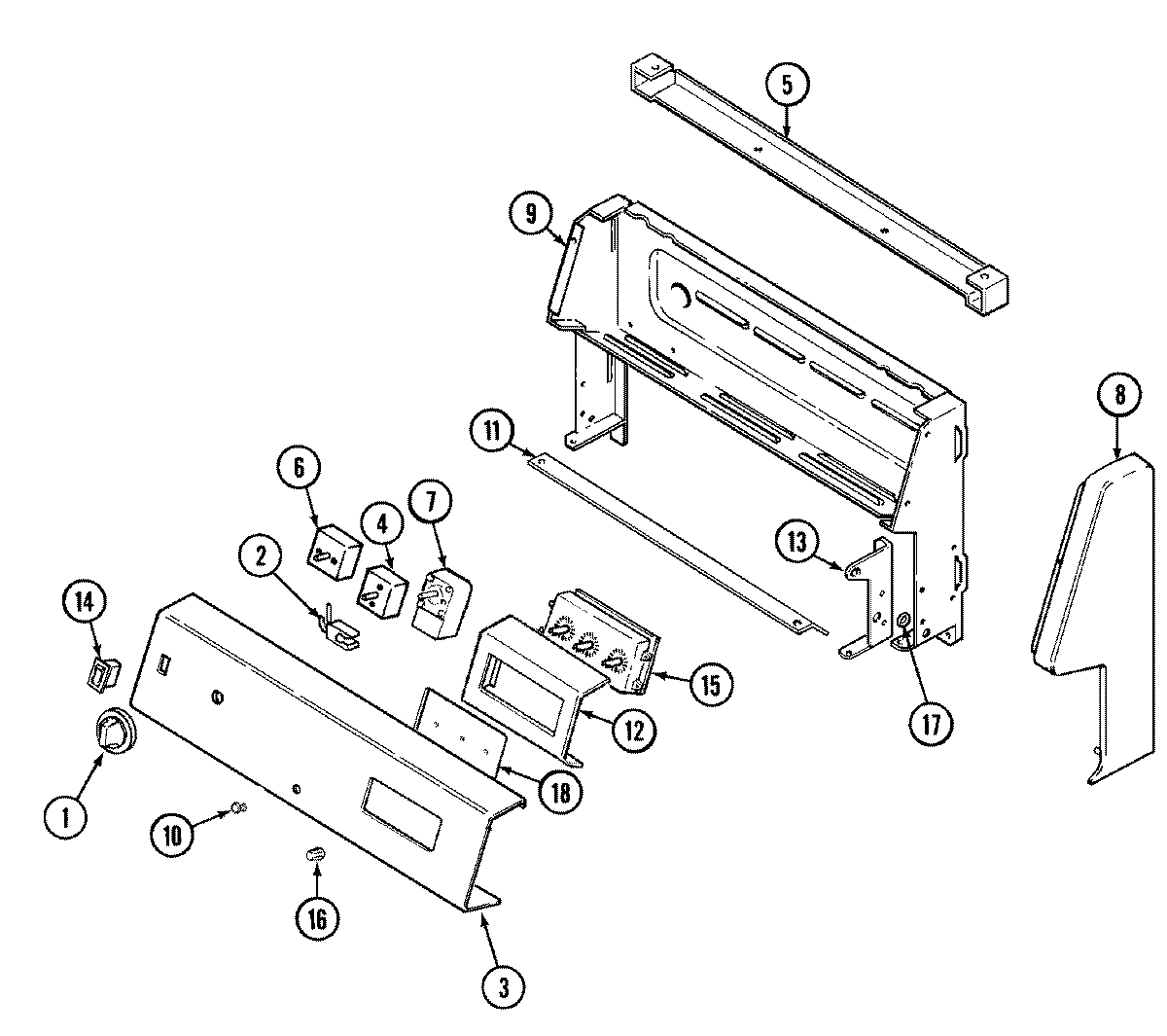

02 - CONTROL PANEL (3842WRx)

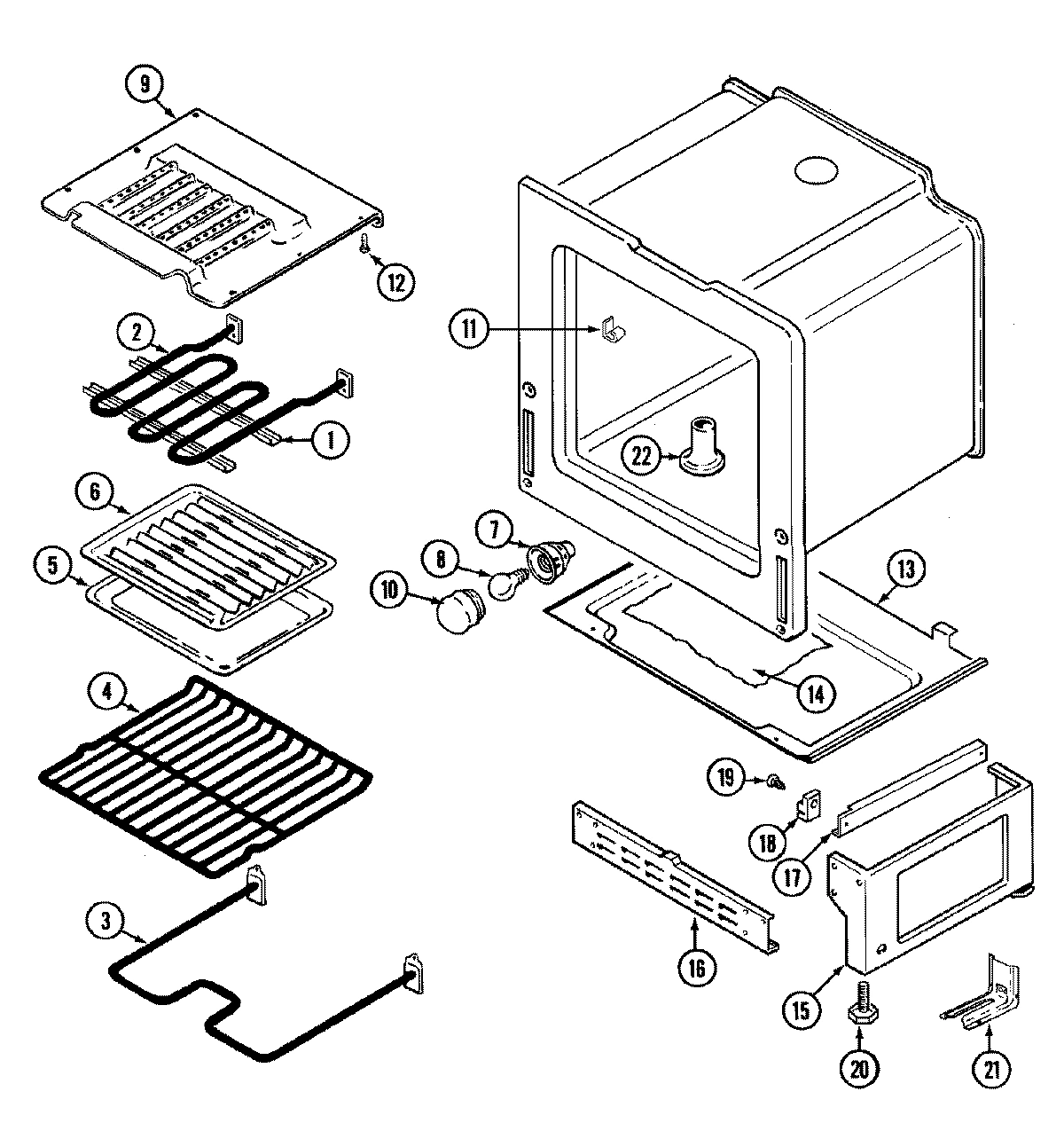

04 - OVEN/BASE (3842WRx)

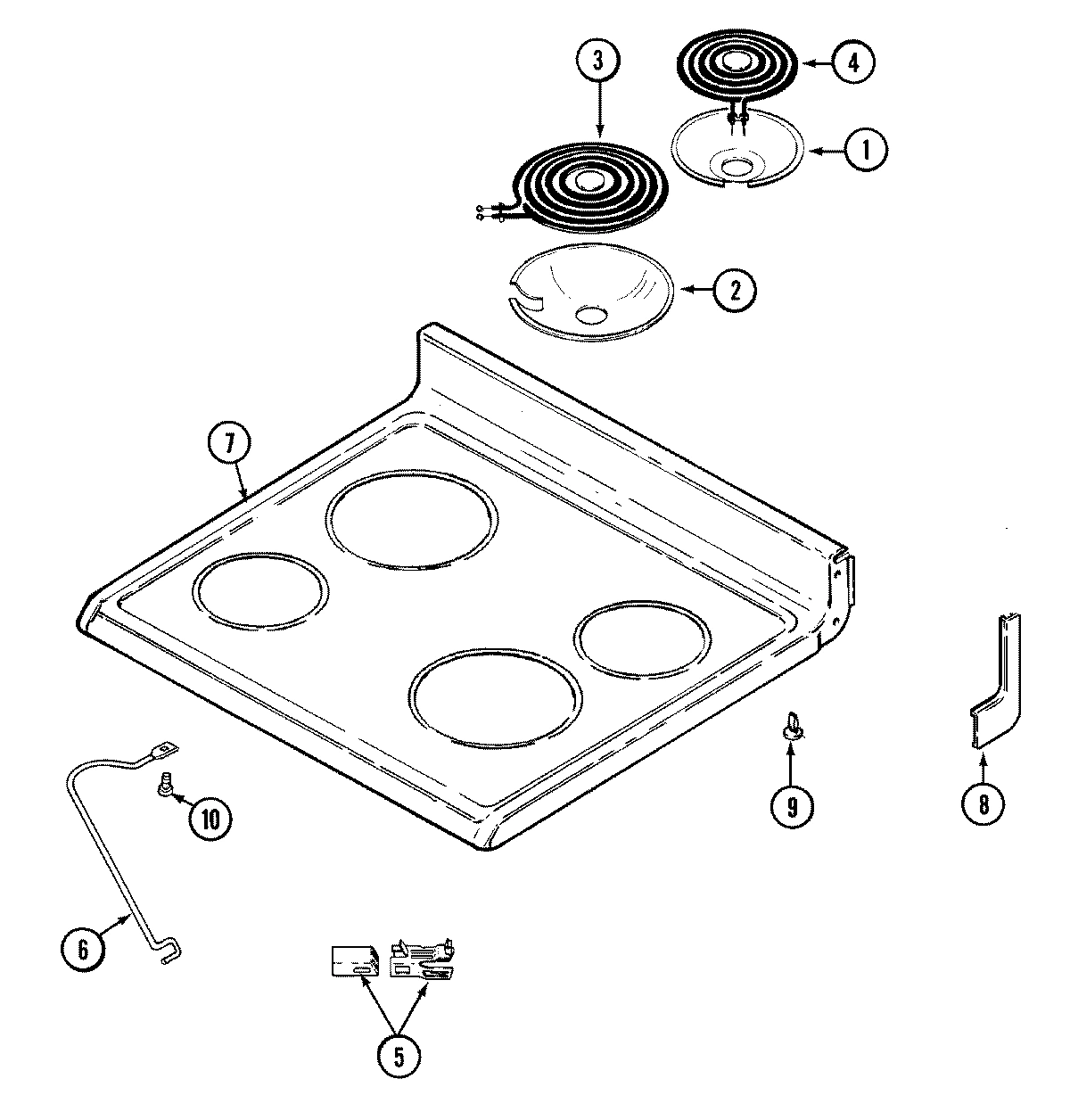

05 - TOP ASSEMBLY (3842WRx)
Common parts from model Whirlpool 3842WRV ELECTRIC RANGE
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
1
KNOB (WHT) WPL 7737P03960 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
2
PANEL, OVEN DOOR WPL 74003047 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
3
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P39160 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
5
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
RETAINER, GLASS WPL 74003048 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
GLASS, OUTER WPL 74003049 Contact Us For Availability
7
SCREW WPL 7101P30960 Contact Us For Availability
7
THERMOSTAT WPL 7404P10060 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
SCREW WPL 7118P01360 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GLASS, INNER WPL 74001841 Contact Us For Availability
8
END CAP, PANEL (RT-WHT) WPL 74002338 Contact Us For Availability
8
END CAP, PANEL (LT-WHT) WPL 74002339 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
9
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
GLIDE WPL 74001663 Contact Us For Availability
10
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
10
LATCH ASSY. WPL 74003032 Contact Us For Availability
10
BAFFLE, OVEN DOOR SECONDARY WPL 74003050 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
INSULATION, BACK WPL 74001800 Contact Us For Availability
11
INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability
11
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
12
BRACKET, CLOCK SUPPORT WPL 3801F24945 Contact Us For Availability
12
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
INSULATION, DOOR WPL 74001842 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
13
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
14
LINING, DOOR WPL 74001058 Contact Us For Availability
14
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
CLOCK WPL 7601P19360 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
16
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
16
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
NUT, SNAP WPL 7103P11460 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
RETAINER, INSULATION (SIDE) WPL 74002599 Contact Us For Availability
18
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
18
GASKET WPL 7201P05660 Contact Us For Availability
18
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
19
HINGE WPL 7106P05660 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
19
HARNESS LOOSE WIRES WPL 5125A32160 Contact Us For Availability
19
WIRE HARNESS, CONTROL PANEL WPL 5170D18860 Contact Us For Availability
19
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
MANUAL, USE & CARE WPL 74002476 Contact Us For Availability
21
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
22
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
23
COVER, VENT WPL 4005F43245 Contact Us For Availability
23
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
24
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
