Model GE 363.58482892 Refrigerator (Kenmore 36358482892) – Common Parts & Diagrams

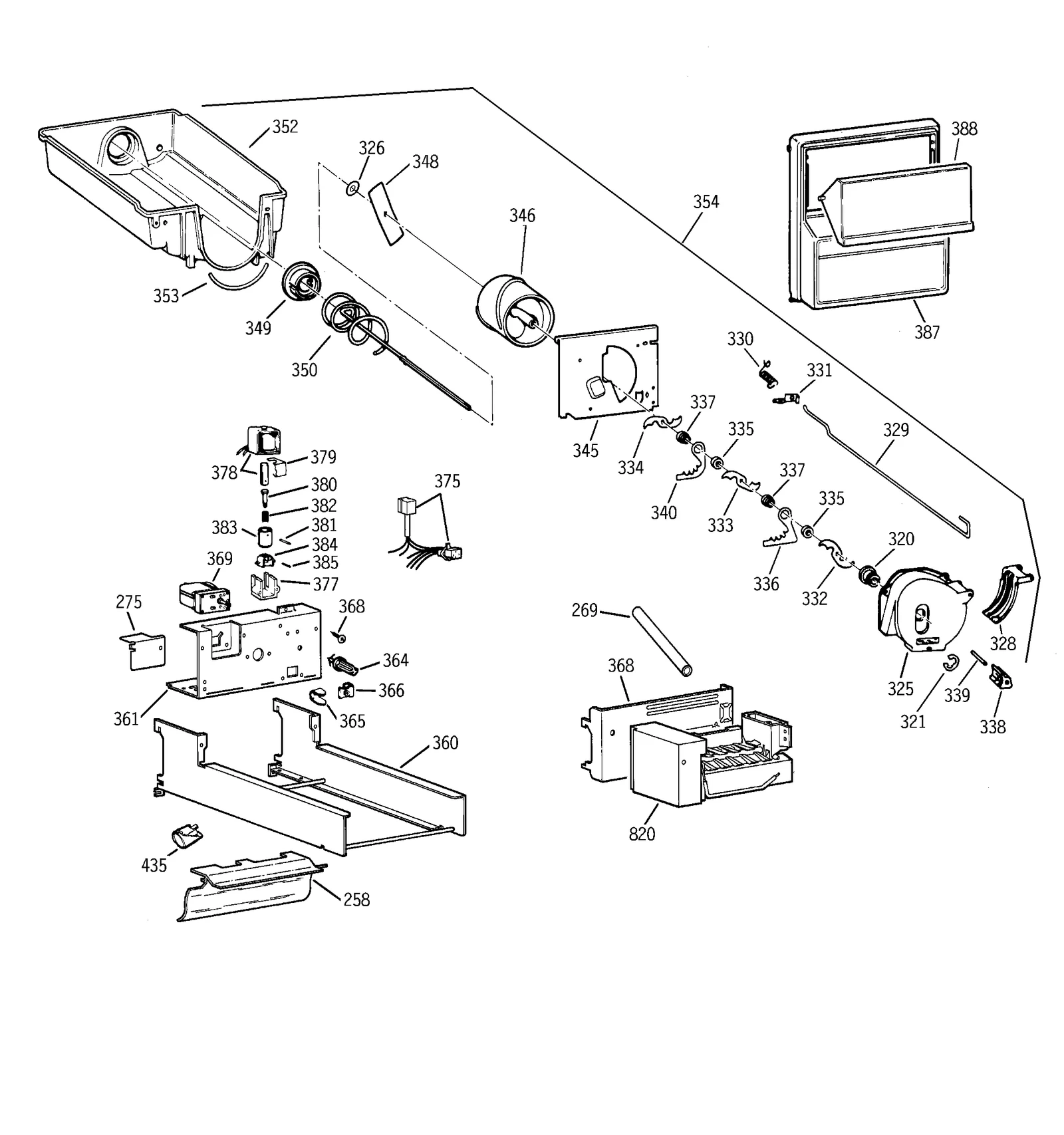

ICE BUCKET
FREEZER SECTION

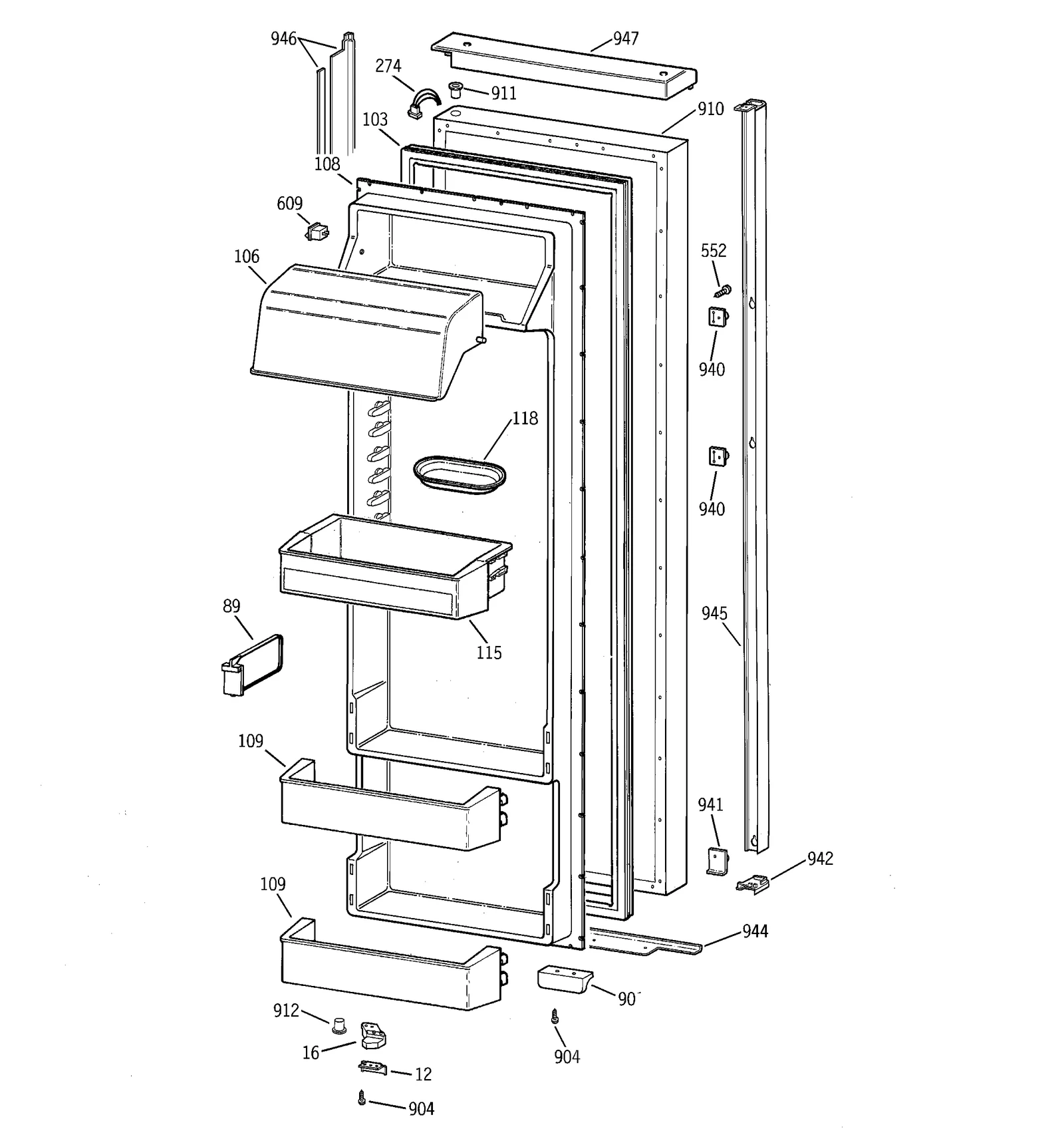

FRESH FOOD DOOR

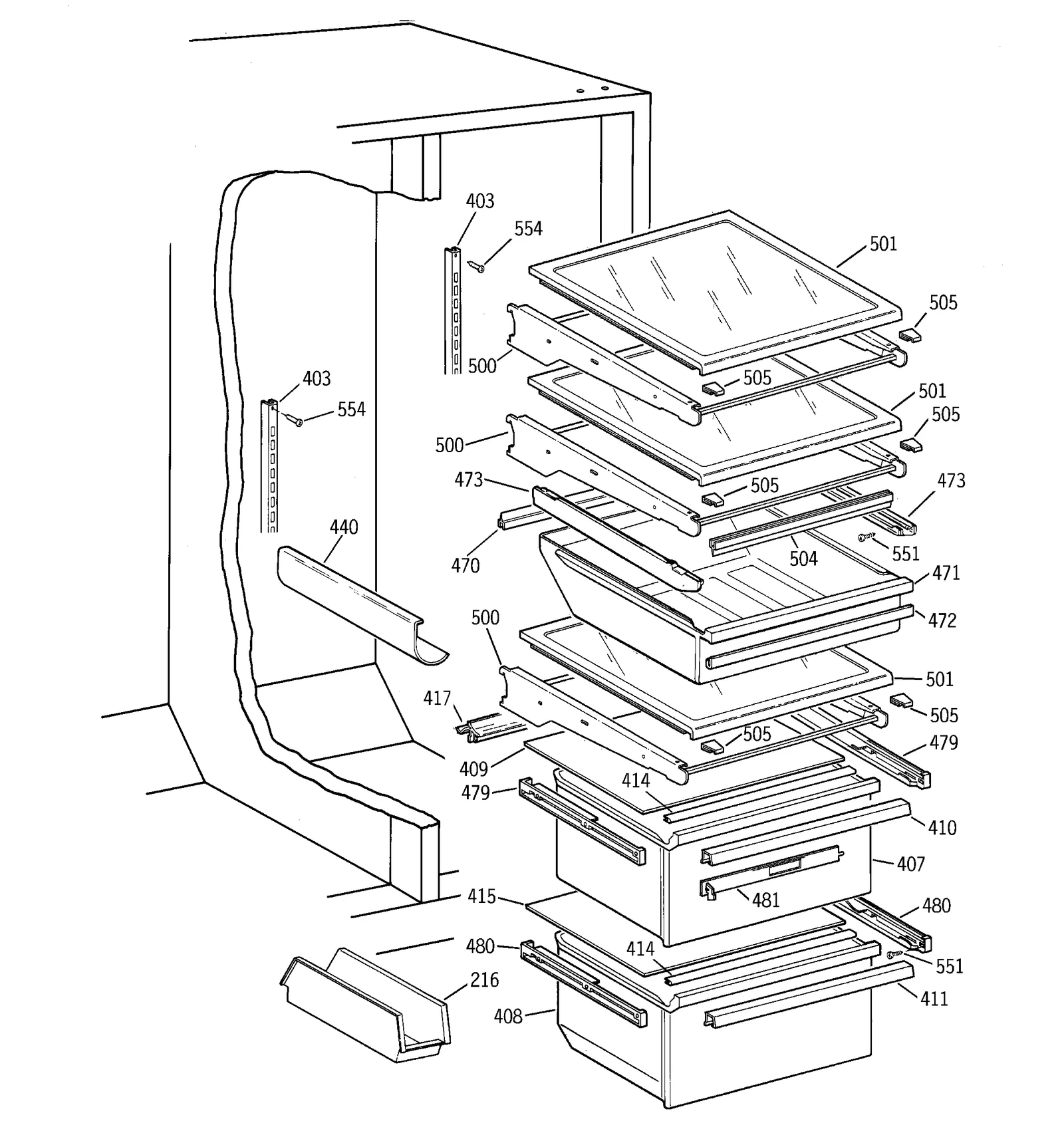

FRESH FOOD SECTION

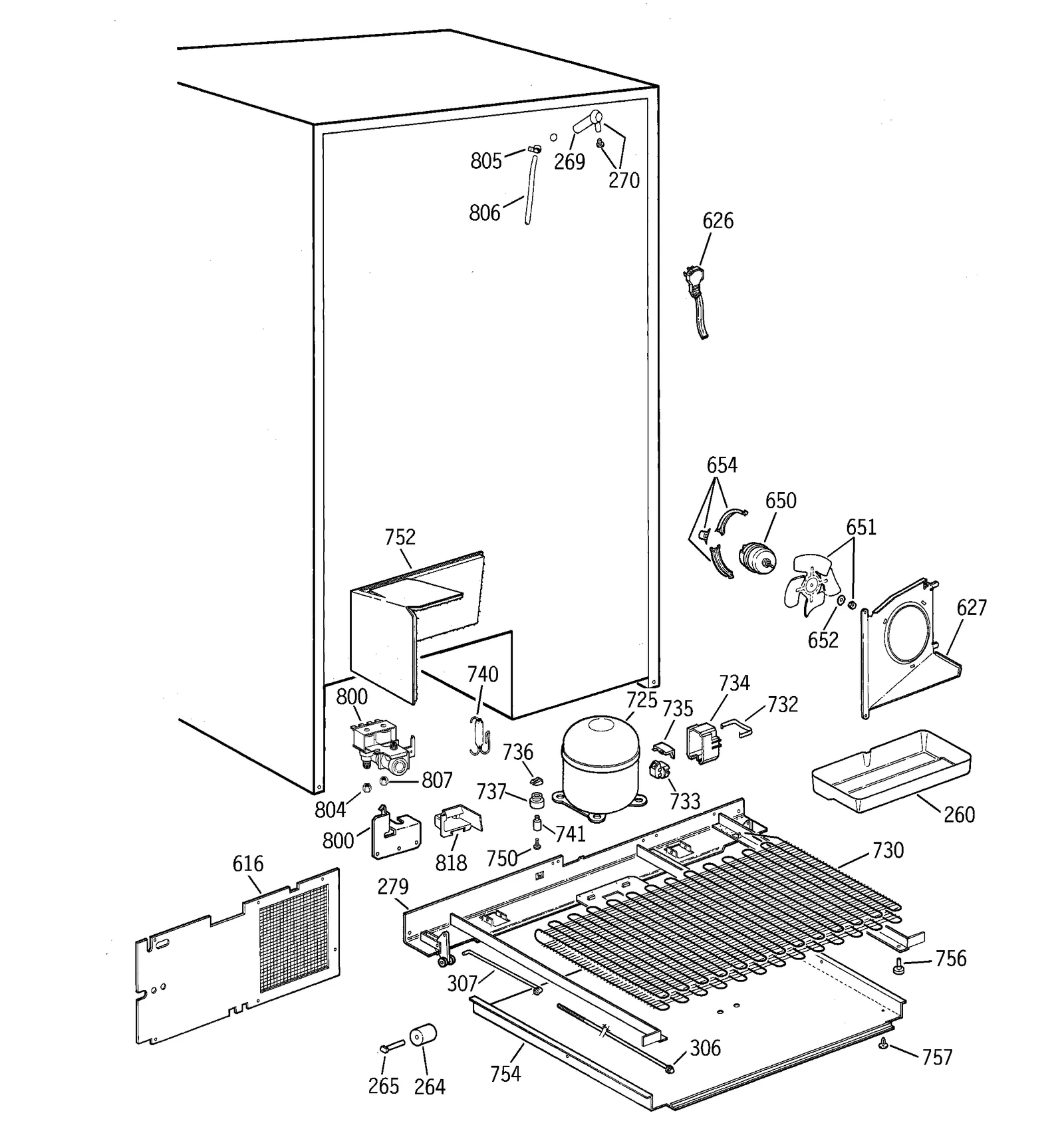

UNIT PARTS

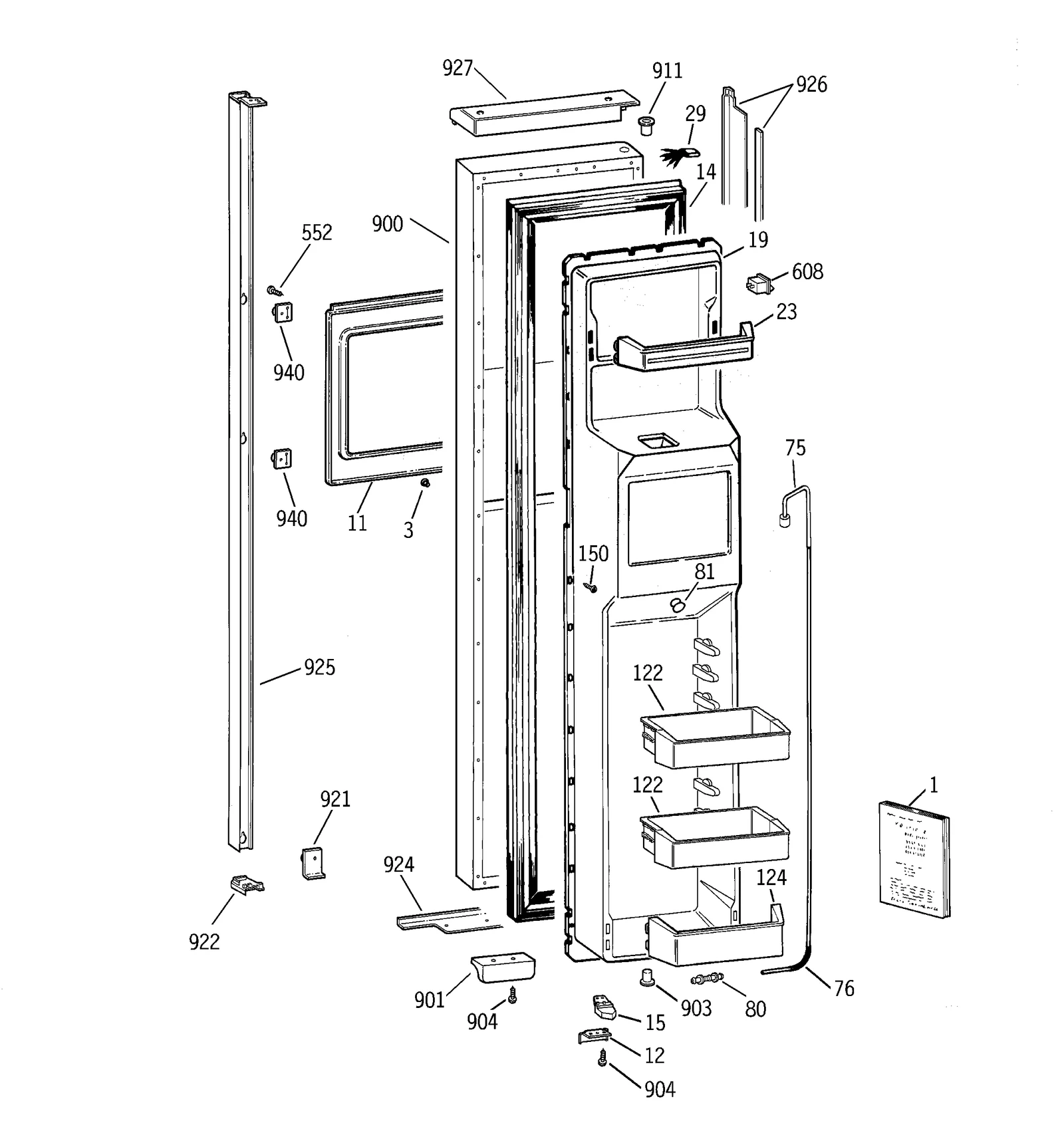

FREEZER DOOR

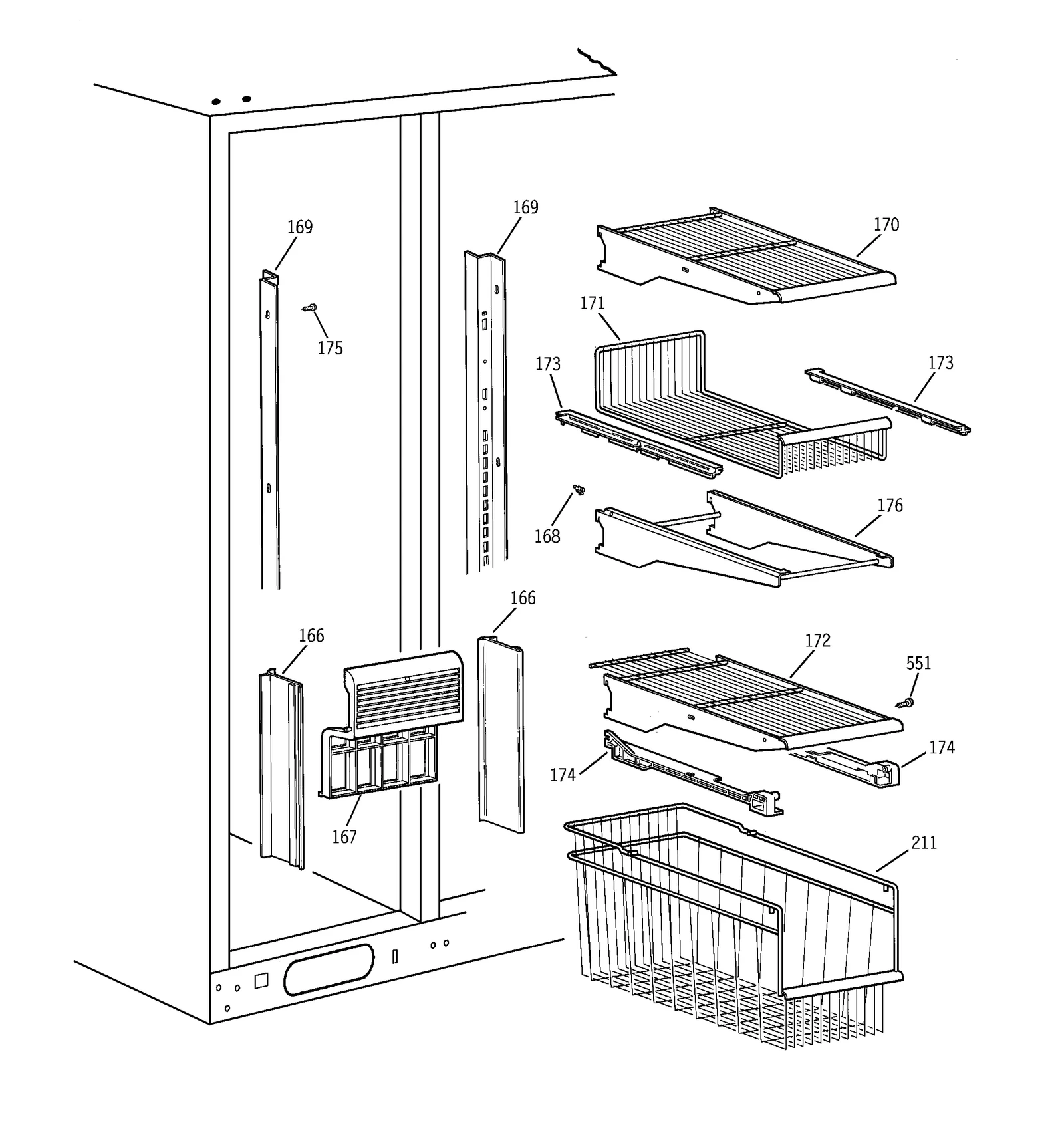

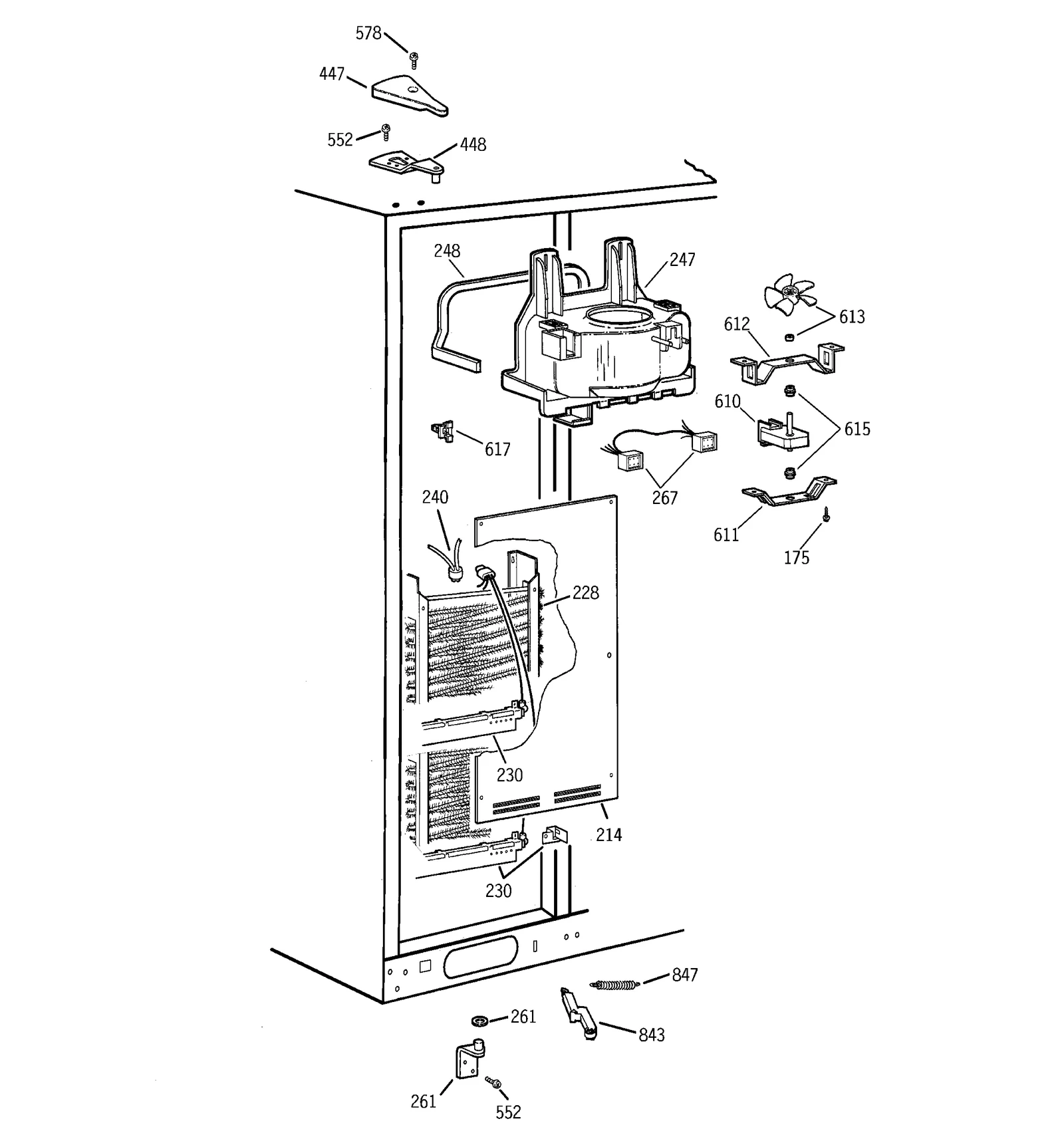

FREEZER SECTION

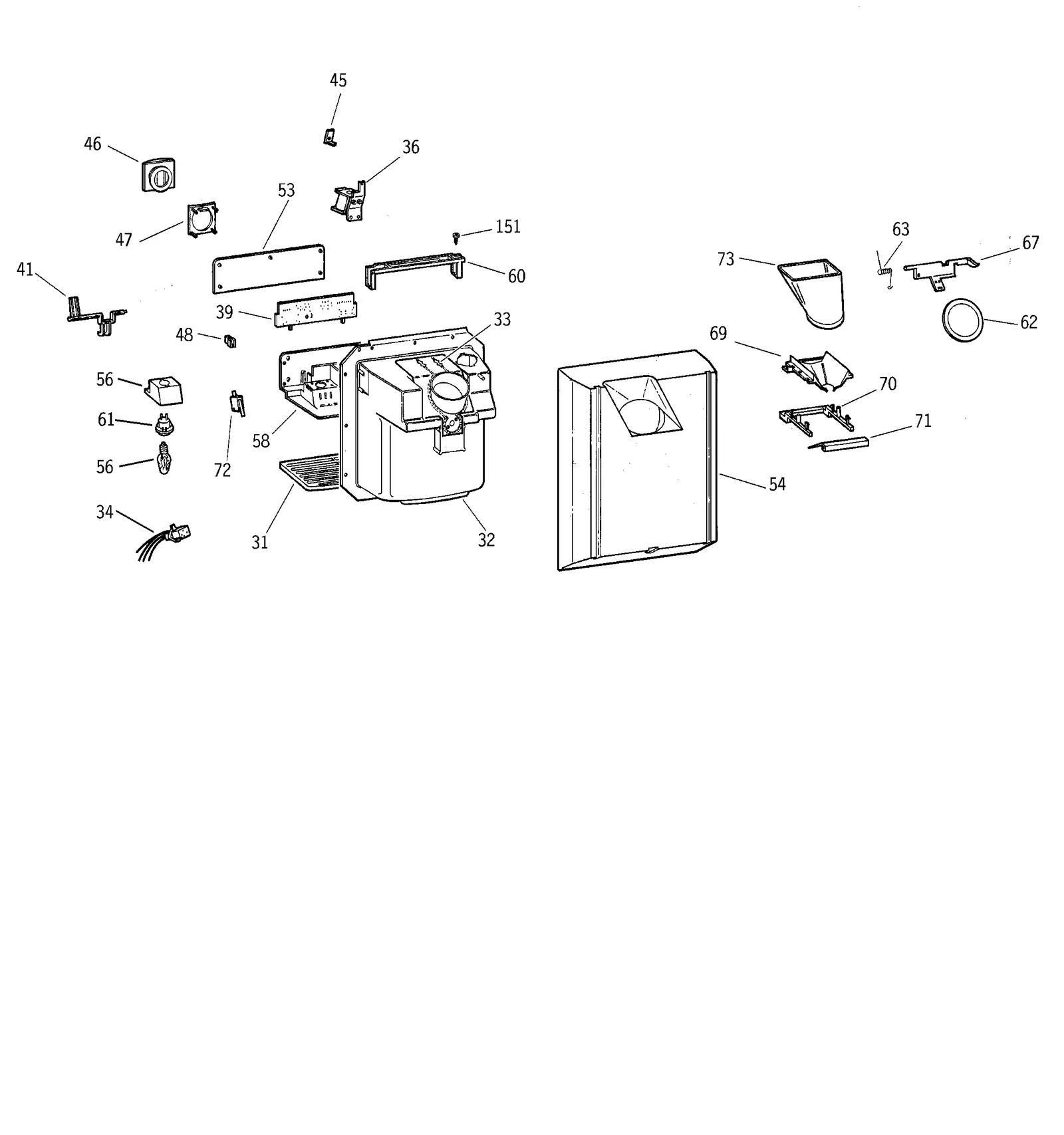

DISPENSER

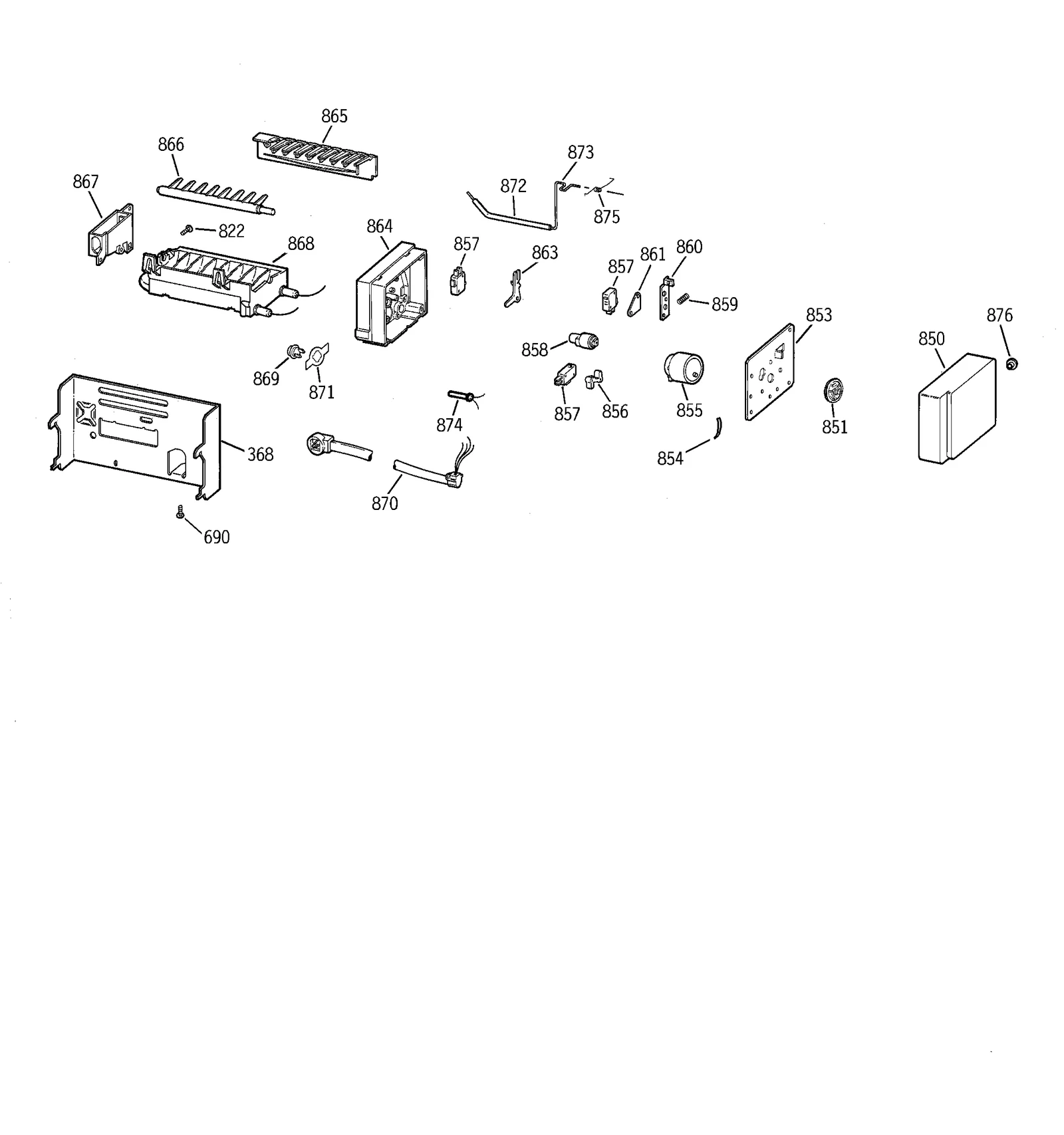

ICEMAKER WR30X0328

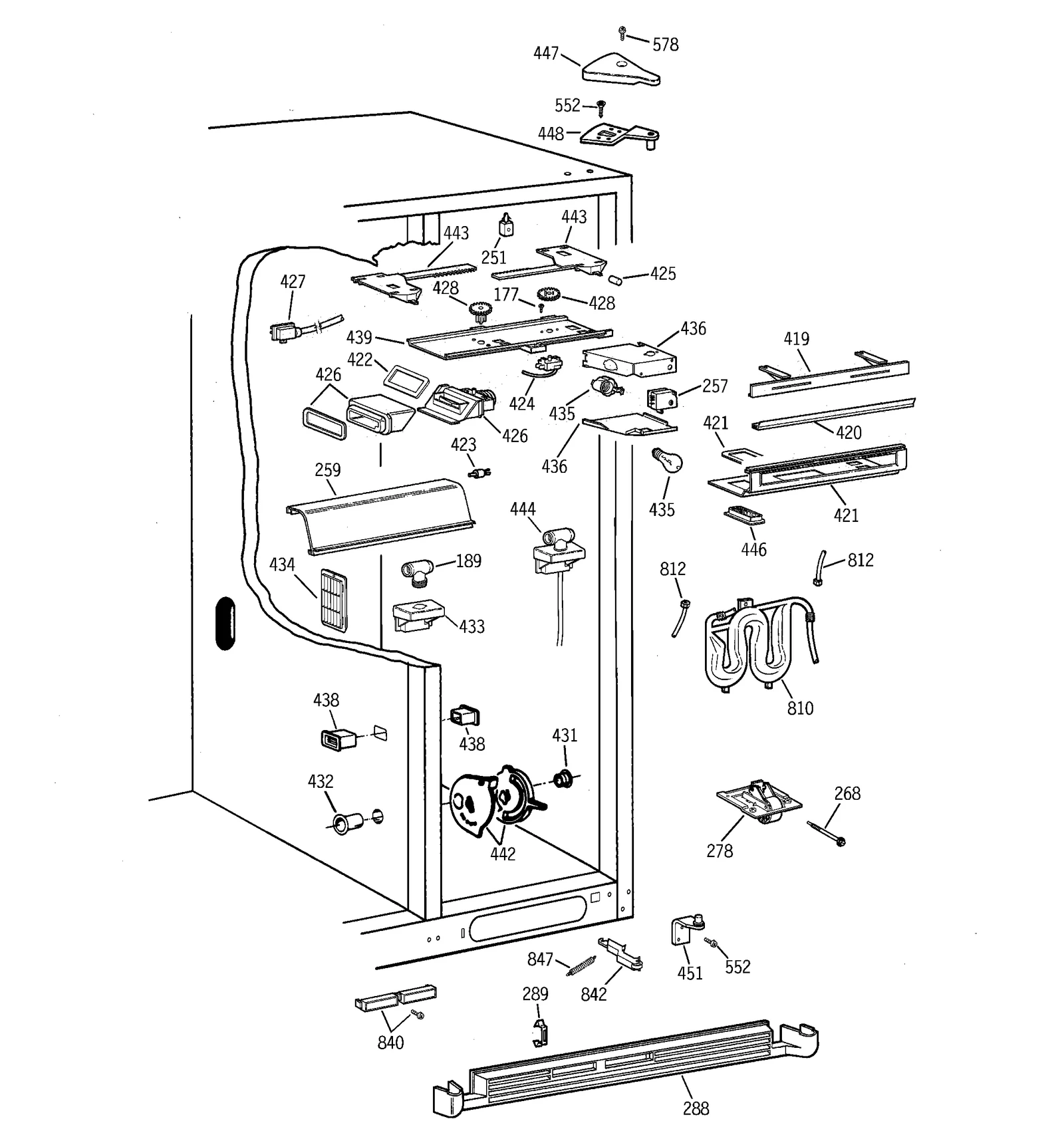

FRESH FOOD SECTION
Common parts from model GE 363.58482892 Refrigerator (Kenmore 36358482892)
1
Refrigerator Mini Wiring Manual GEN 31-51196 Contact Us For Availability
1
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1
Energy Guide Label Tag GEN SR1229 Contact Us For Availability
1
Refrigerator Parts List GEN SR3880 Contact Us For Availability
1
Refrigerator User's Manual GEN SR6180 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
11
Refrigerator Dispenser Trim (White) GEN WR38X2258 Contact Us For Availability
12
Refrigerator Door Stop GEN WR02X9244 Contact Us For Availability
14
Refrigerator Freezer Door Gasket GEN WR24X0559 Contact Us For Availability
15
Refrigerator Cam Closure GEN WR02X9235 Contact Us For Availability
16
Refrigerator Cam Closure GEN WR02X9234 Contact Us For Availability
19
Inner Door GEN WR77X10001 Contact Us For Availability
23
Refrigerator Module GEN WR71X2619 Contact Us For Availability
29
Harness Dr H GEN WR23X10042 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
33
Recessed Heater GEN WR51X0420 Contact Us For Availability
34
Harness Light Switch GEN WR23X0456 Contact Us For Availability
39
Mod Time Del GEN WR55X0129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10109 Contact Us For Availability
54
Recess Insul GEN WR17X4208 Contact Us For Availability
56
Refl Lp Skt GEN WR02X8686 Contact Us For Availability
56
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Electronic Cover GEN WR02X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4206 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
81
Refrigerator Button Plug GEN WR01X2077 Contact Us For Availability
89
Refrigerator Snugger Module GEN WR02X9444 Contact Us For Availability
103
Door Gasket GEN WR24X0560 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X0524 Contact Us For Availability
108
Refrigerator Inner Door GEN WR77X0675 Contact Us For Availability
109
Refrigerator Module Assembly GEN WR71X10061 Contact Us For Availability
115
Refrigerator Module Assembly GEN WR71X10057 Contact Us For Availability
118
Butter Glass Dish GEN WR19X0037 Contact Us For Availability
122
Refrigerator Module Assembly GEN WR71X10058 Contact Us For Availability
124
Refrigerator Module Assembly GEN WR71X10056 Contact Us For Availability
166
Extrusion Cover GEN WR17X3836 Contact Us For Availability
167
Refrigerator Drain Pan Trough Cover (White) GEN WR17X10017 Contact Us For Availability
168
Stop Basket GEN WR01X2029 Contact Us For Availability
169
Track Cant S GEN WR72X10005 Contact Us For Availability
169
Refrigerator Cantilever Shelf Mounting Rail, GEN WR72X10006 Contact Us For Availability
170
Refrigerator Shelf Wire GEN WR71X2708 Contact Us For Availability
171
Refrigerator Wire Basket GEN WR71X2699 Contact Us For Availability
172
Shelf Freezer Wire GEN WR71X10005 Contact Us For Availability
173
Refrigerator Slide Basket GEN WR72X0276 Contact Us For Availability
173
Basket Fz Lh GEN WR72X0277 Contact Us For Availability
174
Slide Fz Rh GEN WR72X10001 Contact Us For Availability
174
Slide Fz Lh GEN WR72X10002 Contact Us For Availability
175
Refrigerator Screw GEN WR01X2023 Contact Us For Availability
176
Cantilever Basket GEN WR71X2698 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
189
Refrigerator Lamp Socket GEN WR02X9243 Contact Us For Availability
211
Refrigerator Freezer Bin GEN WR71X2697 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X10217 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
228
Lo Side Asm GEN WR85X0306 Contact Us For Availability
230
Refrigerator Heater Bracket GEN WR02X8647 Contact Us For Availability
248
Refrigerator Gasket GEN WR14X0272 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Pan Water Diode GEN WR32X10011 Contact Us For Availability
261
Thrust Washer GEN WR01X2033 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X0762 Contact Us For Availability
264
Mobility Wheel GEN WR02X8838 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR01X2050 Contact Us For Availability
267
Low Harness GEN WR23X10058 Contact Us For Availability
268
Screw Mobility GEN WR01X2025 Contact Us For Availability
269
Refrigerator Water Tube GEN WR02X7927 Contact Us For Availability
274
Harness Ff L GEN WR23X10041 Contact Us For Availability
278
Refrigerator Mobility GEN WR02X9241 Contact Us For Availability
279
Rail Mtg Asm GEN WR17X10223 Contact Us For Availability
288
Gril Base Wh GEN WR74X0265 Contact Us For Availability
289
Refrigerator Grille Clip GEN WR02X7646 Contact Us For Availability
306
Refrigerator Adjustment Screw GEN WR01X2146 Contact Us For Availability
307
Link Screw GEN WR01X2145 Contact Us For Availability
328
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
350
Refrigerator Dispenser Auger GEN WR17X4204 Contact Us For Availability
354
Refrigerator Ice Container Assembly GEN WR17X10366 Contact Us For Availability
366
J Nut GEN WR01X1547 Contact Us For Availability
368
Refrigerator Bracket Ice Maker GEN WR02X10011 Contact Us For Availability
375
Harn Mtr Dis GEN WR23X0463 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10041 Contact Us For Availability
388
Dr Ice Stor GEN WR17X3838 Contact Us For Availability
403
Trck Can Shf GEN WR72X0249 Contact Us For Availability
408
Refrigerator Meat Pan GEN WR32X10035 Contact Us For Availability
409
Refrigerator Glass Shelf Cover GEN WR32X10033 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Deli Drawer Cover GEN WR32X1457 Contact Us For Availability
417
Gasket Shd GEN WR14X0482 Contact Us For Availability
419
Bezel Control GEN WR17X10124 Contact Us For Availability
420
Extrusion Trim GEN WR38X1995 Contact Us For Availability
421
Gkt Lgt Shld GEN WR14X0433 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10364 Contact Us For Availability
422
Gkt Fm Block GEN WR14X0429 Contact Us For Availability
423
Refrigerator Shelf Support GEN WR02X6347 Contact Us For Availability
424
Refrigerator Sleeve GEN WR02X8914 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0521 Contact Us For Availability
425
Refrigerator Control Knob GEN WR02X9439 Contact Us For Availability
426
Foam Nozzle GEN WR02X8831 Contact Us For Availability
426
Refrigerator Damper GEN WR09X10005 Contact Us For Availability
426
Refrigerator Foam Gasket GEN WR14X0462 Contact Us For Availability
427
Refrigerator Control Harness GEN WR23X10057 Contact Us For Availability
428
Gr Pinion Rs GEN WR02X8828 Contact Us For Availability
428
Gr Pinion Ls GEN WR02X8829 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
433
Refrigerator Socket GEN WR02X8202 Contact Us For Availability
433
Refrigerator Lamp Housing GEN WR02X9239 Contact Us For Availability
434
Grille Air R GEN WR17X10262 Contact Us For Availability
436
Refrigerator Control Box GEN WR02X8819 Contact Us For Availability
436
Refrigerator Control Box GEN WR02X8820 Contact Us For Availability
438
Duct Mullion GEN WR02X7476 Contact Us For Availability
438
Duct Mullion GEN WR02X8655 Contact Us For Availability
439
Refrigerator Slide Control GEN WR17X10306 Contact Us For Availability
440
Wine Rack Pk GEN WR17X4094 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Rk Gr Ctl Ls GEN WR17X3318 Contact Us For Availability
443
Control Rack Gear GEN WR17X3319 Contact Us For Availability
444
Refrigerator Light Housing GEN WR23X10069 Contact Us For Availability
446
Light Grille GEN WR17X10038 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9433 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X9434 Contact Us For Availability
448
Upper Hinge Assembly GEN WR13X10014 Contact Us For Availability
448
Upper Hinge Assembly GEN WR13X10015 Contact Us For Availability
451
Refrigerator Hinge GEN WR13X0761 Contact Us For Availability
470
Pan Gasket GEN WR14X0420 Contact Us For Availability
471
Refrigerator Meat Pan GEN WR32X10036 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473
Alide Pan GEN WR72X0289 Contact Us For Availability
473
Slide Pan GEN WR72X0290 Contact Us For Availability
481
Slide Pan Foot GEN WR01X2079 Contact Us For Availability
500
Refrigerator Cantilever Shelf GEN WR71X10022 Contact Us For Availability
501
Refrigerator Slide Shelf GEN WR32X10034 Contact Us For Availability
504
Slide Out Seal GEN WR14X0469 Contact Us For Availability
505
Shelf Stop GEN WR01X2080 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
609
Sw Light Ff GEN WR23X0426 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10050 Contact Us For Availability
627
Housing Condenser GEN WR17X10189 Contact Us For Availability
651
Blade Cond GEN WR60X0234 Contact Us For Availability
651
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
654
Condenser Grommet GEN WR01X2019 Contact Us For Availability
654
Leg Condenser Fan GEN WR02X9240 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0213 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
733
Refrigerator Relay Protector GEN WR07X0253 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0172 Contact Us For Availability
736
Clip GEN WR02X8203 Contact Us For Availability
752
Refrigerator Insulation GEN WR82X10028 Contact Us For Availability
754
Refrigerator Floor GEN WR82X0387 Contact Us For Availability
756
Refrigerator Pad GEN WR01X2021 Contact Us For Availability
757
Refrigerator Push Fastener GEN WR01X2035 Contact Us For Availability
800
Refrigerator Water Valve Bracket GEN WR02X10153 Contact Us For Availability
806
Tube Icemaker GEN WR02X9245 Contact Us For Availability
807
Nut & Union GEN WR02X4046 Contact Us For Availability
818
Refrigerator Splash Guard GEN WR02X10106 Contact Us For Availability
822
Refrigerator Screw GEN WR01X2122 Contact Us For Availability
840
Refrigerator Screw GEN WR01X2024 Contact Us For Availability
840
Mgnt&cvr Wh GEN WR11X0181 Contact Us For Availability
842
Lever Asm Wh GEN WR11X0169 Contact Us For Availability
843
Lever Asm Wh GEN WR11X0170 Contact Us For Availability
850
Refrigerator Cover GEN WR29X0193 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
864
E Ring Pkg GEN WR29X0115 Contact Us For Availability
867
Refrigerator Fill Cup GEN WR29X0208 Contact Us For Availability
868
Mold Body GEN WR29X0204 Contact Us For Availability
870
Wire Harness GEN WR29X0186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
876
Refrigerator Button Plug GEN WR02X8483 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10131 Contact Us For Availability
901
Strike Mag GEN WR10X0125 Contact Us For Availability
903
Refrigerator Thimble Door GEN WR01X2030 Contact Us For Availability
904
Refrigerator Screw GEN WR01X2134 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10130 Contact Us For Availability
911
Refrigerator Thimble Door GEN WR01X2032 Contact Us For Availability
912
Thmbl Dr Wh GEN WR01X2133 Contact Us For Availability
921
Refrigerator Handle Brace GEN WR17X4220 Contact Us For Availability
922
Trim Cap GEN WR17X4235 Contact Us For Availability
924
Door Freezer Trim GEN WR17X4236 Contact Us For Availability
925
Refrigerator Door Handle GEN WR12X10198 Contact Us For Availability
926
Door Freezer Trim GEN WR17X4239 Contact Us For Availability
927
Door Freezer Trim GEN WR17X4241 Contact Us For Availability
940
Brace Handle GEN WR17X10232 Contact Us For Availability
941
CONNECTOR ELEC 6 PIN GEN WD01X1391 Contact Us For Availability
941
Refrigerator Handle Brace GEN WR17X4221 Contact Us For Availability
942
Cap Trim Ff GEN WR17X4234 Contact Us For Availability
944
Trim Door Ff GEN WR17X4237 Contact Us For Availability
945
Refrigerator Door Handle GEN WR12X10197 Contact Us For Availability
946
Trim Door Ff GEN WR17X4238 Contact Us For Availability
947
Refrigerator Door Trim GEN WR17X4240 Contact Us For Availability
NI
Refrigerator Screw GEN WR01X10038 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Refrigerator Block GEN WB17X5059 Contact Us For Availability
NI
Refrigerator Terminal GEN WD01X1440 Contact Us For Availability
NI
Refrigerator Clip GEN WH02X0896 Contact Us For Availability
NI
Refrigerator Screw GEN WH02X0940 Contact Us For Availability
NI
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
NI
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
NI
Refrigerator Screw GEN WR01X1858 Contact Us For Availability
NI
Scr 6-22 Pl GEN WR01X1966 Contact Us For Availability
NI
Scr 10-18 Pl GEN WR01X2116 Contact Us For Availability
NI
Corner Cover GEN WR01X2150 Contact Us For Availability
NI
Corner Cover GEN WR01X2151 Contact Us For Availability
NI
Corner Cover GEN WR01X2152 Contact Us For Availability
NI
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
× ![]()
Login and Registration Form
