Model GE 363.58475891 Refrigerator (Kenmore 36358475891) – Common Parts & Diagrams

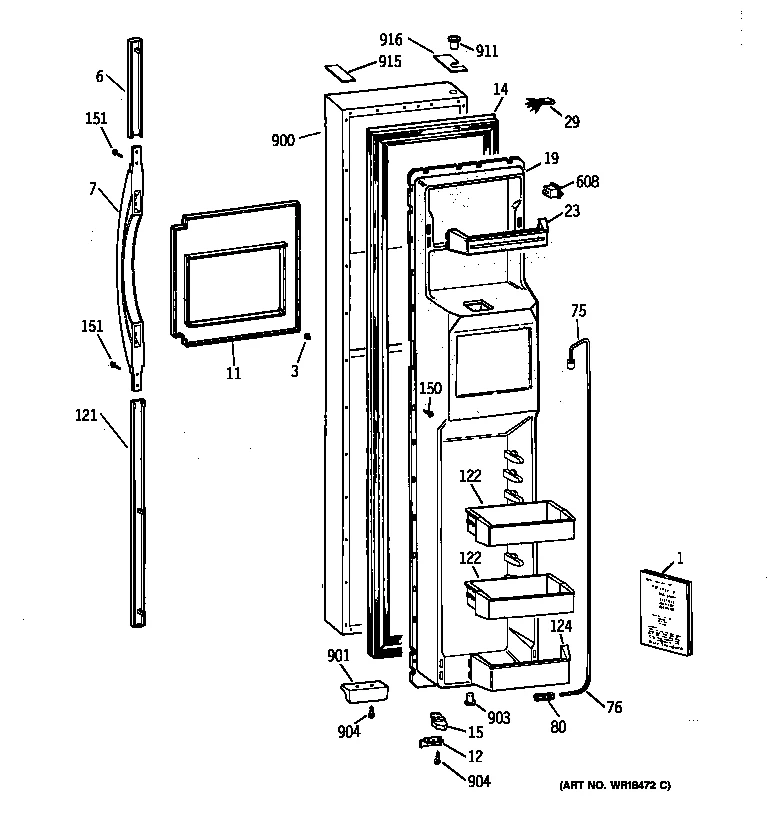

FREEZER DOOR

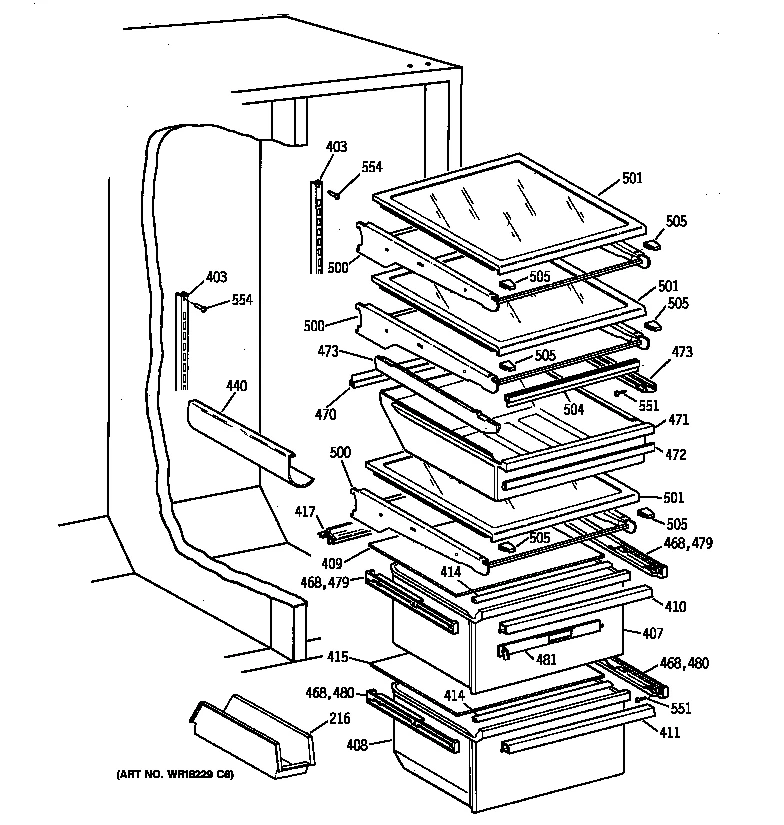

FRESH FOOD SECTION

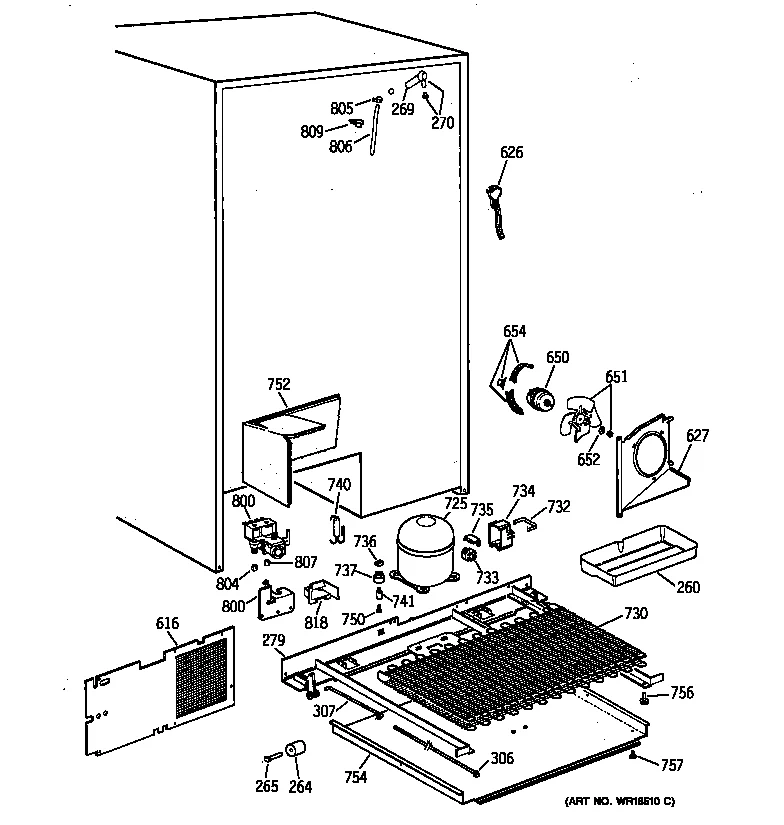

UNIT PARTS

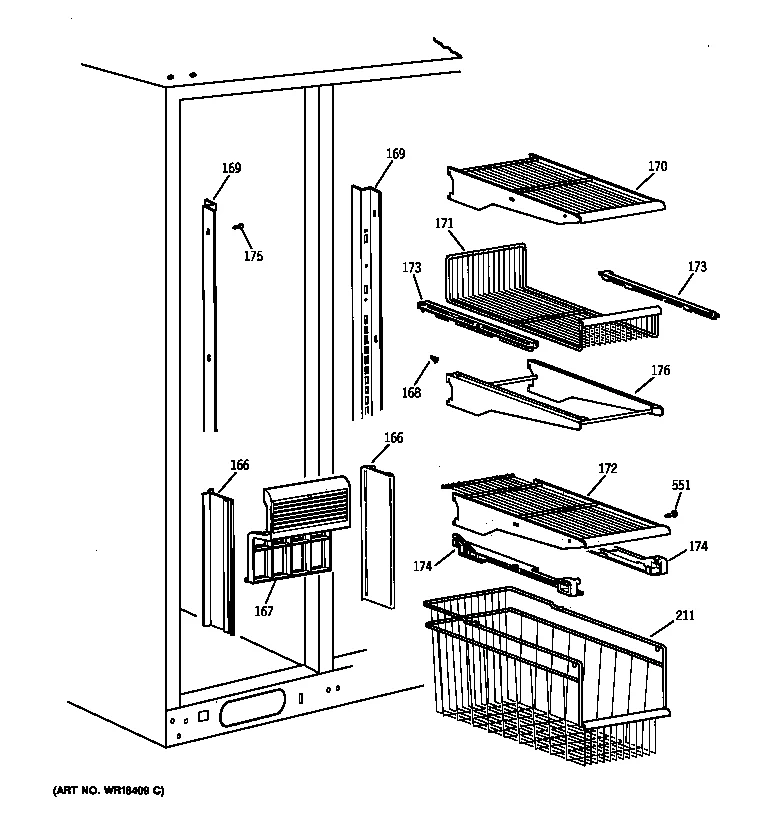

FREEZER SECTION

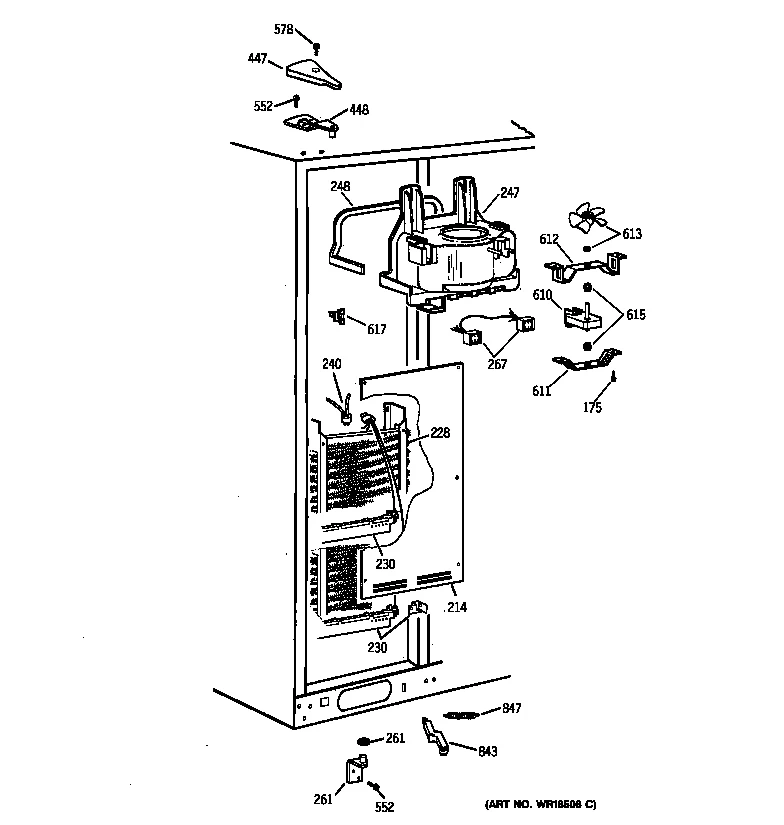

FREEZER SECTION

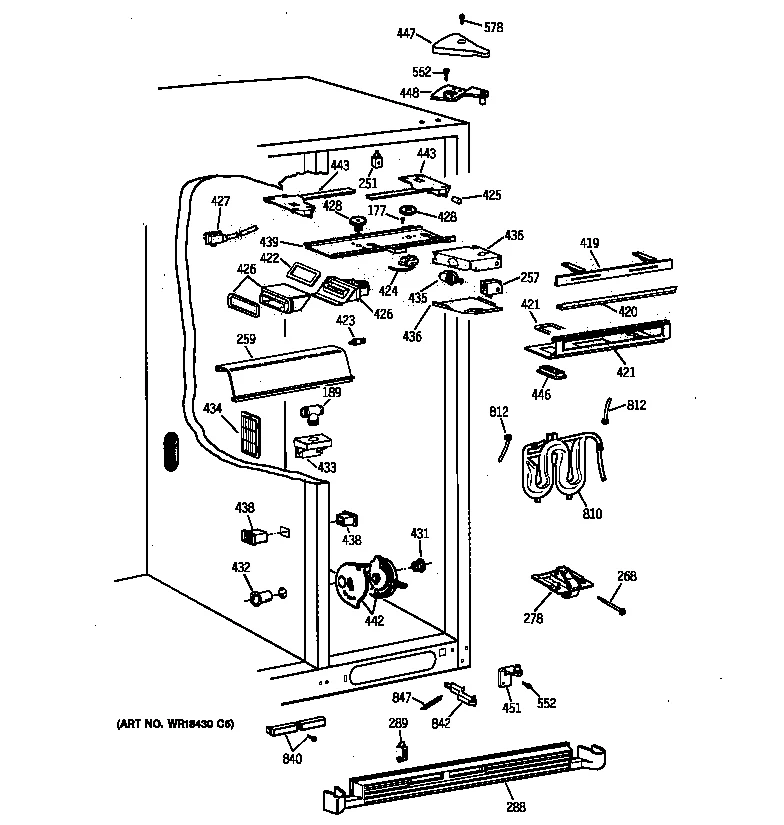

FRESH FOOD SECTION
ICE BUCKET
All Parts

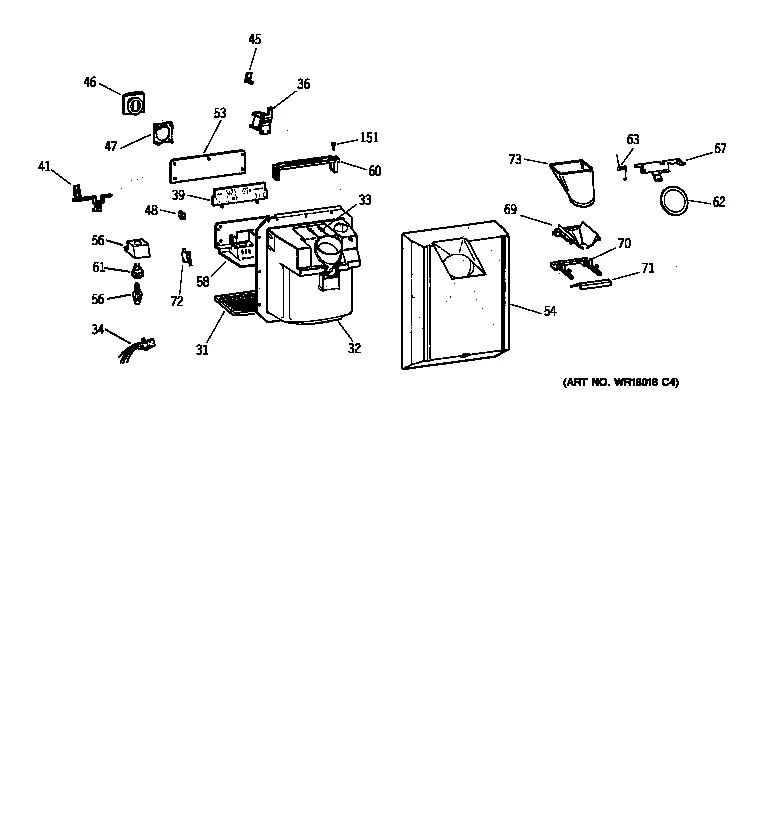

DISPENSER

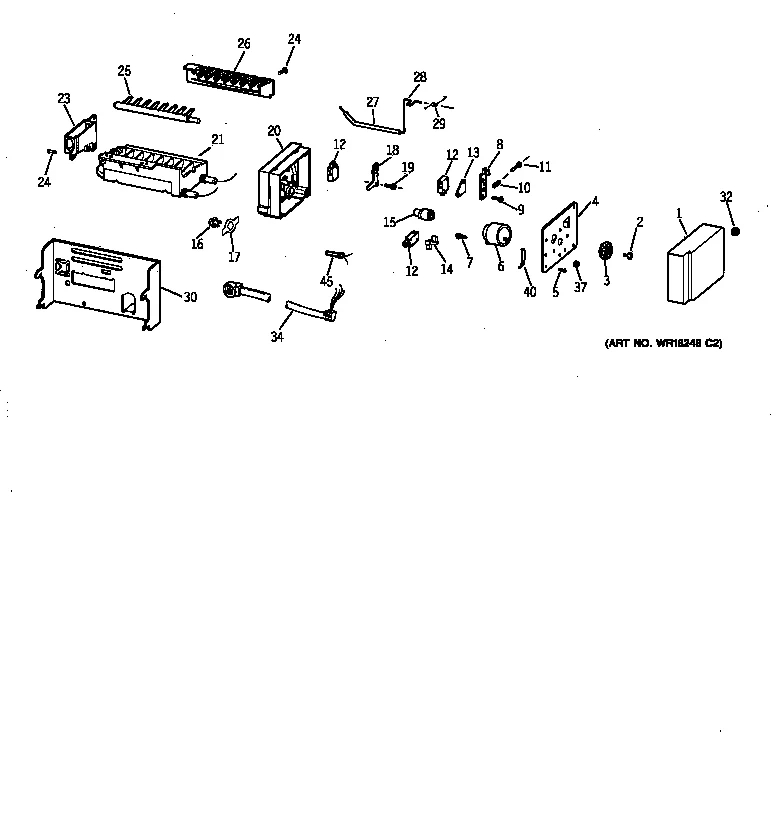

ICEMAKER WR30X0328

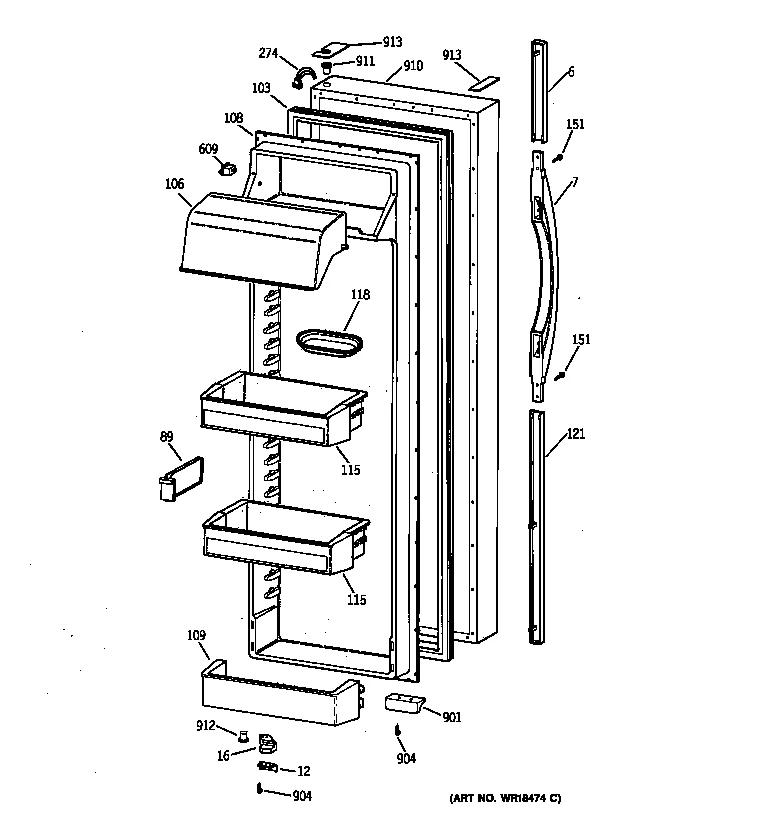

FRESH FOOD DOOR
Common parts from model GE 363.58475891 Refrigerator (Kenmore 36358475891)
1A
Guard Spl GEN WR2X10106 Contact Us For Availability
1C
Refrigerator Mini Wiring Manual GEN 31-51196 Contact Us For Availability
1D
Refrigerator Owner's Guide GEN SR618 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9244 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (Black) GEN WR24X561 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X559 Contact Us For Availability
15
Cam Closu GEN WR2X9235 Contact Us For Availability
15
Cam Closu GEN WR2X9247 Contact Us For Availability
15
Cam Closu GEN WR2X9250 Contact Us For Availability
16
Refrigerator Freezer Door Closer Cam GEN WR2X9246 Contact Us For Availability
16
Cam Closu GEN WR2X9234 Contact Us For Availability
16
Refrigerator Door Closer Cam GEN WR2X9249 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X676 Contact Us For Availability
23
Refrigerator Module GEN WR71X2619 Contact Us For Availability
29
Harness Dr H GEN WR23X10042 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
32
Recess Disp GEN WR17X10191 Contact Us For Availability
32
Recess Disp GEN WR17X10192 Contact Us For Availability
33
Recessed Heater GEN WR51X420 Contact Us For Availability
34
Harness Light Switch GEN WR23X456 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
46
Pad Actua GEN WR2X8704 Contact Us For Availability
46
Pad Act A GEN WR2X8726 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
48
Refrigerator Selector Knob (Black) GEN WR2X8676 Contact Us For Availability
48
Refrigerator Selector Knob GEN WR2X8696 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10108 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10109 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10110 Contact Us For Availability
54
Recess Insul GEN WR17X4208 Contact Us For Availability
56A
Refl Lp S GEN WR2X8686 Contact Us For Availability
56B
Refrigerator Light Bulb GEN STD372071 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3139 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3210 Contact Us For Availability
58
Recovery Shield GEN WR17X4126 Contact Us For Availability
60
Refrigerator Dispenser Control Cover GEN WR2X8685 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
70
Supt Funn GEN WR2X8943 Contact Us For Availability
70
Supt Funn GEN WR2X8954 Contact Us For Availability
71
Deflec Icebk GEN WR17X3478 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X4206 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
89
Snugger M GEN WR2X9444 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X562 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X560 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X524 Contact Us For Availability
108
Refrigerator Inner Door GEN WR77X675 Contact Us For Availability
109
Refrigerator Module Assembly GEN WR71X10061 Contact Us For Availability
115
Refrigerator Module Assembly GEN WR71X10057 Contact Us For Availability
118
Butter Glass Dish GEN WR19X37 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10062 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10063 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10064 Contact Us For Availability
166
Extrusion Cover GEN WR17X3836 Contact Us For Availability
167
Refrigerator Drain Pan Trough Cover (White) GEN WR17X10017 Contact Us For Availability
168
Refrigerator Clip GEN WR1X2029 Contact Us For Availability
169A
Track Cant S GEN WR72X10005 Contact Us For Availability
169B
Refrigerator Cantilever Shelf Mounting Rail, GEN WR72X10006 Contact Us For Availability
170
Refrigerator Shelf Wire GEN WR71X2708 Contact Us For Availability
171
Refrigerator Wire Basket GEN WR71X2699 Contact Us For Availability
172
Shelf Freezer Wire GEN WR71X10005 Contact Us For Availability
173A
Basket Fz Lh GEN WR72X277 Contact Us For Availability
173B
Refrigerator Slide Basket GEN WR72X276 Contact Us For Availability
174A
Slide Fz Lh GEN WR72X10002 Contact Us For Availability
174B
Slide Fz Rh GEN WR72X10001 Contact Us For Availability
175
Refrigerator Screw GEN WR1X2023 Contact Us For Availability
175
Washer, 12-pack GEN WR1X223 Contact Us For Availability
176
Cantilever Basket GEN WR71X2698 Contact Us For Availability
211
Refrigerator Freezer Bin GEN WR71X2697 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X10217 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
228
Refrigerator Evaporator Assembly GEN WR85X306 Contact Us For Availability
230A
Refrigerator Defrost Heater Bracket GEN WR2X8647 Contact Us For Availability
230B
Refrigerator Wire Harness GEN WR51X10014 Contact Us For Availability
248A
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
248B
Refrigerator Foam Strip GEN WR14X460 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Shield Lt Fz GEN WR17X10043 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Pan Water Diode GEN WR32X10011 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X759 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X758 Contact Us For Availability
261
Refrigerator Hinge GEN WR13X762 Contact Us For Availability
261
Refrigerator Freezer Door Hinge Thrust Washer GEN WR1X2033 Contact Us For Availability
264
Refrigerator Roller GEN WR2X8838 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X2050 Contact Us For Availability
267
Low Harness GEN WR23X10058 Contact Us For Availability
269A
Refrigerator Water Tubing GEN WR2X7927 Contact Us For Availability
269B
Refrigerator Key Pivot GEN WR1X1803 Contact Us For Availability
274
Harness Ff L GEN WR23X10041 Contact Us For Availability
275
Cvr Im Pl GEN WR1X2018 Contact Us For Availability
279
Rail Mtg Asm GEN WR17X10223 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
306
Refrigerator Adjustment Screw GEN WR1X2146 Contact Us For Availability
307
Link Screw GEN WR1X2145 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
328B
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
329
Dispenser Wire GEN WR17X4210 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
331
Refrigerator Dispenser Pan Retainer GEN WR2X4251 Contact Us For Availability
335
Spacer GEN WR2X4139 Contact Us For Availability
336
Refrigerator Blade GEN WR17X1009 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
339
Refrigerator Ice Dispenser Cube Diverter Pin GEN WR2X4141 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
348
Blade Indisp GEN WR2X7351 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
350
Refrigerator Dispenser Auger GEN WR17X4204 Contact Us For Availability
360
Shelf Bucket GEN WR71X2704 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10070 Contact Us For Availability
364
Refrigerator Dispenser Bucket Support Stud GEN WR2X7310 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
368B
Refrigerator Bracket Ice Maker GEN WR2X10011 Contact Us For Availability
375
Refrigerator Wire Harness GEN WR23X463 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10041 Contact Us For Availability
388
Dr Ice Stor GEN WR17X3838 Contact Us For Availability
403
Trck Can Shf GEN WR72X249 Contact Us For Availability
408
Refrigerator Meat Pan GEN WR32X10035 Contact Us For Availability
409
Refrigerator Glass Shelf Cover GEN WR32X10033 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X431 Contact Us For Availability
415
Refrigerator Deli Drawer Cover GEN WR32X1457 Contact Us For Availability
417
Gasket Shd GEN WR14X482 Contact Us For Availability
423
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
424A
Refrigerator Temperature Control GEN WR9X571 Contact Us For Availability
426B
Refrigerator Foam Gasket GEN WR14X462 Contact Us For Availability
426C
Foam Nozzle GEN WR2X8831 Contact Us For Availability
440
Wine Rack Pk GEN WR17X4094 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X9433 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X9434 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X9435 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X9436 Contact Us For Availability
447A
Refrigerator Hinge Cover GEN WR2X9437 Contact Us For Availability
447B
Refrigerator Hinge Cover GEN WR2X9438 Contact Us For Availability
448A
Upper Hinge Assembly GEN WR13X10014 Contact Us For Availability
448B
Upper Hinge Assembly GEN WR13X10015 Contact Us For Availability
470
203c3566p004 GEN WR14X420 Contact Us For Availability
471A
Refrigerator Meat Pan GEN WR32X10036 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473A
Slide Pan GEN WR72X289 Contact Us For Availability
473B
Slide Pan GEN WR72X290 Contact Us For Availability
481
Slide Pan GEN WR1X2079 Contact Us For Availability
500
Refrigerator Cantilever Shelf GEN WR71X10022 Contact Us For Availability
501
Refrigerator Slide Shelf GEN WR32X10034 Contact Us For Availability
504
Slide Out Seal GEN WR14X469 Contact Us For Availability
505
Shelf Stop GEN WR1X2080 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
609
Sw Light Ff GEN WR23X426 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10039 Contact Us For Availability
617
Grommet S GEN WR2X10097 Contact Us For Availability
627
Housing Condenser GEN WR17X10189 Contact Us For Availability
651A
Refrigerator Nut GEN WR1X1515 Contact Us For Availability
651B
Refrigerator Condenser Fan GEN WR60X234 Contact Us For Availability
652
Refrigerator Fan Motor Washer GEN WR1X1714 Contact Us For Availability
654A
Leg Condenser GEN WR2X9240 Contact Us For Availability
654B
Condenser Grommet GEN WR1X2019 Contact Us For Availability
654B
GROMMET COND FAN LEG GEN WR1X219 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X213 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Relay PTC GEN WR7X253 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X172 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
752
Refrigerator Insulation GEN WR82X10028 Contact Us For Availability
756
Refrigerator Pad GEN WR1X2021 Contact Us For Availability
757
Fastenr P GEN WR1X2035 Contact Us For Availability
800A
Bracket W GEN WR2X10105 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
806
Refrigerator Water Tubing GEN WR2X9245 Contact Us For Availability
807B
Nut & Uni GEN WR2X4046 Contact Us For Availability
840
Mgnt&cvr Ad GEN WR11X10002 Contact Us For Availability
840
Mgnt&cvr Wh GEN WR11X181 Contact Us For Availability
840
Refrigerator Screw GEN WR1X2024 Contact Us For Availability
842
Lever Asm Wh GEN WR11X169 Contact Us For Availability
842
Lever Asm Bk GEN WR11X172 Contact Us For Availability
842
Refrigerator Door Closer Lever GEN WR11X176 Contact Us For Availability
843
Lever Asm Wh GEN WR11X170 Contact Us For Availability
843
Lever Asm Bk GEN WR11X173 Contact Us For Availability
843
Lever Asm Ad GEN WR11X177 Contact Us For Availability
901
162d8262g010 GEN WR10X125 Contact Us For Availability
901
162d8262g012 GEN WR10X126 Contact Us For Availability
901
162d8262g005 GEN WR10X127 Contact Us For Availability
904
Refrigerator Screw GEN WR1X2134 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10130 Contact Us For Availability
910
Refrigerator Door Assembly GEN WR78X10132 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10134 Contact Us For Availability
911
Thimble D GEN WR1X2032 Contact Us For Availability
911
Refrigerator Door Hinge Bushing (Black) GEN WR1X2041 Contact Us For Availability
911
Thimble D GEN WR1X2047 Contact Us For Availability
912
Thmbl Dr GEN WR1X2131 Contact Us For Availability
912
Refrigerator Door Bottom Bushing (Black) GEN WR1X2132 Contact Us For Availability
912
Thmbl Dr GEN WR1X2133 Contact Us For Availability
913
Cover Cor GEN WR1X2143 Contact Us For Availability
913
Corner Cover GEN WR1X2147 Contact Us For Availability
913
Corner Cover GEN WR1X2150 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
NI
Connel 6p GEN WD1X1391 Contact Us For Availability
NI
Refrigerator Screw GEN WH2X940 Contact Us For Availability
NI
Refrigerator Block GEN WB17X5059 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
Refrigerator Clip GEN WH2X896 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
NI
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
NI
Refrigerator Fastener GEN WR1X1825 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X2122 Contact Us For Availability
NI
E Ring Pkg GEN WR29X115 Contact Us For Availability
× ![]()
Login and Registration Form
