Model Whirlpool 3621WRA ELECTRIC RANGE – Common Parts & Diagrams

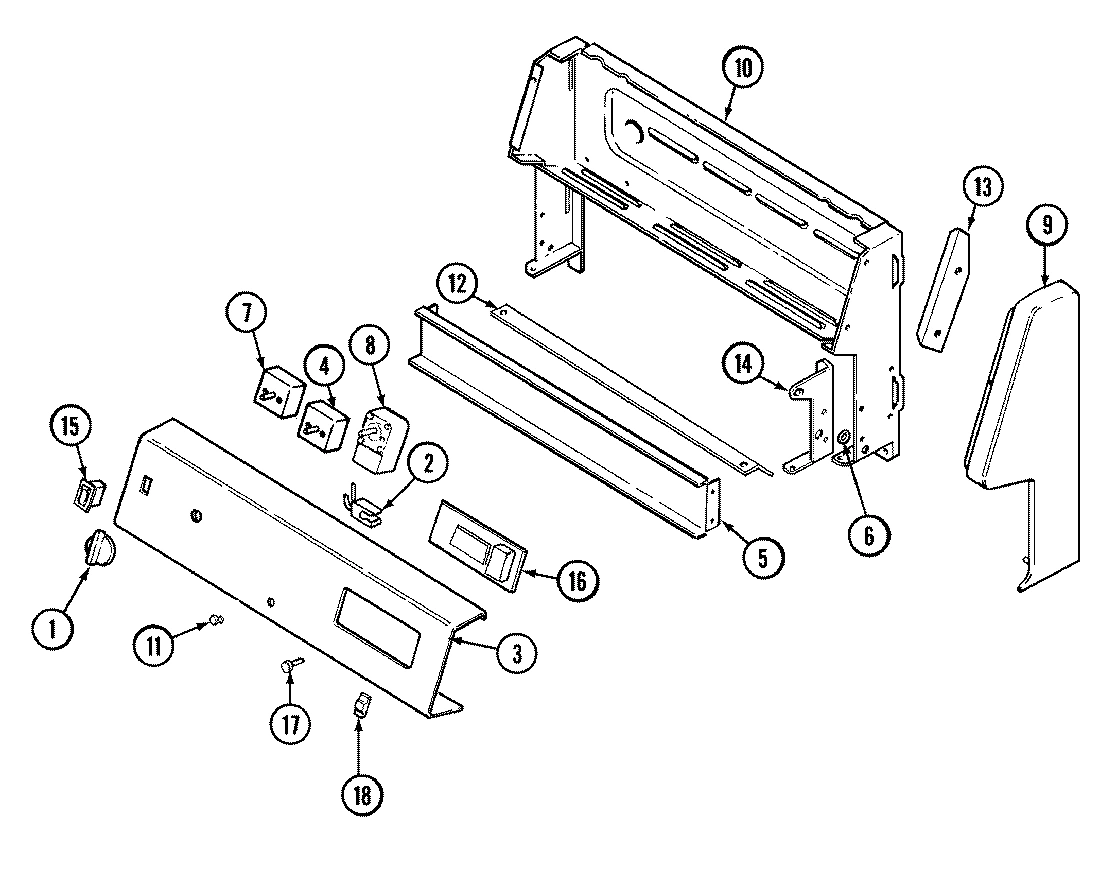

02 - CONTROL PANEL

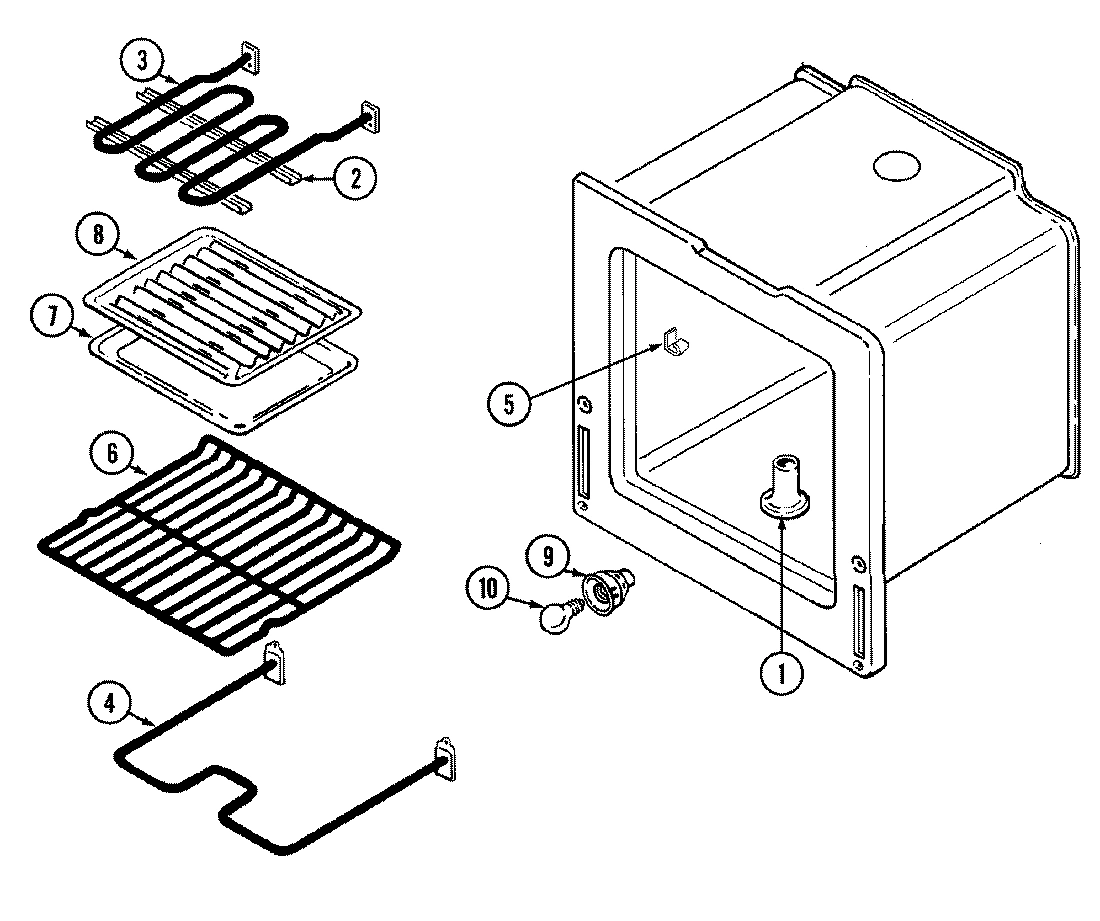

04 - OVEN

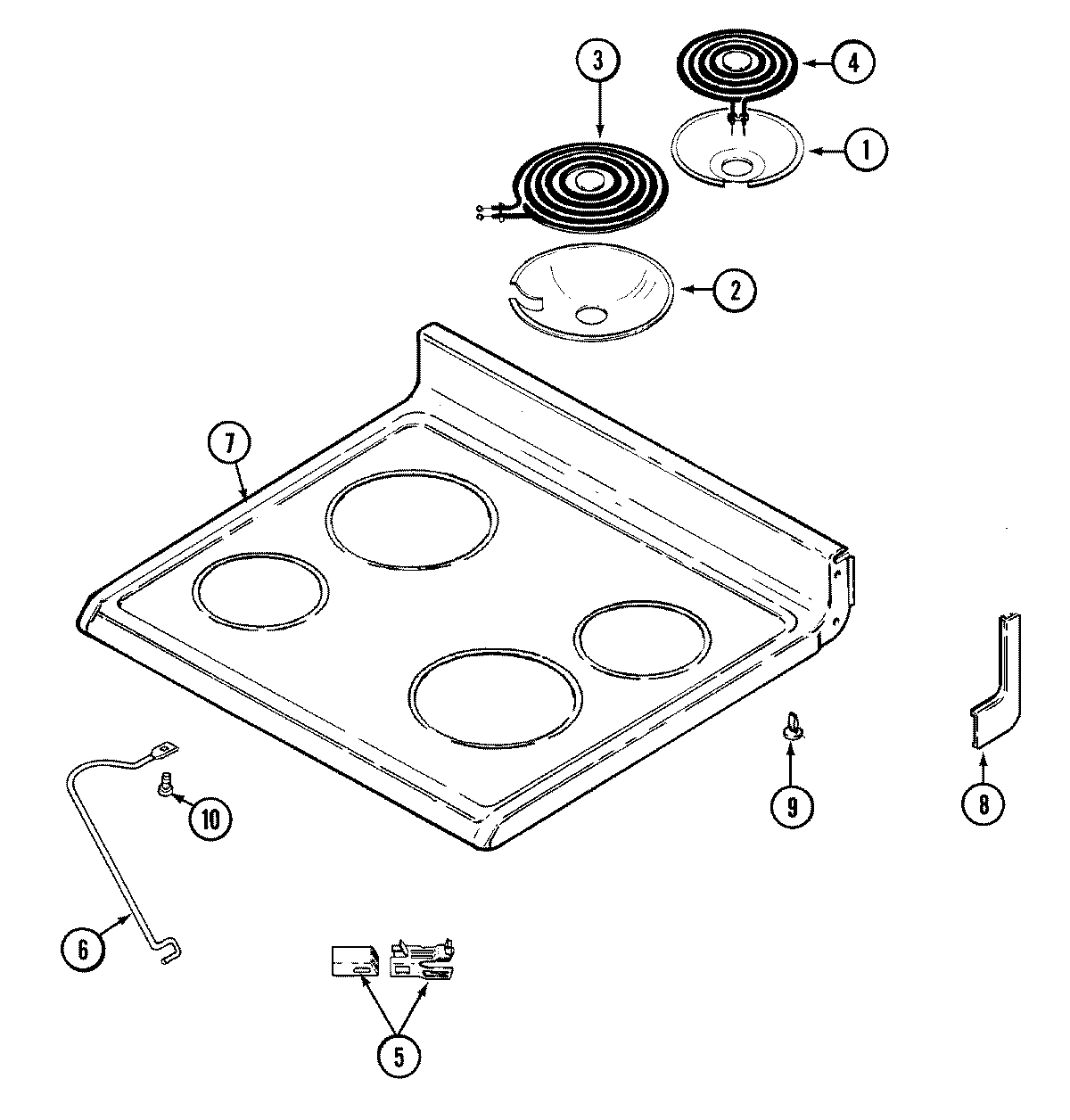

05 - TOP ASSEMBLY

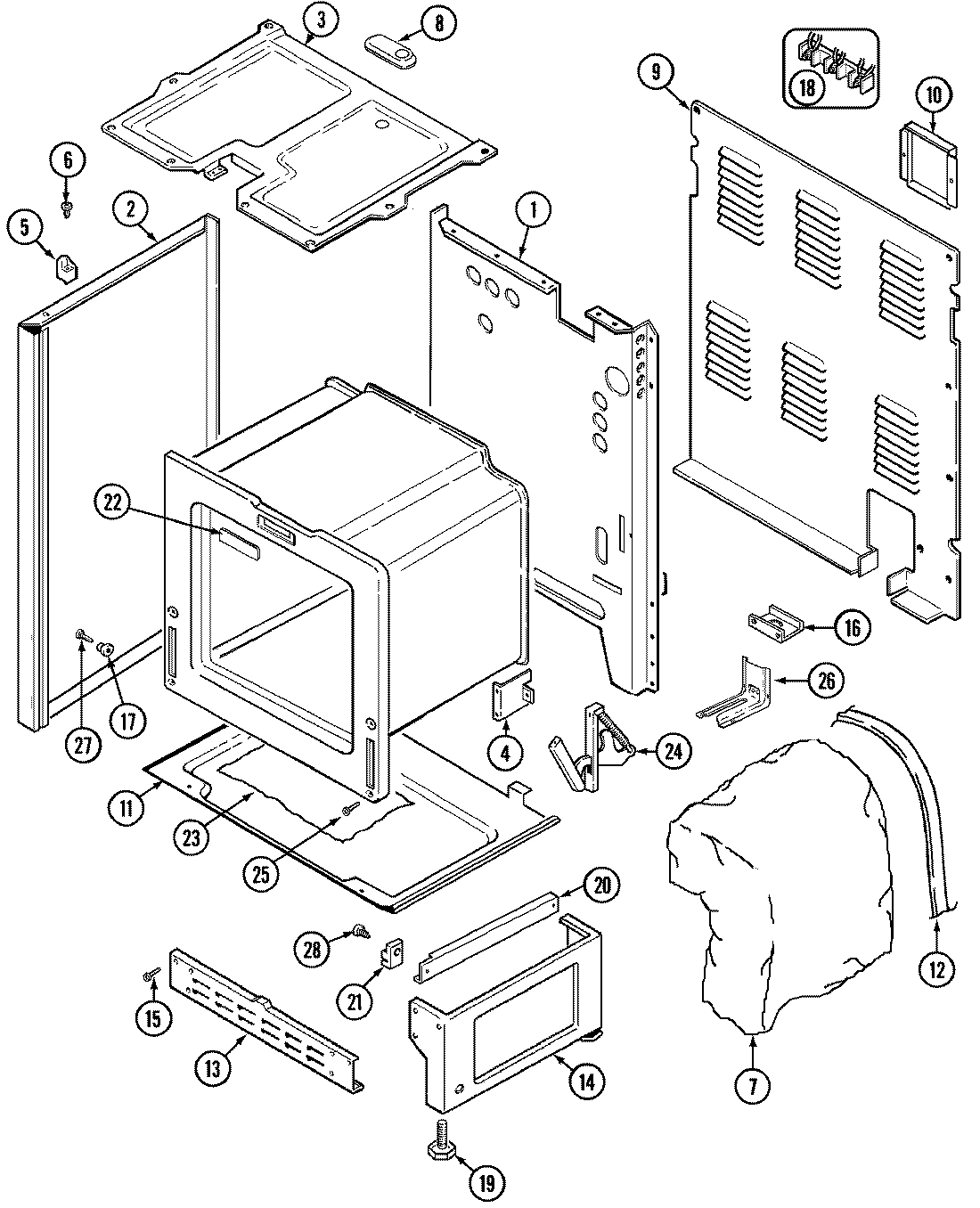

01 - BODY

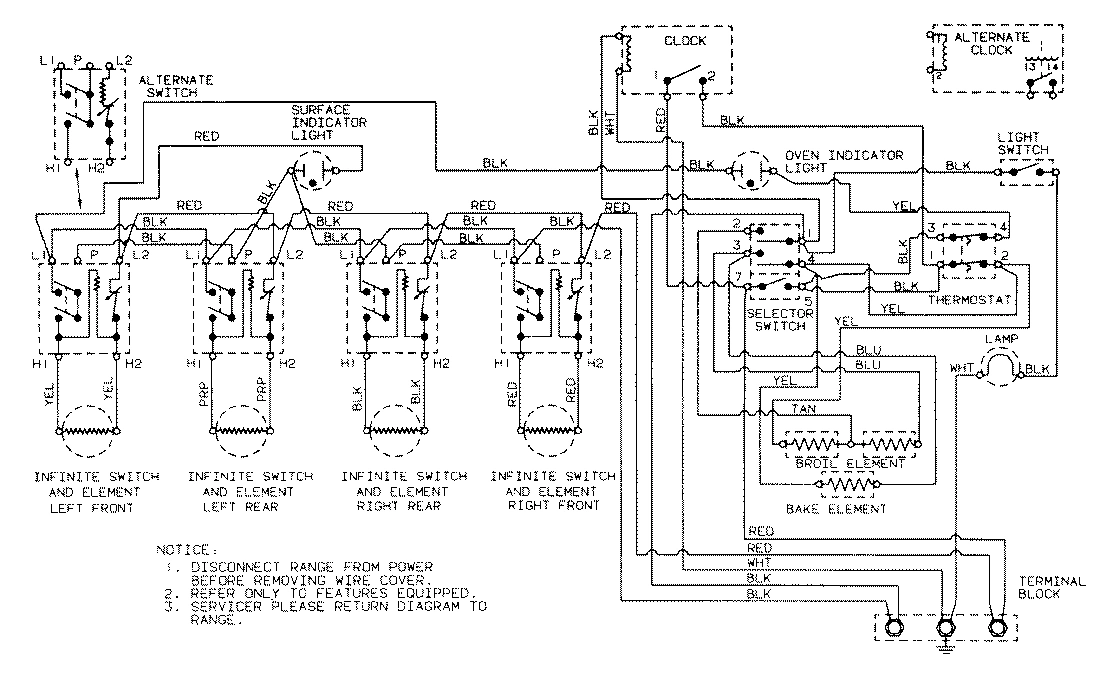

06 - WIRING INFORMATION

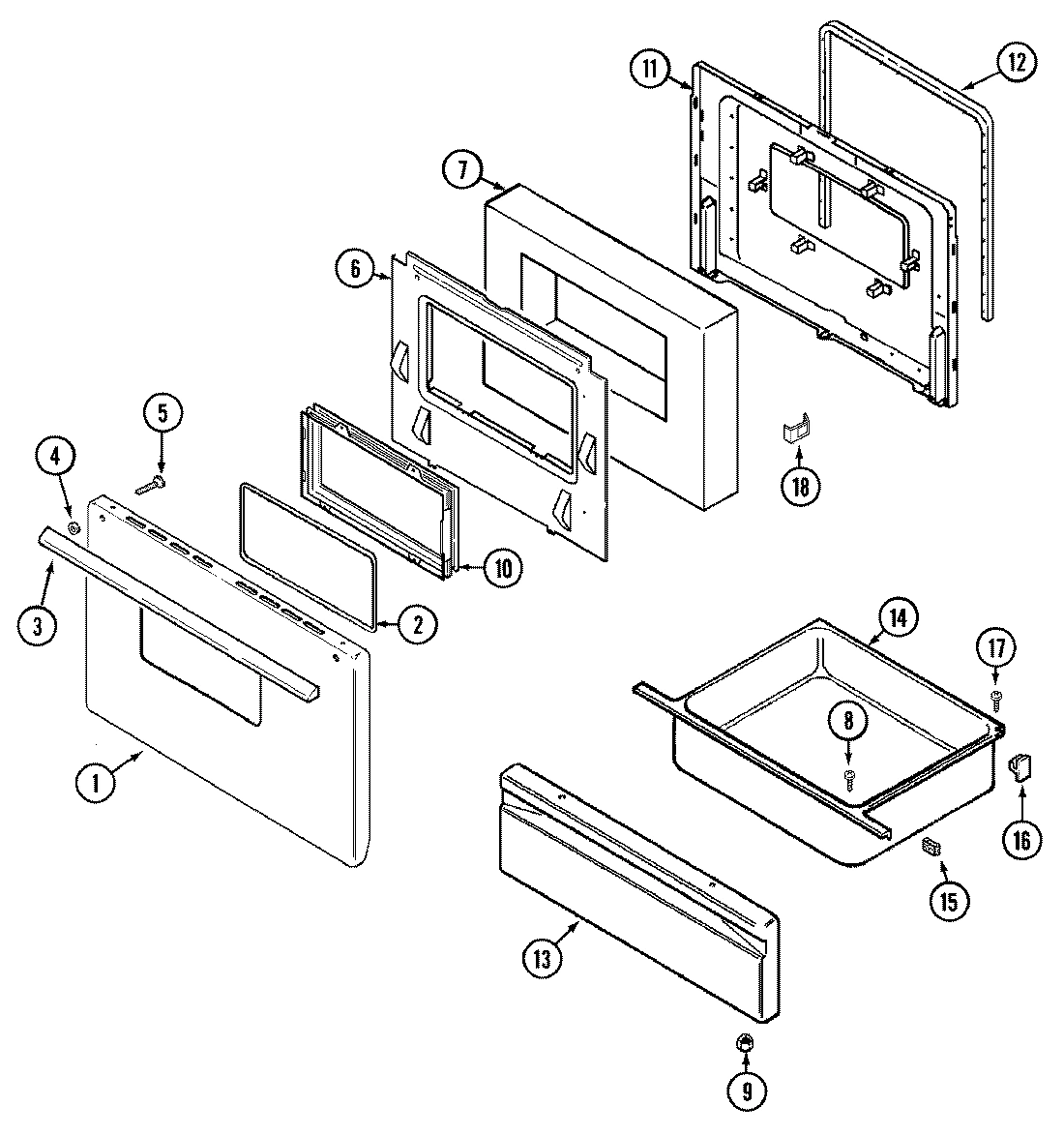

03 - DOOR/DRAWER
Common parts from model Whirlpool 3621WRA ELECTRIC RANGE
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18680 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09774 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
3
PANEL ASSY. (BLK) WPL 4876S04859 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
5
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
NUT, SPEED WPL 7103P12960 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07884 Contact Us For Availability
7
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
7
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
9
TRIM, BACKGUARD (RT) WPL 7726P04560 Contact Us For Availability
9
TRIM, BACKGUARD (LT) WPL 7726P04960 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
LINING, OVEN DOOR WPL 2402W20316 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
13
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
16
CLOCK WPL 7602P10460 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
18
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
19
HARNESS, LOOSE WIRE WPL 5125A31560 Contact Us For Availability
19
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
19
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
MANUAL, USE & CARE WPL 8113P02160 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
22
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
24
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
24
HINGE WPL 7106P05660 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001468 Contact Us For Availability
× ![]()
