Model GE 362.75944100 Gas Range (Kenmore 36275944100) – Common Parts & Diagrams

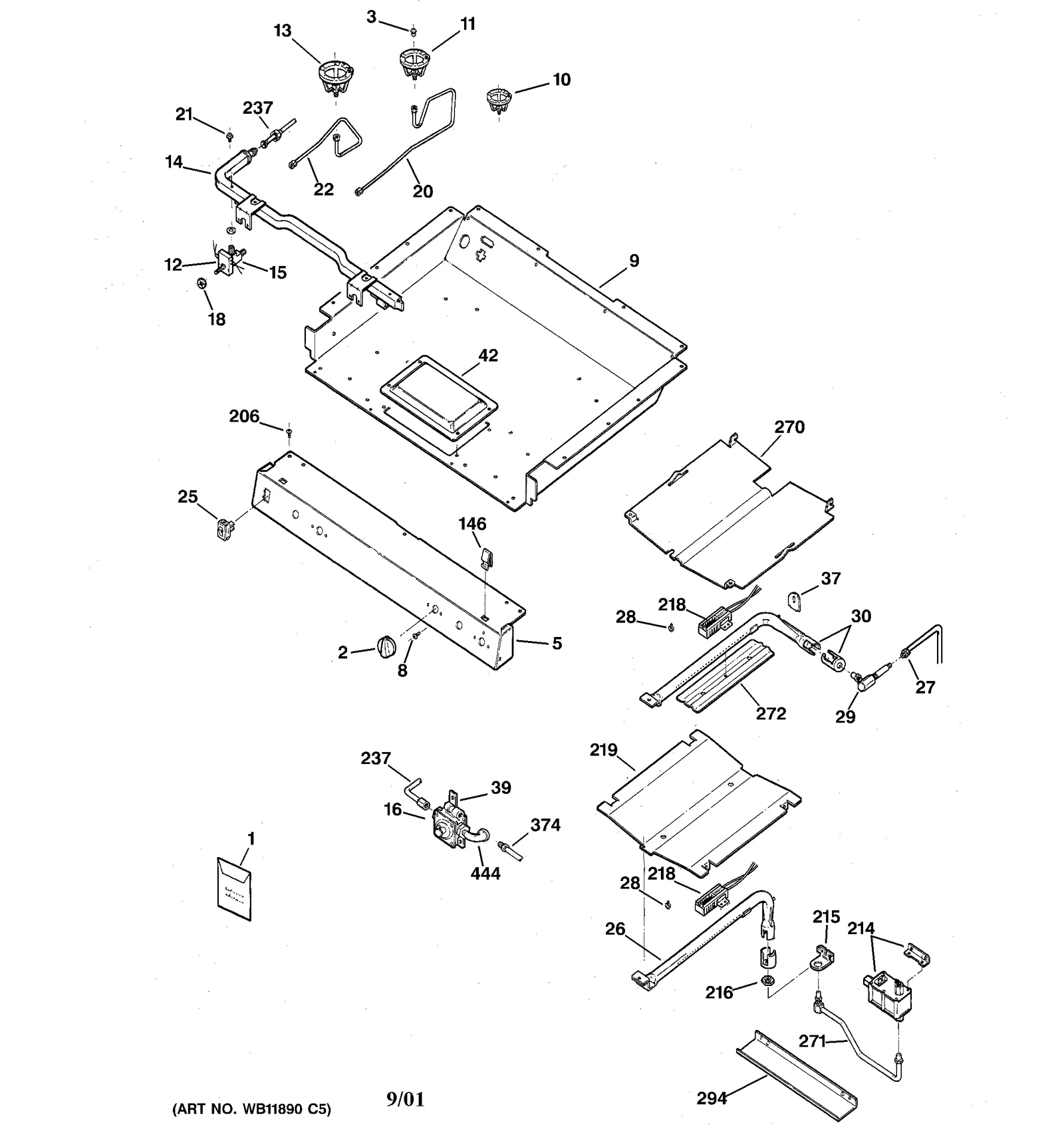

BURNER PARTS

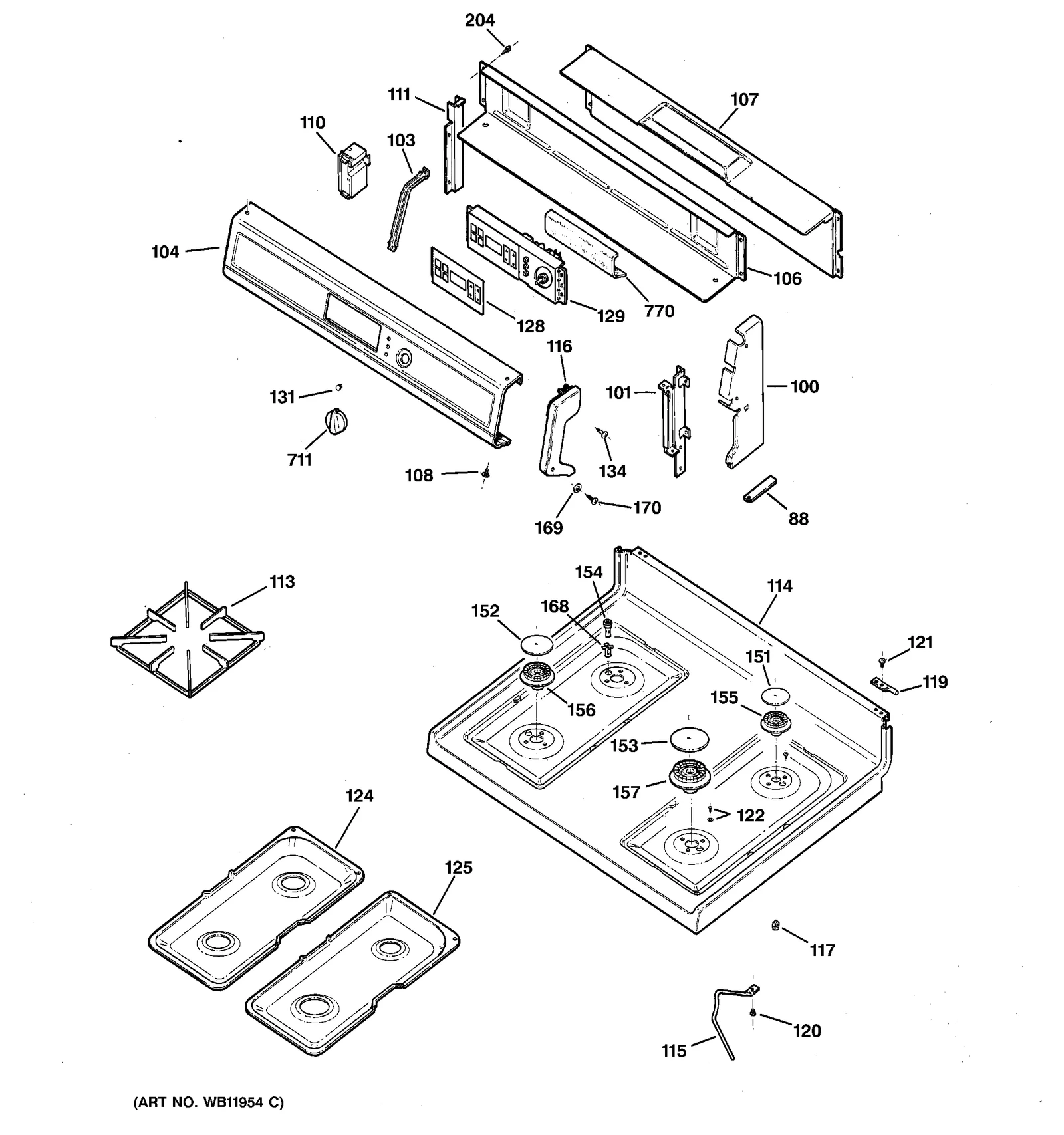

CONTROL PANEL & COOKTOP

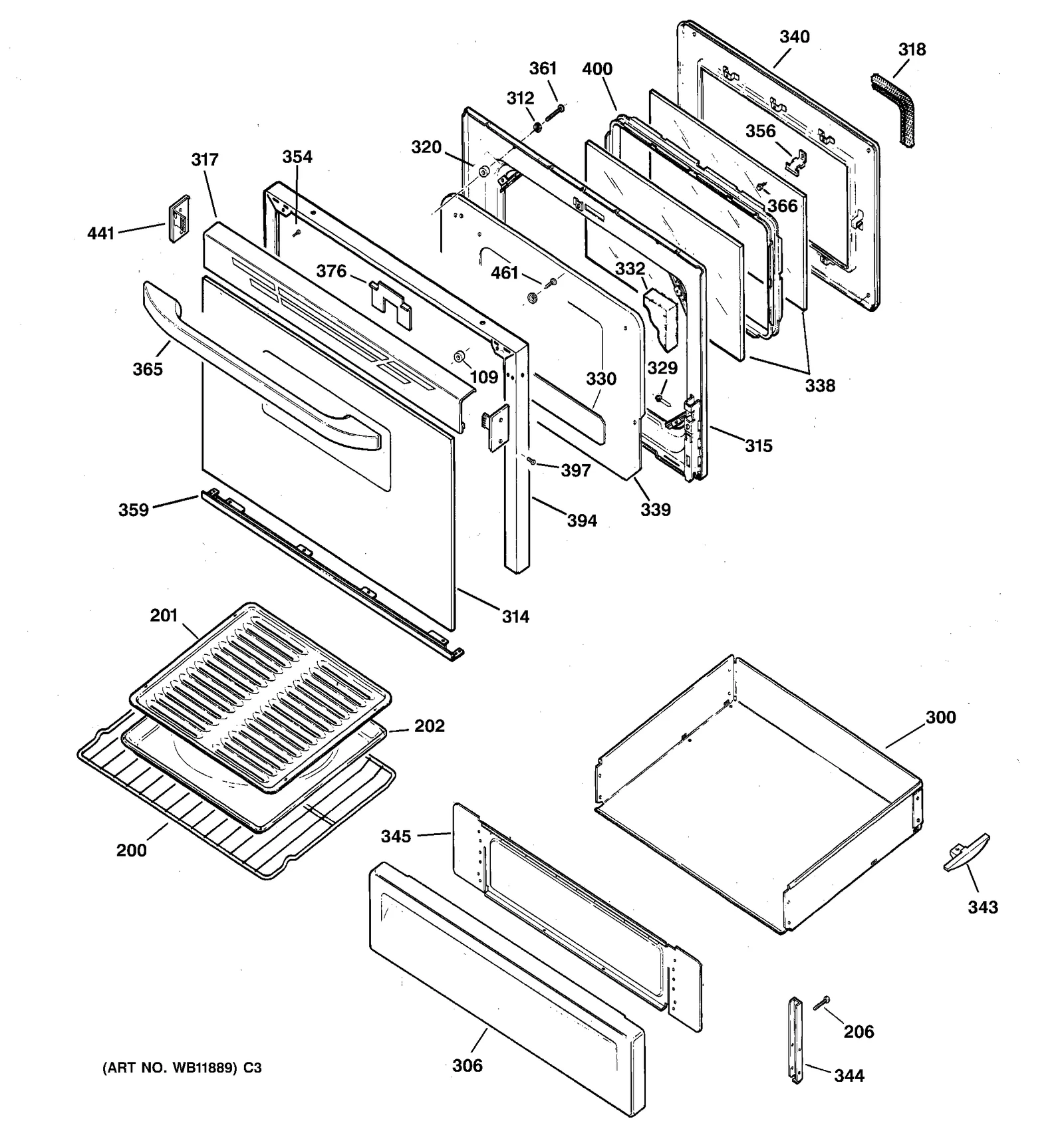

DOOR & DRAWER PARTS

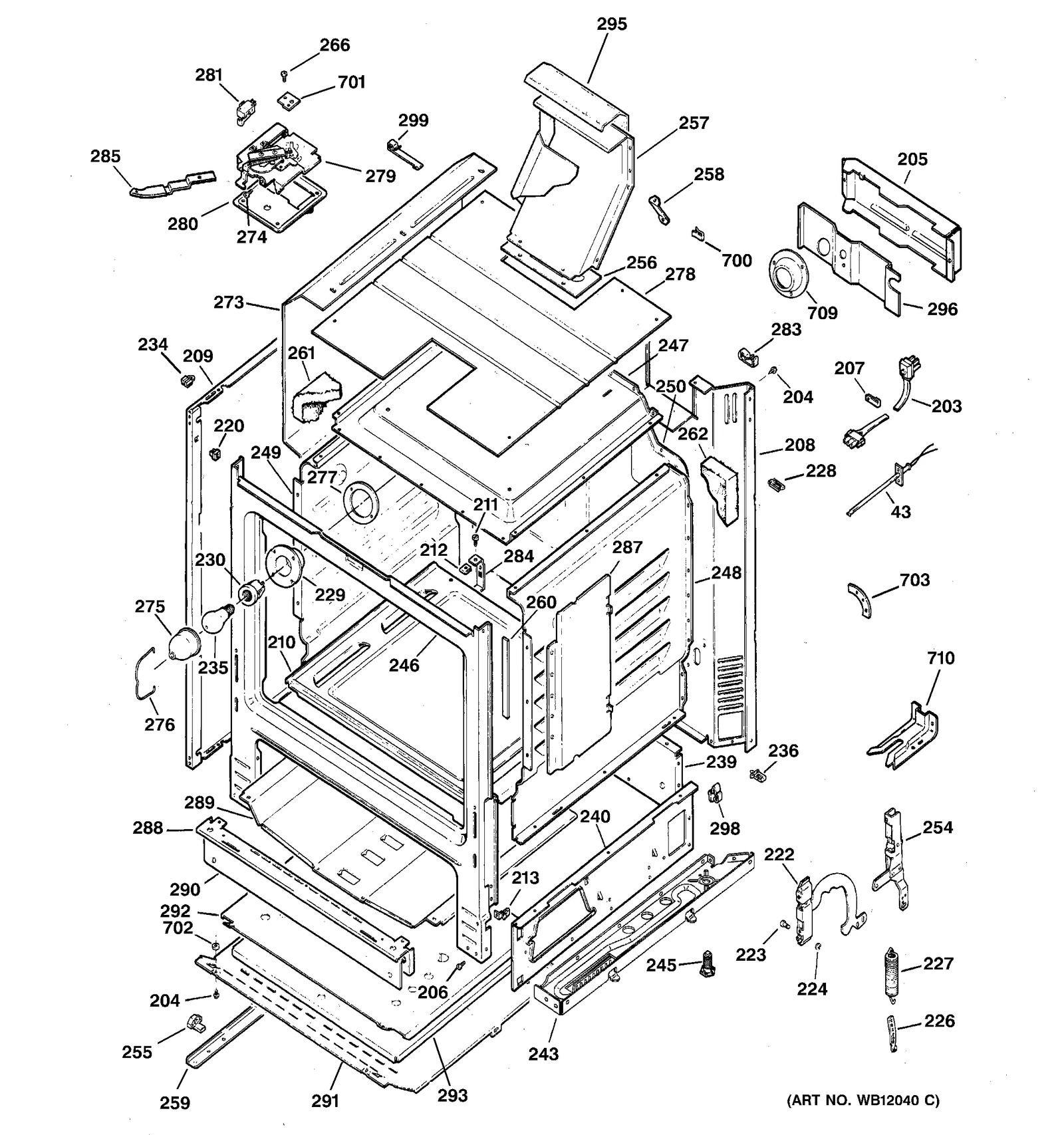

BODY PARTS
Common parts from model GE 362.75944100 Gas Range (Kenmore 36275944100)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10119 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10018 Contact Us For Availability
114
Range Main Top Assembly GEN WB62K10048 Contact Us For Availability
114
Range Main Top (Black) GEN WB62K10051 Contact Us For Availability
114
Cooktop -bsq GEN WB62K10044 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Range Control Panel End Cap GEN WB07K10117 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10118 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
128A
Range Oven Control Board GEN WB27K10142 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0052 Contact Us For Availability
209
Side Pnl/bis GEN WB62K10039 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266
Screw GEN WZ05X0124 Contact Us For Availability
266
Screw GEN WB01K0012 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
273
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Range Switch Latch GEN WB24K10010 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB58K10001 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
306
Warming Drawer GEN WB36K10164 Contact Us For Availability
314
Range Oven Door Outer Panel (White) GEN WB57K10013 Contact Us For Availability
314
Door Glass GEN WB57K10060 Contact Us For Availability
315
Liner GEN WB55K0025 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
317
Trim-vent Do GEN WB36K10037 Contact Us For Availability
317
Trim-vent Do GEN WB36K10253 Contact Us For Availability
330
Reflector GEN WB35K0022 Contact Us For Availability
332
Insul Sd Dr GEN WB35K0024 Contact Us For Availability
332
Insul Bot Dr GEN WB35K0025 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
345
Drawer Cover GEN WB35K10010 Contact Us For Availability
356
Window Clip GEN WB02K0056 Contact Us For Availability
365
Handle GEN WB15K10018 Contact Us For Availability
365
Dr Handle-wh GEN WB15K10019 Contact Us For Availability
365
Door Handle GEN WB15K10027 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394
Trim Door (b GEN WB07K10165 Contact Us For Availability
441
Door End Cap GEN WB07K10158 Contact Us For Availability
441
Door End Cap GEN WB07K10159 Contact Us For Availability
700
Retainer GEN WB02K0030 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Surface Burner Knob GEN WB03K10111 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10110 Contact Us For Availability
711
Assembly Kit GEN WB03K10122 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
