Model GE 362.75799000 Gas Range (Kenmore 36275799000) – Common Parts & Diagrams

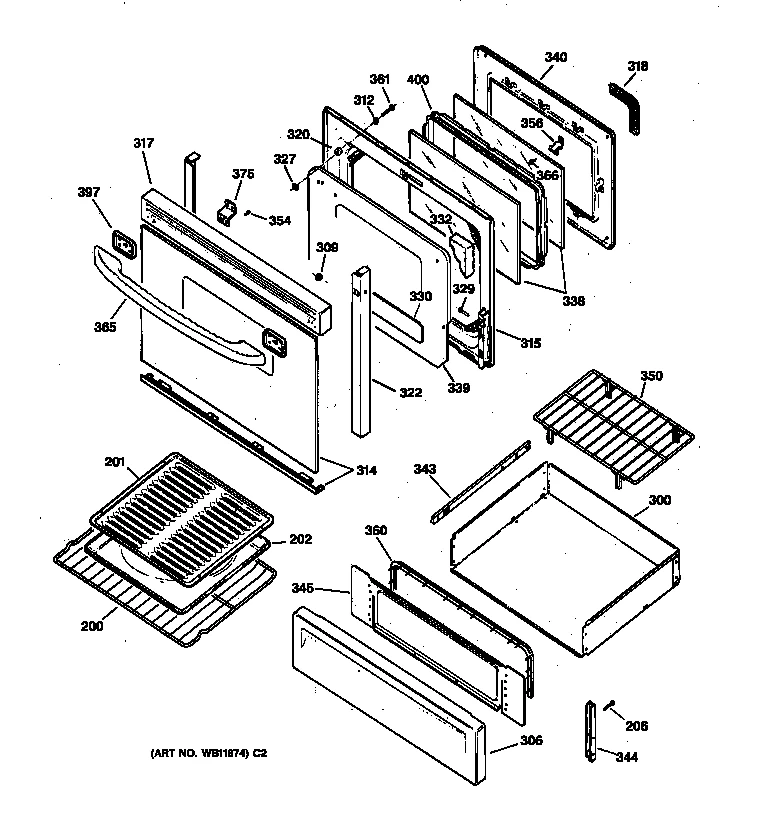

DOOR & DRAWER PARTS

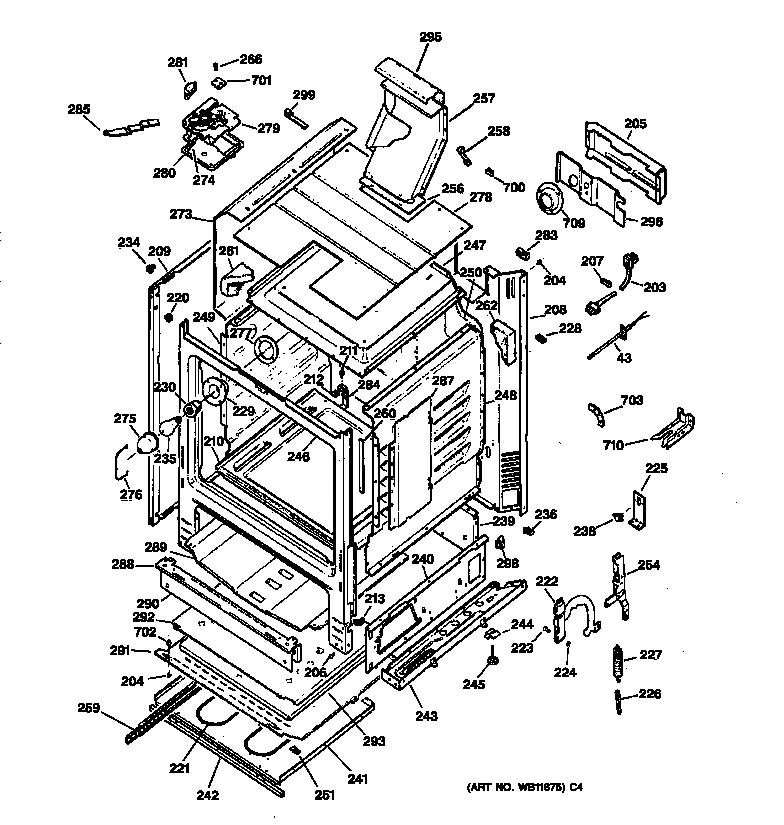

BODY PARTS
BURNER PARTS

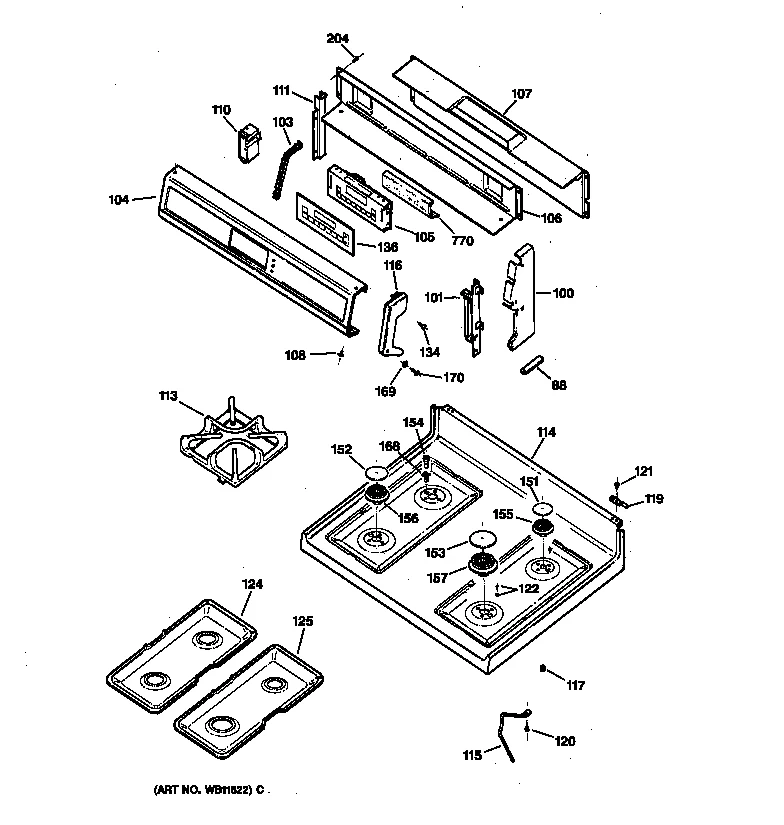

CONTROL PANEL & COOKTOP
Common parts from model GE 362.75799000 Gas Range (Kenmore 36275799000)
1
Cleaner Grate GEN WB31K10049 Contact Us For Availability
1A
MANUAL-REPAIR PARTS GEN 31-20635-1 Contact Us For Availability
1C
Owner's Manual GEN SR4252-1 Contact Us For Availability
1D
Range LP Conversion Kit GEN WB28K10048 Contact Us For Availability
2
Knob GEN WB3K10023 Contact Us For Availability
2
Knob GEN WB3K10024 Contact Us For Availability
2
Knob GEN WB3K10025 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
3C
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3F
Range Surface Burner Orifice GEN WB28K10034 Contact Us For Availability
4
KNOB-WRMG DRWR (ALM) GEN WB3K10095 Contact Us For Availability
4
KNOB-WRMG DRWR (ALM) GEN WB3K10096 Contact Us For Availability
4
KNOB-WRMG DRWR (BLK) GEN WB3K10097 Contact Us For Availability
5
Manifold Panel GEN WB36K10192 Contact Us For Availability
5
Manifold Panel GEN WB36K10193 Contact Us For Availability
5
Manifold Panel GEN WB36K10194 Contact Us For Availability
6
Infinite Switch GEN WB24K10006 Contact Us For Availability
7
Lamp Ignition GEN WB25K10001 Contact Us For Availability
8
Screw 8-3 GEN WB1K10002 Contact Us For Availability
9
Burner Box GEN WB63K23 Contact Us For Availability
10
Bracket-b GEN WB2K10007 Contact Us For Availability
11
Bracket-b GEN WB2K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Bracket-b GEN WB2K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
15C
Burner Valve GEN WB21K41 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K03 Contact Us For Availability
25
Rocker Switch GEN WB24K20 Contact Us For Availability
27
Range Broil Burner Gas Supply Tube GEN WB28K55 Contact Us For Availability
29A
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29B
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket R GEN WB2K88 Contact Us For Availability
42
Range Main Top Burner Box Cover GEN WB63K22 Contact Us For Availability
88
Felt Pad GEN WB2K85 Contact Us For Availability
100
Range Control Panel End Cap (White) GEN WB7K10001 Contact Us For Availability
100
End Cover GEN WB7K10002 Contact Us For Availability
100
End Cover GEN WB7K10008 Contact Us For Availability
100
End Cover GEN WB7K10009 Contact Us For Availability
100A
End Cover GEN WB7K10023 Contact Us For Availability
100B
End Cover GEN WB7K10022 Contact Us For Availability
101A
End Plate GEN WB37K17 Contact Us For Availability
101B
End Plate GEN WB37K18 Contact Us For Availability
103
Range Oven Control Board Bracket GEN WB2K10005 Contact Us For Availability
104
Control Trim GEN WB36K10039 Contact Us For Availability
104
Control Trim GEN WB36K10040 Contact Us For Availability
104
Control Trim GEN WB36K10041 Contact Us For Availability
105
Control GEN WB11K10017 Contact Us For Availability
107
Lower Cover GEN WB34K10008 Contact Us For Availability
110A
Range Spark Module GEN WB13K25 Contact Us For Availability
110B
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K05 Contact Us For Availability
113
Range Surface Burner Grate (Black) GEN WB31K10022 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10023 Contact Us For Availability
113
Grate (alm) GEN WB31K10024 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10027 Contact Us For Availability
114
Main Top (Black) GEN WB62K10029 Contact Us For Availability
115
Support GEN WB2K91 Contact Us For Availability
116
End Cap GEN WB7K10003 Contact Us For Availability
116
End Cap GEN WB7K10004 Contact Us For Availability
116
End Cap GEN WB7K10005 Contact Us For Availability
116
End Cap GEN WB7K10007 Contact Us For Availability
116
Cap-end R GEN WB7K10011 Contact Us For Availability
116
Cap-end L GEN WB7K10012 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
119
Hinge Pin GEN WB14K05 Contact Us For Availability
121
Screw GEN WB1K01 Contact Us For Availability
122
Mounting Screw GEN WB1K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
131
Lens GEN WB25K02 Contact Us For Availability
134
Mounting Screw GEN WB1K10003 Contact Us For Availability
134
Screw 8-1 GEN WB1K10004 Contact Us For Availability
134
Screw 8-1 GEN WB1K10010 Contact Us For Availability
136
Overlay (Black) GEN WB11K10008 Contact Us For Availability
136
Overlay (wh) GEN WB11K10009 Contact Us For Availability
136
Overlay (alm GEN WB11K10010 Contact Us For Availability
146
Range Clip GEN WB2K52 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
168
Mounting Clip GEN WB1K10007 Contact Us For Availability
169
Clear Washer GEN WB1K57 Contact Us For Availability
170
Screw GEN WB1X5716 Contact Us For Availability
170
End Screw GEN WB1X5874 Contact Us For Availability
170
Scr 8-18 GEN WB1X5902 Contact Us For Availability
210
Range Oven Bottom Liner GEN WB53K35 Contact Us For Availability
216
Lock Nut GEN WB1K06 Contact Us For Availability
219
Flame Spreader GEN WB49K44 Contact Us For Availability
221
Range Warming Drawer Element GEN WB44K10004 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
226
Range Oven Door Spring Retainer GEN WB2K11 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
238
Thermistor Sensor GEN WB20K10006 Contact Us For Availability
254A
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
254B
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
254C
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Range Surface Burner Orifice GEN WB28K202 Contact Us For Availability
271B
Range Bake Burner Gas Supply Tube GEN WB28K60 Contact Us For Availability
272
Shield Broil GEN WB34K10 Contact Us For Availability
279
Oven Latch GEN WB2K42 Contact Us For Availability
280
Shield La GEN WB2K29 Contact Us For Availability
281
Range Switch Latch GEN WB24K10010 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287A
Guard Radiat GEN WB34K31 Contact Us For Availability
287B
Guard Radiat GEN WB34K30 Contact Us For Availability
288
Oven Brace GEN WB63K15 Contact Us For Availability
290
Radiant Shield GEN WB34K12 Contact Us For Availability
292
Guard GEN WB63K17 Contact Us For Availability
293
Guard Bot Md GEN WB63K18 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K13 Contact Us For Availability
298
Clip Spac GEN WB2K37 Contact Us For Availability
299
Wire Clip GEN WB2K38 Contact Us For Availability
300
Drawer Body GEN WB58K10005 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
315
Liner GEN WB55K25 Contact Us For Availability
374
Range Oven Gas Supply Tube GEN WB28K150 Contact Us For Availability
444
Elbow 90 GEN WB28K61 Contact Us For Availability
700
Retainer GEN WB2K30 Contact Us For Availability
701
Shield Switch GEN WB2K39 Contact Us For Availability
702
Washer GEN WB1K24 Contact Us For Availability
703
Orifice Bracket GEN WB2K41 Contact Us For Availability
709
RETAINER INSULATION LAMP GEN WB8K04 Contact Us For Availability
710
Bracket A GEN WB2K10020 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
