Model GE 362.75786890 Gas Range (Kenmore 36275786890) – Common Parts & Diagrams

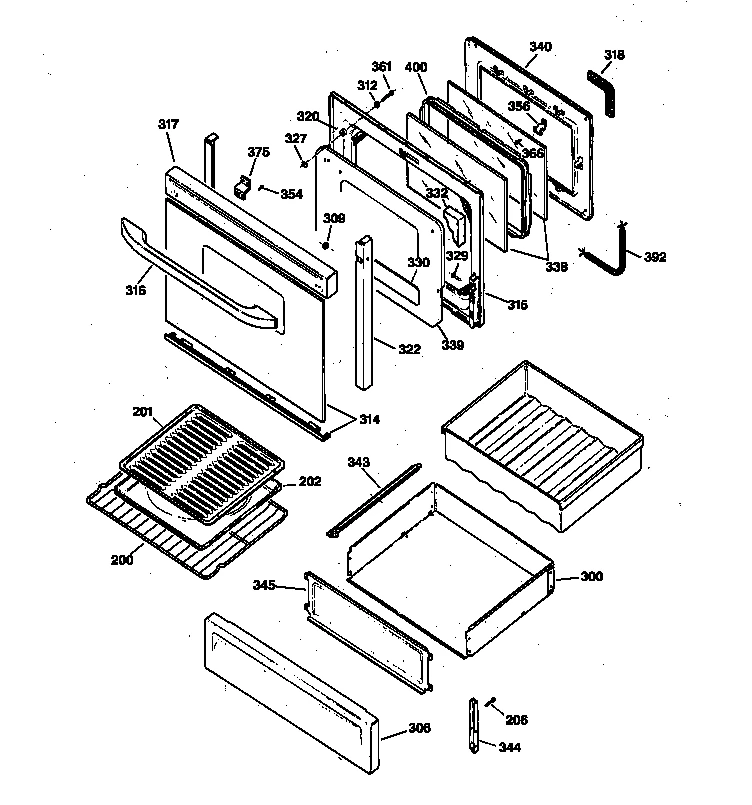

DOOR & DRAWER PARTS
BURNER PARTS
BODY PARTS
CONTROL PANEL & COOKTOP
Common parts from model GE 362.75786890 Gas Range (Kenmore 36275786890)
1A
Owner's Manual GEN SR4243 Contact Us For Availability
1B
MANUAL-MINI./ELEC. DIAG. GEN 31-20635 Contact Us For Availability
1C
Range Parts GEN SR4526 Contact Us For Availability
1D
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Top Burner Knob GEN WB03K10025 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K10034 Contact Us For Availability
3D
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
5
Manifold Panel GEN WB36K10084 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
10
Burner Bracket GEN WB02K10007 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
15B
Vlv Burner L GEN WB21K0041 Contact Us For Availability
15C
Vlv Burner R GEN WB21K21 No Longer Available
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29A
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29B
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
100A
End Cover GEN WB07K10008 Contact Us For Availability
100B
End Cover GEN WB07K10009 Contact Us For Availability
101A
End Plate GEN WB37K0018 Contact Us For Availability
101B
End Plate GEN WB37K0017 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10040 Contact Us For Availability
105
Control GEN WB11K10017 Contact Us For Availability
107
Lower Cover GEN WB34K10008 Contact Us For Availability
110A
Igniter Harness GEN WB18K10005 Contact Us For Availability
110B
Spark Module GEN WB13K0025 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Grate (alm) GEN WB31K10024 Contact Us For Availability
114
Cooktop (al) GEN WB62K10008 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116A
Cap-end Lf A GEN WB07K10012 Contact Us For Availability
116B
Cap-end Rt A GEN WB07K10011 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Pan Unit GEN WB32K10008 Contact Us For Availability
125
Pan Unit GEN WB32K10006 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
136
Overlay (alm GEN WB11K10010 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw, #8-18 GEN WB01X5902 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
222
Hinge Asm Gd GEN WB10K0012 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240B
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243B
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254A
Support Rivet GEN WB10K0014 Contact Us For Availability
254B
Support Rivet GEN WB10K0013 Contact Us For Availability
254C
Hinge Screw GEN WB01K0053 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
259A
Chassis Rail GEN WB39K10004 Contact Us For Availability
259B
Chassis Rail GEN WB39K10003 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266A
Screw GEN WB01K0012 Contact Us For Availability
266B
Screw GEN WZ05X0124 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Oven Orifice GEN WB28K0202 Contact Us For Availability
271B
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273A
Guard Insulation GEN WB53K0012 Contact Us For Availability
273B
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K10047 Contact Us For Availability
287A
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
345
Deflector-dr GEN WB35K10007 Contact Us For Availability
354
Scr 8-16x1 GEN WB01K10011 Contact Us For Availability
356
Window Clip GEN WB02K0069 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
375
Door Bracket GEN WB02K10009 Contact Us For Availability
392
Window Pack Seal GEN WB04K0003 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
700
Clip Vent GEN WB02K0034 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
