Model GE 362.75701002 Gas Range (Kenmore 36275701002) – Common Parts & Diagrams
DOOR & DRAWER PARTS

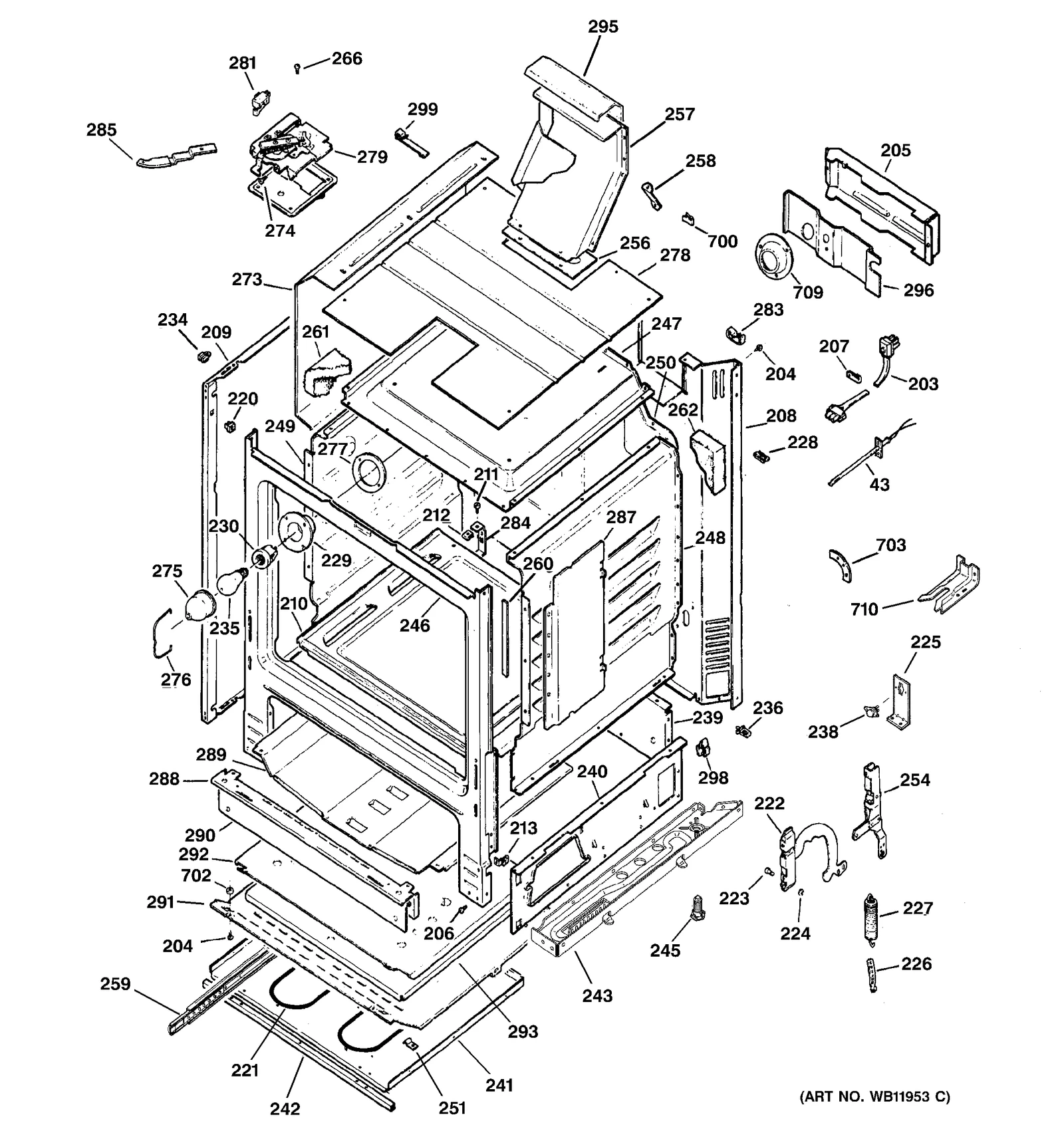

BODY PARTS

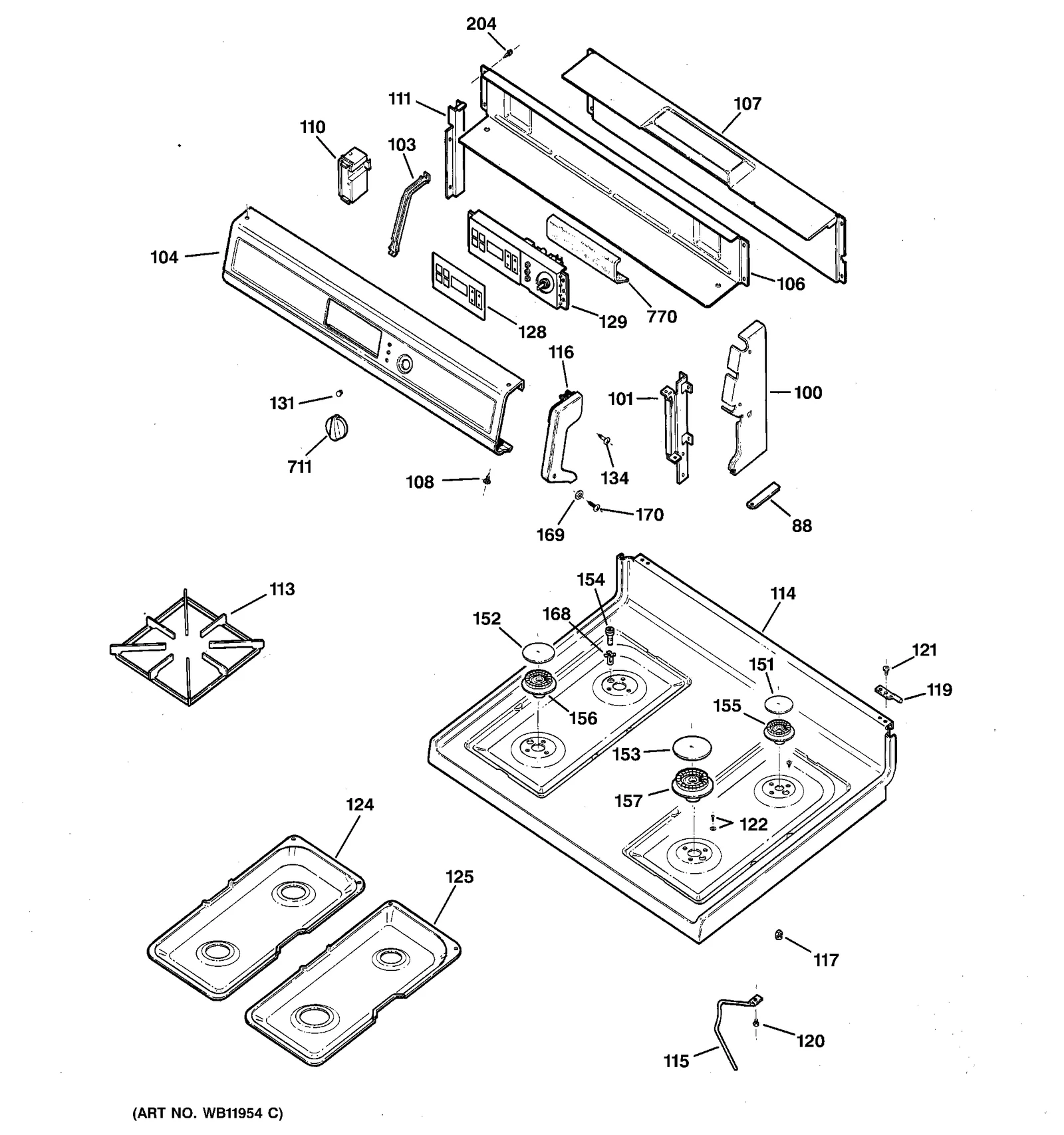

CONTROL PANEL & COOKTOP

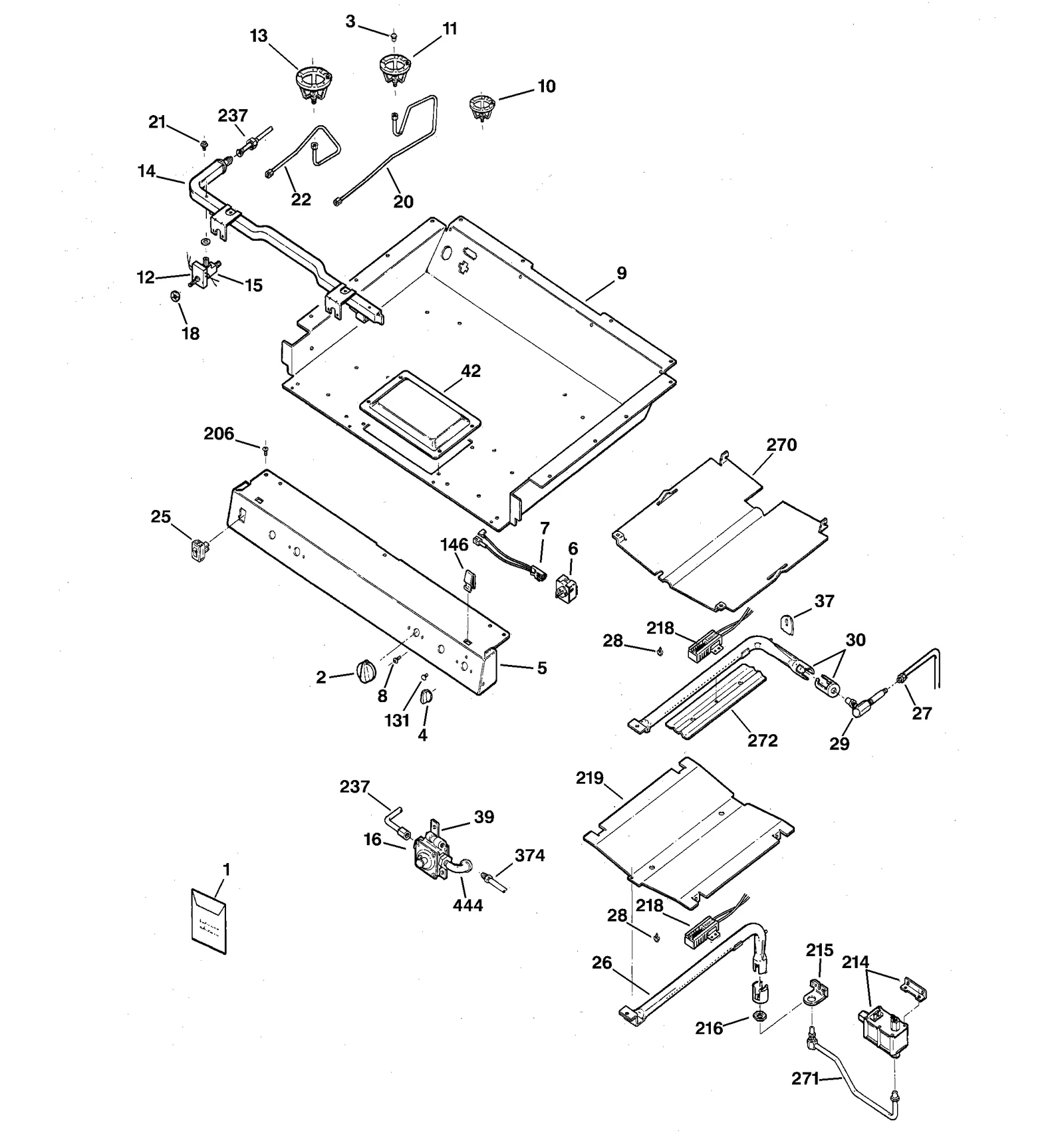

BURNER PARTS
Common parts from model GE 362.75701002 Gas Range (Kenmore 36275701002)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
1
MANUAL-MINI/ELEC. DIAG. GEN 31-20631-1 Contact Us For Availability
1
MANUAL - REPAIR PARTS GEN SR4619 Contact Us For Availability
1
Gas Freestan GEN SR85004 Contact Us For Availability
1
Feet Rubber GEN WB02K0101 Contact Us For Availability
1
Cleaner Grate GEN WB31K10049 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10021 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
4
Knob-wrmg Dr GEN WB03K10090 Contact Us For Availability
4
Knob-wrmg Dr GEN WB03K10091 Contact Us For Availability
4
Knob-wrmg Dr GEN WB03K10092 Contact Us For Availability
5
Manifold Panel GEN WB36K10187 Contact Us For Availability
5
Manifold Panel GEN WB36K10188 Contact Us For Availability
5
Manifold Panel GEN WB36K10189 Contact Us For Availability
6
Infinite Switch GEN WB24K10006 Contact Us For Availability
7
Lamp Ignition GEN WB25K10001 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
10
Burner Bracket GEN WB02K10007 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
15
Vlv Burner L GEN WB21K0041 Contact Us For Availability
15
Vlv Burner R GEN WB21K0042 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10008 Contact Us For Availability
100
End Cover GEN WB07K10009 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10030 Contact Us For Availability
104
Control Trim GEN WB36K10031 Contact Us For Availability
104
Control Trim GEN WB36K10032 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
108
Screw GEN WB01X5716 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Burner Grate GEN WB31K10019 Contact Us For Availability
113
Grate (Gray) GEN WB31K10020 Contact Us For Availability
113
Grate (Taupe) GEN WB31K10021 Contact Us For Availability
114
Range Main Top Assembly GEN WB62K10048 Contact Us For Availability
114
Main Top/ald GEN WB62K10049 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Cap-end Rt A GEN WB07K10011 Contact Us For Availability
116
Cap-end Lf A GEN WB07K10012 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
128
Overlay (wh) GEN WB11K10006 Contact Us For Availability
128
Overlay (alm GEN WB11K10007 Contact Us For Availability
129
Range Oven Control Board GEN WB27K10142 Contact Us For Availability
129A
Control GEN WB27K10049 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
225
Thermistor Bracket GEN WB02K10022 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
238
Thermistor Sensor GEN WB20K10006 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
246
Frame Weld A GEN WB63K10017 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266
Screw GEN WZ05X0124 Contact Us For Availability
266
Screw GEN WB01K0012 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271
Tube Burner Support GEN WB28K0060 Contact Us For Availability
271
Oven Orifice GEN WB28K0202 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
281
Range Switch Latch GEN WB24K10010 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB58K10005 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
314
Range Oven Door Outer Panel (White) GEN WB57K10013 Contact Us For Availability
360
Drawer Gasket GEN WB04K10001 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
700
Retainer GEN WB02K0030 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Surface Burner Knob GEN WB03K10111 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10110 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
