Model GE 362.75501991 Gas Range (Kenmore 36275501991) – Common Parts & Diagrams

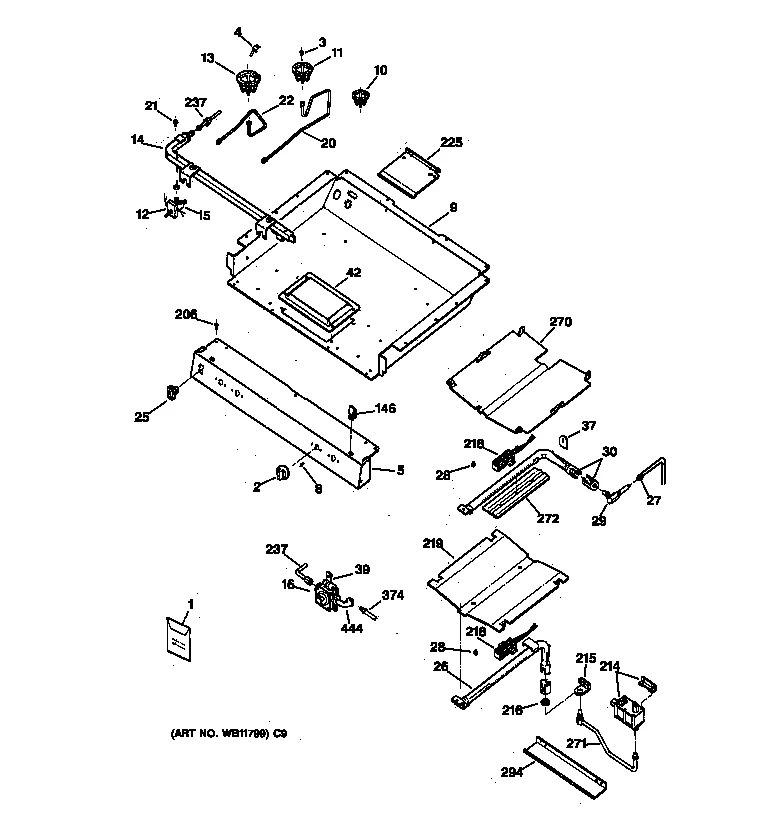

BURNER PARTS
All Parts

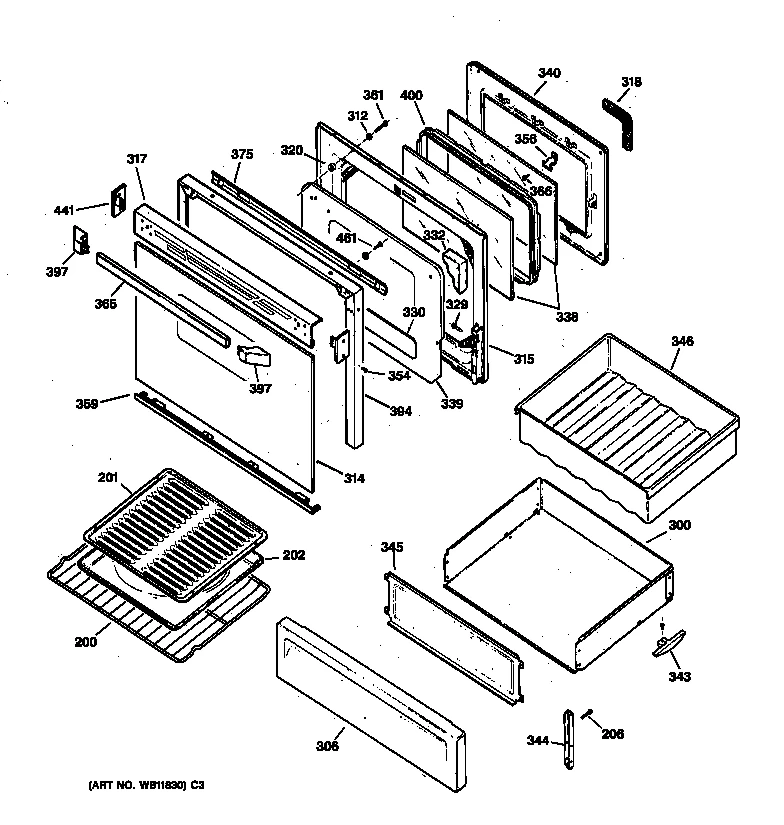

DOOR & DRAWER PARTS

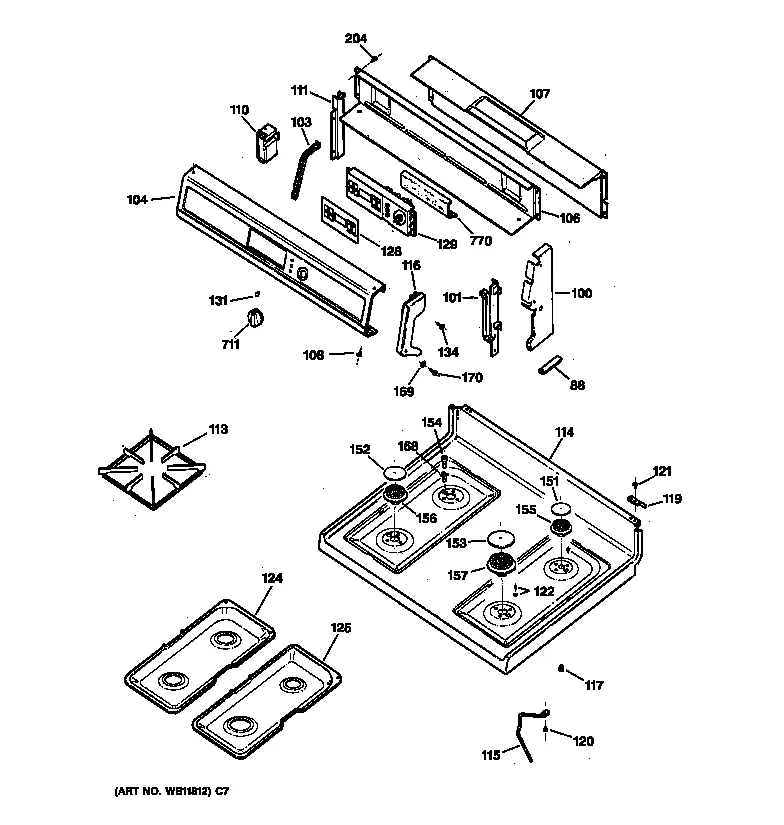

CONTROL PANEL & COOKTOP

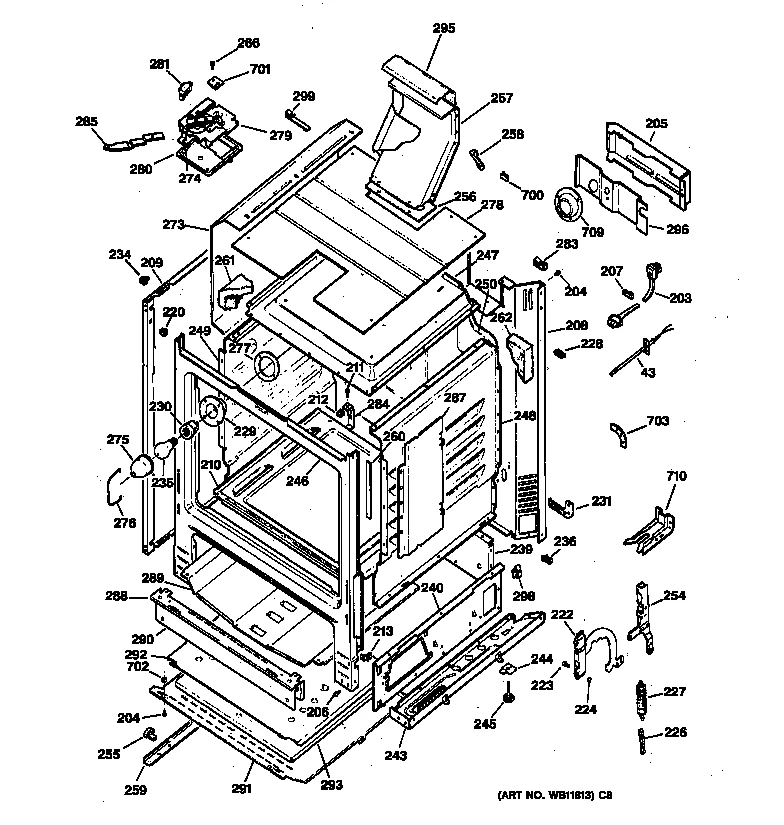

BODY PARTS
Common parts from model GE 362.75501991 Gas Range (Kenmore 36275501991)
1B
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
1C
Range Anti-Tip Bracket GEN WB2K20 Contact Us For Availability
3C
Range Surface Burner Orifice GEN WB28K10034 Contact Us For Availability
3E
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3F
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
27
Range Broil Burner Gas Supply Tube GEN WB28K55 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
110B
Range Spark Module GEN WB13K25 Contact Us For Availability
115
Support GEN WB2K91 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
146
Range Clip GEN WB2K52 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
170
Screw GEN WB1X5716 Contact Us For Availability
210
Range Oven Bottom Liner GEN WB53K35 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
226
Range Oven Door Spring Retainer GEN WB2K11 Contact Us For Availability
227
Door Spring GEN WB9K05 Contact Us For Availability
228
Wire Clip GEN WB2X7066 Contact Us For Availability
229
HOUSING RECEPTACLE GEN WB8K01 Contact Us For Availability
230
RECEPTACLE PUSH IN GEN WB8K02 Contact Us For Availability
231
Anti-Tip Arm GEN WB2K12 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
236
Wire Clip GEN WB2K22 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Br GEN WB63K25 Contact Us For Availability
240A
PANEL SIDE BROIL LFT GEN WB63K03 Contact Us For Availability
240B
PANEL SIDE BROIL RT GEN WB63K02 Contact Us For Availability
243A
BASE SUPPORT RIGHT GEN WB63K06 Contact Us For Availability
243B
BASE SUPPORT LEFT GEN WB63K07 Contact Us For Availability
244
BRACKET GLIDER GEN WB2K01 Contact Us For Availability
245
Level Leg GEN WB2X7701 Contact Us For Availability
246
Weld Frame GEN WB63K36 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
OVEN SIDE RIGHT GEN WB53K02 Contact Us For Availability
249
OVEN SIDE LEFT GEN WB53K03 Contact Us For Availability
250
Oven GEN WB53K19 Contact Us For Availability
254A
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
254B
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
254C
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
256
Vent Gasket GEN WB32K01 Contact Us For Availability
258
BRACE VENT GEN WB38K02 Contact Us For Availability
260
GASKET OVEN SEAL GEN WB32K02 Contact Us For Availability
261
Insulation Oven Wrap GEN WB35K07 Contact Us For Availability
262
Insulation Oven Back GEN WB35K08 Contact Us For Availability
266A
Screw GEN WB1K12 Contact Us For Availability
266B
Screw Latch GEN WZ5X124 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Range Bake Burner Gas Supply Tube GEN WB28K60 Contact Us For Availability
271B
Range Surface Burner Orifice GEN WB28K202 Contact Us For Availability
272
Shield Broil GEN WB34K10 Contact Us For Availability
273A
Guard Insert GEN WB53K12 Contact Us For Availability
273B
Guard Insert GEN WB53K11 Contact Us For Availability
274
Scew Latc GEN WB1K44 Contact Us For Availability
275
GLASS OVEN LAMP GEN WB8K05 Contact Us For Availability
277
CASKET OVEN LIGHT GEN WB32K05 Contact Us For Availability
278
Grd Top I GEN WB53K18 Contact Us For Availability
279
Oven Latch GEN WB2K42 Contact Us For Availability
280
Shield La GEN WB2K29 Contact Us For Availability
281
Latch Switch GEN WB24K15 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287A
Guard Radiat GEN WB34K30 Contact Us For Availability
287B
Guard Radiat GEN WB34K31 Contact Us For Availability
288
Oven Brace GEN WB63K15 Contact Us For Availability
290
Radiant Shield GEN WB34K12 Contact Us For Availability
292
Guard GEN WB63K17 Contact Us For Availability
293
Guard Bot Md GEN WB63K18 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K13 Contact Us For Availability
298
Clip Spac GEN WB2K37 Contact Us For Availability
299
Wire Clip GEN WB2K38 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
315
Liner GEN WB55K25 Contact Us For Availability
330A
Range Oven Door Foil Tape GEN WB35K33 Contact Us For Availability
365
Range Oven Door Handle GEN WB15K10002 Contact Us For Availability
374
Range Oven Gas Supply Tube GEN WB28K150 Contact Us For Availability
394
Drive Trim GEN WB7K265 Contact Us For Availability
700
Retainer GEN WB2K30 Contact Us For Availability
701
Shield Switch GEN WB2K39 Contact Us For Availability
702
Washer GEN WB1K24 Contact Us For Availability
703
Orifice Bracket GEN WB2K41 Contact Us For Availability
709
RETAINER INSULATION LAMP GEN WB8K04 Contact Us For Availability
710
Bracket A GEN WB2K10020 Contact Us For Availability
× ![]()
