Model GE 362.75488890 Gas Range (Kenmore 36275488890) – Common Parts & Diagrams

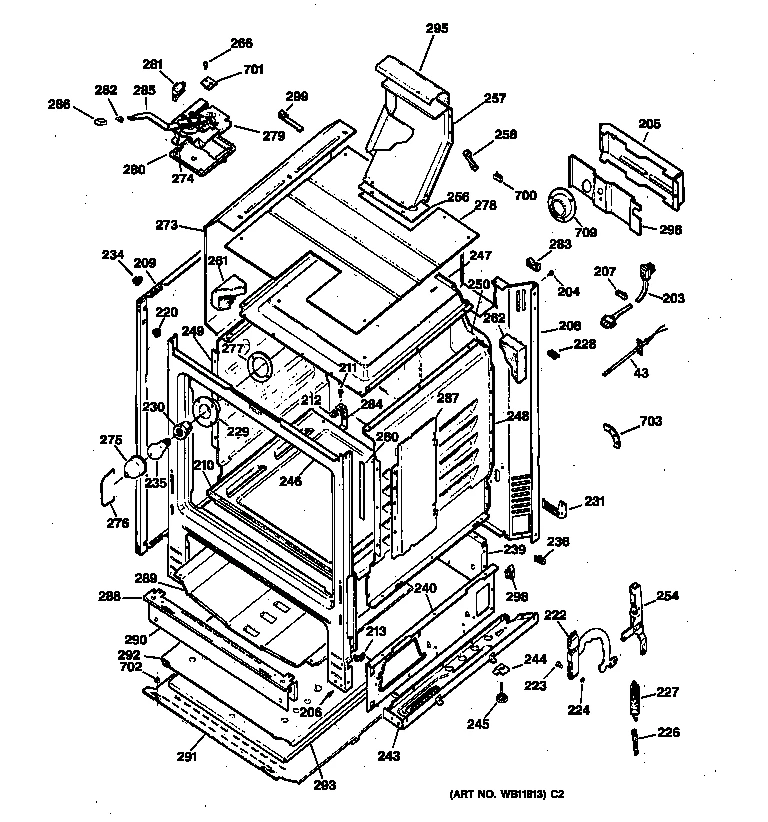

BODY PARTS
DOOR & DRAWER PARTS
CONTROL PANEL & COOKTOP
BURNER PARTS
Common parts from model GE 362.75488890 Gas Range (Kenmore 36275488890)
1A
User's Manual GEN SR4242 Contact Us For Availability
1B
Range Parts GEN SR4523 Contact Us For Availability
1C
Technical Sheet Manual GEN 31-20642 Contact Us For Availability
1D
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
5
Range Manifold Panel GEN WB36K10028 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10002 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29A
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29B
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
100A
End Cover GEN WB07K10008 Contact Us For Availability
100B
End Cover GEN WB07K10009 Contact Us For Availability
101A
End Plate GEN WB37K0018 Contact Us For Availability
101B
End Plate GEN WB37K0017 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10030 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
110A
Igniter Harness GEN WB18K10005 Contact Us For Availability
110B
Spark Module GEN WB13K0025 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
114
Cooktop (al) GEN WB62K10006 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116A
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Pan Unit GEN WB32K10003 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
129
Control To8 GEN WB11K10012 Contact Us For Availability
134A
Screw GEN WB01X5716 Contact Us For Availability
134B
Screw-mtg En GEN WB01K10003 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243B
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254A
Support Rivet GEN WB10K0014 Contact Us For Availability
254B
Hinge Screw GEN WB01K0053 Contact Us For Availability
254C
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266A
Screw GEN WZ05X0124 Contact Us For Availability
266B
Screw GEN WB01K0012 Contact Us For Availability
268
K Panel Clip GEN WB02K0025 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Oven Orifice GEN WB28K0202 Contact Us For Availability
271B
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273A
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273B
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K10045 Contact Us For Availability
287B
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
306
Blk Drw Pnl GEN WB39K0036 Contact Us For Availability
314
Door Glass GEN WB57K10009 Contact Us For Availability
315
Liner GEN WB55K0007 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
330A
Reflector GEN WB35K0033 Contact Us For Availability
330B
Reflector GEN WB35K0022 Contact Us For Availability
330C
Reflector GEN WB55K0001 Contact Us For Availability
332
Drive Insulation GEN WB35K0020 Contact Us For Availability
338
Wind Pack Sm GEN WB56K0019 Contact Us For Availability
339
Guard Insulation GEN WB56K0008 Contact Us For Availability
340
Panel Assembly Weld GEN WB55K0020 Contact Us For Availability
365
Range Oven Door Handle GEN WB15K10002 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
375
Door Bracket GEN WB02K0100 Contact Us For Availability
392
Window Pack Seal GEN WB04K0002 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
397
Range Oven Door Handle End Cap (Black) GEN WB07K10013 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
700
Clip Vent GEN WB02K0034 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
707
Brkt Kick Pn GEN WB02K0033 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10019 Contact Us For Availability
× ![]()
