Model GE 362.75381892 Gas Range (Kenmore 36275381892) – Common Parts & Diagrams

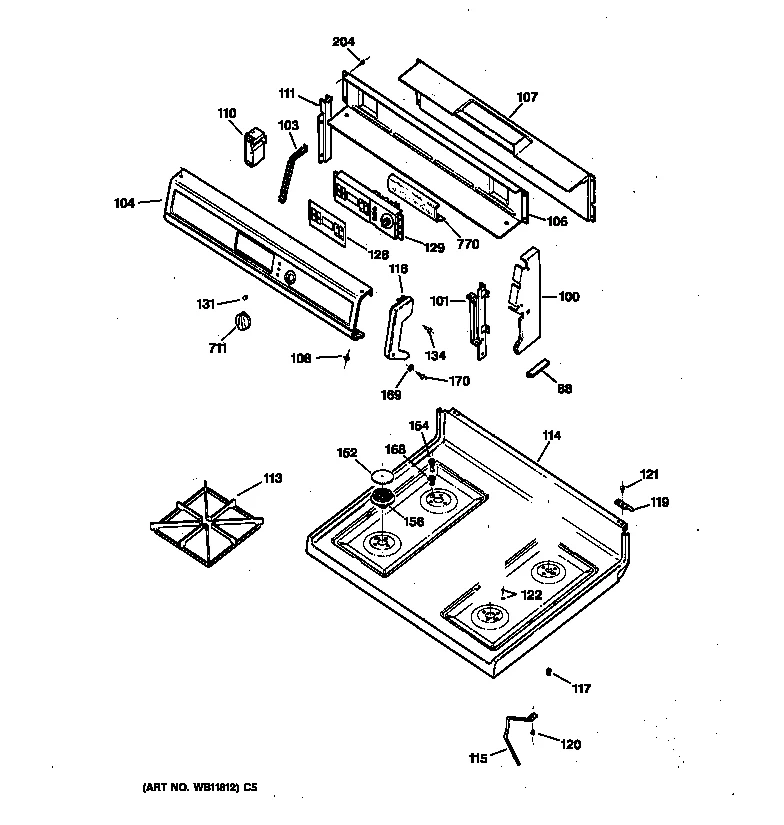

CONTROL PANEL & COOKTOP

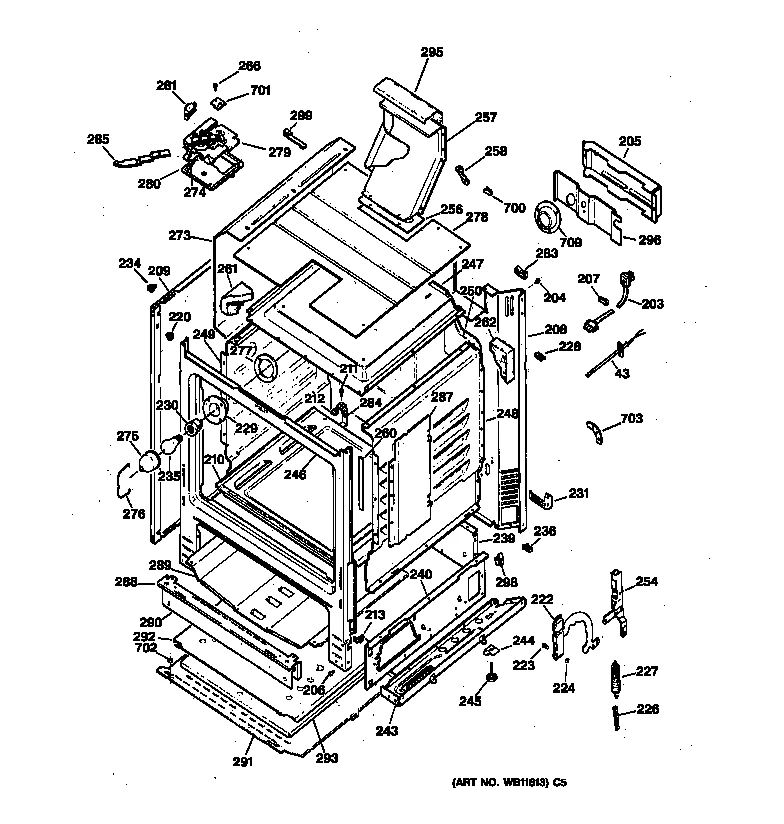

BODY PARTS

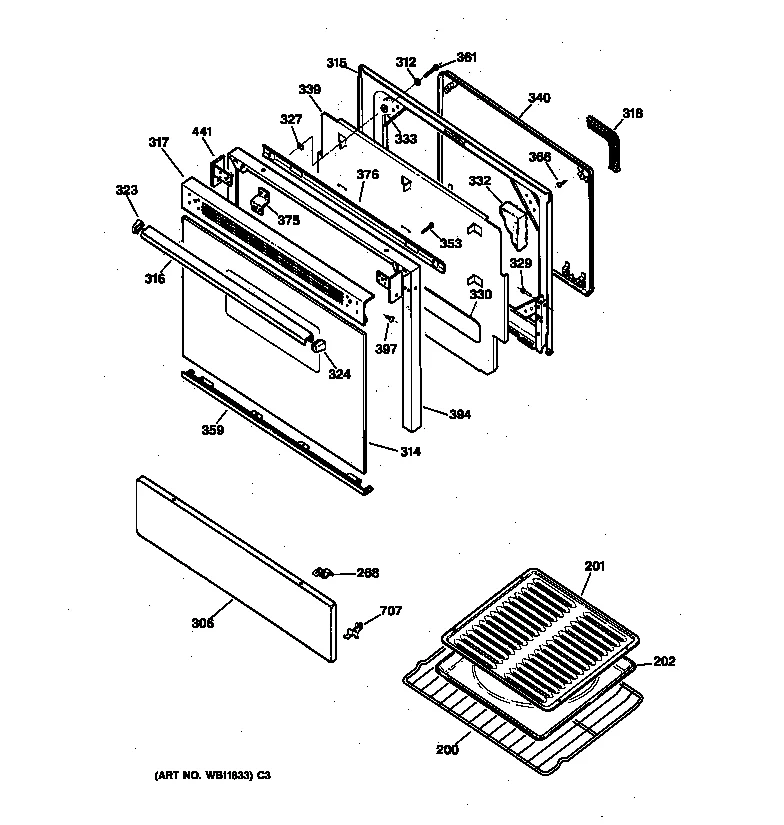

DOOR PARTS

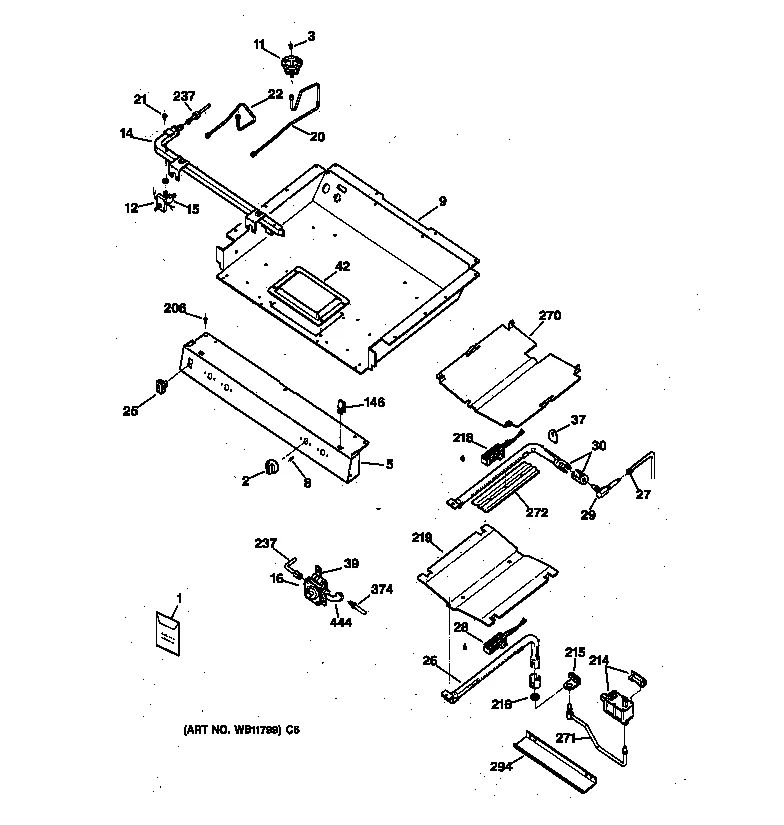

BURNER PARTS
Common parts from model GE 362.75381892 Gas Range (Kenmore 36275381892)
1A
Technical Sheet Manual GEN 31-20642 Contact Us For Availability
1D
Range LP Conversion Kit GEN WB28K10046 Contact Us For Availability
1E
Range Anti-Tip Bracket GEN WB2K20 Contact Us For Availability
2
Knob GEN WB3K10010 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
5
Range Manifold Panel GEN WB36K10028 Contact Us For Availability
8
Screw 8-3 GEN WB1K10002 Contact Us For Availability
9
Burner Box GEN WB63K23 Contact Us For Availability
11
Bracket-b GEN WB2K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10002 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
21
SCREW-MTG-VALVE GEN WB1K10001 Contact Us For Availability
25
Rocker Switch GEN WB24K03 Contact Us For Availability
27
Range Broil Burner Gas Supply Tube GEN WB28K55 Contact Us For Availability
29A
Oven Orifice GEN WB28K10019 Contact Us For Availability
29B
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket R GEN WB2K88 Contact Us For Availability
42
Range Main Top Burner Box Cover GEN WB63K22 Contact Us For Availability
110A
Range Spark Module GEN WB13K25 Contact Us For Availability
115
Support GEN WB2K91 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
146
Range Clip GEN WB2K52 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
170
Screw GEN WB1X5716 Contact Us For Availability
201
RACK BROILER PAN GEN WB48K02 Contact Us For Availability
202
PAN BROILER GEN WB49K02 Contact Us For Availability
210
Range Oven Bottom Liner GEN WB53K35 Contact Us For Availability
216
Lock Nut GEN WB1K06 Contact Us For Availability
219
Flame Spreader GEN WB49K44 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
226
Range Oven Door Spring Retainer GEN WB2K11 Contact Us For Availability
231
Anti-Tip Arm GEN WB2K12 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
254A
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
254B
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
254C
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
266A
Screw Latch GEN WZ5X124 Contact Us For Availability
266B
Screw GEN WB1K12 Contact Us For Availability
268
Range Toe Panel Retainer Clip GEN WB2K25 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Range Surface Burner Orifice GEN WB28K202 Contact Us For Availability
271B
Range Bake Burner Gas Supply Tube GEN WB28K60 Contact Us For Availability
272
Shield Broil GEN WB34K10 Contact Us For Availability
273A
Guard Insert GEN WB53K11 Contact Us For Availability
273B
Guard Insert GEN WB53K12 Contact Us For Availability
274
Scew Latc GEN WB1K44 Contact Us For Availability
275
GLASS OVEN LAMP GEN WB8K05 Contact Us For Availability
277
CASKET OVEN LIGHT GEN WB32K05 Contact Us For Availability
278
Grd Top I GEN WB53K18 Contact Us For Availability
279
Oven Latch GEN WB2K42 Contact Us For Availability
280
Shield La GEN WB2K29 Contact Us For Availability
281
Latch Switch GEN WB24K15 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
287A
Guard Radiat GEN WB34K31 Contact Us For Availability
287B
Guard Radiat GEN WB34K30 Contact Us For Availability
288
Oven Brace GEN WB63K15 Contact Us For Availability
290
Radiant Shield GEN WB34K12 Contact Us For Availability
292
Guard GEN WB63K17 Contact Us For Availability
293
Guard Bot Md GEN WB63K18 Contact Us For Availability
294
Valve Gua GEN WB63K19 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K13 Contact Us For Availability
298
Clip Spac GEN WB2K37 Contact Us For Availability
299
Wire Clip GEN WB2K38 Contact Us For Availability
306
Blk Drw P GEN WB39K36 Contact Us For Availability
314
Range Oven Door Outer Panel (Black) GEN WB56K31 Contact Us For Availability
315
Liner Assembly Weld Door GEN WB55K07 Contact Us For Availability
316
Handle GEN WB15K23 Contact Us For Availability
317
Trim GEN WB7K239 Contact Us For Availability
318
Door Gasket GEN WB4K01 Contact Us For Availability
323
Oven Cap Handle GEN WB7K87 Contact Us For Availability
324
Oven Cap Handle GEN WB7K88 Contact Us For Availability
327
Screw GEN WB1X5736 Contact Us For Availability
330A
Reflector GEN WB35K21 Contact Us For Availability
330B
Reflector GEN WB35K22 Contact Us For Availability
330C
REFLECTOR LG GEN WB55K01 Contact Us For Availability
332
Insul Doo GEN WB35K26 Contact Us For Availability
339
Guard Insulation GEN WB56K07 Contact Us For Availability
340
Drive Liner GEN WB55K22 Contact Us For Availability
374
Range Oven Gas Supply Tube GEN WB28K150 Contact Us For Availability
375
Bracket D GEN WB2K67 Contact Us For Availability
394
Drive Trim GEN WB7K265 Contact Us For Availability
444
Elbow 90 GEN WB28K61 Contact Us For Availability
701
Shield Switch GEN WB2K39 Contact Us For Availability
702
Washer GEN WB1K24 Contact Us For Availability
703
Orifice Bracket GEN WB2K41 Contact Us For Availability
707
Bracket GEN WB2K33 Contact Us For Availability
709
RETAINER INSULATION LAMP GEN WB8K04 Contact Us For Availability
× ![]()
