Model GE 362.72230204 Gas Range (Kenmore 36272230204) – Common Parts & Diagrams

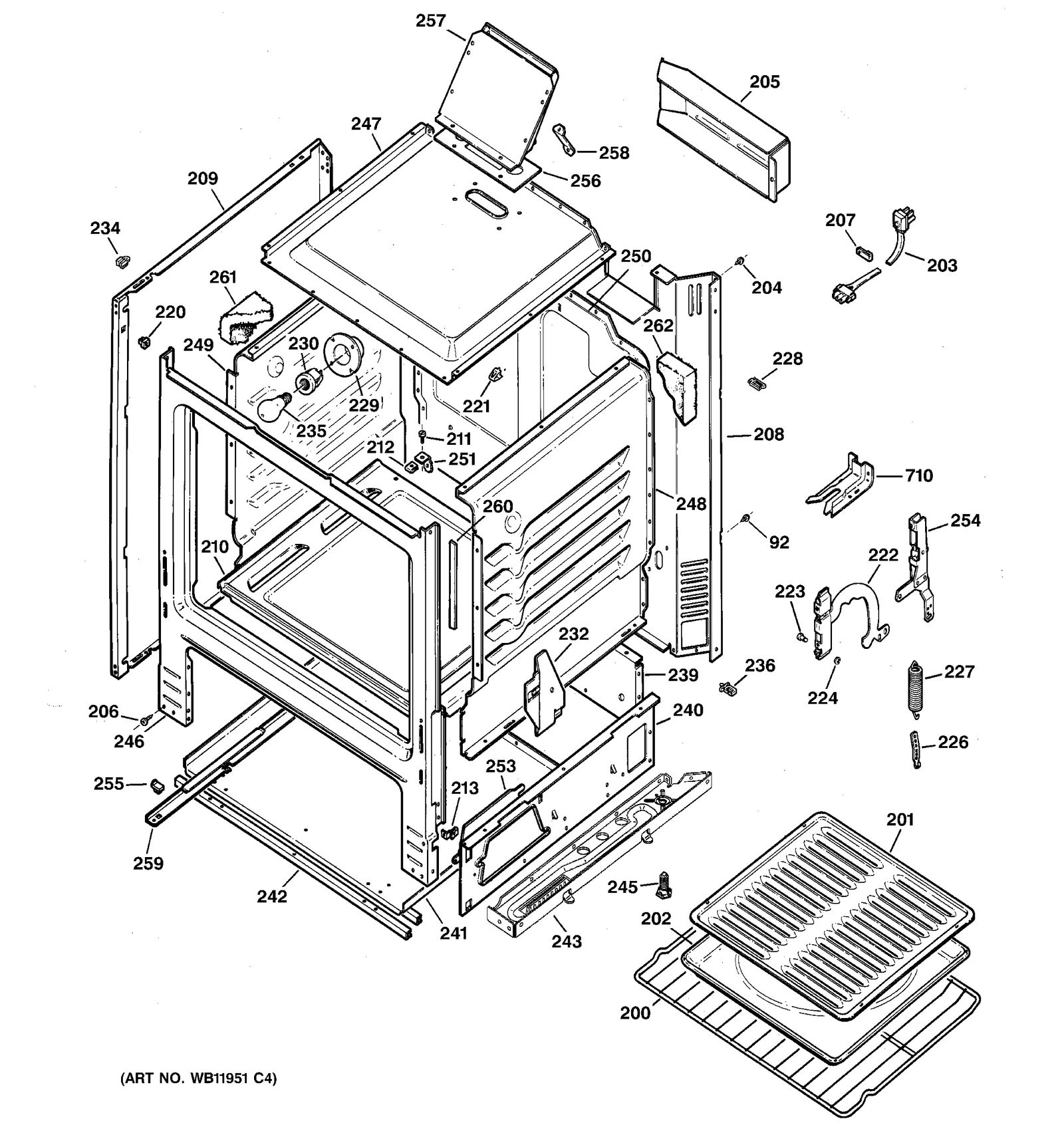

BODY PARTS
GAS & BURNER PARTS
DOOR & DRAWER PARTS
CONTROL PANEL & COOKTOP
Common parts from model GE 362.72230204 Gas Range (Kenmore 36272230204)
1
Range LP Conversion Kit GEN WB28K10046 Contact Us For Availability
1
PM MINI/MANUAL-ELEC GEN 31-21152 Contact Us For Availability
1
PM MINI/MANUAL-ELEC GEN 31-21153 Contact Us For Availability
1
PM REPLACEMENT PARTS GEN SR4698 Contact Us For Availability
1
Sears/kenmor GEN SR85058 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
5
Manifold Panel GEN WB36K10024 Contact Us For Availability
5
Manifold Panel GEN WB36K10254 Contact Us For Availability
9
Burner Speed Box GEN WB63K0024 Contact Us For Availability
12
Service Valve Switch GEN WB24K10026 Contact Us For Availability
12
Service Valve Switch GEN WB24K10025 Contact Us For Availability
14
Manifold Pipe GEN WB28K10244 Contact Us For Availability
18
Thermostat Cover GEN WB02K0006 Contact Us For Availability
20
Range Surface Burner Tube and Orifice, Left R GEN WB28K10191 Contact Us For Availability
22
Range Surface Burner Orifice GEN WB28K10192 No Longer Available
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10023 Contact Us For Availability
100
End Cover GEN WB07K10022 Contact Us For Availability
100
End Cap Cover GEN WB07K10115 Contact Us For Availability
100
End Cap Cover GEN WB07K10116 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10017 Contact Us For Availability
104
Control Trim GEN WB36K10019 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
High-Voltage Wire Harness GEN WB18K10024 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10043 Contact Us For Availability
114
Range Main Top (White) GEN WB62K10046 Contact Us For Availability
114
Range Main Top Assembly GEN WB62K10063 Contact Us For Availability
114
Range Top GEN WB62K10061 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
140
Range Oven Control Overlay GEN WB11K10002 Contact Us For Availability
140
Overlay (wh) GEN WB11K10003 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10014 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
237
Manifold Tube GEN WB28K10109 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
301
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0008 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Blk GEN WB39K0010 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
315
Door Liner GEN WB55K0021 Contact Us For Availability
330
Reflector GEN WB55K0001 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
334
Door Spacer GEN WB02K0013 Contact Us For Availability
335
Spacer GEN WB02K0002 Contact Us For Availability
336
Screw, #10-16 GEN WB01K0069 Contact Us For Availability
337
Panel Dr Wh GEN WB56K0018 Contact Us For Availability
337
Panel Dr (bk GEN WB56K0037 Contact Us For Availability
346
Crystal Window GEN WB57K10056 Contact Us For Availability
347
Crystal Trim GEN WB07K0086 Contact Us For Availability
348
Crystal Clip GEN WB02K0050 Contact Us For Availability
365
Handle GEN WB15K10018 Contact Us For Availability
365
Dr Handle-wh GEN WB15K10019 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10011 Contact Us For Availability
× ![]()
