Model Whirlpool 3524SRA ELECTRIC RANGE – Common Parts & Diagrams

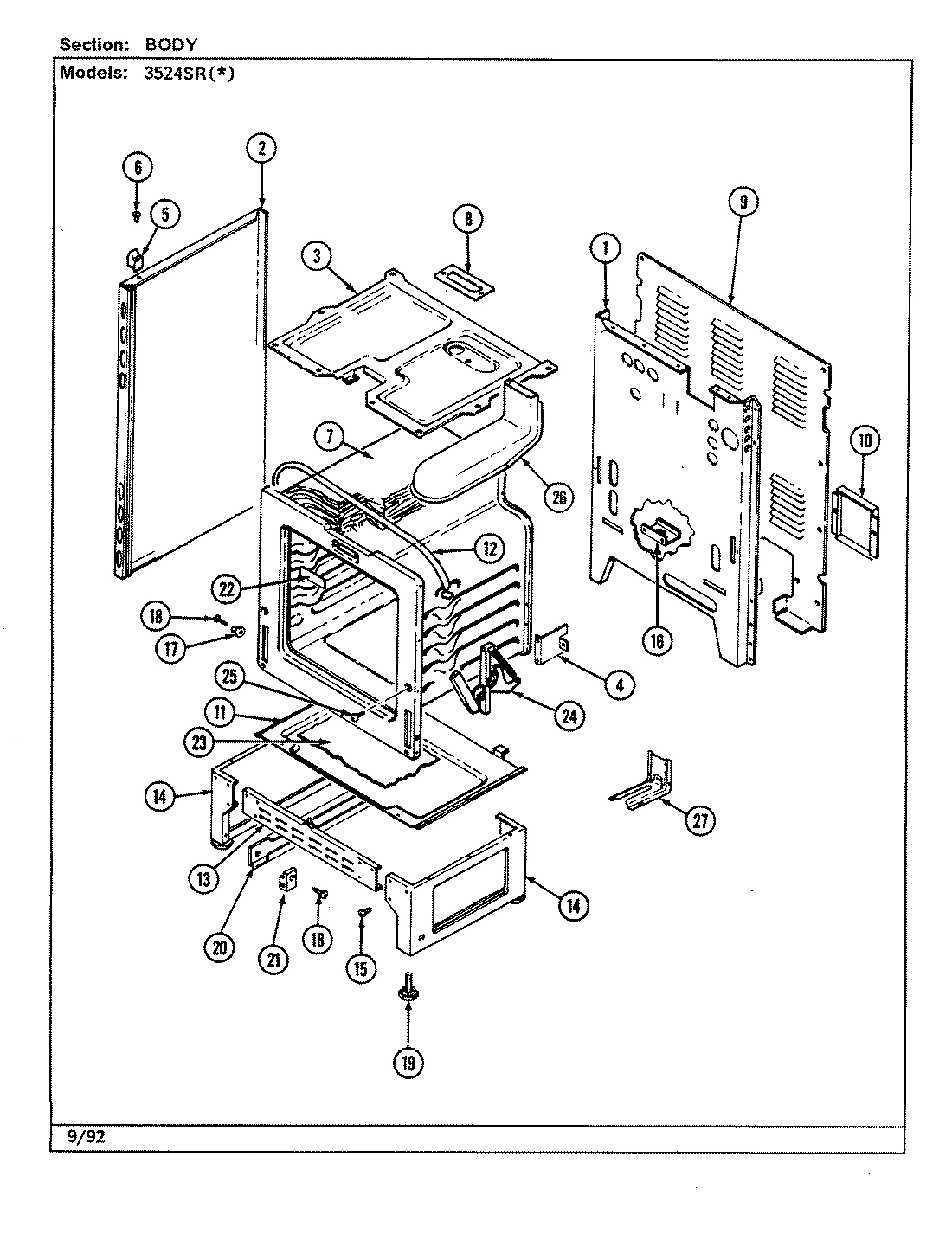

01 - BODY

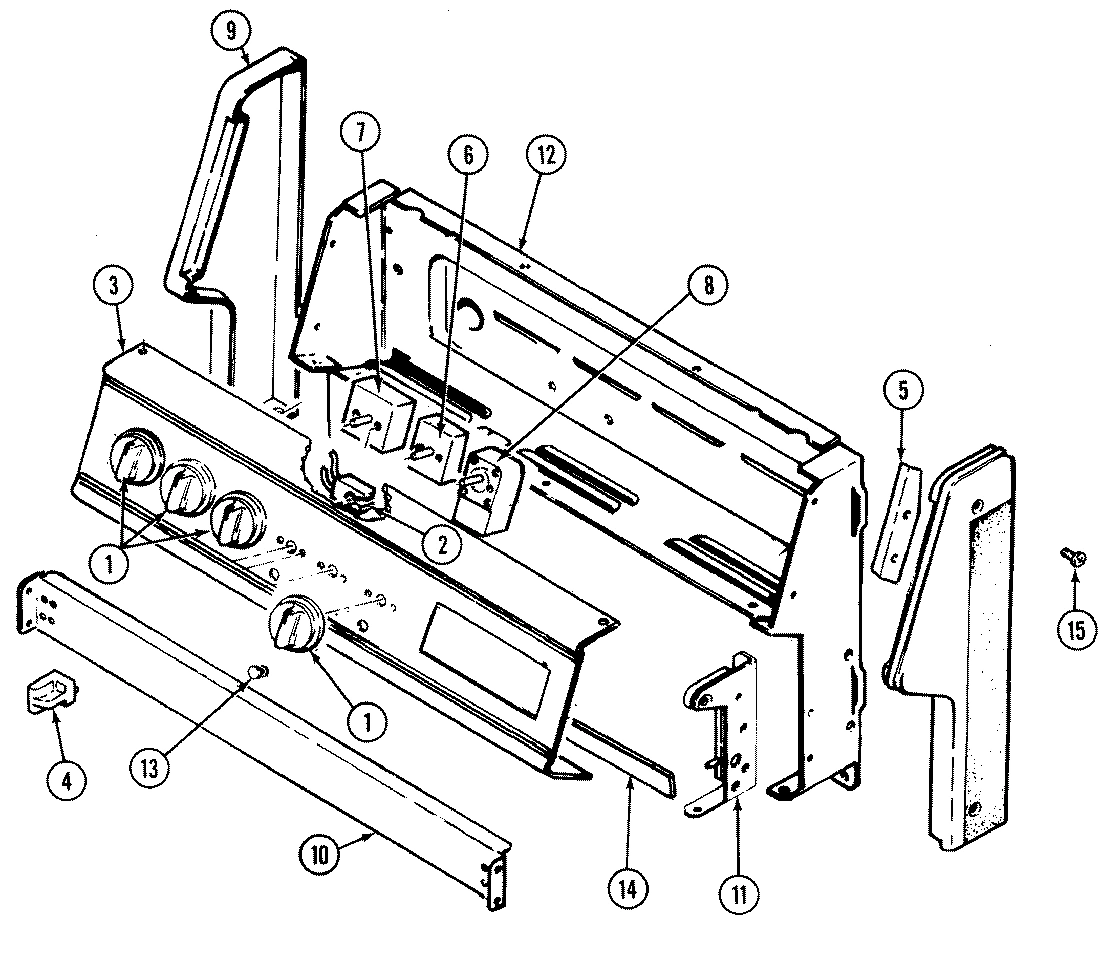

02 - CONTROL PANEL

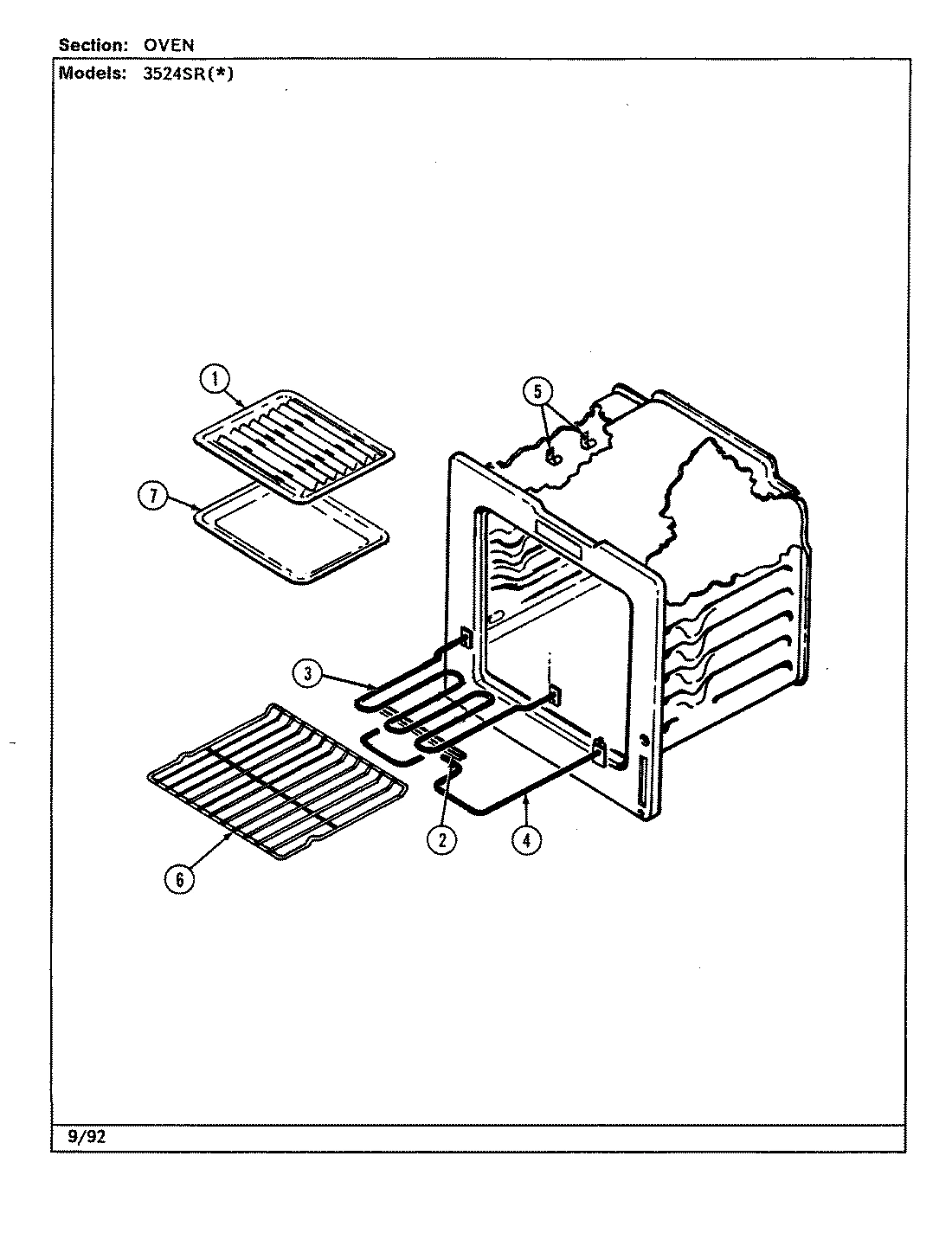

04 - OVEN

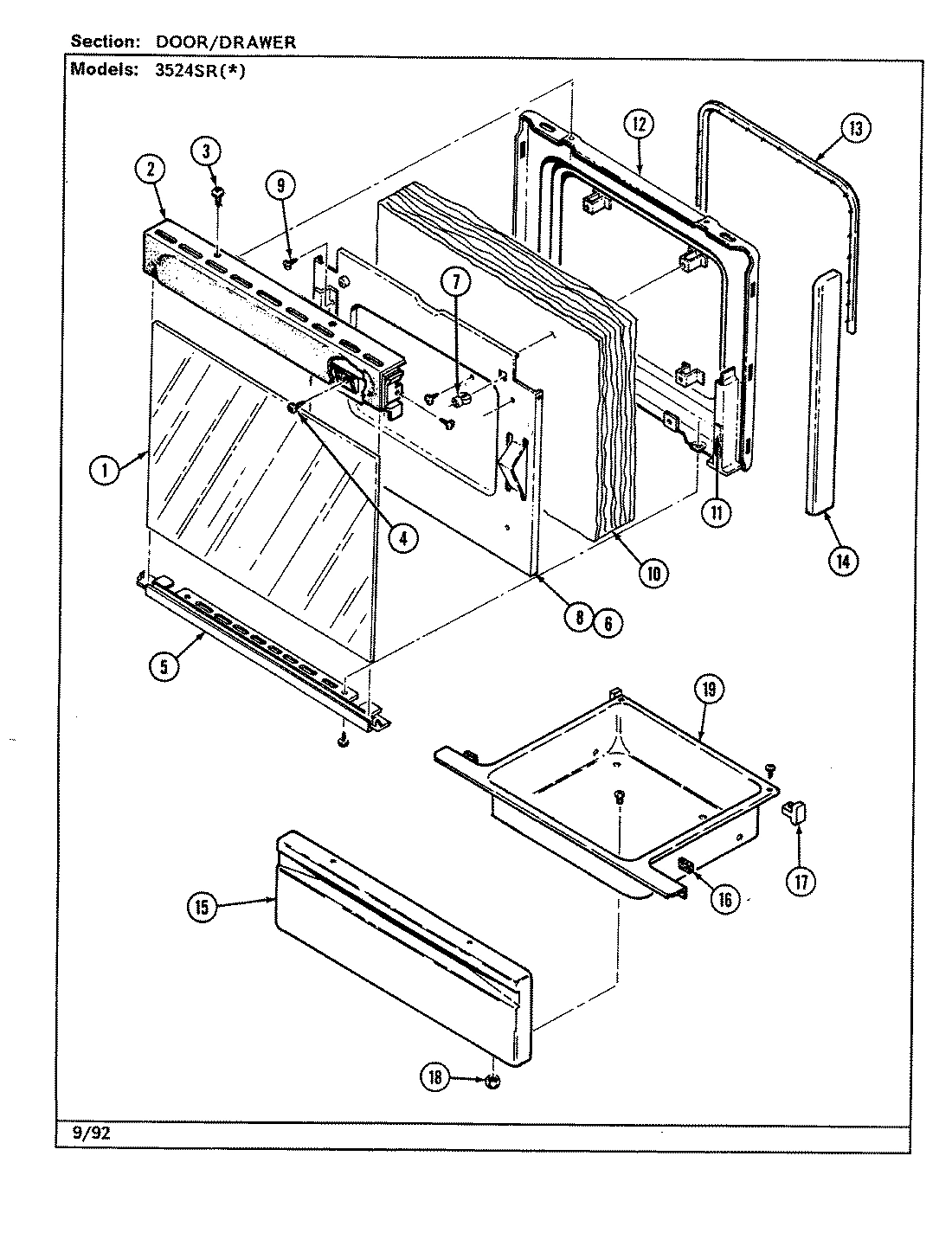

03 - DOOR/DRAWER
Common parts from model Whirlpool 3524SRA ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
PANEL ASSY. (BLK) WPL 4876S04459 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
RACK WPL 7801P04060 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
7
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
7
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
8
COVER FLUE BOX WPL 4005F40051 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
10
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
11
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
HOUSING, BACKGUARD WPL 4001F08951 Contact Us For Availability
12
LINING, DOOR WPL 2402W20119 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
13
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
14
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
14
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
15
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
15
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
15
SCREW, END CAP WPL 7101P13760 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
C & U SUPPLEMENT FOR SOLID ELE WPL 8112P05260 Contact Us For Availability
16
SCREW WPL 7101P11560 Contact Us For Availability
16
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
17
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
18
NUT, LOCK WPL 7103P08560 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
24
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
