Model Whirlpool 3512WRW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

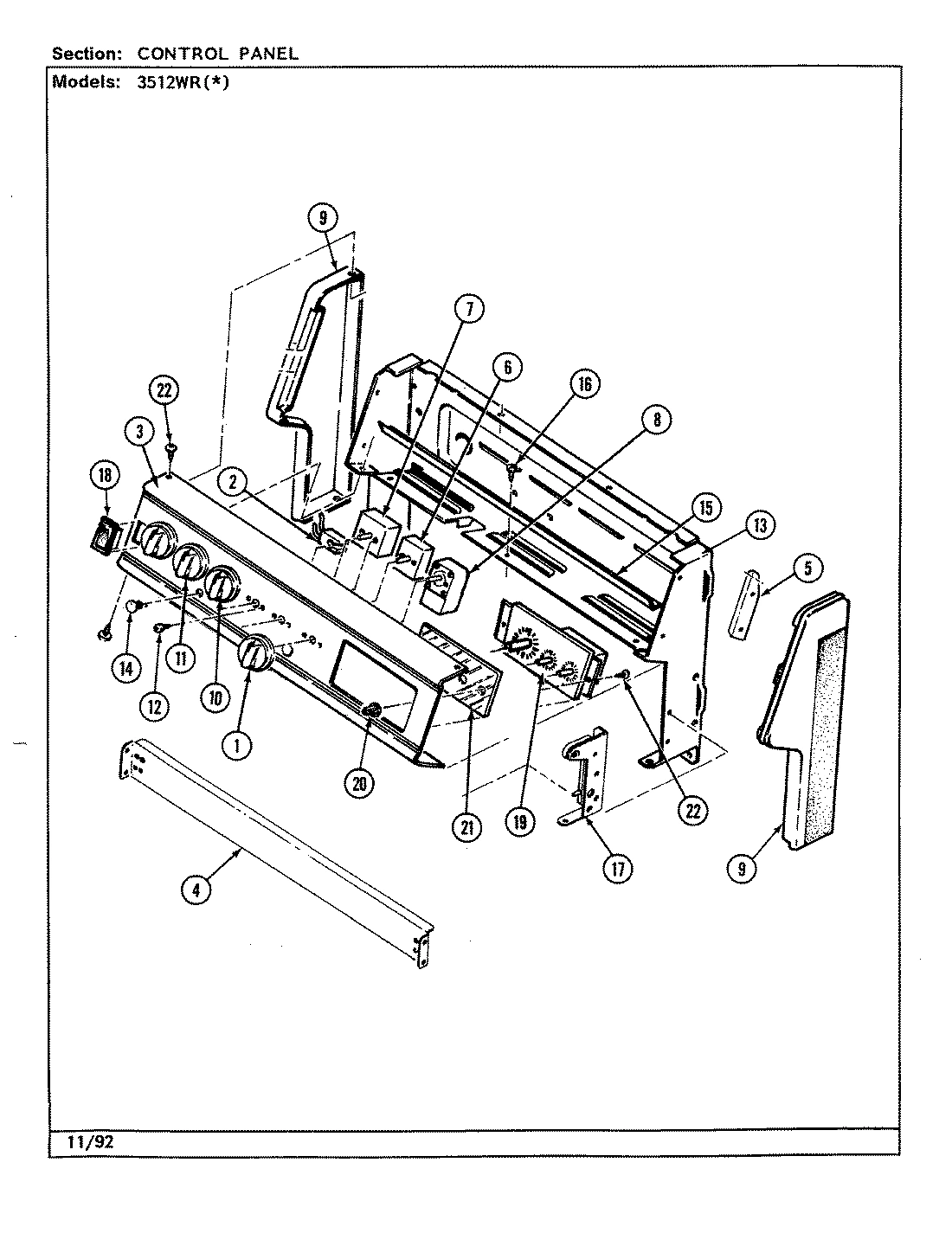

02 - CONTROL PANEL

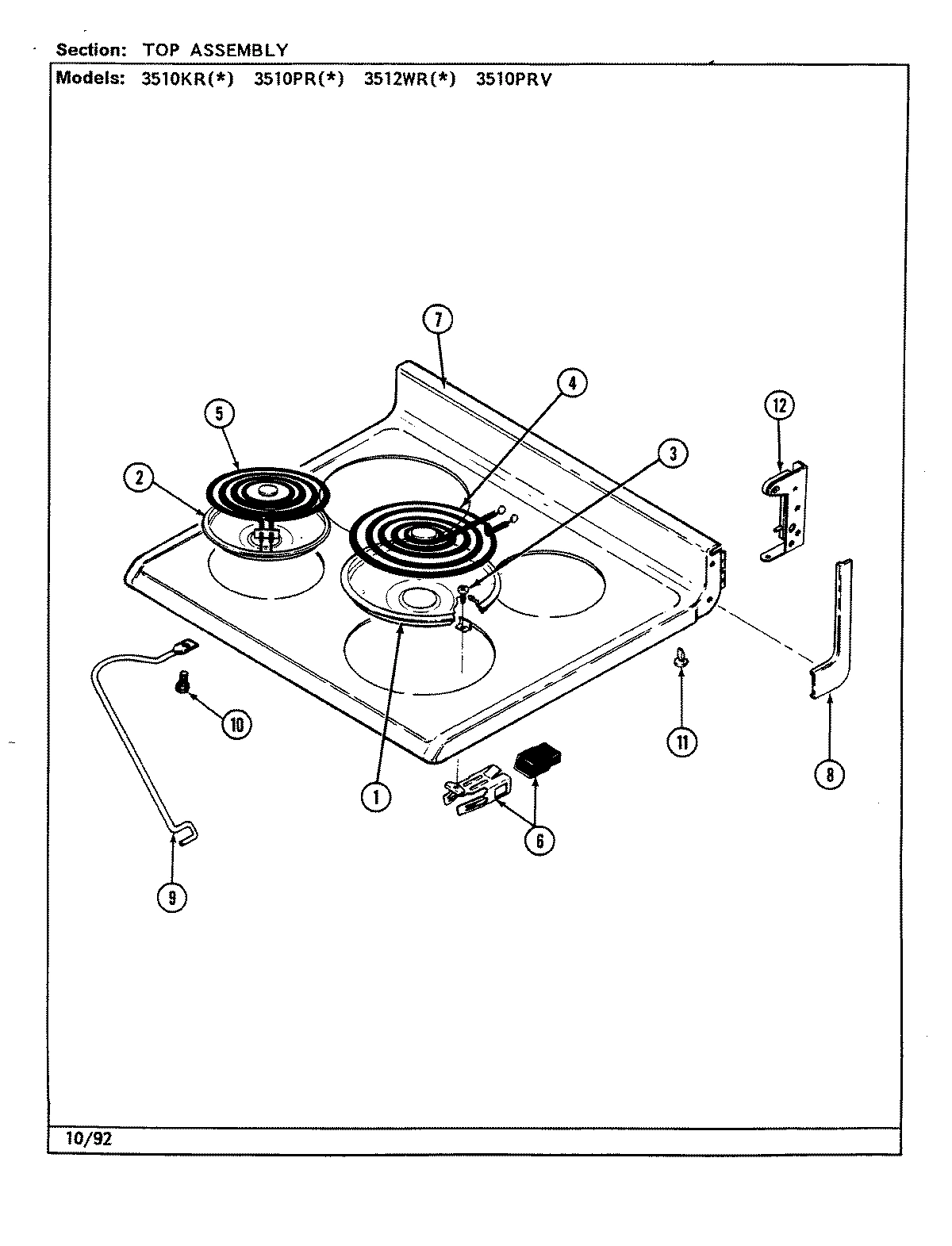

05 - TOP ASSEMBLY

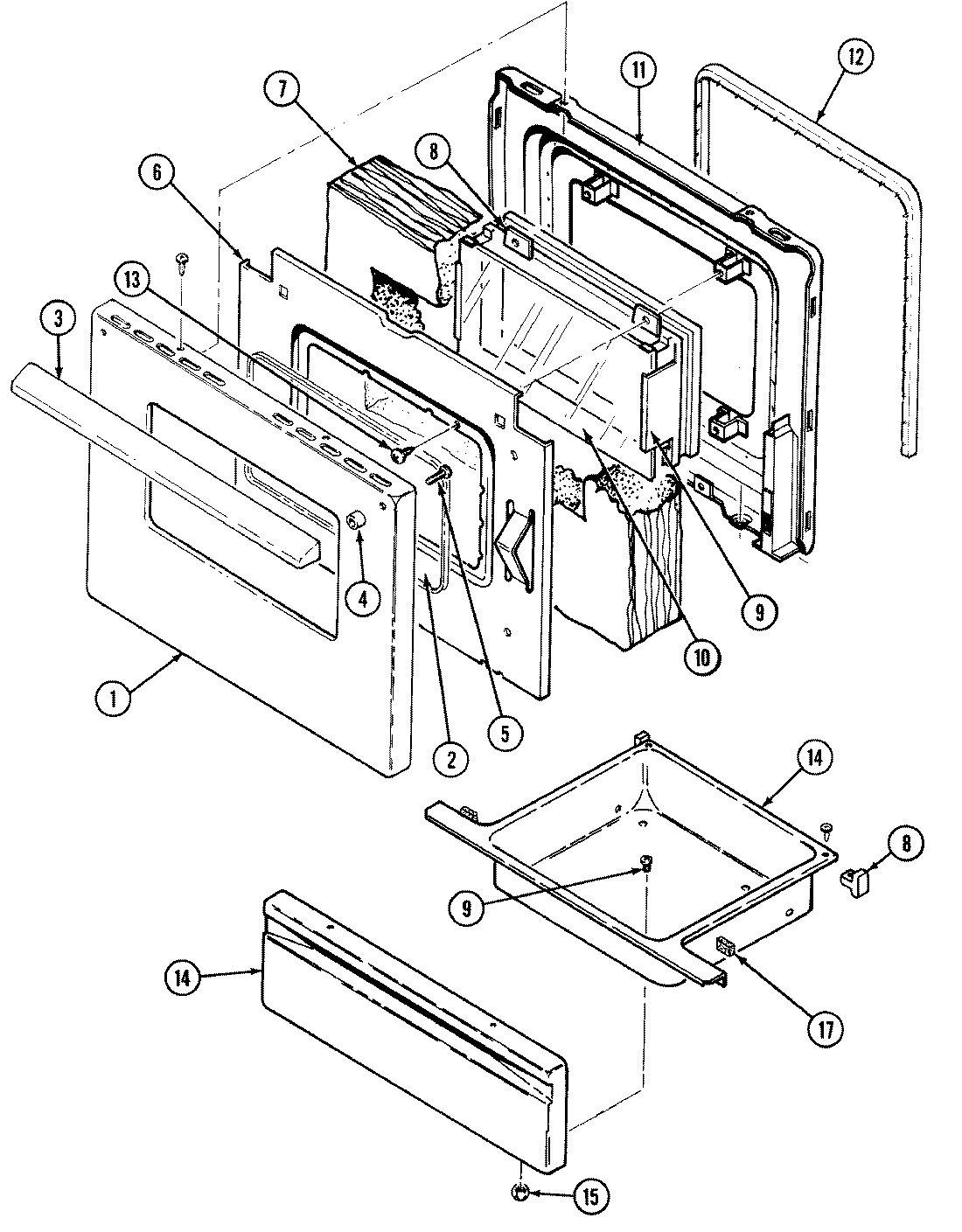

03 - DOOR/DRAWER

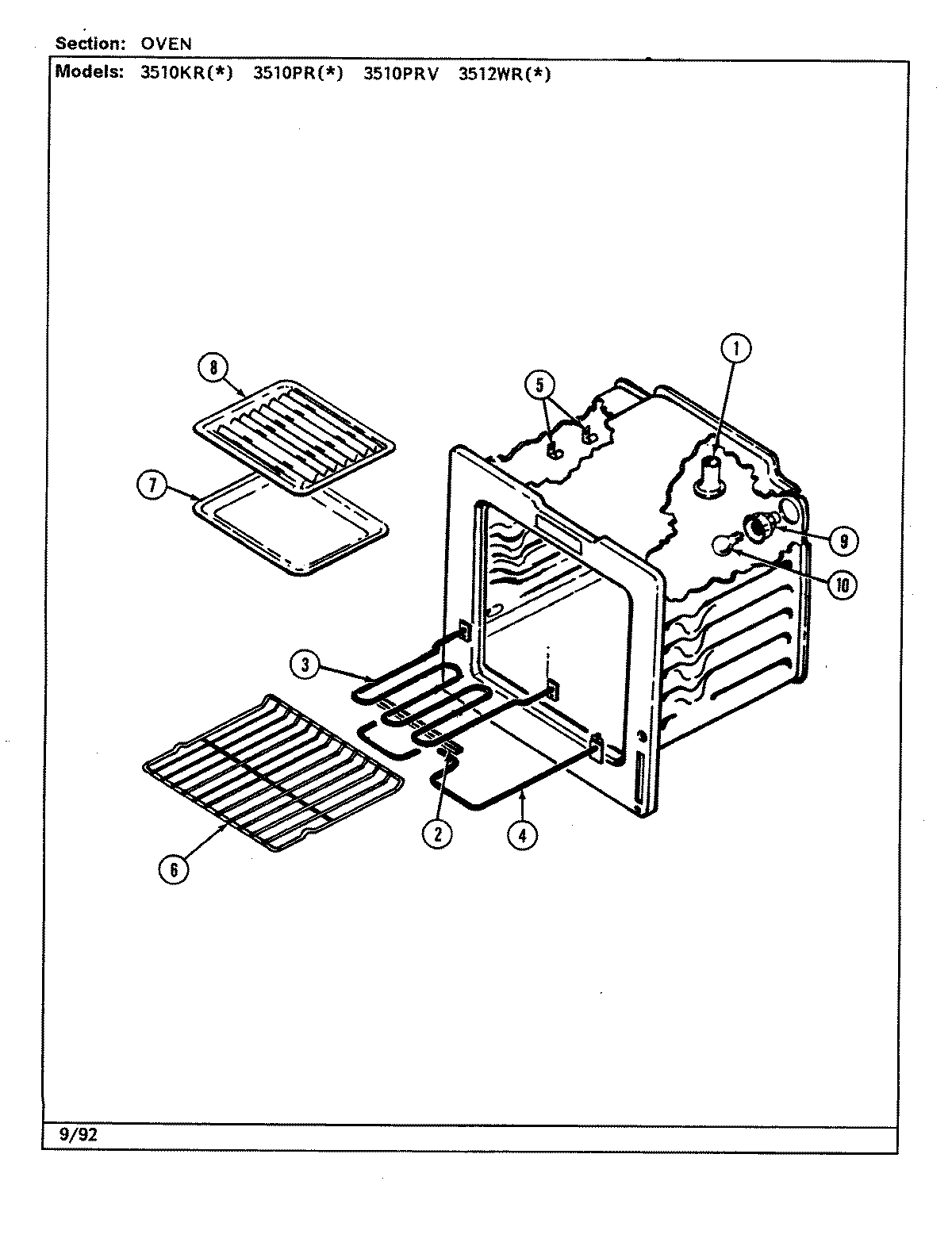

04 - OVEN
Common parts from model Whirlpool 3512WRW ELECTRIC RANGE
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
KNOB, THERMOSTAT WPL 7735P03160 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
PANEL, CONTROL WPL 2601F40209 Contact Us For Availability
3
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
4
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SWITCH WPL 7403P25460 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
6
RACK WPL 7801P04060 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07981 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07984 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
9
SCREW WPL 7101P31760 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
9
SCREW WPL 7101P29160 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
KNOB, SELECTOR WPL 7739P04560 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
10
BULB, OVEN WPL 7407P02660 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
11
LINING, DOOR WPL 2402W20319 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
12
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
12
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
12
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
12
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
NUT, LOCK WPL 7103P08560 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
CLOCK WPL 7601P18660 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
GASKET WPL 7201P05660 Contact Us For Availability
21
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
22
WIRE, LOOSE WPL 5125A31460 Contact Us For Availability
22
HARNESS, CONTROL PANEL WPL 5170D11760 Contact Us For Availability
22
SCREW WPL 7118P01960 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
23
MANUAL, USE & CARE WPL 8113P02160 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
PIN LOCATOR WPL 7101P28860 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
