Model Whirlpool 3510PRW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

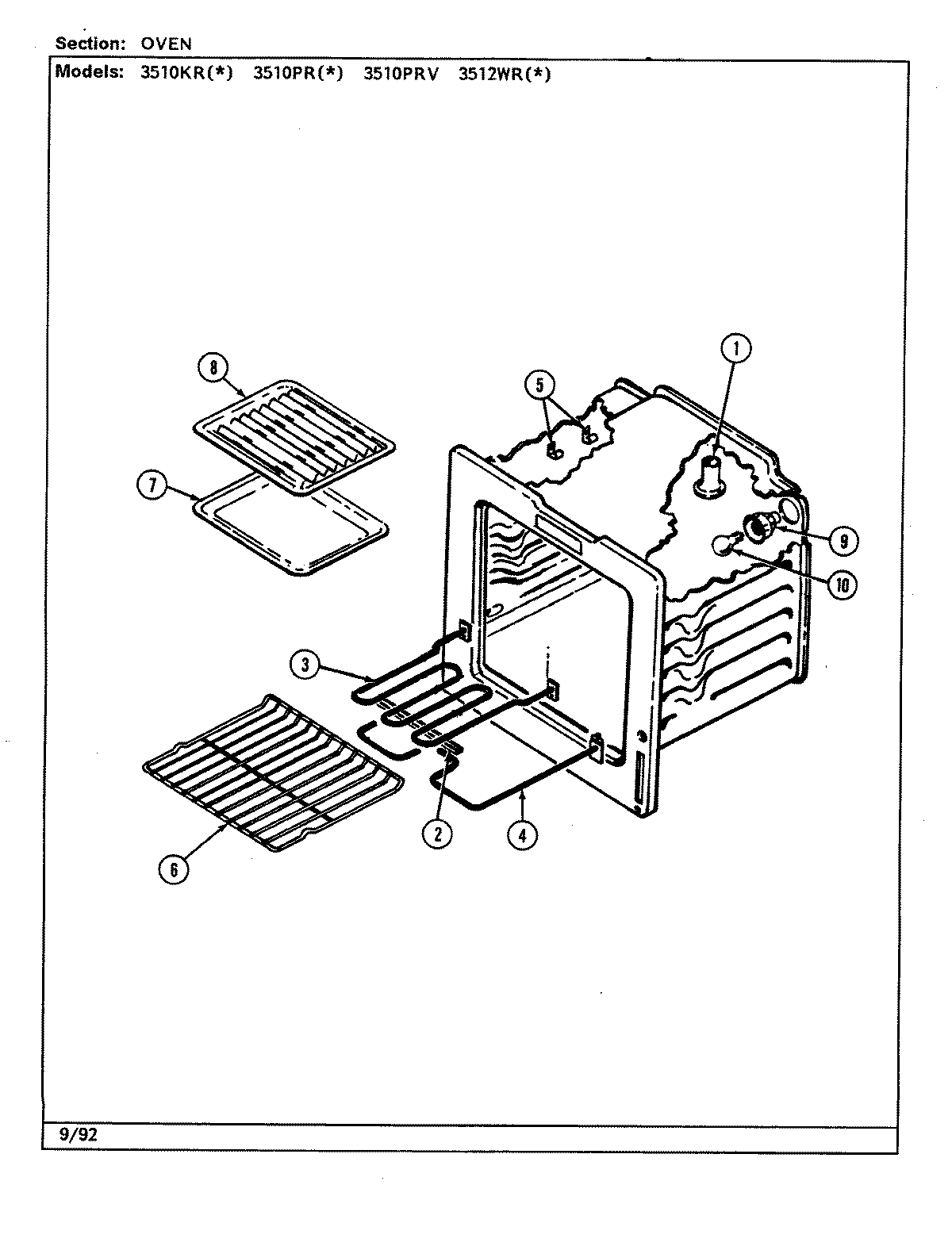

04 - OVEN

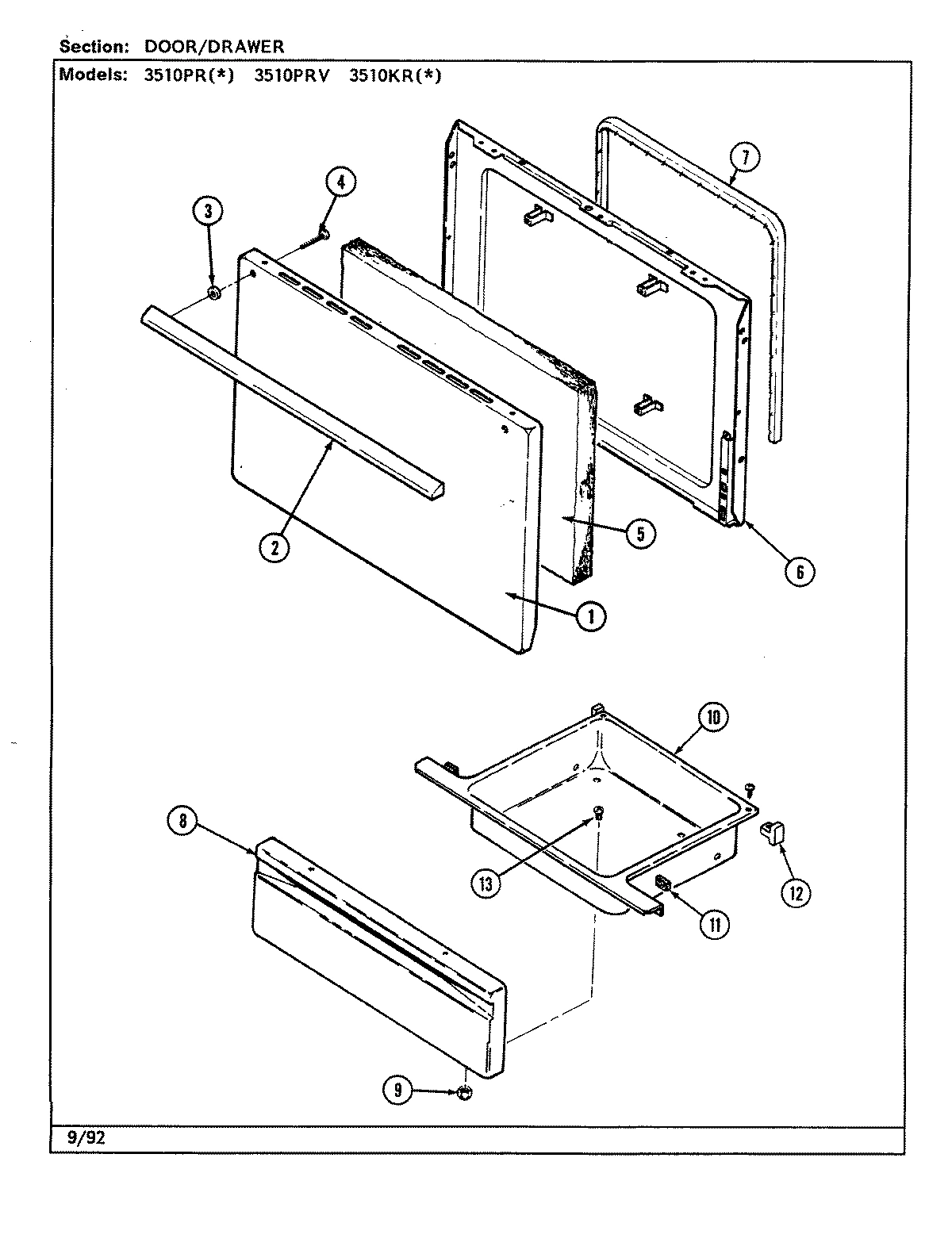

03 - DOOR/DRAWER

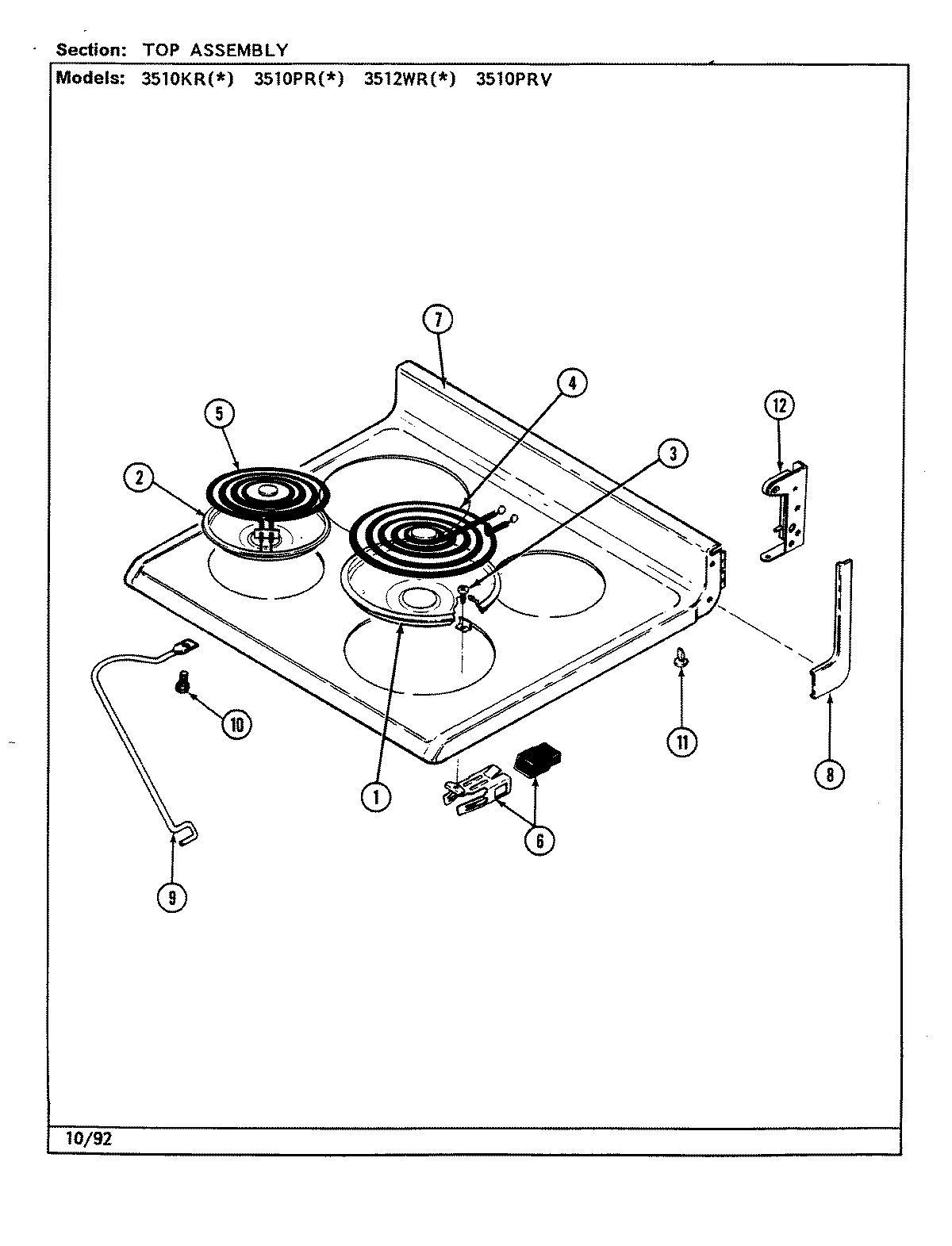

05 - TOP ASSEMBLY

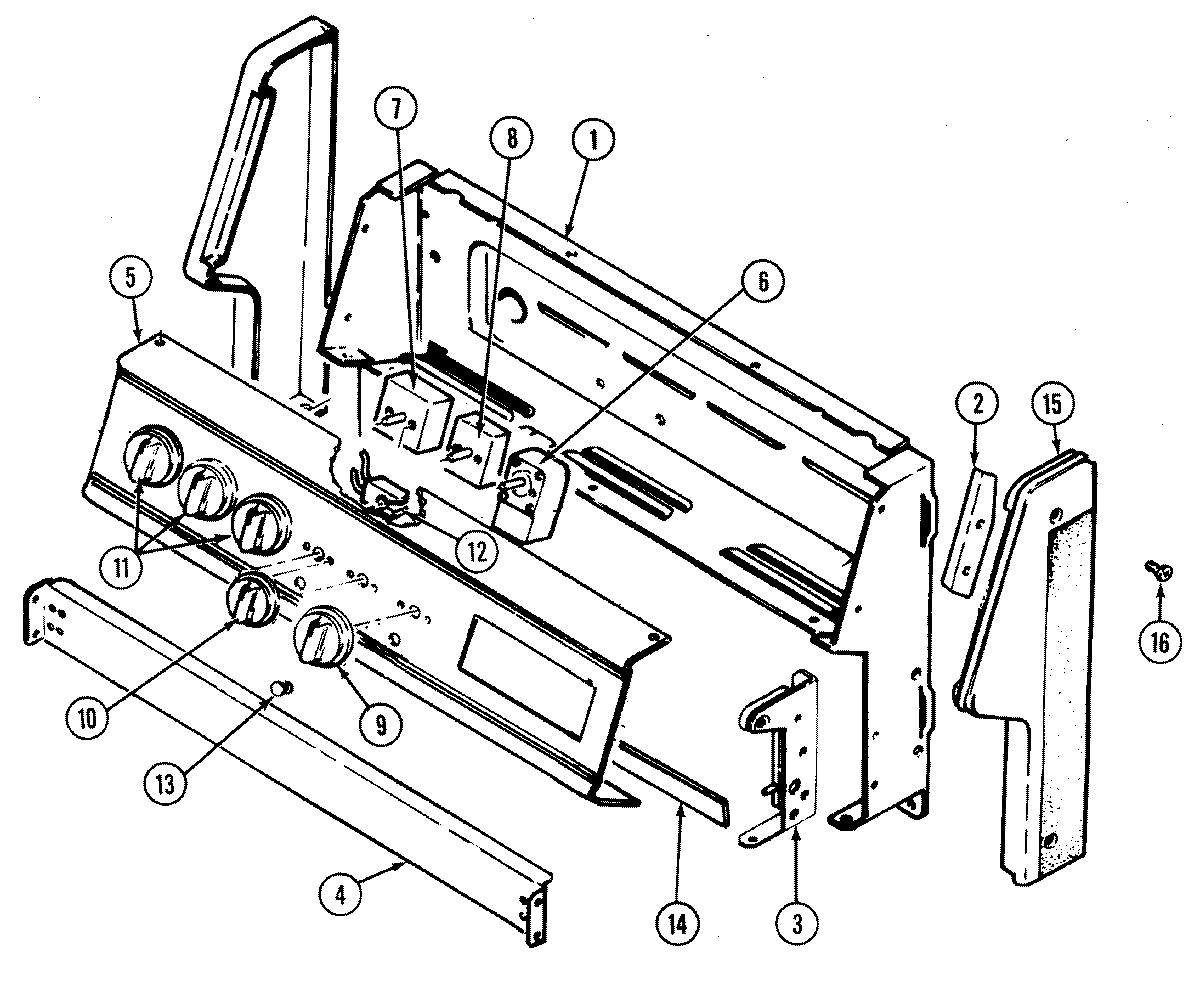

02 - CONTROL PANEL
Common parts from model Whirlpool 3510PRW ELECTRIC RANGE
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
1
BACK, MAIN WPL 4002F18480 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F23580 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
BOX, BURNER WPL 4011F23919 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
4
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
INSULATION, DOOR WPL 7002P15660 Contact Us For Availability
5
PANEL, CONTROL (WHT) WPL 2601F40671 Contact Us For Availability
6
RACK WPL 7801P04060 Contact Us For Availability
6
LINING, DOOR WPL 2402W20119 Contact Us For Availability
6
THERMOSTAT WPL 7404P08160 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
SCREW WPL 7101P29060 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07981 Contact Us For Availability
7
SCREW WPL 7101P30960 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
8
PANEL, ACCESS (WHT) WPL 2416F04271 Contact Us For Availability
8
BRACKET, PANEL WPL 3801F25751 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
KNOB, THERMOSTAT (WHT) WPL 7735P04160 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
10
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
10
KNOB, SELECTOR (WHT) WPL 7739P04860 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
11
SCREW 3/8`` WPL 7101P14160 Contact Us For Availability
11
KNOB, INFINITE SWITCH (WHT) WPL 7737P04160 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SCREW WPL 7101P32960 Contact Us For Availability
12
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SCREW WPL 7101P29160 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
16
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
16
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
16
SCREW WPL 7101P31760 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
17
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
26
PIN LOCATOR WPL 7101P28860 Contact Us For Availability
26
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
× ![]()
