Model Whirlpool 3468XRW GAS RANGE – Common Parts & Diagrams
01 - BODY

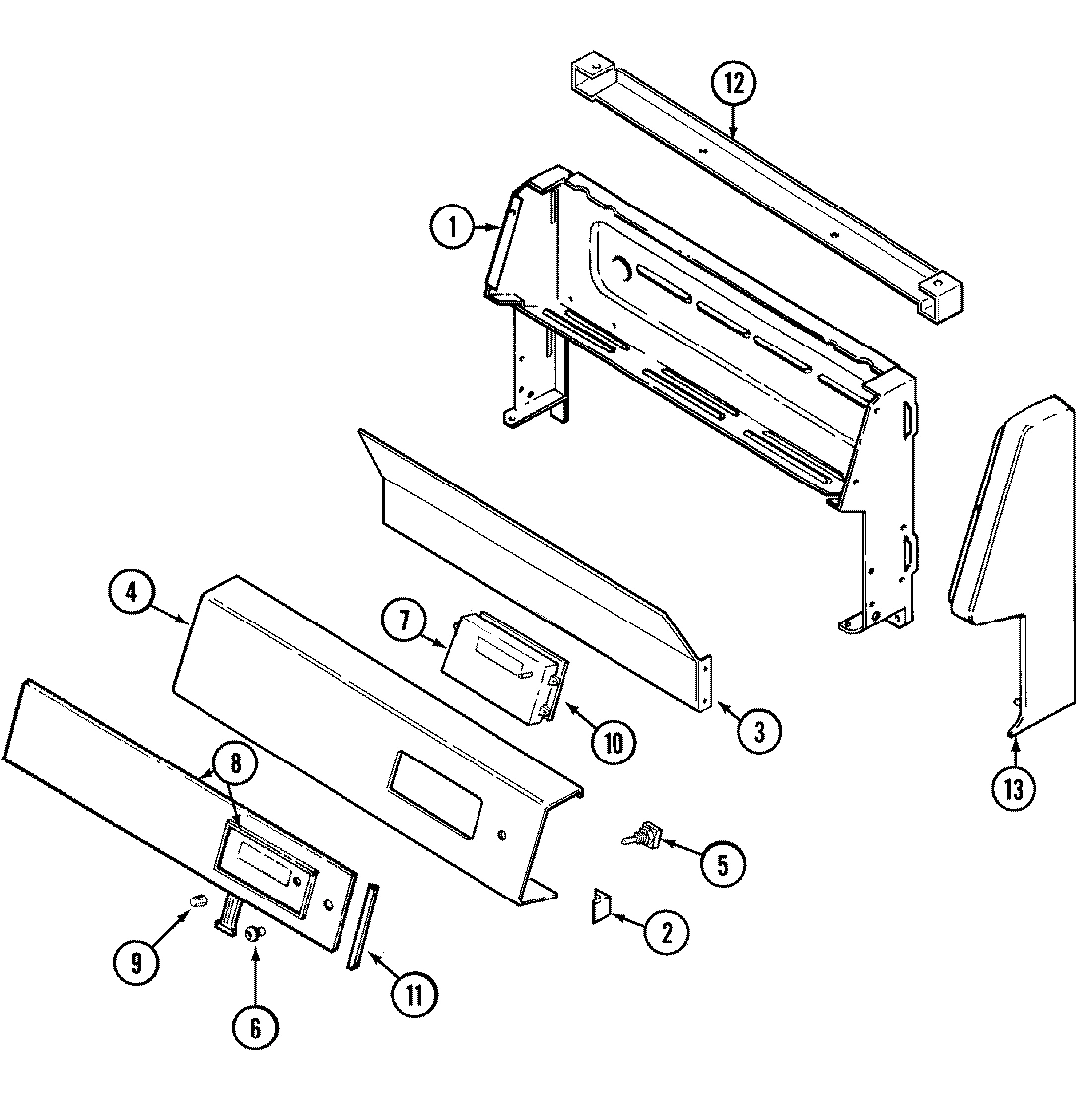

02 - CONTROL PANEL

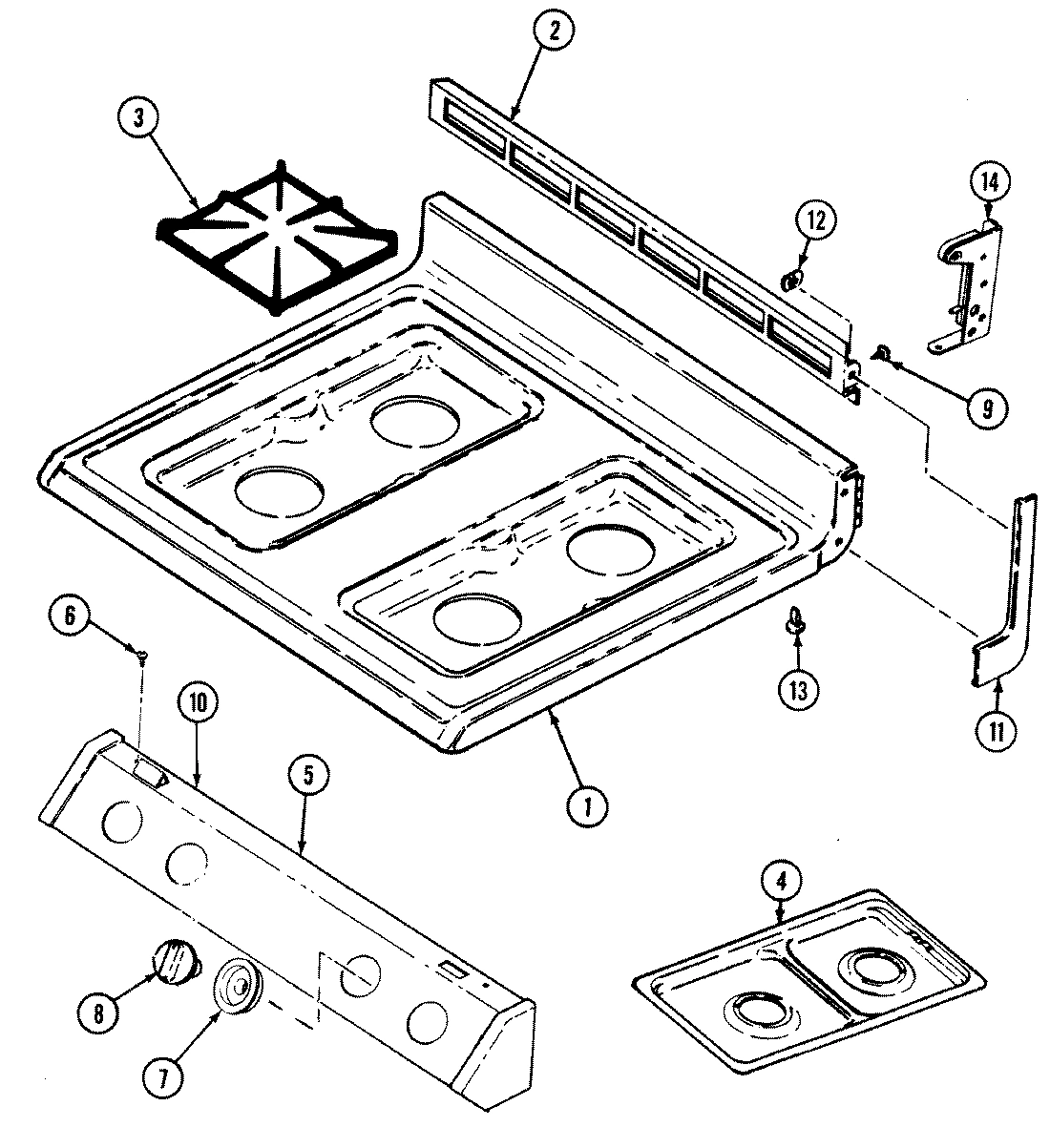

06 - TOP ASSEMBLY

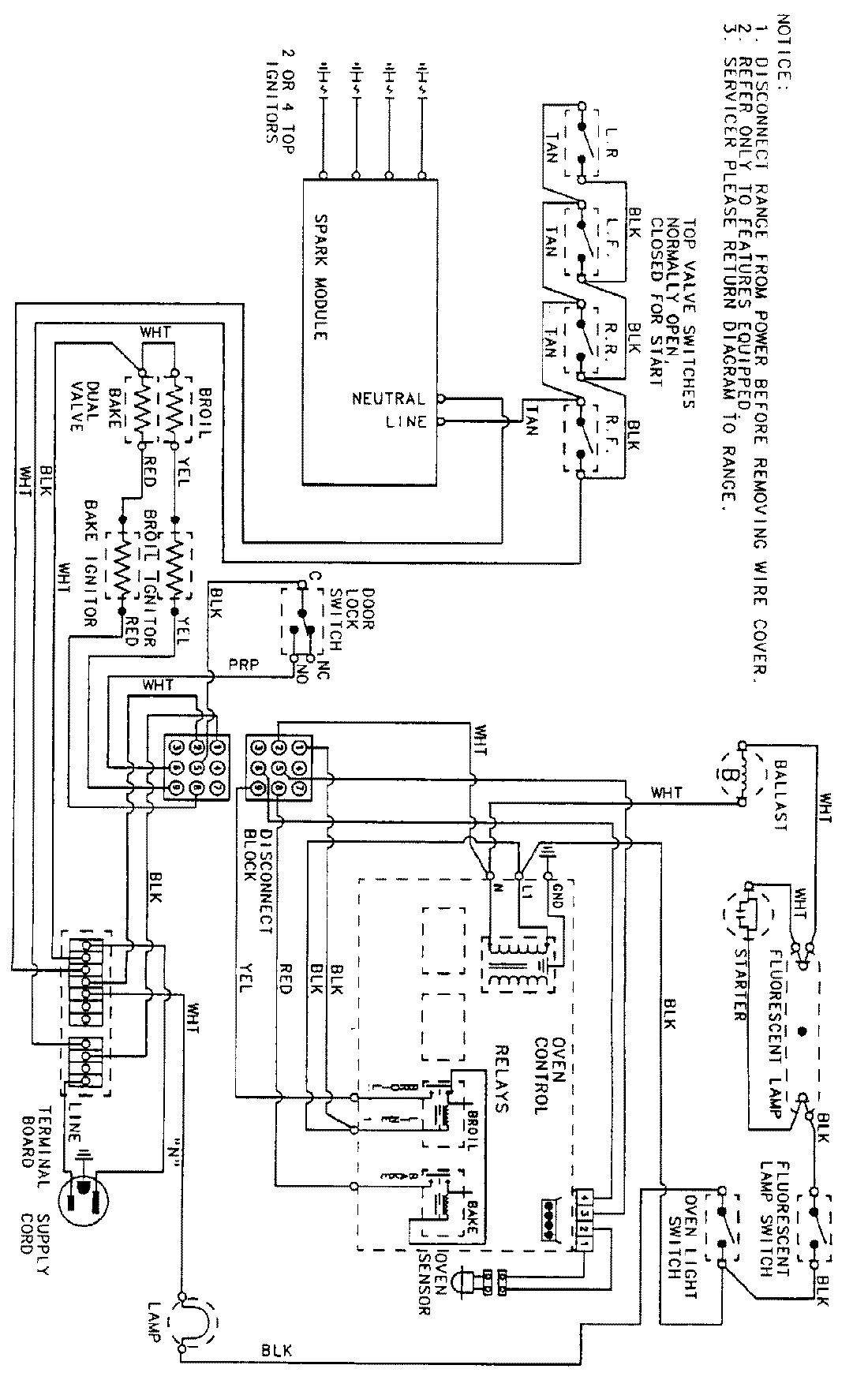

07 - WIRING INFORMATION

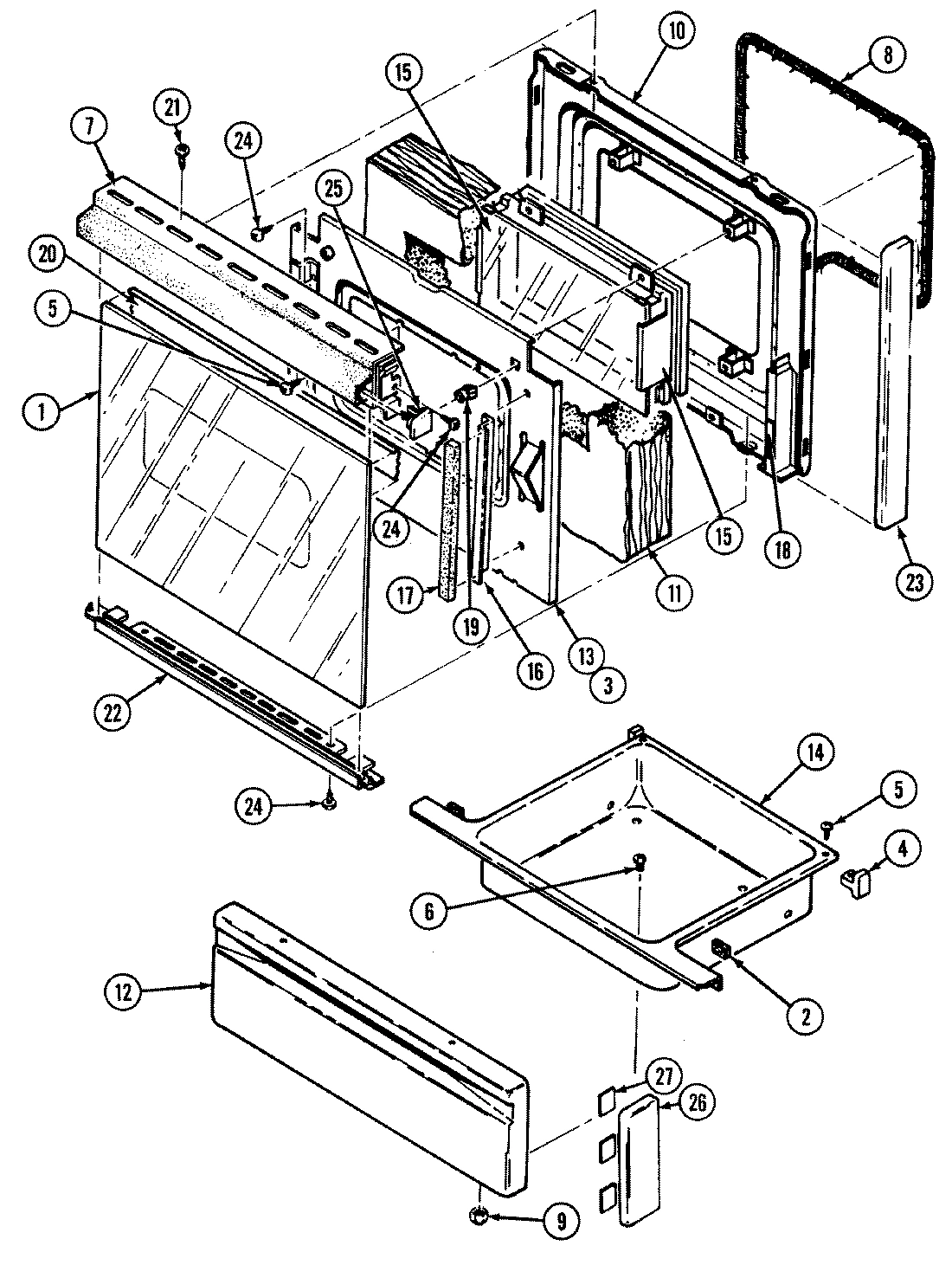

03 - DOOR/DRAWER (3468XRx)

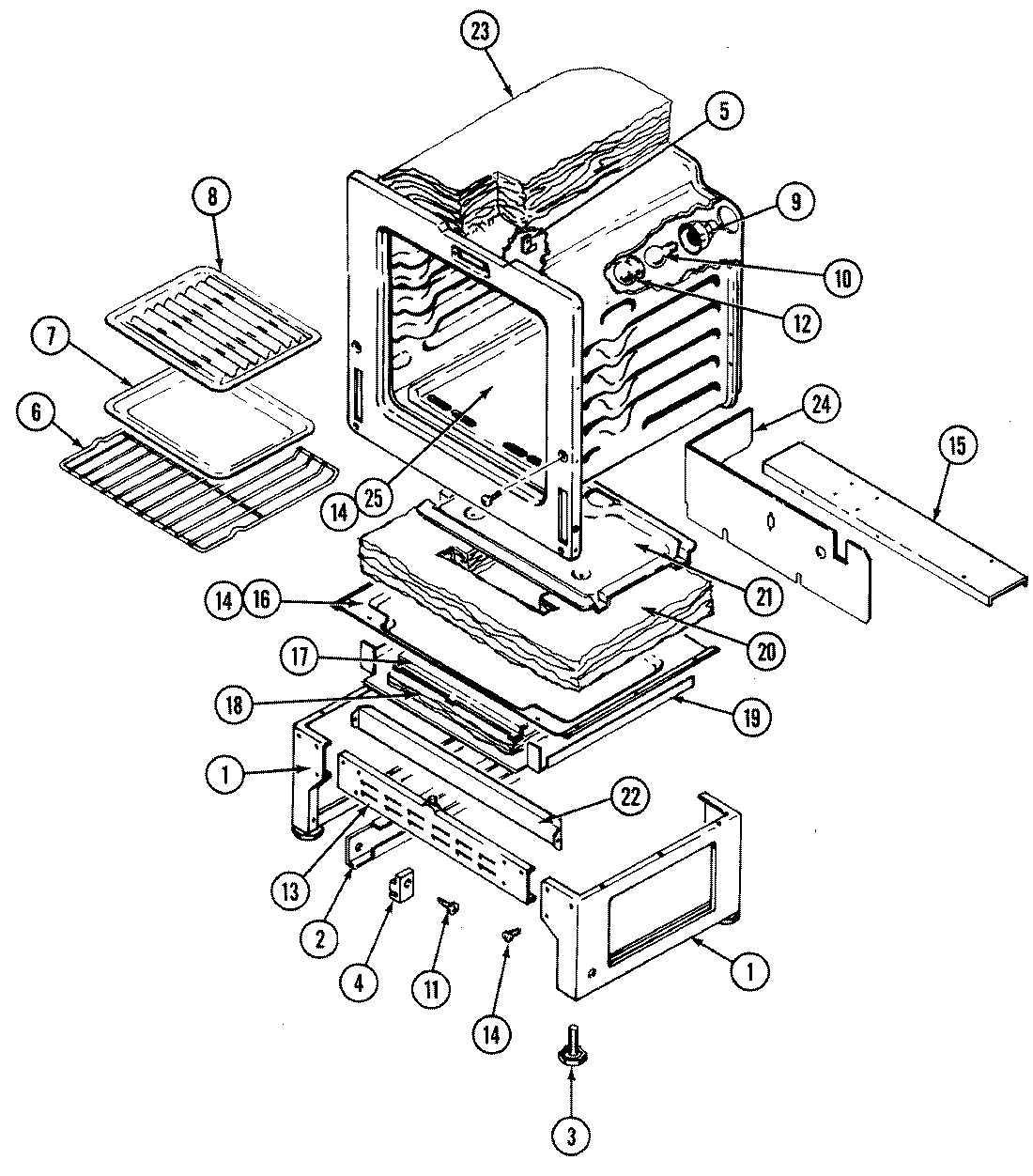

05 - OVEN

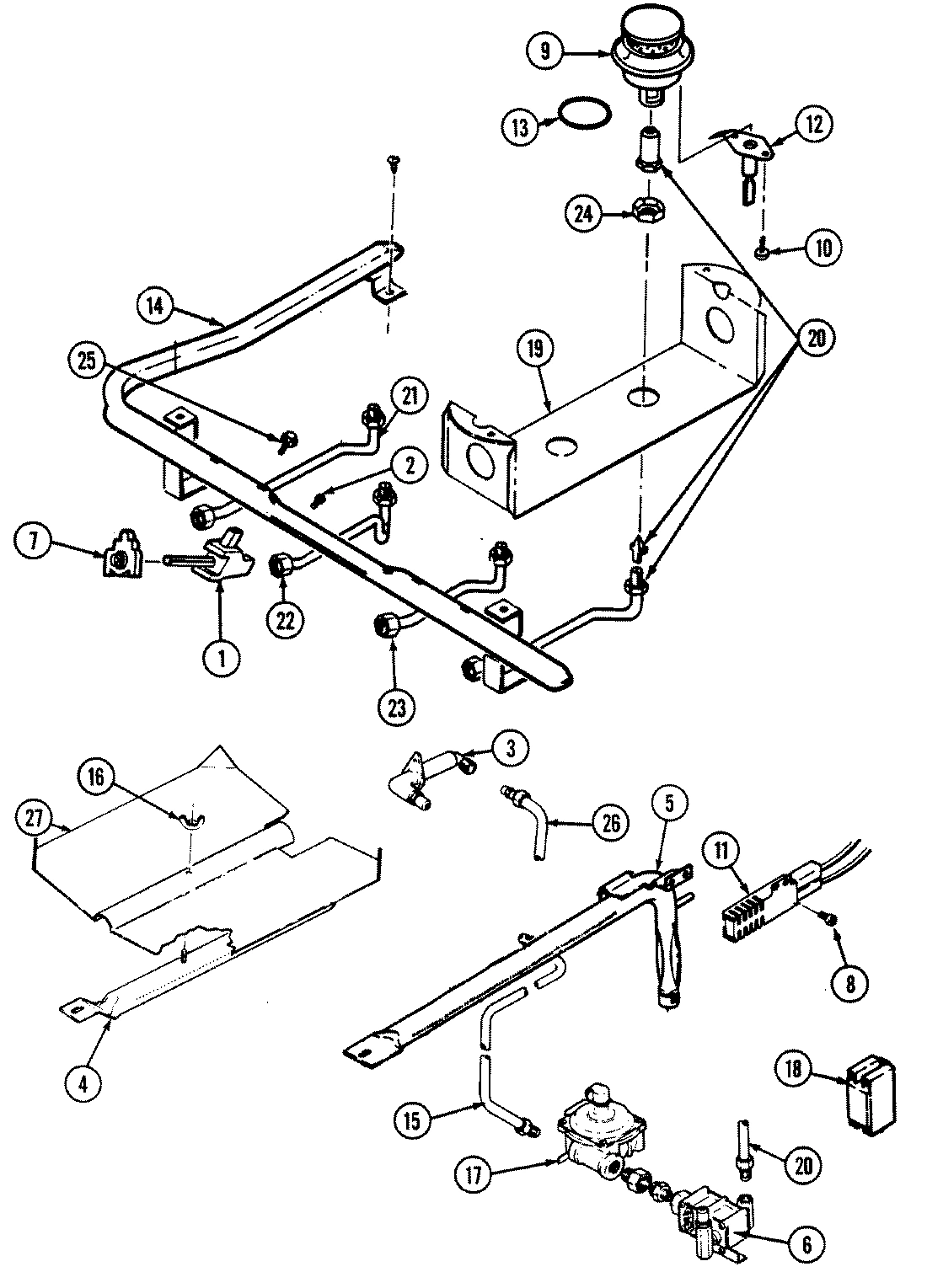

04 - GAS CONTROLS
Common parts from model Whirlpool 3468XRW GAS RANGE
1
BACK, MAIN WPL 4002F18880 Contact Us For Availability
1
SWITCH, HIGH LIMIT WPL 7403P27560 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09751 Contact Us For Availability
1
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001W08281 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P21860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
3
BOX, BURNER WPL 4011F22380 Contact Us For Availability
3
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
GRATE (GRY) WPL 2003W02726 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SCREW WPL 7118P01960 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 7703P25360 Contact Us For Availability
4
PANEL, BKGD (WG) WPL 7703P50060 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 7703P52960 Contact Us For Availability
4
BOWL, DRIP (DBL-CHR) WPL 7725P02160 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
5
SCREW WPL 7101P29160 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P13060 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02460 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
6
COVER, VALVE WPL 4005F33451 Contact Us For Availability
6
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
7
CLOCK WPL 7601P16960 Contact Us For Availability
7
CLOCK WPL 7601P20860 Contact Us For Availability
7
BEZEL, KNOB (BLK) WPL 7740P05860 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
8
LEVER LOCK WPL 8009P01560 Contact Us For Availability
8
PANEL, CONTROL ASSY WPL 4851S01759 Contact Us For Availability
8
PANEL, CONTROL ASSY WPL 4851S01959 Contact Us For Availability
8
KNOB, VALVE (BLK) WPL 7733P08460 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
10
RELAY WPL 7428P01260 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
LAMP, OVEN WPL 7407P09160 Contact Us For Availability
10
SCREW WPL 7101P31560 Contact Us For Availability
11
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
INSULATION DOOR WPL 4804F01260 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
11
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
12
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
12
TRIM, RETAINER WPL 7720P15660 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
12
NUT, SPEED WPL 7103P12960 Contact Us For Availability
12
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F03862 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
13
GLIDE WPL 8016P01360 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
SCREW WPL 7101P30060 Contact Us For Availability
14
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
14
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
14
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
14
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
14
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
15
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
15
HARNESS CTRL TO RELAY WPL 5170P12460 Contact Us For Availability
15
GLASS ASY, OVEN DOOR WPL 7907P01460 Contact Us For Availability
15
SUPPORT VALVE/REGULATOR WPL 3807F44351 Contact Us For Availability
15
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
15
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
16
HARNESS SENSOR WPL 5170P12360 Contact Us For Availability
16
HARNESS, SENSOR & LOCK WPL 5170P16060 Contact Us For Availability
16
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
16
NUT, WING WPL 7103P03060 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
HARNESS, WIRE CLOCK WPL 5180D14260 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 5180D15260 Contact Us For Availability
17
SEAL WPL 7208P00260 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 7510P06360 Contact Us For Availability
18
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
18
WIRES, LOOSE WPL 5125A32060 Contact Us For Availability
18
WIRES, LOOSE WPL 5125A35460 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
SUPPORT, SPARK MODULE WPL 3807F42151 Contact Us For Availability
18
MODULE, SPARK WPL 7431P02460 Contact Us For Availability
19
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
19
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
19
SPACER WPL 8010P07560 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
SUPPORT, TOP BURNER WPL 3807F44445 Contact Us For Availability
20
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
20
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
FITTING, ORIFICE (R.R.) WPL 7507P08560 Contact Us For Availability
21
SCREW WPL 7101P03160 Contact Us For Availability
21
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02345 Contact Us For Availability
21
FITTING, ORIFICE (L.R.) WPL 7507P11360 Contact Us For Availability
22
BOX, VENT WPL 4006W11345 Contact Us For Availability
22
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
22
FITTING, ORIFICE (L.F. 9,200) WPL 7507P08460 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
CORD, POWER WPL 7402P04360 Contact Us For Availability
23
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
23
INSULATION, BACK WPL 4804F01560 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F01660 Contact Us For Availability
23
FITTING, ORIFICE (R.F.) WPL 7507P09160 Contact Us For Availability
24
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
24
COVER, VALVE WPL 4005F42951 Contact Us For Availability
24
PALNUT WPL 7103P11960 Contact Us For Availability
25
END CAP (RT) WPL 7744P07560 Contact Us For Availability
25
END CAP (LT) WPL 7744P07660 Contact Us For Availability
25
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
25
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
25
SCREW WPL 7101P29660 Contact Us For Availability
26
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
27
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
27
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
27
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001711 Contact Us For Availability
× ![]()
