Model Electrolux 31-3979-23-01 RANGE – Common Parts & Diagrams
02 - DOOR PARTS

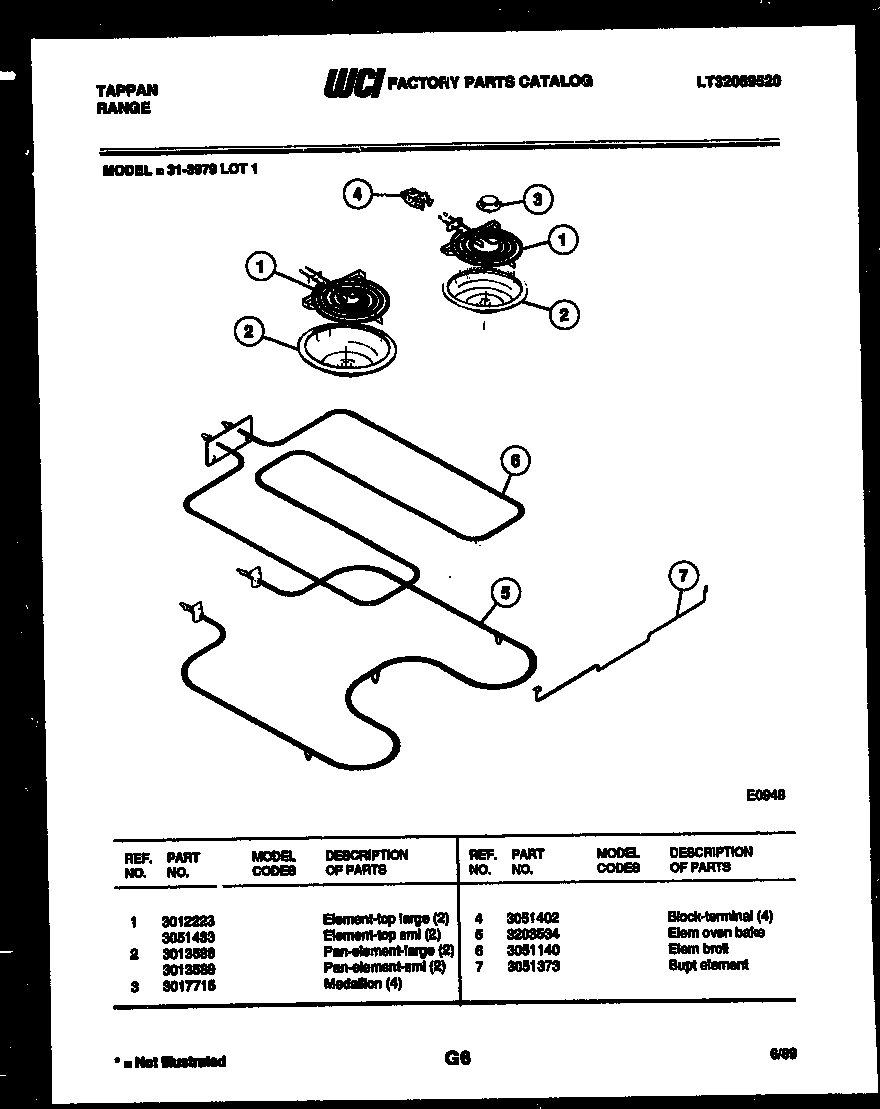

03 - BROILER PARTS

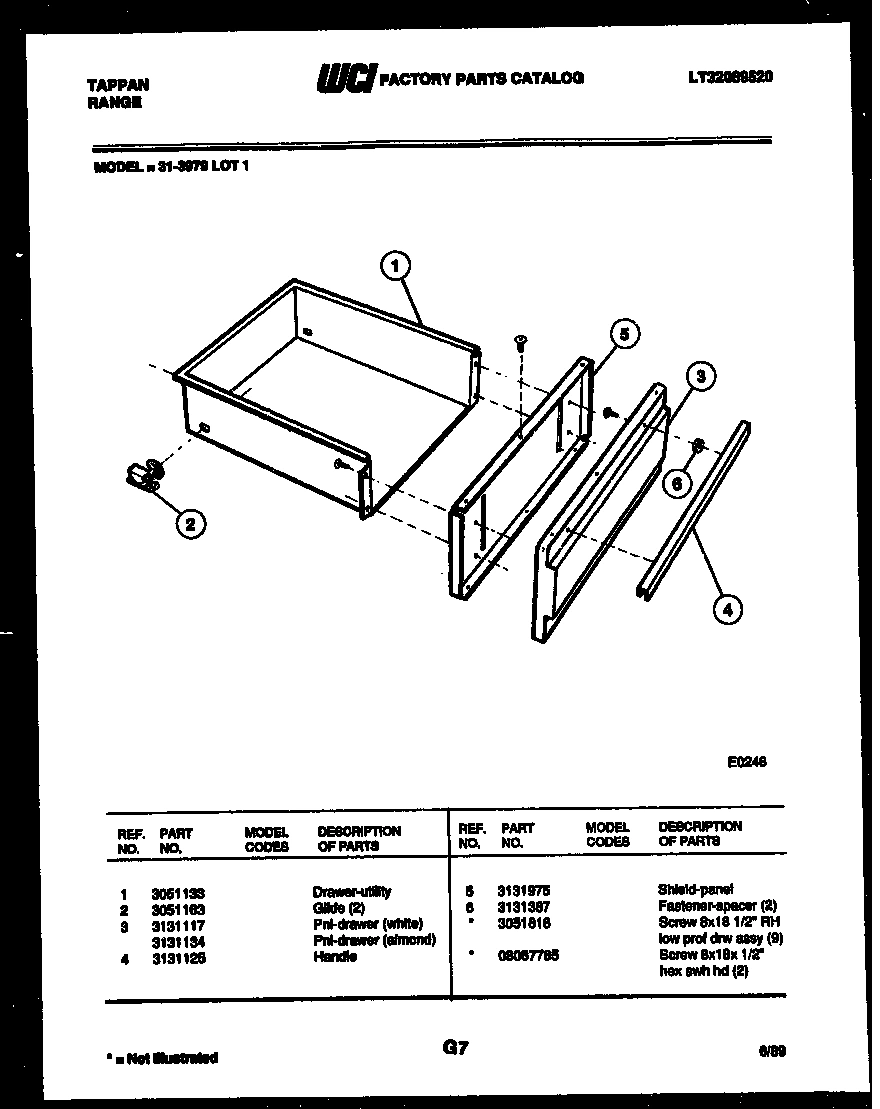

04 - DRAWER PARTS

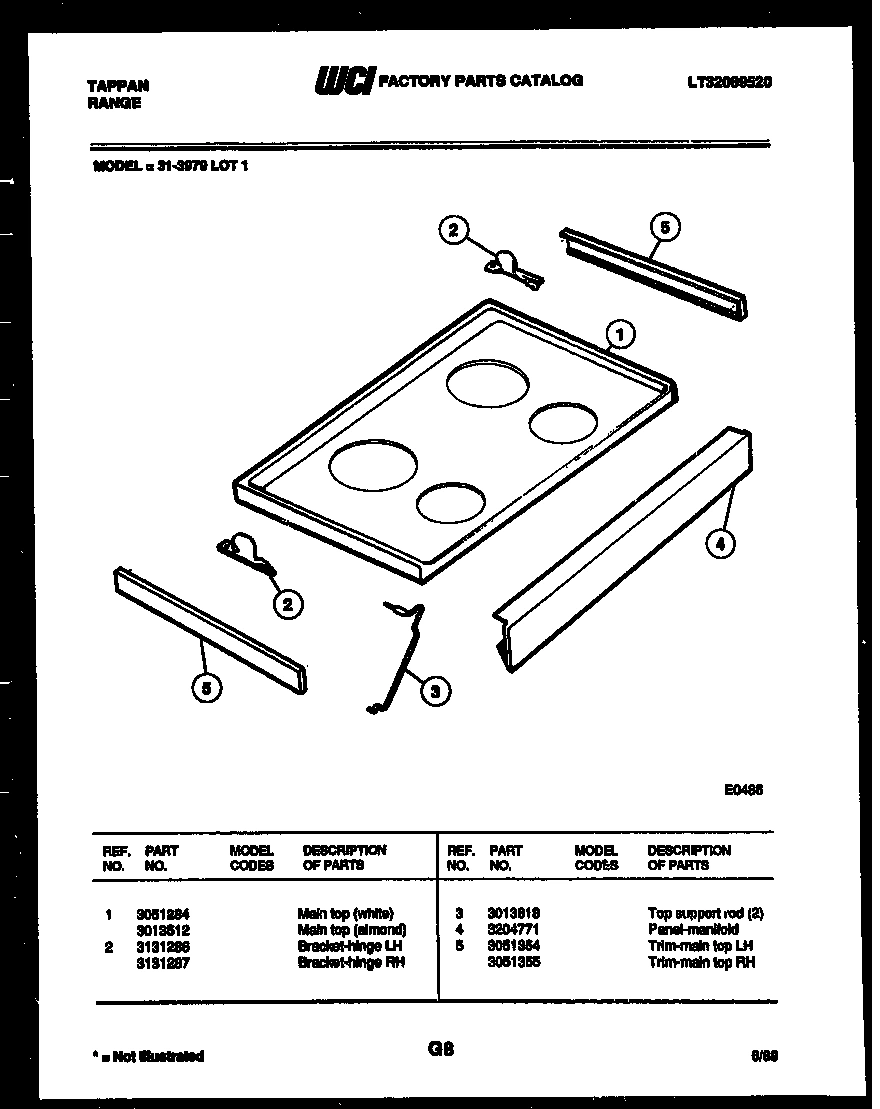

05 - COOKTOP PARTS

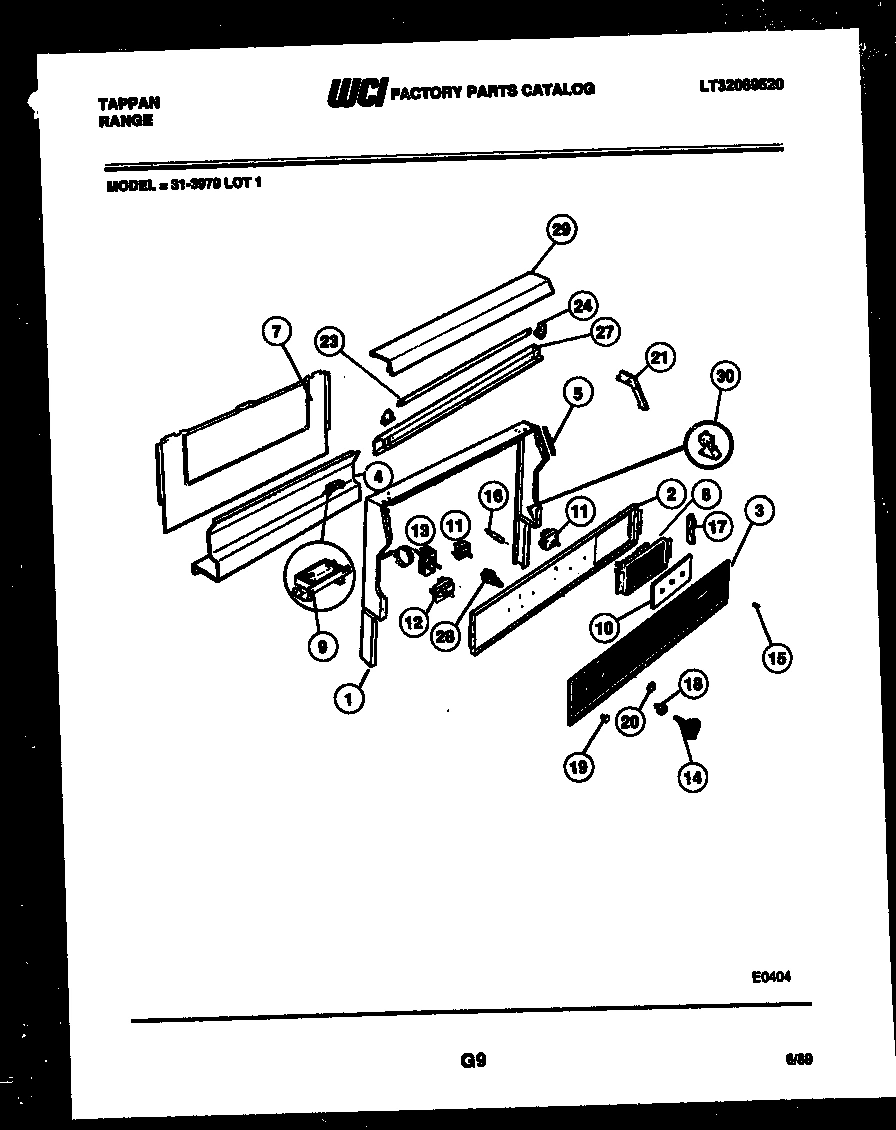

06 - BACKGUARD

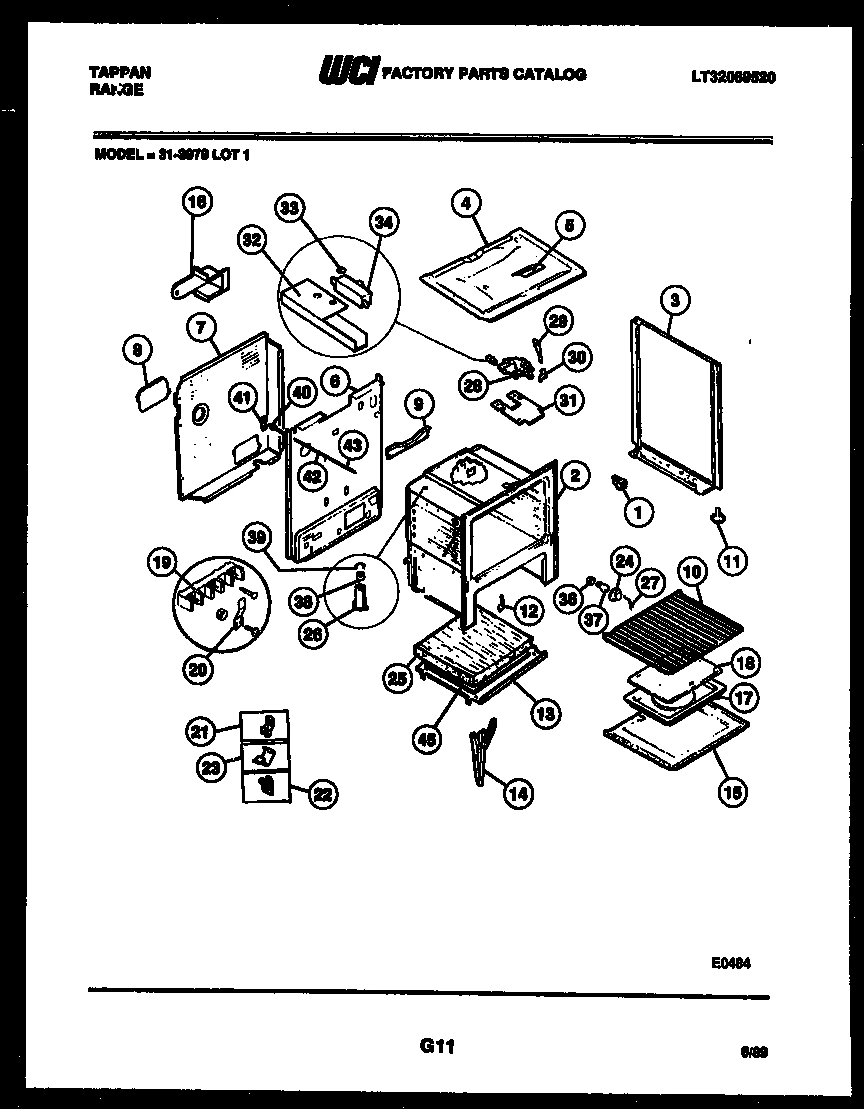

07 - BODY PARTS
Common parts from model Electrolux 31-3979-23-01 RANGE
*25409
SCREW 8 X 18 X 1/2`` HEX SWH HD (2) WCI 08067785 Contact Us For Availability
*25414
RETAINER - IND LENS (4) WCI 3051224 Contact Us For Availability
*25414
WCI 3131468 WCI 3131468 Contact Us For Availability
*25418
INSUL-TOUCH WCI 3131304 Contact Us For Availability
*25419
SHIELD-HEAT BDYSD WCI 3200834 Contact Us For Availability
*25419
FASTENER-EDGE MTG (2) WCI 3200846 Contact Us For Availability
*25419
BRACKET-CABLE MTG WCI 3204525 Contact Us For Availability
*25419
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3013512 WCI 3013512 Contact Us For Availability
1
WCI 3204862 WCI 3204862 Contact Us For Availability
2
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
2
PLATE-INSTRUMENT MTG WCI 3203536 Contact Us For Availability
2A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
3
PNL DRAWER (ALMOND) WCI 3131134 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
3
WCI 3204861 WCI 3204861 Contact Us For Availability
3
PNL-BDYSD-LH (ALMOND) WCI 3200793 Contact Us For Availability
3A
PNL-BDYSD-RH (ALMOND) WCI 3200790 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3204771 WCI 3204771 Contact Us For Availability
4
TRIM-LWR SPLASHER (ALMOND) WCI 3204729 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 3204753 WCI 3204753 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
5A
WCI 3204754 WCI 3204754 Contact Us For Availability
6
LINER WCI 3202147 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD - LWR ACCESS WCI 3203549 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 3204766 WCI 3204766 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 3051115 WCI 3051115 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
10
GLASS - CLOCK WCI 3201695 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW-HANDLE MTG. (2) WCI 3016851 Contact Us For Availability
13
THERMOSTAT-OVEN WCI 3204581 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
SCREWDOOR MTG (3) WCI 3131573 Contact Us For Availability
14
KNOB-CONTROL (4) WCI 3204751 Contact Us For Availability
14A
WCI 08010463 WCI 08010463 Contact Us For Availability
14A
KNOB-SELECTOR SWITCH WCI 3204768 Contact Us For Availability
14B
SCREW - DOOR MTG (4) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
14B
WCI 3204767 WCI 3204767 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
INSUL-WOOL WCI 3200528 Contact Us For Availability
16
INDICATOR LITE-S/U WCI 08037896 Contact Us For Availability
16
WCI 3203582 WCI 3203582 Contact Us For Availability
16A
INDICATOR LITE, OVEN (BLACK) WCI 3201727 Contact Us For Availability
16B
INDICATOR LITE, CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16C
INDICATOR LITE, LOCK (RED) WCI 3201728 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
RETAINER - CLOCK GL (2) WCI 3201700 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
18
BUSHING-CONT SHAFT WCI 3204745 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
WCI 08037703 WCI 08037703 Contact Us For Availability
20
BEZEL-SWITCH (4) WCI 3011507 Contact Us For Availability
20
GRND STRAP WCI 08011708 Contact Us For Availability
21
CAP END - LH WCI 3204609 Contact Us For Availability
21A
CAP END - RH WCI 3204610 Contact Us For Availability
23
BULB-FLOUR WCI 3131275 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
RECEPT-FLOUR LT LH WCI 3051222 Contact Us For Availability
24A
RECEPT-FLOUR LT RH WCI 3051223 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
SUPT-FLOUR RECEPT MTG WCI 3131277 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
INSUL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
27D
SCREW - HNG MTG (6) (NON-ILLUSTRATED) WCI 3131143 Contact Us For Availability
27E
WCI 08067783 WCI 08067783 Contact Us For Availability
28
SWITCH-OV LT WCI 3200479 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
28A
SWITCH-FL-LT WCI 3200480 Contact Us For Availability
29
WCI 3204614 WCI 3204614 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
SUPPORT, BACKGROUND WCI 3131237 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD-BI MTL CATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
RETAIN-CATALYST WCI 08010606 Contact Us For Availability
40
WCI 3202622 WCI 3202622 Contact Us For Availability
41
BRKT-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
