Model Electrolux 31-2649-00-06 RANGE – Common Parts & Diagrams
01 - ELECTRIC RANGE
02 - BACKGUARD

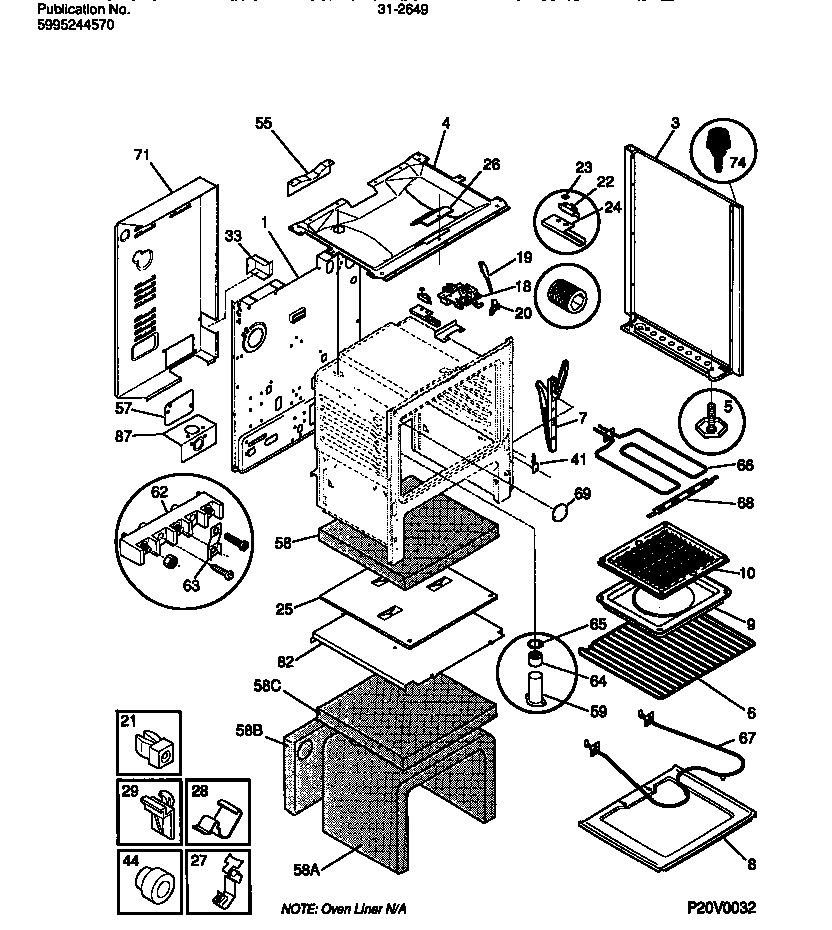

03 - BODY

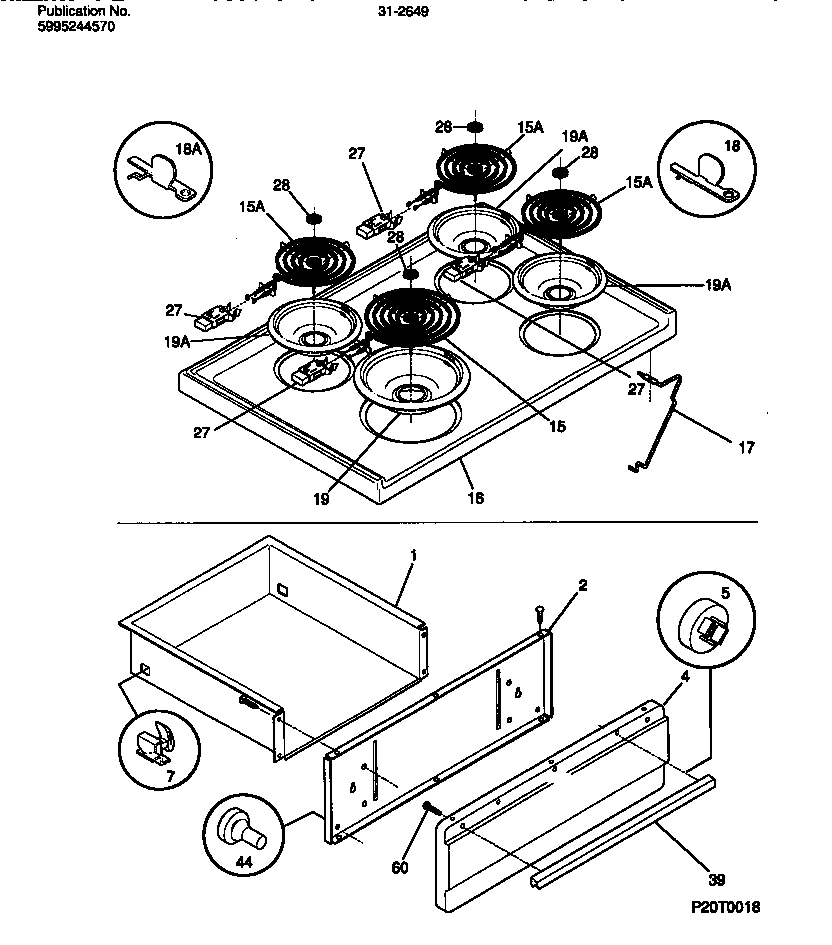

04 - TOP/DRAWER

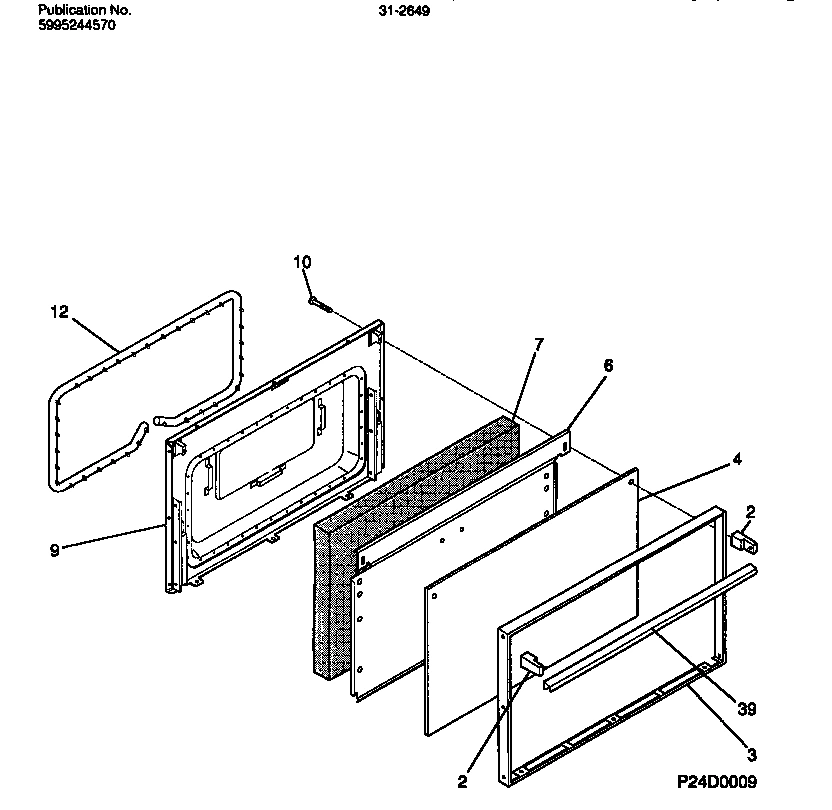

05 - DOOR

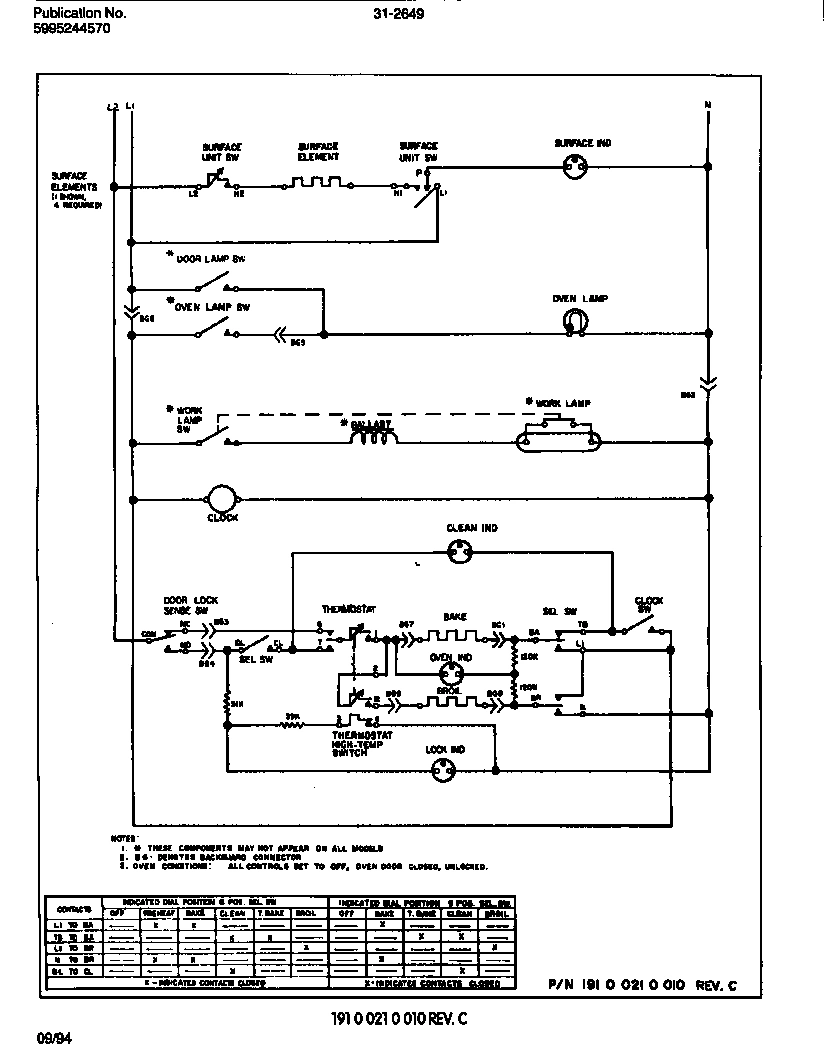

06 - WIRING DIAGRAM

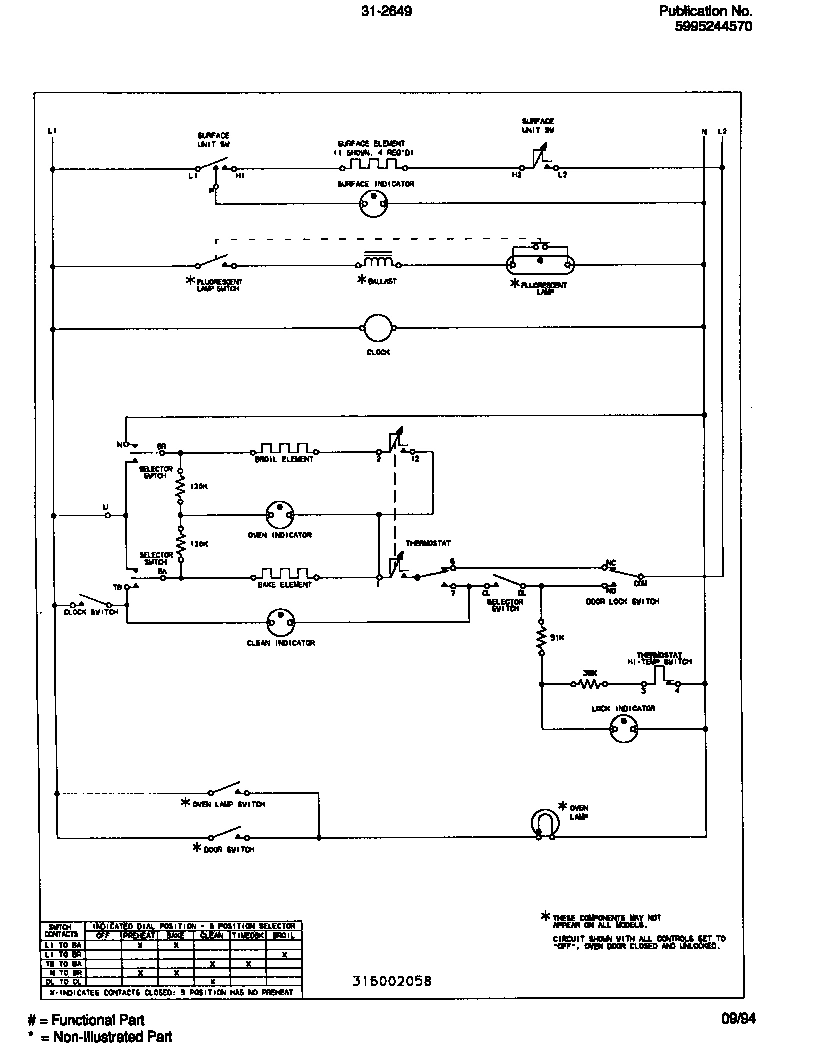

07 - WIRING DIAGRAM
Common parts from model Electrolux 31-2649-00-06 RANGE
*73443
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*73444
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*73445
WCI 5303299158 WCI 5303299158 Contact Us For Availability
*73448
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3C
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316019705 WCI 316019705 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
16
WCI 3051379 WCI 3051379 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18A
SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
20
WCI 3203218 WCI 3203218 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
30A
WCI 316056800 WCI 316056800 Contact Us For Availability
31
KNOB-SELECTOR, (6) POS WCI 3204768 Contact Us For Availability
32
WCI 3204767 WCI 3204767 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
WCI 5303300893 WCI 5303300893 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
40
WCI 5303206607 WCI 5303206607 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
45A
WCI 316056900 WCI 316056900 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, AMBER WCI 5308037703 Contact Us For Availability
47
RETAINER, CLOCK GLASS, (2) WCI 3201700 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 3051344 WCI 3051344 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
64
FILTER-OVEN VENT, CATALYST WCI 08067810 Contact Us For Availability
65
RETAINER-FILTER WCI 08010606 Contact Us For Availability
69
WCI 3051218 WCI 3051218 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
87A
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
87C
WCI 08067961 WCI 08067961 Contact Us For Availability
× ![]()
