Model Electrolux 31-2649-00-01 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - COOKTOP PARTS

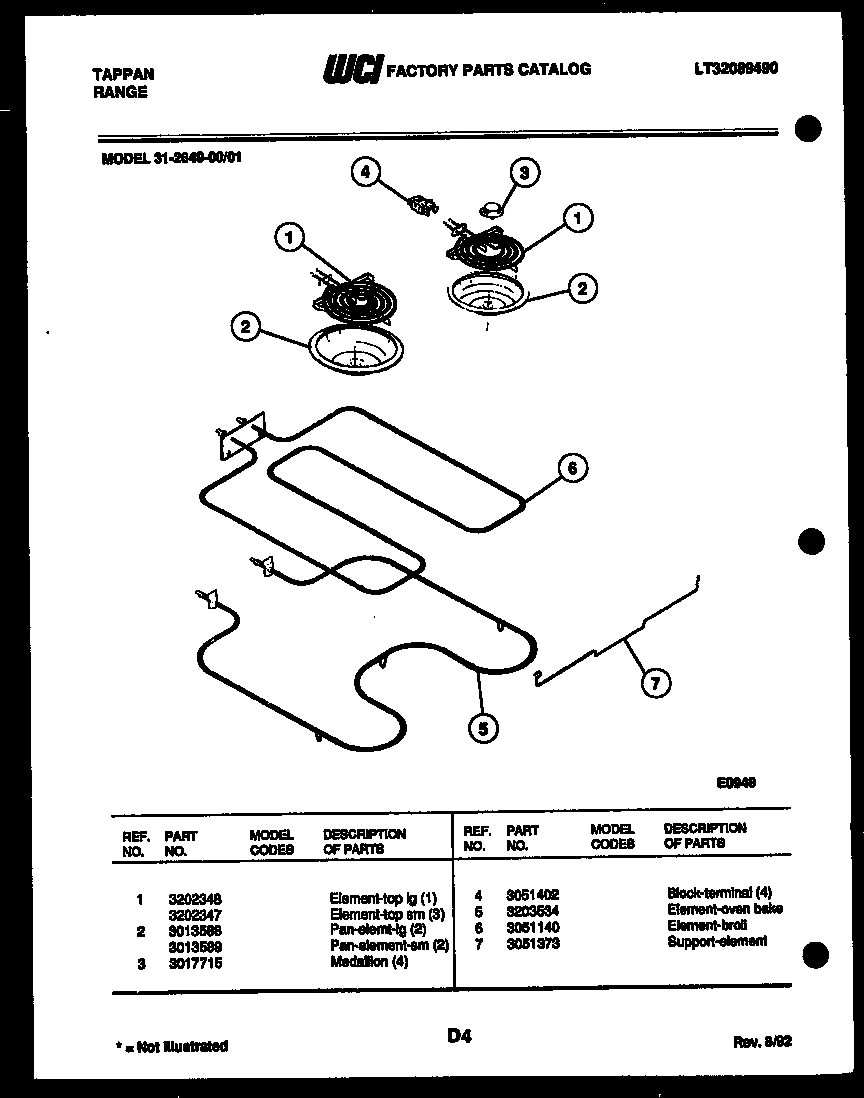

04 - BROILER PARTS

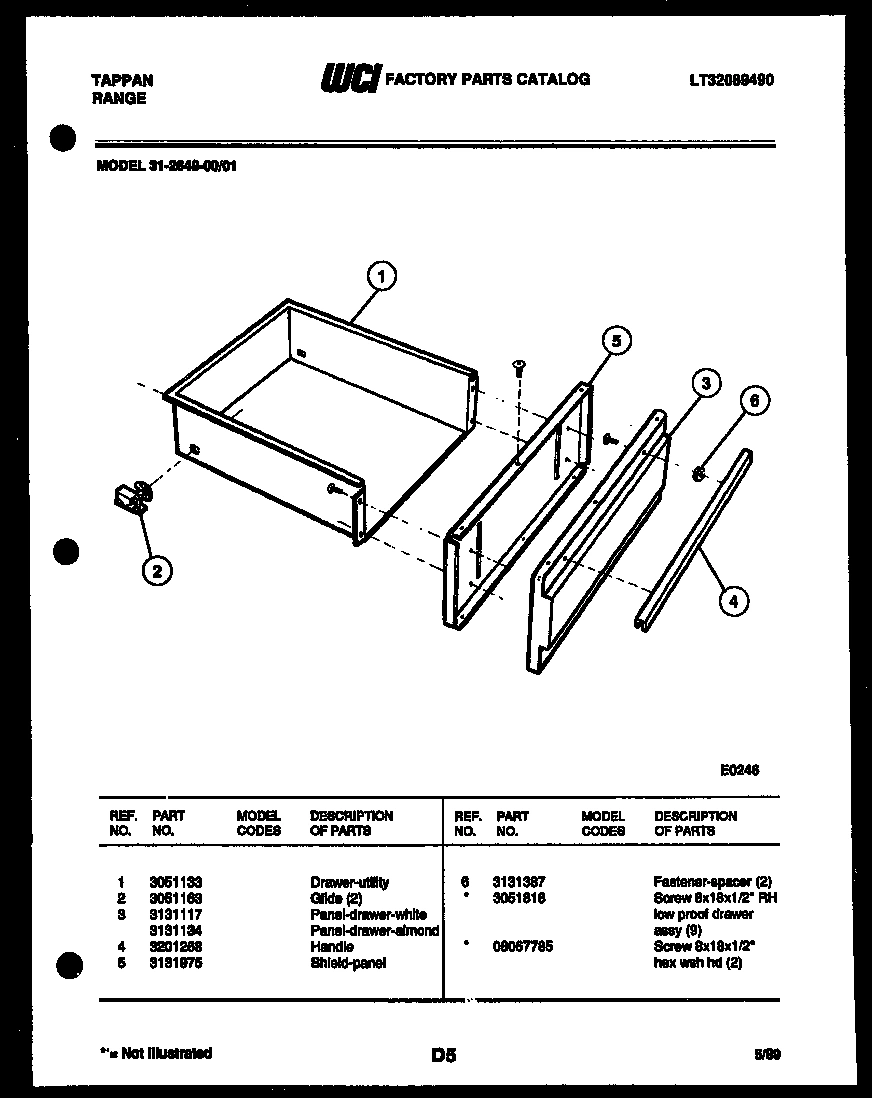

05 - DRAWER PARTS

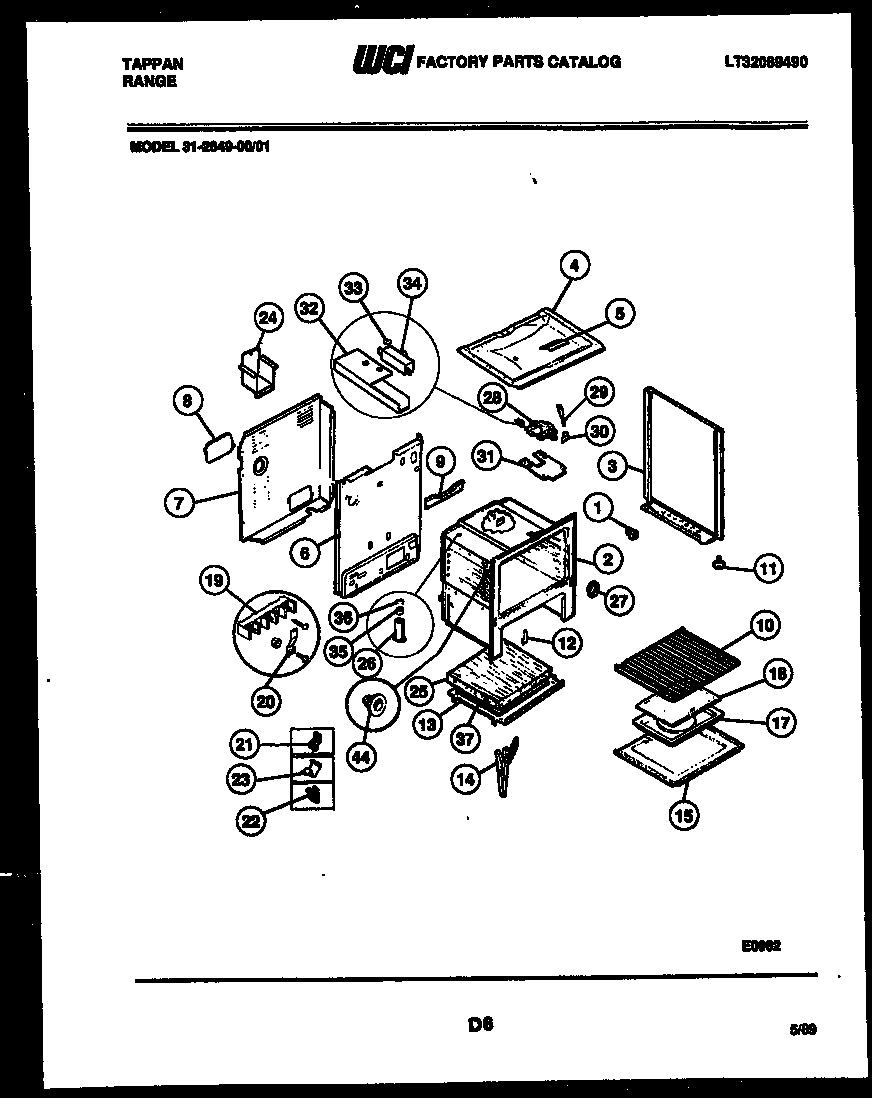

06 - BODY PARTS

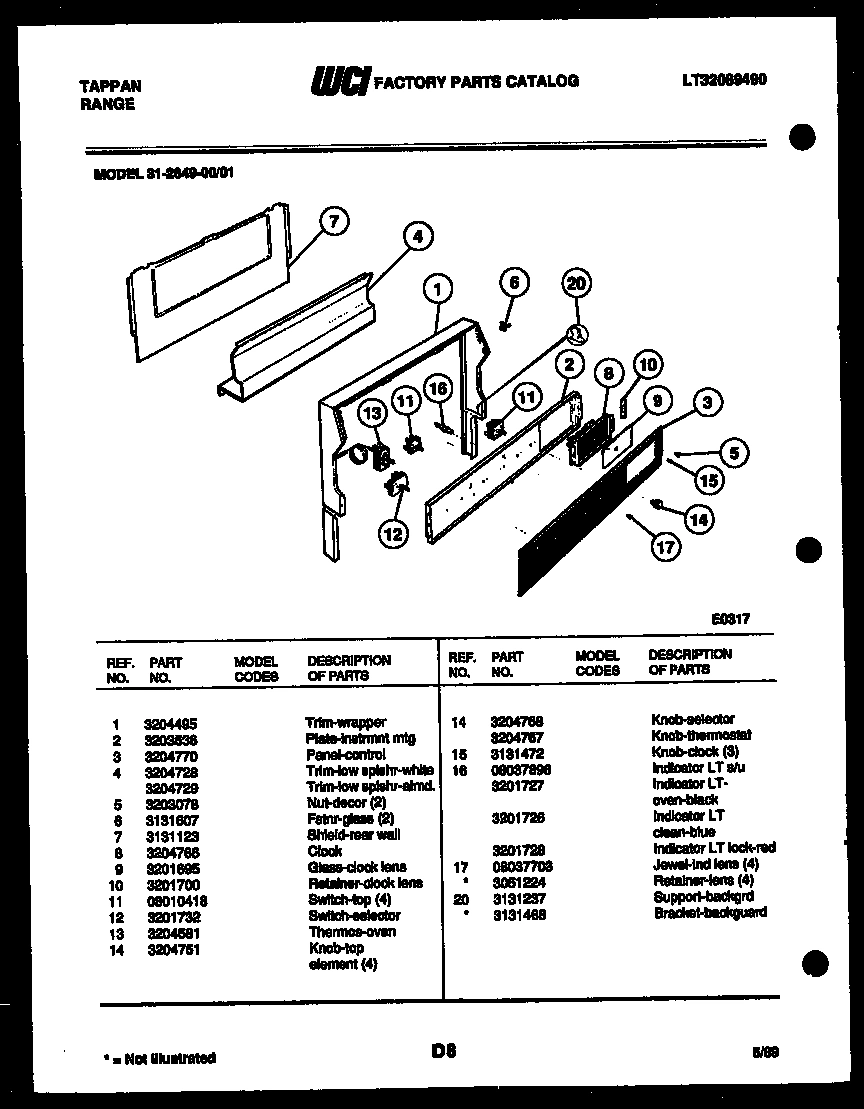

07 - BACKGUARD
Common parts from model Electrolux 31-2649-00-01 RANGE
*26488
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*26492
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*26492
SHIELD HEAT BODYSIDE (2) WCI 3200834 Contact Us For Availability
*26492
FASTENER-EDGE MTG (2) WCI 3200846 Contact Us For Availability
*26492
BRACKET-CABLE MTG WCI 3204525 Contact Us For Availability
*26492
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*26494
WCI 3131468 WCI 3131468 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3051379 WCI 3051379 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3204495 WCI 3204495 Contact Us For Availability
2
BRKT-HINGE LH WCI 3131286 Contact Us For Availability
2
BRKT-HINGE RH WCI 3131287 Contact Us For Availability
2
PLATE-INSTRMNT MTG WCI 3203536 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, BODYSIDE (LH) WHITE WCI 3200792 Contact Us For Availability
3
WCI 3204770 WCI 3204770 Contact Us For Availability
3A
PANEL, BODYSIDE (RH) WHITE WCI 3200789 Contact Us For Availability
4
WCI 3204771 WCI 3204771 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM-LOW SPLSHR-WHITE WCI 3204728 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
NUT-DECOR (2) WCI 3203078 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
7
WCI 3201693 WCI 3201693 Contact Us For Availability
7
SHIELD-LWR WCI 3203549 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
8
WCI 3204766 WCI 3204766 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 3201695 WCI 3201695 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
10
RETAINER CLOCK LENS WCI 3201700 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
12
CVR-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
12
WCI 3201732 WCI 3201732 Contact Us For Availability
13
SCREW, HANDLE, 10-24 SP. WASH RHD (2) WCI 3016420 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
THERMOS-OVEN WCI 3204581 Contact Us For Availability
14
WCI 08010463 WCI 08010463 Contact Us For Availability
14
CHANNEL-DOOR HNG (2) WCI 3131569 Contact Us For Availability
14
KNOB-TOP ELEMENT (4) WCI 3204751 Contact Us For Availability
14
WCI 3204768 WCI 3204768 Contact Us For Availability
14A
SCREW, 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14A
WCI 3204767 WCI 3204767 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 3131472 WCI 3131472 Contact Us For Availability
16
INDICATOR LT S/U WCI 08037896 Contact Us For Availability
16A
INDICATOR LT. OVEN-BLACK WCI 3201727 Contact Us For Availability
16B
INDICATOR LT CLEAN (BLUE) WCI 3201726 Contact Us For Availability
16C
INDICATOR LT LOCK (RED) WCI 3201728 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
17
WCI 08037703 WCI 08037703 Contact Us For Availability
17A
RETAINER, LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
20
SUPPORT-BACKGRD WCI 3131237 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3203582 WCI 3203582 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
PLATE-OV. LT. WCI 3051218 Contact Us For Availability
27A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
WCI 08067810 WCI 08067810 Contact Us For Availability
36
WCI 08010606 WCI 08010606 Contact Us For Availability
37
SHIELD-HEAT LWR WCI 3200848 Contact Us For Availability
× ![]()
