Model Electrolux 31-2539-23-01 RANGE – Common Parts & Diagrams

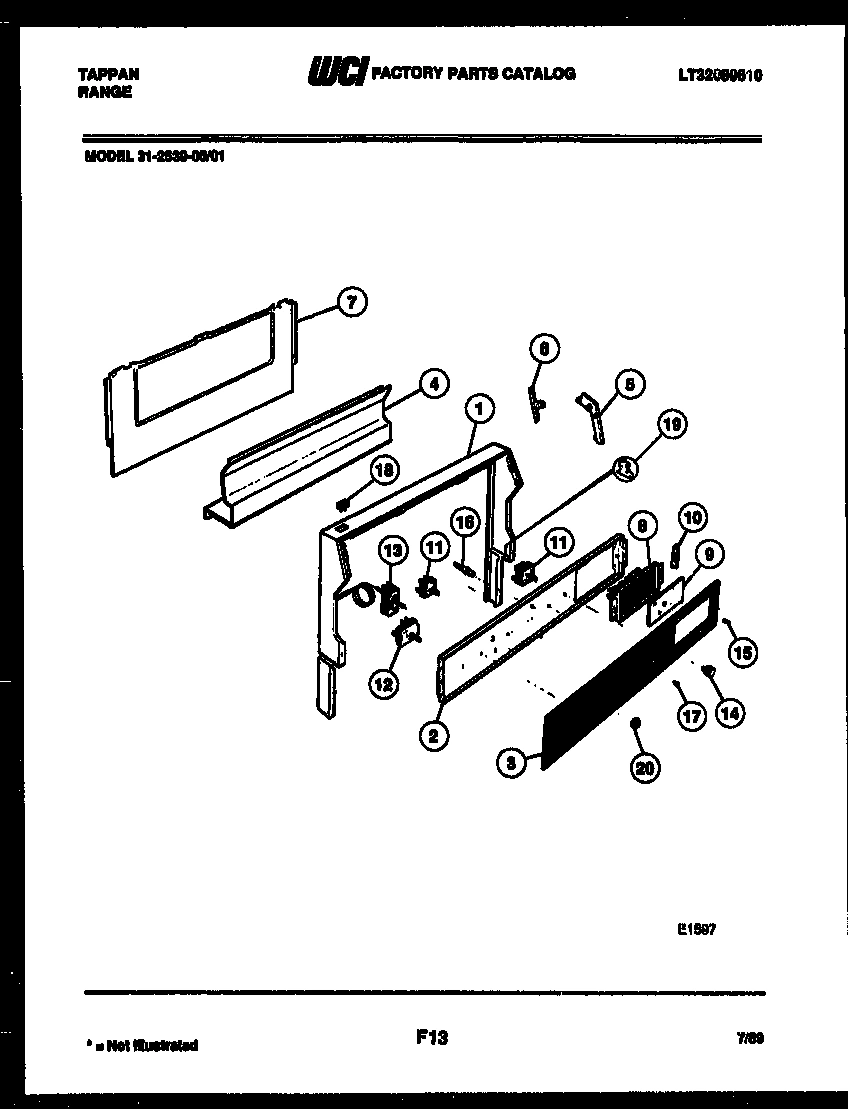

02 - BACKGUARD

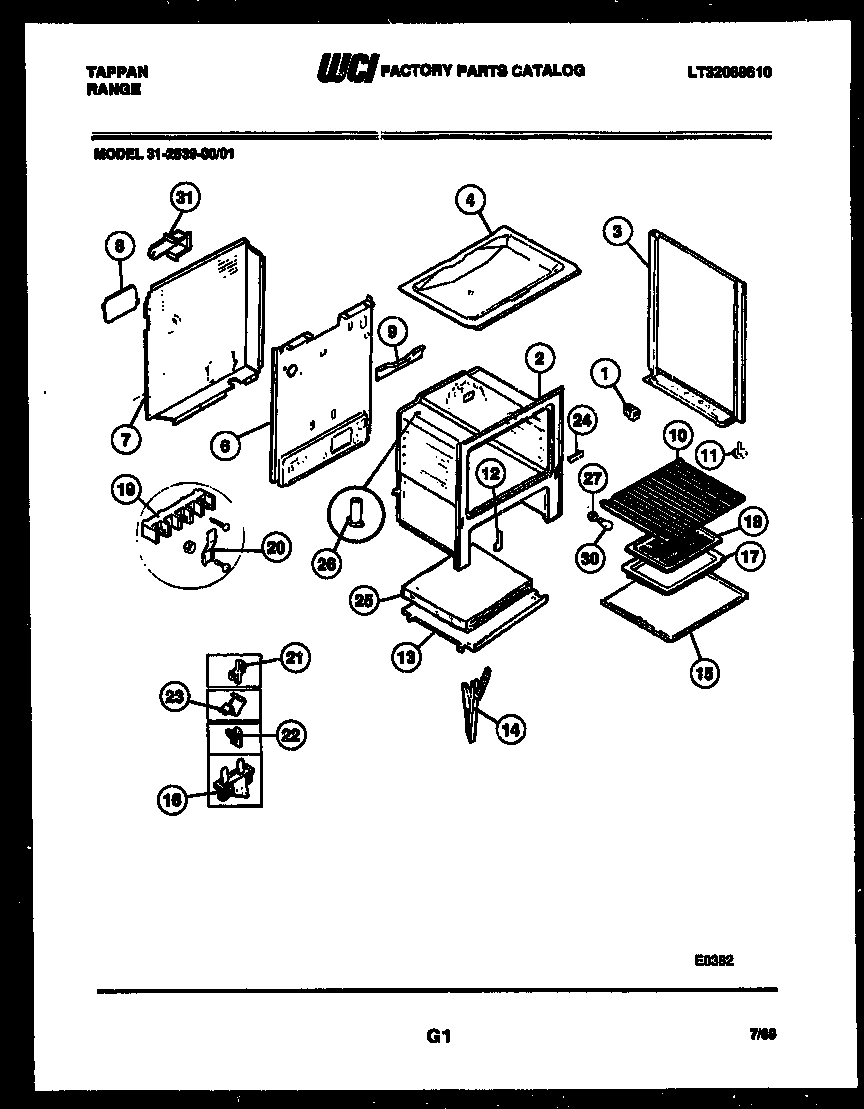

03 - BODY PARTS

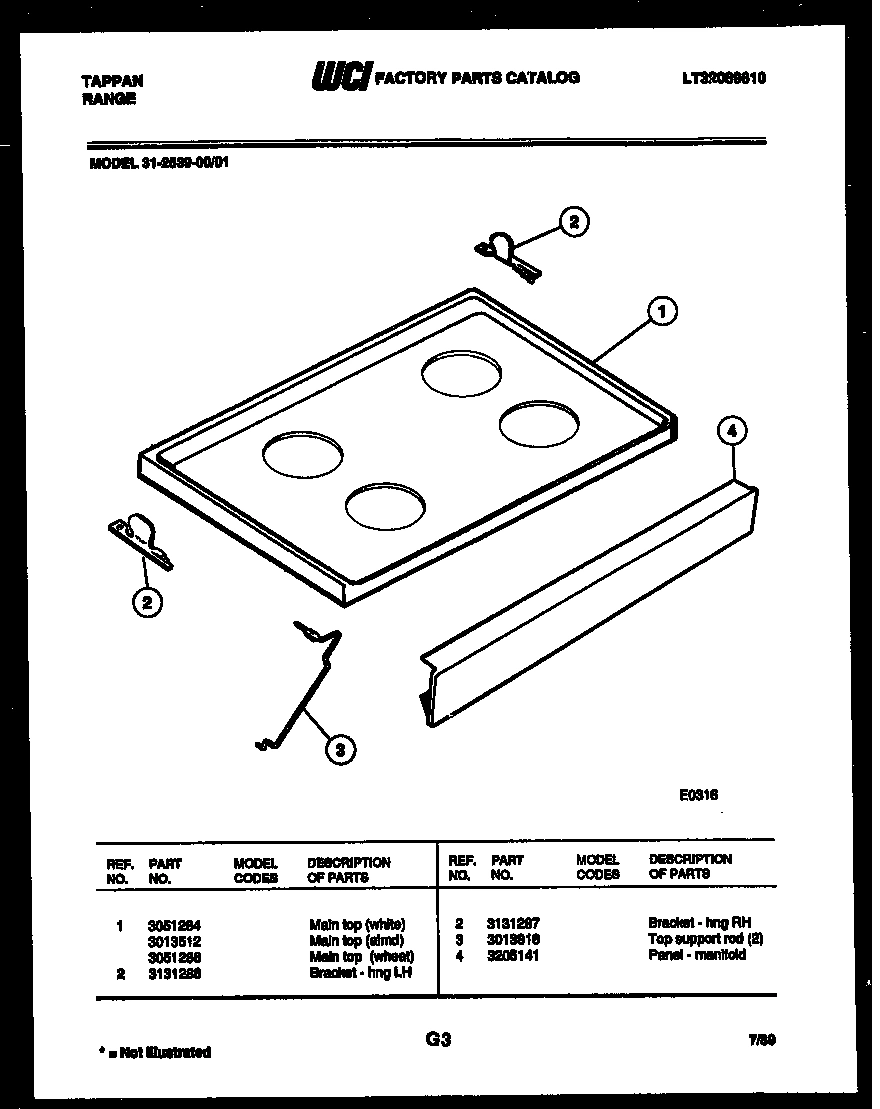

04 - COOKTOP PARTS

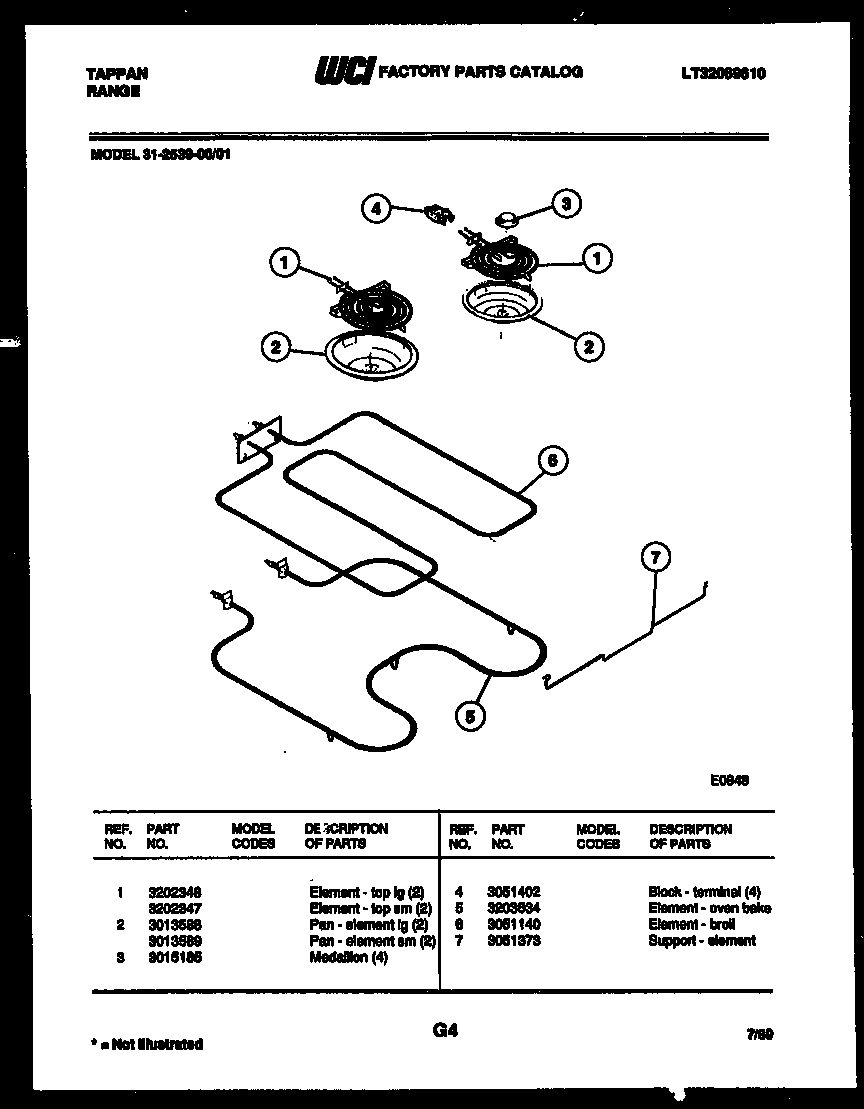

05 - BROILER PARTS

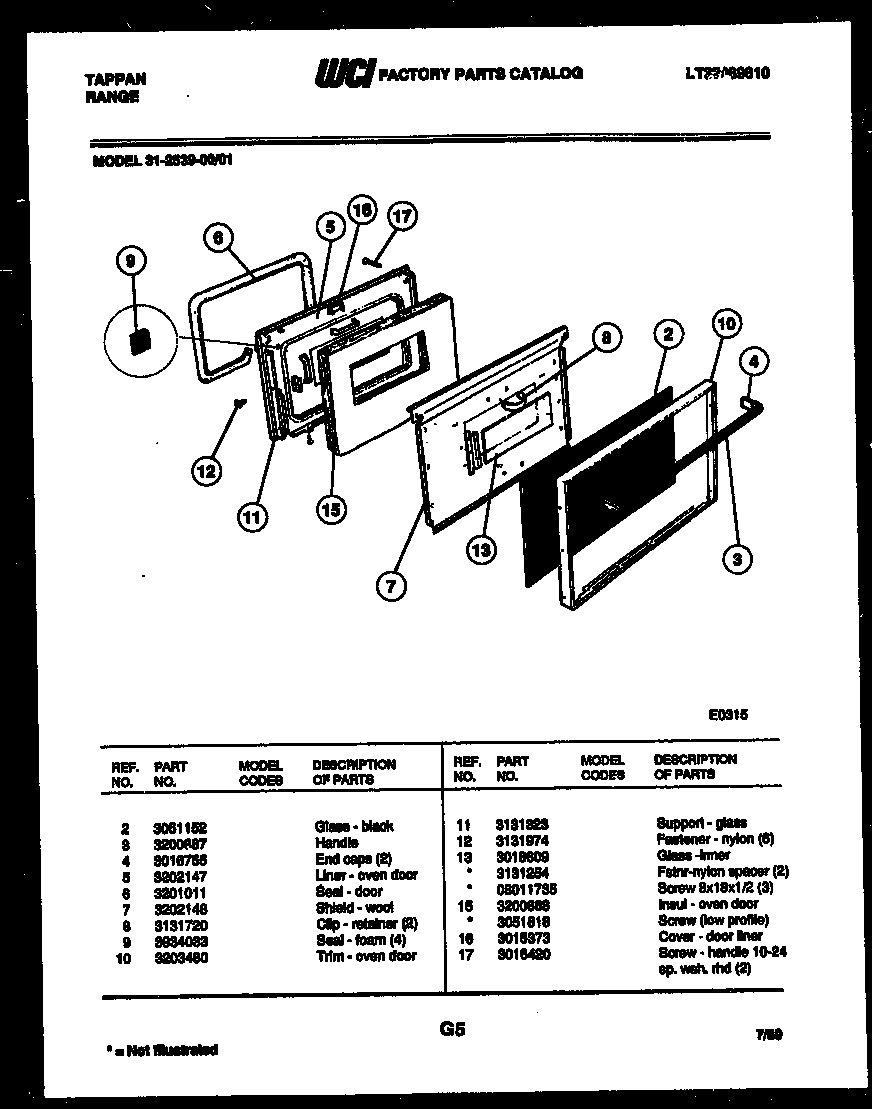

06 - DOOR PARTS

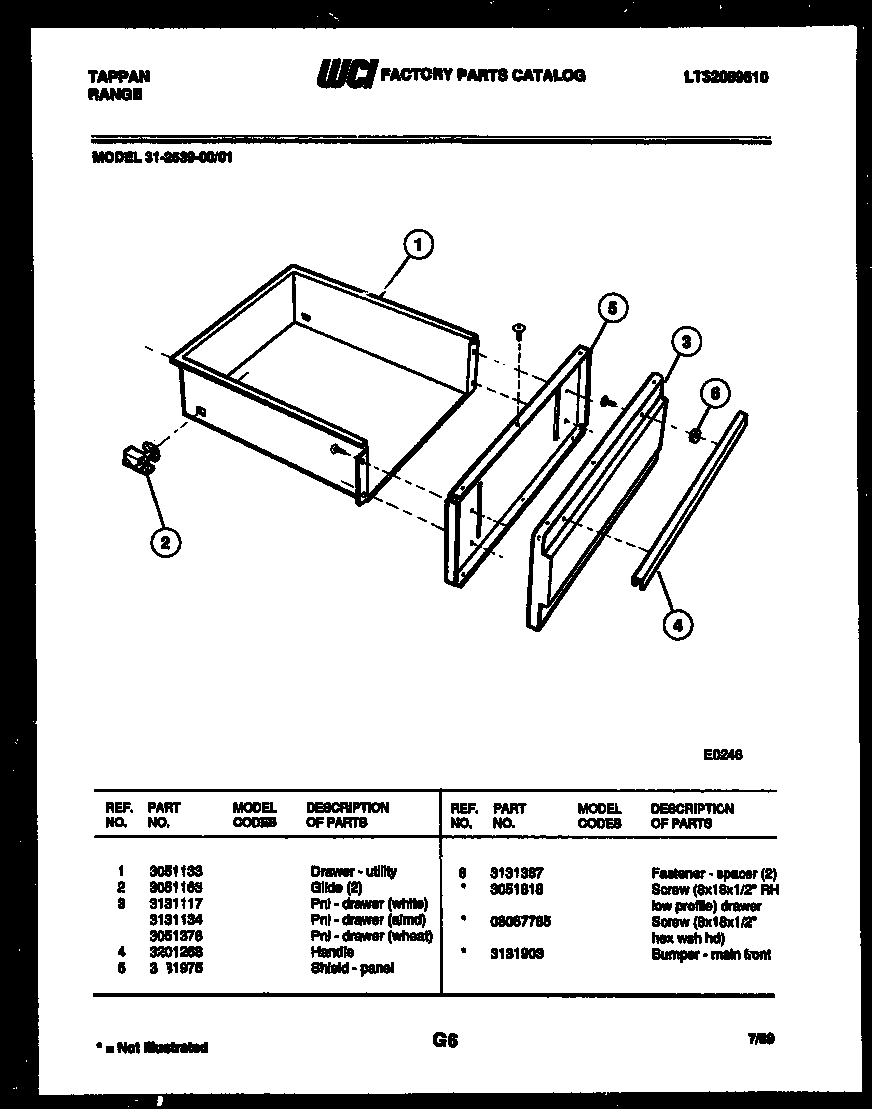

07 - DRAWER PARTS
Common parts from model Electrolux 31-2539-23-01 RANGE
*26778
SCREW (8 X 18 X 1/2`` HEX WSH HD) WCI 08067785 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
MAIN TOP ALMD WCI 3013512 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
BRACKET - HNG LH WCI 3131286 Contact Us For Availability
2
BRACKET - HNG RH WCI 3131287 Contact Us For Availability
2
GLASS-BLACK WCI 3051152 Contact Us For Availability
3
WCI 3200793 WCI 3200793 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
3
WCI 3200887 WCI 3200887 Contact Us For Availability
3
PNL-DRAWER (ALMD) WCI 3131134 Contact Us For Availability
3A
WCI 3200790 WCI 3200790 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
WCI 3205141 WCI 3205141 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
5
WCI 3202147 WCI 3202147 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
WCI 3201011 WCI 3201011 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6A
WCI 3204754 WCI 3204754 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
7
WCI 3202148 WCI 3202148 Contact Us For Availability
8
CLOCK WCI 3204748 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
9
GLASS-CLOCK WCI 277T219P03 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
10
RTNR-CLOCK GLASS (2) WCI 3201700 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
12
SWITCH-SEL. WCI 3016812 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
13
WCI 3202350 WCI 3202350 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
GLASS-INNER WCI 3018609 Contact Us For Availability
13A
FSTNR-NYLON SPACER (2) (NON-ILLUSTRATED) WCI 3131254 Contact Us For Availability
13B
WCI 08011735 WCI 08011735 Contact Us For Availability
14
WCI 3204751 WCI 3204751 Contact Us For Availability
14
CHANNEL-DOOR HNG (2) WCI 3131569 Contact Us For Availability
14A
KNOB - SEL. SWITCH WCI 3204750 Contact Us For Availability
14B
WCI 3204749 WCI 3204749 Contact Us For Availability
15
KNOB-CLOCK WCI 3131472 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
INSUL - OVEN DOOR WCI 3200668 Contact Us For Availability
16
INDICATOR-LIGHT OVEN WCI 3091462 Contact Us For Availability
16
FUSE-THERMAL WCI 3051147 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16A
INDICATOR-LIGHT S/U WCI 08037896 Contact Us For Availability
17
WCI 08037703 WCI 08037703 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
17
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 3016420 Contact Us For Availability
17A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
SUPPORT-BACKGUARD (2) WCI 3131237 Contact Us For Availability
20
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3015372 WCI 3015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27A
INSULATOR WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
27B
INSULATOR - BACK (NON-ILLUSTRATED) WCI 3203541 Contact Us For Availability
27D
SCREW-HINGE (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
30A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
30B
BRACKET-CABLE MTG. (NON-ILLUSTRATED) WCI 3204525 Contact Us For Availability
31
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
