Model Electrolux 30-4999-23-02 RANGE – Common Parts & Diagrams

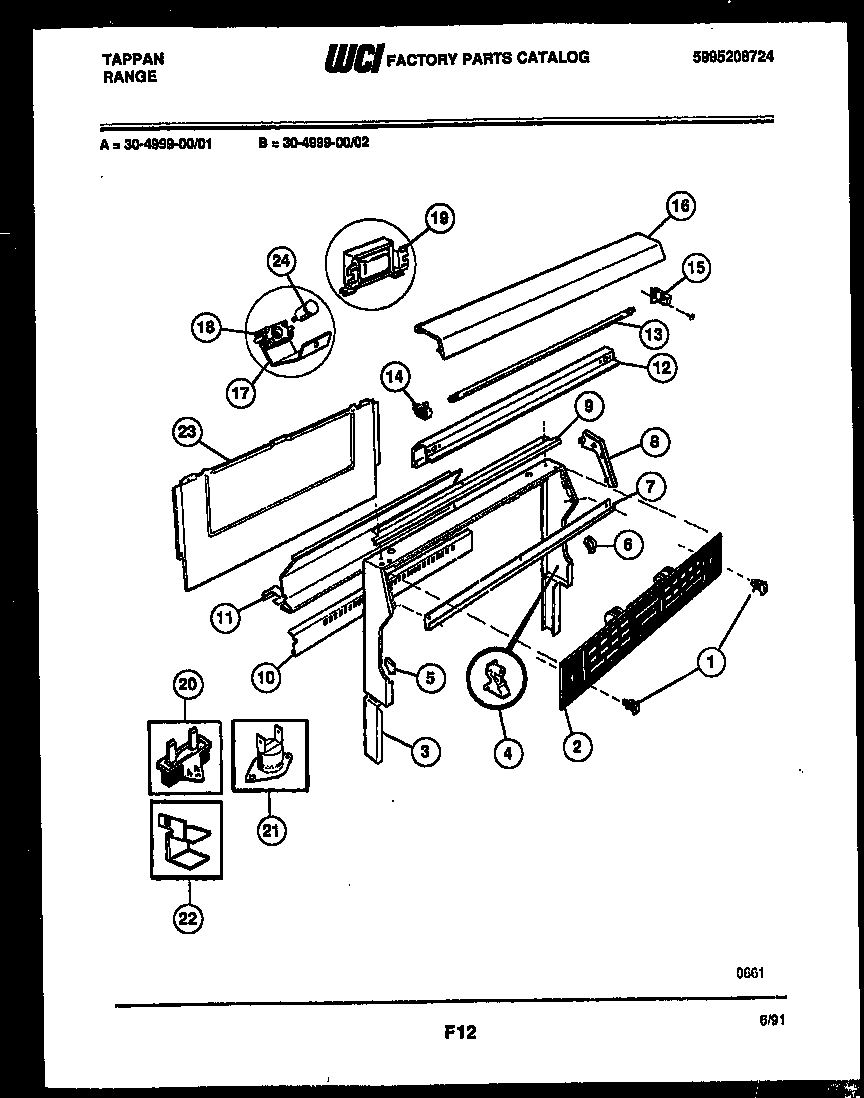

02 - BACKGUARD

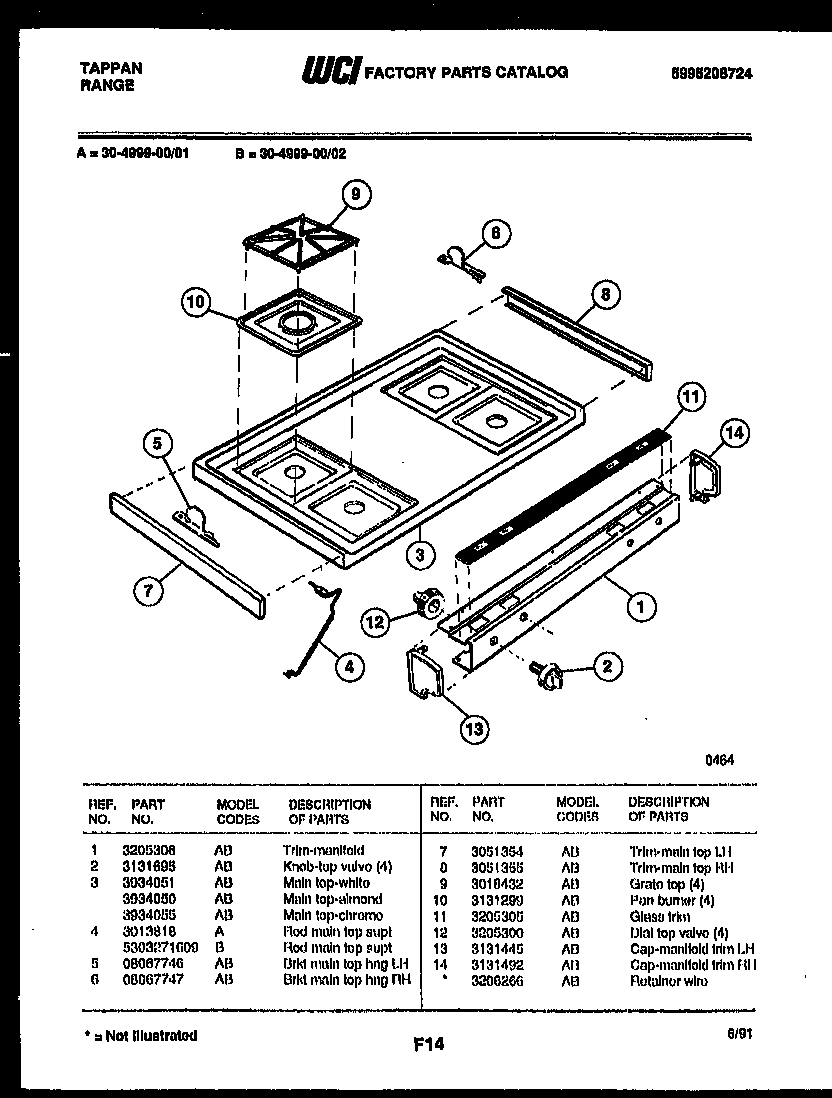

03 - COOKTOP PARTS

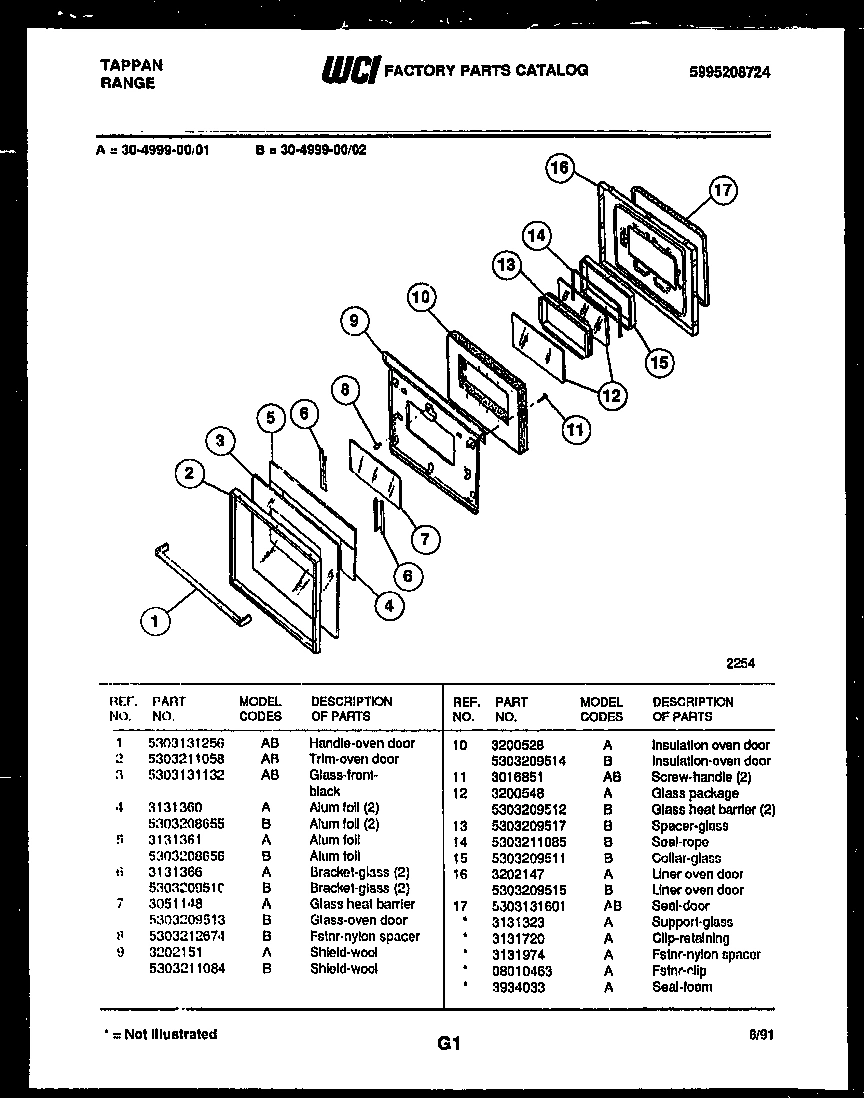

04 - DOOR PARTS

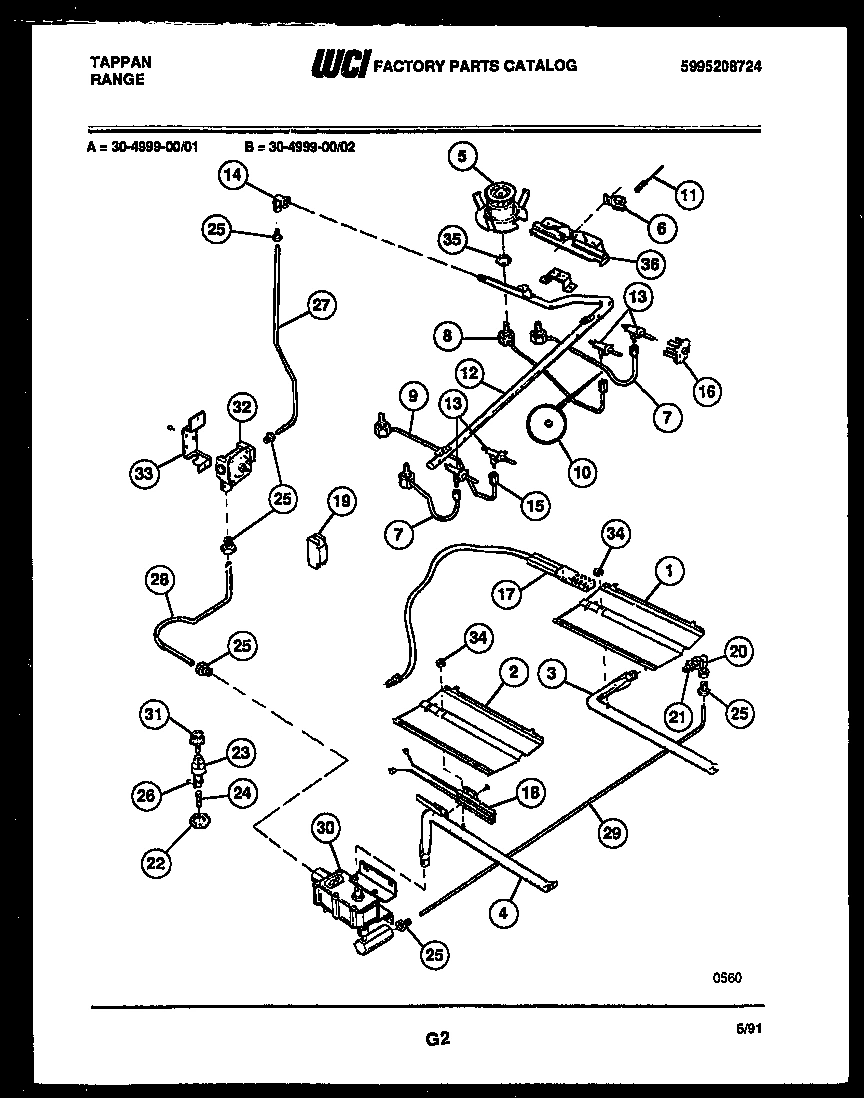

05 - BURNER PARTS

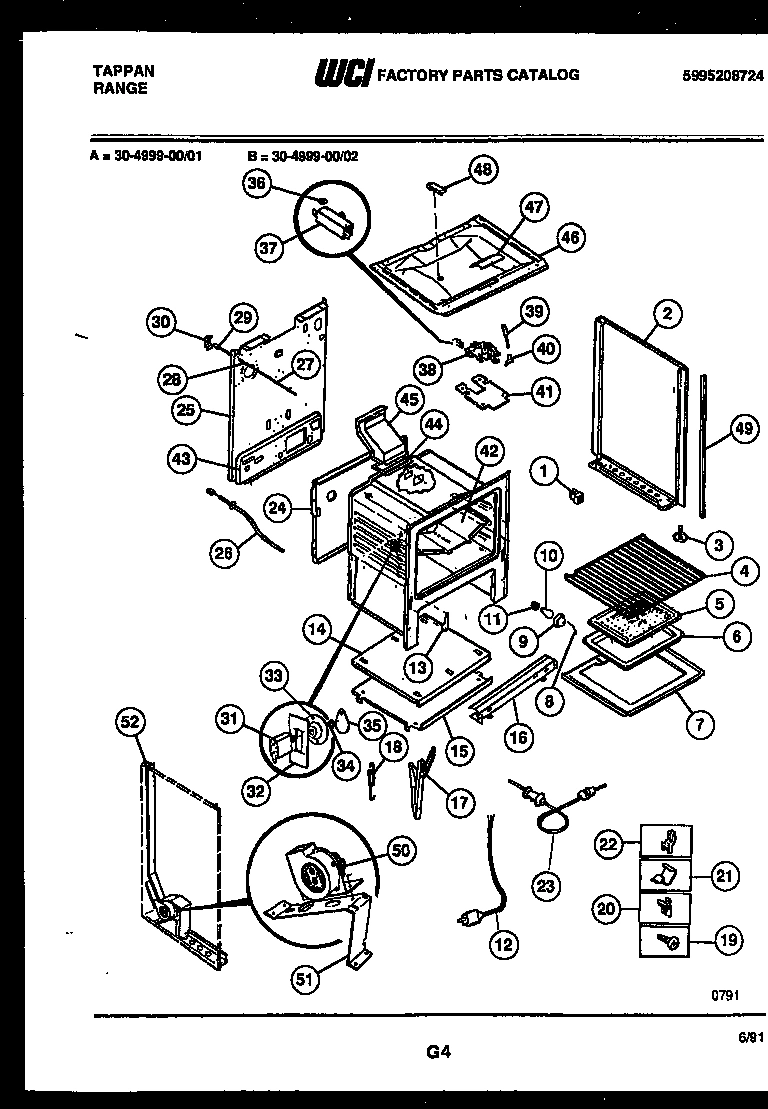

06 - BODY PARTS

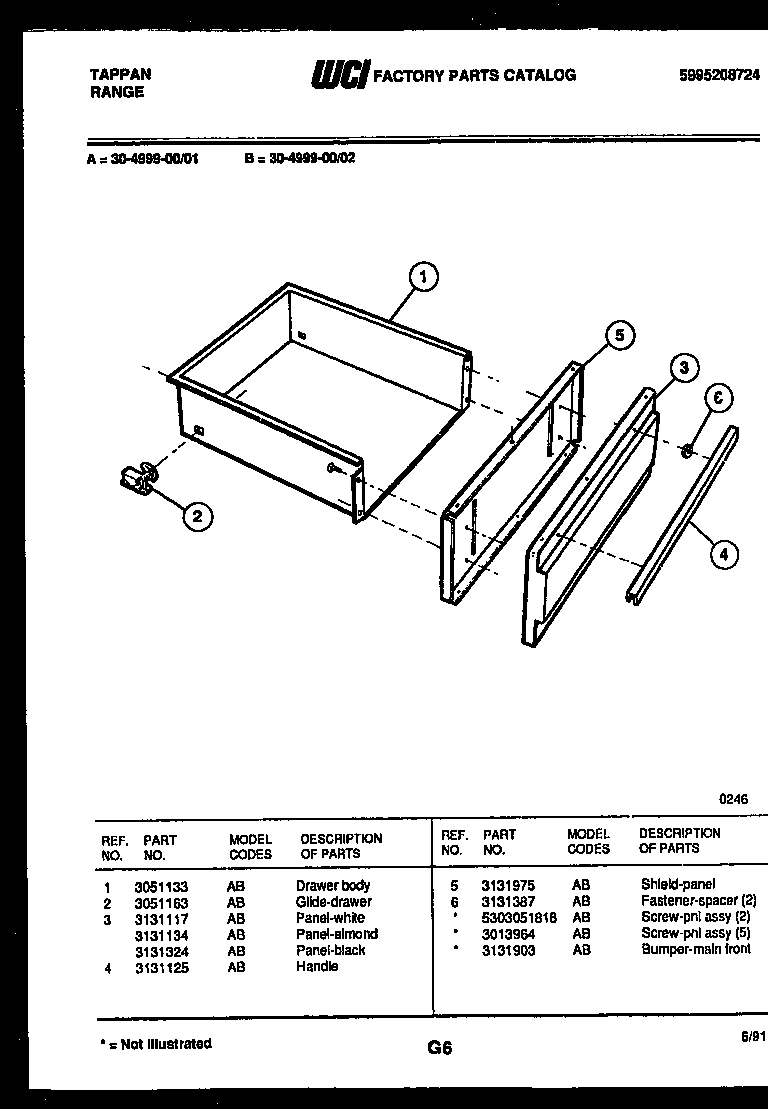

07 - DRAWER PARTS
Common parts from model Electrolux 30-4999-23-02 RANGE
*27478
RETAINER WIRE WCI 3206266 Contact Us For Availability
*27489
RIVET WCI 3051420 Contact Us For Availability
*27500
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*27500
SHIELD-BI METAL WCI 3051413 Contact Us For Availability
*27500
SHIELD - HEAT B/S WCI 3200834 Contact Us For Availability
*27500
WCI 3934056 WCI 3934056 Contact Us For Availability
*27501
WCI 19100200013 WCI 19100200013 Contact Us For Availability
*27502
SCREW-PNL ASSY (5) WCI 3013964 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3205306 WCI 3205306 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
WCI 3131695 No Longer Available
2
WCI 5303211058 WCI 5303211058 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
WCI 5303269545 WCI 5303269545 Contact Us For Availability
2
WCI 5303269546 WCI 5303269546 Contact Us For Availability
2A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
2A
WCI 5303269544 WCI 5303269544 Contact Us For Availability
3
WCI 5303203397 WCI 5303203397 Contact Us For Availability
3
BURNER-BROIL WCI 08067935 Contact Us For Availability
3
WCI 3934050 WCI 3934050 Contact Us For Availability
3
WCI 5303131132 WCI 5303131132 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
3A
WCI 08010570 WCI 08010570 Contact Us For Availability
4
ROD - MAINTOP SUPT WCI 5303271609 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
BRKT-MAIN TOP HNG LH WCI 08067746 Contact Us For Availability
5
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
5
INSERT-BROILER PLAIN WCI 5303131356 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
BRKT-MAIN TOP HNG RH WCI 08067747 Contact Us For Availability
6
BRACKET-GLASS (2) WCI 5303209510 Contact Us For Availability
6
WCI 3018617 WCI 3018617 Contact Us For Availability
6
PAN-BROILER WCI 5303013568 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
7
WCI 5303212540 WCI 5303212540 Contact Us For Availability
7A
WCI 5303271044 WCI 5303271044 Contact Us For Availability
7B
WCI 5303271041 WCI 5303271041 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
FSTNR-NYLON SPACER WCI 5303212674 Contact Us For Availability
8
WCI 5303271043 WCI 5303271043 Contact Us For Availability
8
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
9
GRATE-TOP (4) WCI 3018432 Contact Us For Availability
9
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
WCI 5303271042 WCI 5303271042 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
11
WCI 3205305 WCI 3205305 Contact Us For Availability
11
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
11
IGNITER TOP 50`` (2) WCI 5303131105 Contact Us For Availability
12
WCI 3205300 WCI 3205300 Contact Us For Availability
12
WCI 5303271924 WCI 5303271924 Contact Us For Availability
12A
WCI 5303209512 WCI 5303209512 Contact Us For Availability
13
BULB-FLUOR WCI 3131275 Contact Us For Availability
13
WCI 3131570 WCI 3131570 Contact Us For Availability
13
CAP-MANIFOLD TRIM LH WCI 3131445 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
13
VALVE TOP POS (4) WCI 5303271046 Contact Us For Availability
14
CAP-MANIFOLD TRIM RH WCI 3131492 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14
SHIELD BLACK BURNER WCI 5303270104 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
15
WCI 3131313 WCI 3131313 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
16
WCI 5303271047 WCI 5303271047 Contact Us For Availability
18
WCI 3017997 WCI 3017997 Contact Us For Availability
19
WCI 5303051115 WCI 5303051115 Contact Us For Availability
20
WCI 3018661 WCI 3018661 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
21
WCI 3018662 WCI 3018662 Contact Us For Availability
21
WCI 3131358 WCI 3131358 Contact Us For Availability
21
CLIP-WIRE WCI 3011813 Contact Us For Availability
22
WCI 3018663 WCI 3018663 Contact Us For Availability
22
WCI 3131309 WCI 3131309 Contact Us For Availability
22A
WCI 3018664 WCI 3018664 Contact Us For Availability
23
WCI 3018863 WCI 3018863 Contact Us For Availability
23
PROBE-ROAST CONTROL WCI 3018670 Contact Us For Availability
23A
INSULATION-B/G WCI 3018665 Contact Us For Availability
24
STARTER WCI 3206218 Contact Us For Availability
24
FUSE 5A 250V WCI 5303131297 Contact Us For Availability
24
WCI 08067991 WCI 08067991 Contact Us For Availability
25
MAIN BACK WCI 3203082 Contact Us For Availability
26
RECEPT-FUSE WCI 08067984 Contact Us For Availability
27
TUBE-ALUM REGUL-MANIFOLD PIPE WCI 5303208495 Contact Us For Availability
28
TUBE-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
28
WCI 5303209316 WCI 5303209316 Contact Us For Availability
29
TUBE-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
29
SWITCH-OVEN LIGHT WCI 5303202622 Contact Us For Availability
30
WCI 5303131289 WCI 5303131289 Contact Us For Availability
31
CAP FUSE WCI 3131292 Contact Us For Availability
31
WCI 3018010 WCI 3018010 Contact Us For Availability
32
SHIELD-PROBE RECEPT WCI 3018013 Contact Us For Availability
33
WCI 3018009 WCI 3018009 Contact Us For Availability
34
WCI 479T069P35 WCI 479T069P35 Contact Us For Availability
35
NUT, SPECIAL WCI 3013279 Contact Us For Availability
35
COVER-PROBE RECEPT WCI 3018001 Contact Us For Availability
36
WCI 3206267 WCI 3206267 Contact Us For Availability
36
FSTNR-PUSH ON WCI 08067776 Contact Us For Availability
37
SWITCH-LATCHING WCI 3204592 Contact Us For Availability
38
WCI 5303015453 WCI 5303015453 Contact Us For Availability
39
WCI 5303131357 WCI 5303131357 Contact Us For Availability
40
WCI 3203218 WCI 3203218 Contact Us For Availability
41
WCI 3131314 WCI 3131314 Contact Us For Availability
42
WCI 3200836 WCI 3200836 Contact Us For Availability
43
SHIELD-REAR WALL WCI 5303269502 Contact Us For Availability
45
WCI 3131931 WCI 3131931 Contact Us For Availability
46
BURNER BOX BTTM WCI 3011597 Contact Us For Availability
47
WCI 08067757 WCI 08067757 Contact Us For Availability
48
WCI 3015371 WCI 3015371 Contact Us For Availability
49
TRIM-BODYSIDE WCI 5303051326 Contact Us For Availability
49A
WCI 08067992 WCI 08067992 Contact Us For Availability
49B
WCI 08067978 WCI 08067978 Contact Us For Availability
49C
WCI 08067961 WCI 08067961 Contact Us For Availability
49D
SHIELD-BI-METAL (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
49E
WCI 08013188 WCI 08013188 Contact Us For Availability
49H
INSULATION OVEN BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
49I
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
49J
WCI 3200883 WCI 3200883 Contact Us For Availability
50
WCI 3018671 WCI 3018671 Contact Us For Availability
51
WCI 3018672 WCI 3018672 Contact Us For Availability
52
DUCT-AIR WCI 3018675 Contact Us For Availability
× ![]()
