Model Electrolux 30-4987-23-05 RANGE – Common Parts & Diagrams
02 - BACKGUARD

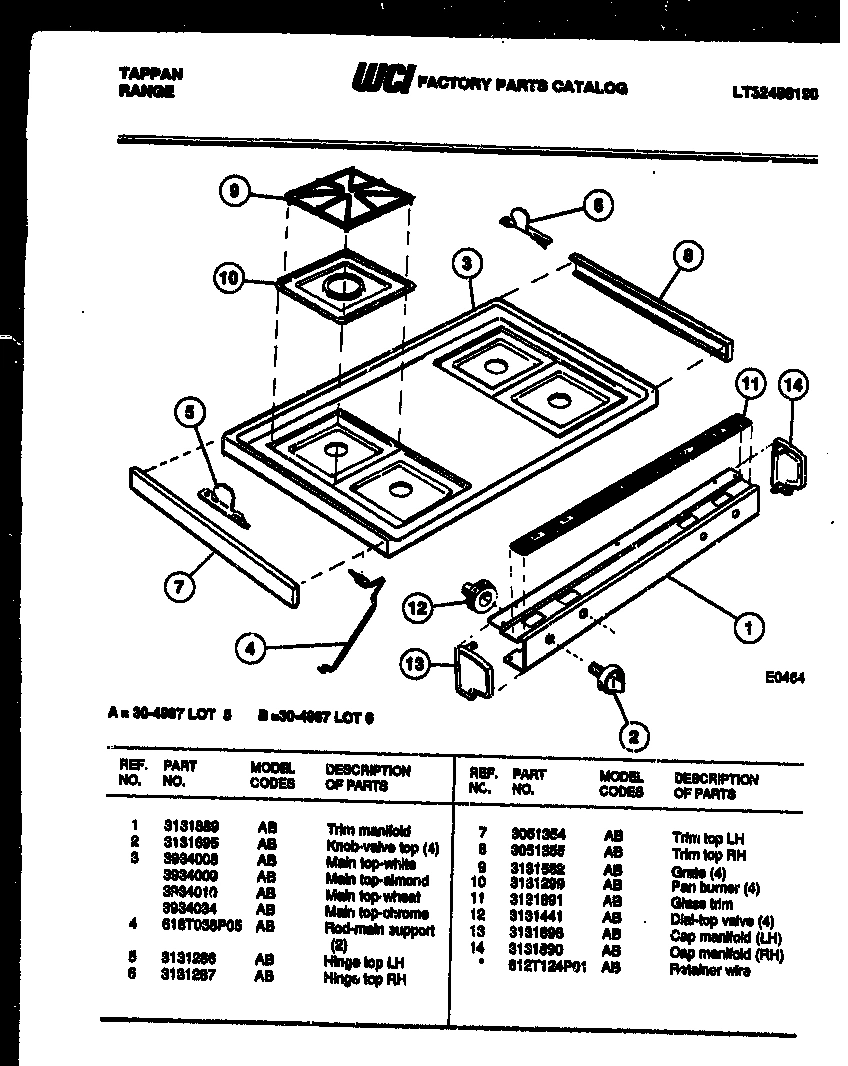

03 - COOKTOP PARTS

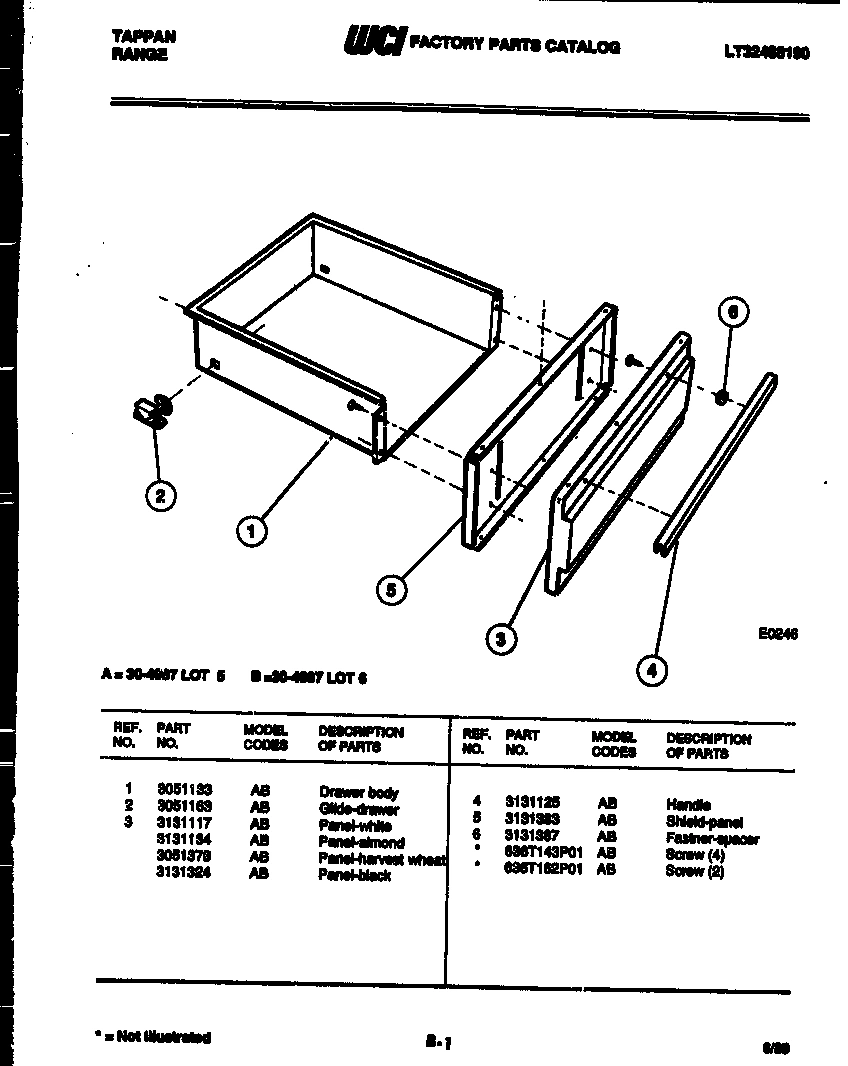

04 - DRAWER PARTS

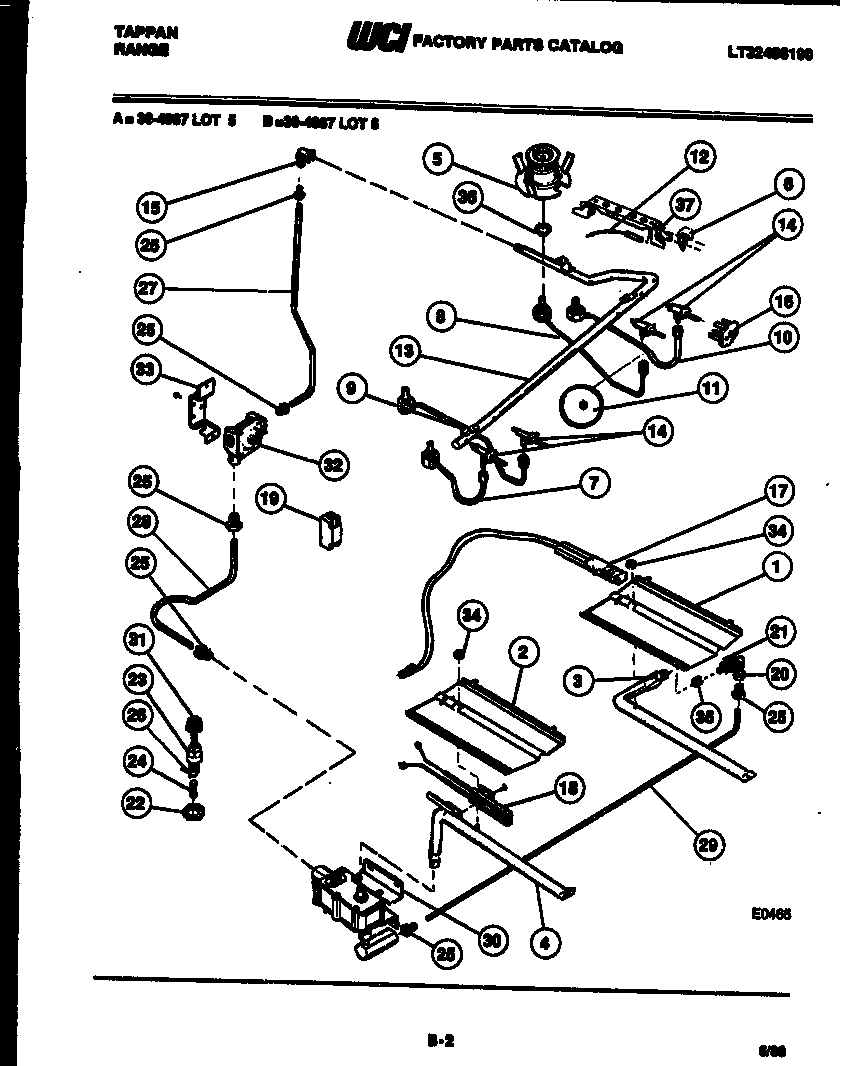

05 - BURNER, MANIFOLD AND GAS CONTROL

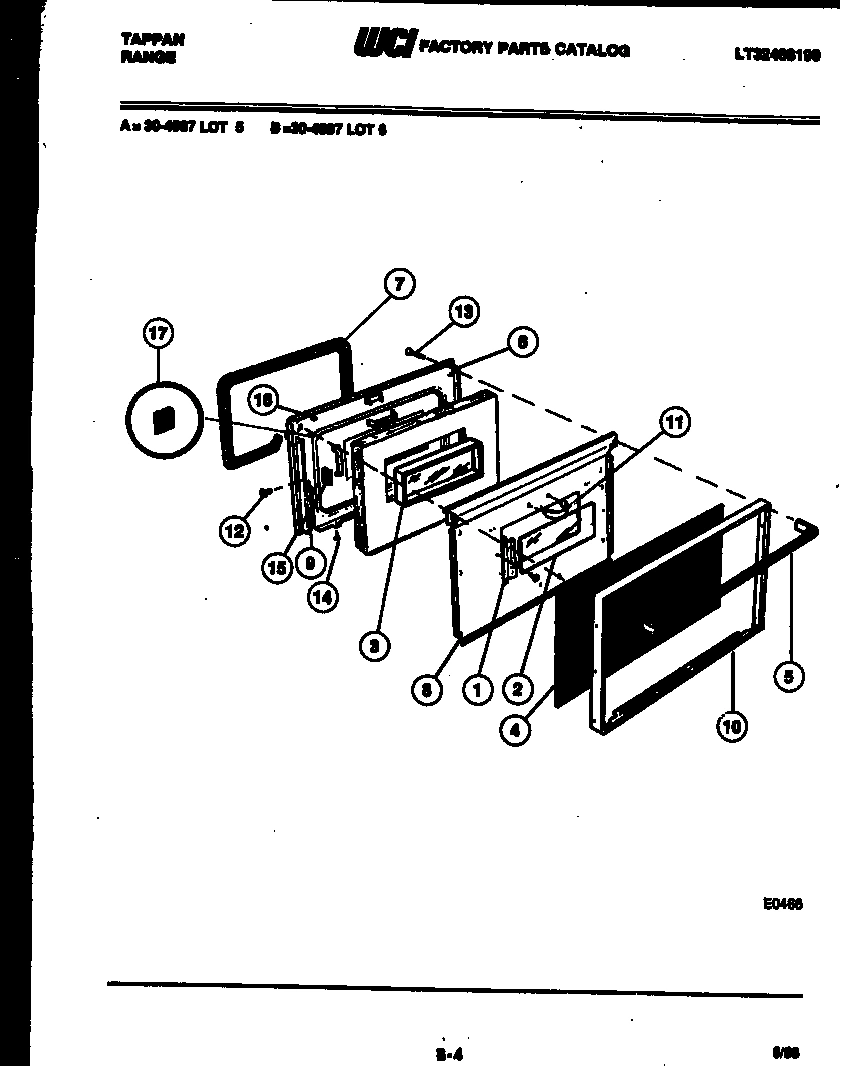

06 - DOOR PARTS

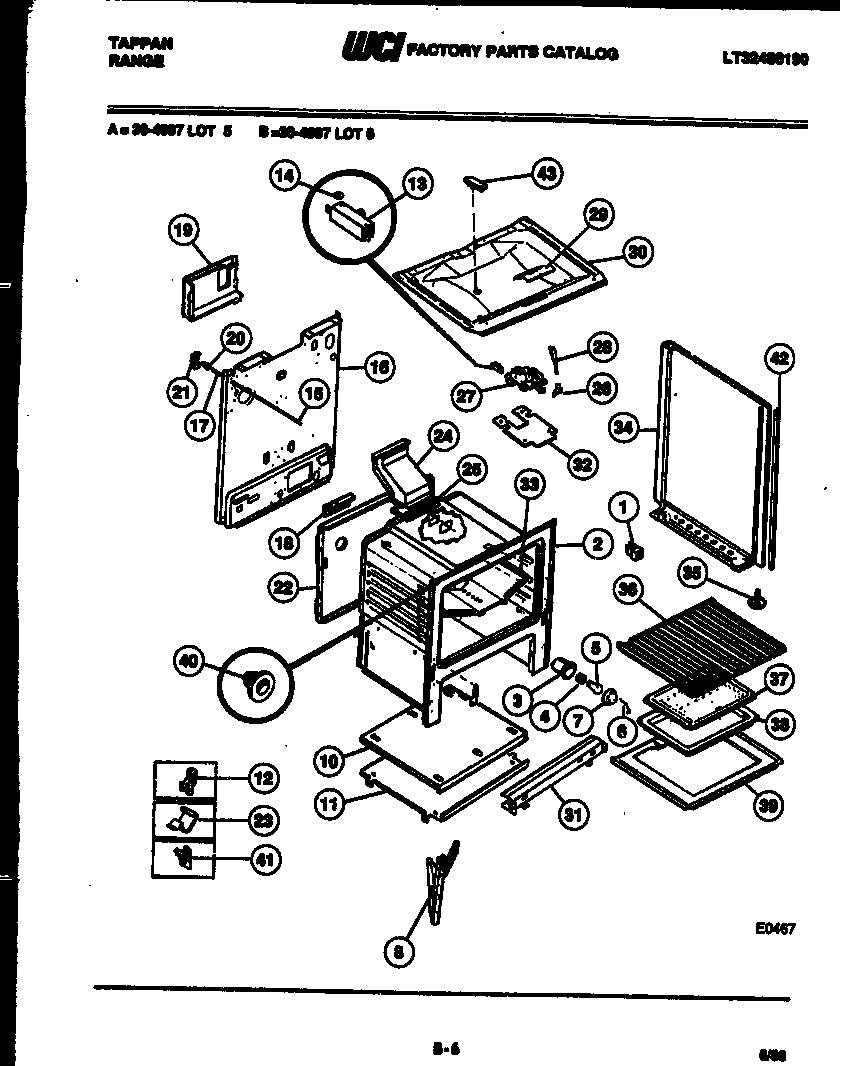

07 - BODY PARTS
Common parts from model Electrolux 30-4987-23-05 RANGE
*14680
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*14682
SCREW (2) WCI 636T162P01 Contact Us For Availability
*14685
WCI 3051420 WCI 3051420 Contact Us For Availability
*14690
FOIL-ALUMINUM (USE WITH REPLACEMENT BODYSIDE) WCI 3017527 Contact Us For Availability
*14690
WASHER-BLACK (4) WCI 3131737 Contact Us For Availability
1
WCI 3131889 WCI 3131889 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
BAFFLE-BROILER WCI 3131283 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
2
KNOB-VALVE TOP (4) WCI 3131695 No Longer Available
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
3
WCI 3934009 WCI 3934009 Contact Us For Availability
3
PANEL-ALMOND WCI 3131134 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
GLASS, PACKAGE WCI 3131321 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
5
HINGE TOP LH WCI 3131286 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
WCI 3051165 WCI 3051165 Contact Us For Availability
6
HINGE TOP RH WCI 3131287 Contact Us For Availability
6
FASTNER-SPACER WCI 3131387 Contact Us For Availability
6
RETAINER, IGNITER (4) WCI 612T119F01 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
7
WCI 3131275 WCI 3131275 Contact Us For Availability
7
TRIM-TOP LH WCI 3051354 Contact Us For Availability
7
WCI 079T033H01 WCI 079T033H01 Contact Us For Availability
7
GLASS-OVEN LIGHT LENS WCI 3131298 Contact Us For Availability
8
TRIM-TOP RH WCI 3051355 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 3131582 WCI 3131582 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
10
ELECTRIC CLOCK WCI 3131722 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 079T033H04 WCI 079T033H04 Contact Us For Availability
10
WCI 3131733 WCI 3131733 Contact Us For Availability
10
WCI 3131312 WCI 3131312 Contact Us For Availability
11
WCI 3131888 WCI 3131888 Contact Us For Availability
11
WCI 3131891 WCI 3131891 Contact Us For Availability
11
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 665T437F01 WCI 665T437F01 Contact Us For Availability
12
INDICATOR LIGHT (3) WCI 3131963 Contact Us For Availability
12
WCI 3131441 WCI 3131441 Contact Us For Availability
12
IGNITER, TOP 50`` (4) WCI 316T034P02 Contact Us For Availability
12
FASTENER-SPACER WCI 3051374 Contact Us For Availability
12
CLIP-THERMOSTAT BULB WCI 3131295 Contact Us For Availability
13
KNOB ELECTRIC CLOCK WCI 358T206P01 Contact Us For Availability
13
CAP MANIFOLD (LH) WCI 3131896 Contact Us For Availability
13
WCI 3131440 WCI 3131440 Contact Us For Availability
13
SCREW-HANDLE WCI 3131102 Contact Us For Availability
13
SWITCH-LATCH WCI 3131672 Contact Us For Availability
14
PLATE INSTRUMENT MOUNTING WCI 554T400F02-18 Contact Us For Availability
14
CAP MANIFOLD (RH) WCI 3131890 Contact Us For Availability
14
VALVE TOP-3 POSITION (4) WCI 3131126 Contact Us For Availability
14
SCREW-DOOR MOUNTING WCI 3131573 Contact Us For Availability
14
FASTENER-PUSH ON WCI 241T001P01 Contact Us For Availability
14A
WCI 3051307 WCI 3051307 Contact Us For Availability
15
WCI 695T211P02 WCI 695T211P02 Contact Us For Availability
15
ELBOW 1/2 NP X 9/16-24 WCI 215T013P01 Contact Us For Availability
15
EXTRUSION CHANNEL WCI 3131142 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15A
NUT COMPRESSOR (4) (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
15B
INSULATION-OVEN DOOR W/ FOIL (NON-ILLUSTRATED WCI 3131322 Contact Us For Availability
15D
ALUMINUM FOIL-B/G GLASS (NON-ILLUSTRATED) WCI 3131361 Contact Us For Availability
16
SWITCH, FLUORESCENT LIGHT WCI 3051312 Contact Us For Availability
16
FASTENER-8AU TYPE (3) WCI 241T017P185 Contact Us For Availability
16
WCI 3131567 WCI 3131567 Contact Us For Availability
17
SWITCH, SELECTOR WCI 3091345 Contact Us For Availability
17
WCI 3934033 WCI 3934033 Contact Us For Availability
17
WCI 3051495 WCI 3051495 Contact Us For Availability
18
THERMOSTAT BAKE WCI 3131964 Contact Us For Availability
18
ANGLE, LIGHT SHIELD WCI 3131278 Contact Us For Availability
19
WCI 3131730 WCI 3131730 Contact Us For Availability
19
CHANNEL, LIGHT SHIELD WCI 3131294 Contact Us For Availability
20
WCI 3131465 WCI 3131465 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
20
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
21
TRIM SPLASHER WCI 740T509P01 Contact Us For Availability
21
WCI 3131358 WCI 3131358 Contact Us For Availability
21
BRIGHT LIGHT SWITCH WCI 3131289 Contact Us For Availability
22
WCI 3051329 WCI 3051329 Contact Us For Availability
22
WCI 3131309 WCI 3131309 Contact Us For Availability
22
WCI 3131316 WCI 3131316 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
23
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
24
WCI 3051188 WCI 3051188 Contact Us For Availability
24
FUSE WCI 3131297 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
WCI 3131933 WCI 3131933 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25A
SHIELD-BL-METAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
SCREW LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
26
WCI 3131932 WCI 3131932 Contact Us For Availability
26
RECEPTACLE, FUSE WCI 3131359 Contact Us For Availability
27
NUT, DECORATIVE (2) WCI 3051194 Contact Us For Availability
27
TUBE, ALUMINUM, 3/8 WCI 750T085H09 Contact Us For Availability
27
WCI 368T027P01 WCI 368T027P01 Contact Us For Availability
27A
RIVET ACCORDIAN (NON-ILLUSTRATED) WCI 615T030P03 Contact Us For Availability
27B
WCI 655T444P01 WCI 655T444P01 Contact Us For Availability
28
SHAFT TIMER WCI 3051347 Contact Us For Availability
28
TUBE, ALUMINUM, 3/8 WCI 3131109 Contact Us For Availability
28
WCI 3131357 WCI 3131357 Contact Us For Availability
29
WCI 123T120P03 WCI 123T120P03 Contact Us For Availability
29
TUBE ALUMINUM 3/8 WCI 3131364 Contact Us For Availability
29
WCI 3131101 WCI 3131101 Contact Us For Availability
30
WCI 123T120P04 WCI 123T120P04 Contact Us For Availability
30
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
31
PLATE, TIMER MOUNTING WCI 3131556 Contact Us For Availability
31
CAP, FUSE RECEPTACLE WCI 3131292 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3131311 Contact Us For Availability
31A
WCI 3051304 WCI 3051304 Contact Us For Availability
32
THERMOSTAT-OVEN S/C WCI 722T071P01 Contact Us For Availability
32
WCI 657T018P01 WCI 657T018P01 Contact Us For Availability
33
ANGLE S/C THERMOSTAT MOUNTING WCI 3131467 Contact Us For Availability
33
WCI 3131315 WCI 3131315 Contact Us For Availability
34
FASTNER-GLASS (2) WCI 241T049P01 Contact Us For Availability
34
PANEL B/S-LH BLACK WCI 3131221 Contact Us For Availability
34
PANEL B/S-LH ALMOND WCI 3131453 Contact Us For Availability
34A
NUT (10-24) (NON-ILLUSTRATED) WCI 479T069P08 Contact Us For Availability
34A
PANEL B/S-RH BLACK WCI 3131217 Contact Us For Availability
34A
PANEL B/S-RH ALMOND WCI 3131454 Contact Us For Availability
35
BACKGUARD SUPPORT WCI 3131241 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
35
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
36A
WCI 3131956 WCI 3131956 Contact Us For Availability
37
WCI 072T839F02 WCI 072T839F02 Contact Us For Availability
37
WCI 3131356 WCI 3131356 Contact Us For Availability
38
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
39
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
40
BUTTON REMOTE SWITCH WCI 102T044P02 Contact Us For Availability
40A
FASTENER, POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
40B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
40D
INSULATION TOP WRAPPER (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40E
INSULATION TOUCH (NON-ILLUSTRATED) WCI 358T158S02 Contact Us For Availability
42
TRIM-VERT B/S (2) WCI 3051326 Contact Us For Availability
42A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
42B
SHIELD, WALL REAR (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
43
COVER, BURNER BOX WCI 174T333P01 Contact Us For Availability
× ![]()
