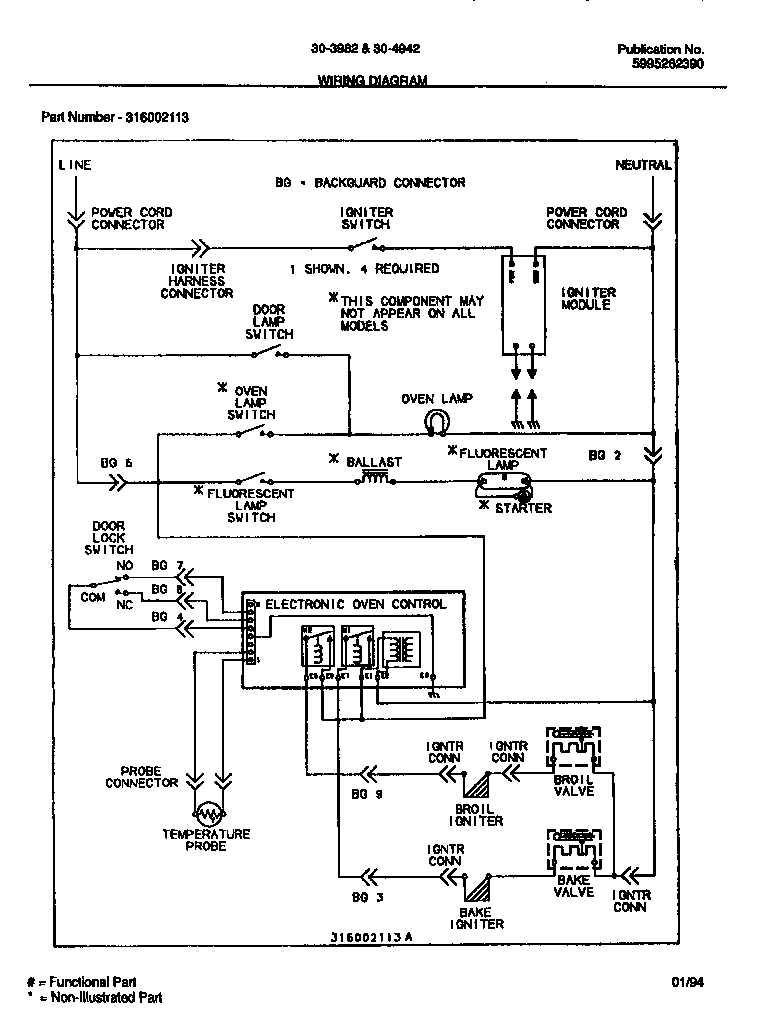

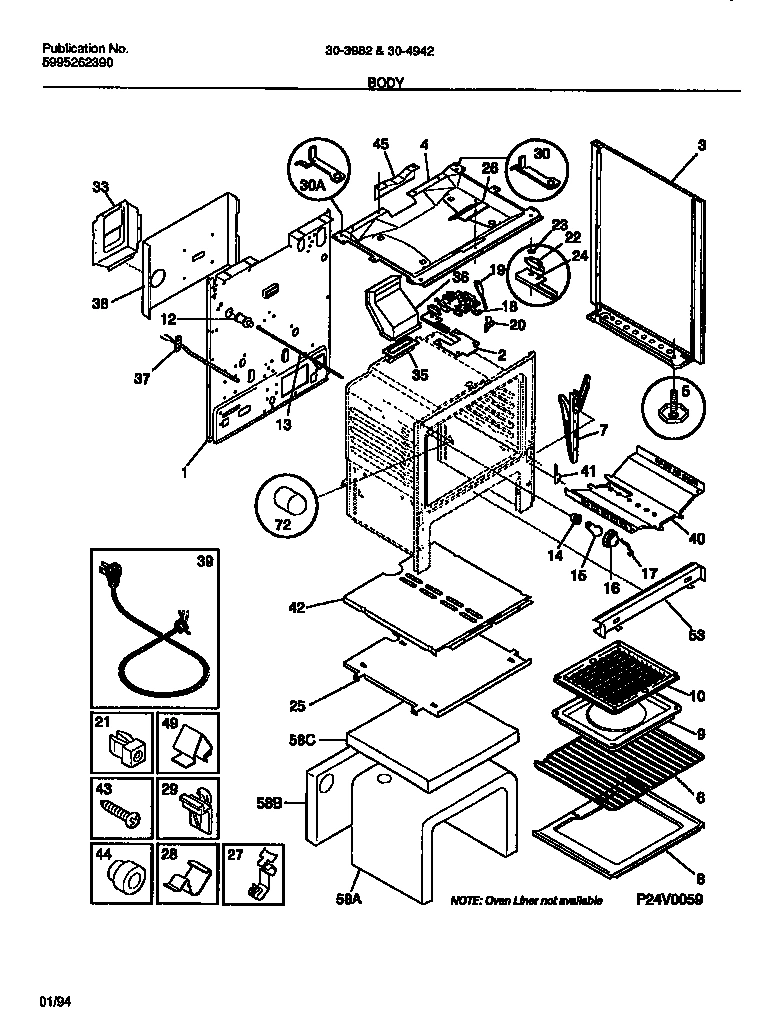

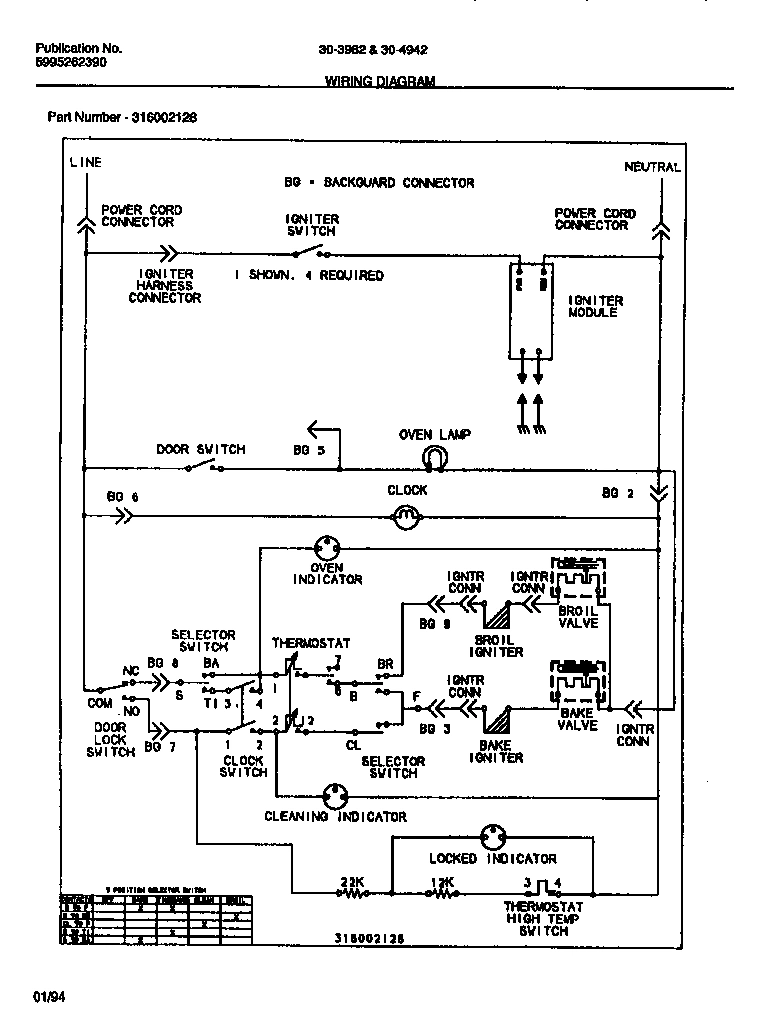

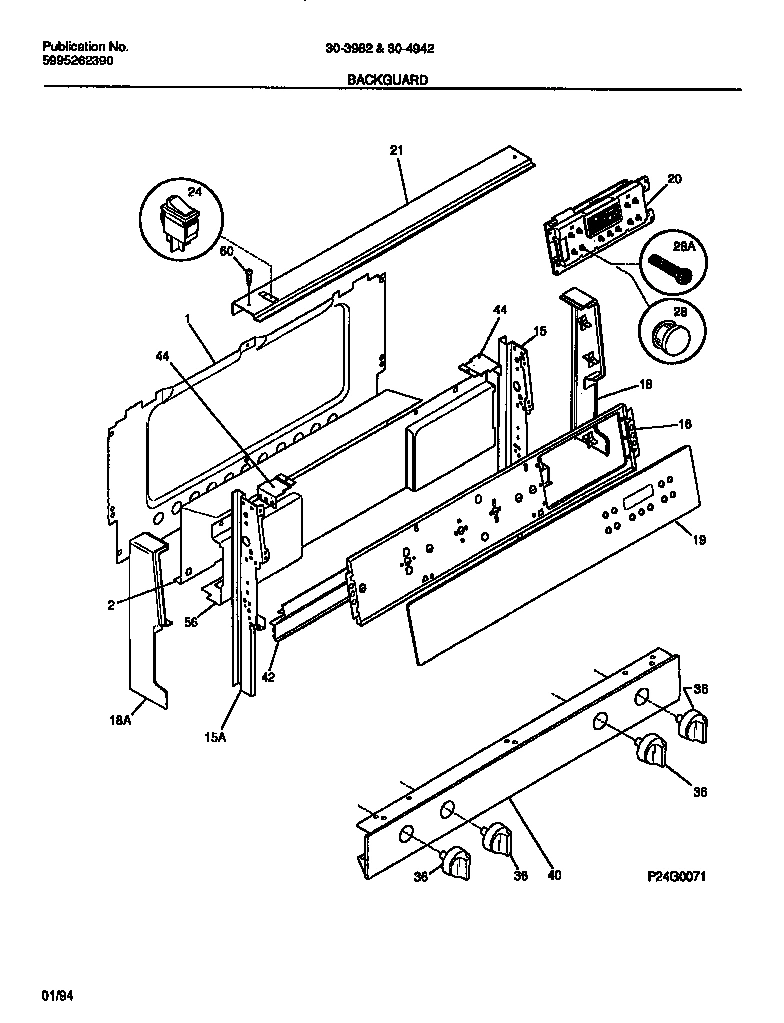

Model Electrolux 30-4942-23-05 RANGE – Common Parts &amp; Diagrams

*23927

WCI 316001607 WCI 316001607 Contact Us For Availability

*23928

WCI 5303281584 WCI 5303281584 Contact Us For Availability

*23929

WCI 316065300 WCI 316065300 Contact Us For Availability

*23930

RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability

*23931

WCI 5303212671 WCI 5303212671 Contact Us For Availability

*23932

WCI 5303269859 WCI 5303269859 Contact Us For Availability

*23933

WCI 08067961 WCI 08067961 Contact Us For Availability

*23934

WCI 3200846 WCI 3200846 Contact Us For Availability

1

WCI 316029410 WCI 316029410 Contact Us For Availability

1

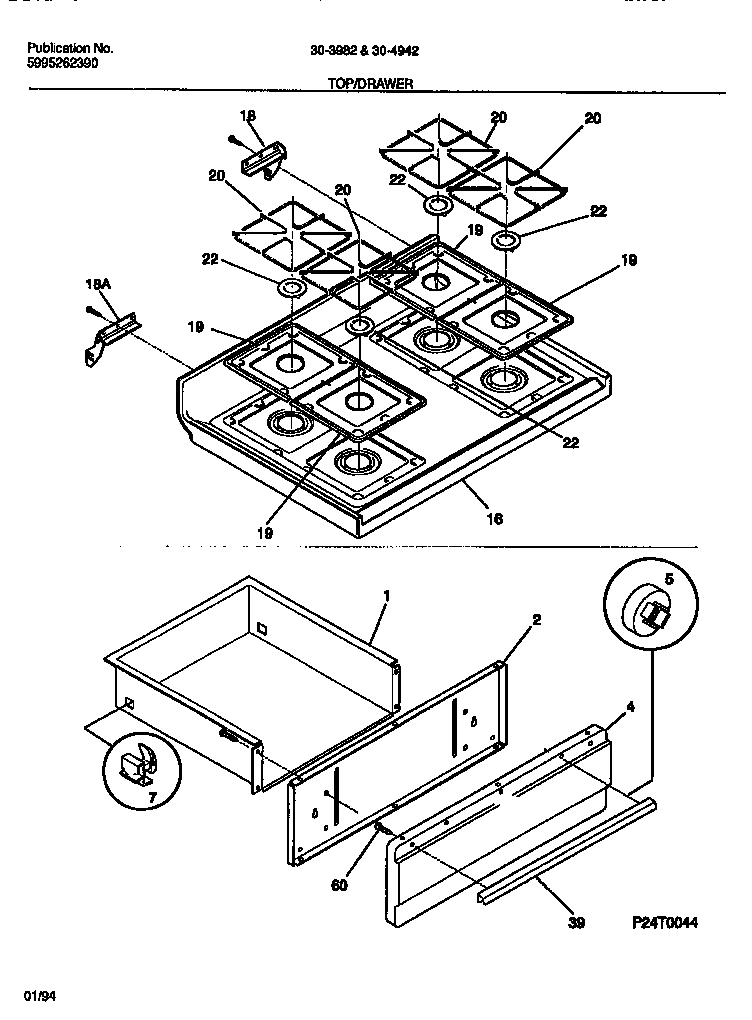

DRAWER-UTILITY WCI 316011501 Contact Us For Availability

2

WCI 3131314 WCI 3131314 Contact Us For Availability

2

WCI 3131975 WCI 3131975 Contact Us For Availability

3

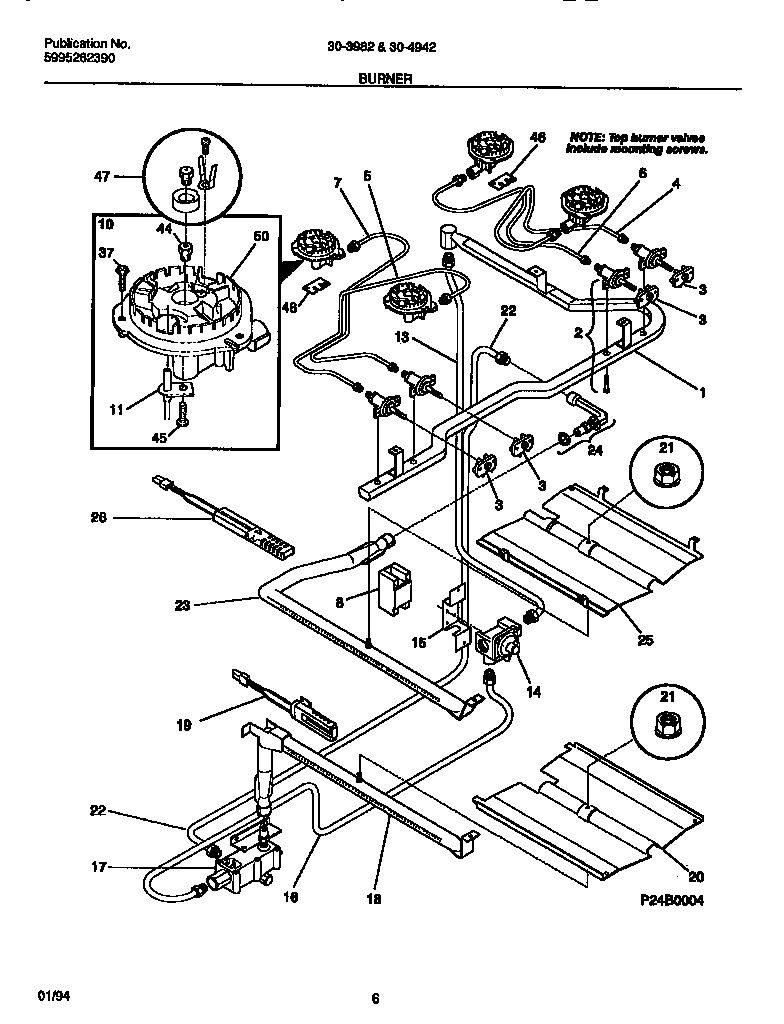

SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability

3

SHIELD-INSULATION, GALV STEEL (NON-ILLUSTRATE WCI 08067992 Contact Us For Availability

3

WCI 316081004 WCI 316081004 Contact Us For Availability

3

PANEL, BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 316081005 Contact Us For Availability

3

SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

3

Trim,oven door ,black WCI 316067802 Contact Us For Availability

4

SCREW, HEX WASHER HEAD, 8, 18(AB) X 1/2 (NON WCI 08067785 Contact Us For Availability

4

WCI 316011905 WCI 316011905 Contact Us For Availability

4

WCI 316056205 WCI 316056205 Contact Us For Availability

4

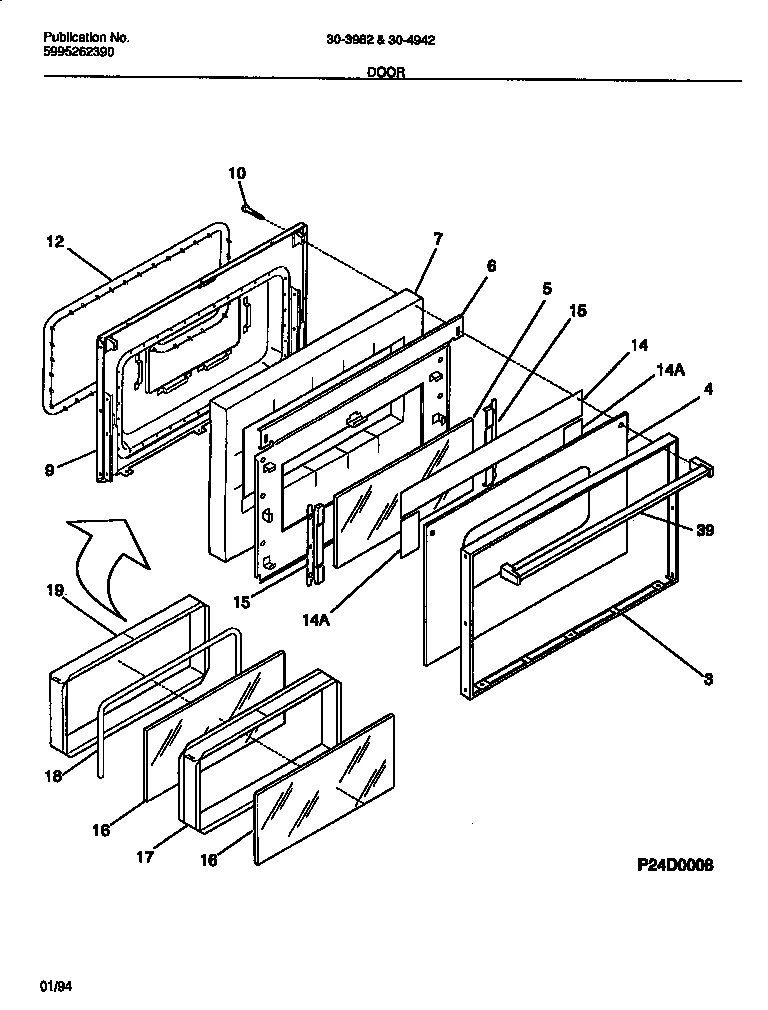

GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability

5

316116000 Frigidaire Screw Backorder WCI 316116000 $9.40

5

ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability

5

SCREW-LEVELING WCI 5303203397 Contact Us For Availability

5

WCI 5303288460 WCI 5303288460 Contact Us For Availability

5

FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability

5

GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability

6

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $73.09

6

SHIELD-INSULATION WCI 5303211084 Contact Us For Availability

7

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $8.11

7

WCI 316007002 WCI 316007002 Contact Us For Availability

7

INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability

8

316064600 Frigidaire Oven Support Backorder WCI 316064600 $13.86

8

PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability

9

WCI 316073800 WCI 316073800 Contact Us For Availability

9

WCI 316066603 WCI 316066603 Contact Us For Availability

10

WCI 316073900 WCI 316073900 Contact Us For Availability

10

SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 WCI 316001001 Contact Us For Availability

11

316011200 Frigidaire Oven Top Burner Igniter In Stock WCI 316011200 $9.10

12

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $273.99

12

WCI 316027702 WCI 316027702 Contact Us For Availability

13

WCI 316065005 WCI 316065005 Contact Us For Availability

13

WCI 316026800 WCI 316026800 Contact Us For Availability

14

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $6.09

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $49.48

14

REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability

14A

5303208655 Frigidaire Reflector Assembly Backorder WCI 5303208655 $45.46

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $53.82

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $22.72

15

BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability

5304524341 Frigidaire Lens In Stock WCI 5304524341 $20.29

GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability

WCI 316065003 WCI 316065003 Contact Us For Availability

WCI 5303271891 WCI 5303271891 Contact Us For Availability

WCI 5303271892 WCI 5303271892 Contact Us For Availability

WCI 5303301546 WCI 5303301546 Contact Us For Availability

17

5303208499 Frigidaire Gas Safety Valve In Stock WCI 5303208499 $484.52

17

RETAINER-GLASS WCI 3204585 Contact Us For Availability

17

WCI 5303209517 WCI 5303209517 Contact Us For Availability

131243700 Frigidaire Screw In Stock WCI 131243700 $2.65

WCI 5303015453 WCI 5303015453 Contact Us For Availability

WCI 3131290 WCI 3131290 Contact Us For Availability

SHIELD-LATCH, TOP (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability

HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability

SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability

18A

HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability

5303935066 Frigidaire Oven Flat Igniter 17-In In Stock WCI 5303935066 $36.45

WCI 316011401 WCI 316011401 Contact Us For Availability

WCI 5303131357 WCI 5303131357 Contact Us For Availability

WCI 316067600 WCI 316067600 Contact Us For Availability

BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability

WCI 08013188 WCI 08013188 Contact Us For Availability

WCI 3203218 WCI 3203218 Contact Us For Availability

WCI 5303269632 WCI 5303269632 Contact Us For Availability

21

Backorder WCI 154079601 $0.34

21

SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability

316010901 Frigidaire Burner Cap P1 Backorder WCI 316010901 $50.46

WCI 316065002 WCI 316065002 Contact Us For Availability

SWITCH-LATCH WCI 5303269499 Contact Us For Availability

WCI 08067978 WCI 08067978 Contact Us For Availability

23

WCI 08067935 WCI 08067935 Contact Us For Availability

23

WCI 08067776 WCI 08067776 Contact Us For Availability

24

5308015487 Frigidaire Oven Light Switch Backorder WCI 5308015487 $44.94

24

WCI 316070400 WCI 316070400 Contact Us For Availability

24

SHIELD-LATCH WCI 3051413 Contact Us For Availability

25

BAFFLE-BROILER WCI 5303210379 Contact Us For Availability

25

WCI 3131313 WCI 3131313 Contact Us For Availability

26

5303935068 Frigidaire Flat Igniter In Stock WCI 5303935068 $118.07

26

WCI 08067757 WCI 08067757 Contact Us For Availability

28

CLIP-WIRE WCI 3011813 Contact Us For Availability

29

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $6.60

30

BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability

30A

BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability

33

SHIELD, REAR WALL WCI 316014401 Contact Us For Availability

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $8.85

36

WCI 5303272844 WCI 5303272844 Contact Us For Availability

37

316069301 Frigidaire Oven Burner Mounting Pri In Stock WCI 316069301 $4.79

37

5304497424 Frigidaire Oven Temperature Sensor In Stock WCI 5304497424 $42.64

38

WCI 316035301 WCI 316035301 Contact Us For Availability

39

5304534377 Frigidaire Cord Backorder WCI 5304534377 $19.63

39

HANDLE-DRAWER, WHITE WCI 316019501 Contact Us For Availability

39

HANDLE-DOOR, OVEN WCI 316008302 Contact Us For Availability

40

WCI 3200836 WCI 3200836 Contact Us For Availability

40

WCI 5303288570 WCI 5303288570 Contact Us For Availability

41

WCI 3131570 WCI 3131570 Contact Us For Availability

42

WCI 5303270104 WCI 5303270104 Contact Us For Availability

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $7.74

44

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $40.48

44

ORIFICE-TOP BURNER, (4) WCI 5303210090 No Longer Available

45

WCI 316011100 WCI 316011100 Contact Us For Availability

45

SHIELD-WIRE WCI 08068018 Contact Us For Availability

46

WCI 5303269491 WCI 5303269491 Contact Us For Availability

47

WCI 5303286386 WCI 5303286386 Contact Us For Availability

49

3205821 Frigidaire Clip Backorder WCI 3205821 $27.73

50

BURNER-TOP, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability

53

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $40.48

53

WCI 5303271047 WCI 5303271047 Contact Us For Availability

58A

INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability

58B

WCI 316054200 WCI 316054200 Contact Us For Availability

58C

INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability

60

SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability

72

COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
