Model Electrolux 30-4687-23-01 RANGE – Common Parts & Diagrams

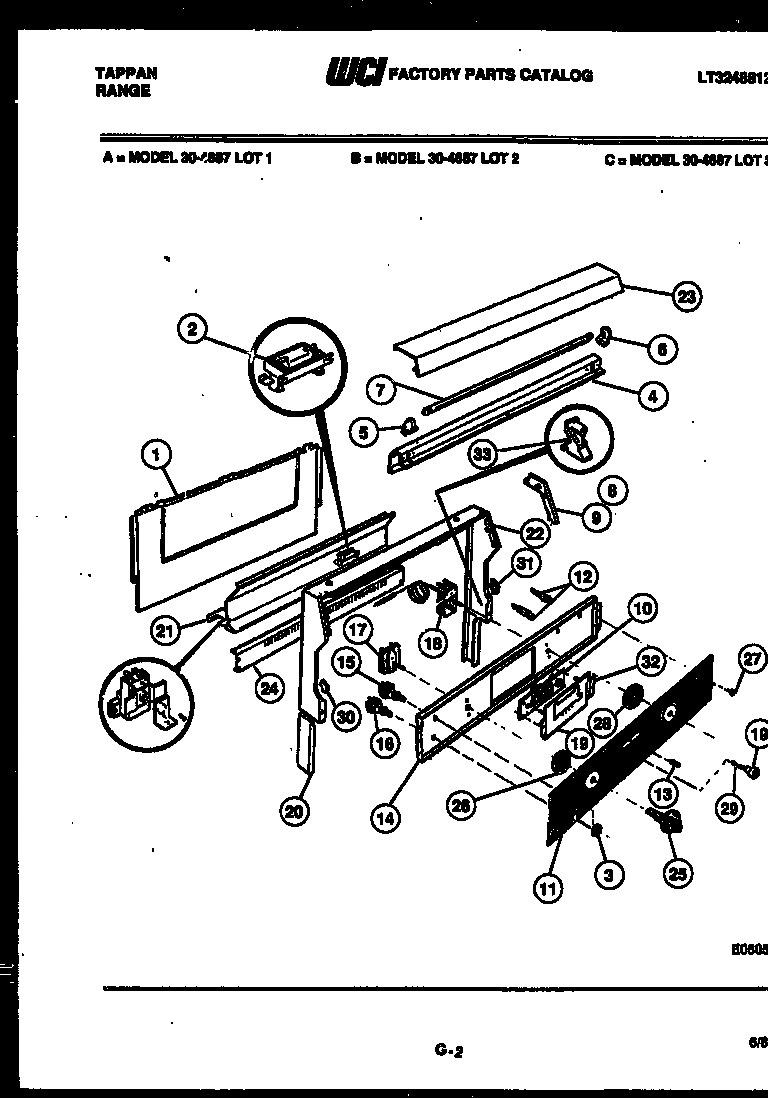

02 - BACKGUARD

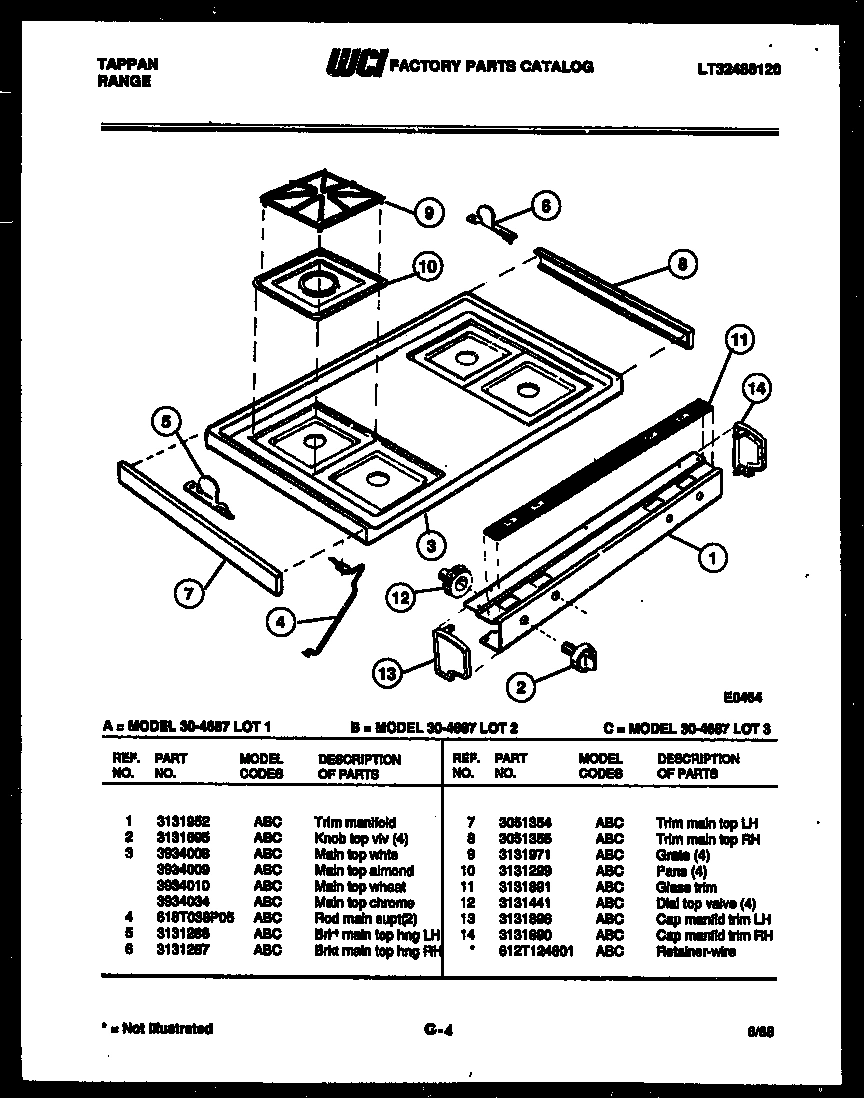

03 - COOKTOP PARTS

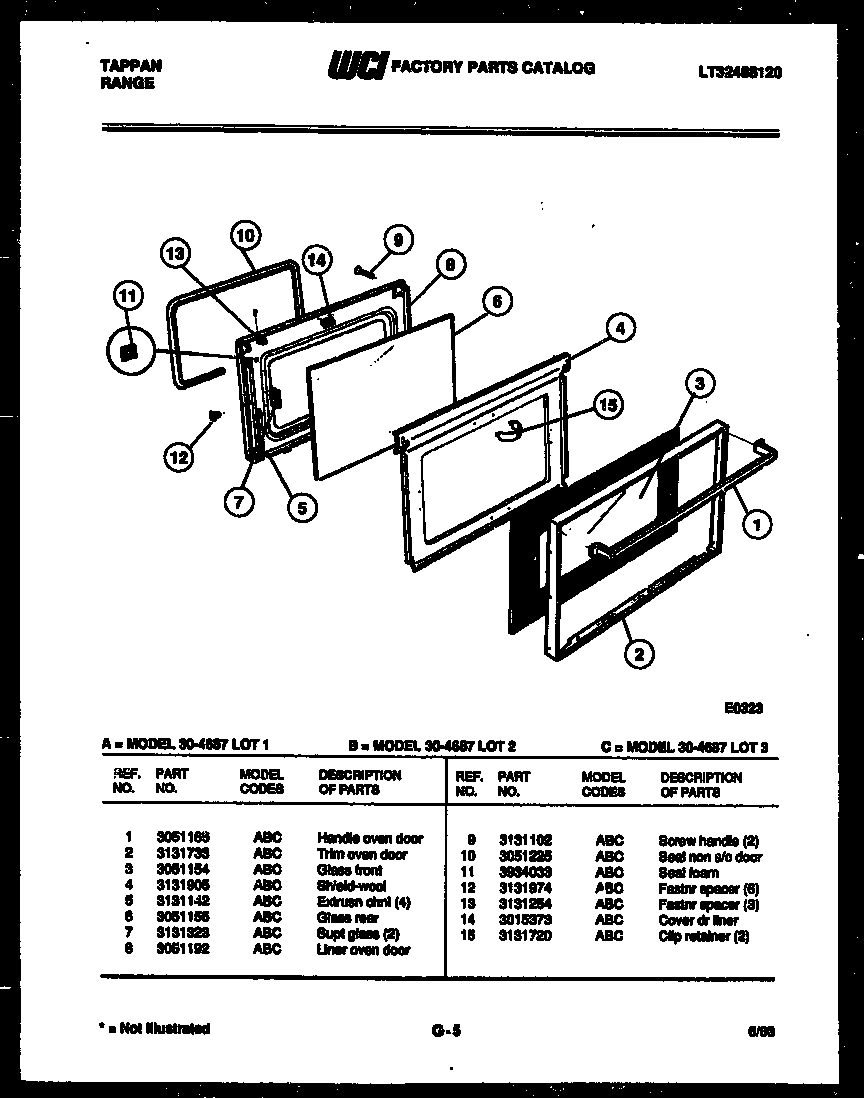

04 - DOOR PARTS

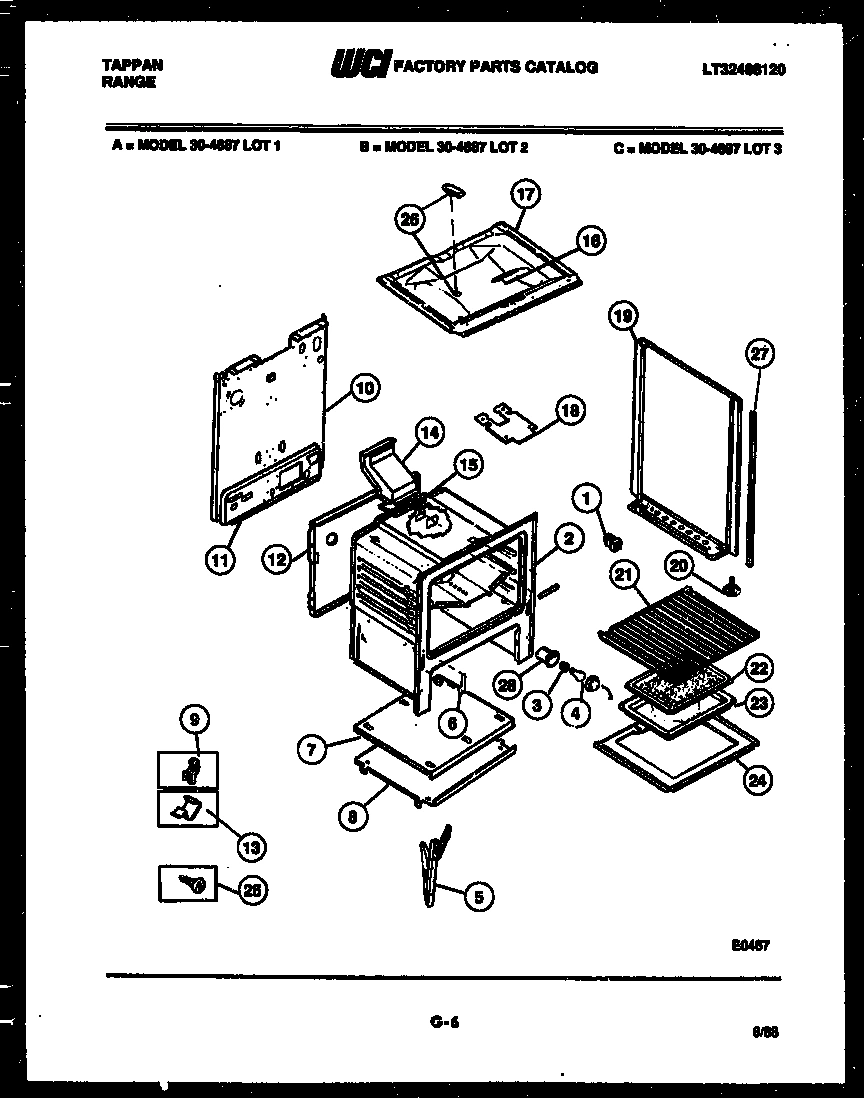

05 - BODY PARTS

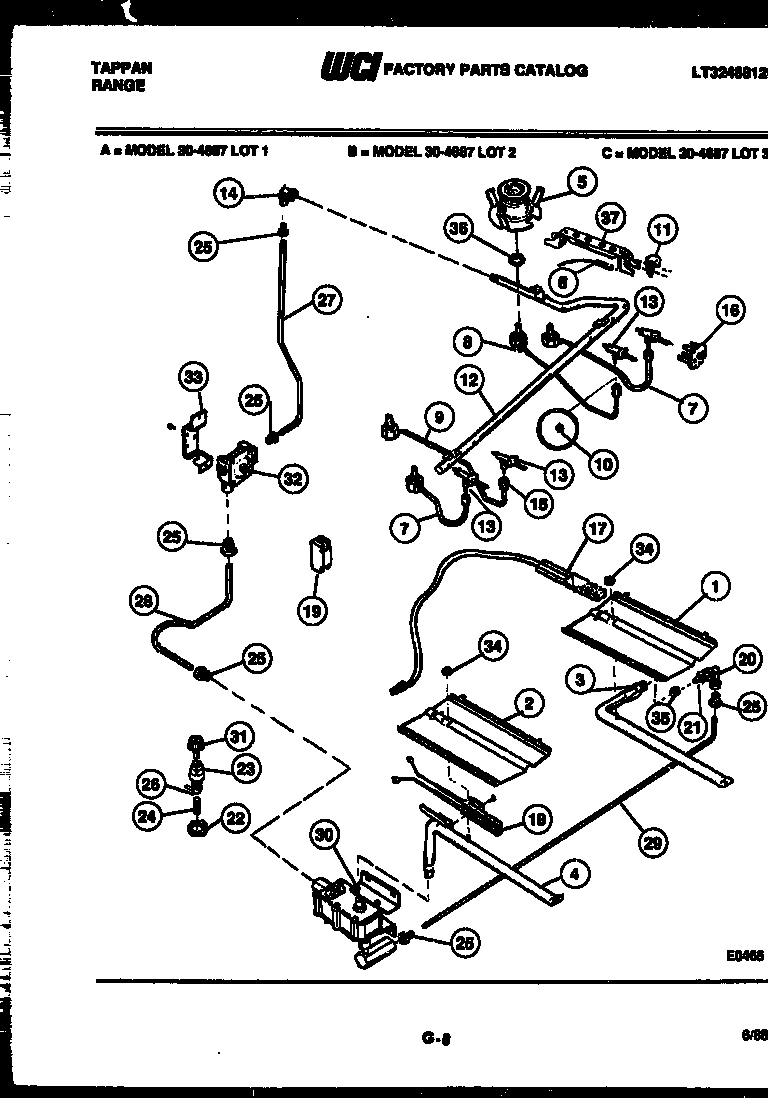

06 - BURNER, MANIFOLD AND GAS CONTROL

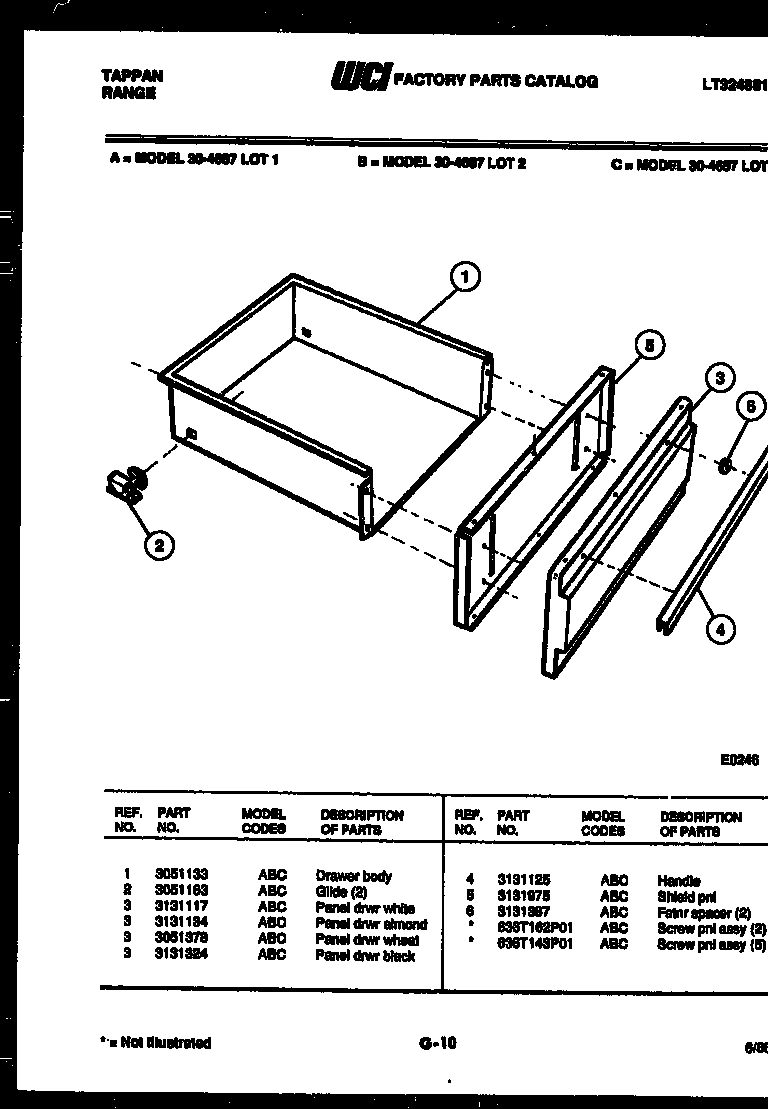

07 - DRAWER PARTS
Common parts from model Electrolux 30-4687-23-01 RANGE
*87580
WCI 612T124801 WCI 612T124801 Contact Us For Availability
*87641
WCI 3051420 WCI 3051420 Contact Us For Availability
*87647
SCREW PNL ASSY (2) WCI 636T162P01 Contact Us For Availability
1
WCI 3131952 WCI 3131952 Contact Us For Availability
1
HANDLE OVEN DOOR WCI 3051165 Contact Us For Availability
1
SPCR BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
2
KNOB TOP VLV (4) WCI 3131695 No Longer Available
2
WCI 3131733 WCI 3131733 Contact Us For Availability
2
WCI 3131327 WCI 3131327 Contact Us For Availability
3
WCI 3934009 WCI 3934009 Contact Us For Availability
3
WCI 3051154 WCI 3051154 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
PANEL DRWR ALMOND WCI 3131134 Contact Us For Availability
3
PANEL, DRWR., BLACK WCI 3131324 Contact Us For Availability
4
ROD MAIN SUPT (2) WCI 618T038P05 Contact Us For Availability
4
WCI 3131905 WCI 3131905 Contact Us For Availability
4
WCI 3131634 WCI 3131634 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
5
BRKT MAIN TOP HNG LH WCI 3131286 Contact Us For Availability
5
EXTRUSN CHNL (4) WCI 3131142 Contact Us For Availability
5
CHANNEL DR. HINGE WCI 3131569 Contact Us For Availability
5
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
6
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT MAIN TOP HNG RH WCI 3131287 Contact Us For Availability
6
WCI 3051155 WCI 3051155 Contact Us For Availability
6
RETAINR IGNTR (4) WCI 612T119F01 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
7
BULB FLUOR 18W WCI 3131275 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
SUPT. GLASS (2) WCI 3131323 Contact Us For Availability
7
SHLD HEAT UPPER WCI 3131951 Contact Us For Availability
7
BURNER TUBE-RF & LF WCI 3131970 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
LINER-OVEN DOOR WCI 3051192 Contact Us For Availability
8
SHLD HEAT LOWER WCI 3131313 Contact Us For Availability
8
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
9
TRIM CAMPY END RH WCI 3051135 Contact Us For Availability
9
WCI 3131971 WCI 3131971 Contact Us For Availability
9
SCREW, HANDLE (2) WCI 3131102 Contact Us For Availability
9
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
10
CLOCK ELECTR WCI 3051117 Contact Us For Availability
10
PANS (4) WCI 3131299 Contact Us For Availability
10
WCI 3131567 WCI 3131567 Contact Us For Availability
10
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
11
WCI 3015144 WCI 3015144 Contact Us For Availability
11
WCI 3131891 WCI 3131891 Contact Us For Availability
11
WCI 3934033 WCI 3934033 Contact Us For Availability
11
SHIELD, REAR WALL WCI 3131590 Contact Us For Availability
11
IGNITER, TOP 50`` (4) WCI 316T034P02 Contact Us For Availability
12
OVEN LIGHT IND WCI 318T023P11 Contact Us For Availability
12
WCI 3131441 WCI 3131441 Contact Us For Availability
12
FASTNR-SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 3131316 WCI 3131316 Contact Us For Availability
12
WCI 3131440 WCI 3131440 Contact Us For Availability
13
WCI 358T206P01 WCI 358T206P01 Contact Us For Availability
13
CAP MANFLD TRIM LH WCI 3131896 Contact Us For Availability
13
FASTNR SPACER (3) WCI 3131254 Contact Us For Availability
13
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
13
WCI 3017846 WCI 3017846 Contact Us For Availability
13
WCI 3131126 WCI 3131126 Contact Us For Availability
14
WCI 554T400F02-18 WCI 554T400F02-18 Contact Us For Availability
14
CAP MANFLD TRIM RH WCI 3131890 Contact Us For Availability
14
COVER DR LINER WCI 3015373 Contact Us For Availability
14
WCI 3131931 WCI 3131931 Contact Us For Availability
14
ELBOW 1/2 NPT 9/16-24 WCI 215T013P01 Contact Us For Availability
15
SWITCH FLUOR LT WCI 3051312 Contact Us For Availability
15
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
15
NUT-COMPRESSION WCI 3131148 Contact Us For Availability
15B
WASHER BLK (4) (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
16
SWITCH OVEN LT WCI 695T211P02 Contact Us For Availability
16
WCI 3131101 WCI 3131101 Contact Us For Availability
17
WCI 3131949 WCI 3131949 Contact Us For Availability
17
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
18
THERMO OVEN WCI 3051323 Contact Us For Availability
18
WCI 3131314 WCI 3131314 Contact Us For Availability
19
BUTTON-CLOCK (3) WCI 3131730 Contact Us For Availability
19
PNL B/S BLK RH WCI 3131217 Contact Us For Availability
19
PNL B/S ALMOND RH WCI 3131454 Contact Us For Availability
19A
PNL B/S BLK LH WCI 3131221 Contact Us For Availability
19A
PNL B/S ALMOND LH WCI 3131453 Contact Us For Availability
20
WCI 3051455 WCI 3051455 Contact Us For Availability
20
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
20
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
21
TRIM SPLASHER WCI 740T509P01 Contact Us For Availability
21
HEX NUT 3/4 WCI 3131358 Contact Us For Availability
22
FSTNR GLASS (2) WCI 3131607 Contact Us For Availability
22
WCI 3131356 WCI 3131356 Contact Us For Availability
22
HEX NUT FUSE WCI 479T085P03 Contact Us For Availability
23
WCI 3051329 WCI 3051329 Contact Us For Availability
23
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
23
SEAL ``O``RING WCI 647T087P01 Contact Us For Availability
24
WCI 740T522F01 WCI 740T522F01 Contact Us For Availability
24
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
24
FUSE-5A 250V WCI 262T007P02 Contact Us For Availability
24C
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
24D
INSUL BACK (NON-ILLUSTRATED) WCI 3131246 Contact Us For Availability
24E
INSUL. TOP WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
24F
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
25
WCI 3051188 WCI 3051188 Contact Us For Availability
25
FITTING, LOXIT (6) WCI 3131261 Contact Us For Availability
25A
COVER-FRONT MAIN (NON-ILLUSTRATED) WCI 3015372 Contact Us For Availability
26
WCI 3131945 WCI 3131945 Contact Us For Availability
26
COVER BURNR BOX WCI 3015371 Contact Us For Availability
26
WCI 597T034P03 WCI 597T034P03 Contact Us For Availability
27
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
27
WCI 3051326 WCI 3051326 Contact Us For Availability
27
TUBE ALUM REG. MANIFOLD WCI 750T085H09 Contact Us For Availability
28
DIAL THERMO WCI 3131946 Contact Us For Availability
28
WCI 3051343 WCI 3051343 Contact Us For Availability
28
TUBE VALV TO REG. WCI 3131109 Contact Us For Availability
28A
WCI 655T444P01 WCI 655T444P01 Contact Us For Availability
29
SHAFT TIMER WCI 3051347 Contact Us For Availability
29
TUBE ALUM VALVE/MIXER WCI 3131364 Contact Us For Availability
30
CAP-END (L.H.) WCI 123T120P03 Contact Us For Availability
31
CAP-END (R.H.) WCI 123T120P04 Contact Us For Availability
31
CAP FUSE WCI 123T126P01 Contact Us For Availability
31A
NUT 10-24 (2) (NON-ILLUSTRATED) WCI 479T069P08 Contact Us For Availability
32
WCI 3131556 WCI 3131556 Contact Us For Availability
32A
WCI 3051304 WCI 3051304 Contact Us For Availability
35
SPUD NO 50 WCI 499T015P08 Contact Us For Availability
36
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
37
WCI 072T821F01 WCI 072T821F01 Contact Us For Availability
× ![]()
