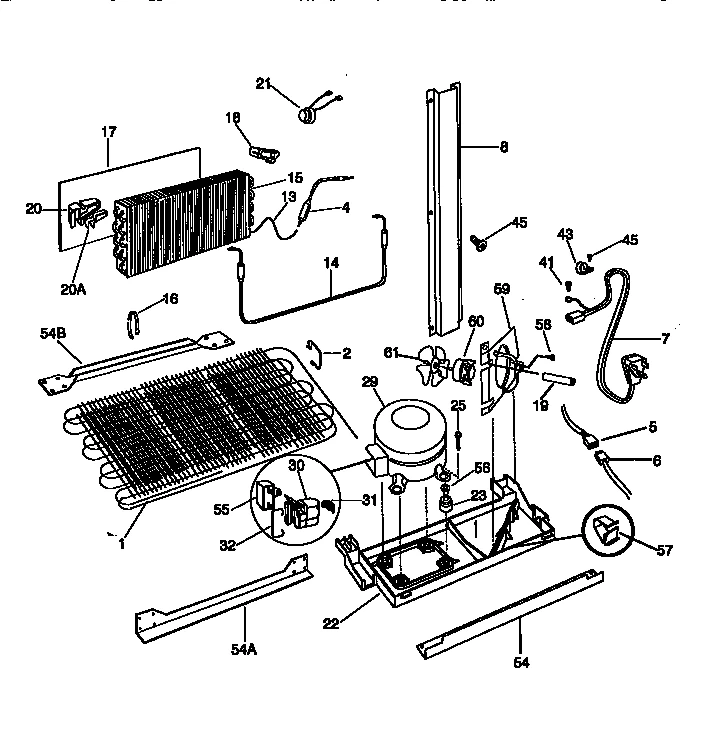

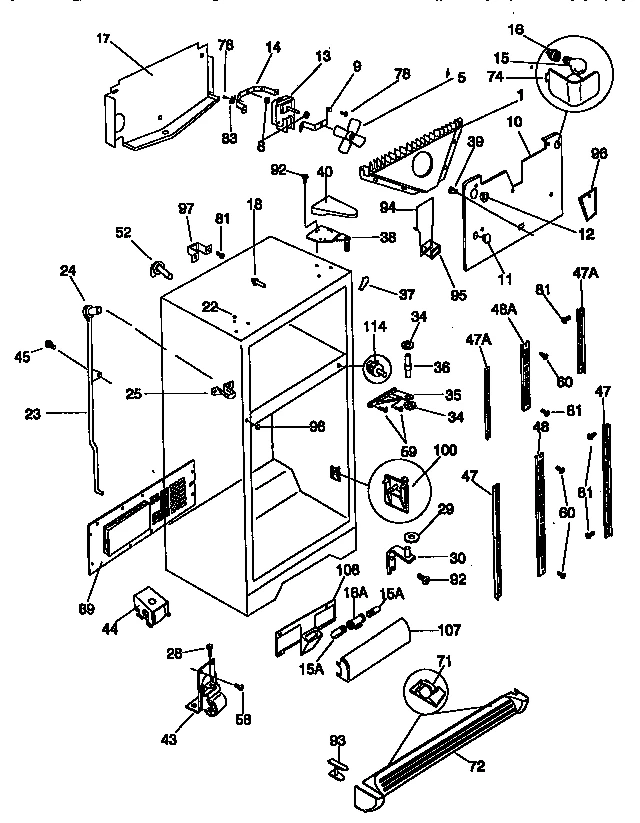

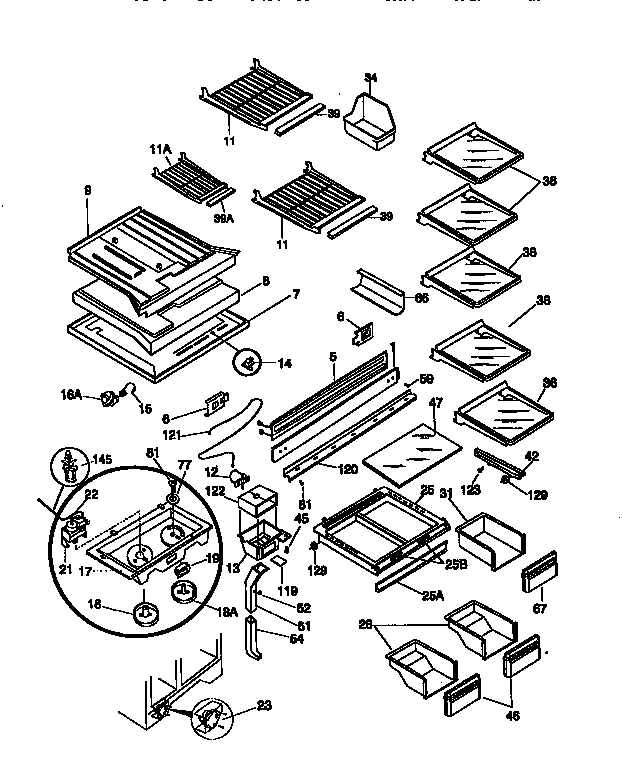

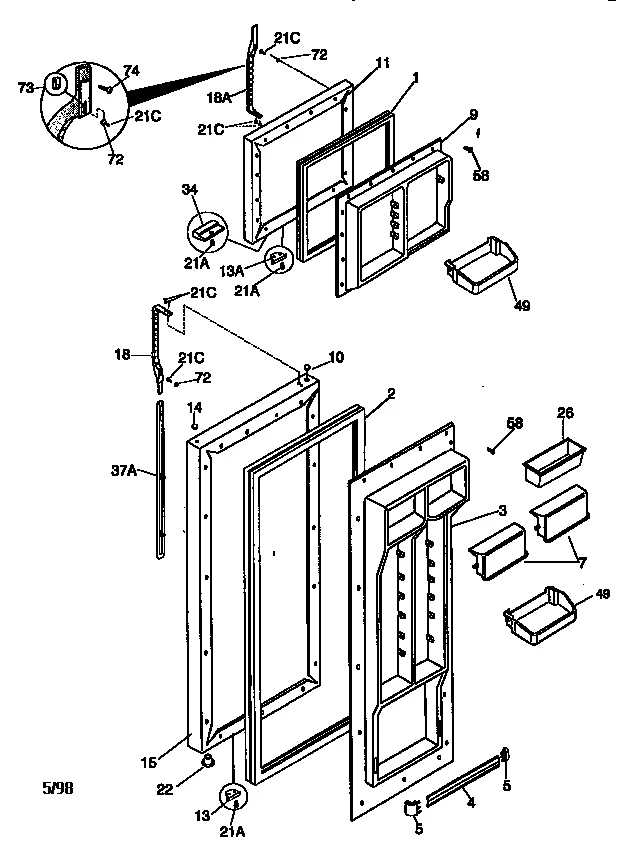

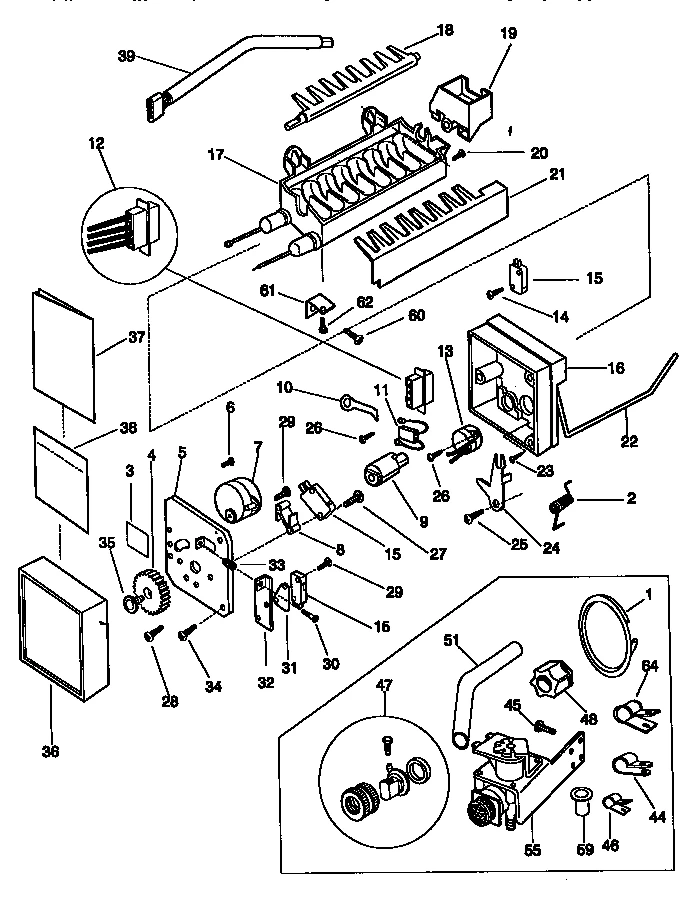

Model Electrolux 253.78296890 Top-Mount Refrigerator (Kenmore 25378296890) – Common Parts &amp; Diagrams

1

Refrigerator Condenser WCI 218787700 Contact Us For Availability

1

Refrigerator Shroud Evaporator WCI 215937600 Contact Us For Availability

1A

Refrigerator Spacer Tube WCI 5303289026 Contact Us For Availability

2

Refrigerator Door Gasket (Black) WCI 218730616 Contact Us For Availability

2

Spring WCI 3206348 Contact Us For Availability

2

Clip-cond Mt WCI 5303289029 Contact Us For Availability

3

Refrigerator Inner Panel WCI 215784001 Contact Us For Availability

3

Refrigerator Ice Maker Decal WCI 3206299 Contact Us For Availability

4

215516220 Frigidaire Refrigerator Door Rack Backorder WCI 215516220 $40.41

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $22.61

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $14.78

5

218758602 Frigidaire Refrigerator Door Rack S In Stock WCI 218758602 $17.31

5

Refrigerator Evaporator Fan Blade WCI 5303292398 Contact Us For Availability

5

Refrigerator Ice Maker Cover Bracket WCI 3206303 Contact Us For Availability

5

Refrigerator Wiring Harness WCI 218671800 Contact Us For Availability

5A

Refrigerator Wiring Harness WCI 218463600 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $7.86

6

Refrigerator Wiring Harness WCI 215633901 Contact Us For Availability

7

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $68.28

7

Refrigerator Power Cord WCI 215459201 Contact Us For Availability

7

Refrigerator Dairy Door WCI 5304404061 Contact Us For Availability

8

Spacer WCI 3206312 Contact Us For Availability

8

Refrigerator Wiring Cover WCI 218803400 Contact Us For Availability

8

Refrigerator Bushing WCI 5300157666 Contact Us For Availability

8A

Wiring Screw WCI 218754500 Contact Us For Availability

9

Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5303292396 Contact Us For Availability

9

Refrigerator Inner Panel WCI 5303292371 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

Refrigerator Button Plug WCI 5303299154 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

10

Refrigerator Control Cover Evaporator WCI 5304402185 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $31.49

11

Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability

11

Ff Panel WCI 5303918035 Contact Us For Availability

12

5303001147 Frigidaire Refrigerator Hole Harne Backorder WCI 5303001147 $16.51

12

Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability

12A

Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability

5300158289 Frigidaire Evaporator Fan Motor In Stock WCI 5300158289 $88.02

Refrigerator Door Stop WCI 5303289522 Contact Us For Availability

Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability

Refrigerator Heat Exchange WCI 218168602 Contact Us For Availability

13A

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $13.64

13A

Refrigerator Door Stop WCI 215030018 Contact Us For Availability

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $12.06

240494003 Frigidaire Refrigerator Button Plug In Stock WCI 240494003 $12.59

5309918806 Frigidaire Refrigerator Light Swit Backorder WCI 5309918806 $16.26

5317842502 Frigidaire Defrost Heater Assembly Backorder WCI 5317842502 $99.21

Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $64.04

Refrigerator Light Bulb, 25-watt WCI 215812200 Contact Us For Availability

Refrigerator Evaporator WCI 5303321220 Contact Us For Availability

Refrigerator Panel WCI 5303918037 Contact Us For Availability

15A

Refrigerator Light Bulb WCI 218708700 Contact Us For Availability

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.49

16

Refrigerator Receptacle WCI 5308000129 Contact Us For Availability

16

Support WCI 3206326 Contact Us For Availability

16A

Refrigerator Light Socket WCI 5303299157 Contact Us For Availability

17

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $145.94

17

Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability

17

Refrigerator Drain Trough WCI 5303292408 Contact Us For Availability

Refrigerator Door Handle (Charcoal Gray) WCI 218779903 Contact Us For Availability

Ejector WCI 3206328 Contact Us For Availability

Refrigerator Insulation WCI 5303292407 Contact Us For Availability

Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability

18A

Refrigerator Door Handle WCI 218779806 Contact Us For Availability

19

Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability

19

Bearing WCI 3206330 Contact Us For Availability

19

Refrigerator Spacer Tube WCI 218631200 Contact Us For Availability

20

Screw WCI 3206331 Contact Us For Availability

20

Refrigerator Insulation WCI 5303292406 Contact Us For Availability

20A

Insulation P WCI 5303292405 Contact Us For Availability

21

5303917954 Frigidaire Refrigerator Defrost Li In Stock WCI 5303917954 $24.43

21

Ice Stripper WCI 3206332 Contact Us For Availability

21A

Refrigerator Door Stop Screw, #10-16 x 3/4-in WCI 218578600 Contact Us For Availability

21C

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $10.49

215774918 Frigidaire Refrigerator Button Plug Backorder WCI 215774918 $6.81

Refrigerator Door Hinge Bushing WCI 5303289320 Contact Us For Availability

Arm WCI 3206333 Contact Us For Availability

Comp Mountng WCI 218811100 Contact Us For Availability

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $31.49

23

Refrigerator Drain Tube WCI 215266301 Contact Us For Availability

23

Screw WCI 3206334 Contact Us For Availability

23B

Defrost Cover WCI 215277000 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $49.34

24

Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability

25

Screw WCI 3206336 Contact Us For Availability

25

Bolt Compres WCI 218773500 Contact Us For Availability

25

Spout Drain WCI 5303292412 Contact Us For Availability

25A

Refrigerator Push Pin WCI 5303001361 Contact Us For Availability

26

Refrigerator Egg Bin WCI 3204522 Contact Us For Availability

26

Screw WCI 3206337 Contact Us For Availability

27

Screw WCI 3206338 Contact Us For Availability

28

Screw WCI 3206339 Contact Us For Availability

28

Refrigerator Bolt Roller WCI 5303289062 Contact Us For Availability

29

5304478809 Frigidaire Refrigerator Compressor In Stock WCI 5304478809 $516.33

29

Refrigerator Washer WCI 215003200 Contact Us For Availability

29

Screw WCI 3206340 Contact Us For Availability

29A

Refrigerator Door Hinge Washer WCI 215314301 Contact Us For Availability

30

Screw WCI 3206341 Contact Us For Availability

30

Refrigerator PTC Starter WCI 216008904 Contact Us For Availability

30

Refrigerator Lower Bracket WCI 5303289060 Contact Us For Availability

30A

Refrigerator Door Left Hinge Plate WCI 218730700 Contact Us For Availability

30B

Tapping Plate WCI 218730800 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

31

Refrigerator Overload Protector WCI 5303321892 Contact Us For Availability

32

Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability

32

Bale Wire WCI 218762900 Contact Us For Availability

33

Spring WCI 3206344 Contact Us For Availability

34

Light Bumper WCI 218783202 Contact Us For Availability

34

Screw WCI 3206345 Contact Us For Availability

34

Refrigerator Door Hinge Washer WCI 218737000 Contact Us For Availability

35

Screw WCI 3206346 Contact Us For Availability

35

Refrigerator Door Hinge Bracket, Center WCI 215002618 Contact Us For Availability

36

Refrigerator Door Hinge Pin, Center WCI 215095900 Contact Us For Availability

36

Cover WCI 3206347 Contact Us For Availability

37

Technical Data Sheet WCI 5303320544 Contact Us For Availability

37

Refrigerator Corner Trim (Black) WCI 5303321083 Contact Us For Availability

37A

Refrigerator Door Handle Trim, Lower (Gray) WCI 218779312 Contact Us For Availability

37AB

Refrigerator Door Handle Trim Cap WCI 218776501 Contact Us For Availability

37AC

Tri Snap WCI 218776600 Contact Us For Availability

38

Envelope WCI 5303207445 Contact Us For Availability

38

Bracket-uppe WCI 218215216 Contact Us For Availability

38A

Tapping Plate WCI 5304403492 Contact Us For Availability

39

Refrigerator Electronic Harness WCI 5303289065 Contact Us For Availability

39

Refrigerator Spacer WCI 08006983 Contact Us For Availability

40

Refrigerator Cover WCI 218374406 Contact Us For Availability

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $8.91

42

Refrigerator Deli Drawer Hanger WCI 215002301 Contact Us For Availability

42A

Refrigerator Deli Drawer Slide Rail WCI 215002401 Contact Us For Availability

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $48.81

43

Refrigerator Roller WCI 218615300 Contact Us For Availability

43A

Refrigerator Screw WCI 5308017044 Contact Us For Availability

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $8.39

44

Refrigerator Roller WCI 218738300 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $9.96

45B

Refrigerator Screw WCI 218769200 Contact Us For Availability

45C

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $9.44

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $12.06

47

Refrigerator Water Inlet Valve Connection WCI 5308000205 Contact Us For Availability

47

Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability

47A

Refrigerator Shelf Channel WCI 215209100 Contact Us For Availability

48

Nut WCI 5308000200 Contact Us For Availability

48

Refrigerator Shelf Channel WCI 218487200 Contact Us For Availability

48A

Refrigerator Shelf Channel WCI 215209200 Contact Us For Availability

49

215441502 Frigidaire Refrigerator Door Bin Backorder WCI 215441502 $124.68

51

Fill Tube WCI 215811600 Contact Us For Availability

52

Refrigerator Ice Maker Fill Tube WCI 215454600 Contact Us For Availability

54

Cabinet Rail WCI 5303289027 Contact Us For Availability

54A

Rail-compr S WCI 5303289311 Contact Us For Availability

54B

Cabinet Rail WCI 5303289292 Contact Us For Availability

55

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $39.81

55

Refrigerator Capacitor WCI 218764601 Contact Us For Availability

56

Compressor Insert WCI 218769300 Contact Us For Availability

57

Wiring Clip WCI 218247300 Contact Us For Availability

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $12.20

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $9.96

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $5.76

59

Sleeve WCI 5303001191 Contact Us For Availability

59

Refrigerator Shroud Condenser WCI 5303289031 Contact Us For Availability

59A

SEAL - FOAM, COND FAN SHROUD WCI 215226700 Contact Us For Availability

60

Refrigerator Condenser Fan Motor WCI 215501901 Contact Us For Availability

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $54.06

61

Blade-cond F WCI 5303289032 Contact Us For Availability

61A

Refrigerator Nut WCI 215004700 Contact Us For Availability

61B

Grommet WCI 215004800 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $7.86

71

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $13.11

72

Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available

72

Refrigerator Grille Kick Plate WCI 218359612 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $39.05

74

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $5.24

74

Refrigerator Light Shield WCI 215423500 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $10.49

83

Refrigerator Bracket WCI 5308000107 Contact Us For Availability

89

Cover-machin WCI 5303288947 Contact Us For Availability

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $9.96

93

Plug Grille WCI 218362603 Contact Us For Availability

94

Cover-air Du WCI 5303319993 Contact Us For Availability

94A

Refrigerator Air Duct Seal WCI 218044800 Contact Us For Availability

95

Gasket-air D WCI 218663100 Contact Us For Availability

96

Cover-fan Ac WCI 215775901 Contact Us For Availability

97

Bracket-im P WCI 5303289299 Contact Us For Availability

98

Refrigerator Button Plug WCI 215099718 Contact Us For Availability

100

Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability

107

Refrigerator Light Shield WCI 218188800 Contact Us For Availability

108

Refrigerator Wiring Cover WCI 218710800 Contact Us For Availability

114

Refrigerator Door Switch WCI 5303299156 Contact Us For Availability

129

Refrigerator Deli Drawer Roller WCI 5303299152 Contact Us For Availability

218769500 Frigidaire Use and Care Label Backorder WCI 218769500 $3.66

Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability

Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability

Refrigerator Hot Tube Repair Kit WCI 5303917214 Contact Us For Availability

Refrigerator Shelf Clip WCI 215328300 Contact Us For Availability

Refrigerator Seal WCI 215339100 Contact Us For Availability

Cantilever Clip WCI 215339900 Contact Us For Availability

Refrigerator Seal WCI 215359900 Contact Us For Availability

Refrigerator Spacer Air Cleaner WCI 215848000 Contact Us For Availability

Refrigerator Cleaner WCI 218490900 Contact Us For Availability

Refrigerator Service Data Sheet WCI 218771600 Contact Us For Availability

Refrigerator Owner's Manual WCI 218862800 Contact Us For Availability

Refrigerator Repair Parts List WCI 5995304614 Contact Us For Availability
