Model Electrolux 253.68132892 Top-Mount Refrigerator (Kenmore 25368132892) – Common Parts & Diagrams

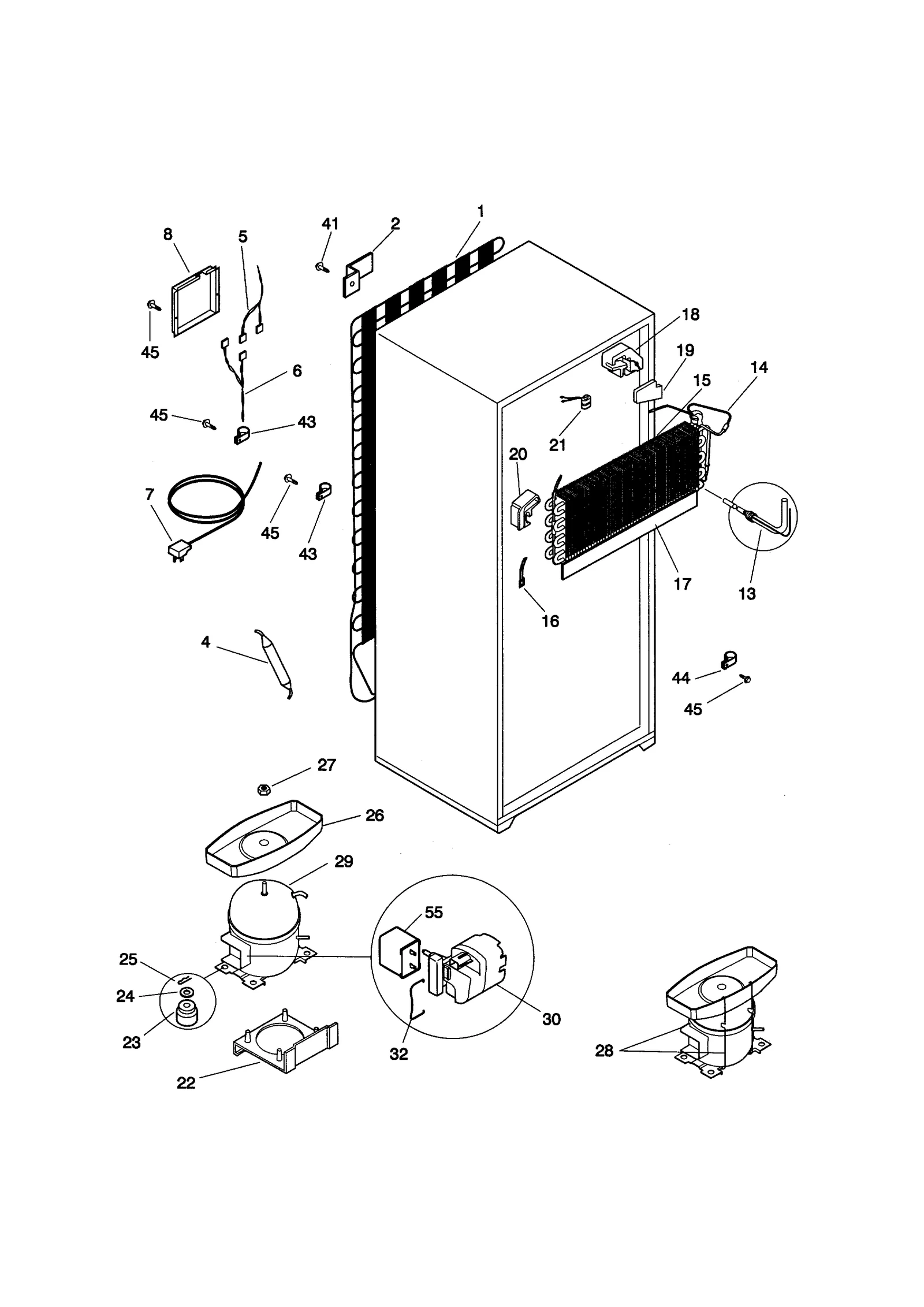

SYSTEM

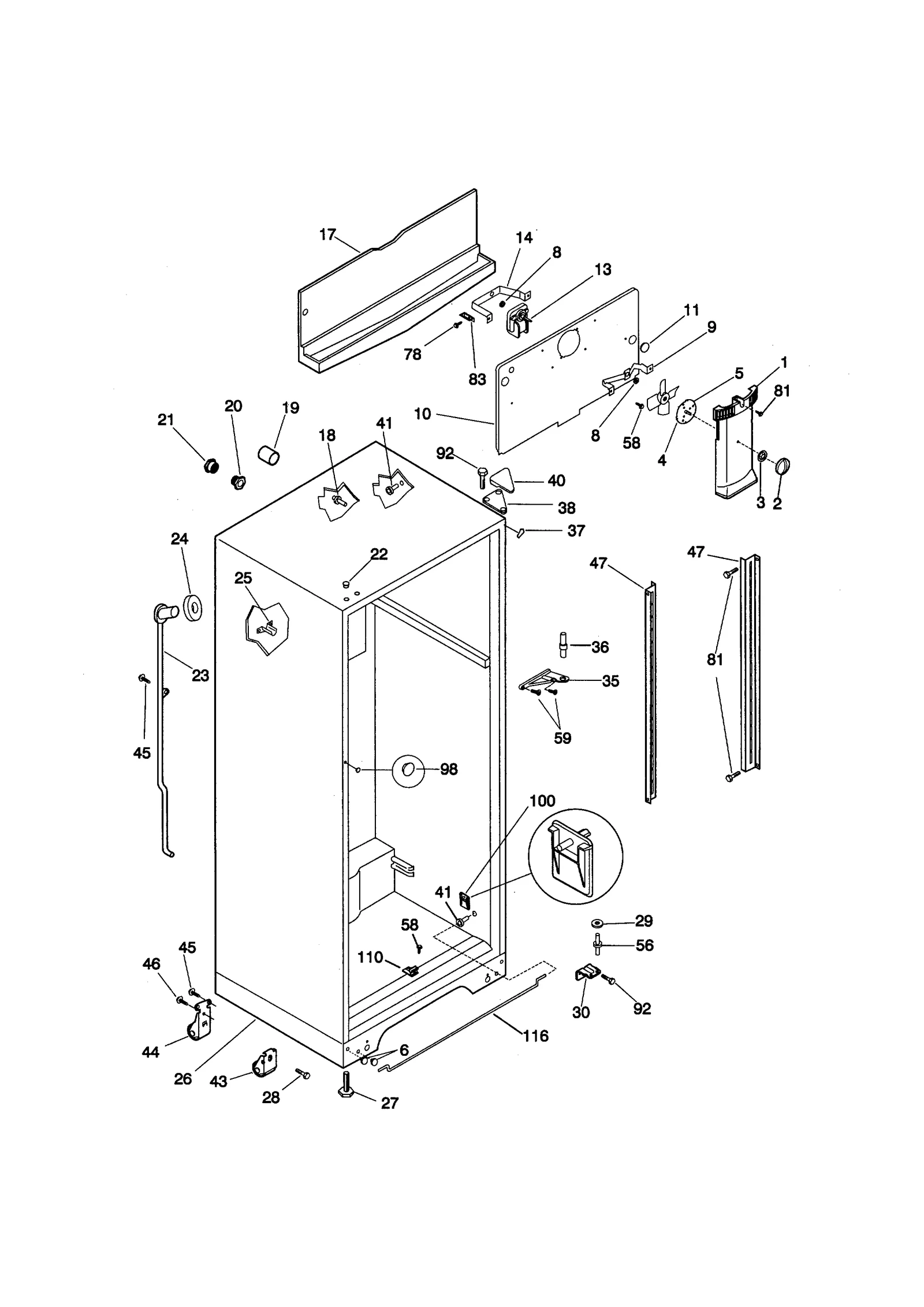

CABINET

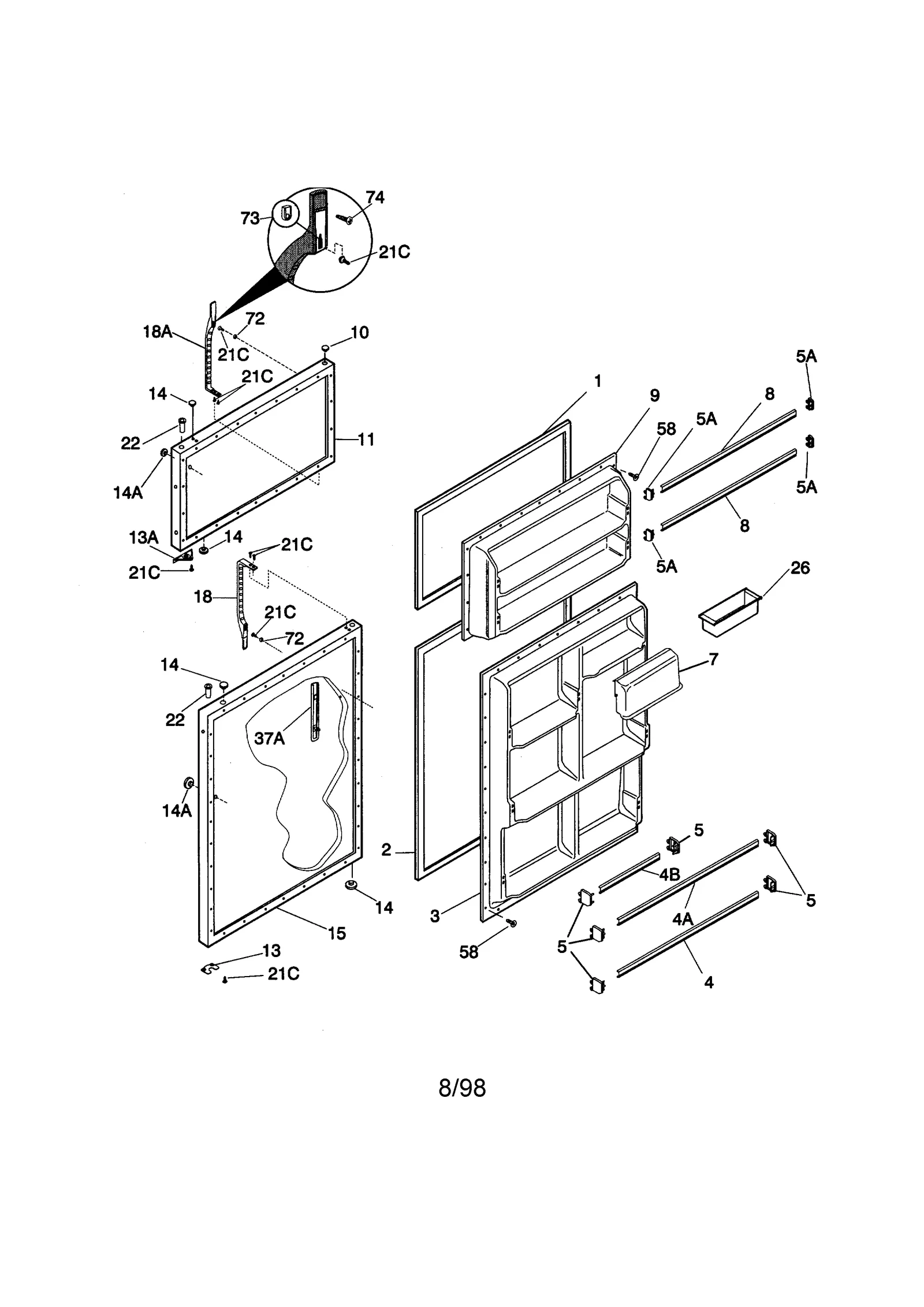

DOOR

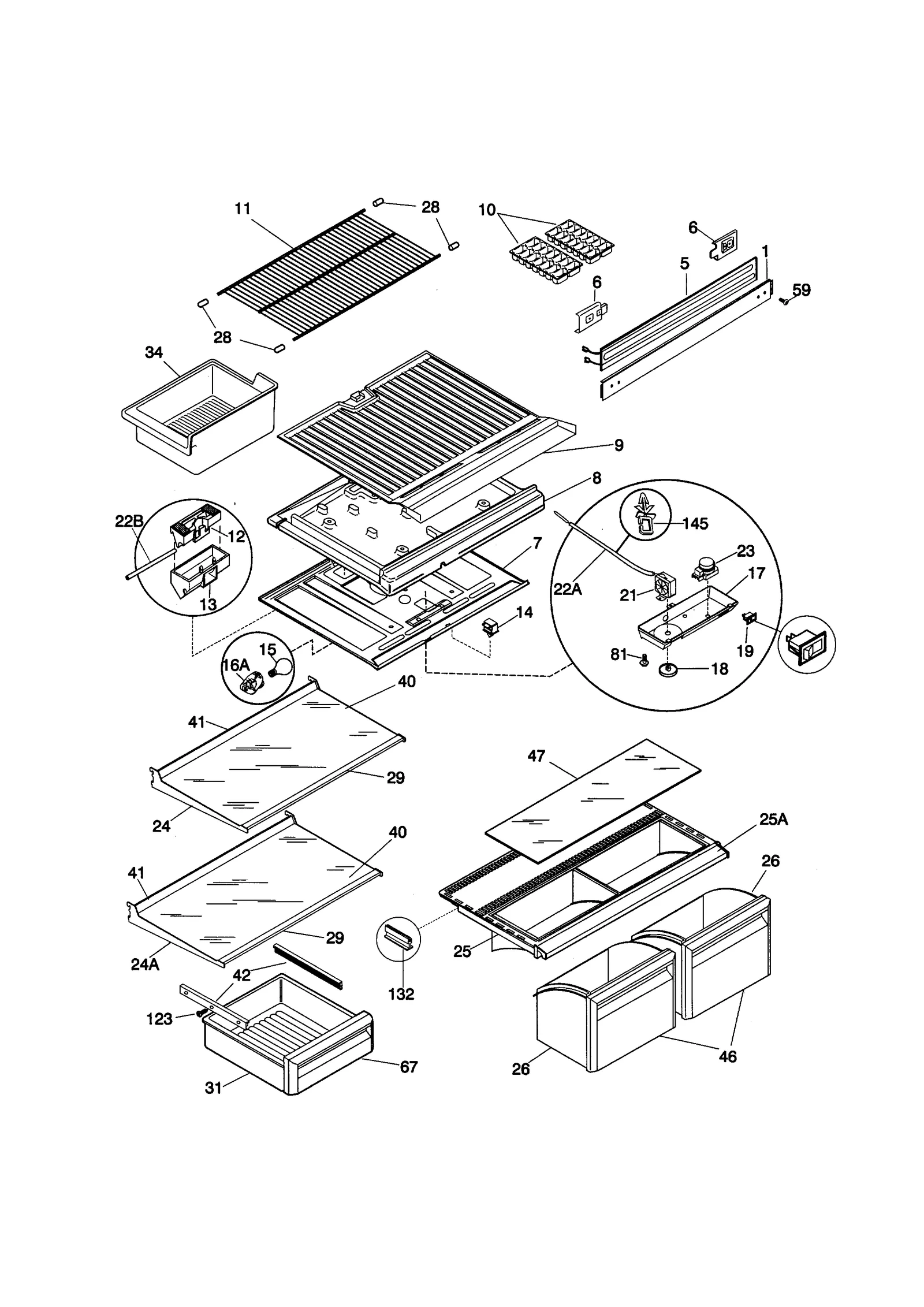

SHELVES
Common parts from model Electrolux 253.68132892 Top-Mount Refrigerator (Kenmore 25368132892)
1
Refrigerator Freezer Gasket WCI 215608913 Contact Us For Availability
1
Refrigerator Mullion WCI 218651900 Contact Us For Availability
1A
Refrigerator Freezer Gasket WCI 215608903 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651901 Contact Us For Availability
2
Kelvinator Refrigerator Door Gasket (White) WCI 218730609 Contact Us For Availability
2A
Refrigerator Door Gasket (Almond) WCI 218730610 Contact Us For Availability
3
Refrigerator Inner Panel WCI 215393201 Contact Us For Availability
5
Heater Mullion WCI 218781002 Contact Us For Availability
6
Tapping Plate WCI 218845600 Contact Us For Availability
7
Refrigerator Dairy Door WCI 215058116 Contact Us For Availability
7
Refrigerator Top Panel WCI 218866101 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Refrigerator Divider WCI 218866000 Contact Us For Availability
8A
Refrigerator Electronic Harness WCI 218878600 Contact Us For Availability
9
Refrigerator Freezer Inner Panel WCI 215530301 Contact Us For Availability
9
Refrigerator Freezer Bottom Panel WCI 218865900 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
11
Refrigerator Freezer Door Panel WCI 5303918009 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303288243 Contact Us For Availability
11A
Refrigerator Freezer Door Panel WCI 5303918010 Contact Us For Availability
11A
Refrigerator Spacer WCI 218159700 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
13AA
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
13B
Refrigerator Door Stop WCI 5303212491 Contact Us For Availability
14AA
Refrigerator Button Plug WCI 215352211 Contact Us For Availability
14B
Refrigerator Door Hinge Hole Plug WCI 5308000181 Contact Us For Availability
15
Rr Dr Panel WCI 5303917999 Contact Us For Availability
15A
Out Door Panel WCI 5303918000 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779804 Contact Us For Availability
18AA
Refrigerator Handle WCI 218779805 Contact Us For Availability
18AB
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
18AC
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Frame-full S WCI 215919117 Contact Us For Availability
24A
Meat Keeper Frame WCI 215919122 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 215363203 Contact Us For Availability
25A
Refrigerator Crisper Trim WCI 5303325637 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
26
Refrigerator Crisper Pan WCI 215363301 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Trim-refr Sh WCI 215919405 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Kelvinator Refrigerator Compressor Overload a WCI 218721101 Contact Us For Availability
30B
Tapping Plate WCI 218605200 Contact Us For Availability
30C
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220102 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37AA
Lo Trim Hand WCI 218771202 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40
Refrigerator Glass Shelf WCI 218498144 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
41
Trim-full Sh WCI 215919805 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
43A
Refrigerator Spring WCI 5308009790 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
46
Refrigerator Crisper Drawer Panel, Front WCI 215363406 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
47
Glass Insert WCI 218498145 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
67
Refrigerator Deli Drawer Front Cover WCI 5303307363 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
110
Refrigerator Crisper Drawer Cover Support Stu WCI 215363501 Contact Us For Availability
116
Refrigerator Crisper Drawer Support Rod WCI 215426703 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Sound Cover WCI 218750100 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995310017 Contact Us For Availability
× ![]()
