Model Electrolux 253.67800793 Top-Mount Refrigerator (Kenmore 25367800793) – Common Parts & Diagrams
SYSTEM

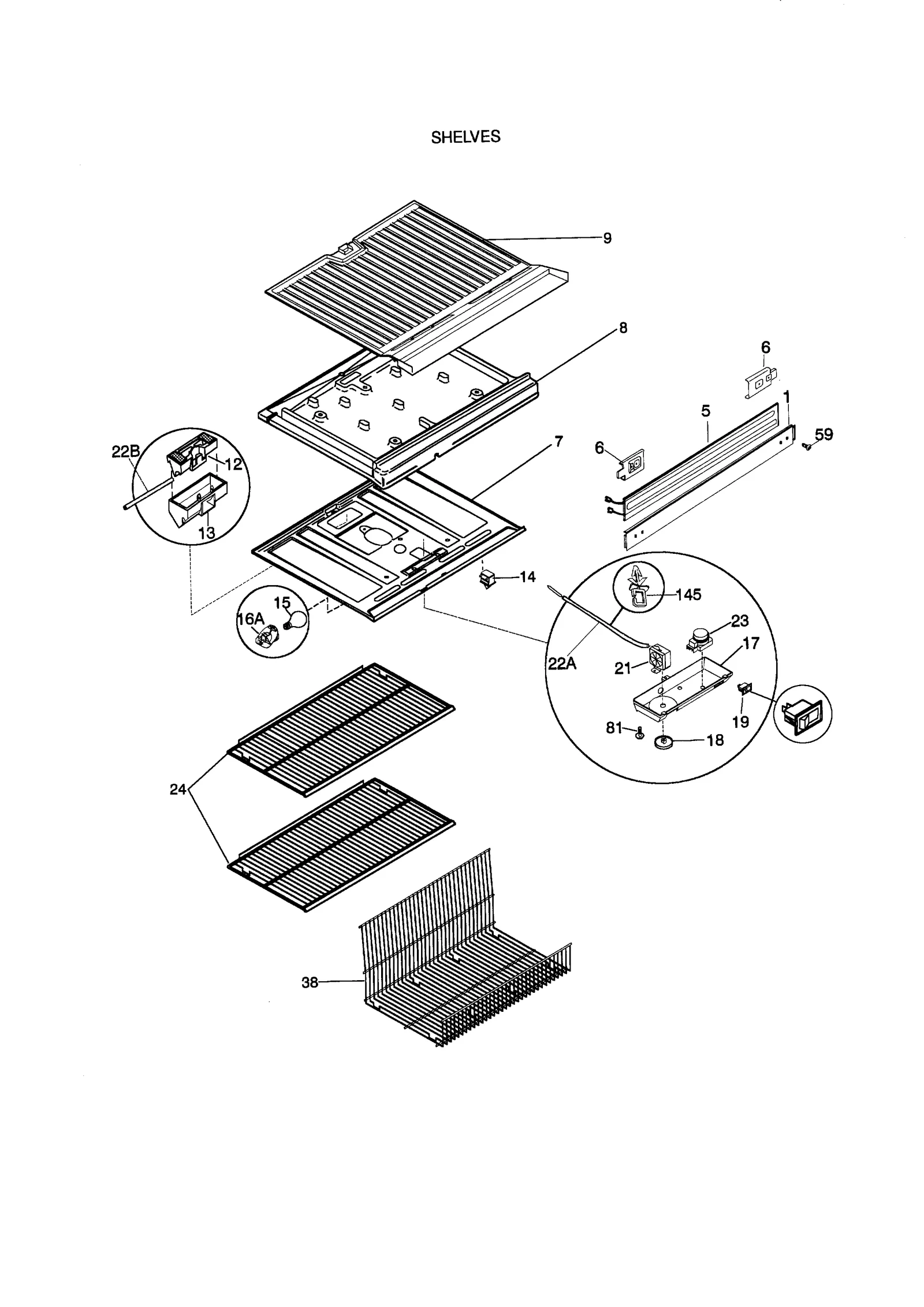

SHELVES

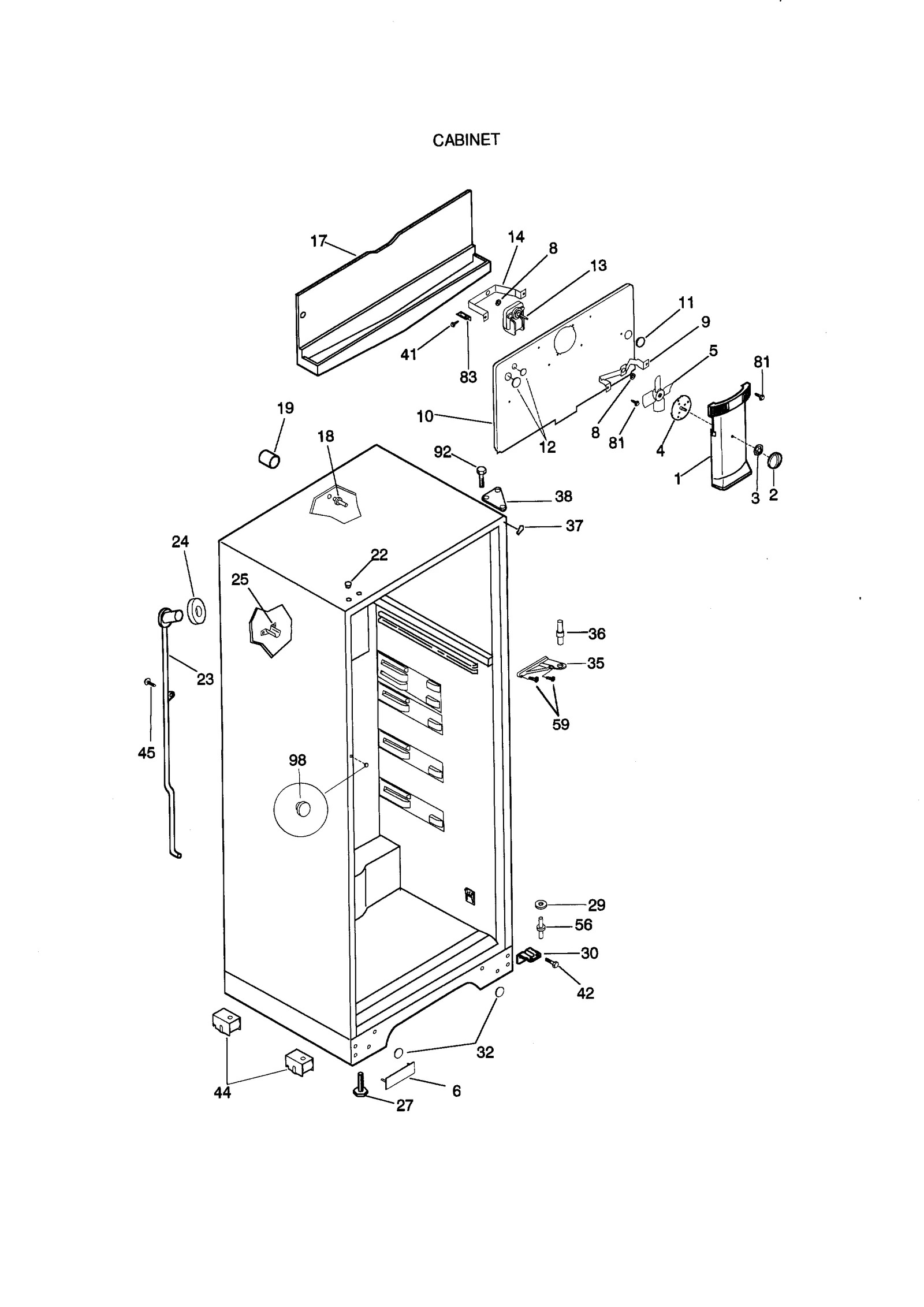

CABINET
All Parts

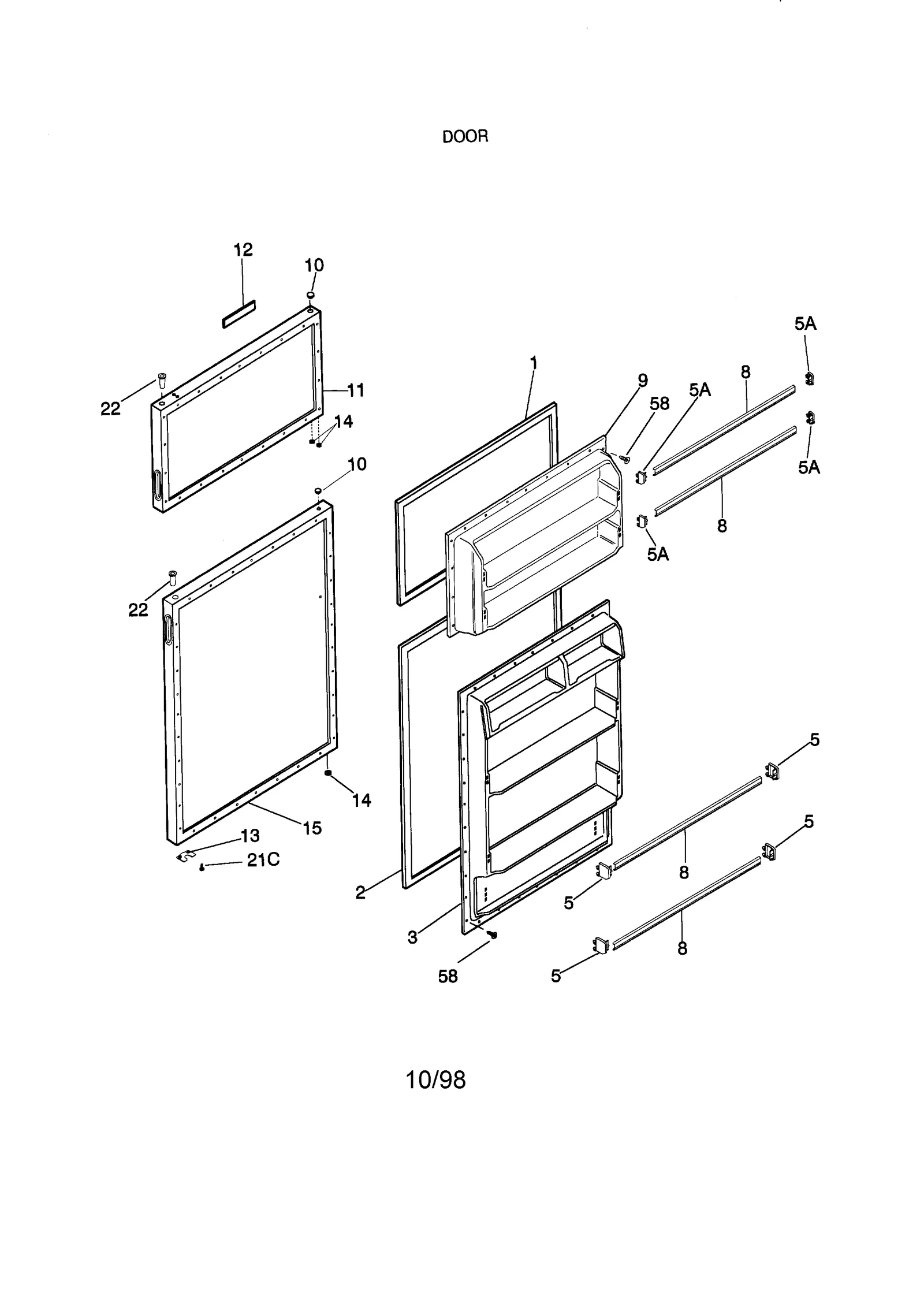

DOOR
Common parts from model Electrolux 253.67800793 Top-Mount Refrigerator (Kenmore 25367800793)
1
Refrigerator Freezer Door Gasket (White) WCI 215608916 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
3
Refrigerator Inner Panel WCI 218360003 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
6
Refrigerator Hole Cover WCI 218448301 Contact Us For Availability
8
Foam Divider WCI 218814600 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Bottom Freezer Panel WCI 218814700 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
9
Refrigerator Inner Panel WCI 218360101 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Cover WCI 3206451 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Outer Panel WCI 218508701 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12
Refrigerator Nameplate WCI 218439137 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
12A
Nameplate WCI 215366301 Contact Us For Availability
12B
Refrigerator Tape WCI 5315340712 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Ff Outer Pnl WCI 218508801 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725700 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Sliding Shelf WCI 5303307451 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
27
Refrigerator Leveling Leg WCI 3206141 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Refrigerator Washer WCI 5308000186 Contact Us For Availability
30
Refrigerator Bracket WCI 3206136 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
32
Refrigerator Cabinet Hole Plug (White) WCI 215217701 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
38
Refrigerator Trivet WCI 5303309901 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Technical Data Sheet WCI 218758400 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218786200 Contact Us For Availability
NI
Refrigerator Heater WCI 3916557 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Refrigerator Parts List WCI 5995311650 Contact Us For Availability
× ![]()
