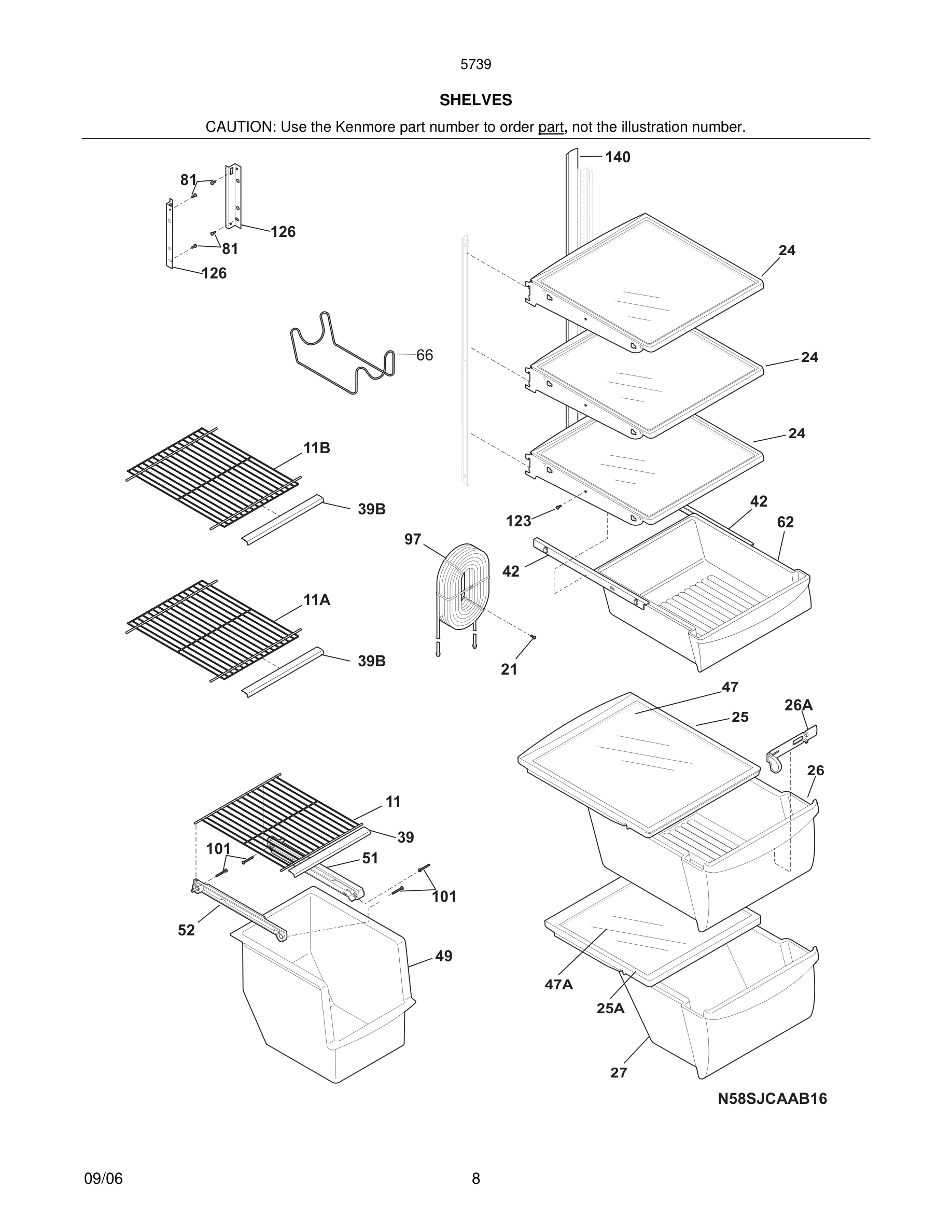

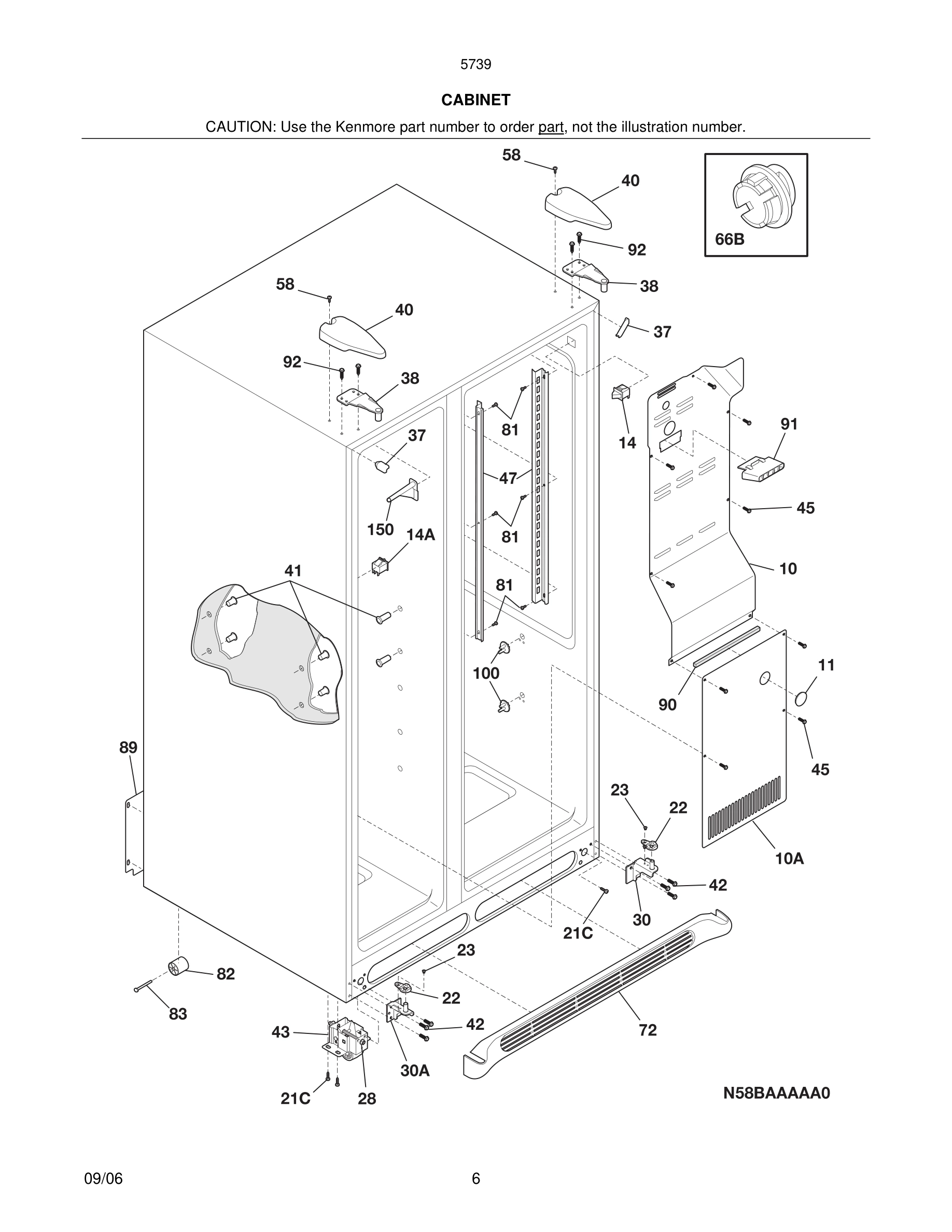

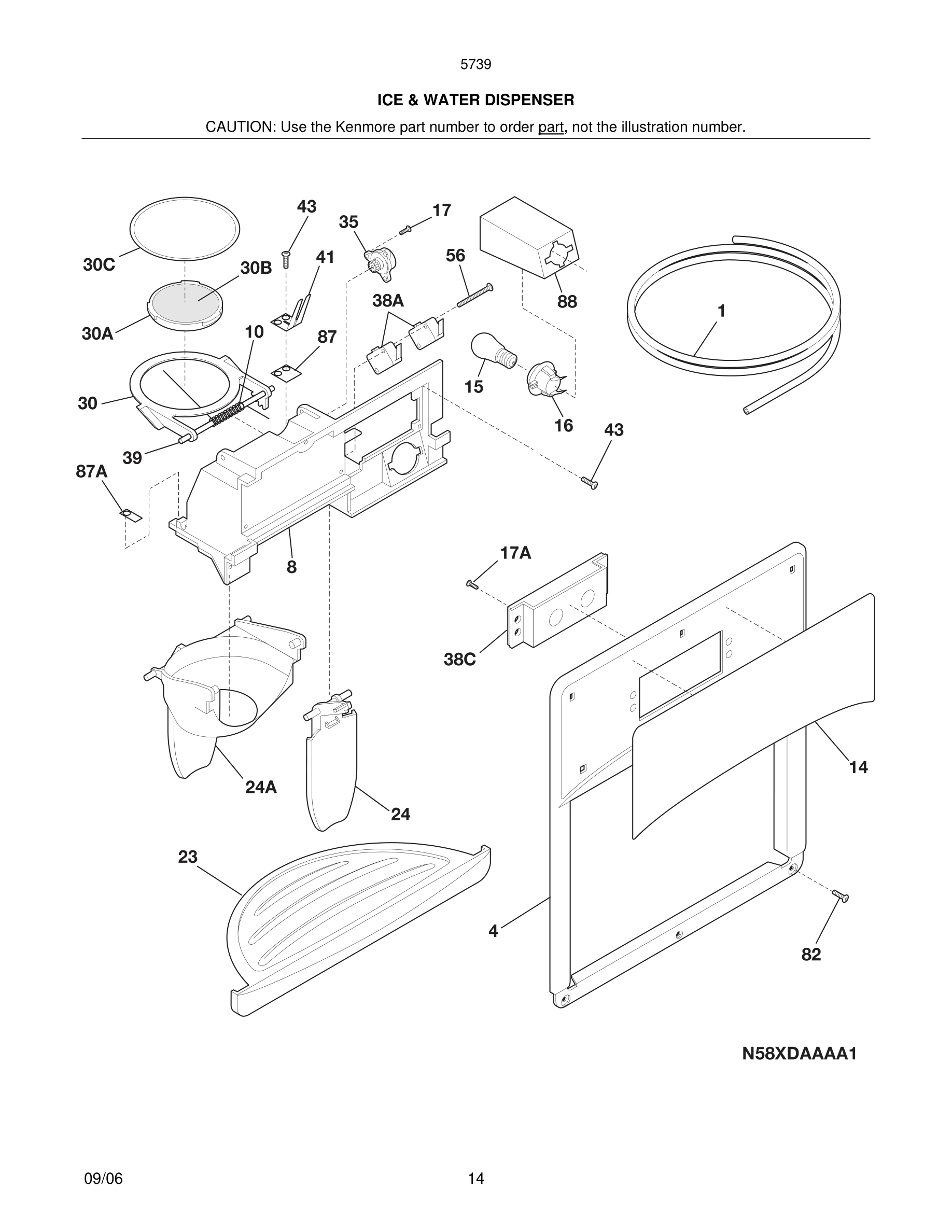

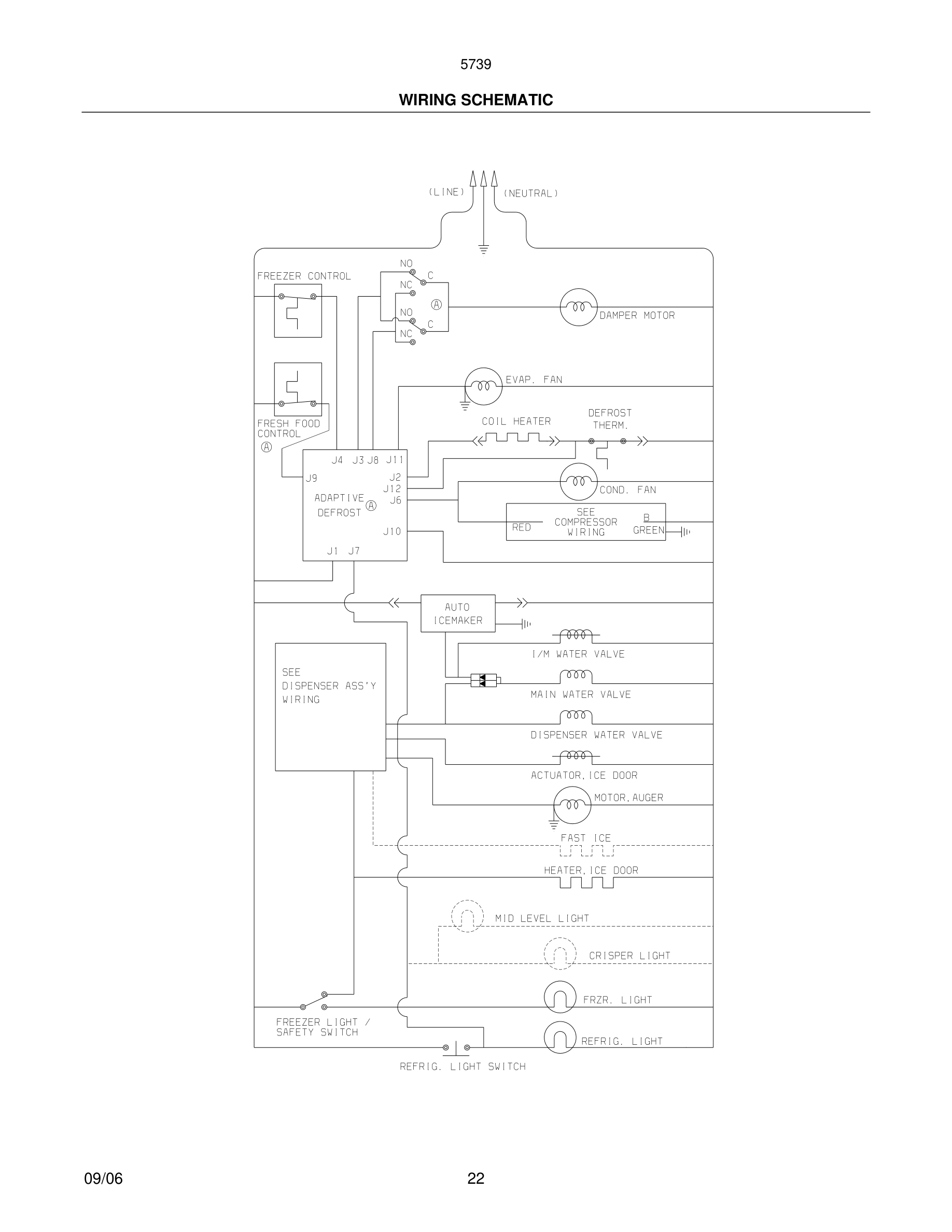

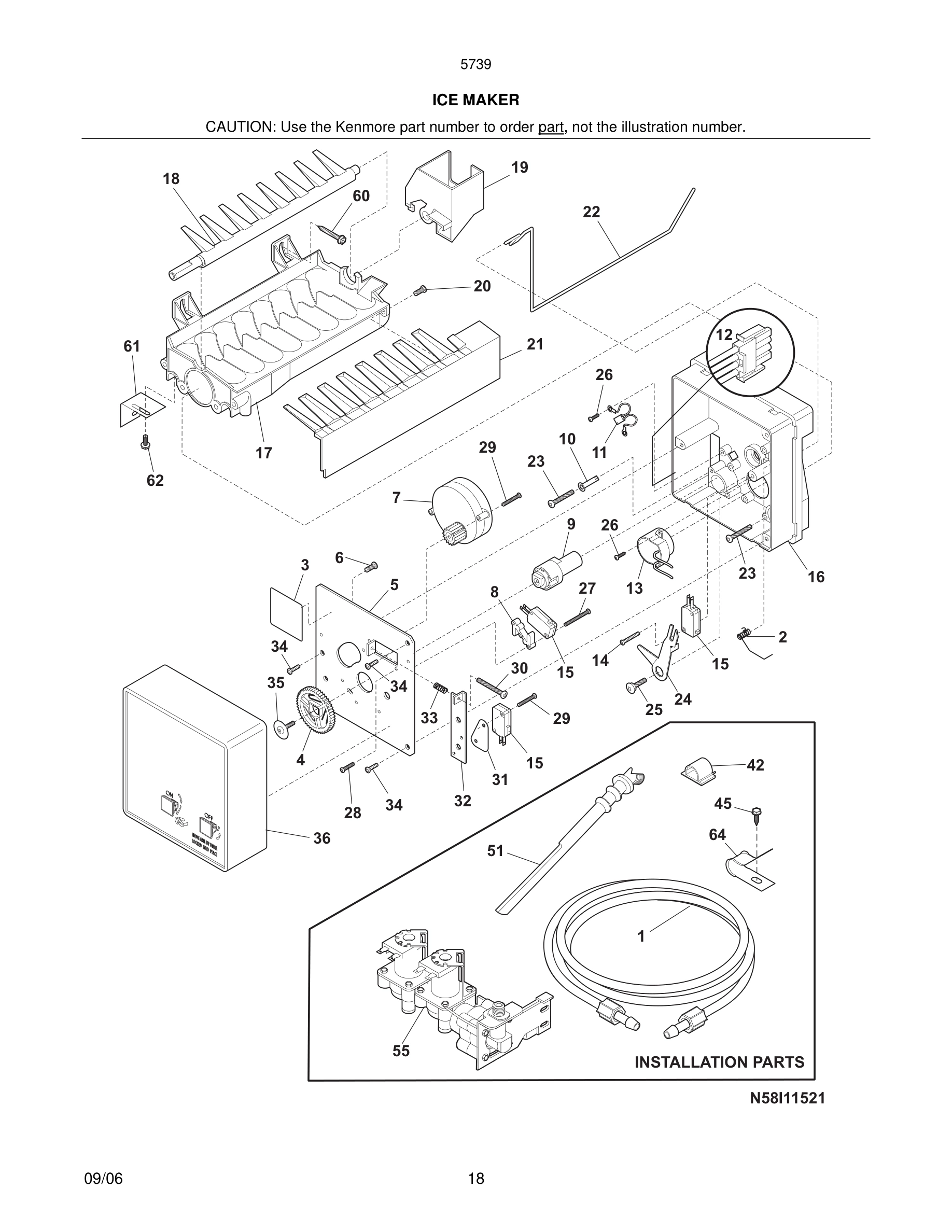

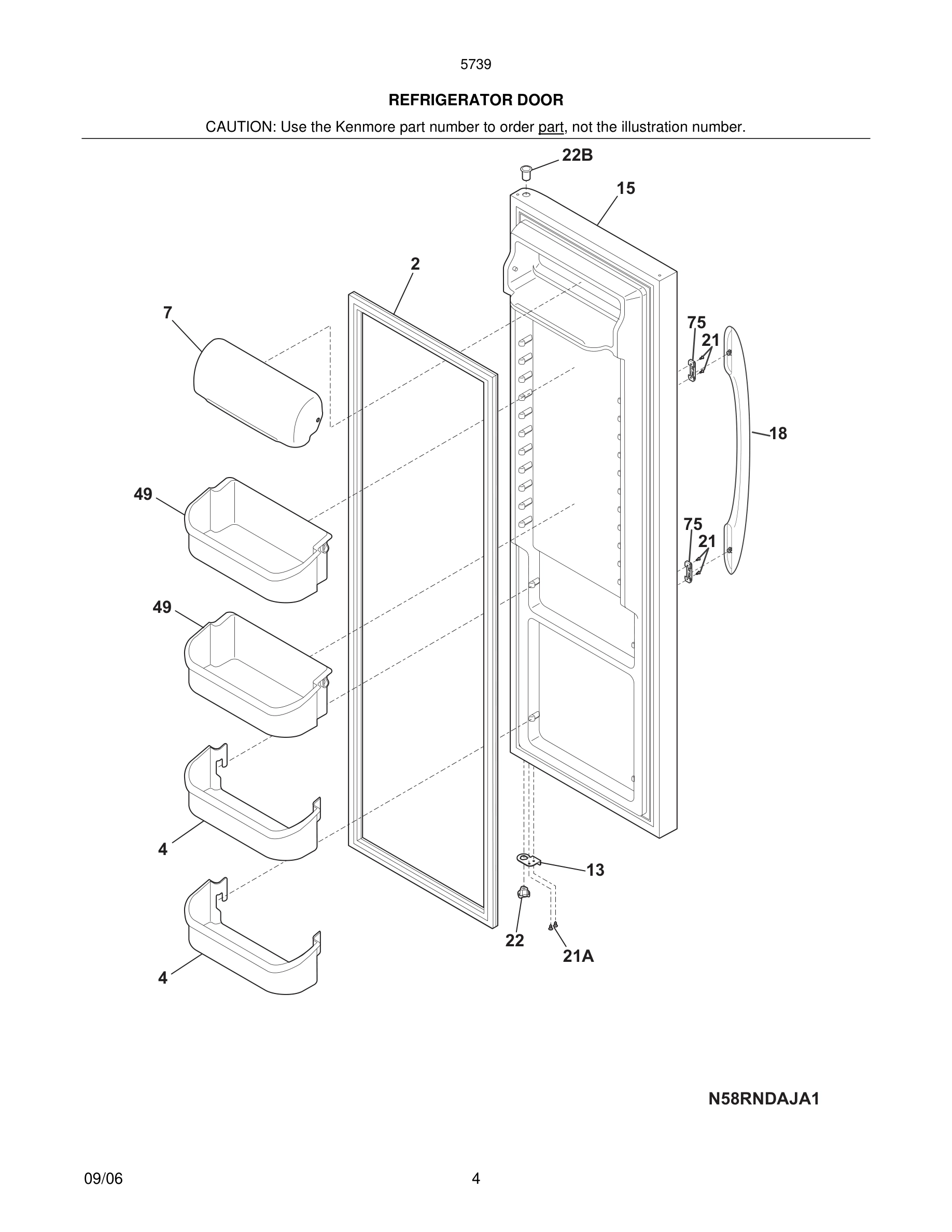

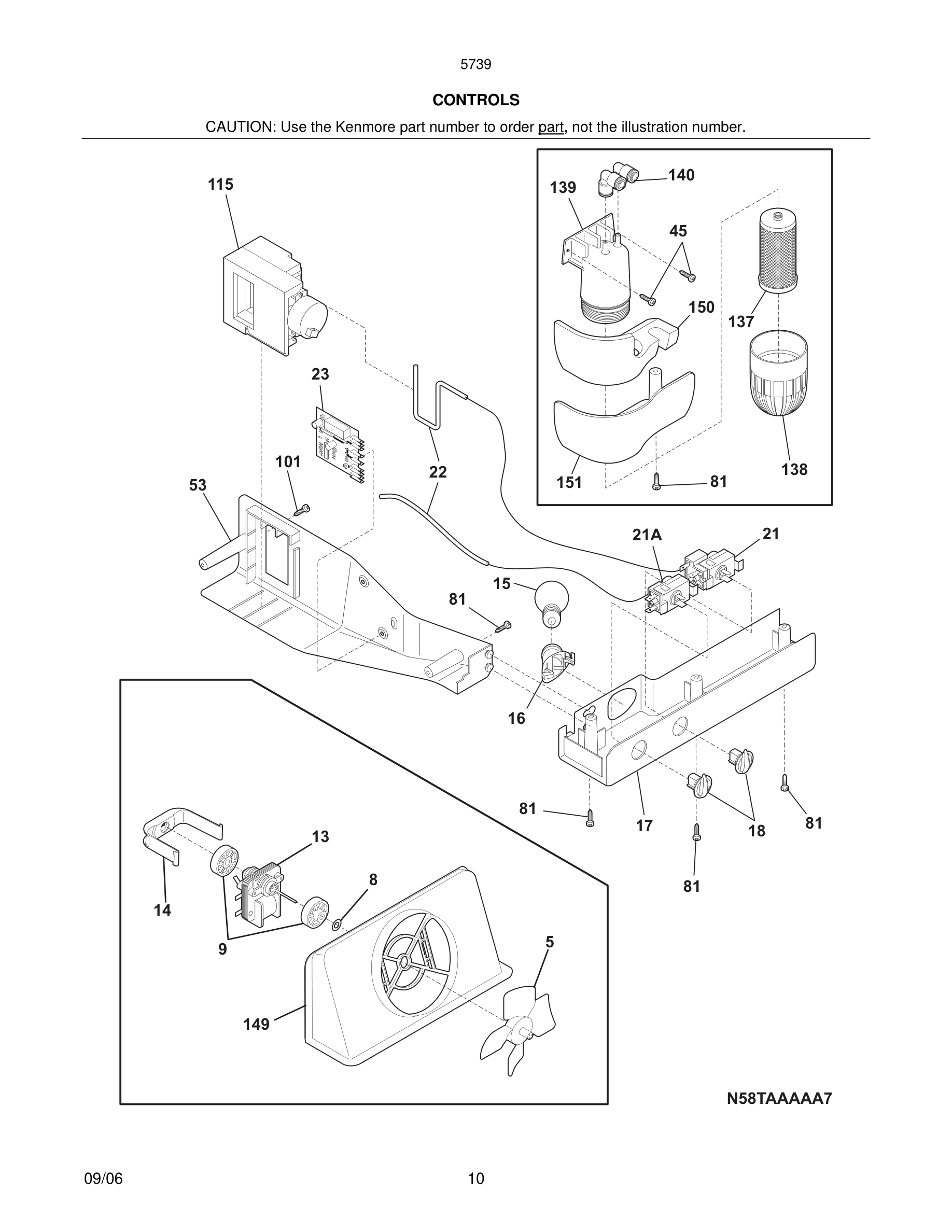

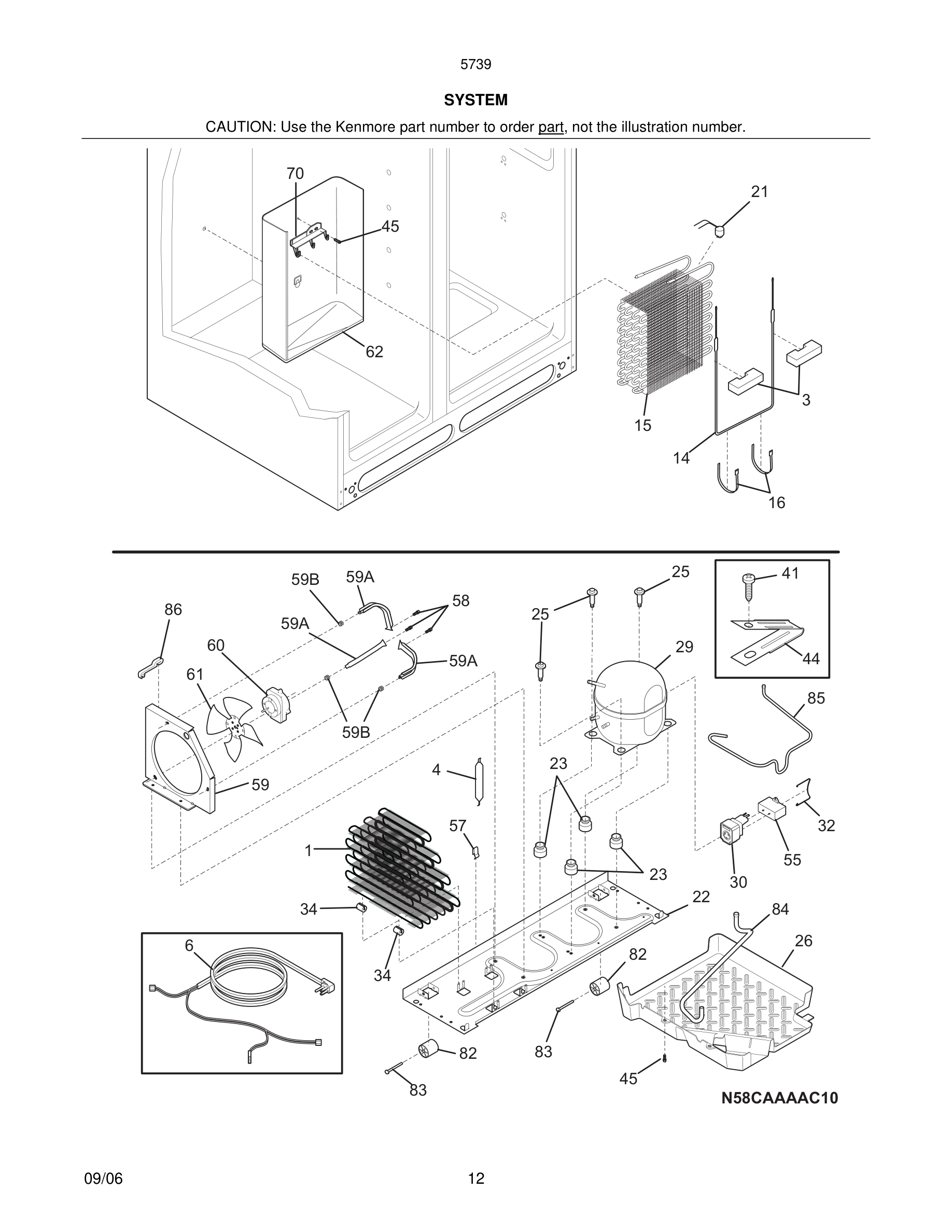

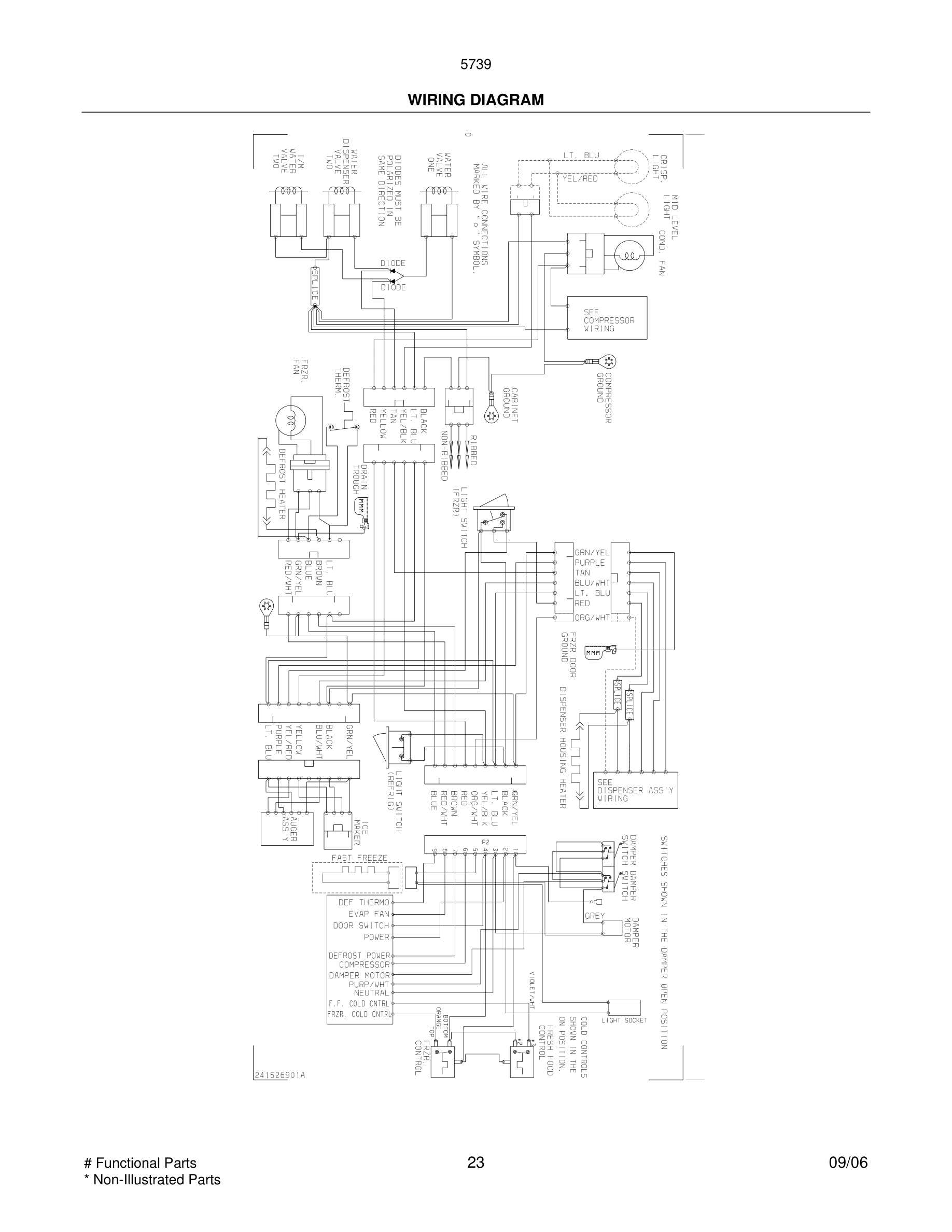

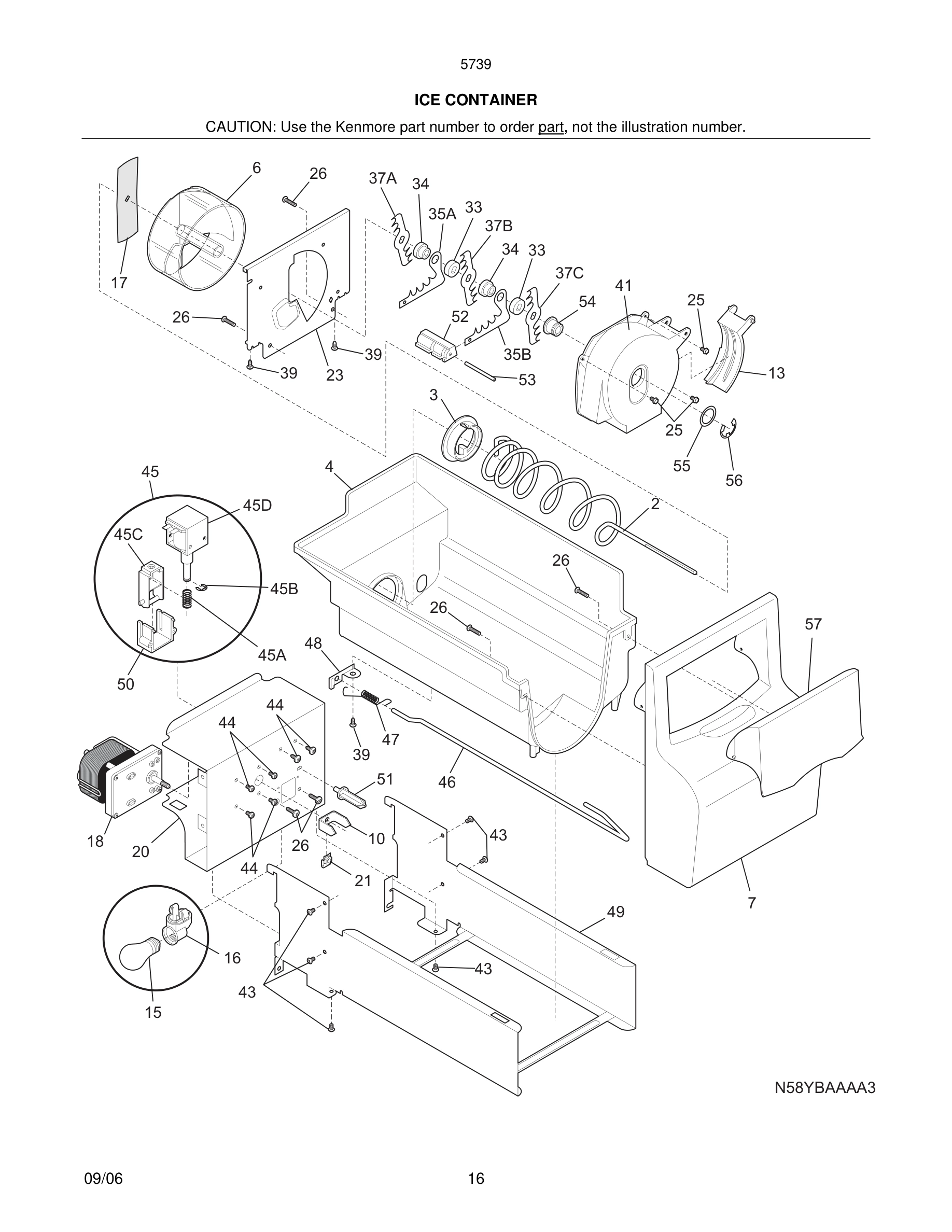

Model Kenmore 253.57398602 REFRIGERATOR – Common Parts &amp; Diagrams

*

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $48.79

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $158.98

*

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $16.66

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $461.95

*

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $62.67

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $287.35

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $47.39

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $63.75

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $86.51

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $16.07

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $91.78

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $32.71

4

240323001 Frigidaire Refrigerator Bottom Pseu In Stock WCI 240323001 $23.46

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $74.87

4A

240334201 Frigidaire Refrigerator Upper Freez In Stock WCI 240334201 $50.08

4B

240351601 Frigidaire Refrigerator Door Bin In Stock WCI 240351601 $37.94

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $45.43

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $47.85

6

Harness-wiring, machine compt WCI 241586801 Contact Us For Availability

6*

Harness-wiring WCI 241651601 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $68.10

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

Module-dispenser WCI 241680507 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $13.86

10

240435912 Frigidaire Refrigerator Air Duct Co Backorder WCI 240435912 $96.42

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $16.62

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $33.28

11

Shelf, flip up, wire WCI 241657602 Contact Us For Availability

11A

241657502 Frigidaire Refrigerator Shelf Backorder WCI 241657502 $57.85

11B

241657504 Frigidaire Refrigerator Shelf In Stock WCI 241657504 $65.02

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $98.14

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $47.16

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $98.14

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $57.12

14

240505801 Frigidaire Light Switch In Stock WCI 240505801 $52.14

14

240570237 Frigidaire Refrigerator Front Dispe In Stock WCI 240570237 $22.37

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $19.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $22.72

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $403.66

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $67.67

16

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $46.57

16

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $53.27

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.23

17

241679801 Frigidaire Screw Backorder WCI 241679801 $11.09

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $12.72

18

Knob, temp control WCI 240360801 Contact Us For Availability

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $114.88

21#

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $34.11

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.76

22

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $11.66

22

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $28.45

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $52.55

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $17.89

23

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $51.57

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $117.03

23

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

24

240355270 Frigidaire Spill Safe Glass Shelf F In Stock WCI 240355270 $124.79

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $52.12

24A

5304493024 Frigidaire Refrigerator Lighted Bl In Stock WCI 5304493024 $206.66

25

240350702 Frigidaire Refrigerator Upper Crisp In Stock WCI 240350702 $31.79

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $10.50

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $34.37

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $8.31

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $14.99

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $54.34

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $46.44

30#

241707701 Frigidaire Refrigerator Starter In Stock WCI 241707701 $66.49

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $40.91

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $43.75

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $42.64

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $6.61

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $15.51

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $6.09

35

Damper-rotary WCI 241689301 No Longer Available

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $12.72

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $13.29

37

Trim-cabinet corner, black, (2) WCI 240337603 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $16.07

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $16.07

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $16.07

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $13.13

38A*

241679201 Frigidaire Refrigerator Wiring Harn Backorder WCI 241679201 $64.34

38C#

5304525097 Frigidaire Refrigerator 4 Button S Backorder WCI 5304525097 $75.98

38C*

5304521693 Frigidaire Refrigerator Facade Har Backorder WCI 5304521693 $24.95

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $33.82

39

Trim-shelf, 11.21", front WCI 240430706 Contact Us For Availability

39B

Trim-shelf, 12.39", front WCI 240430702 No Longer Available

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $42.16

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $46.57

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $17.18

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $13.29

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $22.73

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $44.09

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $45.51

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $11.07

44

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $8.31

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.33

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $54.88

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $50.46

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $34.37

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $11.09

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $81.93

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $83.77

49

240564401 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564401 $112.65

49

241734501 Frigidaire Refrigerator Rail Backorder WCI 241734501 $144.76

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $62.67

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $47.70

51

Rotation Stop WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $51.25

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $22.19

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $57.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.94

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $15.51

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $13.88

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.97

56

Screw-micro switch, pan head WCI 241689201 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $39.60

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $12.20

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $23.27

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $9.96

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $24.62

62

240342830 Frigidaire Meat Pan Backorder WCI 240342830 $42.45

66B

Diffuser-air WCI 240374301 Contact Us For Availability

66B*

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $12.75

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $60.13

75

Clip-handle, (2) WCI 241696101 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $15.51

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $15.51

88

Shield-light WCI 241686101 Contact Us For Availability

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $55.17

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $54.90

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $219.65

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.50

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.87

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $11.64

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $37.17

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $33.82

137

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $39.24

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $3.60

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $59.34

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $10.12

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $55.39

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $76.55

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $53.77

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
