Model Electrolux 253.38642894 Top-Mount Refrigerator (Kenmore 25338642894) – Common Parts & Diagrams

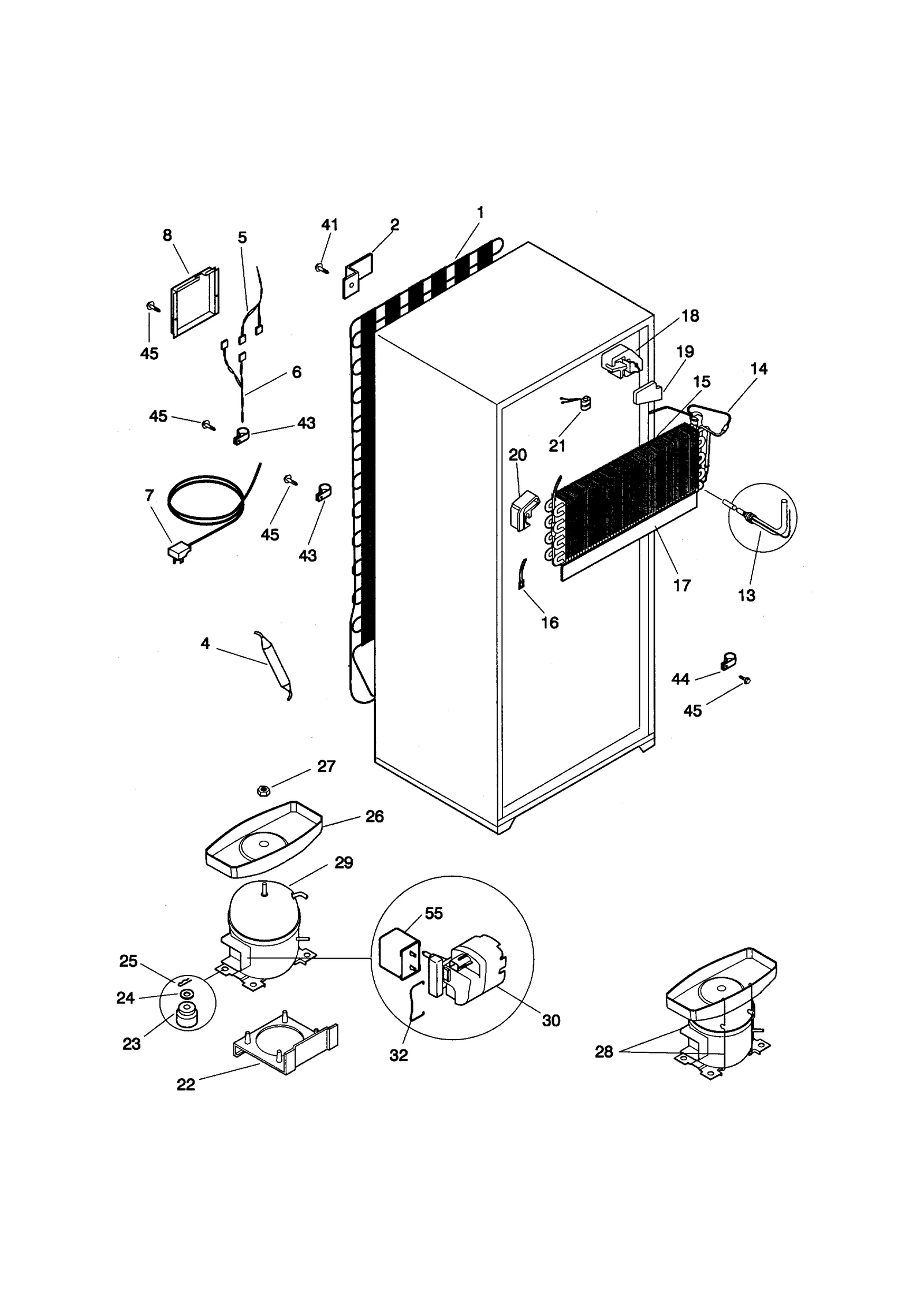

SYSTEM
SYSTEM

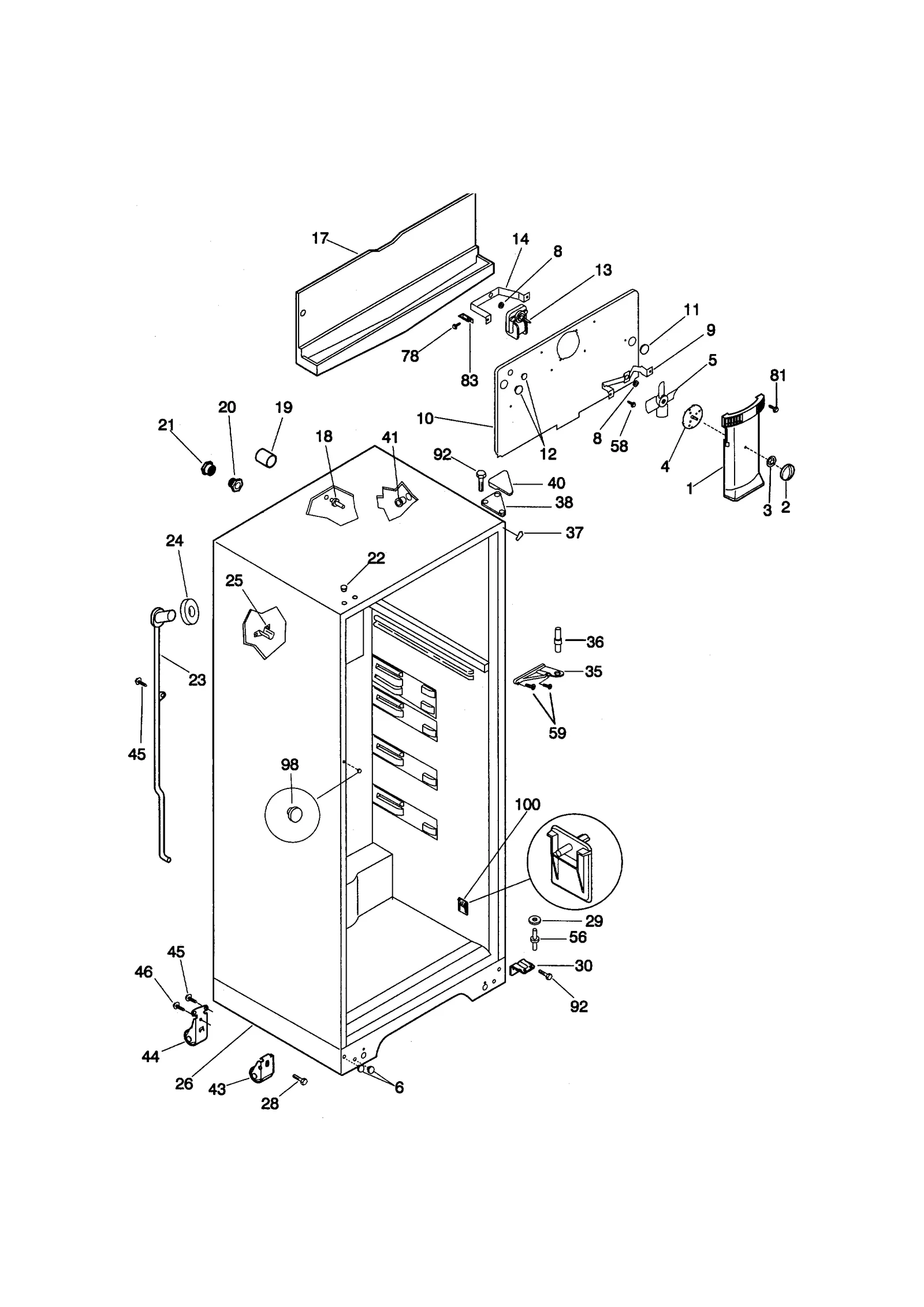

CABINET
CABINET

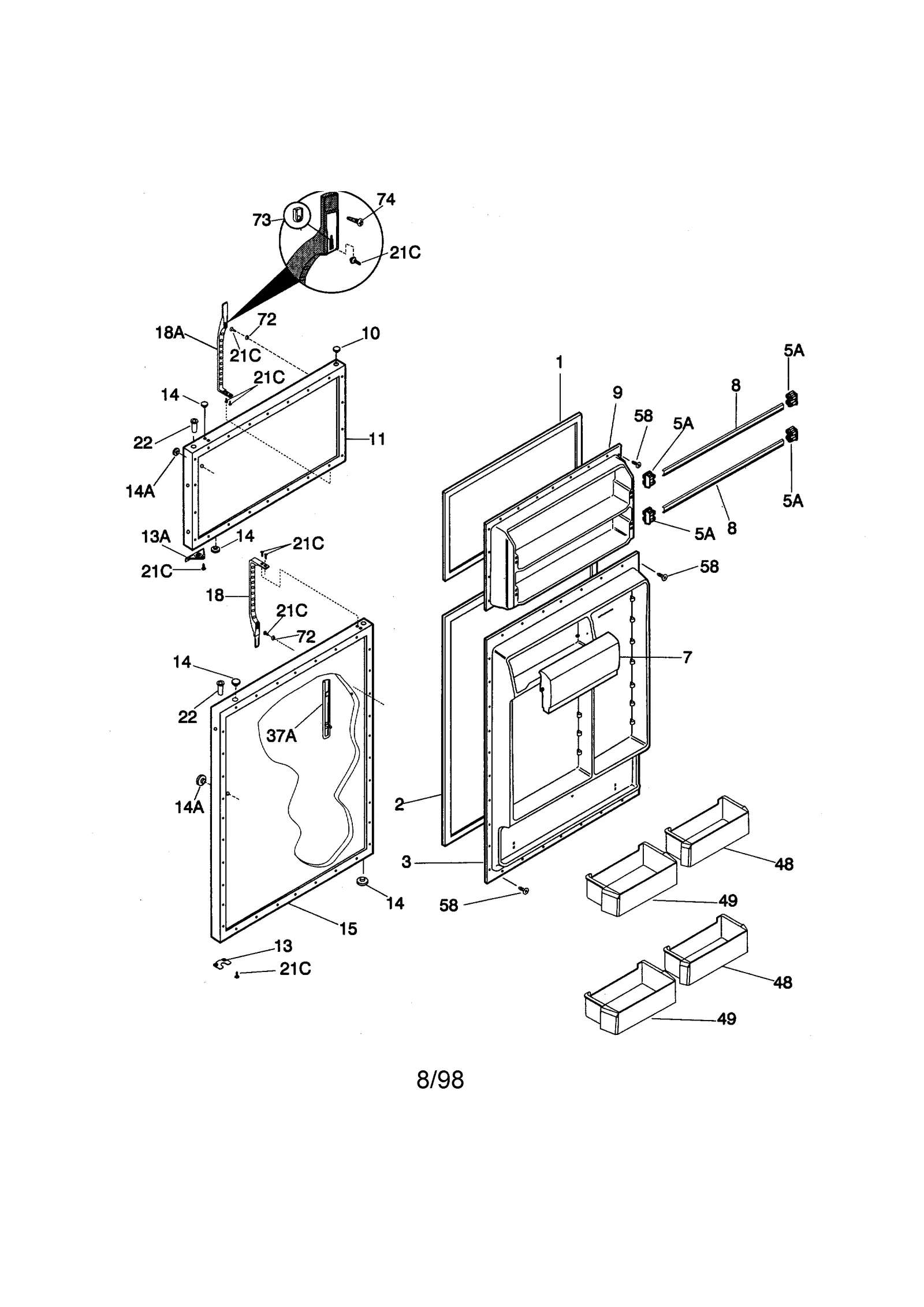

DOOR
DOOR

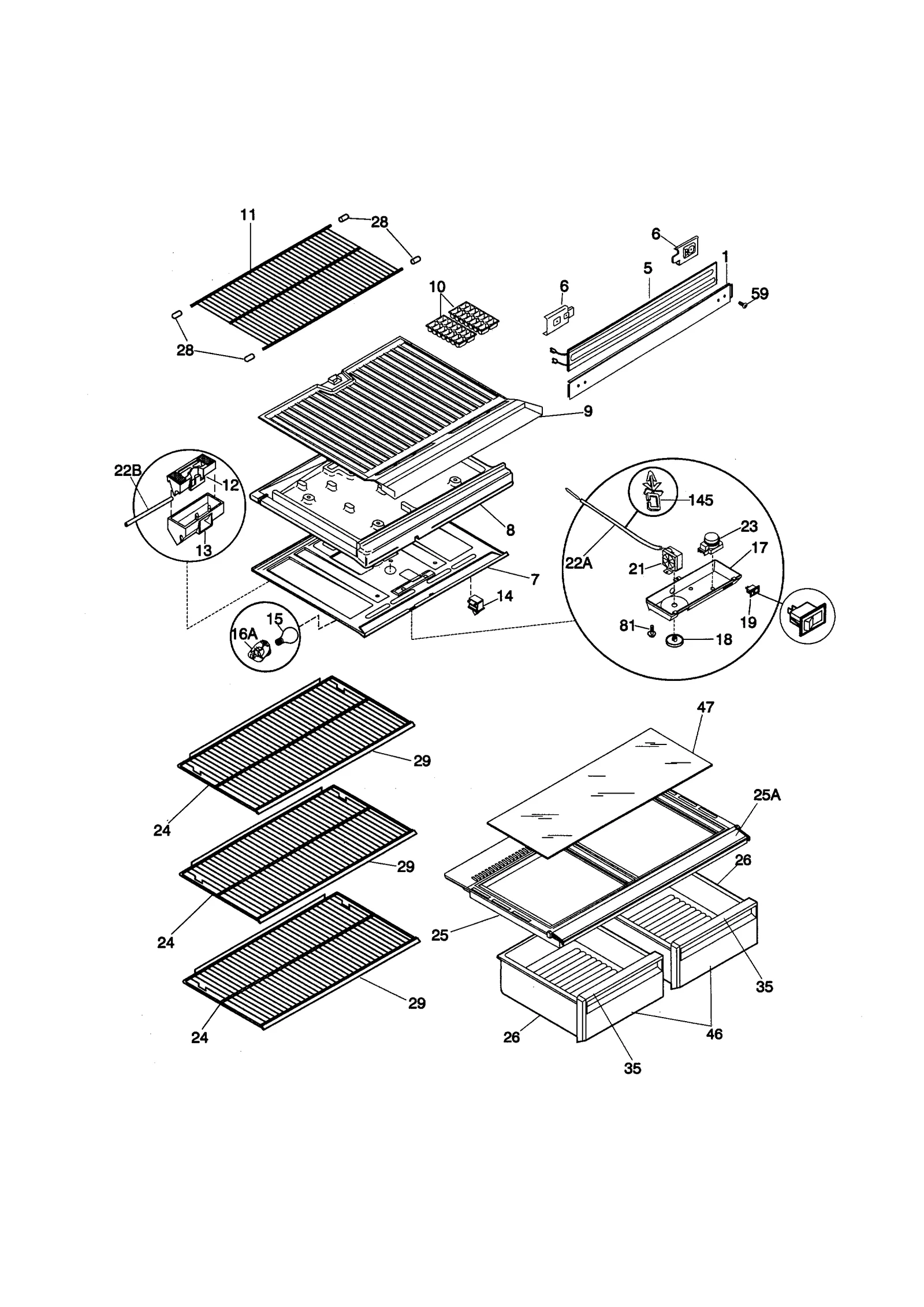

SHELVES
SHELVES
Common parts from model Electrolux 253.38642894 Top-Mount Refrigerator (Kenmore 25338642894)
1
Refrigerator Freezer Door Gasket (Almond) WCI 5303288856 Contact Us For Availability
1
Refrigerator Mullion WCI 218651801 Contact Us For Availability
1A
Refrigerator Freezer Door Gasket (White) WCI 5308007123 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651800 Contact Us For Availability
3
Refrigerator Inner Panel WCI 218359301 Contact Us For Availability
5
Heater Mullion WCI 218781001 Contact Us For Availability
6
Refrigerator Button WCI 5303001389 Contact Us For Availability
6
Tapping Plate WCI 218845600 Contact Us For Availability
7
Refrigerator Dairy Door WCI 218287818 Contact Us For Availability
7
Ff Top Panel WCI 218865801 Contact Us For Availability
8
Divider Styf WCI 218865700 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Refrigerator Inner Door Panel WCI 218358801 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
11
Refrigerator Freezer Wire Shelf WCI 5303283107 Contact Us For Availability
11
Freezer Out Panel WCI 5303918006 Contact Us For Availability
11A
Refrigerator Freezer Drive Panel WCI 5303918005 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
13AA
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Door Hinge Hole Plug WCI 5308000181 Contact Us For Availability
14A
Refrigerator Button Plug WCI 215352211 Contact Us For Availability
15
Refrigerator Evaporator WCI 218818701 Contact Us For Availability
15
Ald Dr Panel WCI 5303918008 Contact Us For Availability
15A
Refrigerator Drive Panel WCI 5303918007 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability
18AA
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Shelf WCI 218272501 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218314110 Contact Us For Availability
25A
Cover Trim WCI 5304403087 Contact Us For Availability
26
Refrigerator Crisper Drawer WCI 3206180 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605002 Contact Us For Availability
26A
Refrigerator Cabinet Base WCI 218605001 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Washer WCI 218666700 Contact Us For Availability
29
Refrigerator Shelf Trim WCI 218366101 Contact Us For Availability
30
Kelvinator Refrigerator Compressor Overload a WCI 218721101 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220200 Contact Us For Availability
30B
Tapping Plate WCI 218605200 Contact Us For Availability
30C
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
35
Refrigerator Crisper Trim WCI 5303317419 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220101 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Lo Trim Hand WCI 218771202 Contact Us For Availability
37AA
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
40
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
40A
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
45
Wiring Screw WCI 218754500 Contact Us For Availability
46
Refrigerator Crisper Drawer WCI 5303307450 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Glass WCI 218498143 Contact Us For Availability
48
Refrigerator Door Bucket WCI 218286008 Contact Us For Availability
49
Refrigerator Door Bucket WCI 5304401374 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
98A
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Sound Cover WCI 218750100 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995309944 Contact Us For Availability
× ![]()
