Model Electrolux 253.38627898 Top-Mount Refrigerator (Kenmore 25338627898) – Common Parts & Diagrams

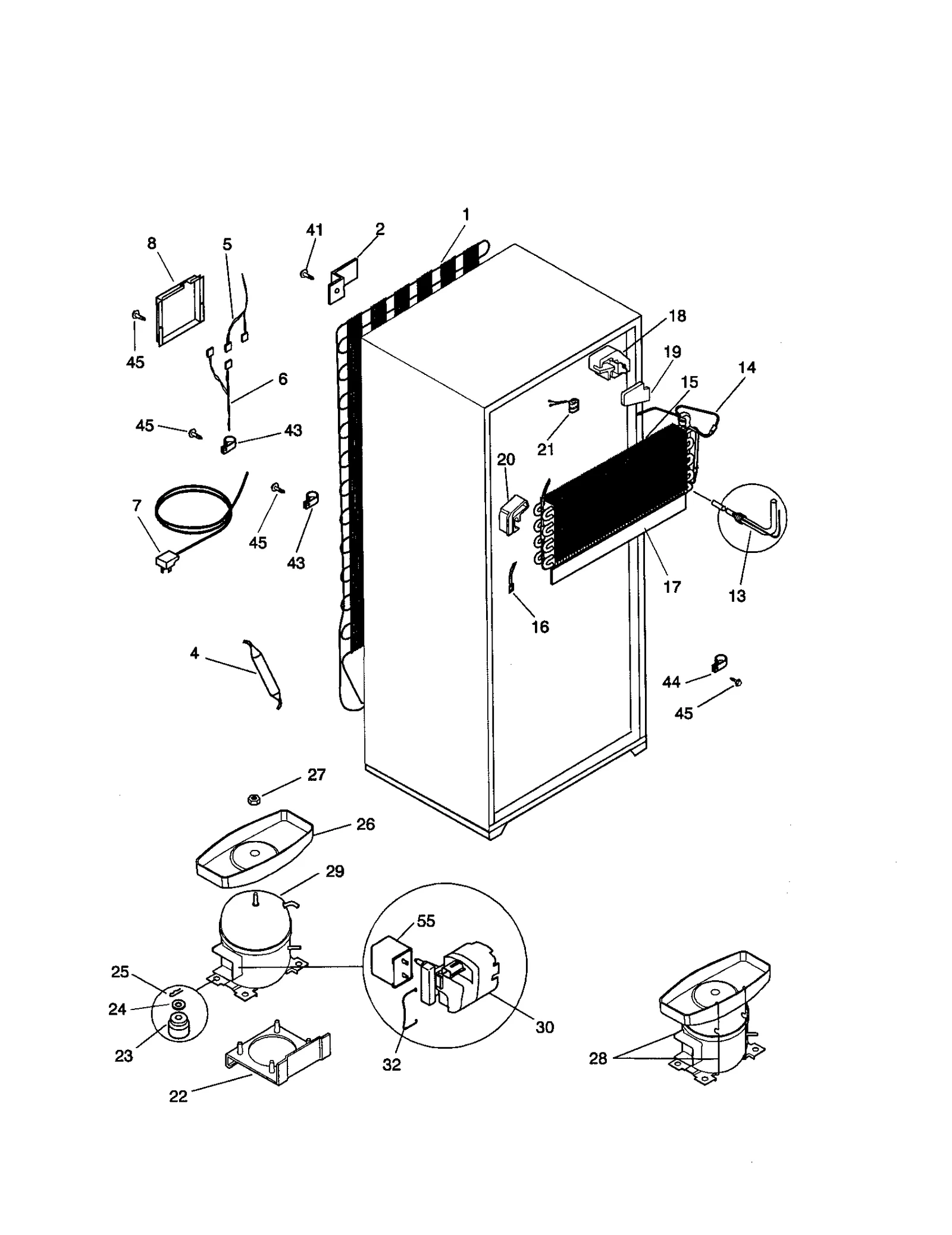

SYSTEM

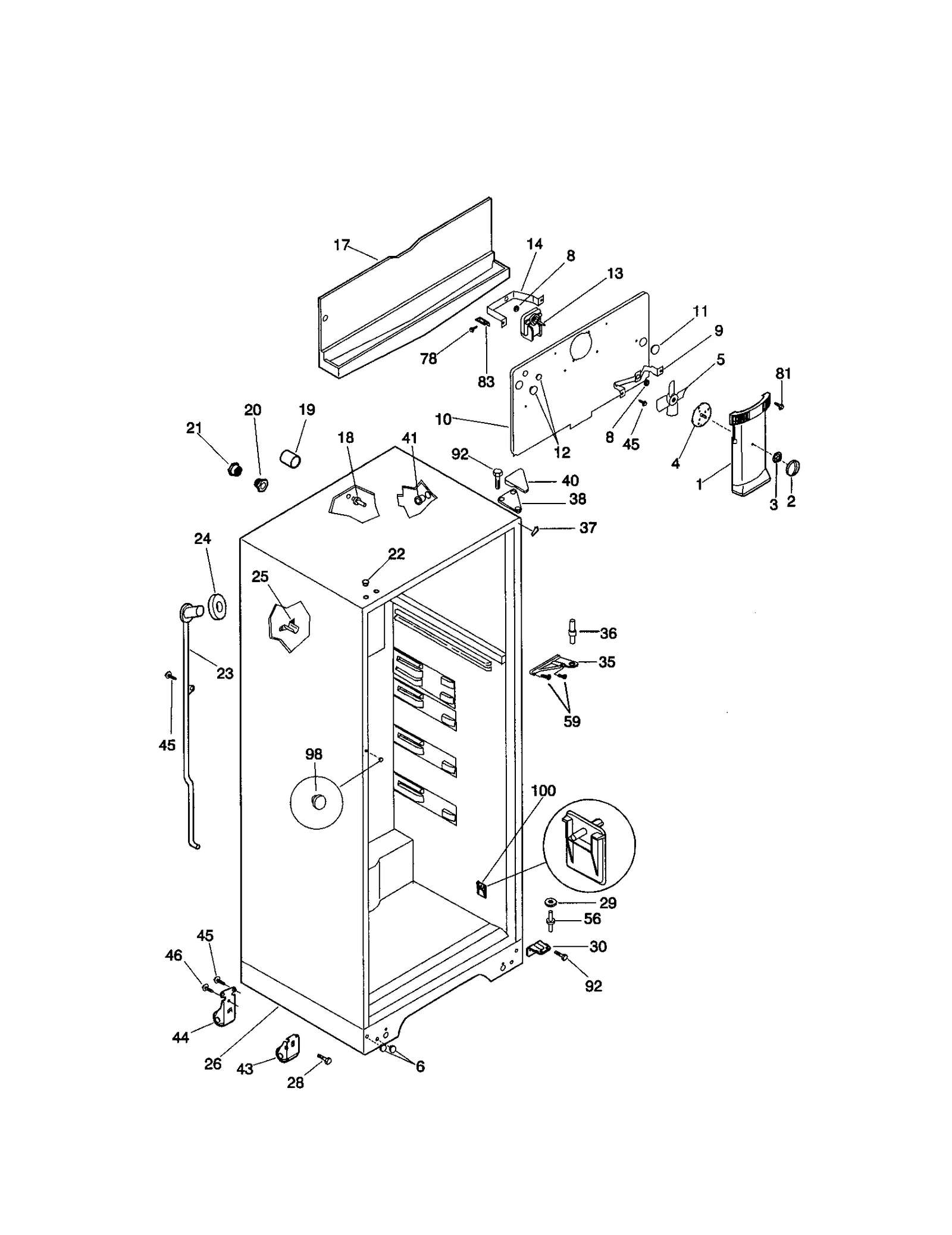

CABINET

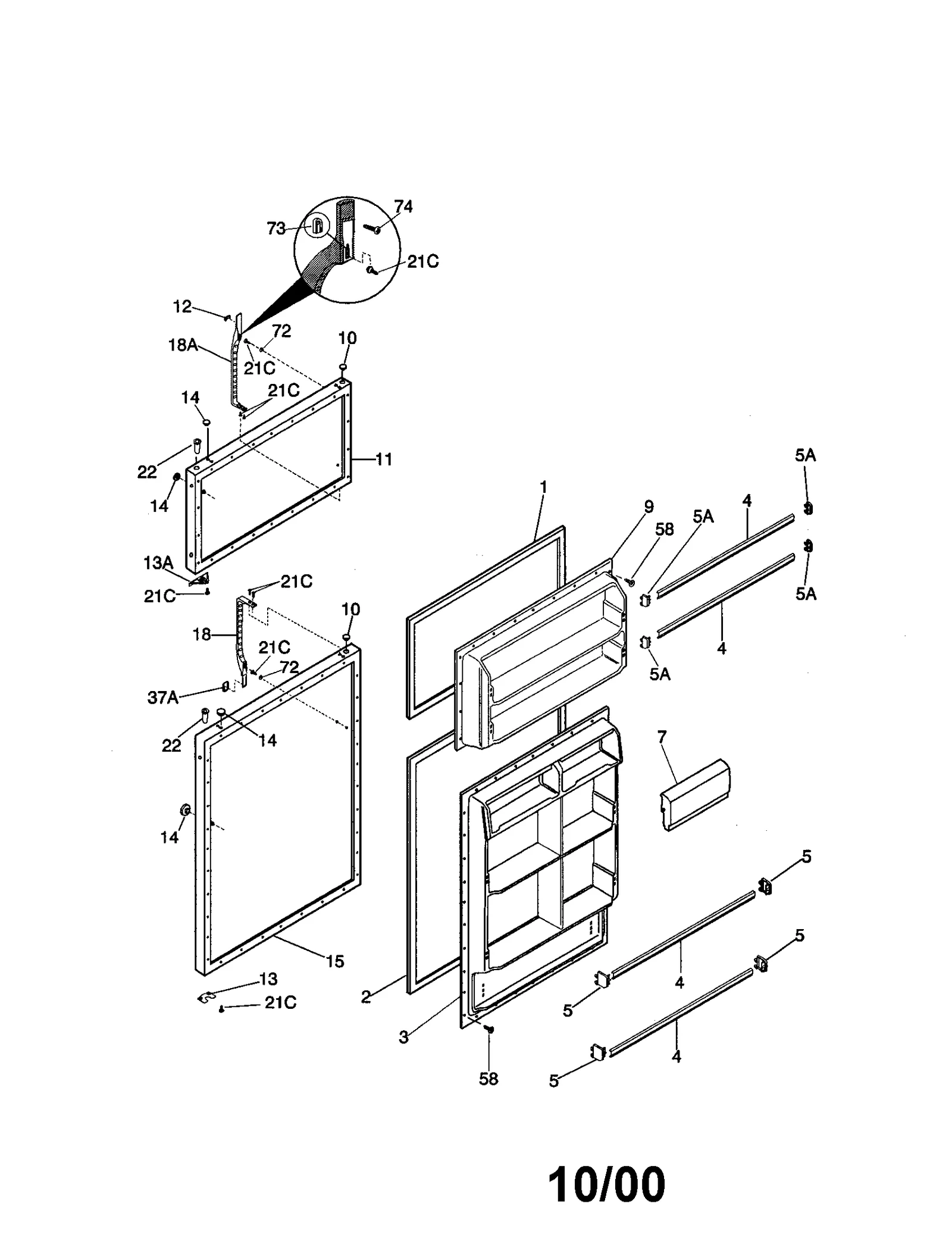

DOOR
All Parts

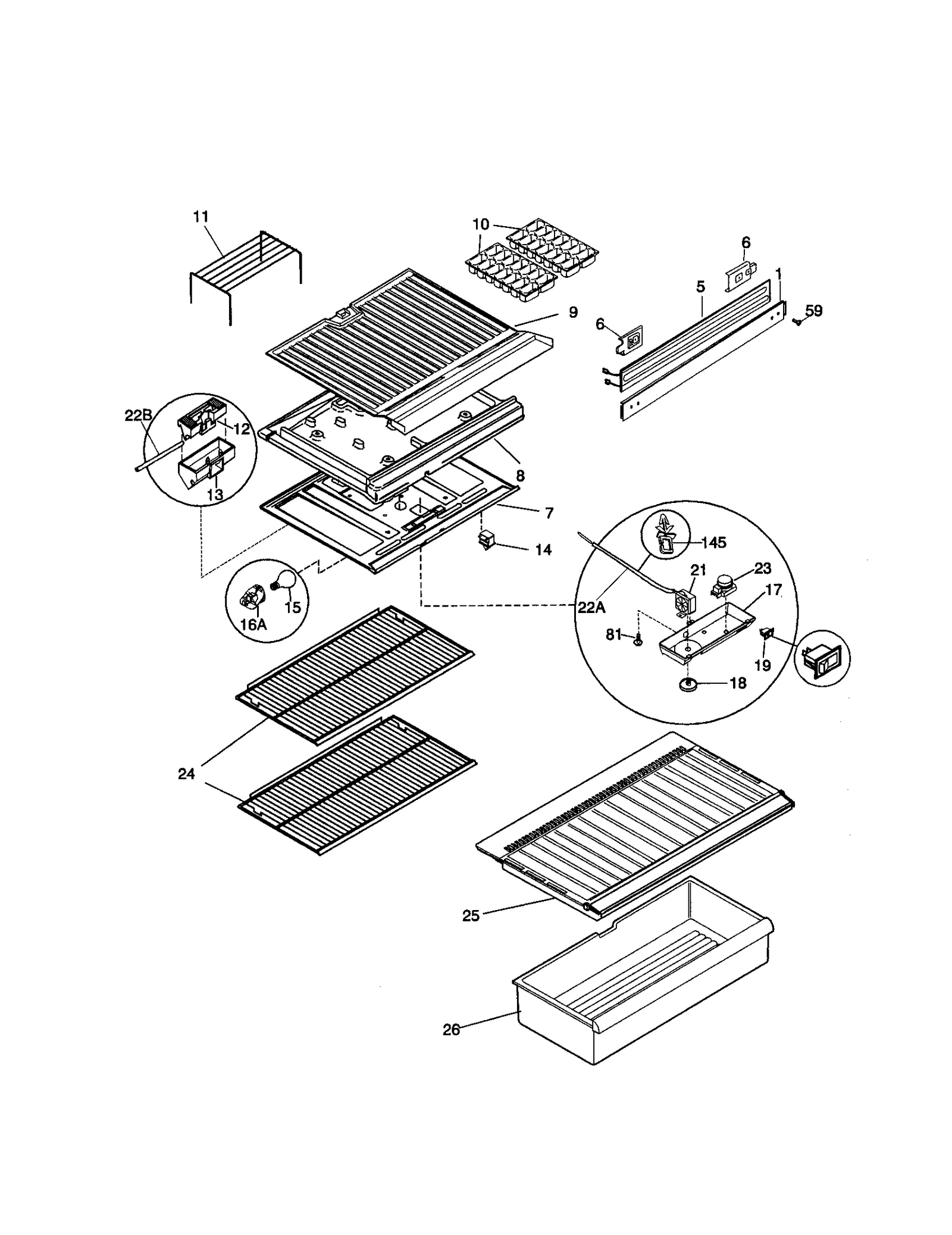

SHELVES
SHELVES
Common parts from model Electrolux 253.38627898 Top-Mount Refrigerator (Kenmore 25338627898)
1
Refrigerator Freezer Door Gasket (White) WCI 5308007123 Contact Us For Availability
1
Refrigerator Mullion WCI 218651801 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651800 Contact Us For Availability
3
Ff Inner Pnl WCI 218359001 Contact Us For Availability
5
Heater Mullion WCI 218781004 Contact Us For Availability
6
Refrigerator Button WCI 5303001389 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Ff Top Panel WCI 218865801 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Divider Styl WCI 218909705 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Refrigerator Inner Door Panel WCI 218358801 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
11
Freezer Out Panel WCI 5303918006 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303283280 Contact Us For Availability
11A
Refrigerator Freezer Drive Panel WCI 5303918005 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
12A
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
13AA
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Button Plug WCI 218915702 Contact Us For Availability
15
Refrigerator Evaporator WCI 218818701 Contact Us For Availability
15
Ald Dr Panel WCI 5303918008 Contact Us For Availability
15A
Refrigerator Drive Panel WCI 5303918007 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5304414816 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability
18AA
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Shelf WCI 218272502 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218227301 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
30
Refrigerator Compressor Start Relay WCI 218721108 Contact Us For Availability
35
Refrigerator Door Hinge Bracket, Center WCI 218998902 Contact Us For Availability
35A
Refrigerator Door Hinge WCI 218998901 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Lo Trim Hand WCI 218771202 Contact Us For Availability
37AA
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
40A
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43B
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
98A
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218972600 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Repair Parts WCI 5995344263 Contact Us For Availability
× ![]()
