Model Electrolux 253.36809890 Top-Mount Refrigerator (Kenmore 25336809890) – Common Parts & Diagrams

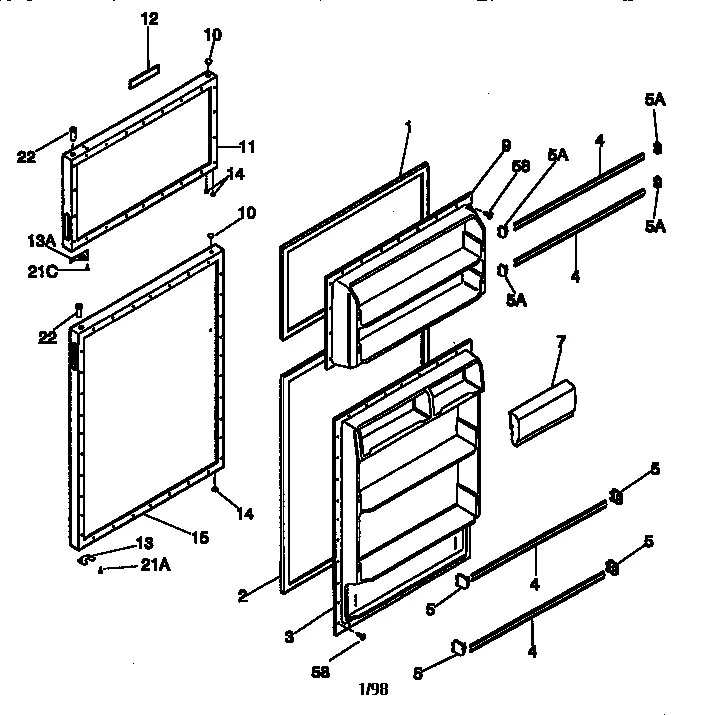

DOORS
All Parts

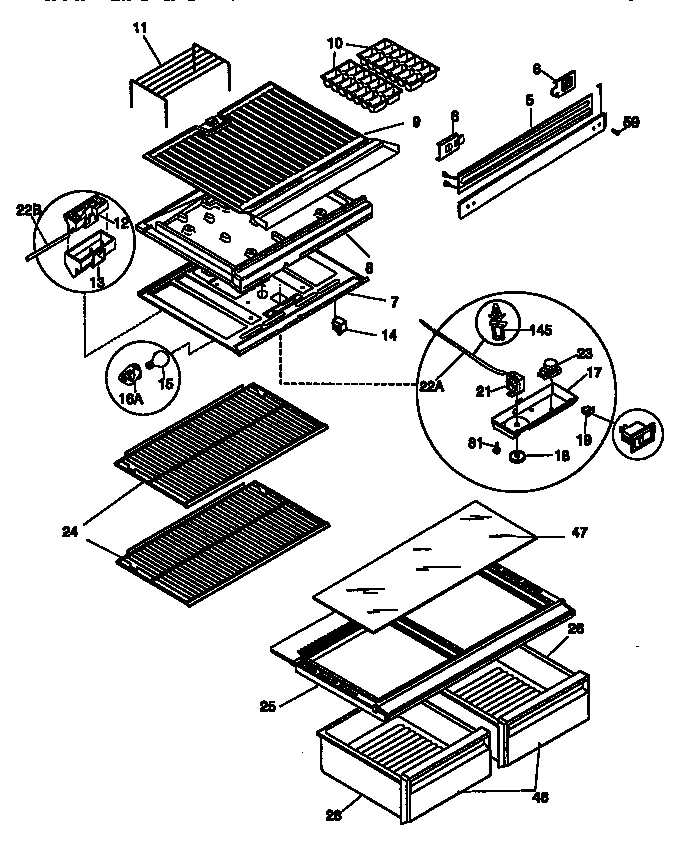

SHELVES AND DIVIDER BLOCK

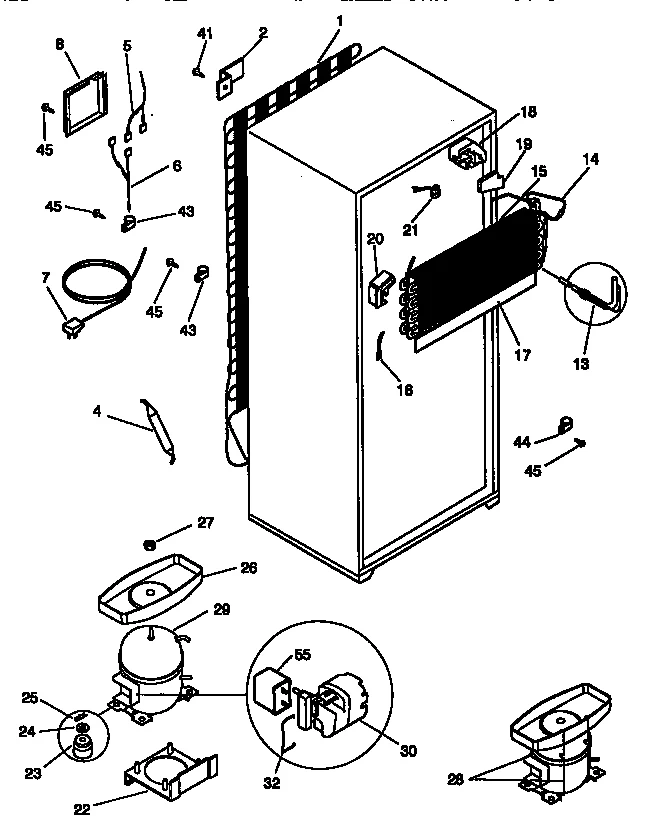

UNIT PARTS

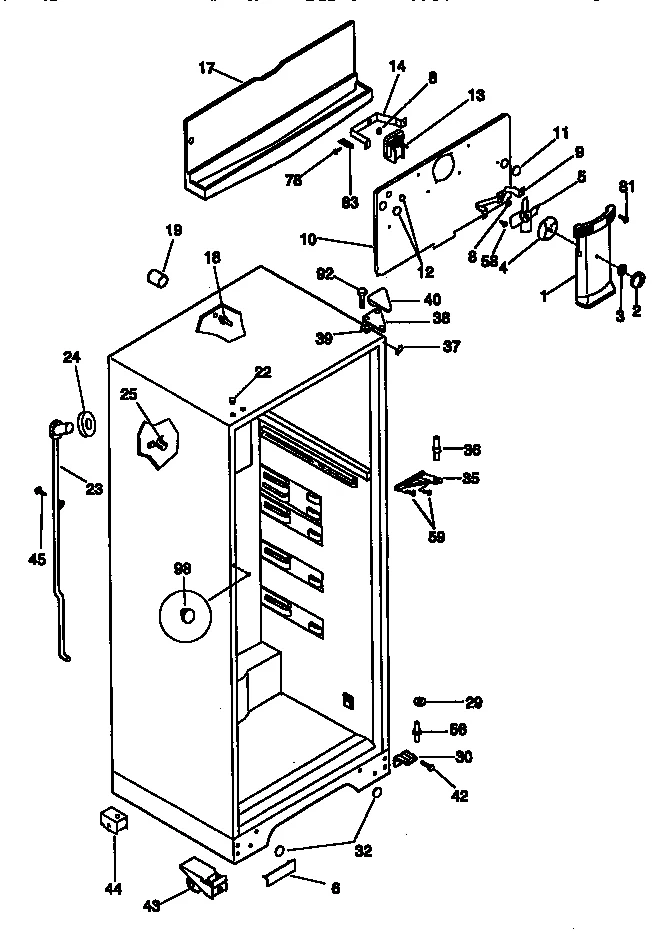

CABINET PARTS
Common parts from model Electrolux 253.36809890 Top-Mount Refrigerator (Kenmore 25336809890)
1
Refrigerator Freezer Door Gasket (White) WCI 215608916 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2A
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2B
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Inner Panel WCI 218360001 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Refrigerator Harness WCI 3018900 Contact Us For Availability
6
Refrigerator Wire Harness WCI 215257004 Contact Us For Availability
6
Refrigerator Hole Cover WCI 218448301 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
9
BRACKET MOTOR MTG, FRONT WCI 5303205116 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Cover WCI 3206451 Contact Us For Availability
10A
NUT, "U" TYPE, 8-15 (A), FAN MOTOR MOUNT WCI 5303209614 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 218429301 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Evaporator WCI 3206452 Contact Us For Availability
17
Refrigerator Insulator WCI 5303207493 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725700 Contact Us For Availability
18
Refrigerator Insulation WCI 5308013648 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Plug WCI 5303007287 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Block WCI 5308017227 Contact Us For Availability
21A
Refrigerator Screw WCI 218251900 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Mounting Plate WCI 3206126 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Refrigerator Crisper Drawer Cover Frame WCI 5303207340 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
30
Refrigerator PTC Starter WCI 218721100 Contact Us For Availability
30
Refrigerator Bracket WCI 3206136 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
30B
Refrigerator Door Hinge Shim, Lower WCI 218368500 Contact Us For Availability
32
Refrigerator Cabinet Hole Plug (White) WCI 215217701 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
36
PIN-CENTER HINGE WCI 281251300 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
39
Refrigerator Shim WCI 5303001037 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43
Refrigerator Roller WCI 218724000 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43C
Refrigerator Spring WCI 5308009790 Contact Us For Availability
43D
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
46
Tappan Refrigerator Crisper Drawer Front WCI 5303304709 Contact Us For Availability
47
Refrigerator Crisper Drawer Cover Glass Inser WCI 5303281398 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
