Model Kenmore 253.26092101 FREEZER – Common Parts & Diagrams

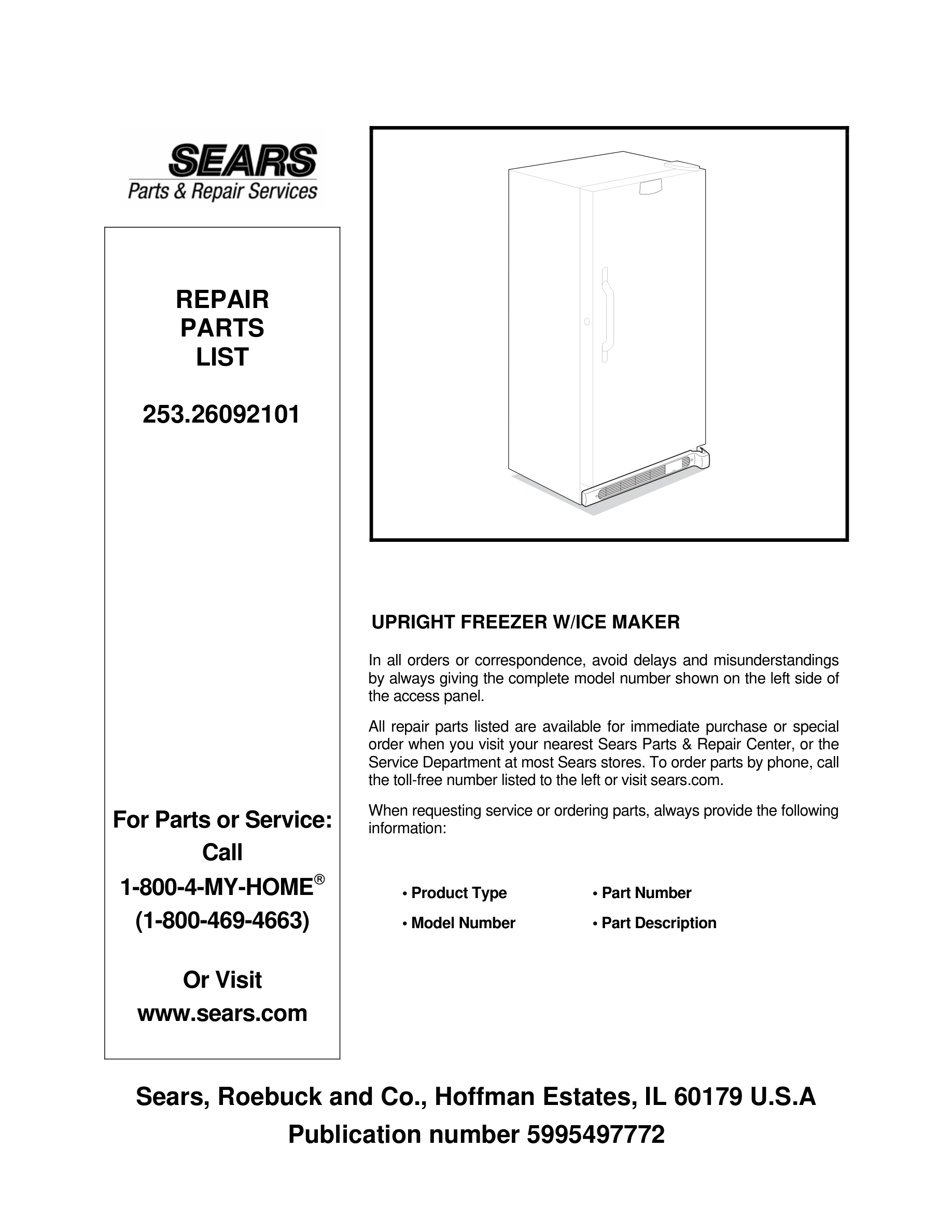

01 - COVER

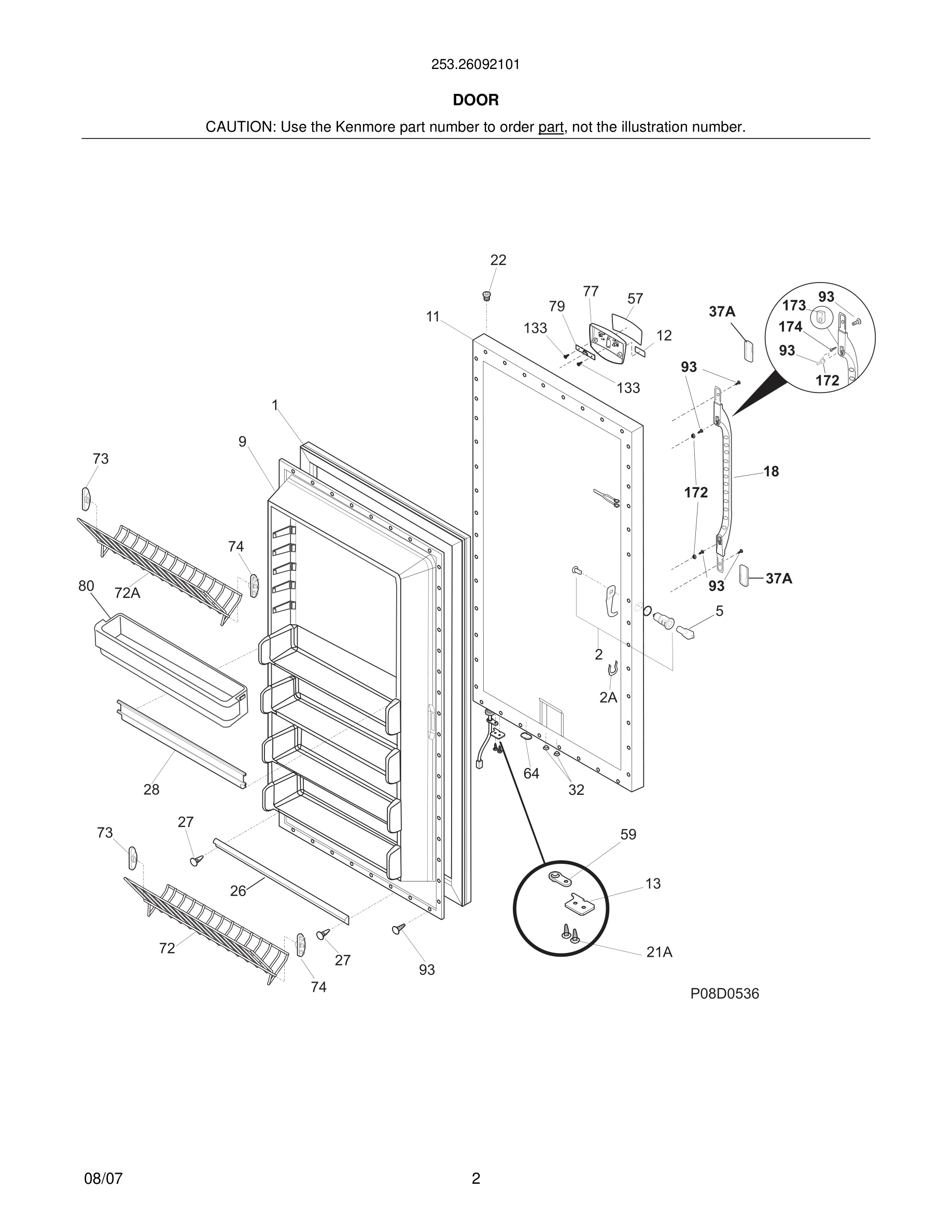

03 - DOOR

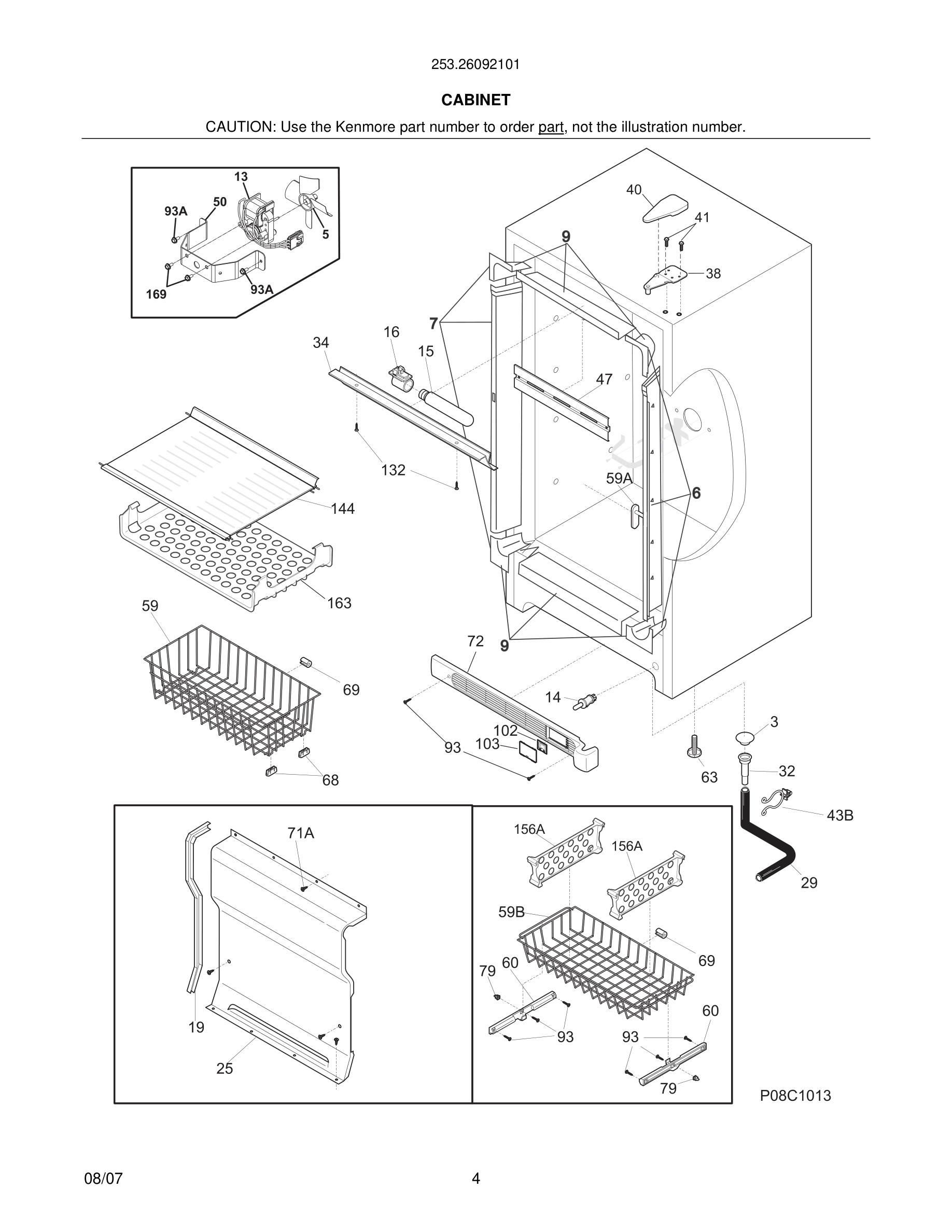

05 - CABINET

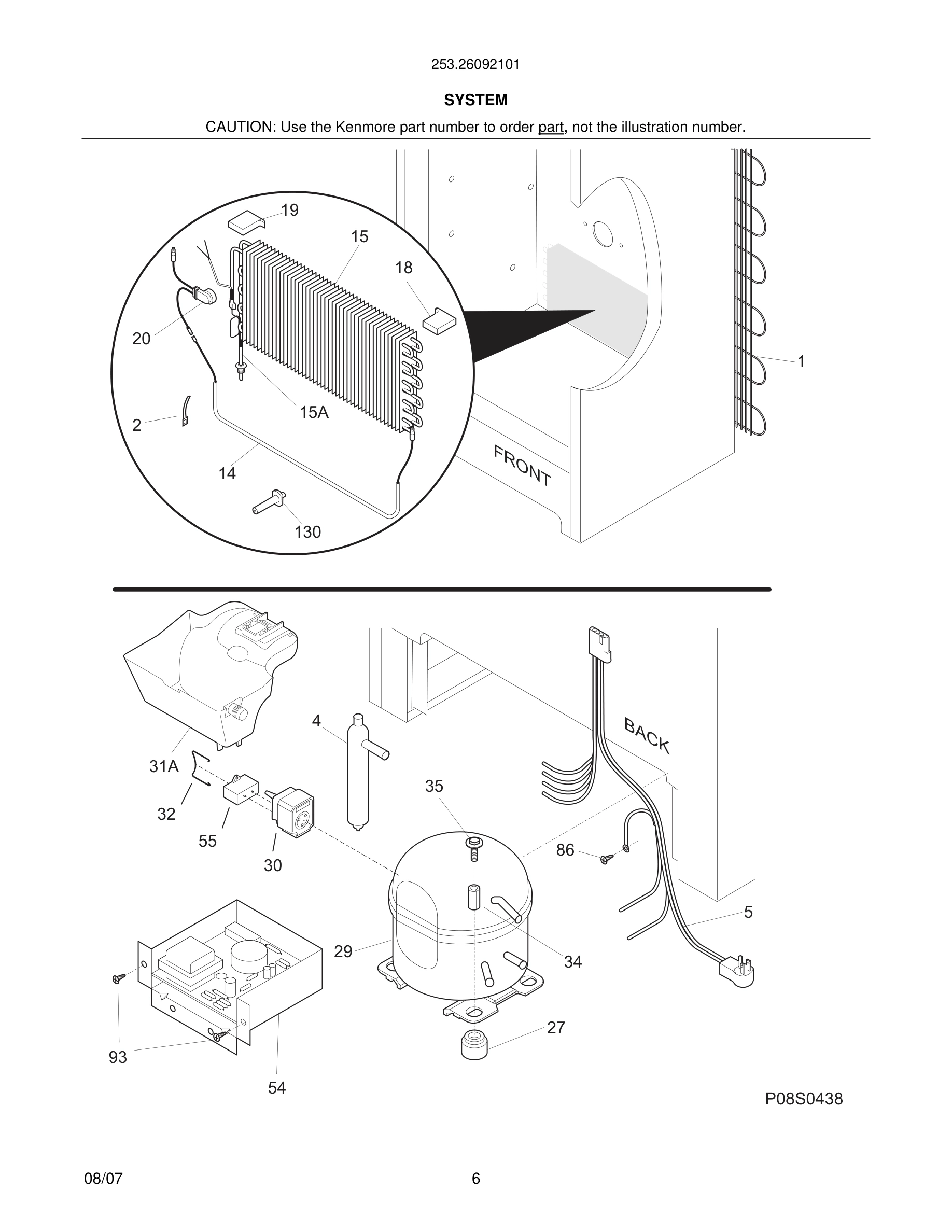

07 - SYSTEM

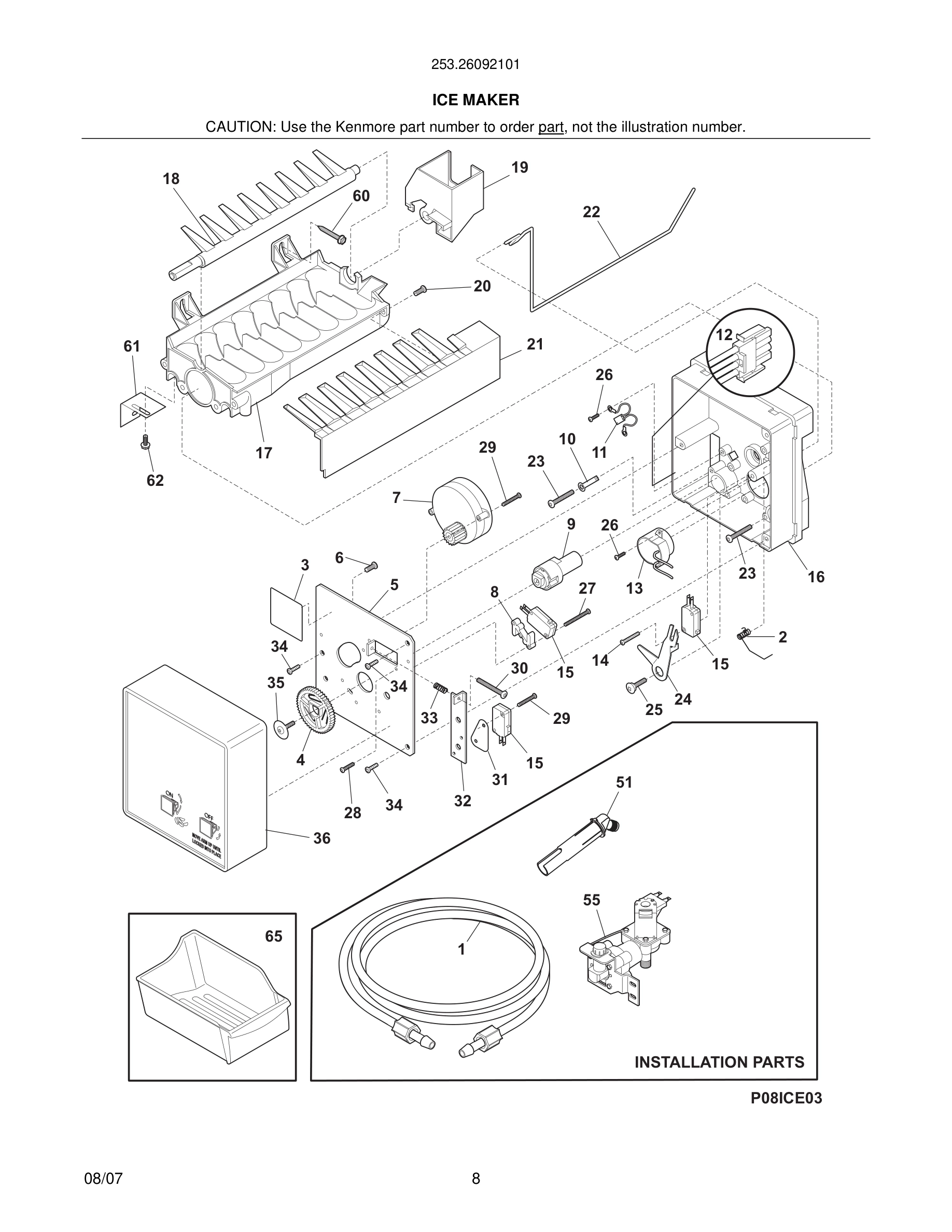

09 - ICE MAKER
Common parts from model Kenmore 253.26092101 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Wire, battery WCI 216955400 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
*
Spacer-tube WCI 297102800 Contact Us For Availability
1
Tube-water inlet, inlet valve, to ice maker WCI 297044900 Contact Us For Availability
5
Plate-mounting WCI 5304456659 Contact Us For Availability
6
Screw, M 3x20 #3, valve plate WCI 5304456691 Contact Us For Availability
7*
Spring Beam WCI 5304445223 Contact Us For Availability
8
Spacer-hold switch WCI 5304456661 Contact Us For Availability
9
Cam WCI 5304456662 Contact Us For Availability
11
Door Panel WCI 216531256 Contact Us For Availability
11#
Thermal Cutoff, ICE MAKER WCI 5304456663 Contact Us For Availability
13
Door Stop WCI 5303271076 Contact Us For Availability
14
Screw, plask, 4x14x3/4 WCI 5304455676 Contact Us For Availability
18
Insulator-evap, styrofoam WCI 297078700 Contact Us For Availability
18
Ejector-ice WCI 5304456670 Contact Us For Availability
18*
Harness-wiring, icmkr/container WCI 240352602 Contact Us For Availability
19
Insulator-evap, styrofoam WCI 297078800 Contact Us For Availability
22
Shut-off Arm WCI 5304456673 Contact Us For Availability
23
Screw, M 4x25 #2, mold-to-support, (2) WCI 5304456674 Contact Us For Availability
25
Screw, M 4x12.8 #2, lever arm/sprt WCI 5304456676 Contact Us For Availability
26
Screw, plask, 4-14 x 3/8 WCI 5304455680 Contact Us For Availability
27
Screw, M 3x25 #3, hold switch mtg, (2) WCI 5304456677 Contact Us For Availability
28
Rack-door, contour WCI 216806100 Contact Us For Availability
28
Screw, M 4x6 #2 WCI 5304456660 Contact Us For Availability
29
Screw, M 3x12 #3, (2) WCI 5304456678 Contact Us For Availability
30
Screw-timing adj, M 4x25 #3 WCI 5304456679 Contact Us For Availability
31
Insulator WCI 5304456680 Contact Us For Availability
32
Valve, breather WCI 5309950074 Contact Us For Availability
32
Plate-valve switch WCI 5304456681 Contact Us For Availability
33
Spring, timing adjust WCI 5304456682 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
36
Cover-ice maker WCI 5304456685 Contact Us For Availability
37A
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
51
Tube, water, ICE MAKER WCI 216887500 Contact Us For Availability
57
Overlay WCI 216947501 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
59A
Stop-basket, (2) WCI 216486500 Contact Us For Availability
62
Screw-IM brkt mtg, special, 8-32D x 0.375 WCI 5304456687 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
72
Grille/Kickplate, 32", white WCI 297036902 Contact Us For Availability
77
Bezel WCI 216944201 Contact Us For Availability
103
Cover, battery back-up WCI 216952600 Contact Us For Availability
172
Button-handle mtg, dovetail WCI 218397000 No Longer Available
× ![]()
