Model Kenmore 253.24092104 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

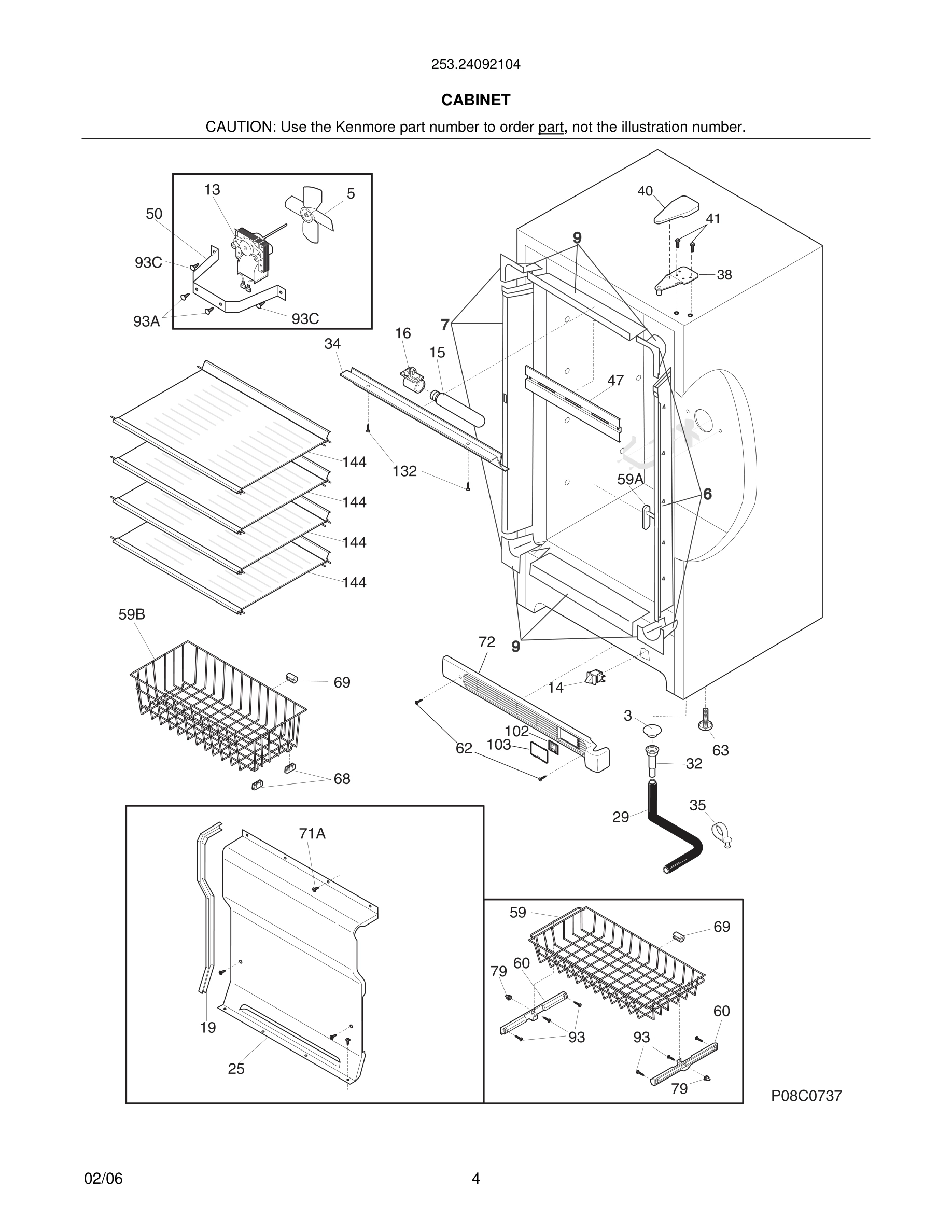

05 - CABINET

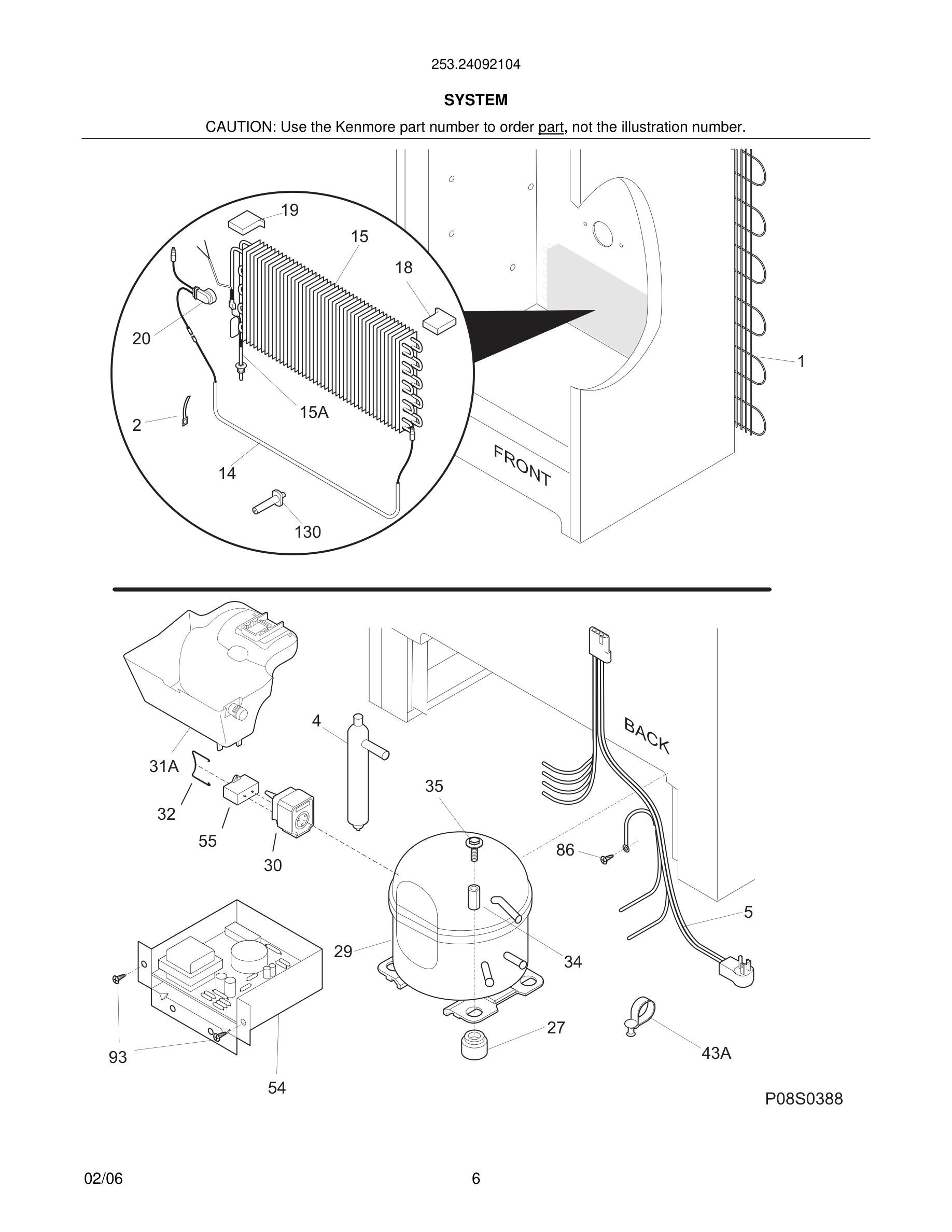

07 - SYSTEM
Common parts from model Kenmore 253.24092104 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Wire, battery WCI 216955400 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
5#
Harness-main WCI 297025900 Contact Us For Availability
13
Door Stop WCI 5303271076 Contact Us For Availability
28
Rack-door, contour WCI 216806100 Contact Us For Availability
32
Valve, breather, door base WCI 5309950074 Contact Us For Availability
34
Shield-light WCI 216816200 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
37
Trim-handle, 29.64", white, lower, w/mtg lock WCI 218779318 Contact Us For Availability
37A
Trim-handle, 12.08", white, upper, w/mtg lock WCI 218779307 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
59A
Stop-basket, (2) WCI 216486500 Contact Us For Availability
59B
Basket WCI 216880100 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
72
Grille/Kickplate, 32", white WCI 297036902 Contact Us For Availability
72
Shelf, tilt out, wire, (2) WCI 216514100 Contact Us For Availability
103
Cover, battery back-up WCI 216952600 Contact Us For Availability
172
Button-handle mtg, dovetail WCI 218397000 No Longer Available
× ![]()
