Model Electrolux 253.21021100 Freezer (Kenmore 25321021100) – Common Parts & Diagrams

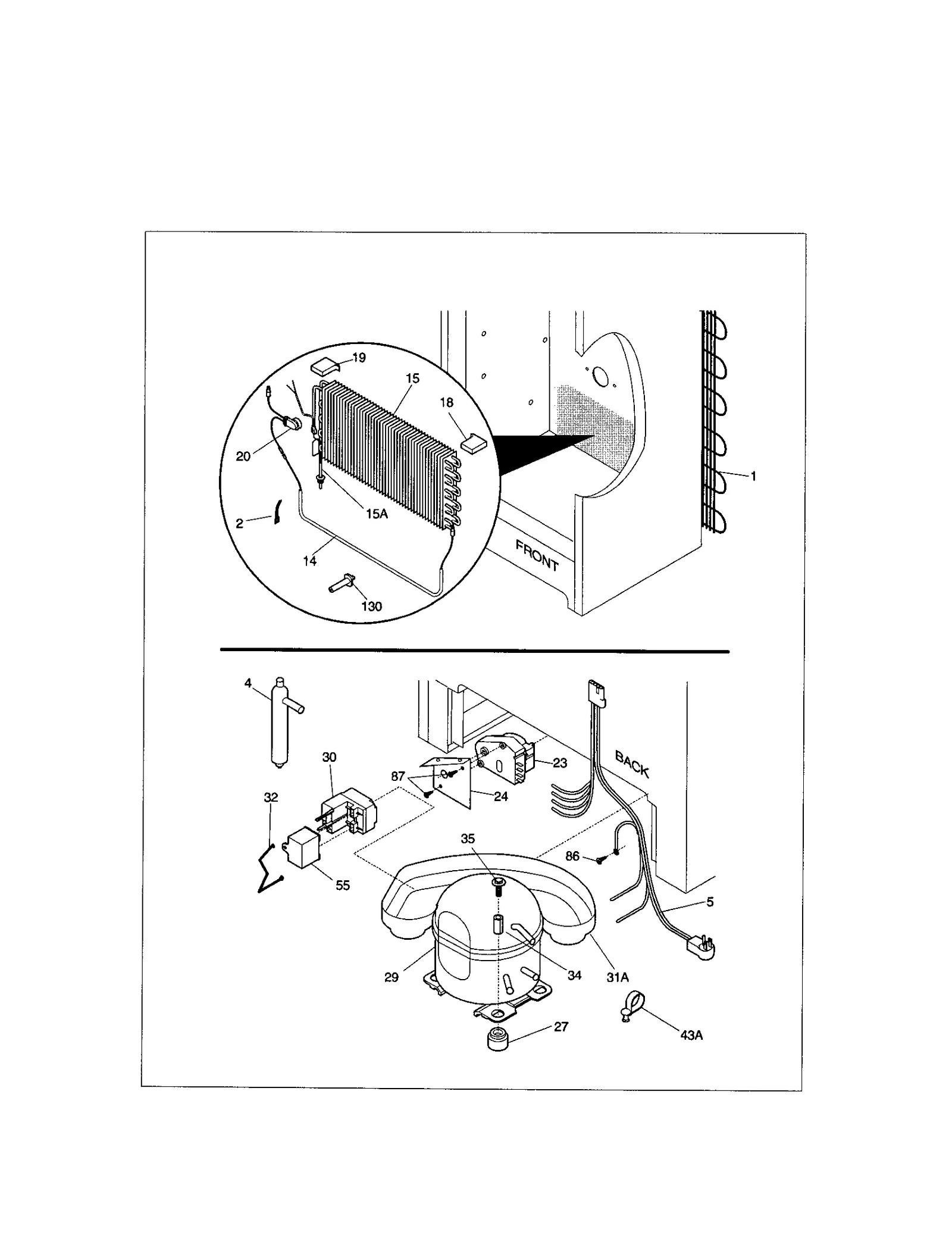

SYSTEM
SYSTEM

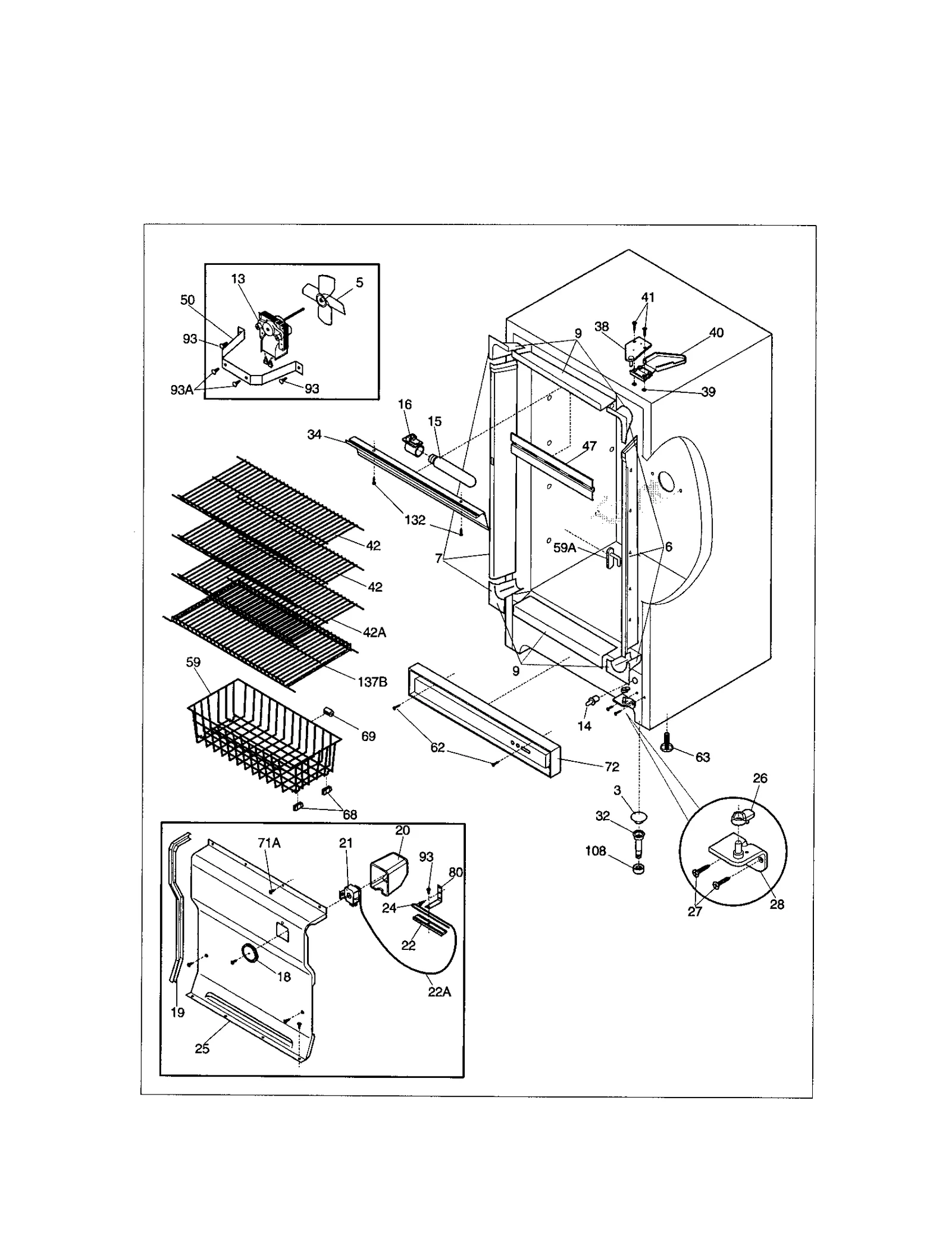

CABINET
CABINET
All Parts

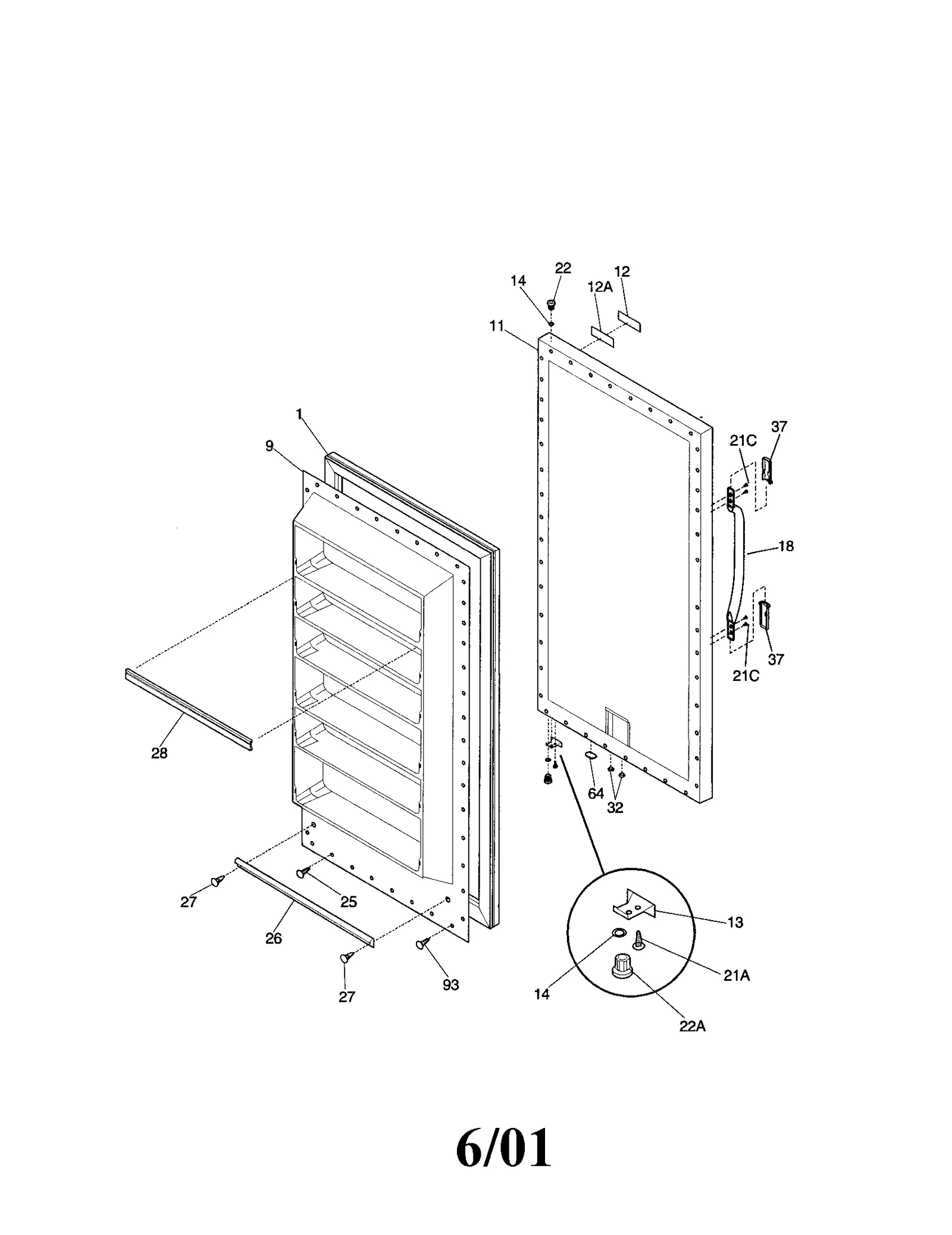

DOOR
Common parts from model Electrolux 253.21021100 Freezer (Kenmore 25321021100)
2
Lock WCI 5303925107 Contact Us For Availability
6
Breaker Kit WCI 216604100 Contact Us For Availability
7
Breaker Kit WCI 216603600 Contact Us For Availability
9
Freezer Horizontal Trim Assembly WCI 216603300 Contact Us For Availability
9
Wht Door Pnl WCI 216528109 Contact Us For Availability
11
Out Drive Panel WCI 216531201 Contact Us For Availability
12A
Insert Nameplate WCI 216482500 Contact Us For Availability
13
Freezer Door Stop WCI 08016354 Contact Us For Availability
14
Washer WCI 5303313518 Contact Us For Availability
16
Freezer Light Socket WCI 5300136117 Contact Us For Availability
19
Freezer Door Gasket WCI 216204901 Contact Us For Availability
20
Freezer Temperature Control Thermostat Cover WCI 216230300 Contact Us For Availability
21A
Screw WCI 08005520 Contact Us For Availability
22
Clamp WCI 05878562 Contact Us For Availability
22
Freezer Door Hinge Bearing WCI 216443600 Contact Us For Availability
24
Screw WCI 5300052943 Contact Us For Availability
25
Evaporator Cover WCI 216737200 Contact Us For Availability
26
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
27
Refrigeration Appliance Screw, 1/4-20 x 1-in WCI 5303205738 Contact Us For Availability
28
Hinge WCI 216247400 Contact Us For Availability
32
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
34
Sleeve WCI 5306594529 Contact Us For Availability
34
Light Shield WCI 216557600 Contact Us For Availability
35
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
38
Hinge WCI 5303925086 Contact Us For Availability
39
Nut Insert WCI 5303294372 Contact Us For Availability
40
Hinge Cover (White) WCI 5303212912 Contact Us For Availability
41
Screw WCI 5303212937 Contact Us For Availability
42
Wire Shelf WCI 216458500 Contact Us For Availability
42A
Wire Shelf WCI 216458400 Contact Us For Availability
50
Motor Bracket WCI 216394000 Contact Us For Availability
59
Upright Freezer Wire Basket WCI 216154400 Contact Us For Availability
59A
Stop WCI 09948791 Contact Us For Availability
64
Freezer Breather Valve WCI 216403700 Contact Us For Availability
72
Freezer Tilt-Out Shelf WCI 216514100 Contact Us For Availability
72
Panel-toe Pl WCI 216174000 Contact Us For Availability
80
Freezer Temperature Control Thermostat Tube B WCI 06594601 Contact Us For Availability
93A
Refrigeration Appliance Screw WCI 5303302760 Contact Us For Availability
108
Freezer Drain Trap WCI 216388600 Contact Us For Availability
132
Screw WCI 5303283898 Contact Us For Availability
137B
Wire Shelf WCI 216546000 Contact Us For Availability
NI
Freezer Breaker Strip Insulation WCI 5303925098 Contact Us For Availability
NI
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
NI
Refrigerator Suction Line Sleeve WCI 216502500 Contact Us For Availability
NI
Clip WCI 09950610 Contact Us For Availability
NI
Spacer Tube WCI 216511900 Contact Us For Availability
NI
Food Storage WCI 216578600 Contact Us For Availability
NI
Service Data Sheet WCI 216801500 Contact Us For Availability
NI
Parts Catalog WCI 5995350260 Contact Us For Availability
× ![]()
