Model Whirlpool 22113 ELECTRIC COOK-TOP – Common Parts & Diagrams
03 - CONTROL PANEL

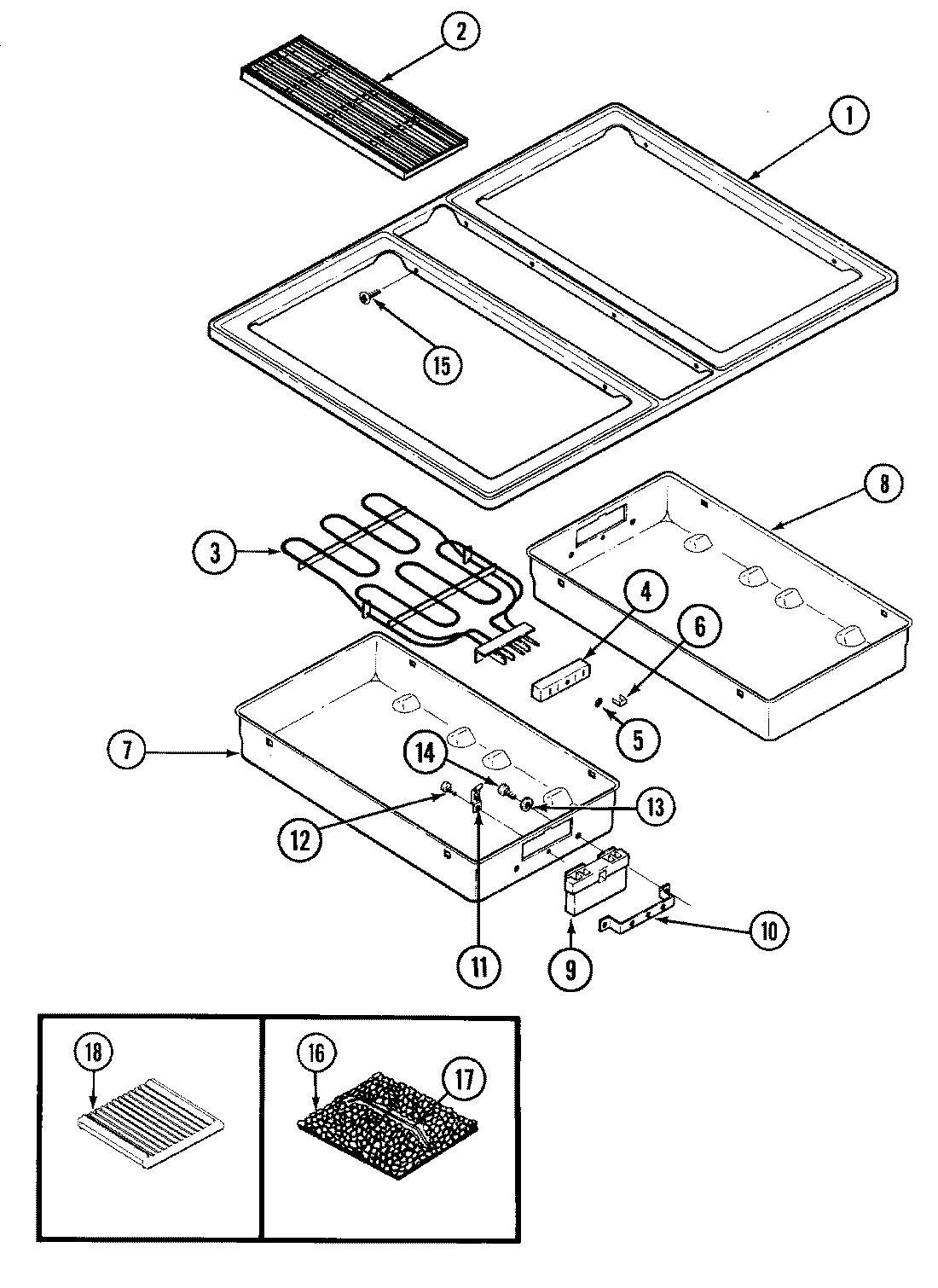

04 - TOP ASSEMBLY

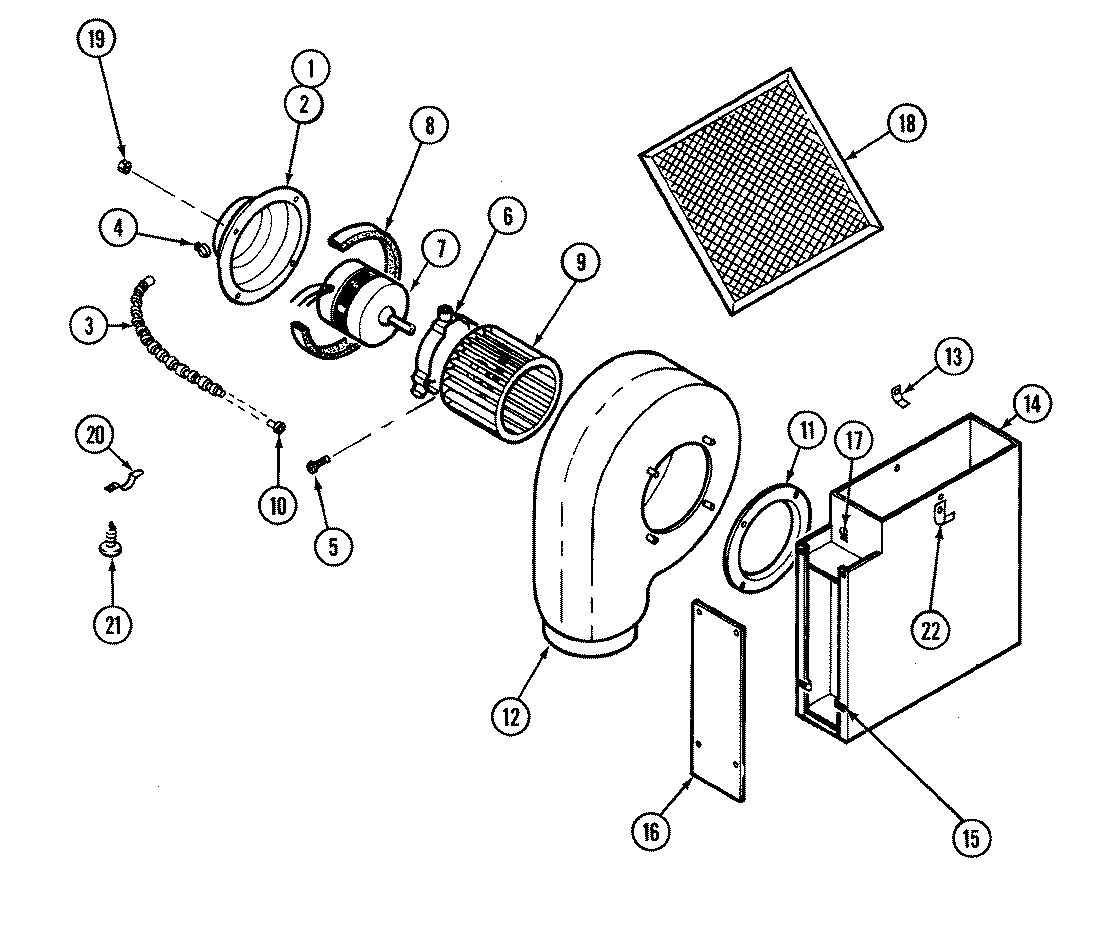

01 - BLOWER PLENUM

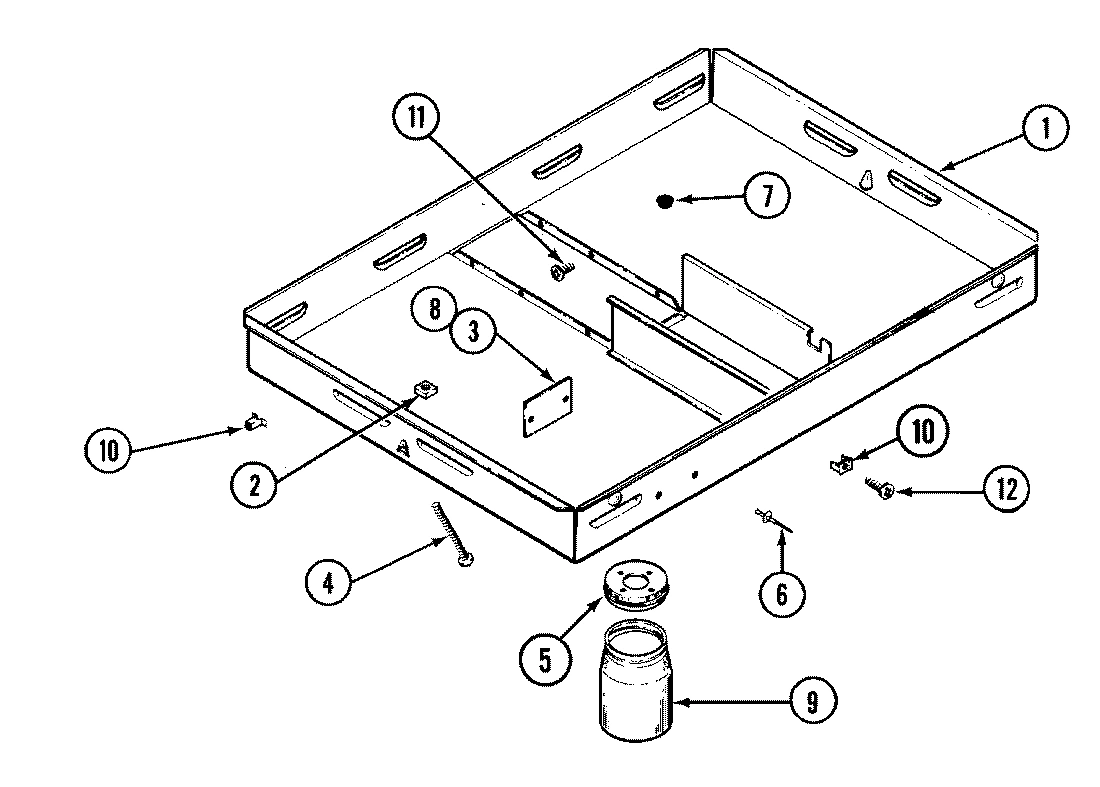

02 - BODY
Common parts from model Whirlpool 22113 ELECTRIC COOK-TOP
1
TOP, RANGE (BLK) WPL 703748 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
1
BOX, BURNER WPL 701992 Contact Us For Availability
2
GRILL, AIR WPL Y703658 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
2
COVER, MOTOR WPL Y704968 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
3
INSULATOR WPL 707746 Contact Us For Availability
4
NUT WPL 707161 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
CLAMP, CABLE WPL 715780 Contact Us For Availability
4
CLIP WPL Y707335 Contact Us For Availability
4
SCREW WPL Y707121 Contact Us For Availability
5
LENS, PILOT LIGHT WPL Y703849 Contact Us For Availability
5
SCREW WPL 707407 Contact Us For Availability
5
SCREW WPL Y707402 Contact Us For Availability
5
LID, JAR WPL Y707870 Contact Us For Availability
6
SWITCH, FAN WPL 703664 Contact Us For Availability
6
CLIP, SHUNT WPL Y700450 Contact Us For Availability
6
BAND, MOTOR WPL Y707393 Contact Us For Availability
7
PALNUT WPL Y705023 Contact Us For Availability
7
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
7
WIRE, BLUE WPL Y712030 Contact Us For Availability
7
WIRE, BROWN WPL Y712197 Contact Us For Availability
7
WIRE, YELLOW WPL Y712200 Contact Us For Availability
7
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
KIT, WIRE WPL Y712431 Contact Us For Availability
7
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
8
KIT, WIRE WPL Y712438 Contact Us For Availability
8
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
8
WIRE, BROWN WPL Y712199 Contact Us For Availability
8
FOAM, URETHANE WPL Y715957 Contact Us For Availability
8
WASHER WPL Y707664 Contact Us For Availability
9
CLIP WPL Y700834 Contact Us For Availability
10
BRACKET WPL Y702698 Contact Us For Availability
10
BUSHING WPL 708185 Contact Us For Availability
10
CLIP, RETAINER WPL Y700503 Contact Us For Availability
11
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
11
RING, INLET WPL Y702295 Contact Us For Availability
11
RING, INLET WPL Y704758 Contact Us For Availability
12
KIT, ESTUTCHEON WIRE (LEFT) WPL 712528 Contact Us For Availability
12
O RING WPL Y700833 Contact Us For Availability
12
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
12
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
13
RETAINER, FILTER WPL Y707688 Contact Us For Availability
14
PLENUM WPL 712434 Contact Us For Availability
14
PLENUM WPL Y701840 Contact Us For Availability
15
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
16
PLATE, ROCK WPL 708929 Contact Us For Availability
16
PLATE, COVER WPL Y700464 Contact Us For Availability
17
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
17
CLIP WPL Y707831 Contact Us For Availability
18
GRATES, GRILL (2) WPL Y703746 Contact Us For Availability
20
TINNERMAN WPL 712310 Contact Us For Availability
22
CLAMP, CABLE WPL 712254 Contact Us For Availability
× ![]()
