Model Whirlpool 22001 ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - BODY

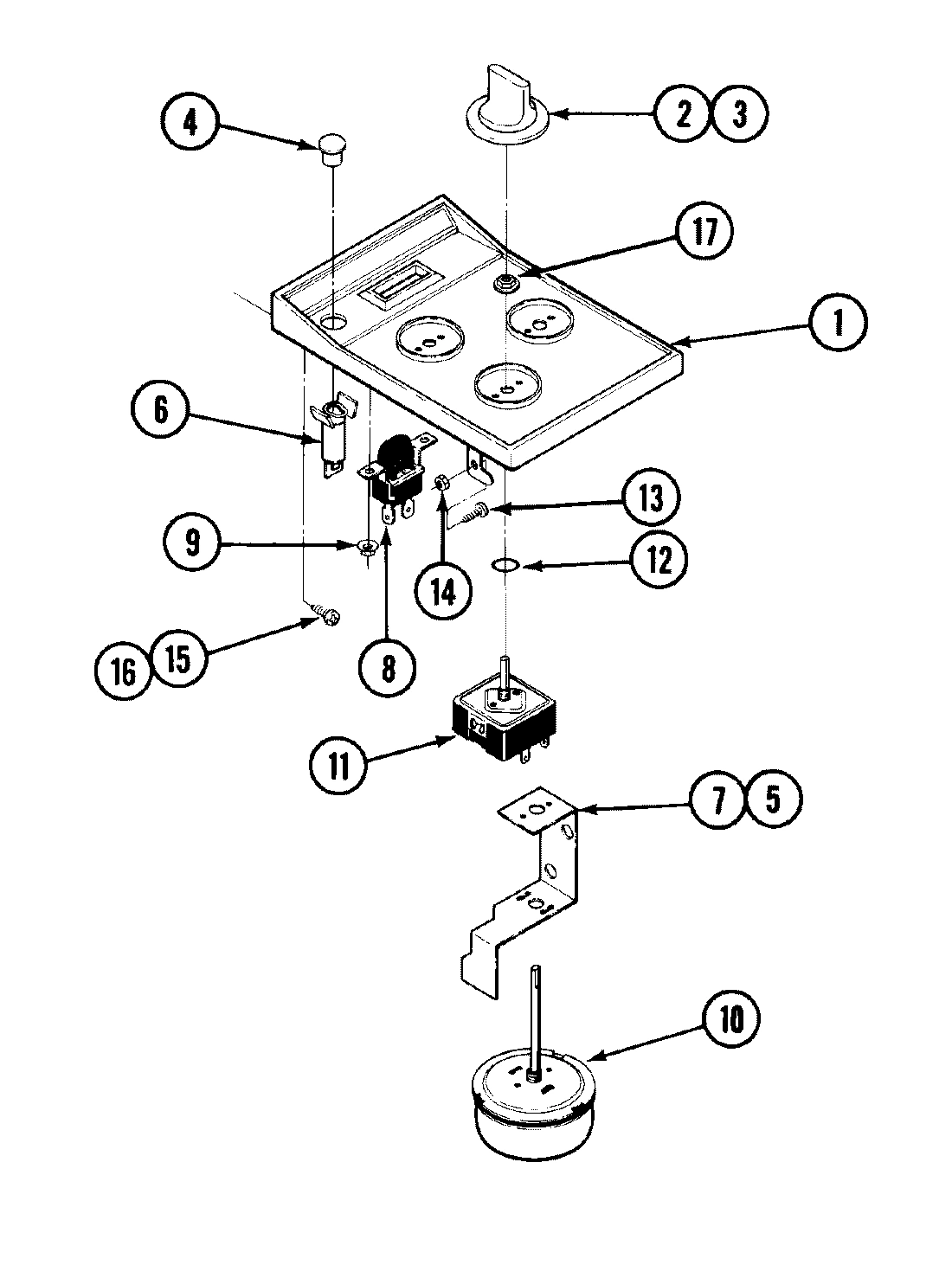

03 - CONTROL PANEL

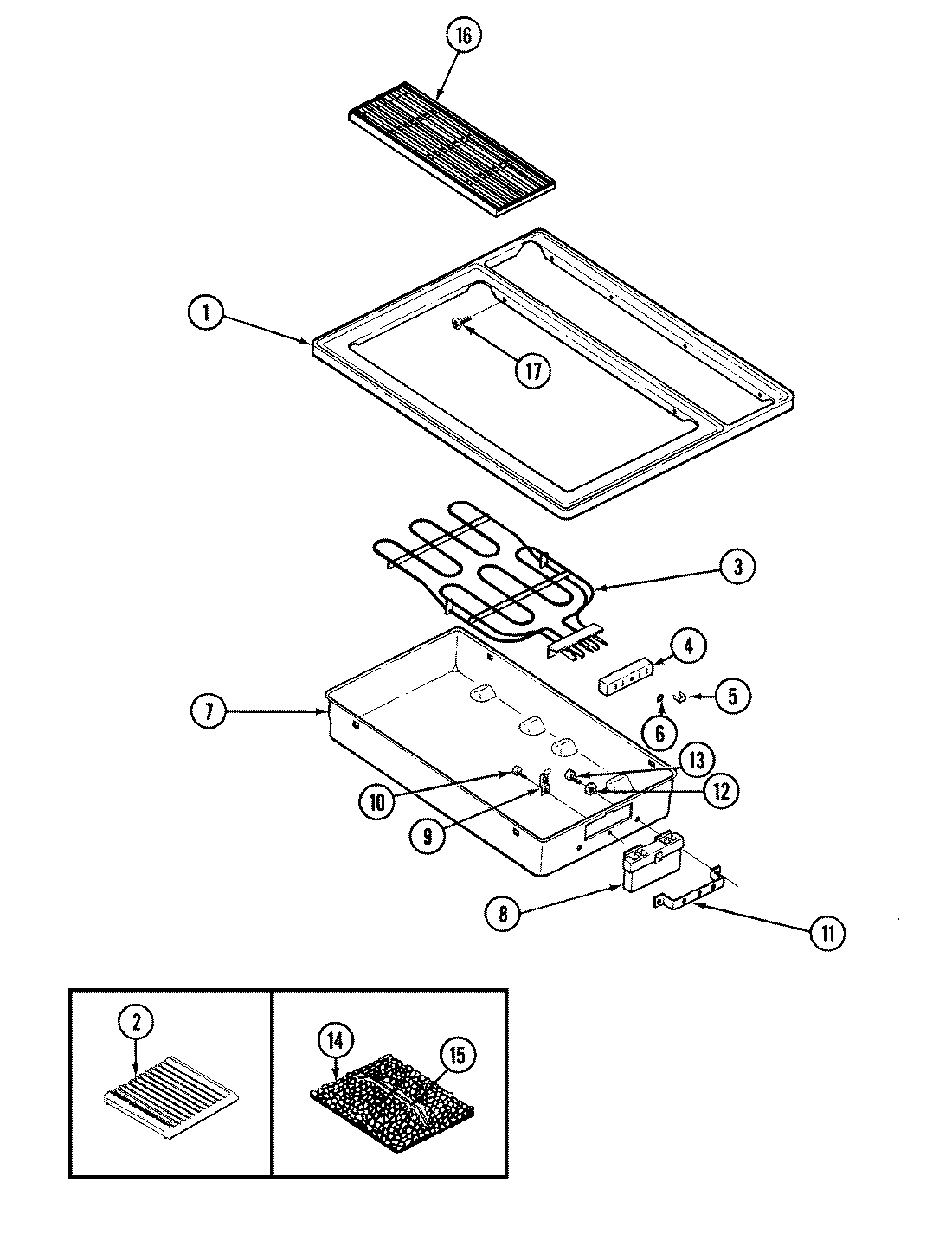

04 - TOP ASSEMBLY
01 - BLOWER MOTOR ASSEMBLY
Common parts from model Whirlpool 22001 ELECTRIC COOK-TOP
1
ESCUTCHEON WITH INLAY WPL 712481 Contact Us For Availability
1
TOP WPL 703455 Contact Us For Availability
1
TOP WPL 704983 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
2
GRATES, GRILL (2) WPL Y703746 Contact Us For Availability
2
COVER,MOTOR WPL 708863 Contact Us For Availability
2
COVER, MOTOR WPL Y704968 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE CONDUIT WPL W10124350 Contact Us For Availability
3
CONDUIT WPL Y707758 Contact Us For Availability
4
INSULATOR WPL 707746 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
5
CLIP, SHUNT WPL Y700450 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
6
LID, JAR WPL Y707870 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
7
BRACKET, TIMER (RT) WPL 704333 Contact Us For Availability
7
BRACKET, TIMER WPL 715924 Contact Us For Availability
7
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
7
WIRE, BLUE WPL Y712030 Contact Us For Availability
7
WIRE, BROWN WPL Y712197 Contact Us For Availability
7
WIRE, YELLOW WPL Y712200 Contact Us For Availability
7
WIRE, VIOLET WPL Y712203 Contact Us For Availability
7
KIT, WIRE WPL Y712431 Contact Us For Availability
7
NUT WPL 707161 Contact Us For Availability
8
SWITCH, FAN WPL 703664 Contact Us For Availability
8
SCREW WPL Y707402 Contact Us For Availability
9
PALNUT WPL Y705023 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
BAND, MOTOR WPL Y707393 Contact Us For Availability
10
SCREW WPL 701933 Contact Us For Availability
10
STANDOFF----NA WPL Y700672 Contact Us For Availability
10
TIMER WPL 707732 Contact Us For Availability
11
BRACKET WPL Y702698 Contact Us For Availability
11
FOAM, URETHANE WPL Y715957 Contact Us For Availability
12
WASHER WPL Y707664 Contact Us For Availability
12
JACK, PROBE WPL Y700883 Contact Us For Availability
12
BUSHING WPL 712311 Contact Us For Availability
13
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
13
RING, INLET WPL Y702295 Contact Us For Availability
14
PLATE, ROCK WPL 708929 Contact Us For Availability
14
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
15
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
15
RETAINER, FILTER WPL Y707688 Contact Us For Availability
16
CLIP WPL Y700834 Contact Us For Availability
16
GRILL, AIR WPL Y703658 Contact Us For Availability
16
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
16
PLENUM WPL 712434 Contact Us For Availability
16
PLENUM WPL Y701840 Contact Us For Availability
17
PALNUT WPL Y712255 Contact Us For Availability
17
PLATE, COVER WPL Y700464 Contact Us For Availability
17
CLIP WPL Y707831 Contact Us For Availability
20
TINNERMAN WPL 712310 Contact Us For Availability
21
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
× ![]()
