Model Whirlpool 198817687(ALMOND) Chest Freezer (Kenmore 198817687(ALMOND)) – Common Parts & Diagrams
All Parts

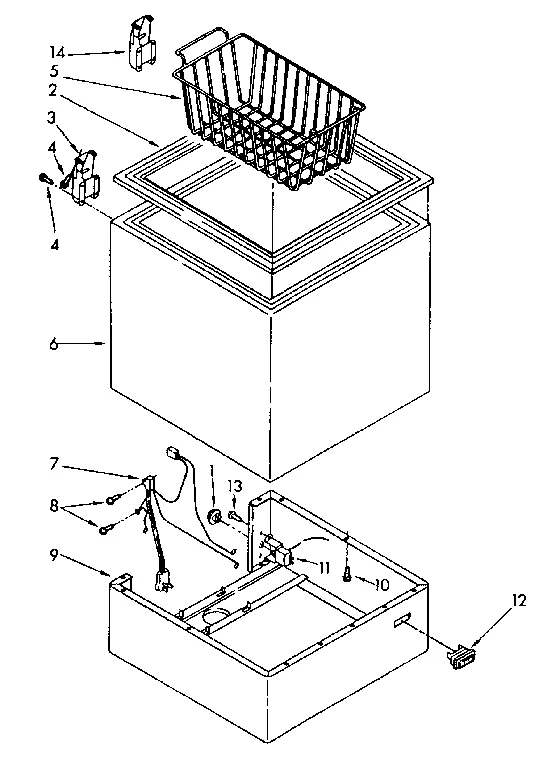

CABINET PARTS

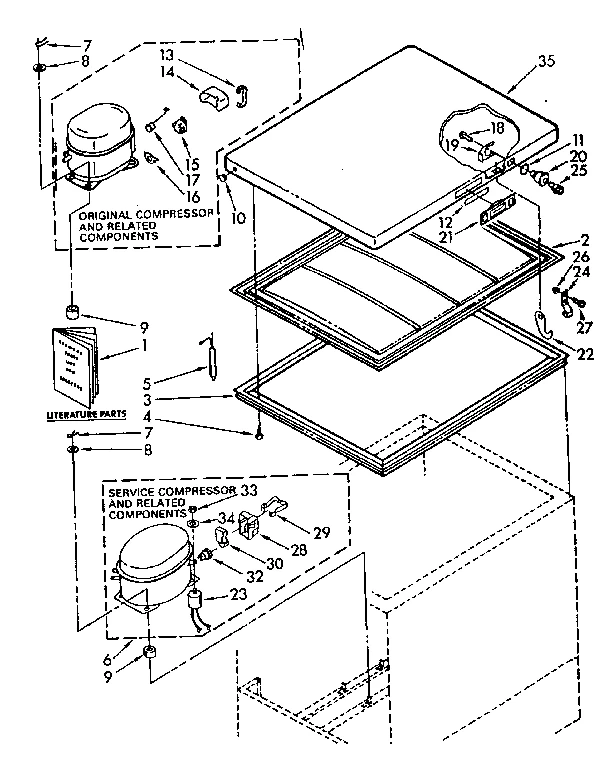

DOOR AND UNIT PARTS
Common parts from model Whirlpool 198817687(ALMOND) Chest Freezer (Kenmore 198817687(ALMOND))
1
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
1A
Owner's Manual WPL LIT730550 Contact Us For Availability
1B
Energy Guide WPL LIT1108298 Contact Us For Availability
1C
Technical Sheet WPL LIT1108287 Contact Us For Availability
1D
U&c Label WPL LIT1103566 Contact Us For Availability
1E
Parts List WPL LIT108302 Contact Us For Availability
2
Panel WPL 727220 Contact Us For Availability
3
Gasket WPL 730435 Contact Us For Availability
4
Clip WPL 596787 Contact Us For Availability
5
Basket WPL 730443 Contact Us For Availability
5
Drier WPL 728582 Contact Us For Availability
6
Compressor WPL 482980 Contact Us For Availability
7
Harness WPL 589824 Contact Us For Availability
7
Pin WPL 596798 Contact Us For Availability
8
Screw WPL 595325 Contact Us For Availability
8
Washer WPL 680975 Contact Us For Availability
9
Base WPL 589996 Contact Us For Availability
10
Plug (Almond) WPL 989197 Contact Us For Availability
11
Control WPL 589929 Contact Us For Availability
11
Ring WPL 753610 Contact Us For Availability
12
Light WPL 556230 Contact Us For Availability
12
Gasket WPL 727809 Contact Us For Availability
13
Screw WPL 595022 Contact Us For Availability
13
Spring WPL 1108265 Contact Us For Availability
14
Door Hinge WPL 730609 Contact Us For Availability
14
Terminal Cover WPL 1108264 Contact Us For Availability
16
Spring WPL 1108266 Contact Us For Availability
17
Overload WPL 1108280 Contact Us For Availability
18
Screw WPL 680483 Contact Us For Availability
19
Clip WPL 983465 Contact Us For Availability
20
Lock WPL 727243 Contact Us For Availability
21
Handle WPL 730445 Contact Us For Availability
22
Hook WPL 727300 Contact Us For Availability
23
Capacitor WPL 482996 Contact Us For Availability
24
Strike WPL 727274 Contact Us For Availability
26
Grommet WPL 842339 Contact Us For Availability
27
Screw WPL 681196 Contact Us For Availability
28
Cover WPL 1105015 Contact Us For Availability
29
Clamp WPL 938384 Contact Us For Availability
30
Start Relay WPL 1100806 Contact Us For Availability
32
Overload WPL 1100807 Contact Us For Availability
33
Nut WPL 489142 Contact Us For Availability
34
Lock Washer WPL 489143 Contact Us For Availability
35
Panel WPL 727338 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978029 Contact Us For Availability
NI
Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability
× ![]()
