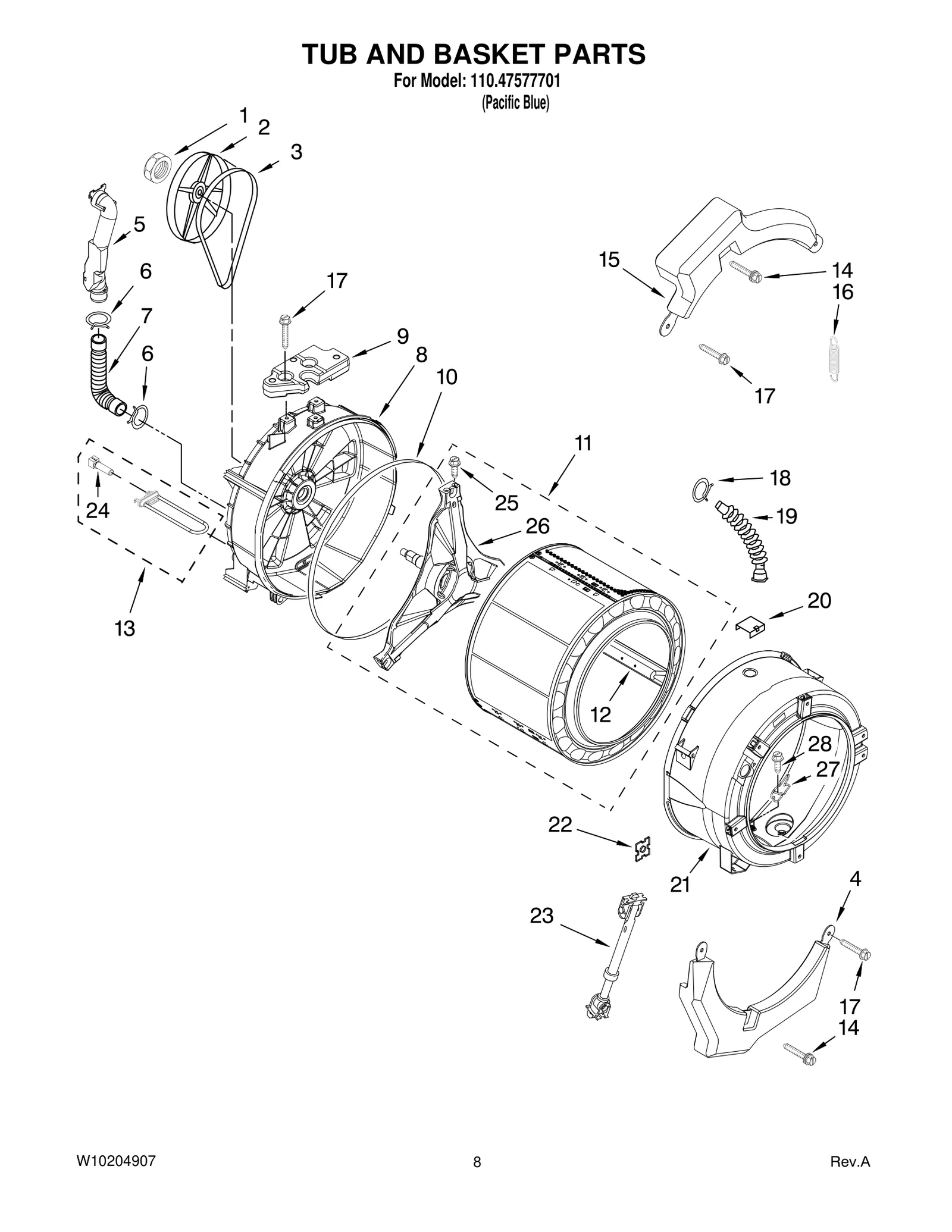

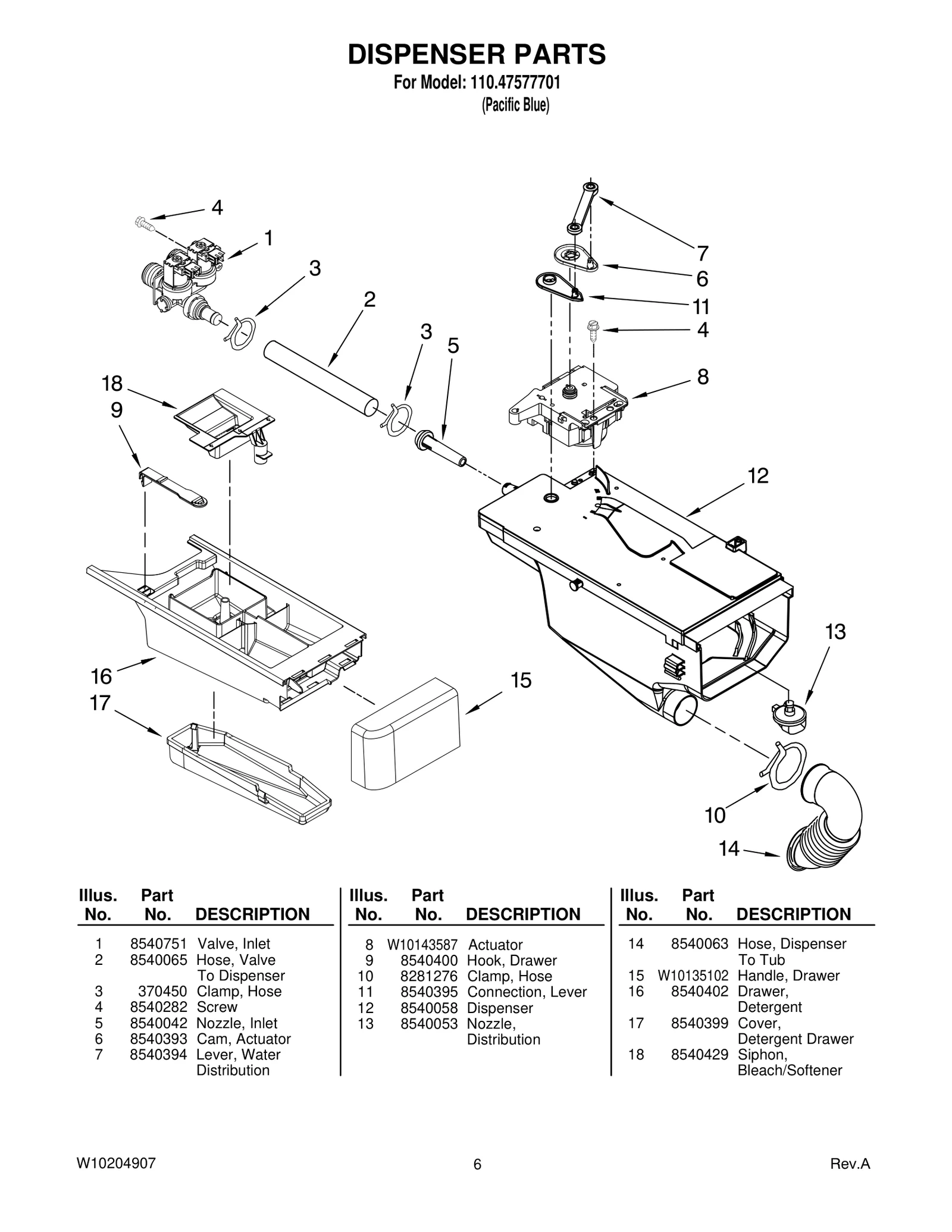

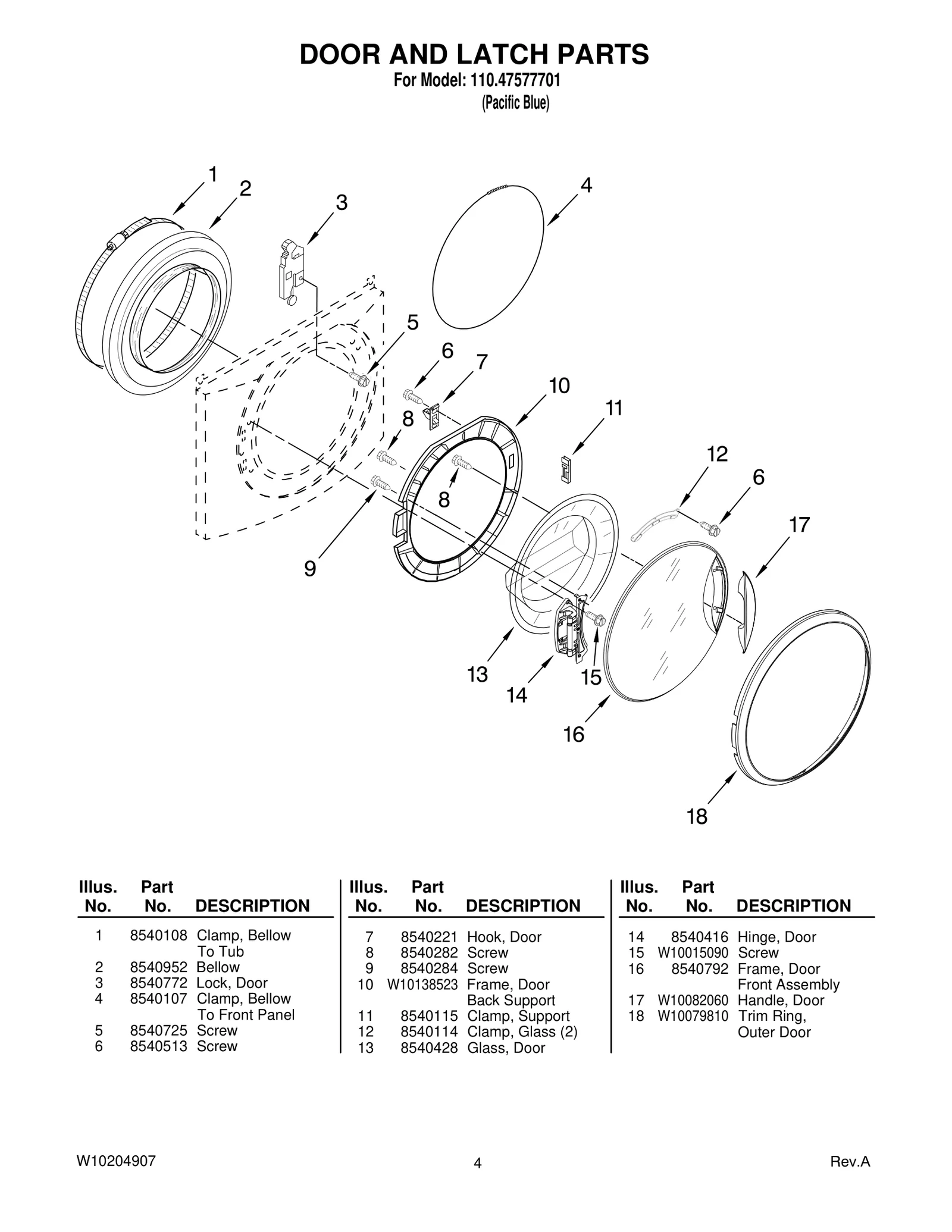

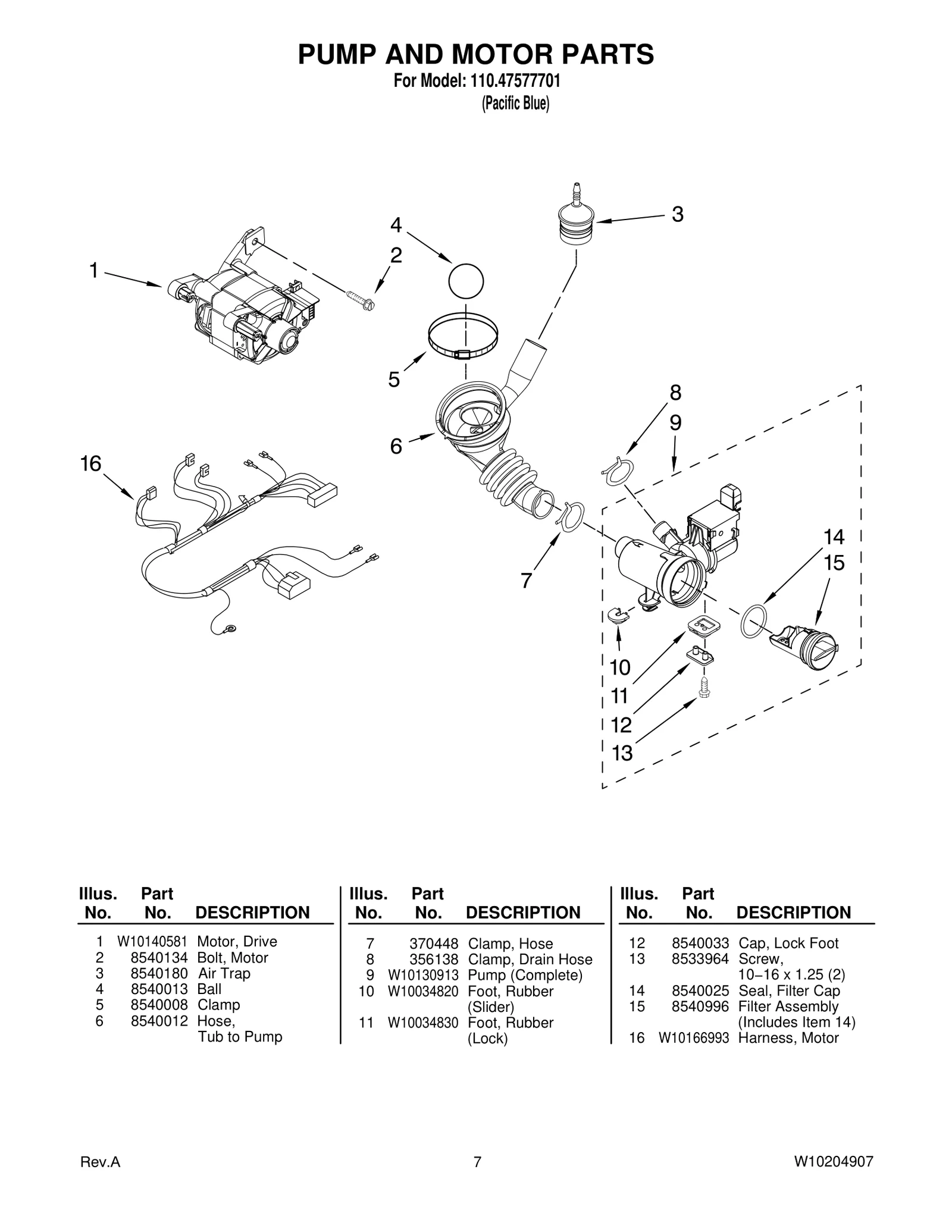

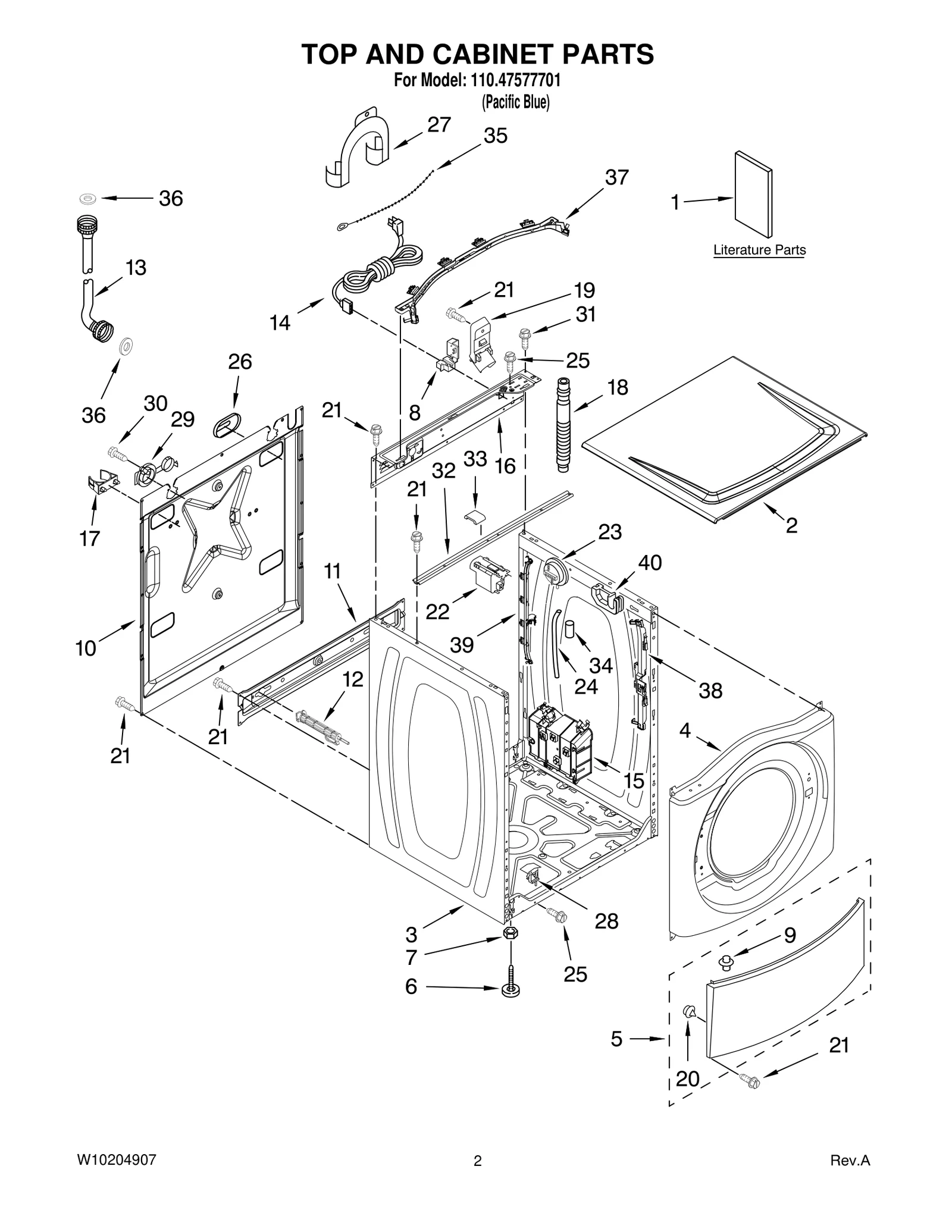

Model Whirlpool 110.47577701 Automatic Washer – Common Parts &amp; Diagrams

1

Valve, Inlet WPL WP8540751 No Longer Available

1

WPW10140581 Whirlpool Drive Motor Backorder WPL WPW10140581 $287.02

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $54.52

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $146.68

3

WP8540101 Whirlpool Washer Drive Belt In Stock WPL WP8540101 $32.47

3

User Interface WPL 8540490 Contact Us For Availability

4

W10200297 Whirlpool Counterweight Backorder WPL W10200297 $241.52

4

Ball WPL 8540013 Contact Us For Availability

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $136.74

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $4.99

5

Channel, Water WPL 8540722 Contact Us For Availability

6

8540010 Whirlpool Clamp Backorder WPL 8540010 $7.30

6

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

6

W11366249 Whirlpool Washer Tub to Pump Hose In Stock WPL W11366249 $31.18

6

WP8540393 Whirlpool Cam Backorder WPL WP8540393 $4.82

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $19.46

7

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

7

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $7.05

7

WP8540394 Whirlpool Lever In Stock WPL WP8540394 $5.99

8

280255 Whirlpool Outer Tub Backorder WPL 280255 $233.45

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

8

Harness, Wiring WPL W10184856 Contact Us For Availability

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $8.89

9

Counterweight, Rear WPL 8540604 Contact Us For Availability

W10034820 Whirlpool Grommet Backorder WPL W10034820 $8.46

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $14.02

WPW10111158 Whirlpool Gasket Assembly In Stock WPL WPW10111158 $73.20

WPW10138523 Whirlpool Frame Backorder WPL WPW10138523 $171.83

11

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $4.82

11

WP8540357 Whirlpool Basket Assembly Backorder WPL WP8540357 $372.51

11

WP8540395 Whirlpool Lever Assembly In Stock WPL WP8540395 $5.99

8540033 Whirlpool Cap Backorder WPL 8540033 $11.90

W11665946 Whirlpool Clamp Backorder WPL W11665946 $13.15

WP8540360 Whirlpool Baffle In Stock WPL WP8540360 $51.16

Dispenser WPL 8540058 Contact Us For Availability

13

WP8540053 Whirlpool Nozzle Backorder WPL WP8540053 $73.65

13

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $232.20

14

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $22.62

14

Bolt Assembly, Counterweight Center Hole WPL W10174473 Contact Us For Availability

15

WPW10163007 Whirlpool Control Board + Core Backorder WPL WPW10163007-includeCORE $363.96

15

Counterweight, Front Upper WPL W10151303 Contact Us For Availability

16

280159 Whirlpool Spring Assembly Backorder WPL 280159 $81.60

16

WP8540402 Whirlpool Washer Detergent Dispense Backorder WPL WP8540402 $115.32

16

WPW10204534 Whirlpool Wire Harness Backorder WPL WPW10204534 $130.56

17

W10082060 Whirlpool Door Handle Backorder WPL W10082060 $160.52

17

W11685857 Whirlpool Screw Assembly Backorder WPL W11685857 $8.89

17

WP8540399 Whirlpool Cover Assembly In Stock WPL WP8540399 $55.27

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.15

WP8540429 Whirlpool Dispenser Assembly In Stock WPL WP8540429 $10.22

WPW10079810 Whirlpool Frame Backorder WPL WPW10079810 $227.23

WPW10114608 Whirlpool Drain Hose In Stock WPL WPW10114608 $41.25

19

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $24.54

19

Retainer, Hose Outlet WPL 8540607 Contact Us For Availability

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $4.82

23

WPW10163171 Whirlpool Shock Absorber In Stock WPL WPW10163171 $76.68

23

Switch, Pressure WPL W10163980 Contact Us For Availability

24

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $21.83

24

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $28.17

25

8540479 Whirlpool Screw Backorder WPL 8540479 $5.85

25

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $4.82

26

Crosspiece Assembly WPL 8540342 Contact Us For Availability

27

Bracket, Heating Element WPL 8540322 Contact Us For Availability

28

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $20.55

36

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

38

W10200785 Whirlpool Retainer Backorder WPL W10200785 $6.86

40

8540644 Whirlpool Bracket Backorder WPL 8540644 $59.91

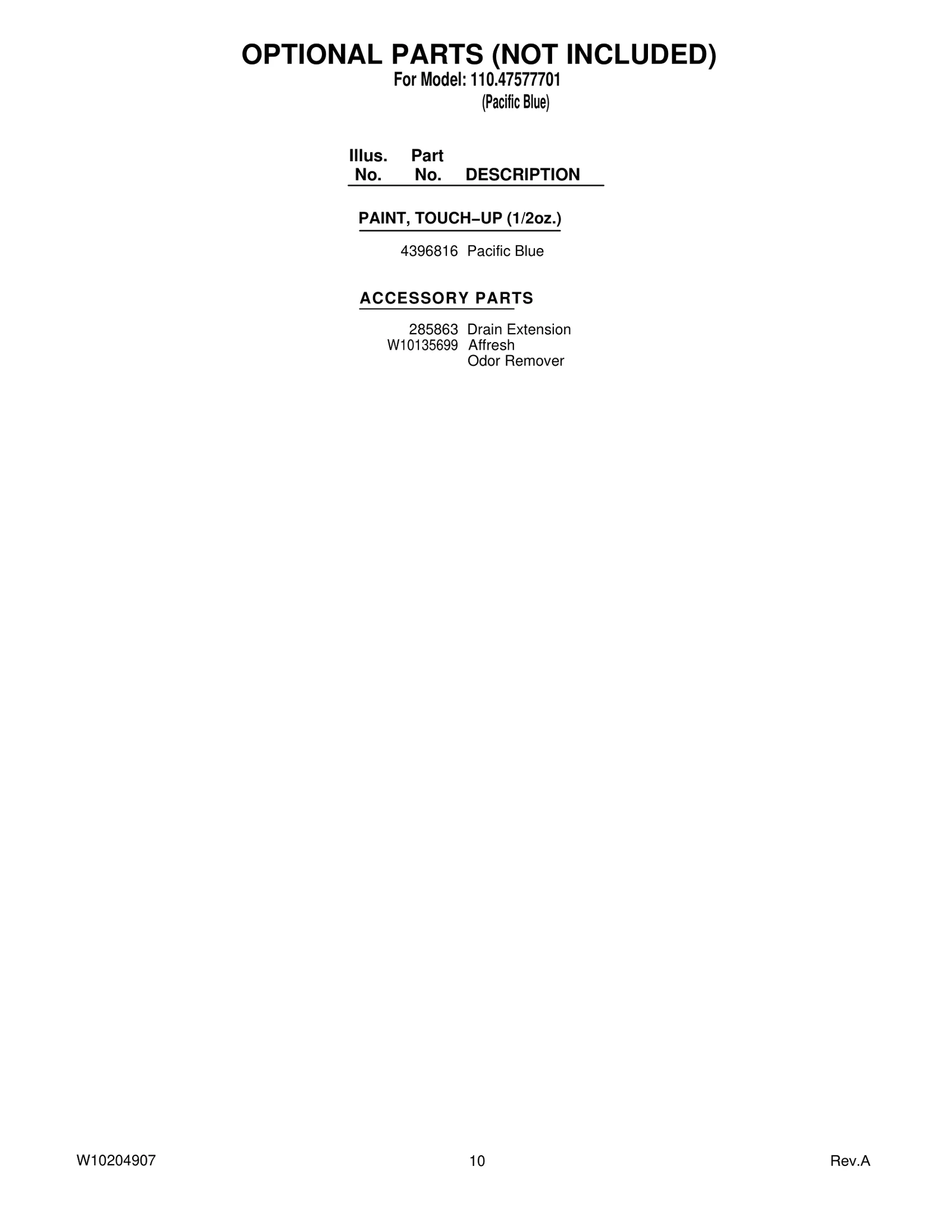

OPT-1

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00

OPT-2

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96

OPT-3

Affresh WPL W10135699 Contact Us For Availability
