Model Whirlpool 110.44182401 Automatic Washer – Common Parts & Diagrams
COVER

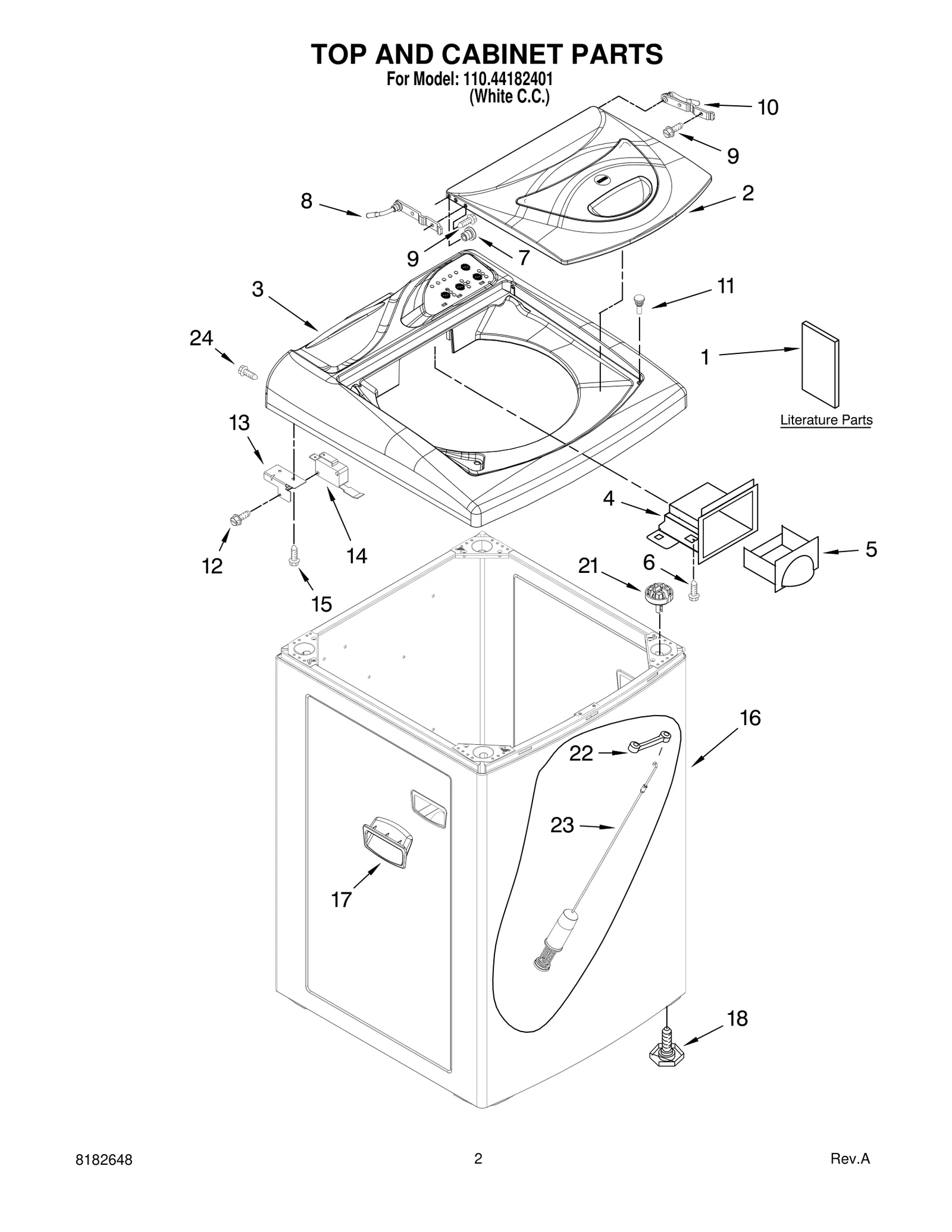

TOP AND CABINET PARTS

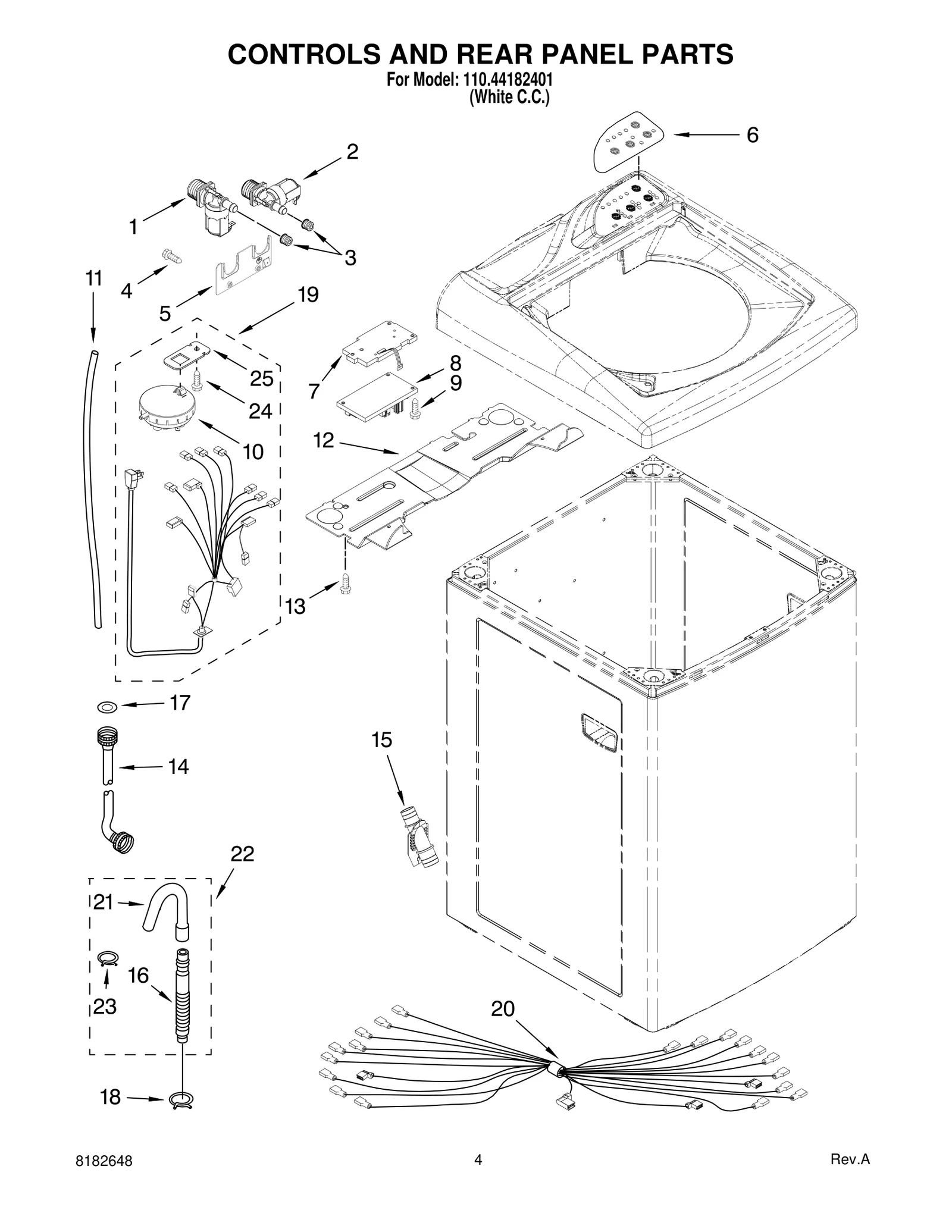

CONTROLS AND REAR PANEL PARTS

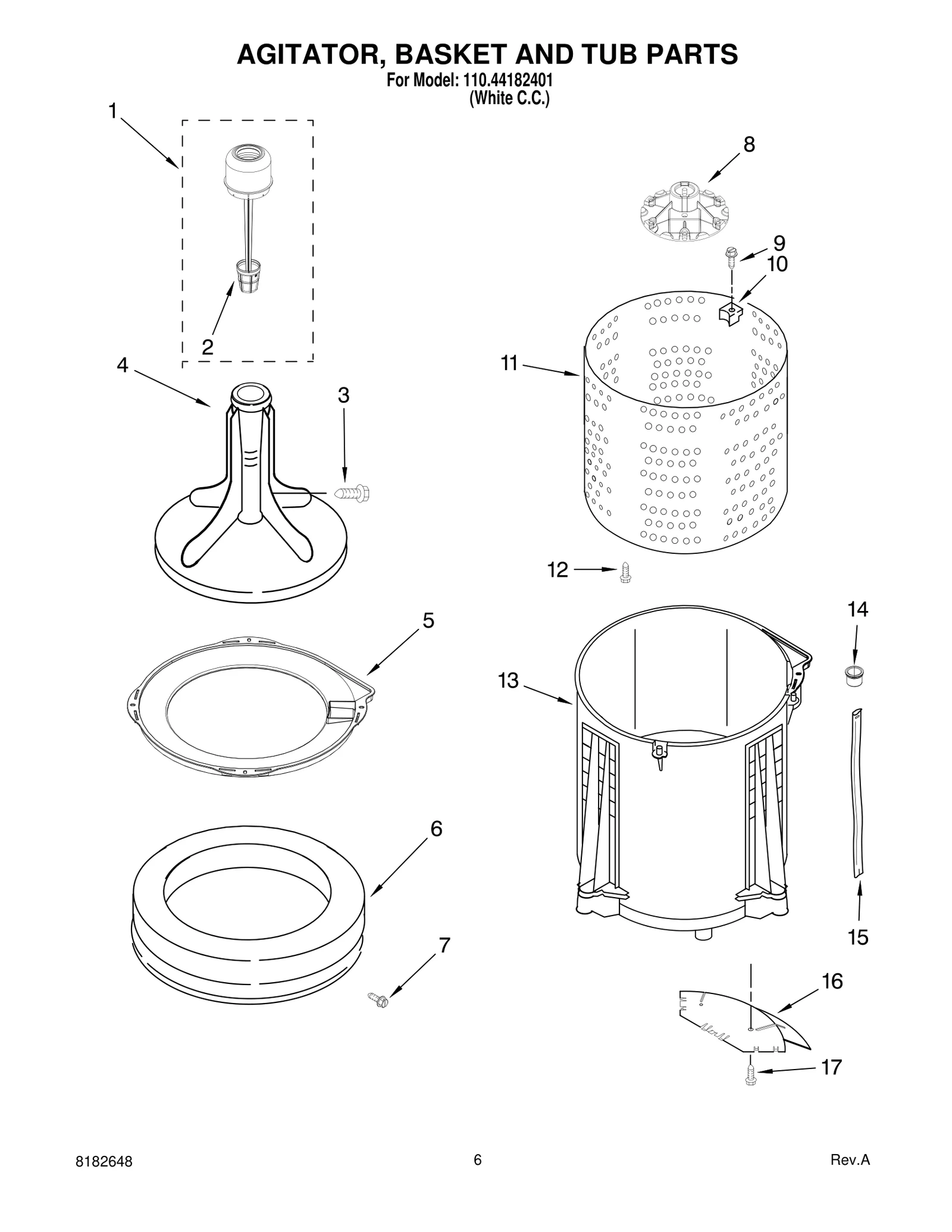

AGITATOR, BASKET AND TUB PARTS

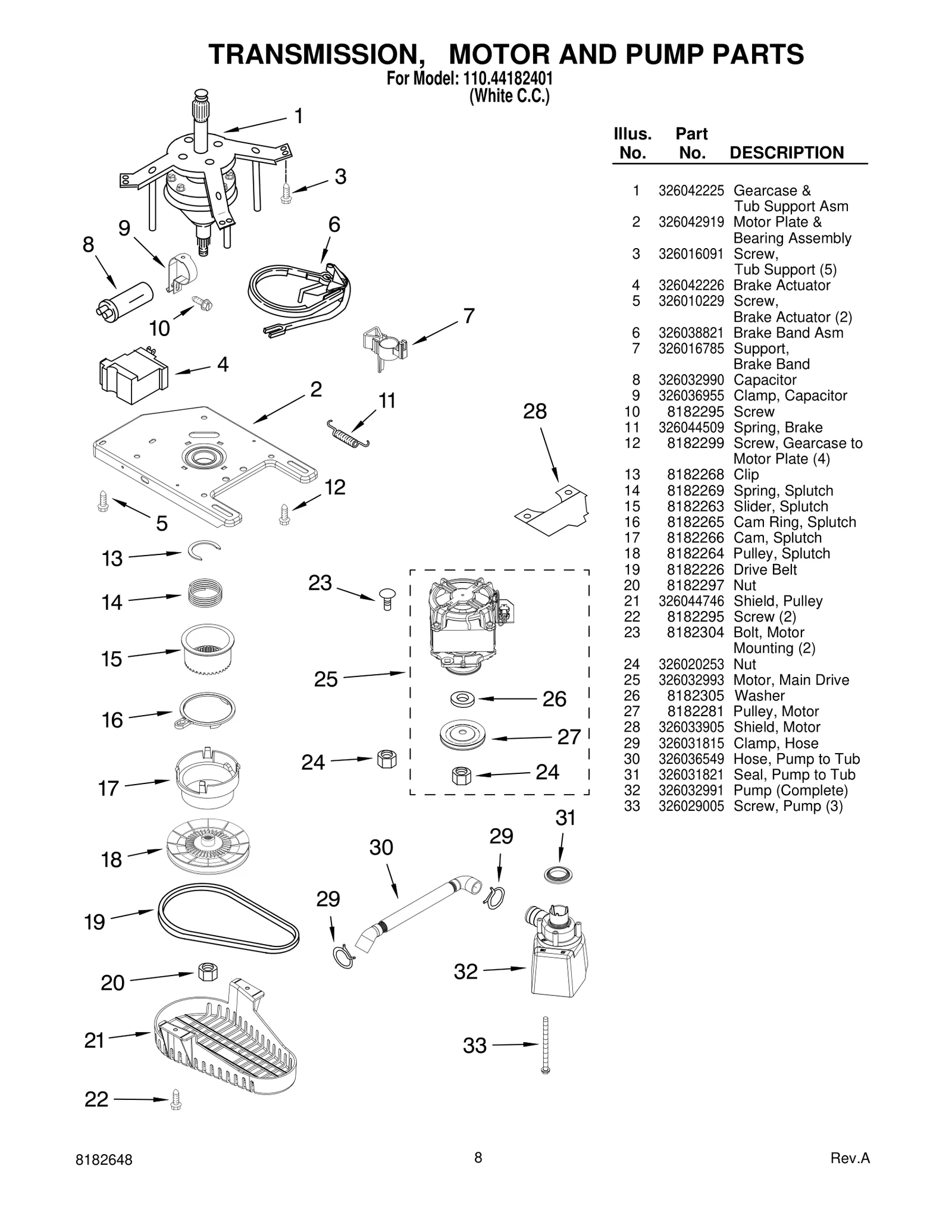

TRANSMISSION, MOTOR AND PUMP PARTS

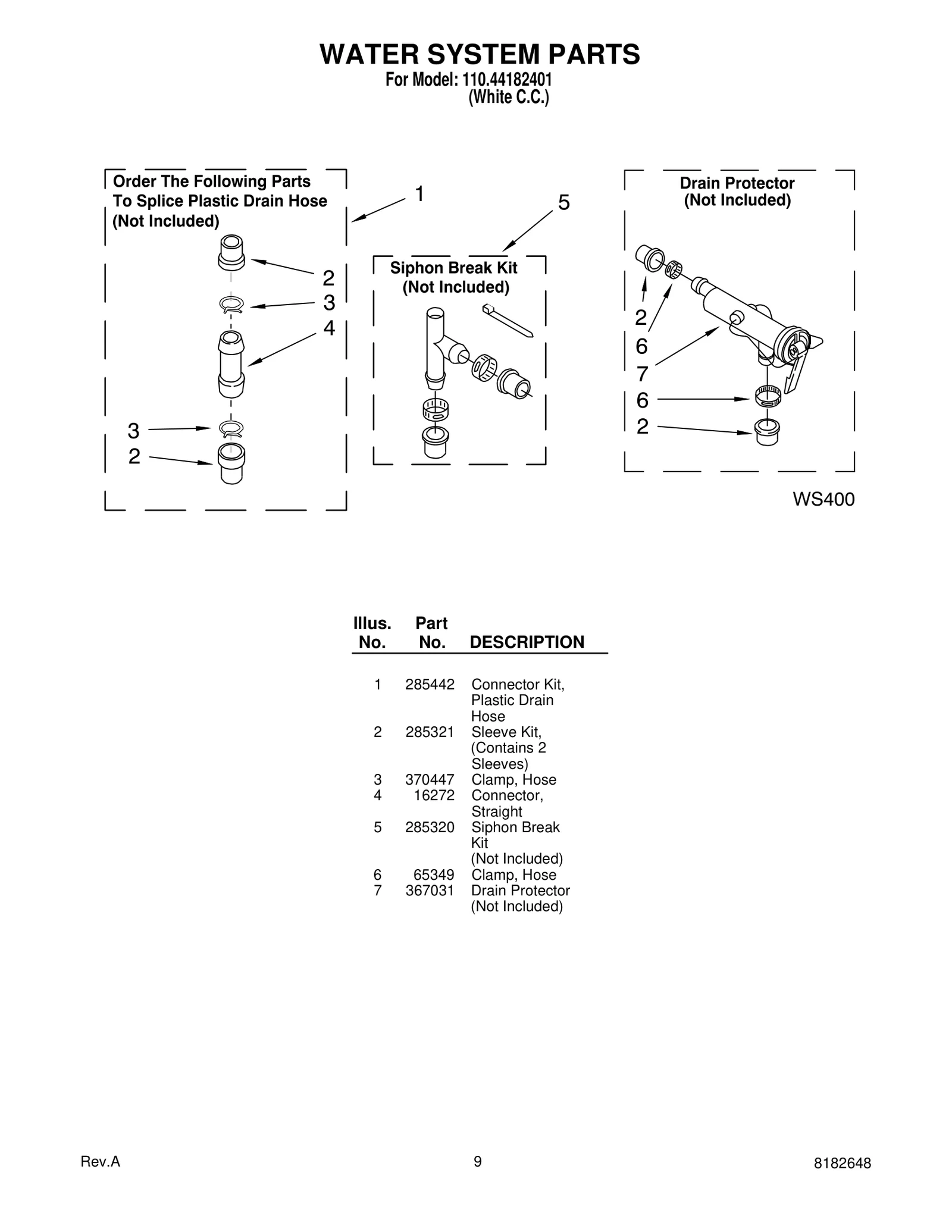

WATER SYSTEM PARTS

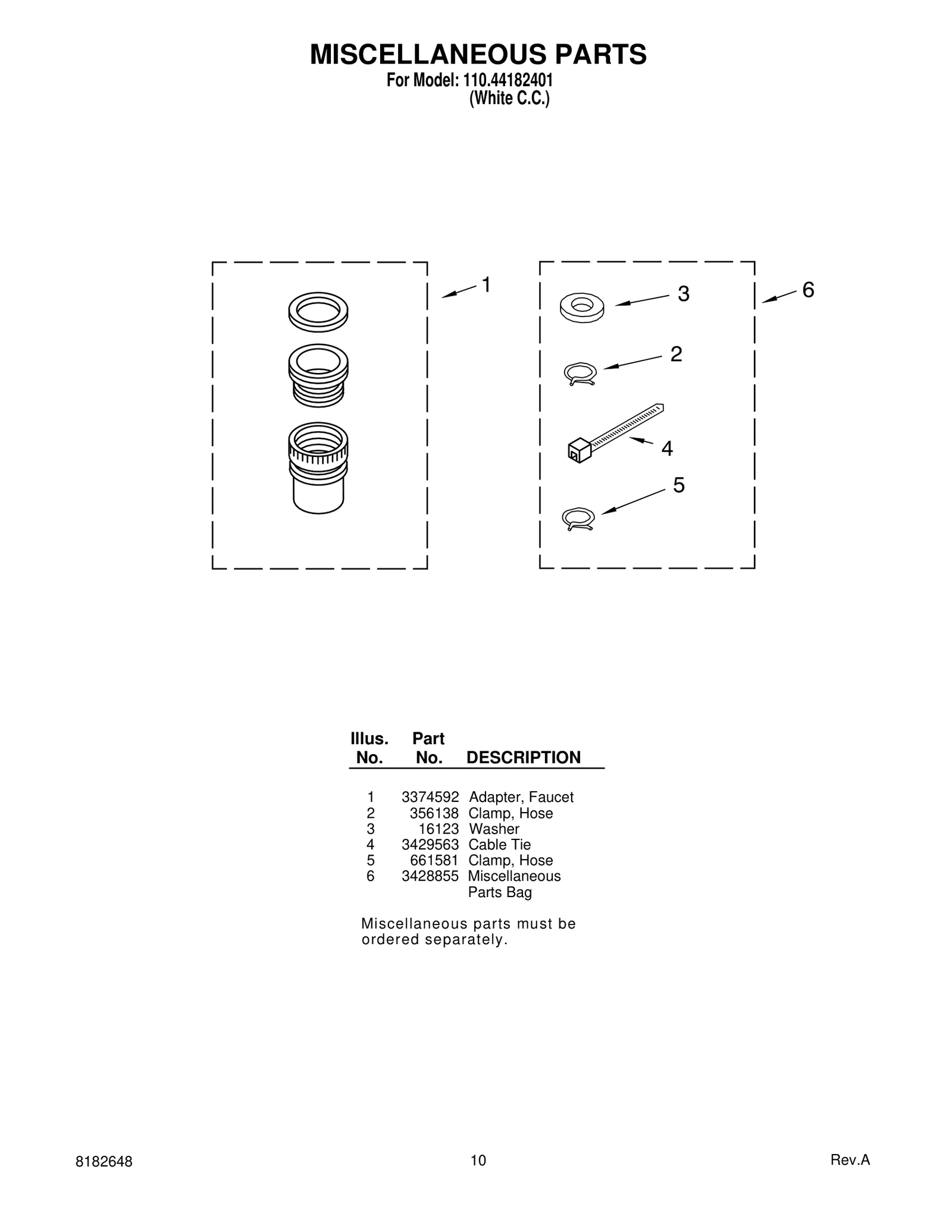

MISCELLANEOUS PARTS

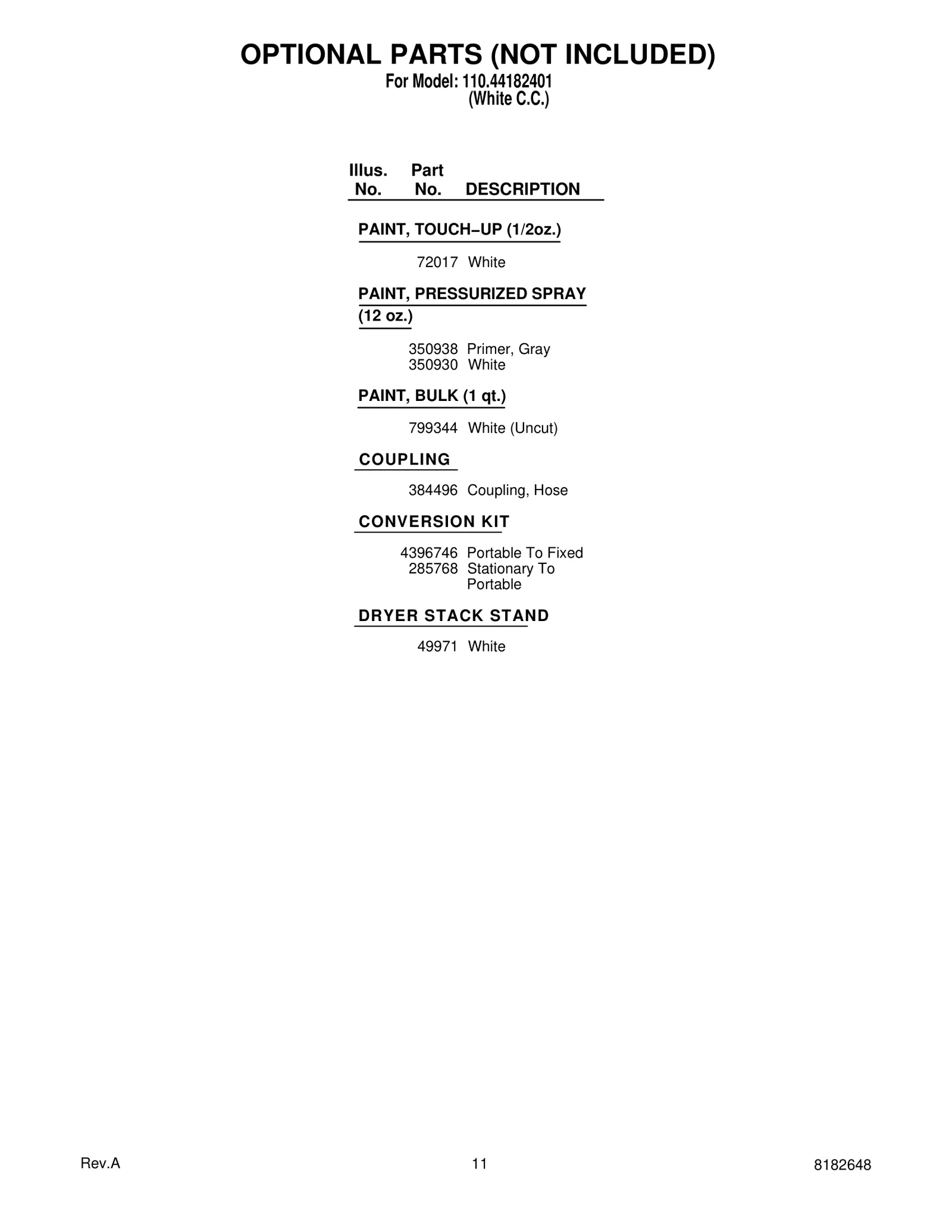

OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool 110.44182401 Automatic Washer
1
Inlet Valve (Hot) WPL 326032994 Contact Us For Availability
1
Fabric Softener Dispenser Assembly WPL 326018423 Contact Us For Availability
1
Gearcase & Tub Support Asm WPL 326042225 Contact Us For Availability
2
Motor Plate & Bearing Assembly WPL 326042919 Contact Us For Availability
2
Inlet Valve (Cold) WPL 326032997 Contact Us For Availability
2
Filter, Lint WPL 8182228 Contact Us For Availability
3
Screw, Agitator WPL 8182296 Contact Us For Availability
3
Screw, Tub Support (5) WPL 326016091 Contact Us For Availability
4
Brake Actuator WPL 326042226 Contact Us For Availability
4
Housing, Dispenser WPL 326033918 Contact Us For Availability
5
Tub Ring WPL 326000116 Contact Us For Availability
5
Screw, Brake Actuator (2) WPL 326010229 Contact Us For Availability
5
Clamp, Hose WPL 661581 Contact Us For Availability
6
Overlay WPL 326036327 Contact Us For Availability
6
Balance Ring WPL 8182229 Contact Us For Availability
6
Miscellaneous Parts Bag Miscellaneous parts m WPL 3428855 Contact Us For Availability
7
Support, Brake Band WPL 326016785 Contact Us For Availability
7
Interface Board WPL 326048438 Contact Us For Availability
8
Control, Electronic WPL 326048436 Contact Us For Availability
8
Hub, Drive WPL 8182302 Contact Us For Availability
9
Screw WPL 8182301 Contact Us For Availability
9
Clamp, Capacitor WPL 326036955 Contact Us For Availability
9
Rev.A WPL N/S Contact Us For Availability
10
Switch, Water Level WPL 326034589 Contact Us For Availability
10
Saddle Block WPL 8182303 Contact Us For Availability
11
Basket WPL 8182230 Contact Us For Availability
12
Screw (6) WPL 8182300 Contact Us For Availability
12
Screw, Gearcase to Motor Plate (4) WPL 8182299 Contact Us For Availability
13
Tub WPL 326033908 Contact Us For Availability
13
Clip WPL 8182268 Contact Us For Availability
14
Switch, Lid WPL 326033879 Contact Us For Availability
14
Sleeve, Tub Overflow WPL 326036378 Contact Us For Availability
15
Connector, Drain Hose WPL 326034647 Contact Us For Availability
15
Bag, Tub Overflow WPL 326036377 Contact Us For Availability
15
Slider, Splutch WPL 8182263 Contact Us For Availability
16
Cam Ring, Splutch WPL 8182265 Contact Us For Availability
16
Shield, Tub/Motor WPL 326033906 Contact Us For Availability
17
Cam, Splutch WPL 8182266 Contact Us For Availability
18
Pulley, Splutch WPL 8182264 Contact Us For Availability
19
Drive Belt WPL 8182226 Contact Us For Availability
20
Nut WPL 8182297 Contact Us For Availability
21
Shield, Pulley WPL 326044746 Contact Us For Availability
22
Strap, Snubber WPL 326000047 Contact Us For Availability
22
Screw (2) WPL 8182295 Contact Us For Availability
23
Bolt, Motor Mounting (2) WPL 8182304 Contact Us For Availability
24
Screw WPL 326041720 Contact Us For Availability
25
Motor, Main Drive WPL 326032993 Contact Us For Availability
25
Bracket, Pressure Switch Mounting WPL 326044485 Contact Us For Availability
26
Washer WPL 8182305 Contact Us For Availability
27
Pulley, Motor WPL 8182281 Contact Us For Availability
28
Shield, Motor WPL 326033905 Contact Us For Availability
30
Hose, Pump to Tub WPL 326036549 Contact Us For Availability
31
Seal, Pump to Tub WPL 326031821 Contact Us For Availability
32
Pump (Complete) WPL 326032991 Contact Us For Availability
33
Screw, Pump (3) WPL 326029005 Contact Us For Availability
OPT-4
White (Uncut) WPL 799344 Contact Us For Availability
OPT-6
Portable To Fixed WPL 4396746 Contact Us For Availability
OPT-7
Stationary To WPL 285768 Contact Us For Availability
× ![]()
