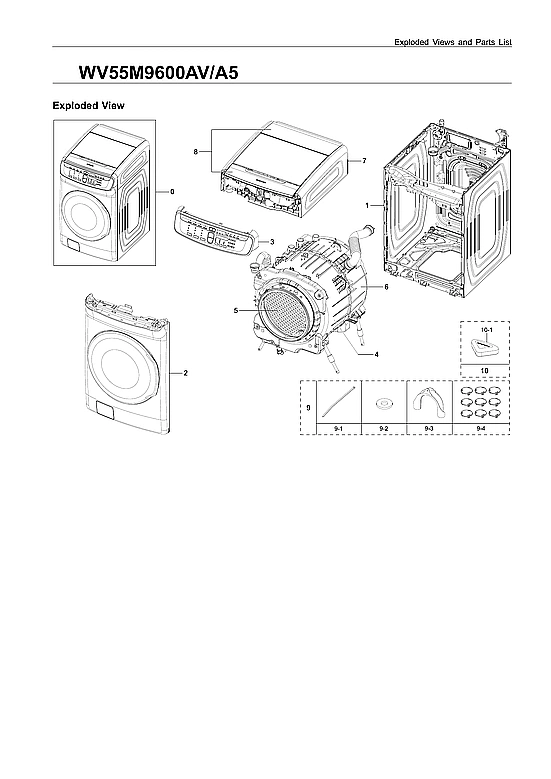

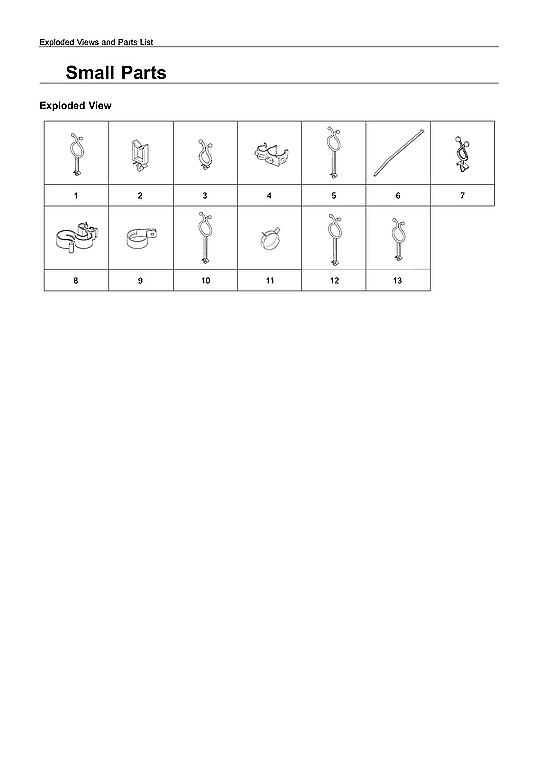

Model Samsung WV55M9600AV/A5-03 Washer – Common Parts &amp; Diagrams

1

DC63-01997A Samsung Cover Top WV9900M ABS T2. Backorder SMG DC63-01997A $158.55

1

DC97-20095A Samsung Assembly Semi Panel Contr In Stock SMG DC97-20095A $327.31

1

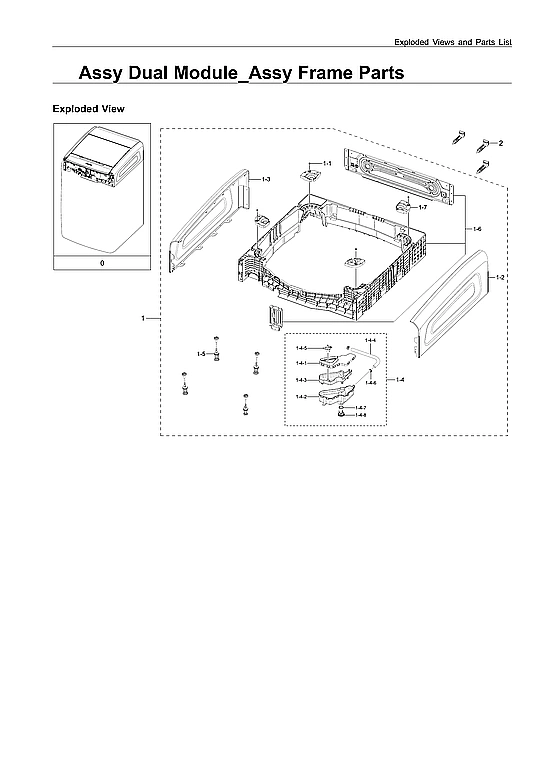

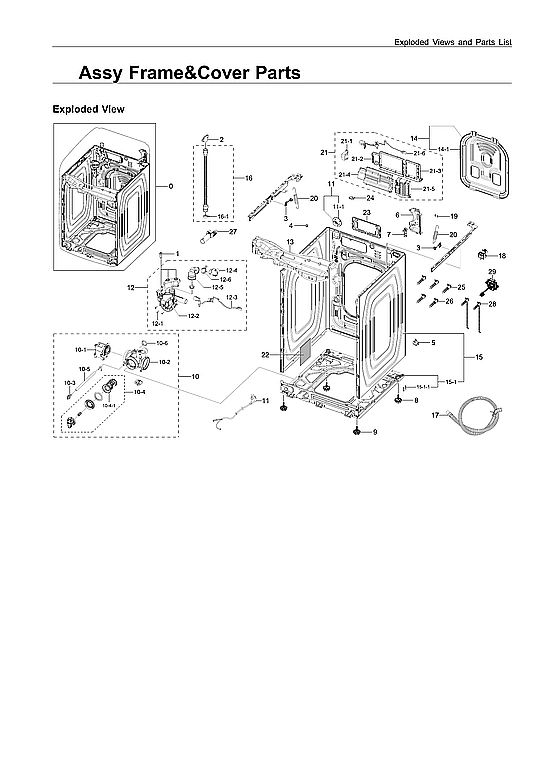

Frame parts SMG DC90-00015M Contact Us For Availability

1

Tub front parts SMG DC90-00006W Contact Us For Availability

1

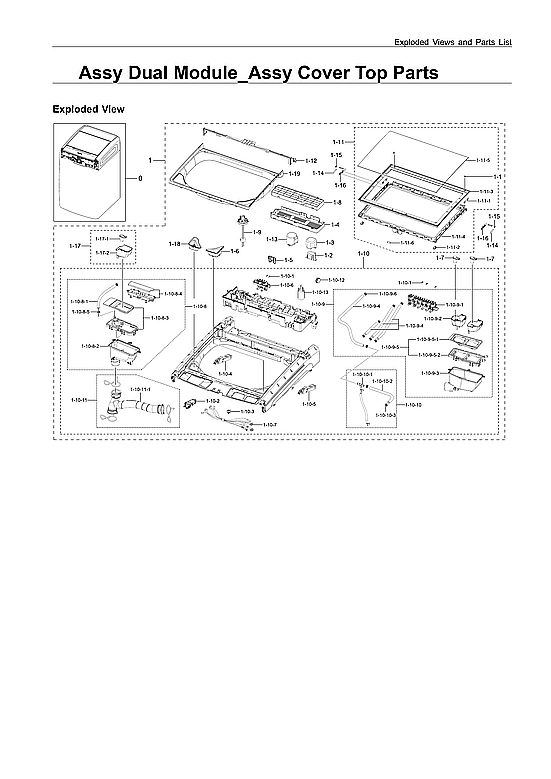

Cover top parts SMG DC90-00004Y Contact Us For Availability

1-1

6001-002750 Samsung Machine Screw In Stock SMG 6001-002750 $1.18

1-1

DC67-00560A Samsung Washer Weight Balancer Backorder SMG DC67-00560A $154.91

1-2

DC26-00009T Samsung Coil Harmonic Backorder SMG DC26-00009T $114.23

1-2

DC67-00870B Samsung Weight Balancer Backorder SMG DC67-00870B $154.87

1-2

DC97-20255A Samsung Assembly Filter Flex WASH Backorder SMG DC97-20255A $50.08

1-3

DC61-03276A Samsung Bracket Reactor Backorder SMG DC61-03276A $5.97

1-3

DC96-01417K Samsung Heater Assembly Backorder SMG DC96-01417K $120.11

1-3-1

DC47-00006Z Samsung Heater Wash Backorder SMG DC47-00006Z $136.28

1-3-2

DC63-00820A Samsung Cover Heater WF337AAW PC+ Backorder SMG DC63-00820A $10.46

1-4

DC97-02412A Samsung Washer Bolt Assembly Backorder SMG DC97-02412A $13.44

1-4

Washer fabric softener dispenser assembly SMG DC97-20128A Contact Us For Availability

1-4

Assy cover pcb SMG DC97-20001A Contact Us For Availability

1-4-5

DC67-00875A Samsung Cap Liquid ABS WV7500M T1 Backorder SMG DC67-00875A $5.48

1-4-7

DC62-00702A Samsung Seal Cap Guide In Stock SMG DC62-00702A $1.18

1-5

DC63-01579A Samsung COVER GUIDE Wire;W3050,PP Backorder SMG DC63-01579A $2.49

1-5

DC97-19642C Samsung Tub Front Assembly WV9600 Backorder SMG DC97-19642C $296.31

1-5-1

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $67.16

1-5-2

DC97-04981F Samsung Washer Door Boot Gasket D Backorder SMG DC97-04981F $19.90

1-5-3

DC97-14545S Samsung Hose Pressure Assembly Backorder SMG DC97-14545S $48.67

1-5-3-1

Cable tie push mount SMG 6051-000017 Contact Us For Availability

1-5-4

DC97-16106B Samsung Air Hose Assembly for WF6 Backorder SMG DC97-16106B $48.10

1-5-5

DC97-19638C Samsung Assembly Semi Tub Front W Backorder SMG DC97-19638C $175.17

1-5-5-1

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $3.48

1-5-6

DC97-19755G Samsung Washer Door Boot In Stock SMG DC97-19755G $186.03

1-5-6-1

DC64-02792D Samsung Door Diaphragm Assembly f Backorder SMG DC64-02792D $172.04

1-6

DC63-02010A Samsung Cover Rinse Assembly WV75 Backorder SMG DC63-02010A $19.41

1-6

DC97-20042A Samsung Drawer Hose Backorder SMG DC97-20042A $116.07

1-6-1

DC67-00878A Samsung Hose Drawer Detergent Ass Backorder SMG DC67-00878A $101.19

1-8

Samsung washer electronic control board SMG DC92-02004E No Longer Available

1-10

DC97-20019A Samsung Semi Top Cover Assembly Backorder SMG DC97-20019A $418.82

1-10-1

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $1.18

1-10-2

DC34-00025E Samsung Washer Door Lid Switch La In Stock SMG DC34-00025E $166.00

1-10-3

DC61-01081A Samsung Hose Holder Assembly Backorder SMG DC61-01081A $2.49

1-10-4

DC61-04459A Samsung Hinge Left WV9900M GI-SGC Backorder SMG DC61-04459A $261.34

1-10-5

DC61-04460A Samsung Hinge Right Assembly WV99 Backorder SMG DC61-04460A $201.65

1-10-6

DC62-00311Q Samsung Water Valve Backorder SMG DC62-00311Q $138.37

1-10-7

DC93-00687A Samsung Wire Harness Assembly Twi Backorder SMG DC93-00687A $75.29

1-10-8

DC97-20040A Samsung Assembly Drawer Housing Backorder SMG DC97-20040A $211.12

1-10-8-2

DC61-04334A Samsung Body Drawer Backorder SMG DC61-04334A $29.66

1-10-8-3

DC97-20043A Samsung Drawer Housing Assembly Backorder SMG DC97-20043A $49.30

1-10-8-4

DC97-20108A Samsung Washer Dual Hose Connecto Backorder SMG DC97-20108A $44.70

1-10-9

DC97-20041A Samsung Drawer Housing Assembly f Backorder SMG DC97-20041A $264.73

1-10-9-1

DC33-01002A Samsung Water Valve Backorder SMG DC33-01002A $245.48

1-10-9-2

DC61-04322A Samsung Case Rinse Assembly Backorder SMG DC61-04322A $10.95

1-10-9-3

DC61-04330A Samsung Washing Machine Rinse Low Backorder SMG DC61-04330A $41.60

1-10-9-5

DC97-20044A Samsung Assembly S. Housing Drawe Backorder SMG DC97-20044A $39.83

1-10-10

DC97-20045A Samsung Hose Drawer Assembly WV99 Backorder SMG DC97-20045A $46.91

1-10-11

DC97-20050A Samsung Hose Assembly Backorder SMG DC97-20050A $133.57

1-11

DC97-20004C Samsung Lid Assembly Backorder SMG DC97-20004C $253.42

1-11-1

DC61-03394A Samsung Bracket Hinge Assembly WA Backorder SMG DC61-03394A $3.48

1-11-2

DC63-01554B Samsung Cushion Lid Backorder SMG DC63-01554B $2.98

1-11-3

DC64-03485A Samsung Door Lid T.C. MABS Assemb Backorder SMG DC64-03485A $80.09

1-11-4

DC64-03486A Samsung Door Lid Cover Backorder SMG DC64-03486A $96.68

1-11-5

DC64-03488A Samsung DOOR GLASS;DV9900,GLASS,T Backorder SMG DC64-03488A $178.34

1-11-6

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $7.97

1-12

DC61-04352A Samsung Bracket Cover Top-Up Dual Backorder SMG DC61-04352A $32.31

1-13

DC63-01432B Samsung Filter Cover Backorder SMG DC63-01432B $18.92

1-14

DC64-02822W Samsung Inlay Backorder SMG DC64-02822W $3.48

1-15

DC67-00872A Samsung Cap Hinge T3 HB K300 DAR Backorder SMG DC67-00872A $1.18

1-16

DC61-04335A Samsung Guide Pin Backorder SMG DC61-04335A $30.97

1-17

DC97-20054A Samsung Washer Detergent Assembly Backorder SMG DC97-20054A $45.14

1-17-2

Samsung guide detergent SMG DC61-04313A Contact Us For Availability

1-18

DC97-20143A Samsung Bleach Drawer Assembly Backorder SMG DC97-20143A $34.08

1-19

DC63-01999A Samsung Deco Top Cover for WV9900 Backorder SMG DC63-01999A $100.16

2

DC61-00553B Samsung Cable Clamp Assembly Backorder SMG DC61-00553B $1.18

2

DC92-02104A Samsung Assembly Kit, Display WV9 In Stock SMG DC92-02104A $378.14

2

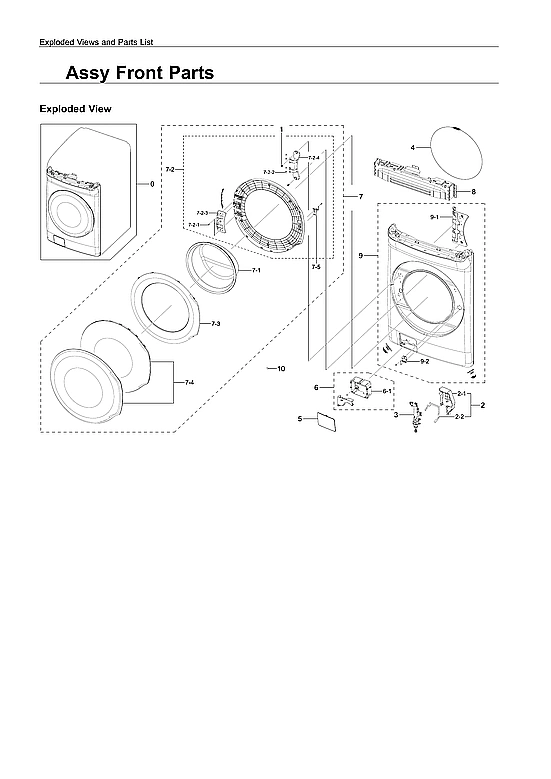

Front parts SMG DC90-00005U Contact Us For Availability

2

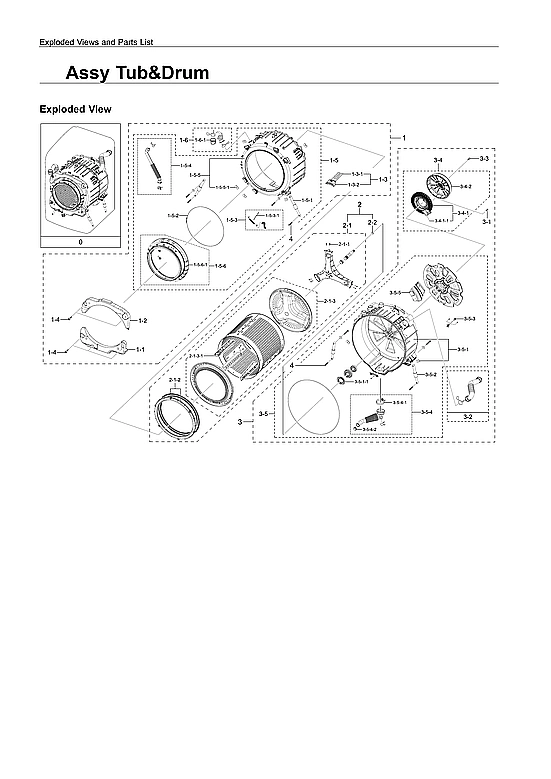

Drum assembly SMG DC90-24797A Contact Us For Availability

DC63-01156A Samsung Cover Door Switch Backorder SMG DC63-01156A $31.42

DC92-01992F Samsung Display Printed Circuit B In Stock SMG DC92-01992F $300.68

DC97-20036C Samsung Assembly Cover Tub WV9600 Backorder SMG DC97-20036C $283.64

Drum assembly SMG DC97-16086G Contact Us For Availability

2-1-1

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $5.97

2-1-2

DC97-12135A Samsung Front Load Washer Basket Backorder SMG DC97-12135A $210.25

2-1-3

Washer spin basket SMG DC97-17018A Contact Us For Availability

2-1-3-1

DC66-00598A Samsung Drum Lifter Assembly Backorder SMG DC66-00598A $28.86

2-1-6

DC67-00909A Samsung Barrier Cap WV9900M PP FC Backorder SMG DC67-00909A $1.50

2-1-6-2

DC97-19994A Samsung Stator Assembly Backorder SMG DC97-19994A $245.36

2-1-7

DC97-20029A Samsung Inner Door Assembly Backorder SMG DC97-20029A $228.04

2-1-11

DC64-03483B Samsung Door Handle Backorder SMG DC64-03483B $14.92

2-1-12

DC66-00914A Samsung Tip Lever Backorder SMG DC66-00914A $2.98

2-1-14

DC64-03880A Samsung Rubber Foot Assembly Backorder SMG DC64-03880A $7.97

2-2

6031-001640 Samsung Washer Spring STS304 ID35 Backorder SMG 6031-001640 $5.48

2-2

DC92-01993A Samsung Printed Circuit Board Dis In Stock SMG DC92-01993A $274.03

2-2

DC97-20152A Samsung Outer Tub Assembly Backorder SMG DC97-20152A $440.27

2-2-2-1

DC93-00402B Samsung Wire Harness Backorder SMG DC93-00402B $35.84

2-2-5

DC93-00278B Samsung Washer Vibration MEMS Sen In Stock SMG DC93-00278B $126.34

2-2-8

DC97-14545Q Samsung Pressure Hose Backorder SMG DC97-14545Q $25.87

3

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $2.98

3

DC61-40081A Samsung Wire Holder Assembly Backorder SMG DC61-40081A $1.18

3

DC64-00519D Samsung Washer Door Lock and Swit In Stock SMG DC64-00519D $182.81

3

Panel control parts SMG DC90-00006H Contact Us For Availability

3

Tub back parts SMG DC90-00006R Contact Us For Availability

3-1

6011-004782 Samsung Bolt Etc Backorder SMG 6011-004782 $7.47

3-2

DC97-16104B Samsung Assembly Hose O.F. Backorder SMG DC97-16104B $98.42

3-3

DC97-06080F Samsung Bolt Assembly WD9500J 30 Backorder SMG DC97-06080F $25.38

3-4

Assy dd bldc motor SMG DC93-00168F Contact Us For Availability

3-4-1

DC97-19994C Samsung Stator Assembly Backorder SMG DC97-19994C $192.44

3-4-1-1

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $80.84

3-4-2

DC97-20192A Samsung Rotor Assembly Backorder SMG DC97-20192A $205.20

3-5

DC97-19645C Samsung Tub Back Assembly WV9600 Backorder SMG DC97-19645C $450.40

3-5-1

DC97-21740C Samsung Assembly Semi Tub Back Backorder SMG DC97-21740C $391.37

3-5-1-1

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $29.95

3-5-2

DC66-00470B Samsung Washer Damper Shock Packa In Stock SMG DC66-00470B $32.69

3-5-3

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $52.22

3-5-4

DC97-16105B Samsung Washer Drain Hose Assembl Backorder SMG DC97-16105B $103.28

3-5-4-1

DC65-00014E Samsung Clamper Hose Joint Backorder SMG DC65-00014E $39.39

3-5-4-2

DC61-00219D Samsung Hose Clip Backorder SMG DC61-00219D $4.98

3-5-5

DC97-16510A Samsung Assembly Bracket TUB;GRAC Backorder SMG DC97-16510A $27.35

4

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $6.46

4

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $2.00

4

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $2.14

4

DC97-04973B Samsung Boot Spring Clamp In Stock SMG DC97-04973B $6.84

6

DC97-19494A Samsung WF6000 LATC Filter Case A Backorder SMG DC97-19494A $37.18

7

DC97-19957B Samsung Door Assembly WF5500M Backorder SMG DC97-19957B $334.03

7

Dual module SMG DC97-20148C Contact Us For Availability

7

Holder SMG DC61-40086A Contact Us For Availability

7-1

DC64-00504C Samsung Washer Door Glass Window Backorder SMG DC64-00504C $185.49

7-2-1

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $2.00

7-2-2

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $38.49

7-2-3

DC61-02635A Samsung Support Hinge Assembly In Stock SMG DC61-02635A $29.66

7-4

DC97-19996A Samsung Assembly Door Cover WF550 Backorder SMG DC97-19996A $249.92

8

DC61-02706A Samsung Hose Holder Assembly Backorder SMG DC61-02706A $4.98

8

DC97-00920S Samsung Washer Leg Leveling Assem Backorder SMG DC97-00920S $28.76

8

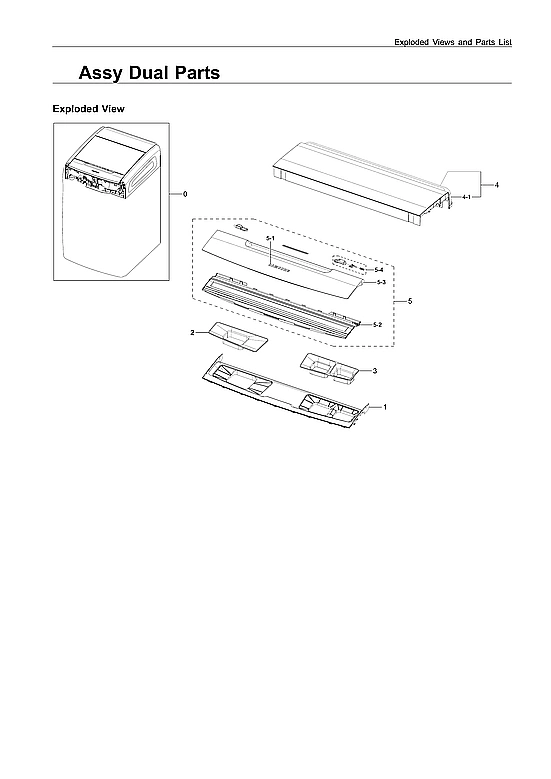

Dual parts SMG DC90-24241A Contact Us For Availability

9

DC61-00118A Samsung Cable Clamp Assembly Backorder SMG DC61-00118A $1.18

9

DC97-14293D Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293D $27.42

9

Assy accessory SMG DC98-03201A Contact Us For Availability

9-1

6501-000121 Samsung Cable Tie DA-368 T1.5 W7. Backorder SMG 6501-000121 $7.97

9-1

DC61-02615A Samsung Hinge Bracket In Stock SMG DC61-02615A $74.57

9-2

DC61-04469A Samsung Low Rubber Leg Assembly Backorder SMG DC61-04469A $22.40

9-2

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $2.98

9-3

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $5.97

9-4

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $1.18

10

DC64-03303A Samsung Inlay - Door Backorder SMG DC64-03303A $1.18

10

DC97-17999Q Samsung Drain Pump Backorder SMG DC97-17999Q $173.03

10

Assy manual SMG DC98-03211B Contact Us For Availability

10-1

DC61-04468A Samsung Washer Detergent Case Ass Backorder SMG DC61-04468A $34.97

10-3

DC61-10673A Samsung Washer Drain Cap Assembly Backorder SMG DC61-10673A $1.18

10-4

DC97-16991B Samsung Washer Drum Drain Pump Fi In Stock SMG DC97-16991B $28.36

10-4-1

DC63-00909A Samsung Washer Pump Filter Backorder SMG DC63-00909A $4.49

10-5

DC67-00244K Samsung Washer Drain Hose Backorder SMG DC67-00244K $6.96

10-6

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $4.98

11

DC61-00219F Samsung Clamper Hose Backorder SMG DC61-00219F $5.48

12

DC97-20020A Samsung Drain Pump Assembly Backorder SMG DC97-20020A $192.65

16

DC97-12534K Samsung Washer Drain Hose Assembl In Stock SMG DC97-12534K $63.14

18

DC96-01703G Samsung Washer Water Level Pressu In Stock SMG DC96-01703G $73.09

20

DC61-01257N Samsung Spring ETC Hanger In Stock SMG DC61-01257N $44.70

21

Washer electronic control board assembly SMG DC92-02076A Contact Us For Availability

21-2

DC92-01989E Samsung Assembly Printed Circuit Backorder SMG DC92-01989E $262.80

21-5

DC63-01571A Samsung Cover PBA Inverter Backorder SMG DC63-01571A $51.65

21-6

DC92-01531C Samsung Washer Inverter Board Kit In Stock SMG DC92-01531C $344.42

24

DC93-00278A Samsung Washer Vibration Sensor M In Stock SMG DC93-00278A $81.32

25

DC97-14489G Samsung Tub Fixer Backorder SMG DC97-14489G $64.27

27

DC62-00498A Samsung Washer Flexwash Pipe Conn Backorder SMG DC62-00498A $14.92

29

DC39-00057A Samsung Wire Harness Leakage 4 UL Backorder SMG DC39-00057A $32.31

110101

DC62-00176A Samsung Washer Pipe Connector Ass Backorder SMG DC62-00176A $3.48

110111

DC67-00880A Samsung Hose Rinse EPDM ID50 WV75 Backorder SMG DC67-00880A $120.41

110112

DC97-18313B Samsung CAP Assembly V.W Backorder SMG DC97-18313B $5.97

110113

DC29-00026A Filter EMI 11mH min 53pi*70 Backorder SMG DC29-00026A $172.23

110951

DC61-04329A Samsung Rinse Housing Assembly fo Backorder SMG DC61-04329A $11.44

110952

DC61-04331A Samsung Washing Machine Rinse Hou Backorder SMG DC61-04331A $17.91

6011-001565 Samsung Hex Bolt Backorder SMG 6011-001565 $6.46

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $207.53

DC61-00995A Samsung Wire Holder Backorder SMG DC61-00995A $1.18

DC61-01736B Samsung Wire Holder Backorder SMG DC61-01736B $1.18

DC65-00008B Samsung Clamper Hose Assembly In Stock SMG DC65-00008B $3.97

DC67-00051F Samsung Washer Drawer Hose In Stock SMG DC67-00051F $37.62

DC67-00876A Samsung Cap Liquid Dual Wash Backorder SMG DC67-00876A $5.48
