Model Bosch WTVC533SCN/11 Dryer – Common Parts & Diagrams

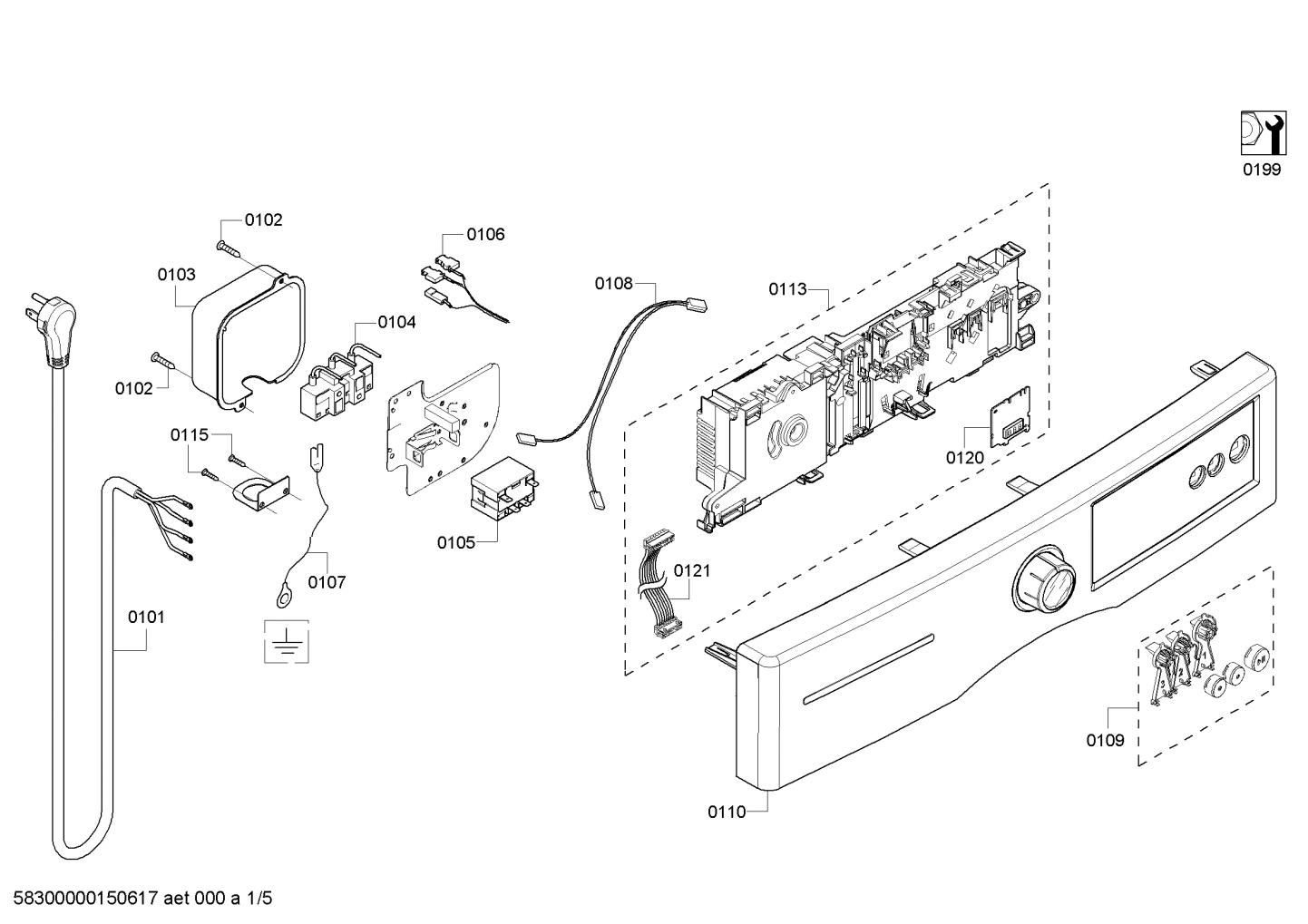

0101
Power cord
Power cord BOS 00436986 Contact Us For Availability
View on Model
0102
Screw
Screw BOS 00422240 No Longer Available
View on Model
0103
Terminal box
Terminal box BOS 00641115 Contact Us For Availability
View on Model
0104
Terminal
Terminal BOS 00493823 Contact Us For Availability
View on Model
0113
Control module
Control module BOS 00677771 Contact Us For Availability
View on Model
0120
Display module
Display module BOS 00615694 Contact Us For Availability
View on Model

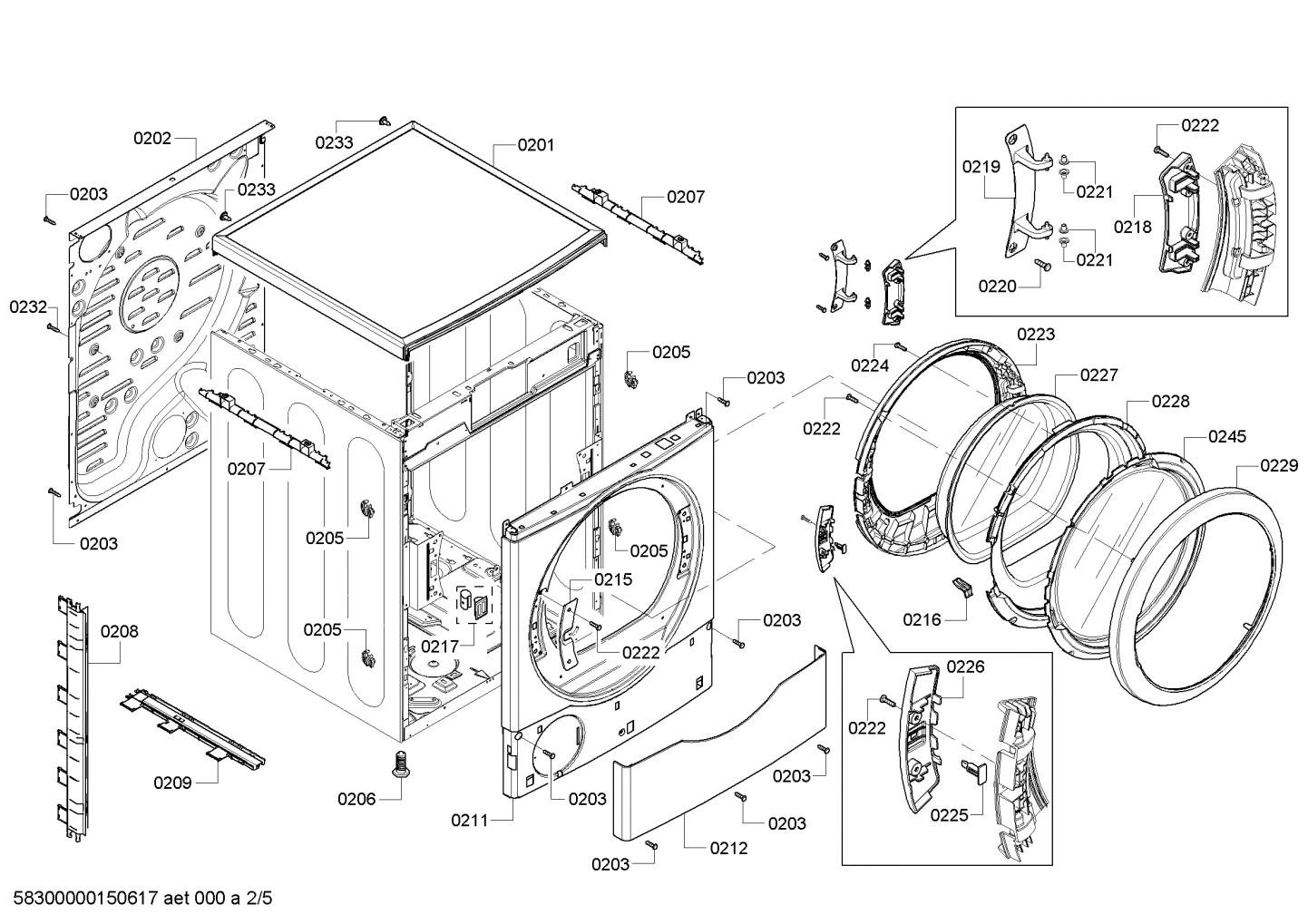

0205
Plug
Plug BOS 00427416 Contact Us For Availability
View on Model
0206
Foot
Foot BOS 00422201 Contact Us For Availability
View on Model
0217
Holder
Holder BOS 00491624 Contact Us For Availability
View on Model
0219
Door hinge
Door hinge BOS 00649704 Contact Us For Availability
View on Model
0221
Sleeve
Sleeve BOS 00422204 Contact Us For Availability
View on Model
0222
Screw
Screw BOS 00615773 Contact Us For Availability
View on Model
0223
Door-inner
Door-inner BOS 00684436 Contact Us For Availability
View on Model
0225
Door latch
Door latch BOS 00491673 No Longer Available
View on Model
0226
Cover
Cover BOS 00649729 Contact Us For Availability
View on Model
0228
Door-inner
Door-inner BOS 00684437 Contact Us For Availability
View on Model
0245
Window
Window BOS 00684145 Contact Us For Availability
View on Model

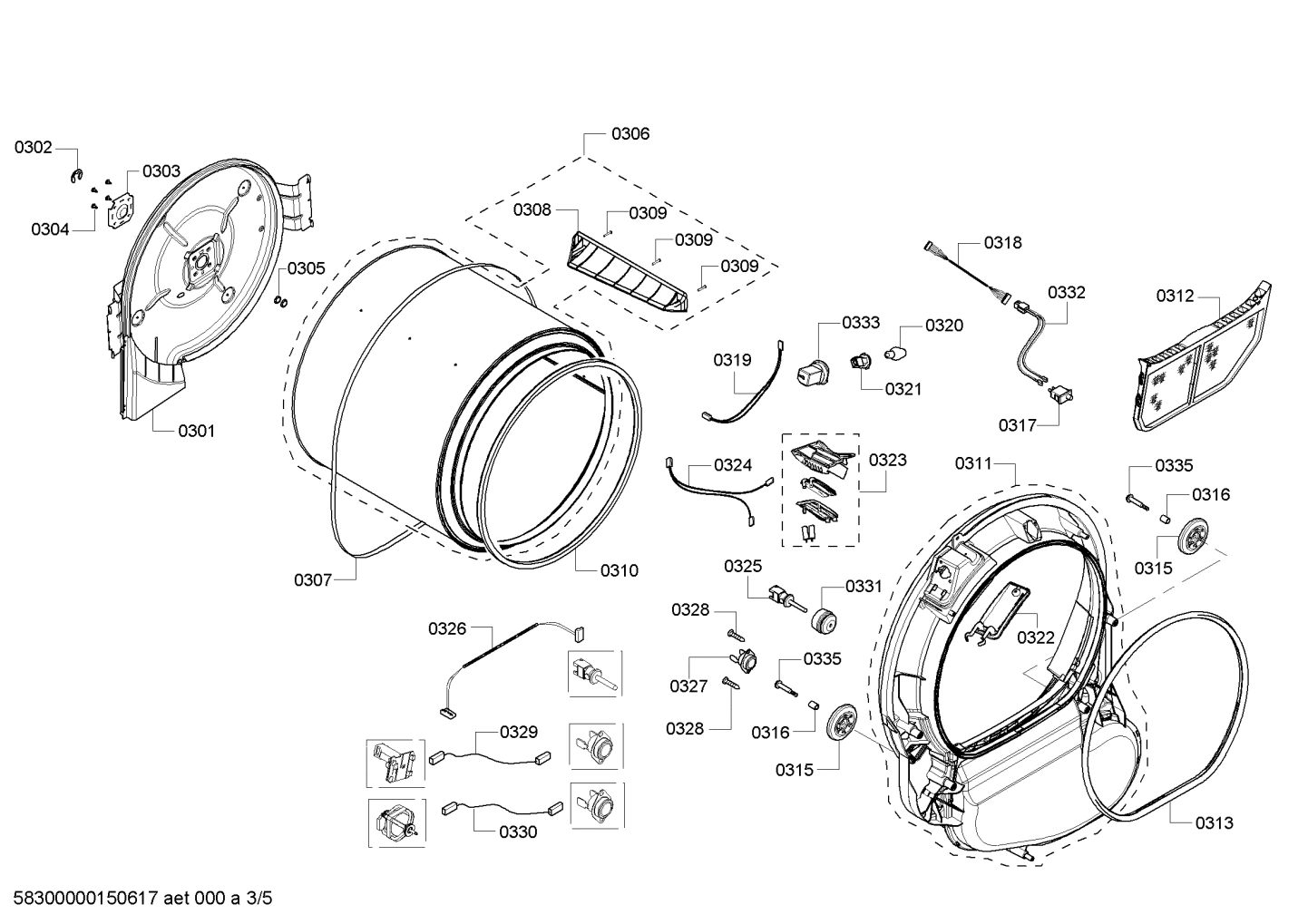

0301
Case-rear part
Case-rear part BOS 00474975 Contact Us For Availability
View on Model
0302
Clip
Clip BOS 00422226 Contact Us For Availability
View on Model
0305
Washer
Washer BOS 00422181 Contact Us For Availability
View on Model
0306
Drum
Drum BOS 00241109 Contact Us For Availability
View on Model
0307
Belt
Belt BOS 00491679 Contact Us For Availability
View on Model
0308
Flap
Flap BOS 00436417 Contact Us For Availability
View on Model
0309
Screw
Screw BOS 00422180 Contact Us For Availability
View on Model
0310
Sealing strip
Sealing strip BOS 00649746 Contact Us For Availability
View on Model
0311
Front
Front BOS 00248964 Contact Us For Availability
View on Model
0312
Filter-fluff
Filter-fluff BOS 00677826 Contact Us For Availability
View on Model
0313
Seal-door
Seal-door BOS 00649747 Contact Us For Availability
View on Model
0316
Bearing bush
Bearing bush BOS 00618326 Contact Us For Availability
View on Model
0320
Lamp
Lamp BOS 00422173 Contact Us For Availability
View on Model
0321
Bushing
Bushing BOS 00422210 Contact Us For Availability
View on Model
0323
Sensor
Sensor BOS 00618333 Contact Us For Availability
View on Model
0326
Cable harness
Cable harness BOS 00618358 Contact Us For Availability
View on Model
0327
Limiter-temperature
Limiter-temperature BOS 00422177 Contact Us For Availability
View on Model
0329
Cable harness
Cable harness BOS 00421685 Contact Us For Availability
View on Model
0332
Cable harness
Cable harness BOS 00618332 Contact Us For Availability
View on Model
0335
Screw
Screw BOS 00618325 Contact Us For Availability
View on Model

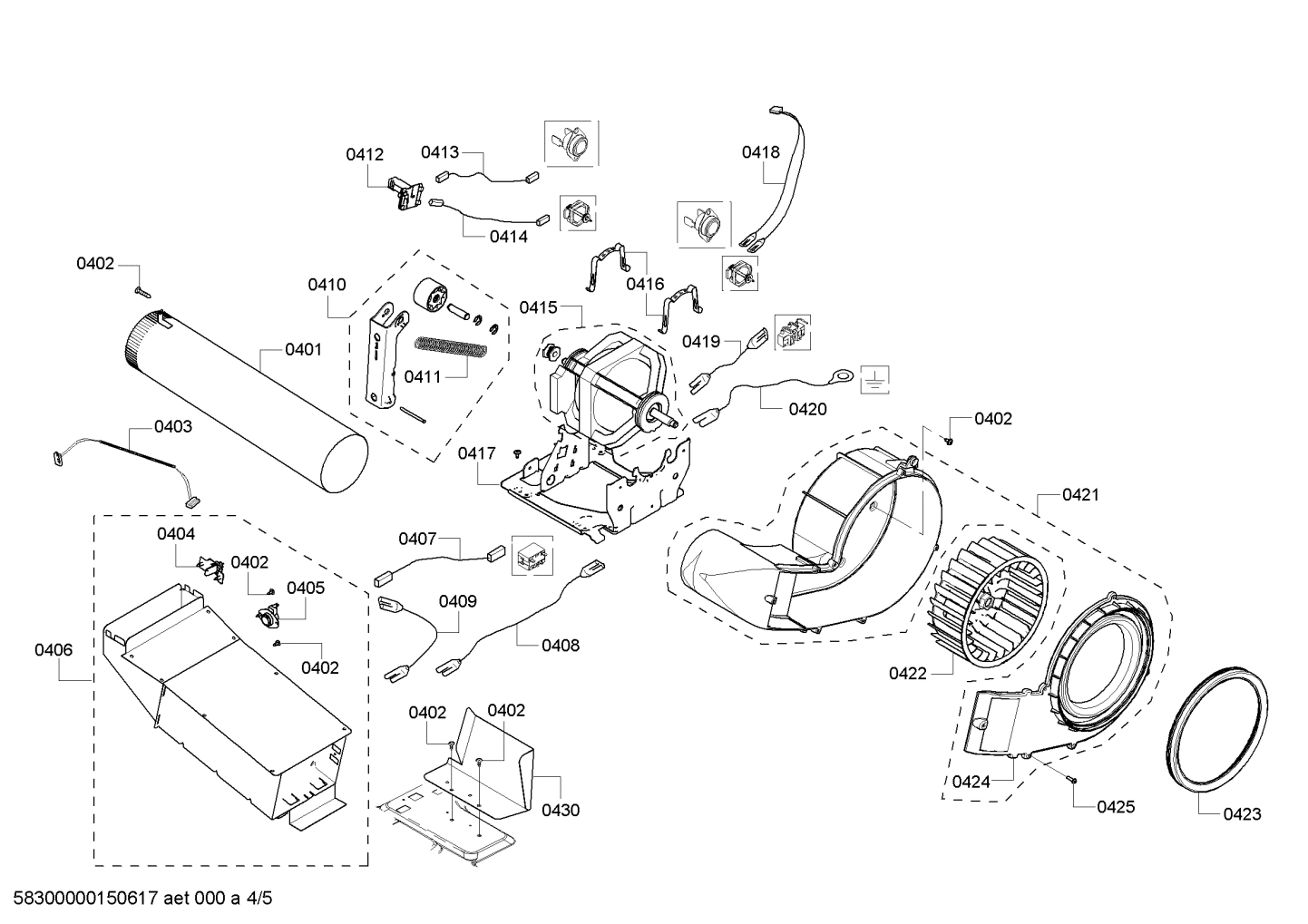

0401
Exhaust baffle
Exhaust baffle BOS 00436457 Contact Us For Availability
View on Model
0403
Cable harness
Cable harness BOS 00618356 Contact Us For Availability
View on Model
0404
Sensor-NTC
Sensor-NTC BOS 00422221 Contact Us For Availability
View on Model
0406
Heater-spiral
Heater-spiral BOS 00436460 Contact Us For Availability
View on Model
0410
Roller-tension
Roller-tension BOS 00491608 Contact Us For Availability
View on Model
0414
Cable harness
Cable harness BOS 00421596 Contact Us For Availability
View on Model
0415
Motor
Motor BOS 00436441 Contact Us For Availability
View on Model
0422
Fan wheel
Fan wheel BOS 00491640 No Longer Available
View on Model
0425
Screw
Screw BOS 00422239 Contact Us For Availability
View on Model

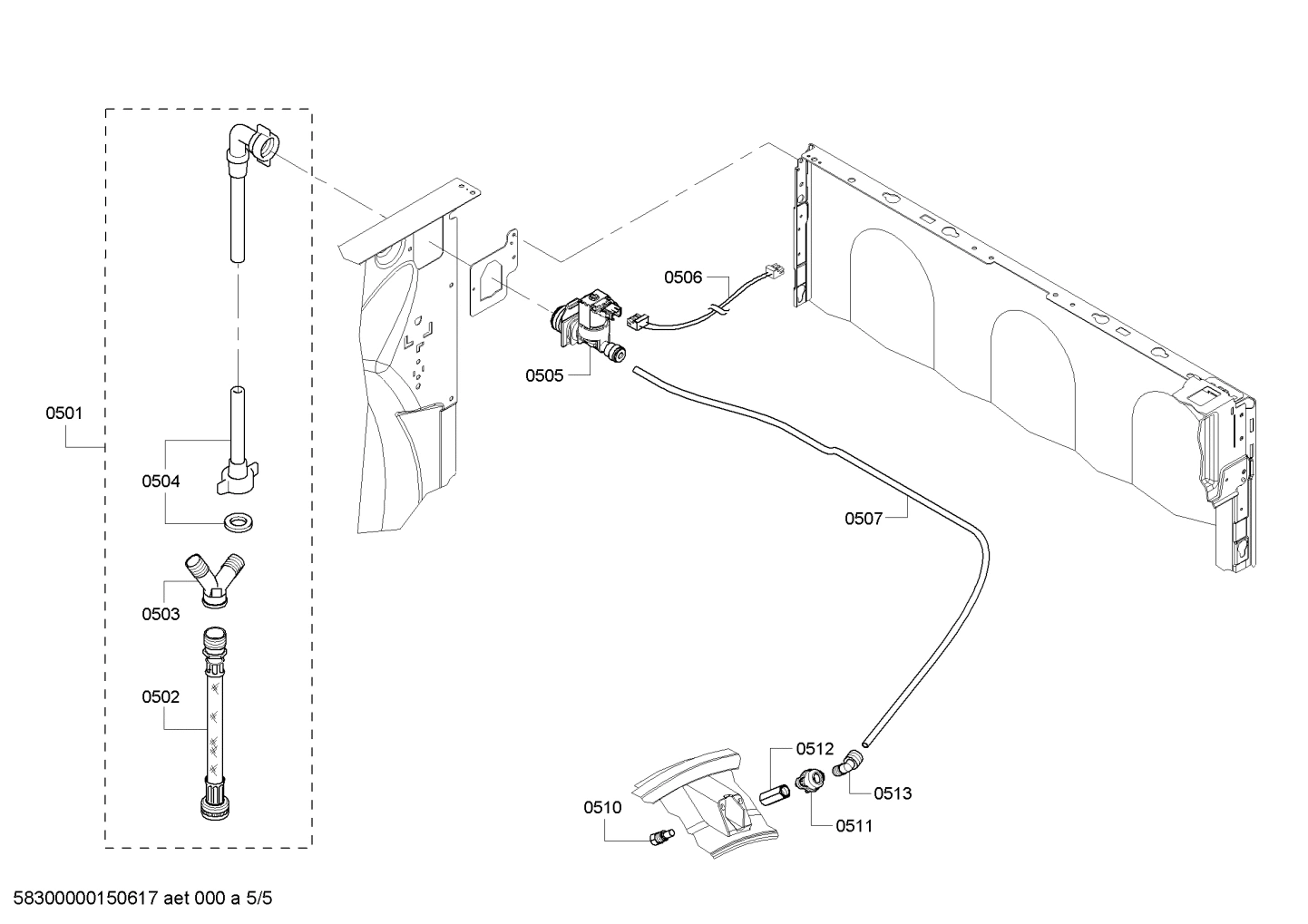

0502
Hose-inlet
Hose-inlet BOS 00645787 Contact Us For Availability
View on Model
0504
Hose-inlet
Hose-inlet BOS 00493766 No Longer Available
View on Model
