Model Bosch WTVC533CCN/10 Dryer – Common Parts & Diagrams

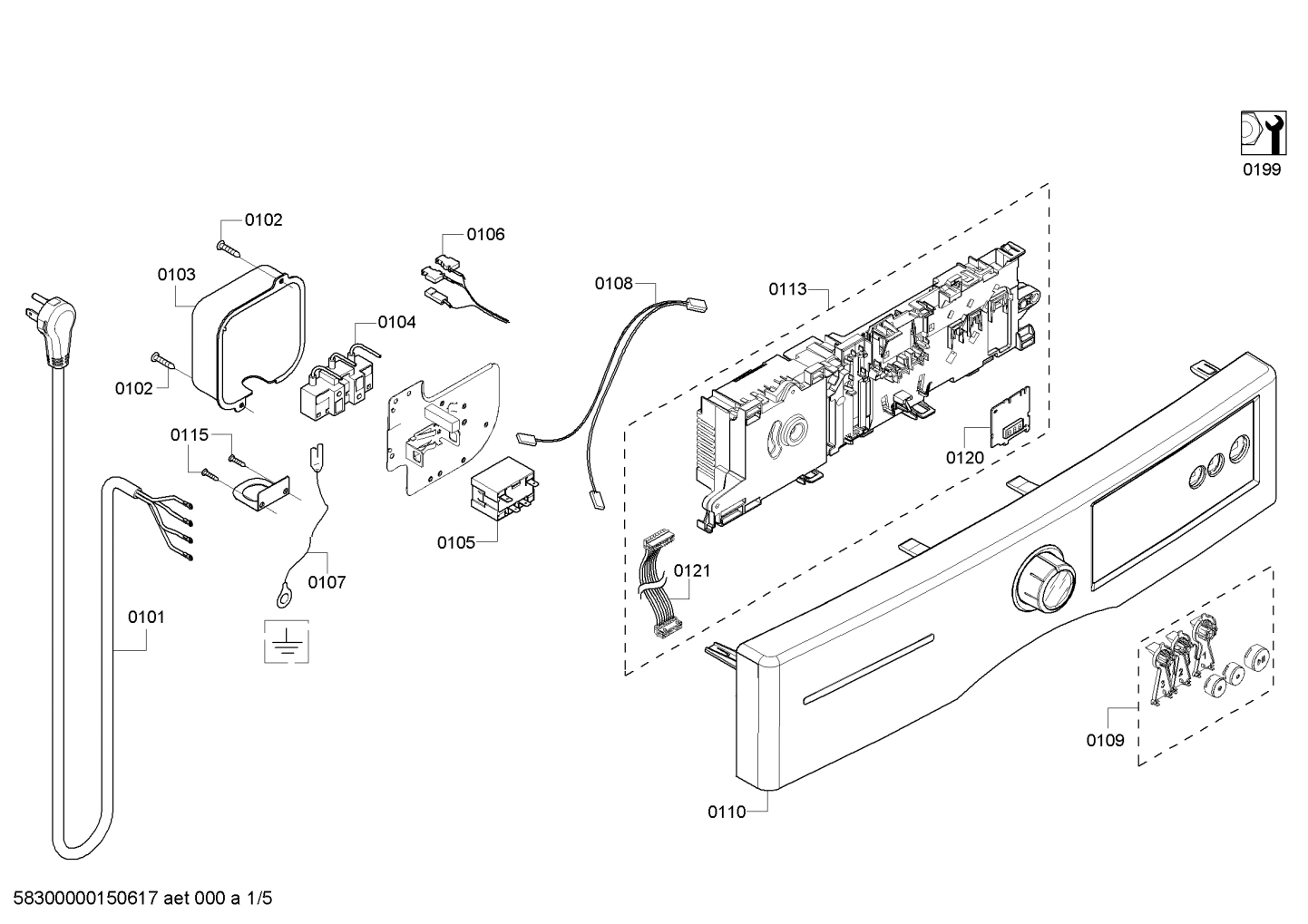

Diagram 1

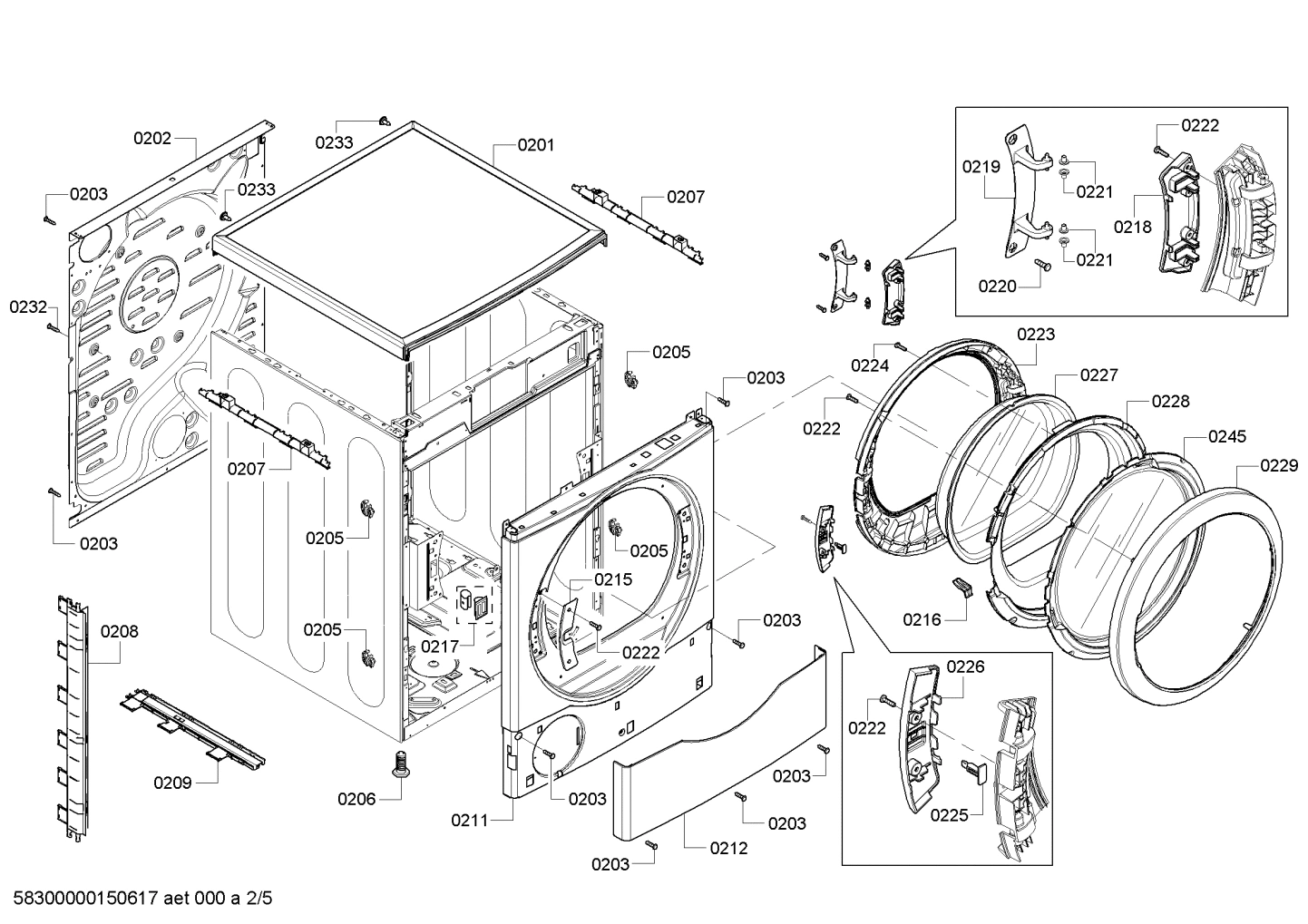

Diagram 2

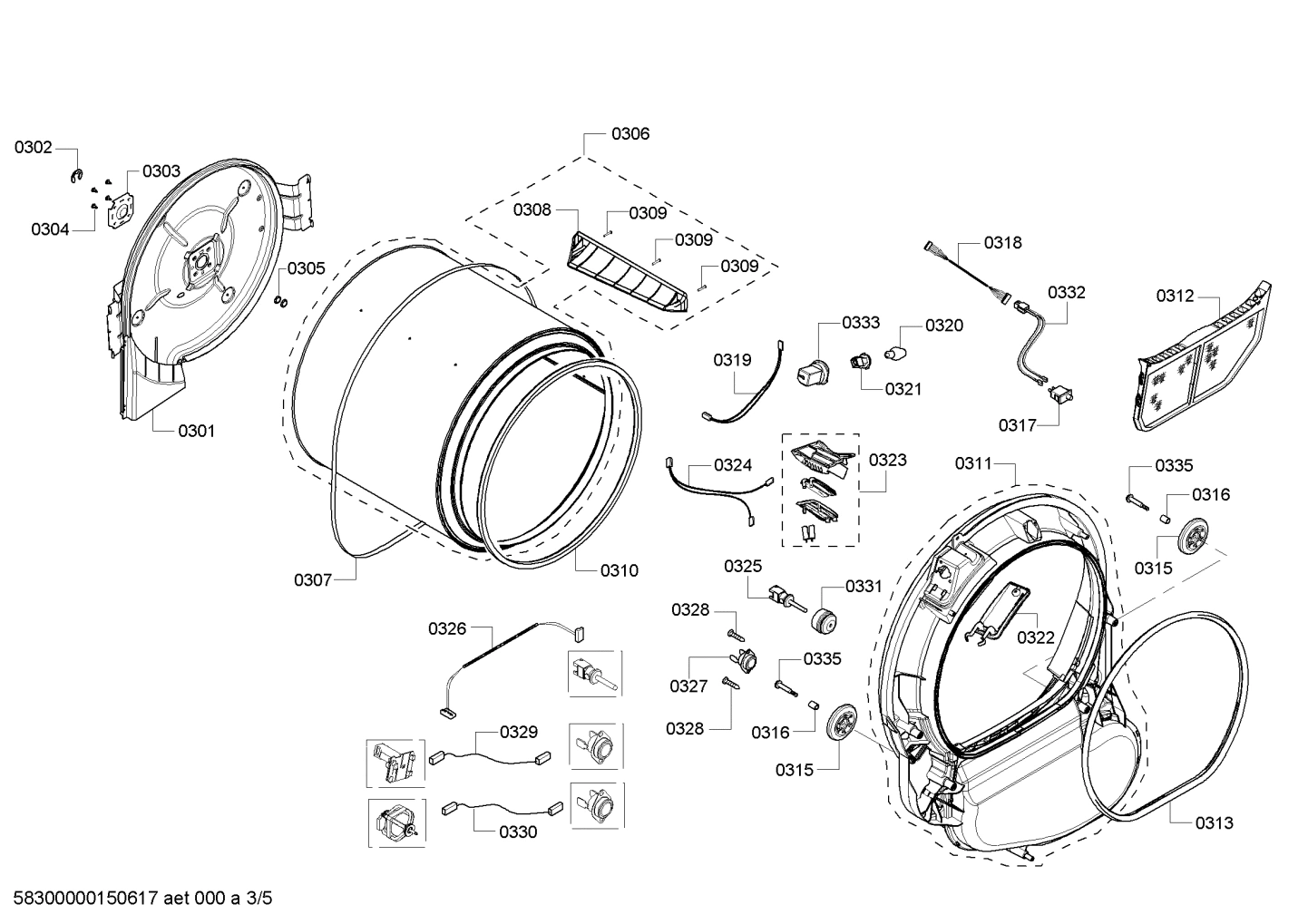

Diagram 3

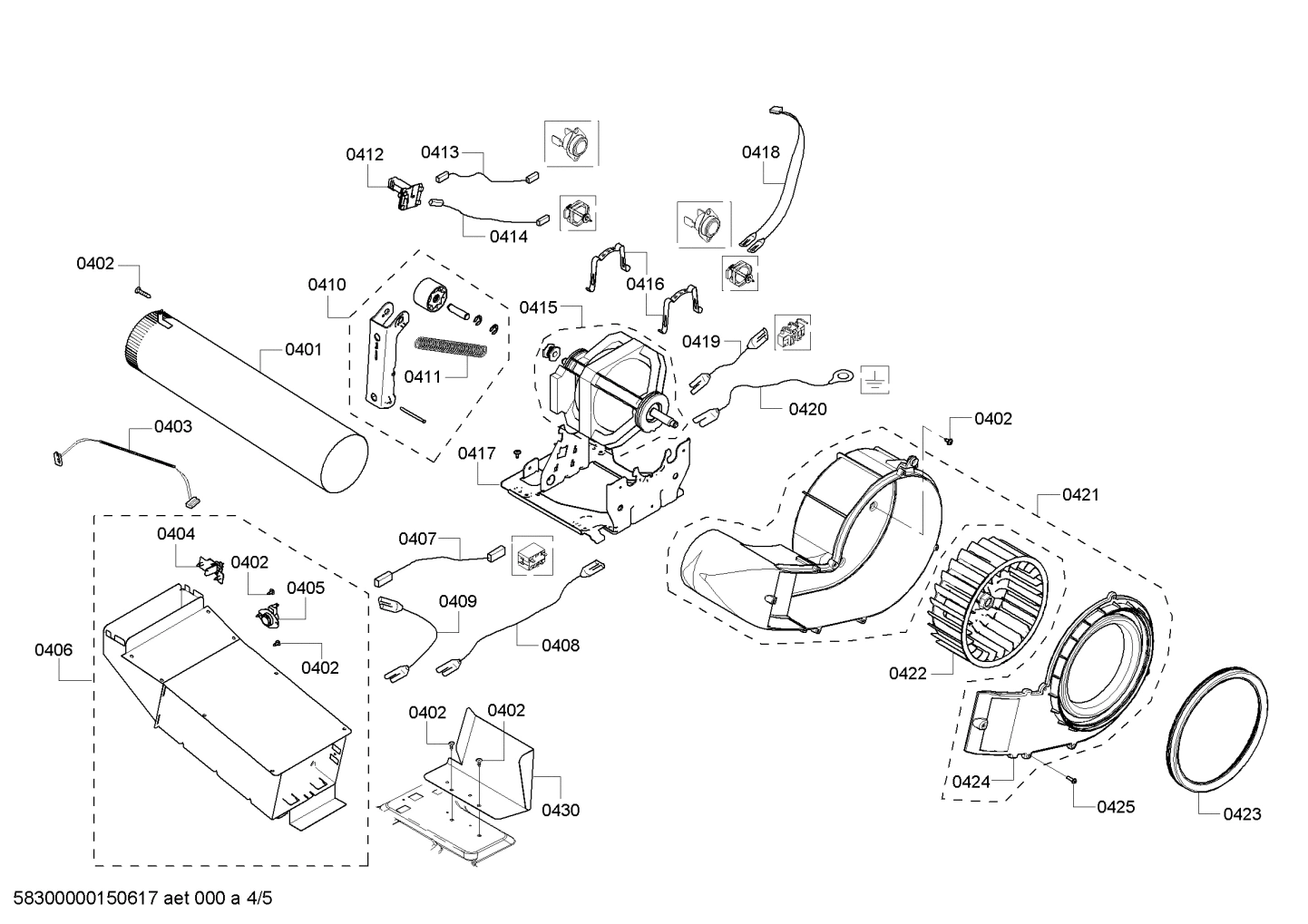

Diagram 4
Diagram 5
Common parts from model Bosch WTVC533CCN/10 Dryer
0101
Power cord BOS 00436986 Contact Us For Availability
0113
Control module BOS 00677771 Contact Us For Availability
0205
Fastening Knob BOS 00427416 Contact Us For Availability
0222
Screw BOS 00615773 No Longer Available
0225
Door Latch BOS 00491673 No Longer Available
0228
Door-inner BOS 00684437 Contact Us For Availability
0233
Self-Tapping Screw BOS 00422240 No Longer Available
0301
Case-rear part BOS 00474975 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0306
Drum BOS 00241109 Contact Us For Availability
0310
Sealing strip BOS 00649746 Contact Us For Availability
0311
Front BOS 00248964 Contact Us For Availability
0313
Seal-door BOS 00649747 No Longer Available
0316
Bearing bush BOS 00618326 Contact Us For Availability
0321
Bushing BOS 00422210 Contact Us For Availability
0323
Sensor BOS 00618333 Contact Us For Availability
0329
Cable harness BOS 00421685 Contact Us For Availability
0332
Cable harness BOS 00618332 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0403
Cable harness BOS 00618356 Contact Us For Availability
0415
Drive Motor BOS 00436441 Contact Us For Availability
0422
Fan wheel BOS 00491640 No Longer Available
0425
Screw BOS 00422239 Contact Us For Availability
0502
Hose-inlet BOS 00645787 Contact Us For Availability
0504
Cold Water Inlet Hose BOS 00493766 No Longer Available
× ![]()
