Model Bosch WTMC6300US/02 Dryer – Common Parts & Diagrams

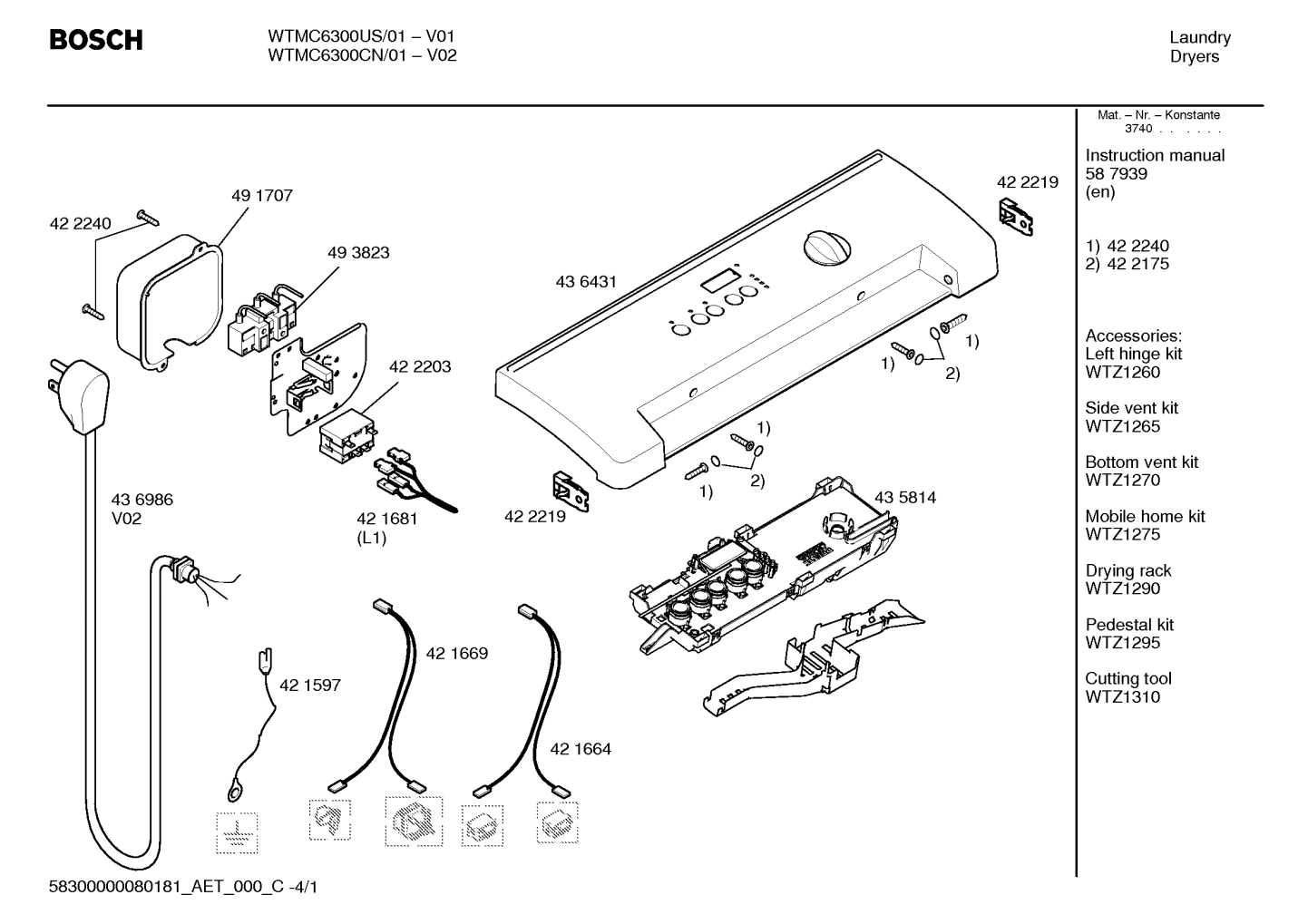

Diagram 1

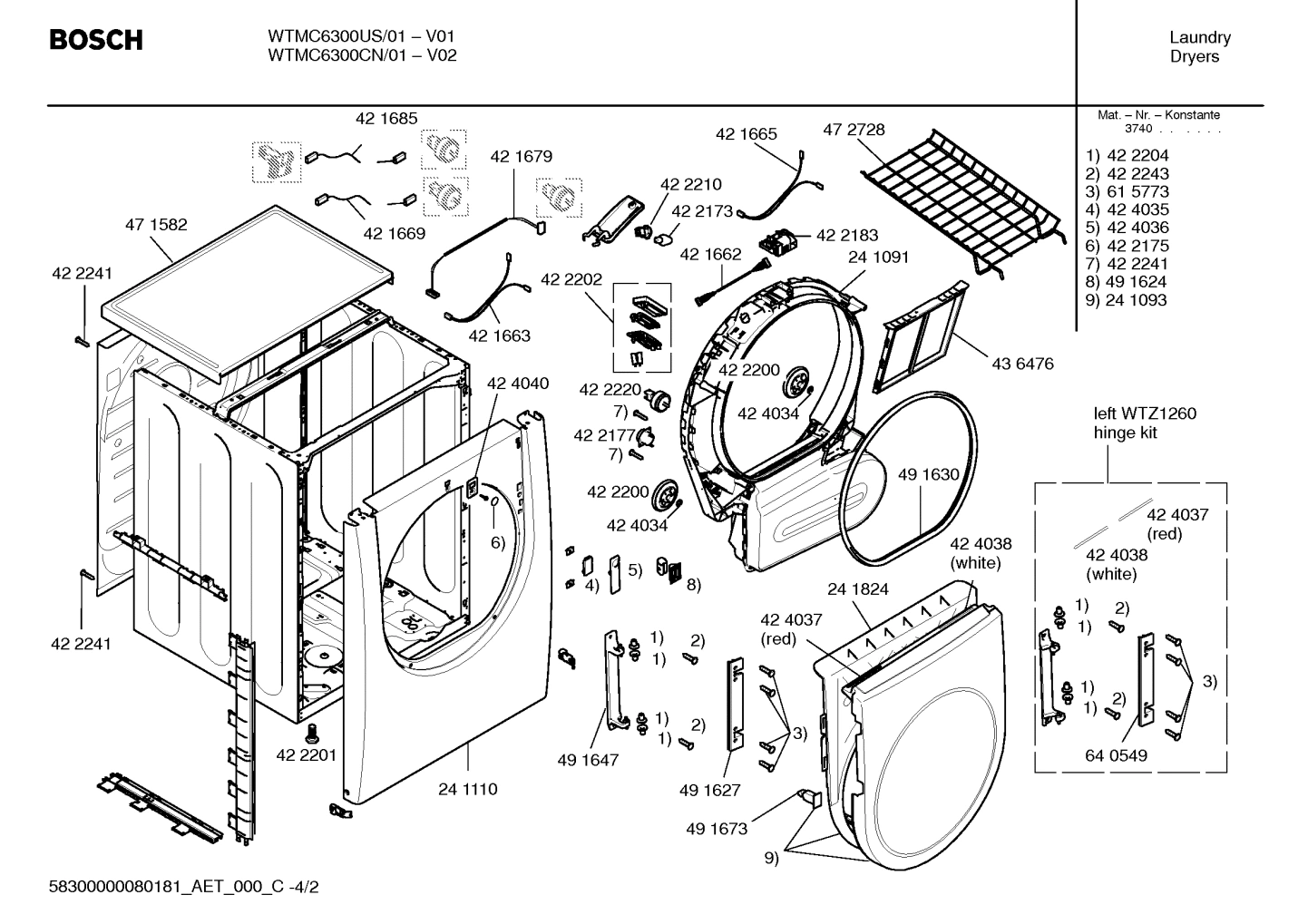

Diagram 2

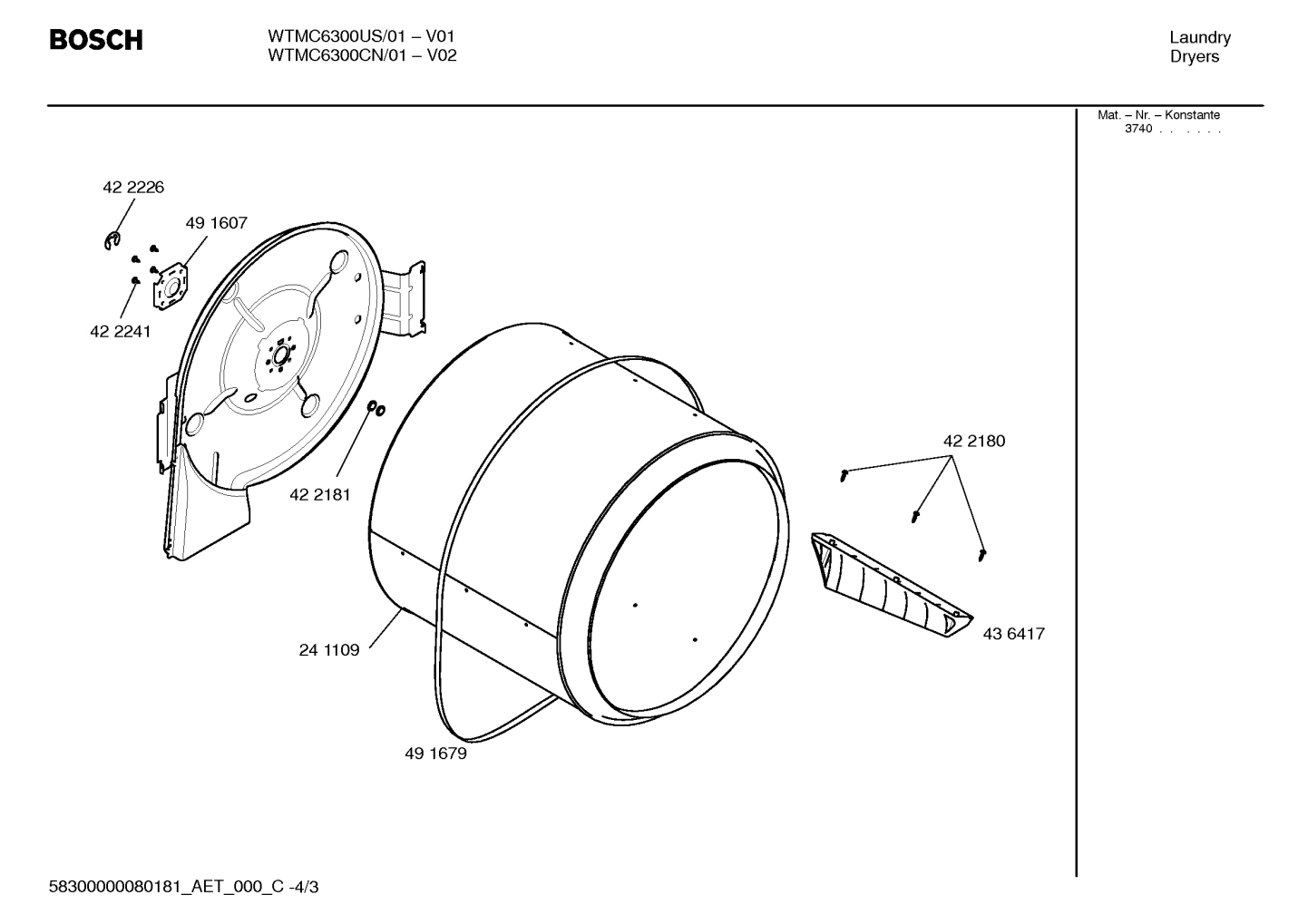

Diagram 3

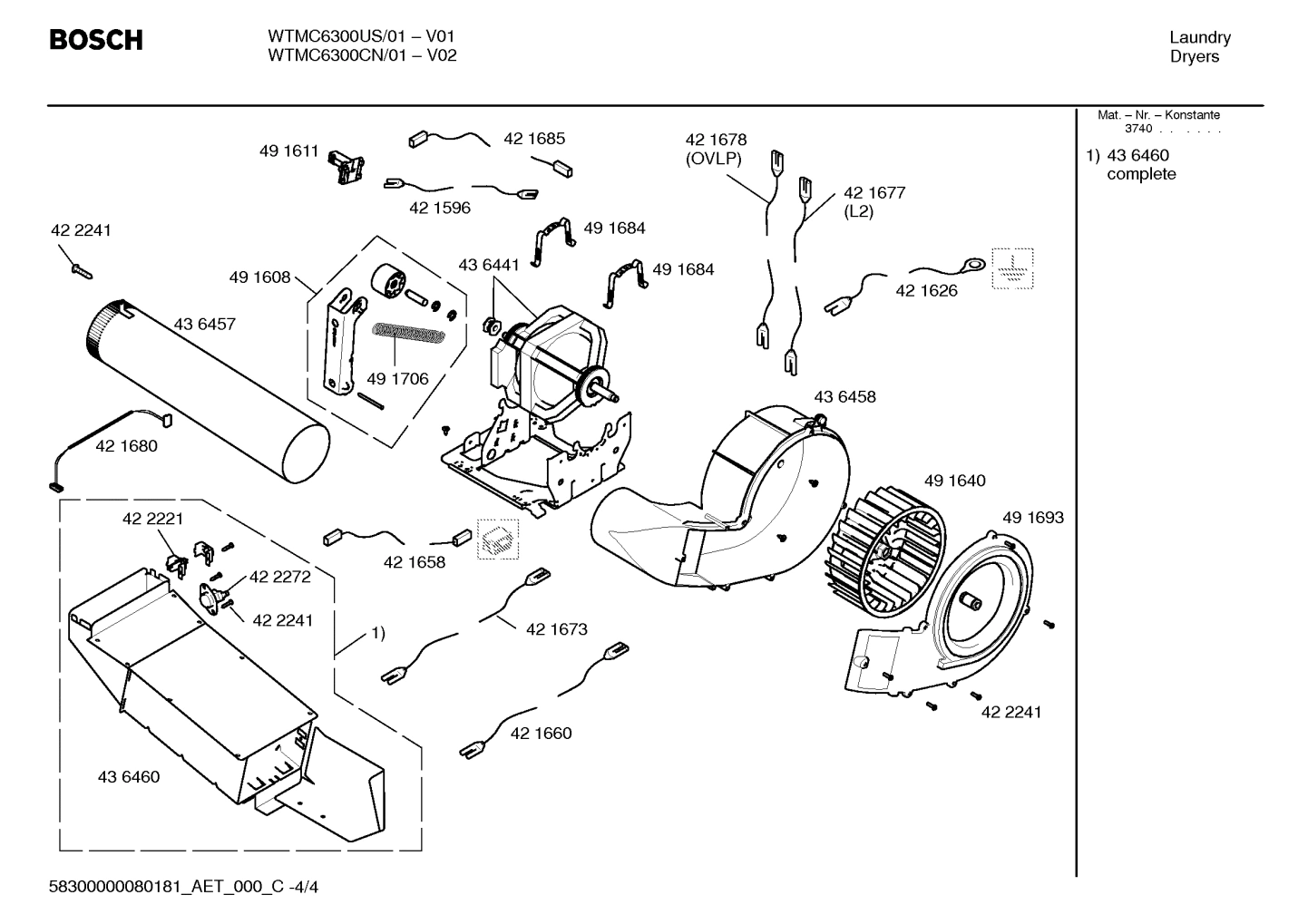

Diagram 4
Common parts from model Bosch WTMC6300US/02 Dryer
0104
Self-Tapping Screw BOS 00422240 No Longer Available
0106
Bracket BOS 00605033 Contact Us For Availability
0121
Cable harness BOS 00421665 Contact Us For Availability
0123
Cable harness BOS 00421685 Contact Us For Availability
0125
Power cord BOS 00436986 Contact Us For Availability
0206
Bushing BOS 00422210 Contact Us For Availability
0208
Front panel BOS 00244010 Contact Us For Availability
0209
Door Switch BOS 00422183 No Longer Available
0211
Moisture Sensor Assembly BOS 00422202 No Longer Available
0214
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
0218
Front BOS 00241091 Contact Us For Availability
0300
Door Seal BOS 00491630 No Longer Available
0301
Door Latch BOS 00491673 No Longer Available
0302
Lint Screen BOS 00436476 No Longer Available
0307
Cover BOS 00491627 Contact Us For Availability
0308
Screw BOS 00615773 No Longer Available
0310
Case-rear part BOS 00474975 Contact Us For Availability
0400
Drum BOS 00241109 Contact Us For Availability
0404
Washer BOS 00422181 Contact Us For Availability
0500
Exhaust baffle BOS 00436457 Contact Us For Availability
0506
Fan wheel BOS 00491640 No Longer Available
0509
Drive Motor BOS 00436441 Contact Us For Availability
0511
Sealing BOS 00491693 Contact Us For Availability
× ![]()
