Model Bosch WTMC6300US/01 Dryer – Common Parts & Diagrams

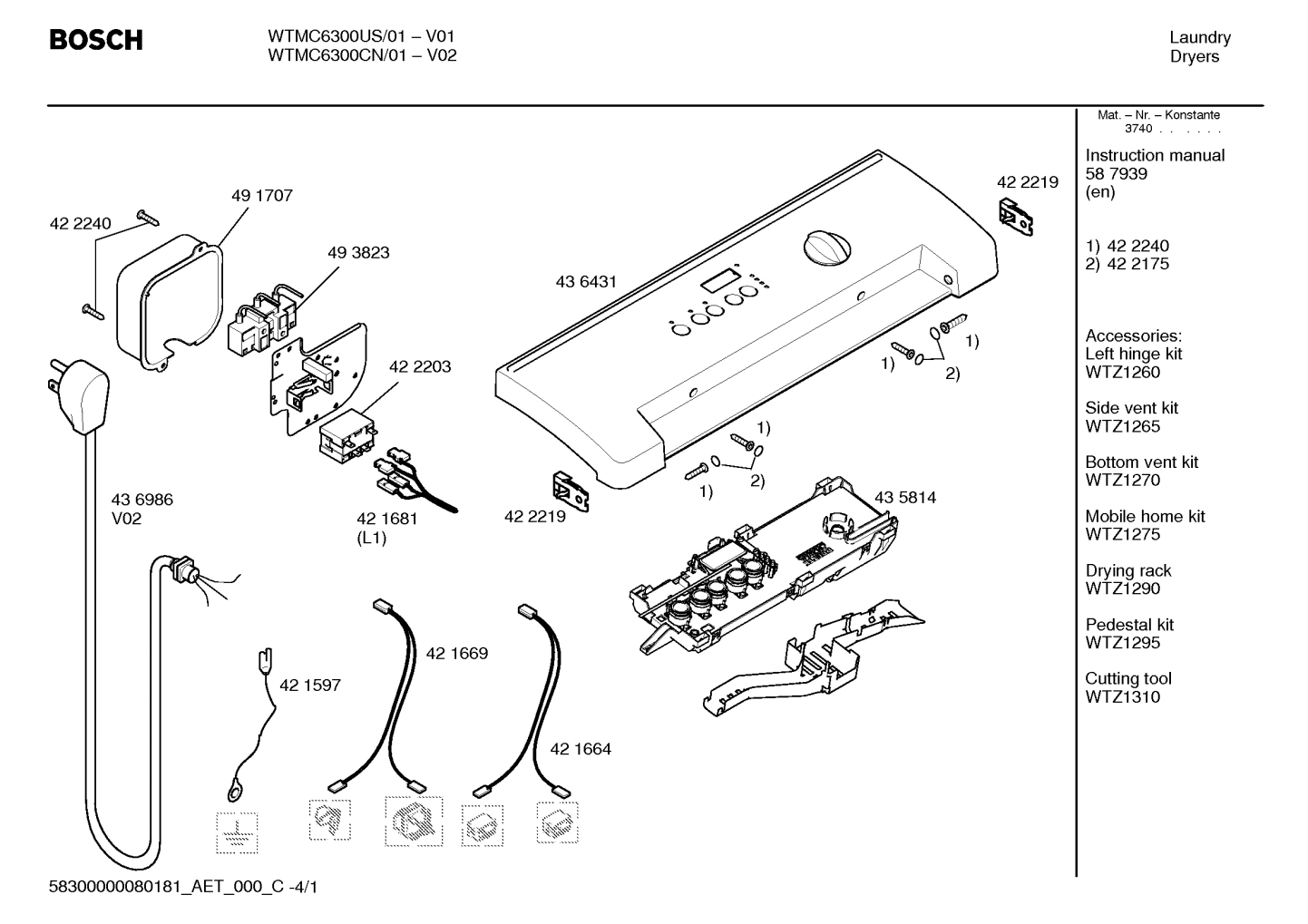

Diagram 1

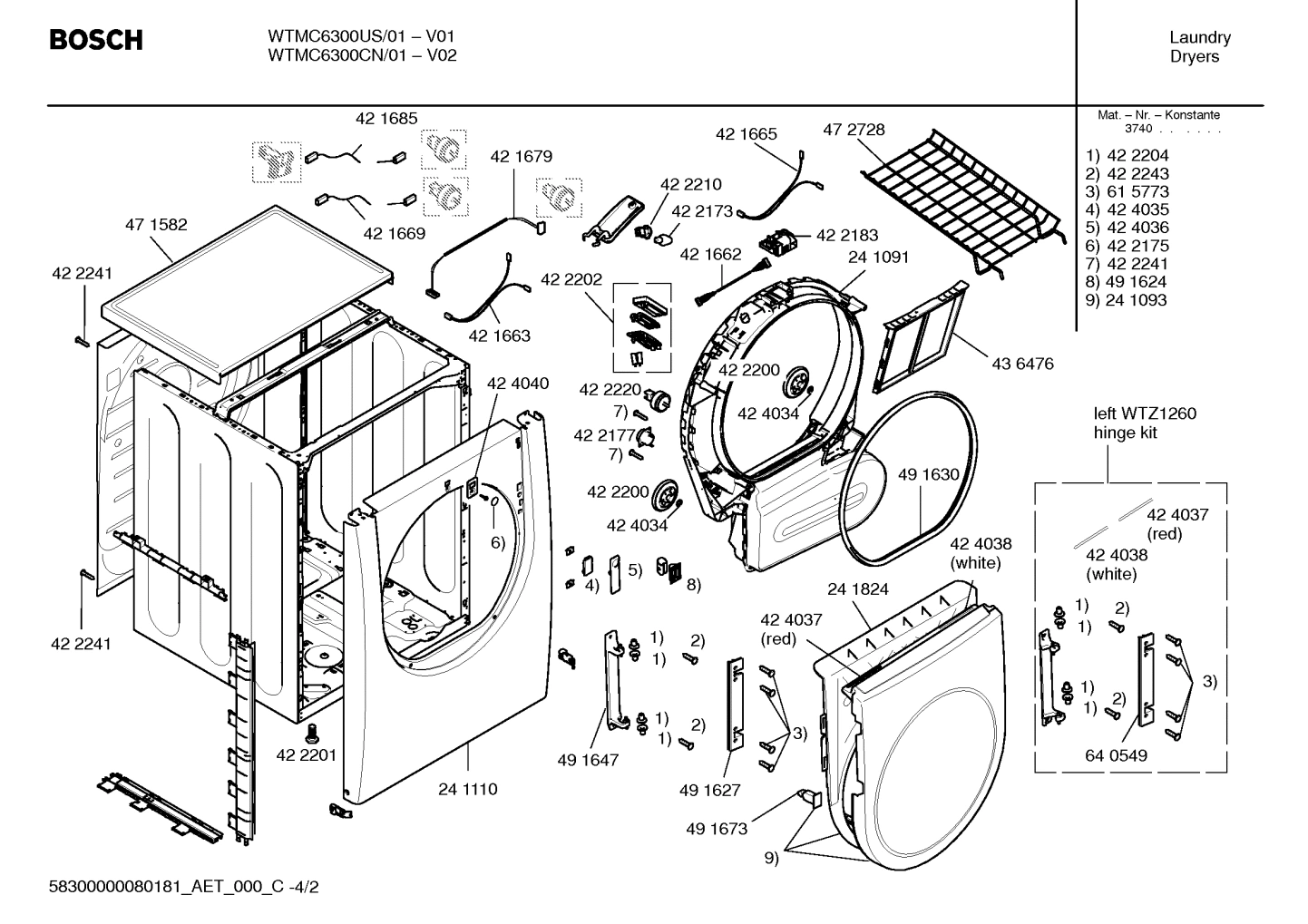

Diagram 2

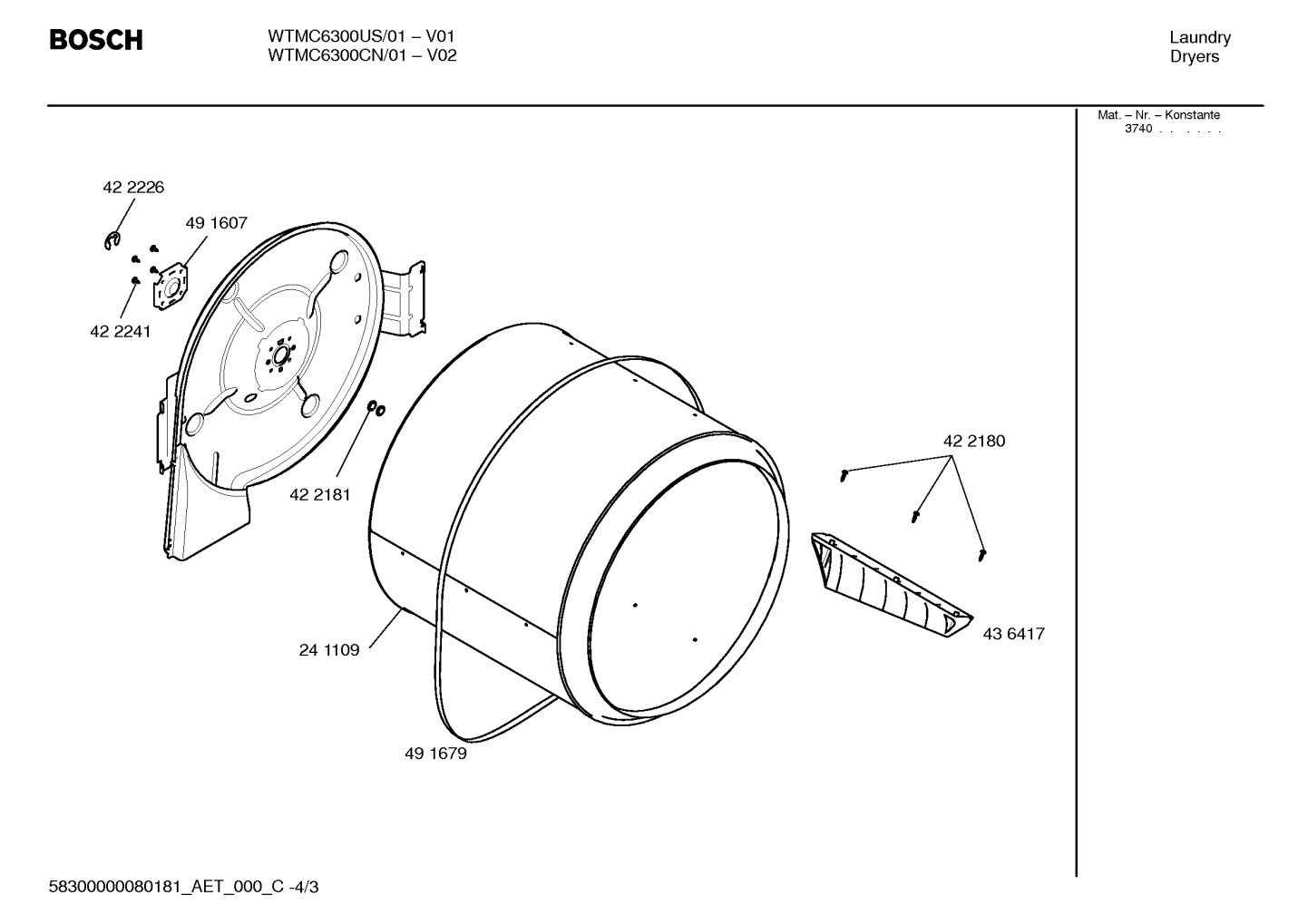

Diagram 3

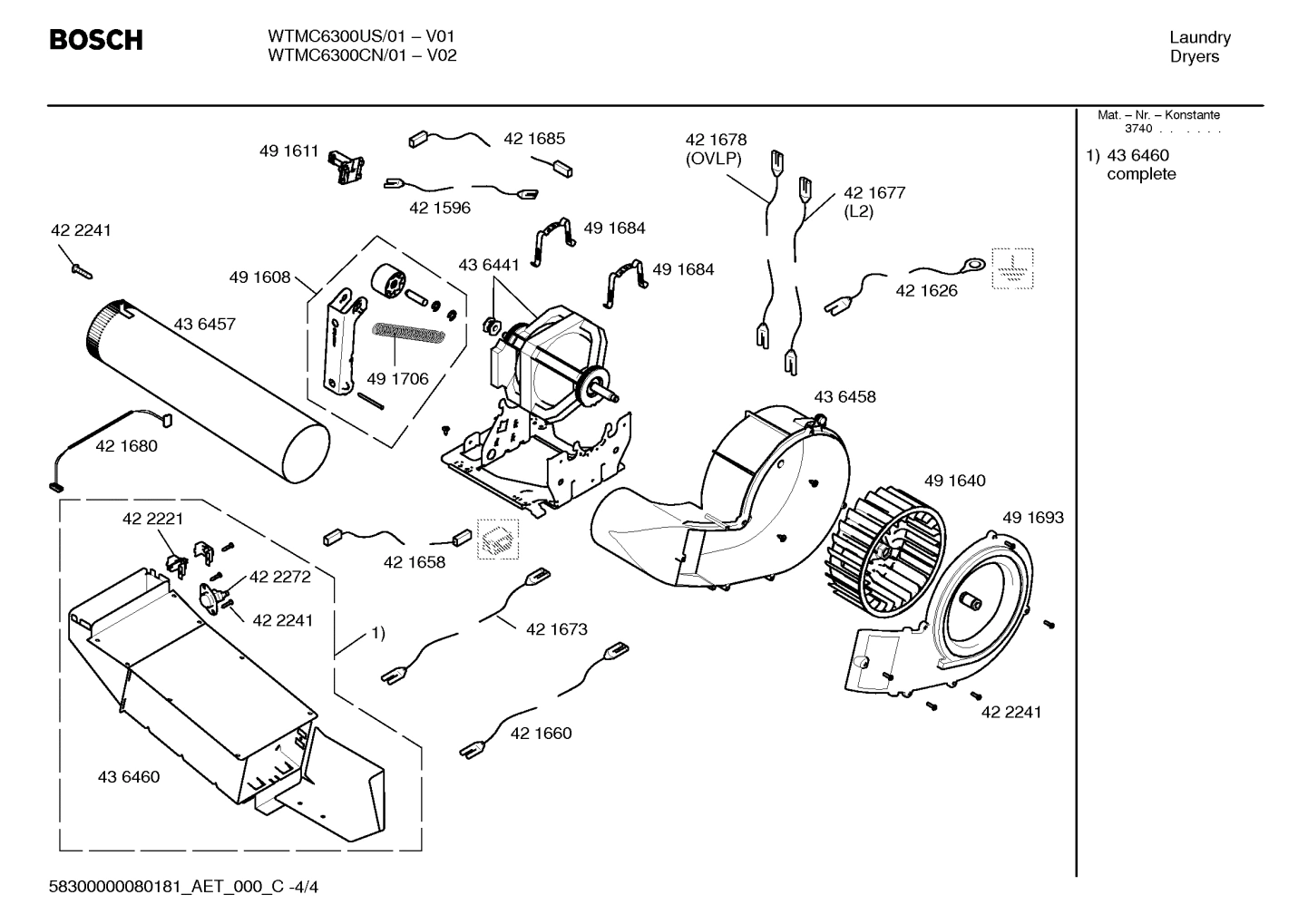

Diagram 4
Common parts from model Bosch WTMC6300US/01 Dryer
0100
Terminal BOS 00493823 Contact Us For Availability
0100
Terminal box BOS 00641153 Contact Us For Availability
0103
Control module BOS 00435814 Contact Us For Availability
0104
Self-Tapping Screw BOS 00422240 No Longer Available
0106
Bracket BOS 00605033 Contact Us For Availability
0107
Panel-facia BOS 00436431 Contact Us For Availability
0108
Cable harness BOS 00421662 Contact Us For Availability
0110
Cable harness BOS 00421680 Contact Us For Availability
0111
Cable harness BOS 00421679 Contact Us For Availability
0119
Cable harness BOS 00421678 Contact Us For Availability
0121
Cable harness BOS 00421665 Contact Us For Availability
0122
Cable harness BOS 00421596 Contact Us For Availability
0123
Cable harness BOS 00421685 Contact Us For Availability
0124
Cable harness BOS 00421597 Contact Us For Availability
0125
Power cord BOS 00436986 Contact Us For Availability
0201
Heater-spiral BOS 00436460 Contact Us For Availability
0202
Sensor-NTC BOS 00422221 Contact Us For Availability
0205
Lamp BOS 00422173 Contact Us For Availability
0206
Bushing BOS 00422210 Contact Us For Availability
0208
Front panel BOS 00244010 Contact Us For Availability
0209
Switch-door BOS 00422183 No Longer Available
0210
Holder BOS 00491624 Contact Us For Availability
0211
Sensor BOS 00422202 No Longer Available
0214
Cover BOS 00422175 Contact Us For Availability
0216
Limiter-temperature BOS 00422177 Contact Us For Availability
0218
Front BOS 00241091 Contact Us For Availability
0220
Locking cap BOS 00424040 Contact Us For Availability
0300
Seal-door BOS 00491630 Contact Us For Availability
0301
Door latch BOS 00491673 No Longer Available
0302
Filter-fluff BOS 00436476 Contact Us For Availability
0306
Sleeve BOS 00422204 Contact Us For Availability
0307
Cover BOS 00491627 Contact Us For Availability
0308
Screw BOS 00615773 Contact Us For Availability
0310
Case-rear part BOS 00474975 Contact Us For Availability
0400
Drum BOS 00241109 Contact Us For Availability
0403
Clip BOS 00422226 Contact Us For Availability
0404
Washer BOS 00422181 Contact Us For Availability
0405
Flap BOS 00436417 Contact Us For Availability
0406
Screw BOS 00422180 Contact Us For Availability
0500
Exhaust baffle BOS 00436457 Contact Us For Availability
0502
Foot BOS 00422201 Contact Us For Availability
0504
Roller-tension BOS 00491608 Contact Us For Availability
0506
Fan wheel BOS 00491640 No Longer Available
0507
Belt BOS 00491679 Contact Us For Availability
0509
Motor BOS 00436441 Contact Us For Availability
0510
Housing part BOS 00436458 Contact Us For Availability
0511
Sealing BOS 00491693 Contact Us For Availability
× ![]()
