Model Bosch WTMC532CUS/06 Dryer – Common Parts & Diagrams

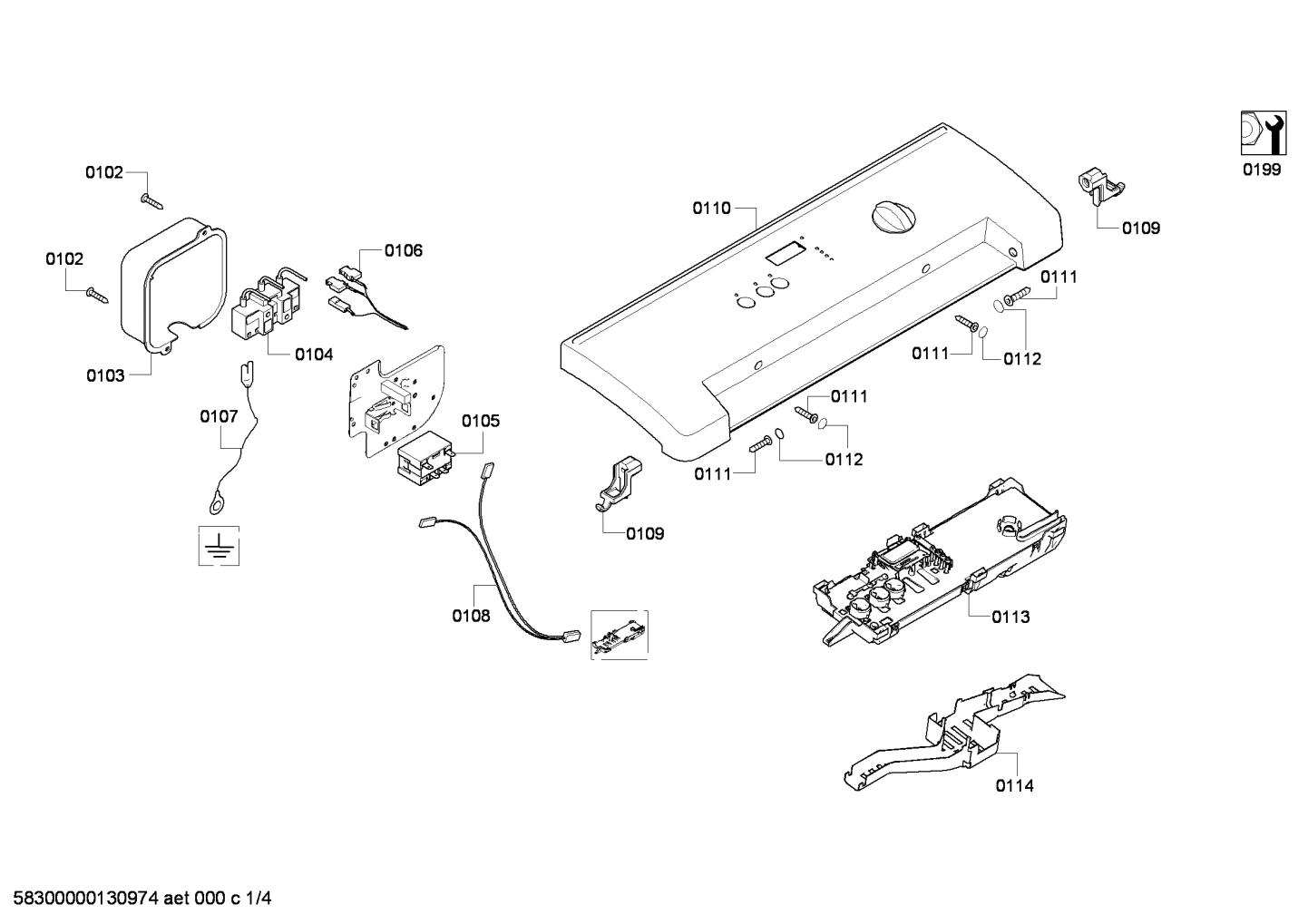

Diagram 1

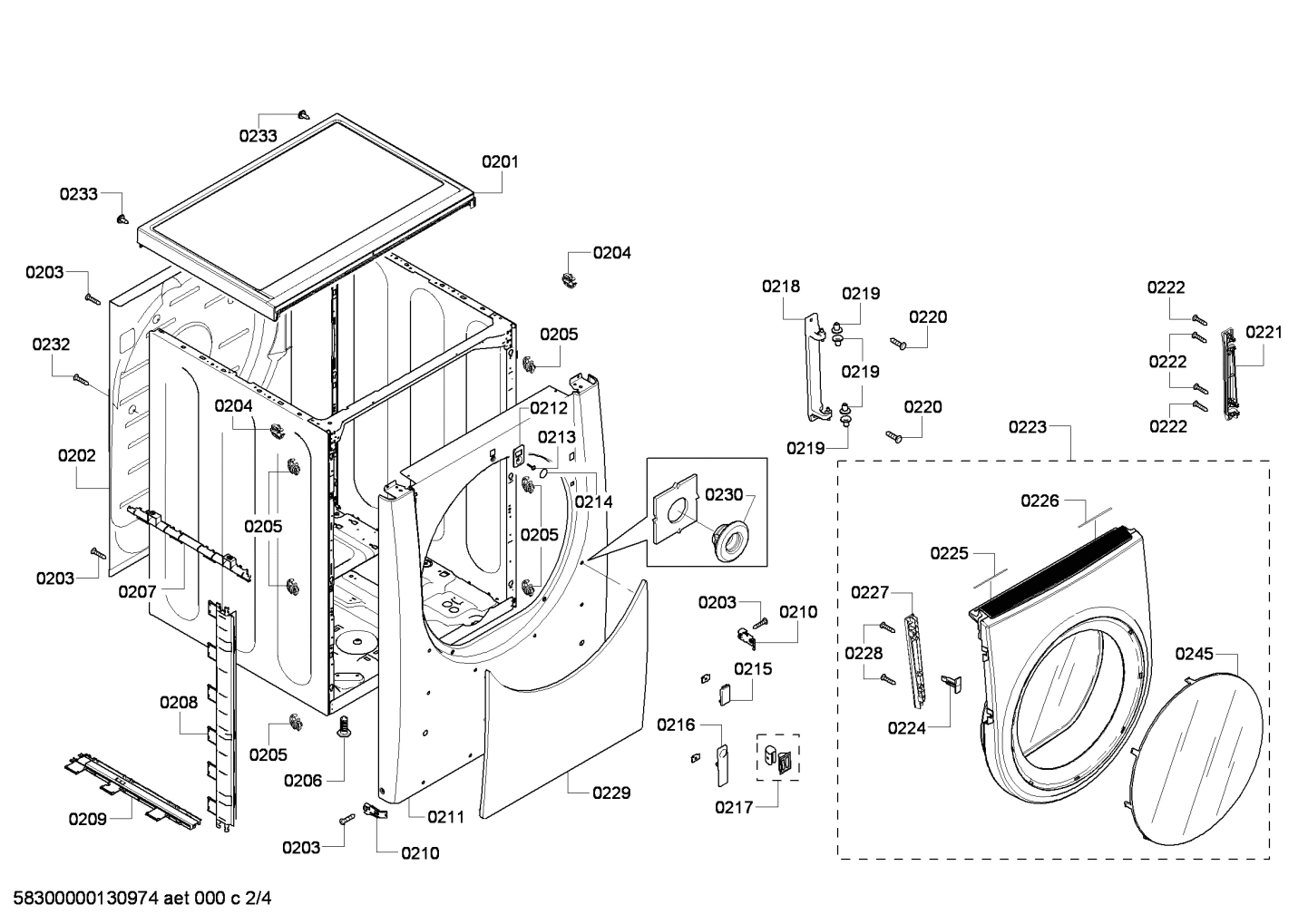

Diagram 2

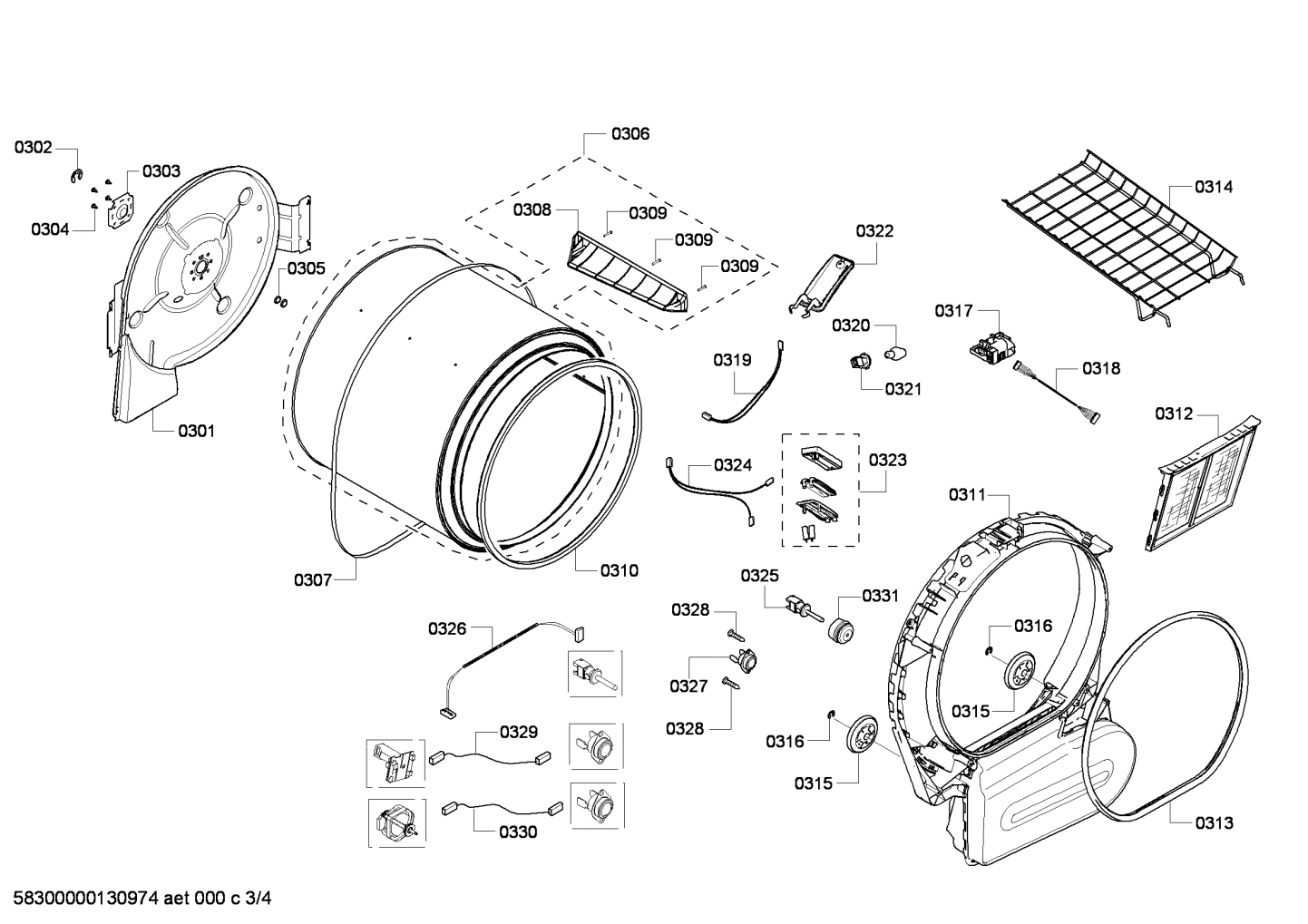

Diagram 3

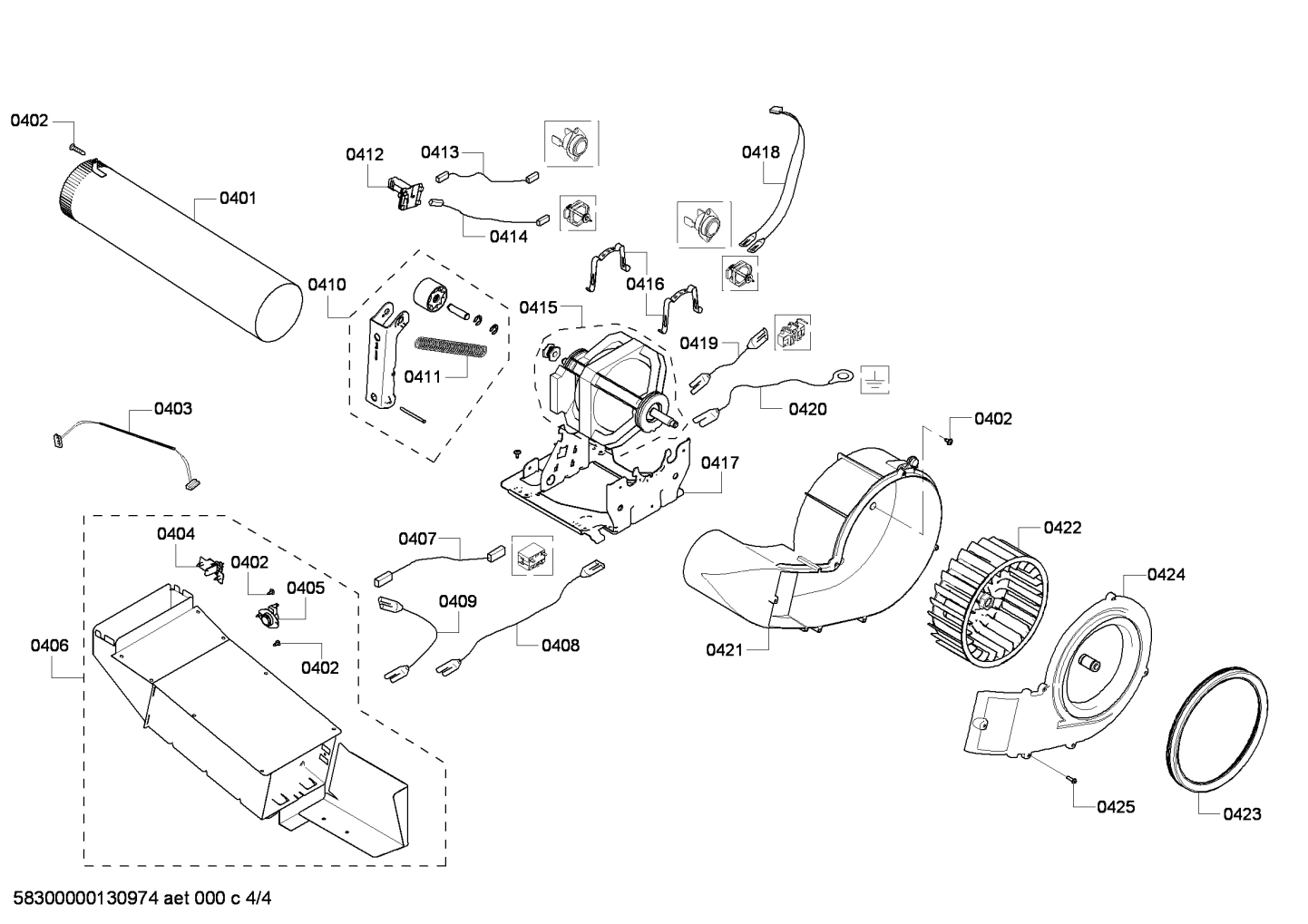

Diagram 4
Common parts from model Bosch WTMC532CUS/06 Dryer
0103
Terminal box BOS 00641115 Contact Us For Availability
0104
Terminal BOS 00493823 Contact Us For Availability
0107
Cable harness BOS 00421597 Contact Us For Availability
0109
Bracket BOS 00605033 Contact Us For Availability
0110
Panel-facia BOS 00665441 Contact Us For Availability
0111
Screw BOS 00422223 Contact Us For Availability
0113
Control module BOS 00666016 Contact Us For Availability
0201
Cover BOS 00478177 Contact Us For Availability
0204
Plug BOS 00605032 Contact Us For Availability
0205
Plug BOS 00427416 Contact Us For Availability
0206
Foot BOS 00422201 Contact Us For Availability
0213
Screw BOS 00422180 Contact Us For Availability
0214
Cover BOS 00422175 Contact Us For Availability
0215
Locking cap BOS 00424035 Contact Us For Availability
0216
Locking cap BOS 00424036 No Longer Available
0217
Holder BOS 00491624 Contact Us For Availability
0219
Sleeve BOS 00422204 Contact Us For Availability
0221
Cover BOS 00491627 Contact Us For Availability
0222
Screw BOS 00615773 Contact Us For Availability
0224
Door latch BOS 00491673 No Longer Available
0233
Screw BOS 00422240 No Longer Available
0245
Window BOS 00680865 Contact Us For Availability
0301
Case-rear part BOS 00474975 Contact Us For Availability
0302
Clip BOS 00422226 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0306
Drum BOS 00241109 Contact Us For Availability
0307
Belt BOS 00491679 Contact Us For Availability
0308
Flap BOS 00436417 Contact Us For Availability
0310
Sealing strip BOS 00649746 Contact Us For Availability
0311
Front BOS 00241091 Contact Us For Availability
0312
Filter-fluff BOS 00436476 Contact Us For Availability
0313
Seal-door BOS 00491630 Contact Us For Availability
0317
Switch-door BOS 00422183 No Longer Available
0318
Cable harness BOS 00421662 Contact Us For Availability
0319
Cable harness BOS 00421665 Contact Us For Availability
0320
Lamp BOS 00422173 Contact Us For Availability
0321
Bushing BOS 00422210 Contact Us For Availability
0323
Sensor BOS 00422202 No Longer Available
0326
Cable harness BOS 00421679 Contact Us For Availability
0327
Limiter-temperature BOS 00422177 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0403
Cable harness BOS 00421680 Contact Us For Availability
0404
Sensor-NTC BOS 00422221 Contact Us For Availability
0406
Heater-spiral BOS 00436460 Contact Us For Availability
0410
Roller-tension BOS 00491608 Contact Us For Availability
0413
Cable harness BOS 00421685 Contact Us For Availability
0414
Cable harness BOS 00421596 Contact Us For Availability
0415
Motor BOS 00436441 Contact Us For Availability
0418
Cable harness BOS 00421678 Contact Us For Availability
0421
Housing part BOS 00436458 Contact Us For Availability
0422
Fan wheel BOS 00491640 No Longer Available
0423
Sealing BOS 00491693 Contact Us For Availability
0425
Screw BOS 00422239 Contact Us For Availability
× ![]()
