Model Bosch WTMB3520UC/02 Dryer – Common Parts & Diagrams

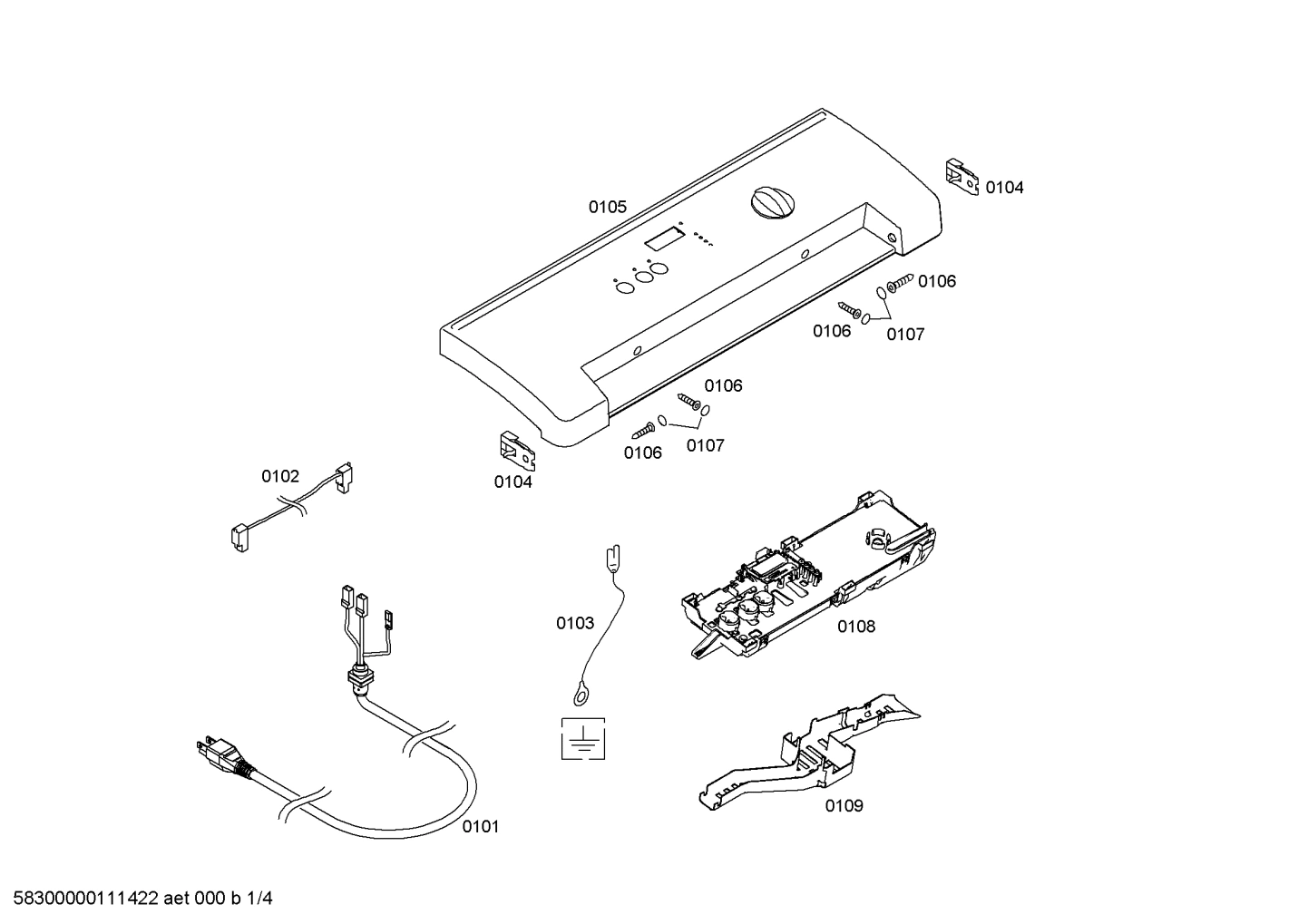

Diagram 1

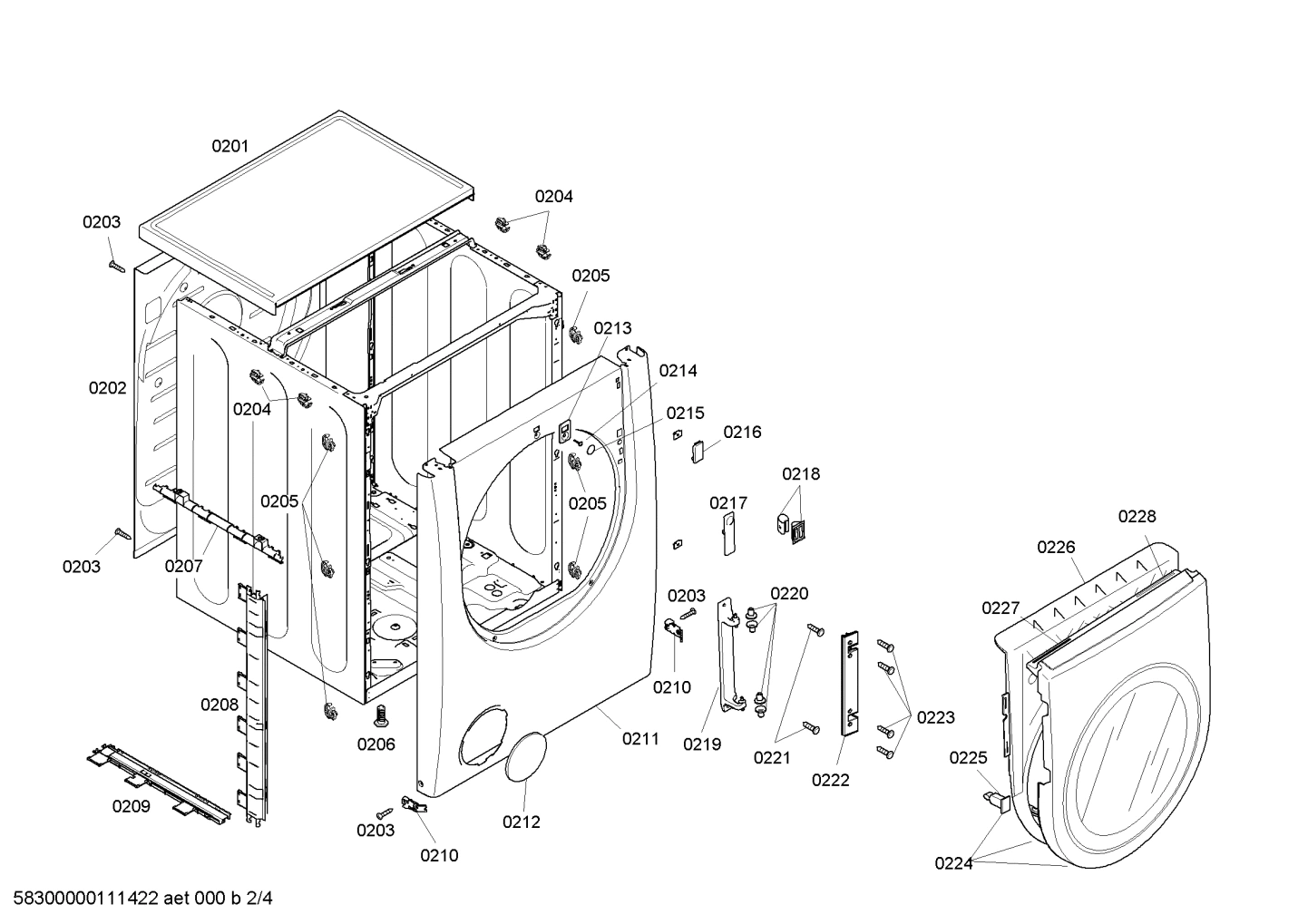

Diagram 2

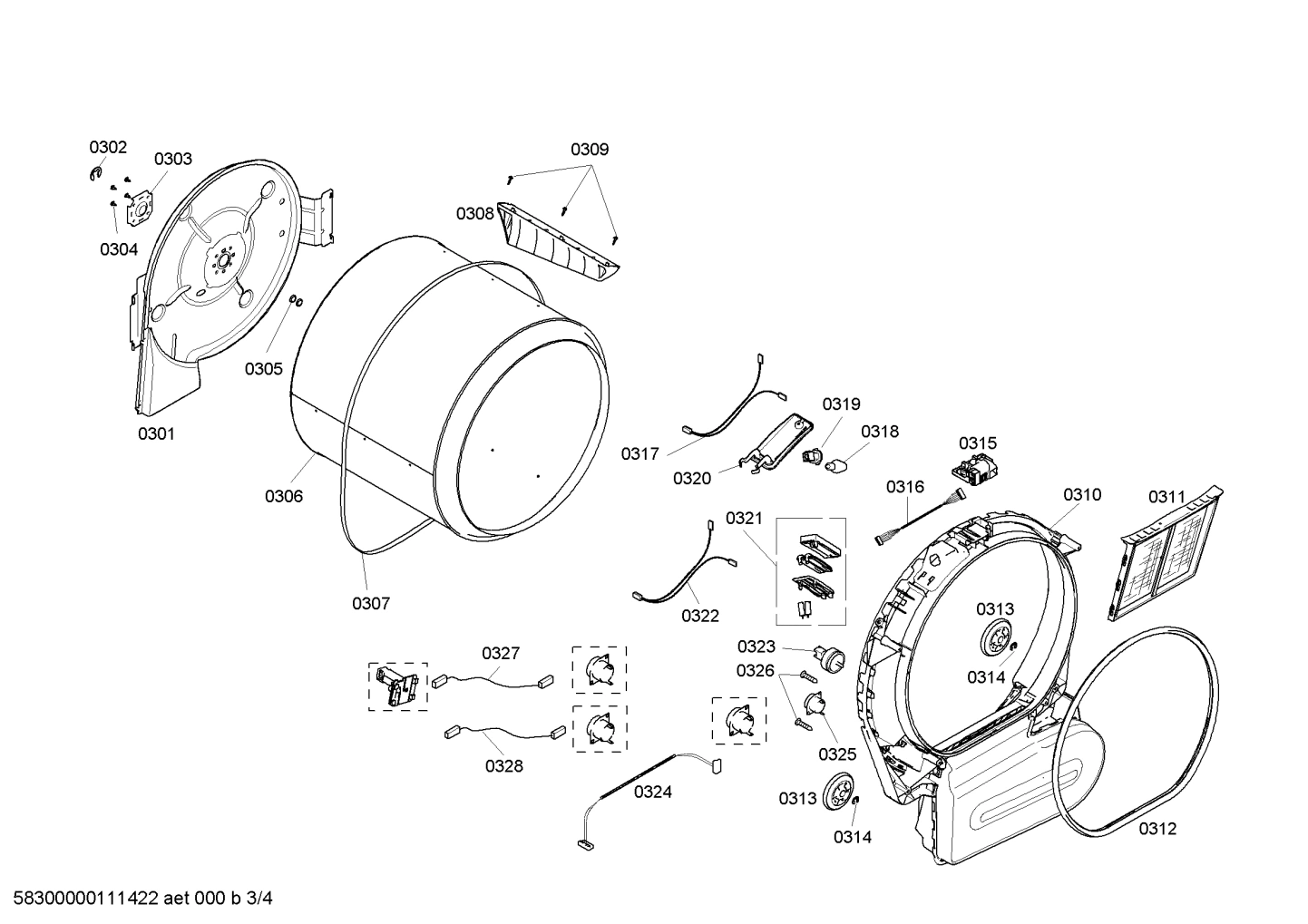

Diagram 3

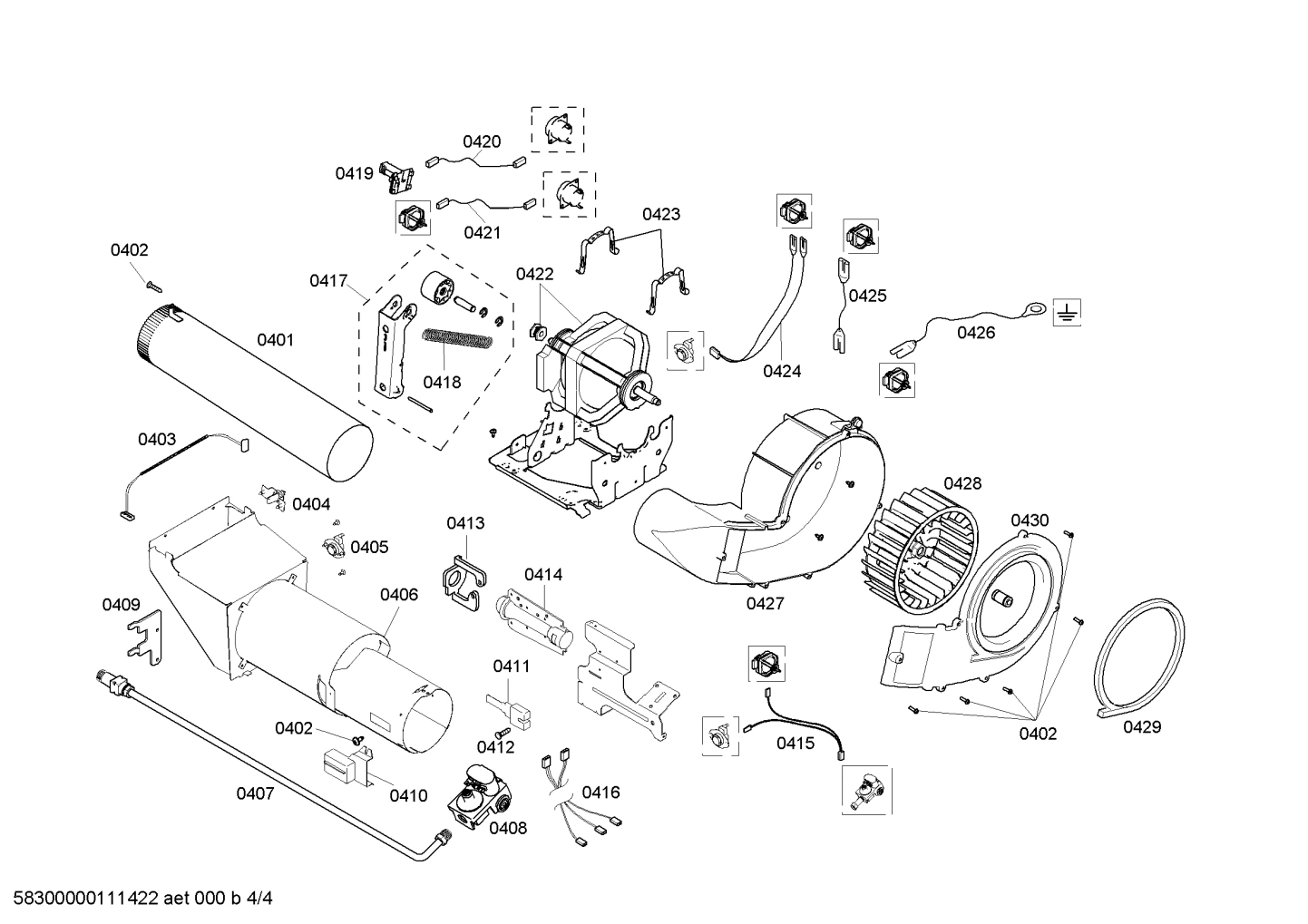

Diagram 4
Common parts from model Bosch WTMB3520UC/02 Dryer
0101
Power cord BOS 00442362 Contact Us For Availability
0103
Cable harness BOS 00421597 Contact Us For Availability
0104
Bracket BOS 00605033 Contact Us For Availability
0106
Screw BOS 00422240 No Longer Available
0107
Cover BOS 00422175 Contact Us For Availability
0108
Control module BOS 00442246 Contact Us For Availability
0205
Plug BOS 00427416 Contact Us For Availability
0206
Foot BOS 00422201 Contact Us For Availability
0212
Cover BOS 00491676 Contact Us For Availability
0216
Locking cap BOS 00424035 Contact Us For Availability
0217
Locking cap BOS 00424036 No Longer Available
0218
Holder BOS 00491624 Contact Us For Availability
0220
Sleeve BOS 00422204 Contact Us For Availability
0222
Cover BOS 00491627 Contact Us For Availability
0223
Screw BOS 00615773 Contact Us For Availability
0225
Door latch BOS 00491673 No Longer Available
0301
Case-rear part BOS 00474975 Contact Us For Availability
0302
Clip BOS 00422226 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0306
Drum BOS 00241109 Contact Us For Availability
0307
Belt BOS 00491679 Contact Us For Availability
0308
Flap BOS 00436417 Contact Us For Availability
0309
Screw BOS 00422180 Contact Us For Availability
0310
Front BOS 00241091 Contact Us For Availability
0311
Filter-fluff BOS 00436476 Contact Us For Availability
0312
Seal-door BOS 00491630 Contact Us For Availability
0315
Switch-door BOS 00422183 No Longer Available
0316
Cable harness BOS 00421662 Contact Us For Availability
0317
Cable harness BOS 00421665 Contact Us For Availability
0318
Lamp BOS 00422173 Contact Us For Availability
0319
Bushing BOS 00422210 Contact Us For Availability
0321
Sensor BOS 00422202 No Longer Available
0324
Cable harness BOS 00421679 Contact Us For Availability
0325
Limiter-temperature BOS 00422177 Contact Us For Availability
0327
Cable harness BOS 00421685 Contact Us For Availability
0328
Cable harness BOS 00421678 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0403
Cable harness BOS 00421680 Contact Us For Availability
0404
Sensor-NTC BOS 00422221 Contact Us For Availability
0405
Limiter-temperature BOS 00422273 Contact Us For Availability
0408
Valve BOS 00497069 Contact Us For Availability
0411
Ignition device BOS 00491648 Contact Us For Availability
0412
Screw BOS 00422242 Contact Us For Availability
0415
Cable harness BOS 00421675 Contact Us For Availability
0417
Roller-tension BOS 00491608 Contact Us For Availability
0421
Cable harness BOS 00421596 Contact Us For Availability
0422
Motor BOS 00436441 Contact Us For Availability
0427
Housing part BOS 00436458 Contact Us For Availability
0428
Fan wheel BOS 00491640 No Longer Available
0429
Sealing BOS 00491693 Contact Us For Availability
× ![]()
