Bosch WTL620PEE/05 Parts List

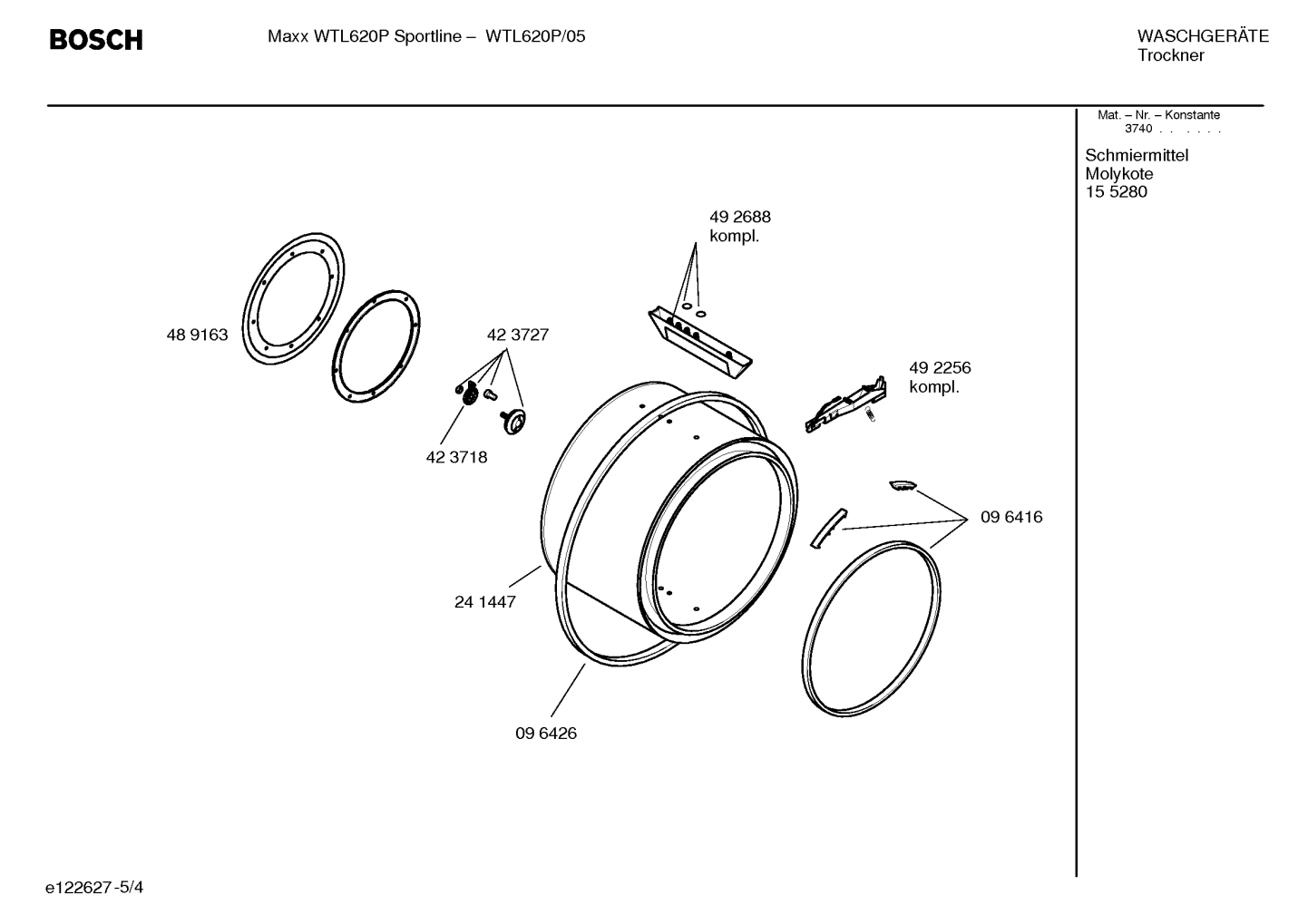

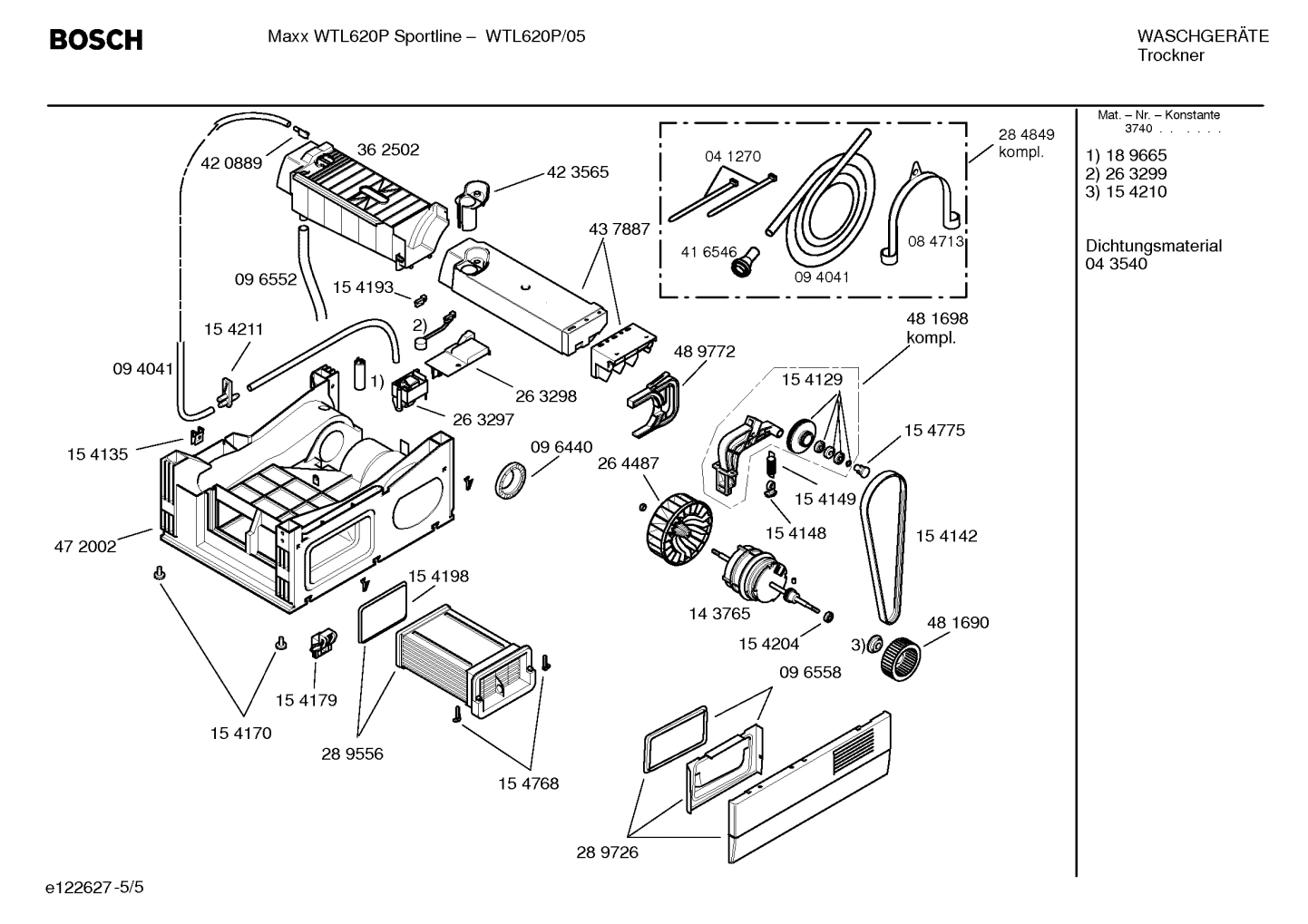

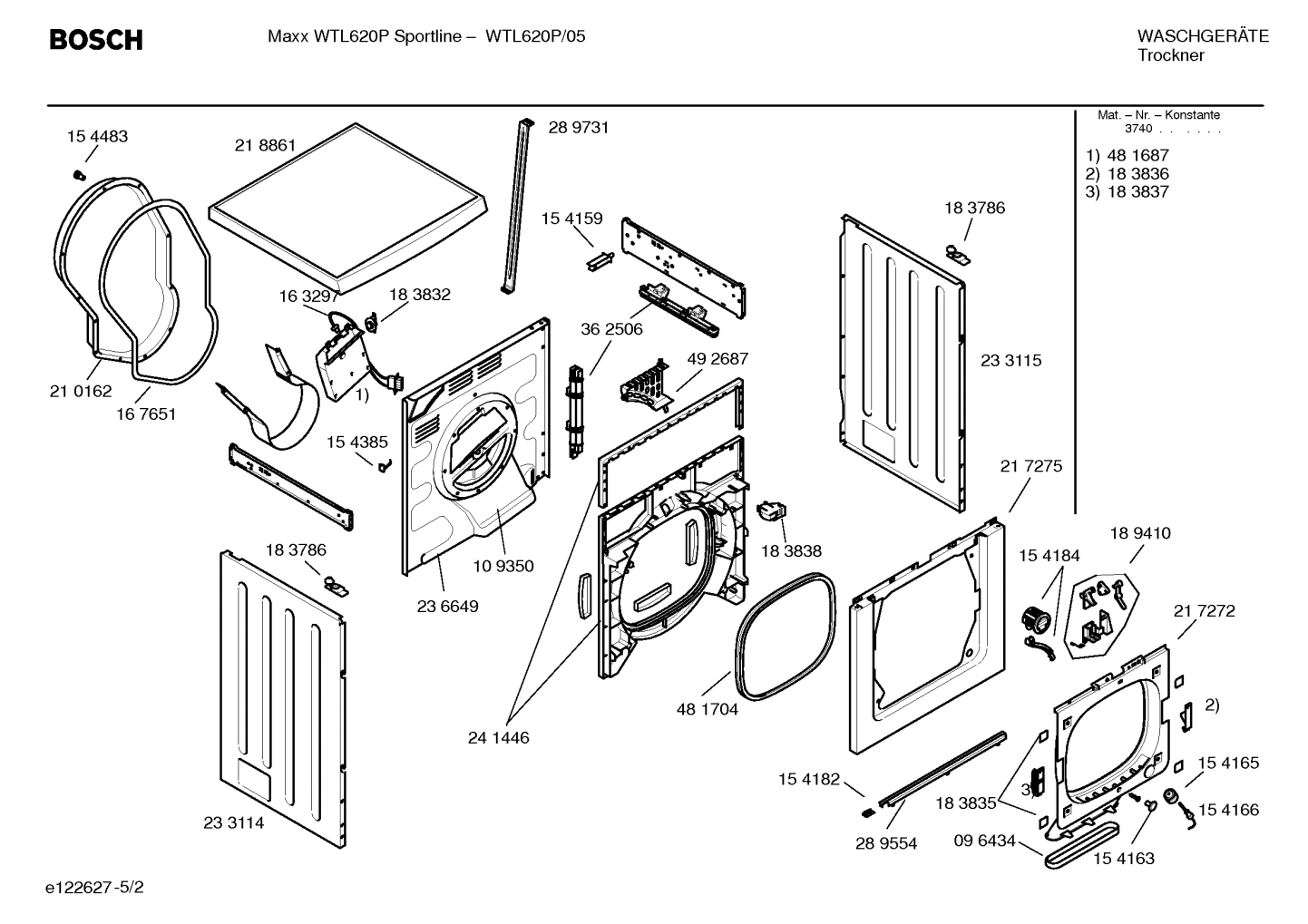

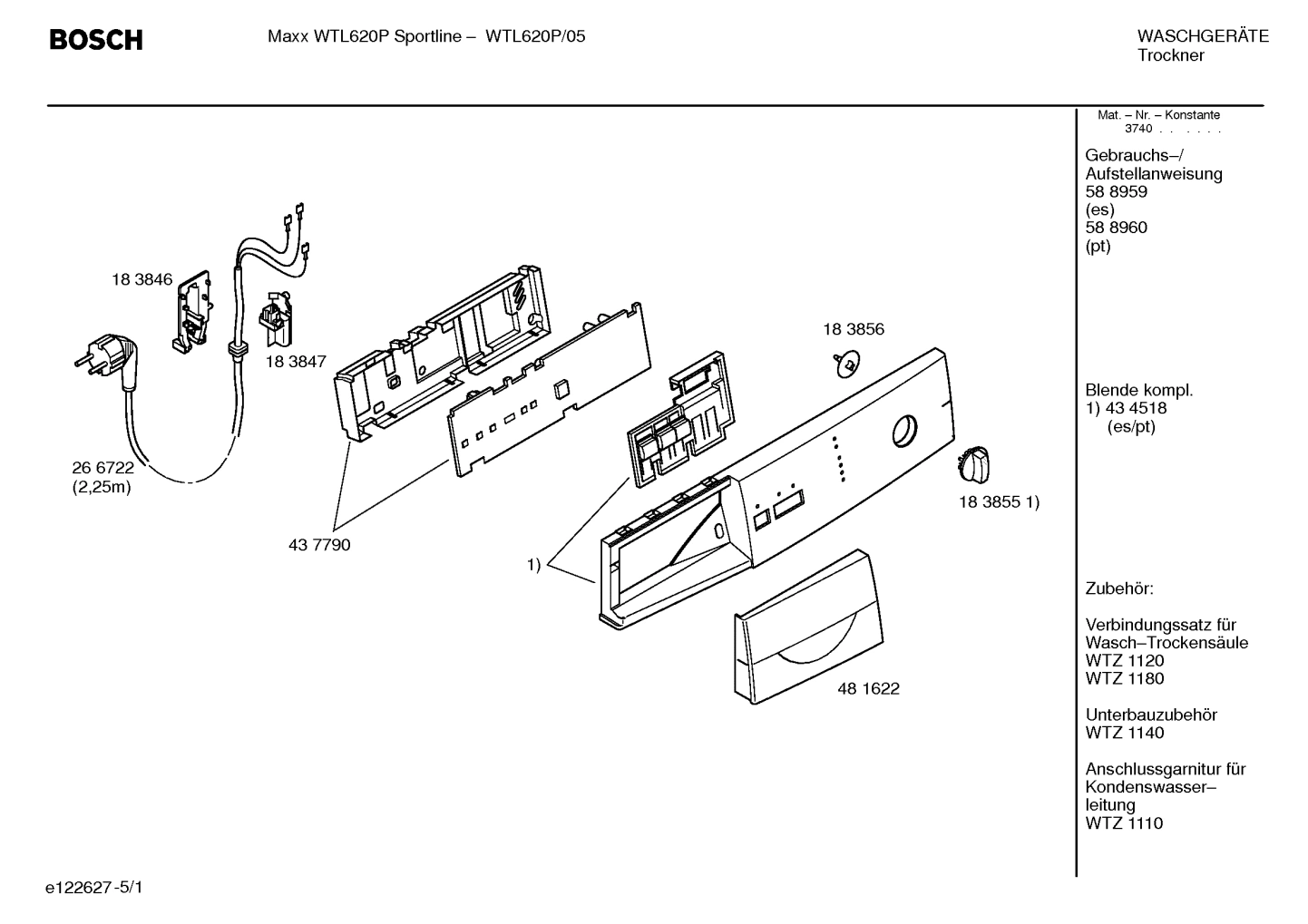

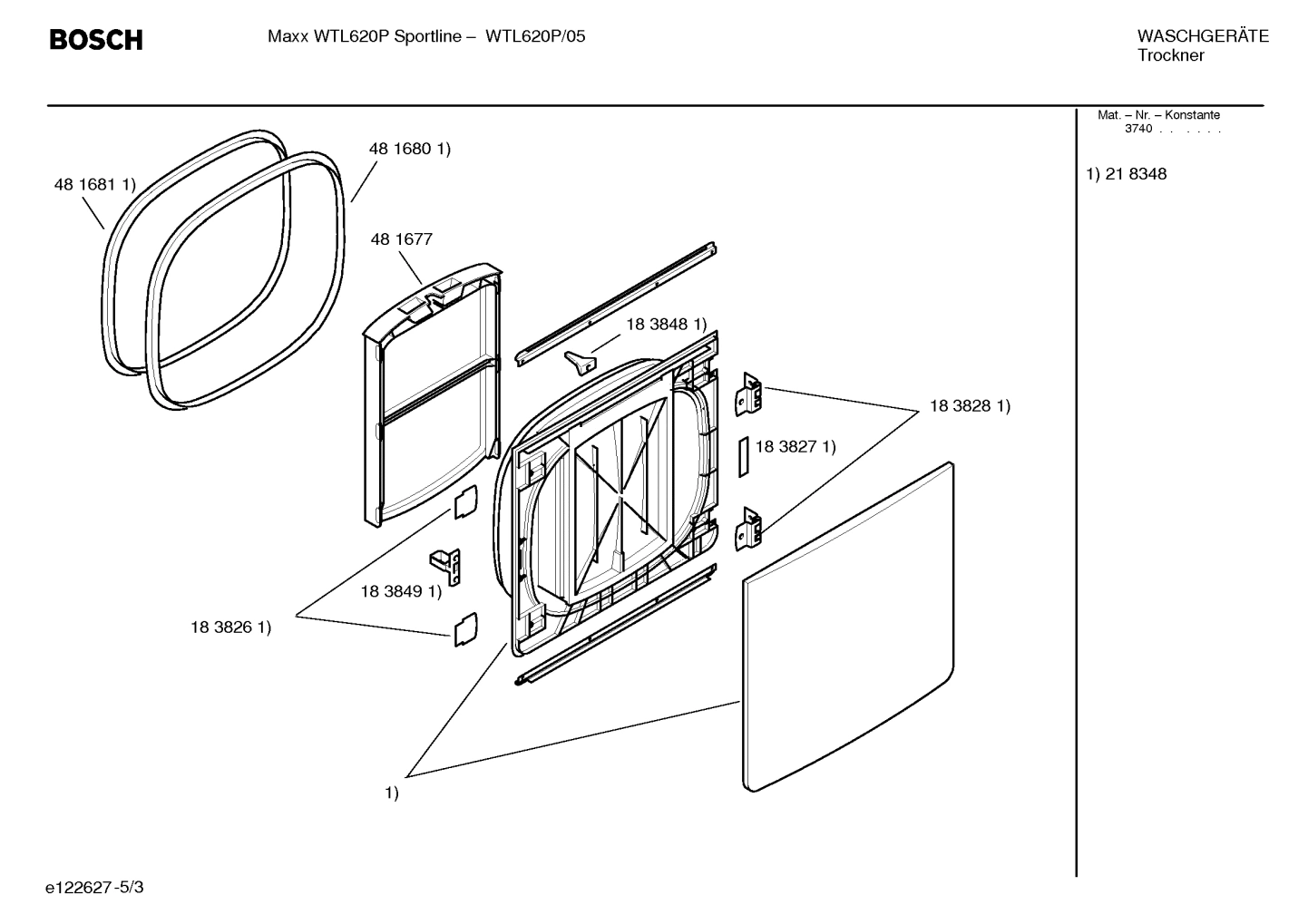

Model Bosch WTL620PEE/05 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTL620PEE/05 Dryer

Limiter-temperature

Limiter-temperature BOS 00163297 Contact Us For Availability

00167651 Bosch Laundry Sealing

00167651 Bosch Laundry Sealing Backorder BOS 00167651 $26.27

Key

Key BOS 00154184 Contact Us For Availability

00154165 Bosch Laundry Seal

00154165 Bosch Laundry Seal Backorder BOS 00154165 $24.21

10010119 Bosch Laundry Repair Set

10010119 Bosch Laundry Repair Set In Stock BOS 10010119 $36.71

00189410 Bosch Laundry Mechanical Lock

00189410 Bosch Laundry Mechanical Lock Backorder BOS 00189410 $61.29

Holder

Holder BOS 00493666 Contact Us For Availability

Seal set - drum support

Seal set - drum support BOS 00096416 Contact Us For Availability

00096426 Bosch Laundry Drive Belt

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 $62.82

00481698 Bosch Laundry Holder

00481698 Bosch Laundry Holder In Stock BOS 00481698 $350.19

Roller-tension

Roller-tension BOS 00154129 Contact Us For Availability

00094041 Bosch Laundry Outlet Hose

00094041 Bosch Laundry Outlet Hose In Stock BOS 00094041 $27.30

12013784 Bosch Laundry Outlet Hose

12013784 Bosch Laundry Outlet Hose Backorder BOS 12013784 $30.89

00154148 Bosch Laundry Holder

00154148 Bosch Laundry Holder Backorder BOS 00154148 $5.15

00154142 Bosch Laundry Drive Belt

00154142 Bosch Laundry Drive Belt In Stock BOS 00154142 $26.27

Fan drum

Fan drum BOS 00264487 Contact Us For Availability

Lock-mechanical

Lock-mechanical BOS 00154768 Contact Us For Availability

00289556 Bosch Laundry Cooler

00289556 Bosch Laundry Cooler Backorder BOS 00289556 $423.32

00154179 Bosch Laundry Door Hinge

00154179 Bosch Laundry Door Hinge Backorder BOS 00154179 $11.85

00611942 Bosch Laundry Foot

00611942 Bosch Laundry Foot In Stock BOS 00611942 $12.62

Nut

Nut BOS 00154135 Contact Us For Availability

Cover

Cover BOS 00263298 Contact Us For Availability
