Model Bosch WTL6100FG/01 Dryer – Common Parts & Diagrams

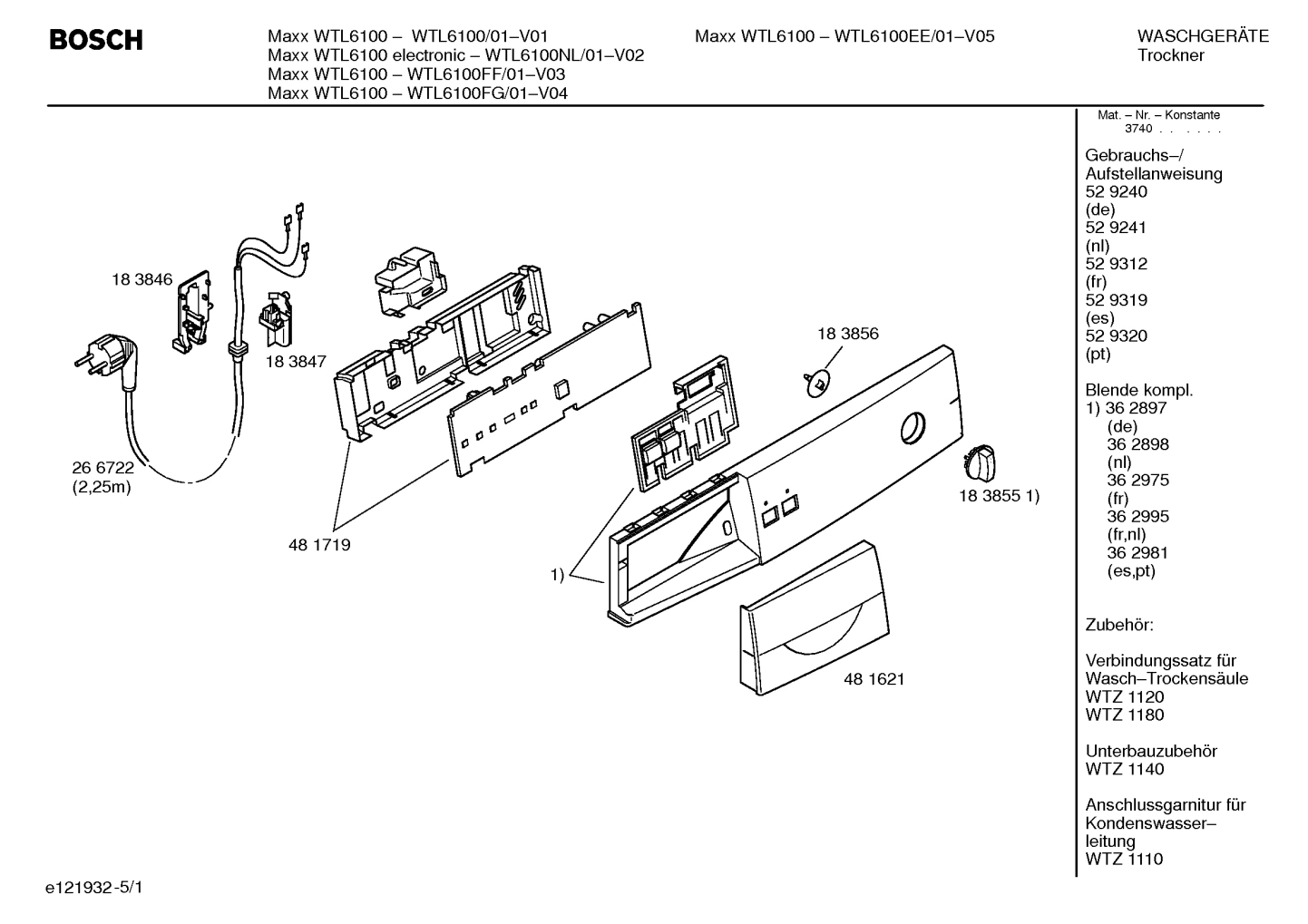

Diagram 1

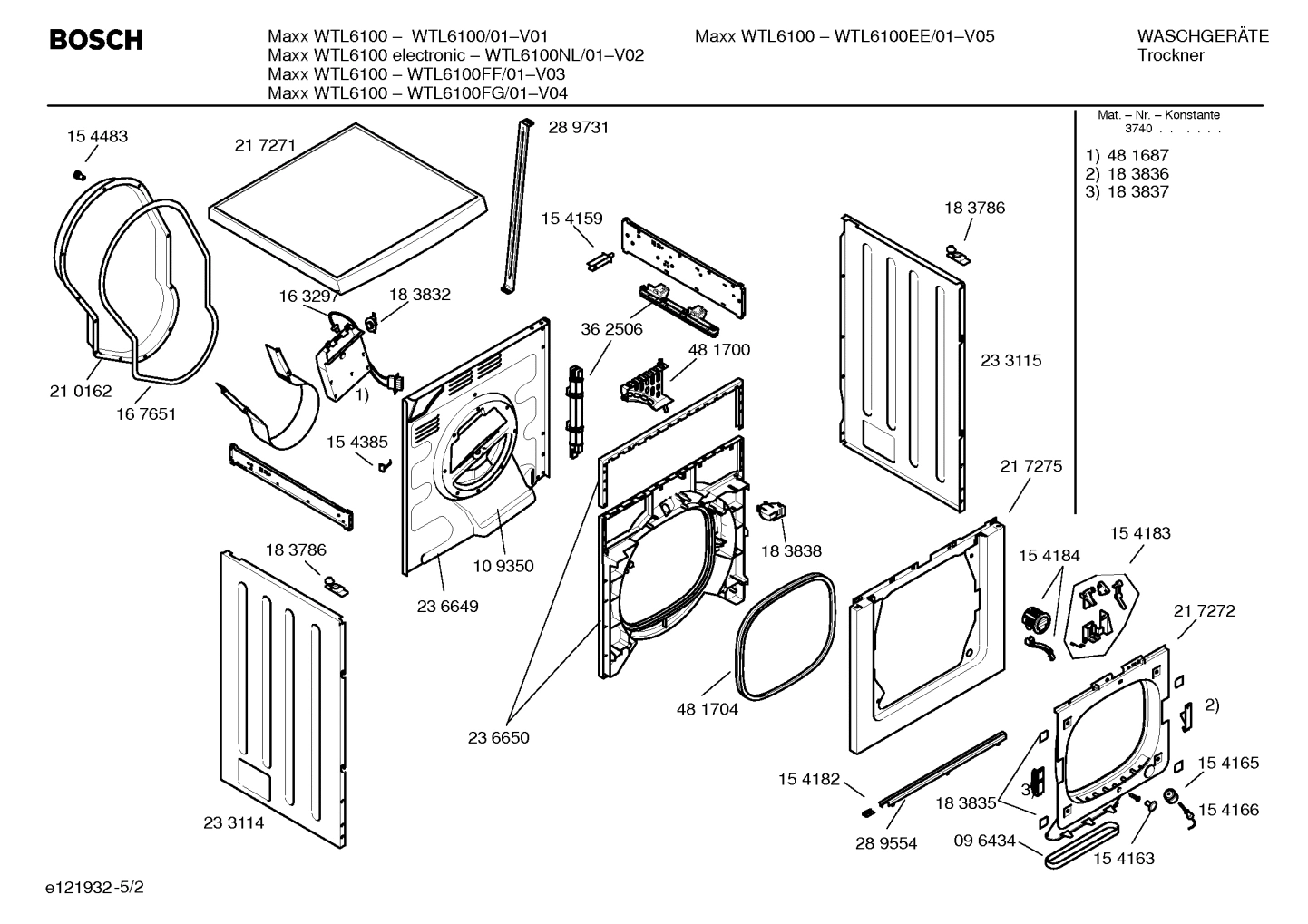

Diagram 2

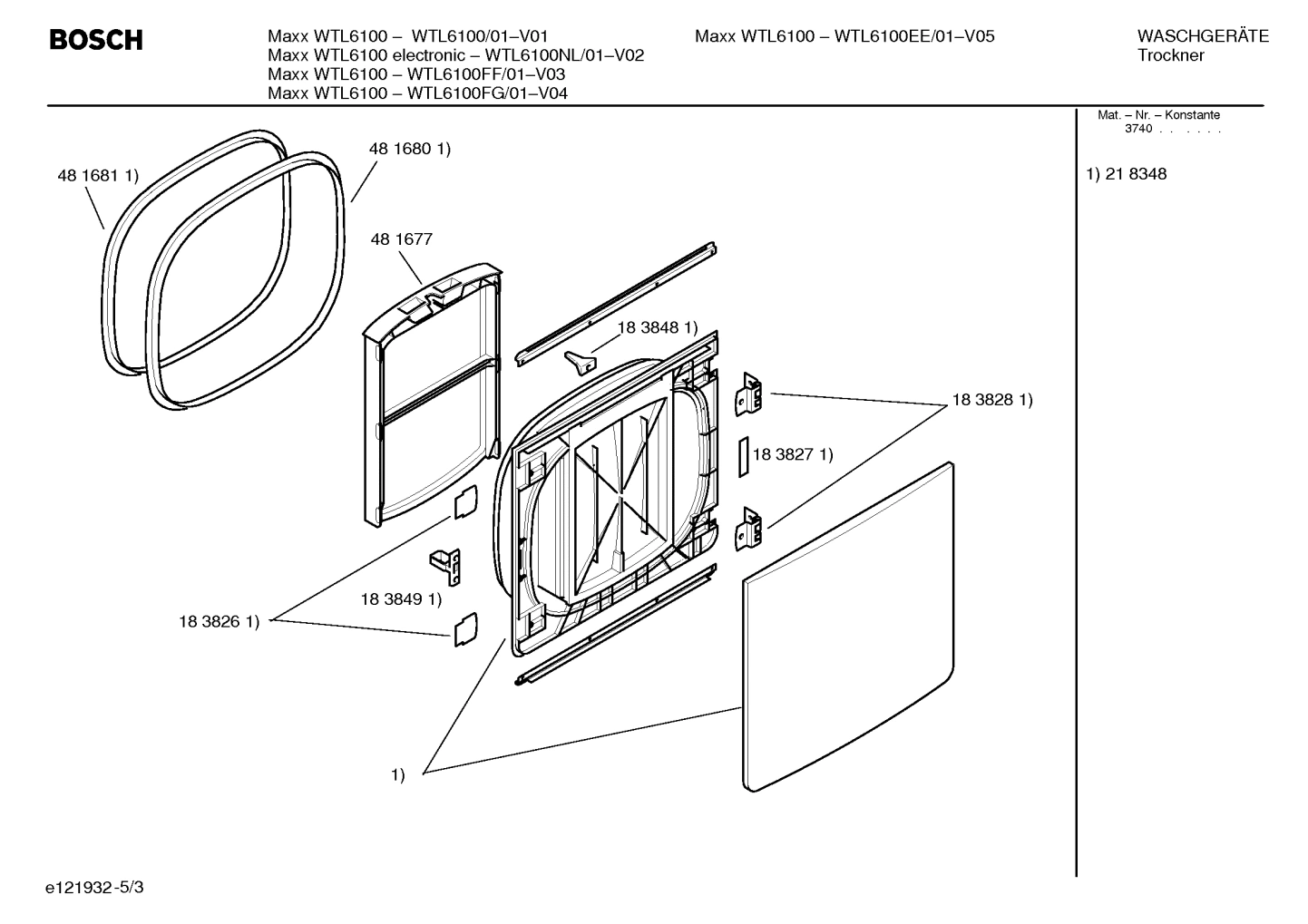

Diagram 3

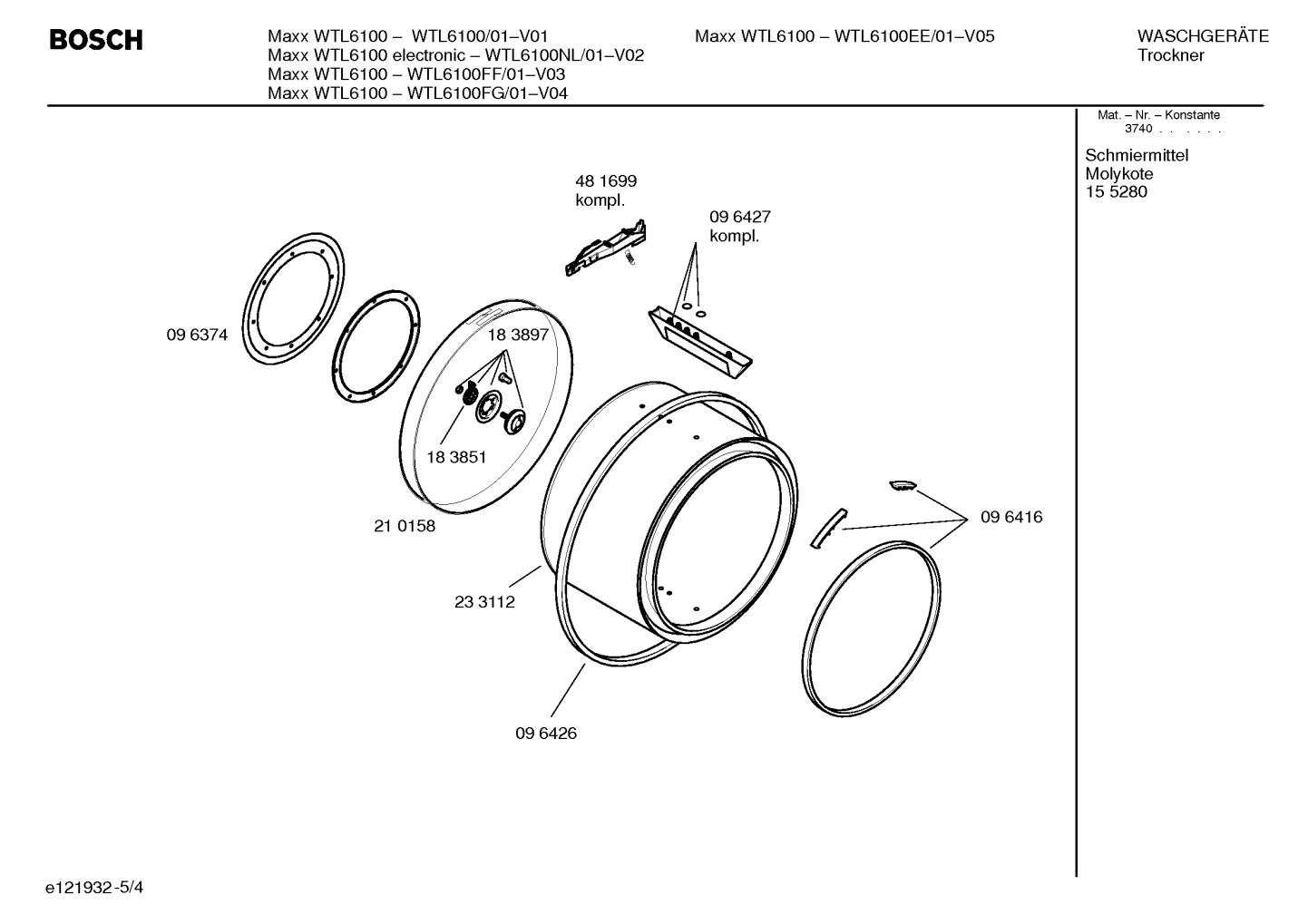

Diagram 4

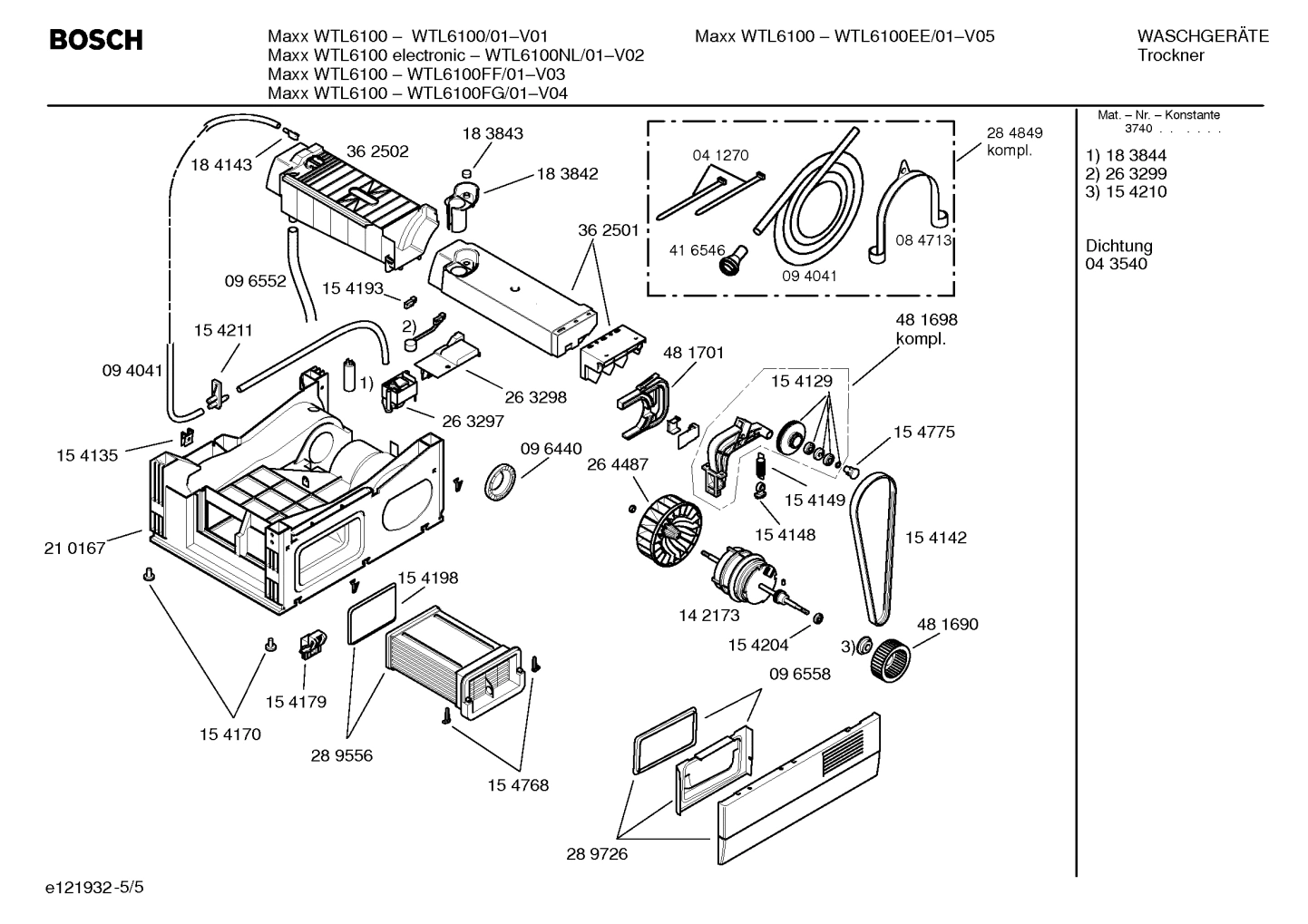

Diagram 5
Common parts from model Bosch WTL6100FG/01 Dryer
0201
Rivet BOS 00154483 Contact Us For Availability
0204
Limiter-temperature BOS 00163297 Contact Us For Availability
0205
Hood BOS 00210162 Contact Us For Availability
0210
Strip BOS 00289731 Contact Us For Availability
0211
Holder BOS 00154159 Contact Us For Availability
0213
Panel side BOS 00233115 Contact Us For Availability
0214
Panel side BOS 00233114 Contact Us For Availability
0216
Sealing BOS 00109350 Contact Us For Availability
0220
Sealing BOS 00481704 Contact Us For Availability
0221
Strip BOS 00289554 Contact Us For Availability
0222
Sealing BOS 00096434 Contact Us For Availability
0224
Key BOS 00154184 Contact Us For Availability
0225
Cover BOS 00154163 Contact Us For Availability
0403
Holder BOS 00183851 Contact Us For Availability
0404
Band BOS 00210158 Contact Us For Availability
0406
Drive coupling BOS 00096427 Contact Us For Availability
0407
Seal set - drum support BOS 00096416 Contact Us For Availability
0408
Drum BOS 00233112 Contact Us For Availability
0410
Lubricant BOS 00155280 Contact Us For Availability
0507
Holder BOS 00489772 Contact Us For Availability
0509
Roller-tension BOS 00154129 Contact Us For Availability
0518
Ball bearing BOS 00154204 Contact Us For Availability
0520
Fan drum BOS 00264487 Contact Us For Availability
0521
Panel-base BOS 00289726 Contact Us For Availability
0522
Flap BOS 00096558 Contact Us For Availability
0523
Lock-mechanical BOS 00154768 Contact Us For Availability
0525
Sealing BOS 00154198 Contact Us For Availability
0529
Nut BOS 00154135 Contact Us For Availability
0530
Hose connection inlet BOS 00154211 Contact Us For Availability
0533
Cover BOS 00263298 Contact Us For Availability
0535
Jet BOS 00096440 Contact Us For Availability
× ![]()
